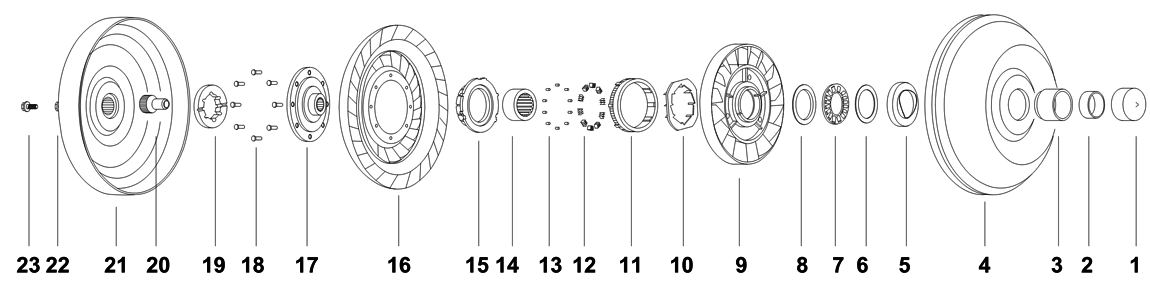

Torque Converter | GM | 254mm, TH125 (3T40), Non-Lockup | General Motors | TH-125, Non-Lockup

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-3/4" (44.4mm)
  • Length: .75"
  • Color: Gray
  • Fits 1-3/4" (44.4mm)
 MHC-P
Hubcap MHC-P
Fits 1-3/4" (44.4mm) &
  • Length: .75"
  • Color: Gray
  • Fits 1-3/4" (44.4mm)

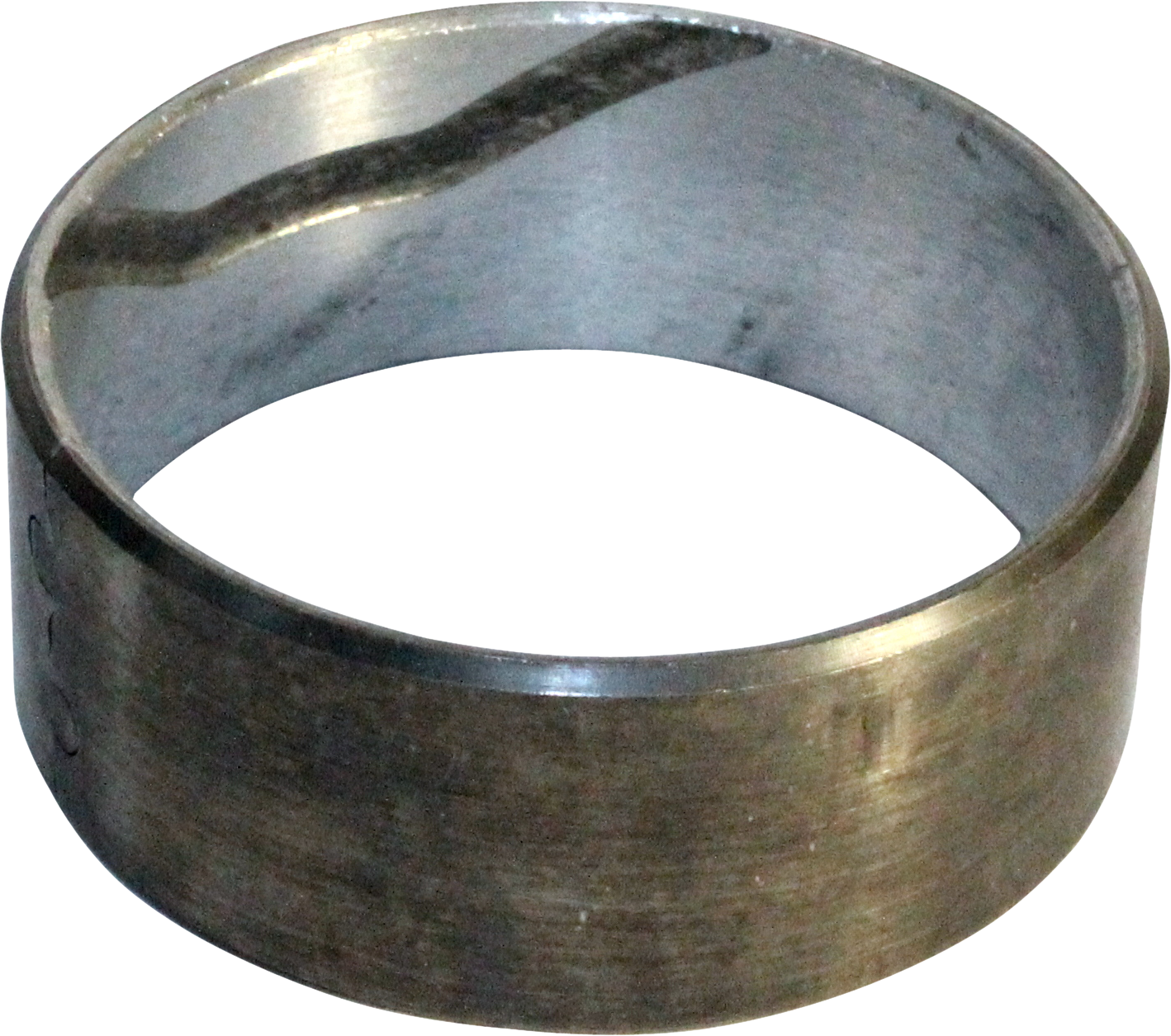

2 Bushing Hub
  • Thickness: 0.606"
  • Housing Bore Dia: 1.528"
  • Shaft Dia: 1.399"
  • Material: Babbit
 SB-18-1
Bushing SB-18-1
Hub &
  • Thickness: 0.606"
  • Housing Bore Dia: 1.528"
  • Shaft Dia: 1.399"
  • Material: Babbit
3 Impeller Hub Unfinished
  • Journal Dia: 1.748"
  • Installed Height: .750"
  • Hub Mount: Thru
 SH-1-1
Impeller Hub SH-1-1
Unfinished &
  • Journal Dia: 1.748"
  • Installed Height: .750"
  • Hub Mount: Thru
3 Impeller Hub
  • Journal Dia: 1.748"
  • Installed Height: .750"
  • Hub Mount: Thru
 SH-1-1G
Impeller Hub SH-1-1G
&
  • Journal Dia: 1.748"
  • Installed Height: .750"
  • Hub Mount: Thru
3 Impeller Hub Heat Treated, Finished
  • Journal Dia: 1.748"
  • Installed Height: .750"
  • Hub Mount: Thru
 SH-1-1GHT
Impeller Hub SH-1-1GHT
Heat Treated, Finished &
  • Journal Dia: 1.748"
  • Installed Height: .750"
  • Hub Mount: Thru
4 Impeller NPN-1-8-4
Impeller NPN-1-8-4
&

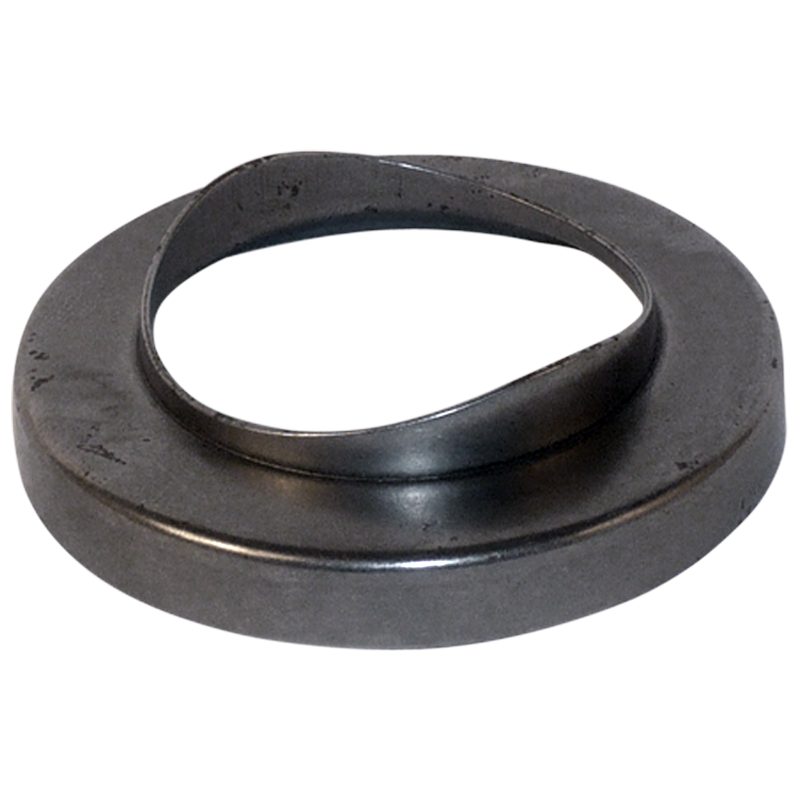

5 Bearing Race Outer
  • Thickness: .030"
  • Outside Dia: 2.25"
  • Inside Dia: 1.44"
 SW-2-4
Bearing Race SW-2-4
Outer &
  • Thickness: .030"
  • Outside Dia: 2.25"
  • Inside Dia: 1.44"
6 Washer Steel Shim
  • Thickness: .030"
  • Hardness: Rc 32-36
  • Outside Dia: 2.175"
  • Inside Dia: 1.51"
 SW-2-30
Washer SW-2-30
Steel & Shim
  • Thickness: .030"
  • Hardness: Rc 32-36
  • Outside Dia: 2.175"
  • Inside Dia: 1.51"
6 Washer Bearing Race
  • Thickness: .030"
  • Hardness: Rc 32-36
  • Material: Steel
  • Outside Dia: 2.175"
  • Inside Dia: 1.51"
 TRA-2435
Washer TRA-2435
Bearing Race &
  • Thickness: .030"
  • Hardness: Rc 32-36
  • Material: Steel
  • Outside Dia: 2.175"
  • Inside Dia: 1.51"

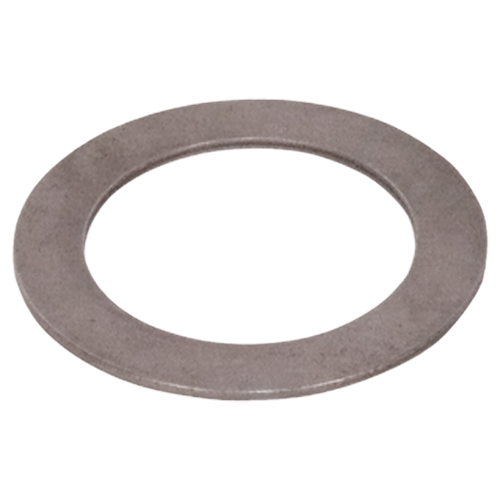

6 Bearing Race Shim
  • Thickness: 0.06"
  • Hardness: Rc 32-36
  • Outside Dia: 2.175"
  • Inside Dia: 1.51"
 SW-2-60
Bearing Race SW-2-60
& Shim
  • Thickness: 0.06"
  • Hardness: Rc 32-36
  • Outside Dia: 2.175"
  • Inside Dia: 1.51"
7 Bearing
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.175
  • Inside Dia: 1.506
  • Outside Dia Metric: 55.25
  • Inside Dia metric: 38.25
  • Race: SW-2-6, SW-2-4 WW-2-8
 SW-2-1
Bearing SW-2-1
&
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.175
  • Inside Dia: 1.506
  • Outside Dia Metric: 55.25
  • Inside Dia metric: 38.25
  • Race: SW-2-6, SW-2-4 WW-2-8
7 Bearing Heavy Duty
  • Thickness: 0.156
  • Thickness metric: 3.96
  • Bearing type: Exposed
  • Outside Dia: 2.175
  • Inside Dia: 1.506
  • Outside Dia Metric: 55.25
  • Inside Dia metric: 38.25
  • Race: SW-2-6, SW-2-4 WW-2-8
 SW-2-1HD
Bearing SW-2-1HD
Heavy Duty &
  • Thickness: 0.156
  • Thickness metric: 3.96
  • Bearing type: Exposed
  • Outside Dia: 2.175
  • Inside Dia: 1.506
  • Outside Dia Metric: 55.25
  • Inside Dia metric: 38.25
  • Race: SW-2-6, SW-2-4 WW-2-8
7_N.I. Bearing & Race Kit
  • Includes SW-2-4, SW-2-1, SW-2-6
 SW-2-3K
Bearing & Race Kit SW-2-3K
&
  • Includes SW-2-4, SW-2-1, SW-2-6
7_N.I. Bearing & Race Kit Heavy Duty
  • Includes: SW-2-4, SW-2-1HD, SW-2-6
 SW-2-3KHD
Bearing & Race Kit SW-2-3KHD
Heavy Duty &
  • Includes: SW-2-4, SW-2-1HD, SW-2-6
8 Bearing Race Inner
  • Thickness: .030"
  • Outside Dia: 2.07"
  • Inside Dia: 1.48"
  • Inside Lip
 SW-2-6
Bearing Race SW-2-6
Inner &
  • Thickness: .030"
  • Outside Dia: 2.07"
  • Inside Dia: 1.48"
  • Inside Lip

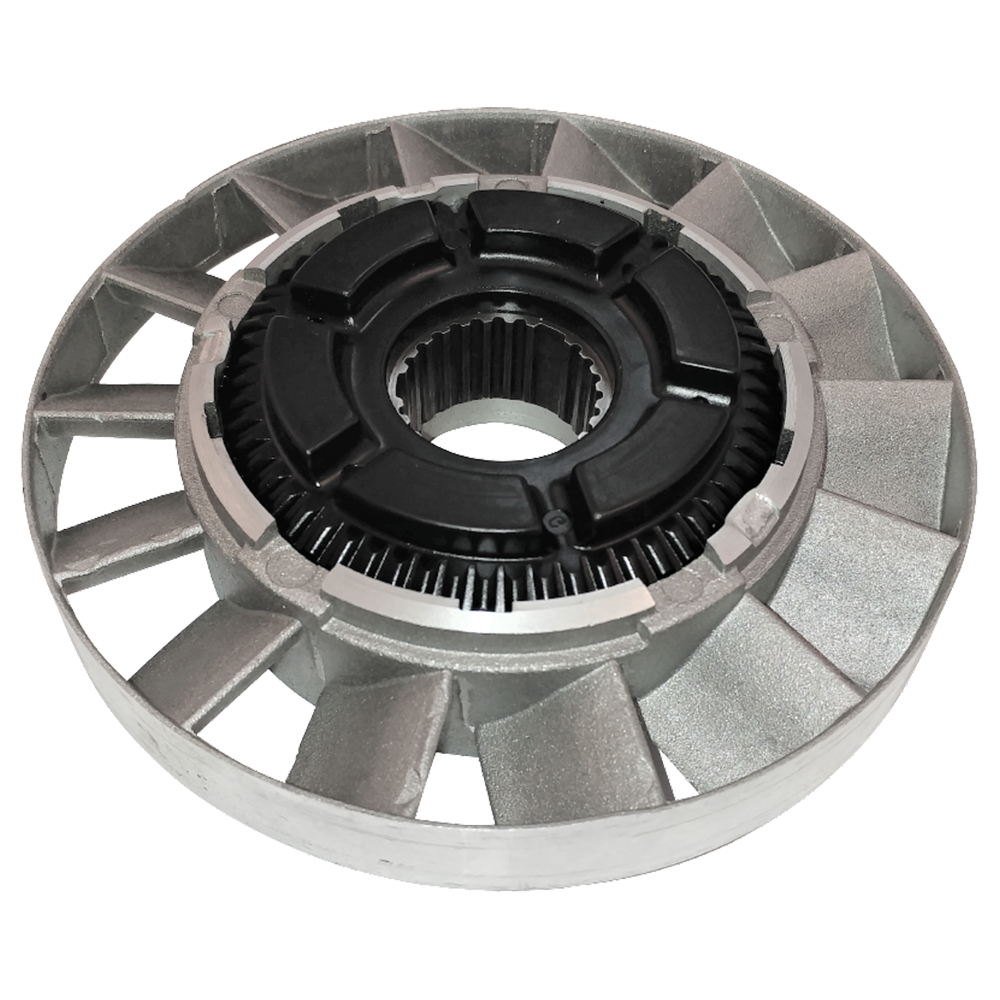

9 Stator
  • OE# 8628022
 SX-5-6
Stator SX-5-6
&
  • OE# 8628022

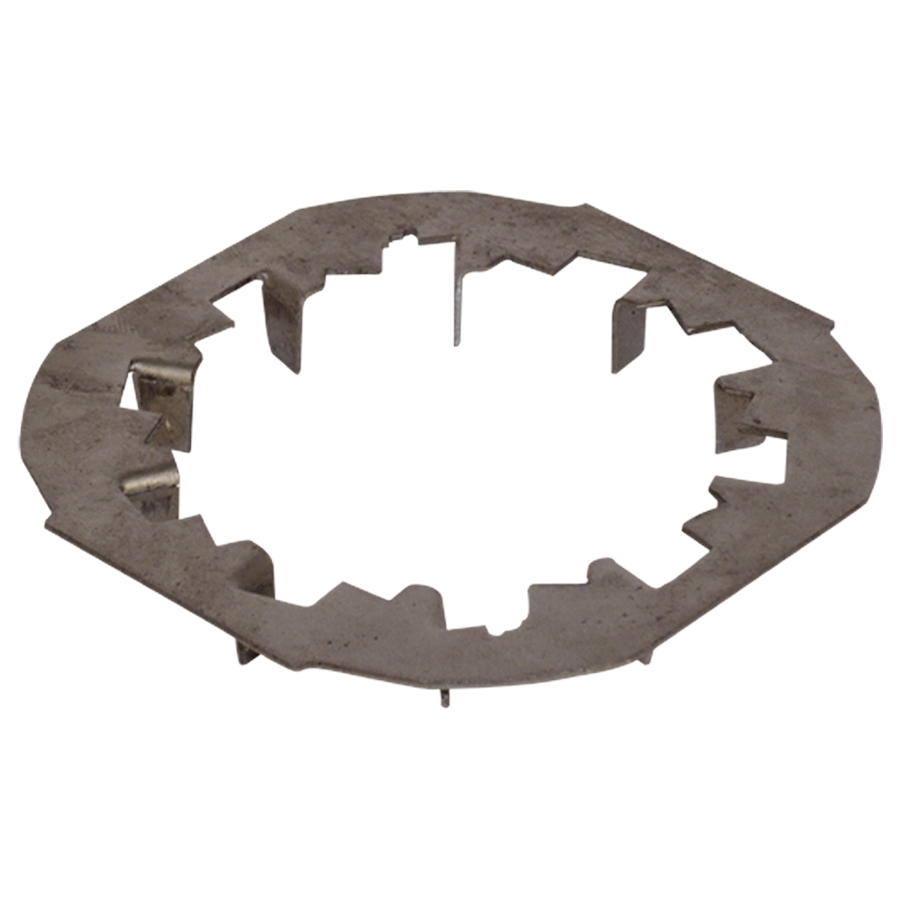

10 Spring Retainer Stator
  • For .444" Long, Rollers
 SX-15-2
Spring Retainer SX-15-2
Stator &
  • For .444" Long, Rollers
11 Outer Race (Cam) Stator SX-15-1
Outer Race (Cam) SX-15-1
Stator &
12 Accordion Spring 10 Pieces Required.
  • Width: 0.43"
  • Relaxed Length: 0.438"
  • Folds: 3
  • Relaxed Height: 0.22"
 SS-6-1
Accordion Spring SS-6-1
& 10 Pieces Required.
  • Width: 0.43"
  • Relaxed Length: 0.438"
  • Folds: 3
  • Relaxed Height: 0.22"
13 Roller 10 Pieces Required.
  • Dia: 0.31"
  • Length: 0.437"
 35724R
Roller 35724R
& 10 Pieces Required.
  • Dia: 0.31"
  • Length: 0.437"
13 Roller 10 Pieces Required.
  • Dia: 0.312"
  • Length: 0.432"
 FR-7-1
Roller FR-7-1
& 10 Pieces Required.
  • Dia: 0.312"
  • Length: 0.432"
13 Roller 10 Pieces Required.
  • Dia: 0.312"
  • Length: 0.444"
 SR-7-1
Roller SR-7-1
& 10 Pieces Required.
  • Dia: 0.312"
  • Length: 0.444"
14 Inner Race Stator
  • Height: 0.875"
  • Internal Teeth: 27
  • Outside Dia: 2.156"
 SX-14-2
Inner Race SX-14-2
Stator &
  • Height: 0.875"
  • Internal Teeth: 27
  • Outside Dia: 2.156"
14 Inner Race Stator
  • Height: 0.875"
  • Internal Teeth: 27 (3 Removed)
  • Outside Dia: 2.156"
 SX-14-3
Inner Race SX-14-3
Stator &
  • Height: 0.875"
  • Internal Teeth: 27 (3 Removed)
  • Outside Dia: 2.156"
15 Stator Cap
  • Thickness: 0.53"
  • Material: Phenolic
  • Outside Dia: 3.75"
  • Inside Dia: 2.625
  • Casting#: 8628025
 SW-4-3
Stator Cap SW-4-3
&
  • Thickness: 0.53"
  • Material: Phenolic
  • Outside Dia: 3.75"
  • Inside Dia: 2.625
  • Casting#: 8628025
15 Washer Plastic
  • Outside Dia: 3.75"
  • Inside Dia: 2.625
 SW-4-3P
Washer SW-4-3P
Plastic &
  • Outside Dia: 3.75"
  • Inside Dia: 2.625
15 Washer
  • Outside Dia: 3.75"
  • Inside Dia: 2.625
 SW-4-3S
Washer SW-4-3S
&
  • Outside Dia: 3.75"
  • Inside Dia: 2.625
16 Turbine NPN-1-8-16
Turbine NPN-1-8-16
&
17 Turbine Hub
  • Internal Teeth: 27
  • Outside Dia: 4.45"
 SX-13-2
Turbine Hub SX-13-2
&
  • Internal Teeth: 27
  • Outside Dia: 4.45"
17 Turbine Hub
  • Hardness: Heat-Treated (hardened)
  • Adapt 254mm (TH125) converter to 30 spline high performance application
 SX-13-12
Turbine Hub SX-13-12
&
  • Hardness: Heat-Treated (hardened)
  • Adapt 254mm (TH125) converter to 30 spline high performance application
17 Turbine Hub High Performance
  • Internal Teeth: 30
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.44"
 SX-13-12HT
Turbine Hub SX-13-12HT
& High Performance
  • Internal Teeth: 30
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.44"
18 Rivet 8 Pieces Required.
  • Length: 0.438"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.218"
  • Rivet Head Dia: 0.438"
  • Rivet Head: Flat
 SX-12-17
Rivet SX-12-17
& 8 Pieces Required.
  • Length: 0.438"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.218"
  • Rivet Head Dia: 0.438"
  • Rivet Head: Flat
18 Rivet 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.37"
 SX-12
Rivet SX-12
& 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.37"
18 Rivet 8 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12L
Rivet FX-12L
& 8 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"

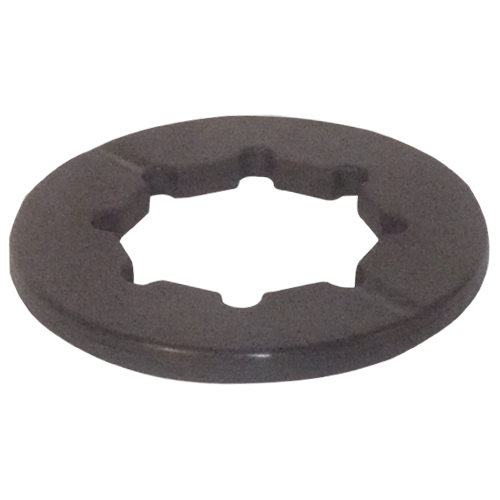

19 Turbine Washer
  • Thickness: 0.175"
  • Material: Plastic
  • Outside Dia: 2.445"
  • Inside Dia: 1.315"
 SW-9-7
Turbine Washer SW-9-7
&
  • Thickness: 0.175"
  • Material: Plastic
  • Outside Dia: 2.445"
  • Inside Dia: 1.315"

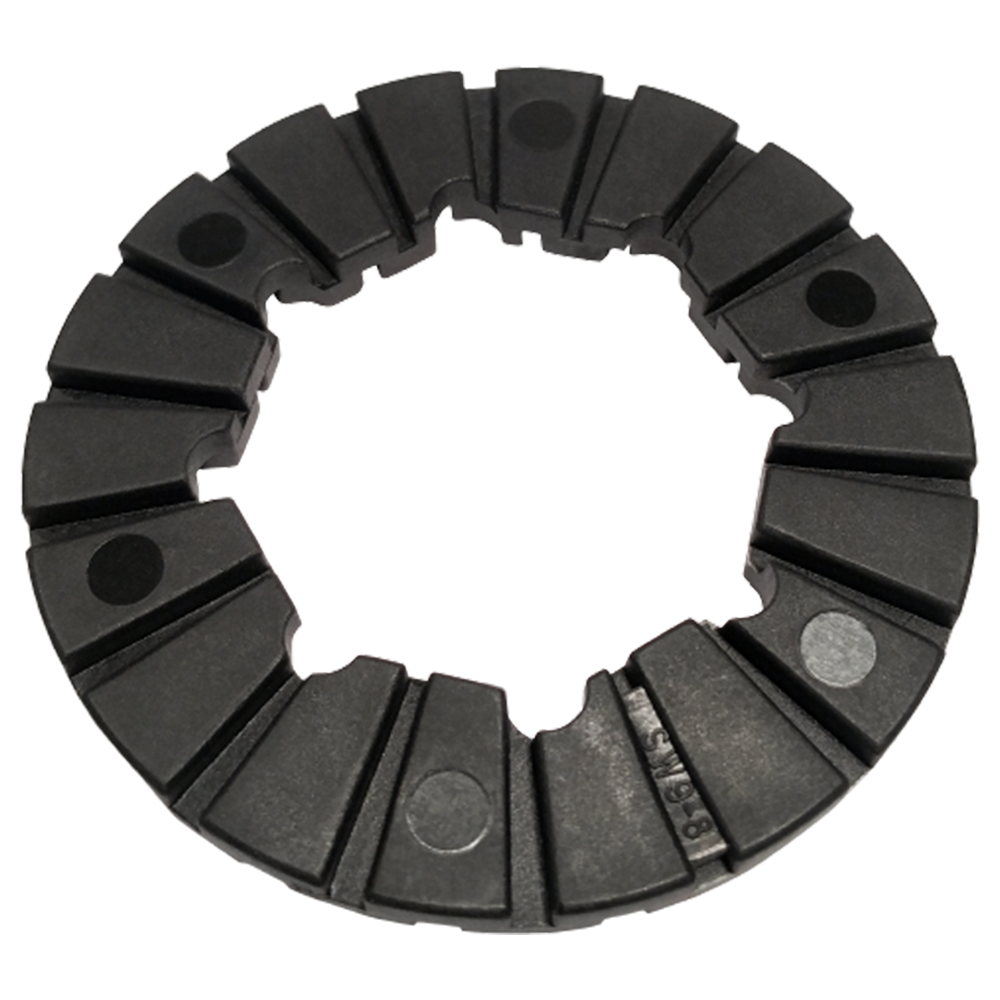

19 Turbine Washer
  • Thickness: 0.197"
  • Material: Plastic
  • Outside Dia: 2.445"
  • Inside Dia: 1.315"
 SW-9-8
Turbine Washer SW-9-8
&
  • Thickness: 0.197"
  • Material: Plastic
  • Outside Dia: 2.445"
  • Inside Dia: 1.315"

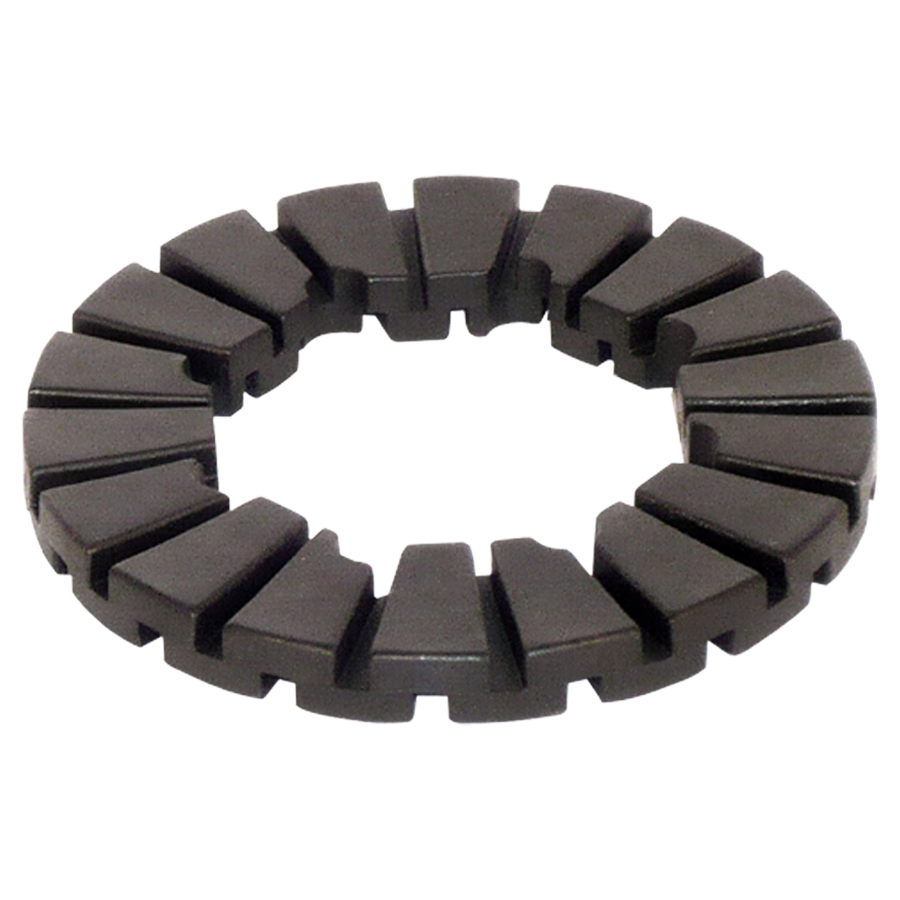

19 Turbine Washer
  • Thickness: 0.220"
  • Material: Plastic
  • Outside Dia: 2.445"
  • Inside Dia: 1.315"
 SW-9-9
Turbine Washer SW-9-9
&
  • Thickness: 0.220"
  • Material: Plastic
  • Outside Dia: 2.445"
  • Inside Dia: 1.315"
19_N.I. Shim
  • Thickness: .010"
  • Outside Dia: 2.40"
  • Inside Dia: 1.452"
 TW-9-010
Shim TW-9-010
&
  • Thickness: .010"
  • Outside Dia: 2.40"
  • Inside Dia: 1.452"
19_N.I. Shim
  • Thickness: 0.012"
  • Outside Dia: 2.4"
  • Inside Dia: 1.45"
 TW-9-9
Shim TW-9-9
&
  • Thickness: 0.012"
  • Outside Dia: 2.4"
  • Inside Dia: 1.45"
19_N.I. Shim
  • Thickness: .010"
  • Outside Dia: 2.38"
  • Inside Dia: 1.35"
 VW-9-2
Shim VW-9-2
&
  • Thickness: .010"
  • Outside Dia: 2.38"
  • Inside Dia: 1.35"
19_N.I. Shim
  • Thickness: .020"
  • Outside Dia: 2.40"
  • Inside Dia: 1.452"
 TW-9-020
Shim TW-9-020
&
  • Thickness: .020"
  • Outside Dia: 2.40"
  • Inside Dia: 1.452"
19_N.I. Shim
  • Thickness: .030"
  • Outside Dia: 2.40"
  • Inside Dia: 1.452"
 TW-9-030
Shim TW-9-030
&
  • Thickness: .030"
  • Outside Dia: 2.40"
  • Inside Dia: 1.452"
20 Insert Pump Drive
  • Height: 0.78"
  • Internal Teeth: 14 (2 removed)
  • Outside Dia: 0.76"
 SX-22XA
Insert SX-22XA
Pump Drive &
  • Height: 0.78"
  • Internal Teeth: 14 (2 removed)
  • Outside Dia: 0.76"
21 Front Cover SX-22-8
Front Cover SX-22-8
&

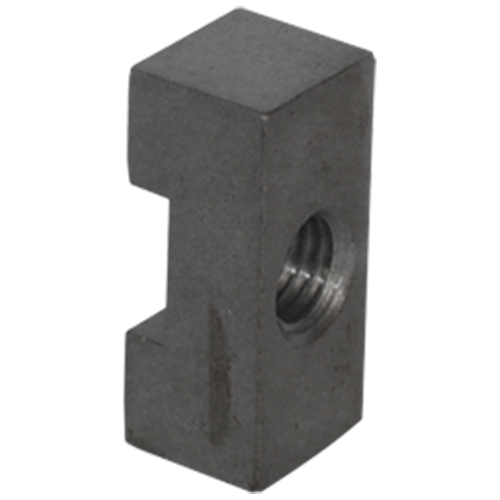

22 Mounting Pad Threaded 3/8-16 SX-10-4
Mounting Pad SX-10-4
Threaded 3/8-16 &

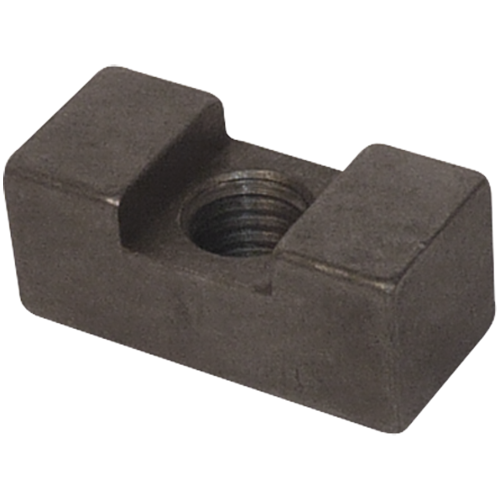

22 Mounting Pad
  • Dimensions: Threaded M10 x 1.5
 SX-10-6
Mounting Pad SX-10-6
&
  • Dimensions: Threaded M10 x 1.5
23 Bolt Hex Head
  • Dimensions: M10 × 1.5mm
  • Length: 15mm
  • OE# 25509226
 B-79
Bolt B-79
Hex Head &
  • Dimensions: M10 × 1.5mm
  • Length: 15mm
  • OE# 25509226
