Torque Converter | GM | 245mm Lockup: TH125C (3T40C), TH180C (3L30C), TH200C, TH440-T4 (4T60), TH700-R4 (4L60, S-10 Only) | General Motors

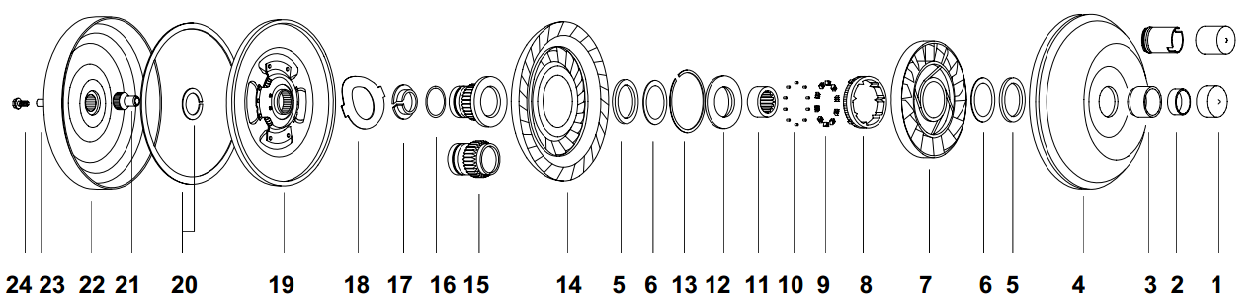

Ill.# Image Description Specification Part #
Misc NPN-SPL
1 Hubcap Fits 1-3/4" (44.4mm). Length: 1-1/2"
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
 MHC-BU
1 Hubcap Fits 1-3/4" (44.4mm) FWD
  • Length: .75"
  • Color: Gray
  • Fits 1-3/4" (44.4mm)
 MHC-P
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1"
  • Color: Yellow
 MHC-YB
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1-3/4"
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
 MHC-Y
2 Bushing Hub
  • Thickness: 0.61"
  • Housing Bore Dia: 1.563"
  • Shaft Dia: 1.437"
  • Material: Babbit
  • Outside Dia: 1.57
  • Inside Dia: 1.4430
  • Type: Precision
 SB-18-2
2 Bushing Hub
  • Thickness: 0.600"
  • Housing Bore Dia: 1.563
  • Shaft Dia: 1.436
  • Material: Bi-metal
  • Outside Dia: 1.57
  • Inside Dia: 1.4430
  • Type: Undersized (Semi-Finished I.D.)
 SB-18-2X
2 Bushing Hub, Oversized O.D. by .002"
  • Thickness: 0.615"
  • Housing Bore Dia: 1.563"
  • Shaft Dia: 1.437"
  • Material: Babbit
  • Outside Dia: 1.57
  • Inside Dia: 1.4430
  • Type: Oversized O.D. (.002"
 SB-18-2-2
2 Bushing Hub, Oversized O.D. by .010"
  • Thickness: 0.61"
  • Housing Bore Dia: 1.563"
  • Shaft Dia: 1.437"
  • Material: Babbit
  • Outside Dia: 1.57
  • Inside Dia: 1.4430
  • Type: Oversized O.D. (.01")
 SB-18-2-10
3 Impeller Hub TH200C, TH700-R4 (S10 only)
  • Journal Dia: 1.748"
  • Installed Height: 2.175"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36

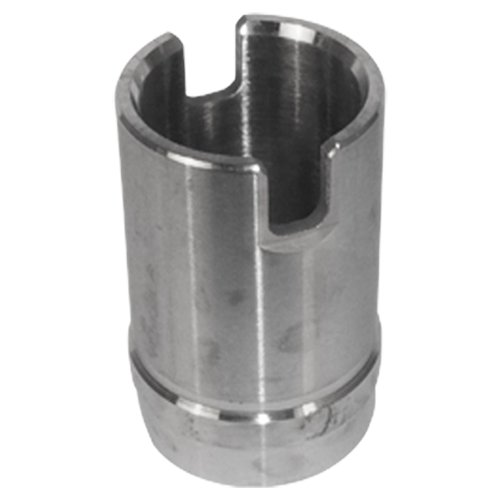

 SH-1-32GRC
3 Impeller Hub TH200C, TH700-R4 (S10 only)
  • Journal Dia: 1.748"
  • Height: 2.115"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
 SH-1-27G
3 Impeller Hub Wide Weld Groove TH200C, TH700-R4 (S10 only)
  • Journal Dia: 1.748"
  • Height: 2.010"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 SH-1-38GRC
3 Impeller Hub TH200C, TH700-R4 (S10 only)
  • Journal Dia: 1.748"
  • Height: 2.175"
  • Hub Mount: Butt
  • Pump Drive Type: Slots

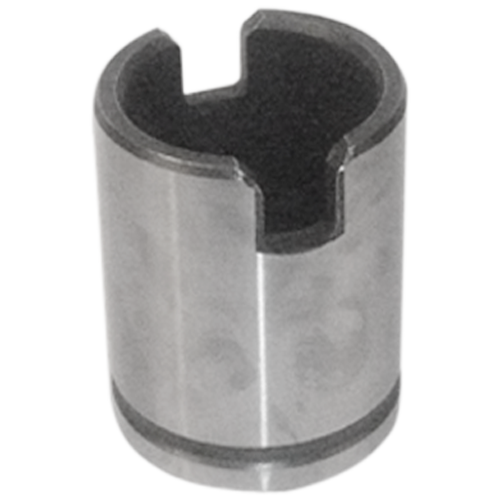

  • Hardness: Rc 32-36
 SH-1-12GRC
3 Impeller Hub TH200C, TH700-R4 (S10 only) SH-1-12
3 Impeller Hub TH200C, TH700-R4 (S10 only)
  • Journal Dia: 1.748"
  • Height: 2.115"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 SH-1-27GRC

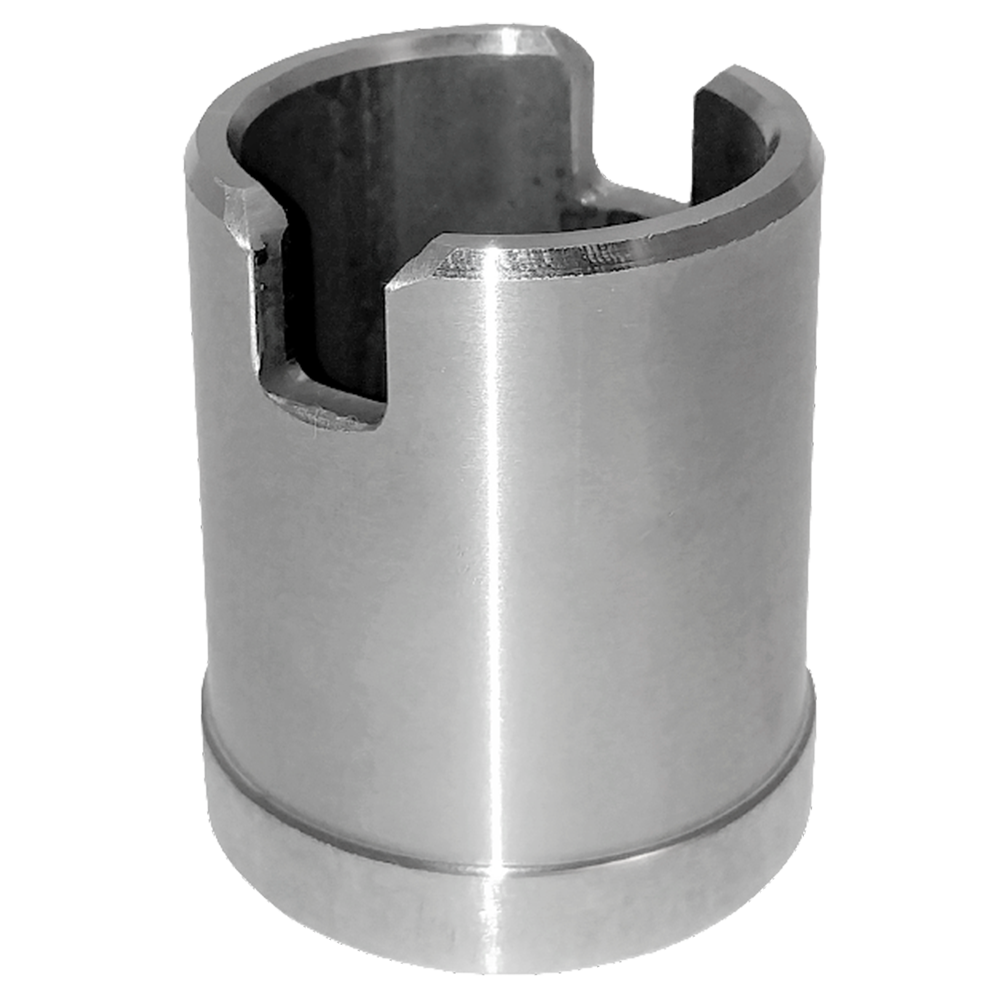

3 Impeller Hub TH200C, TH700-R4 (S10 only)
  • Journal Dia: 1.748"
  • Installed Height: 2.375"
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 SH-1-31GRC
3 Impeller Hub TH200C, TH700-R4 (S10 only)
  • Journal Dia: 1.748"
  • Height: 2.600"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 SH-1-61GRC
3 Impeller Hub TH200C, TH700-R4 (S10 only)
  • Journal Dia: 1.748"
  • Installed Height: 2.175"
  • Height: 2.488"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 SH-1-37GRC
3 Impeller Hub TH200C, TH700-R4 (S10 only)
  • Journal Dia: 1.748"
  • Height: 2.250"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 SH-1-19GRC

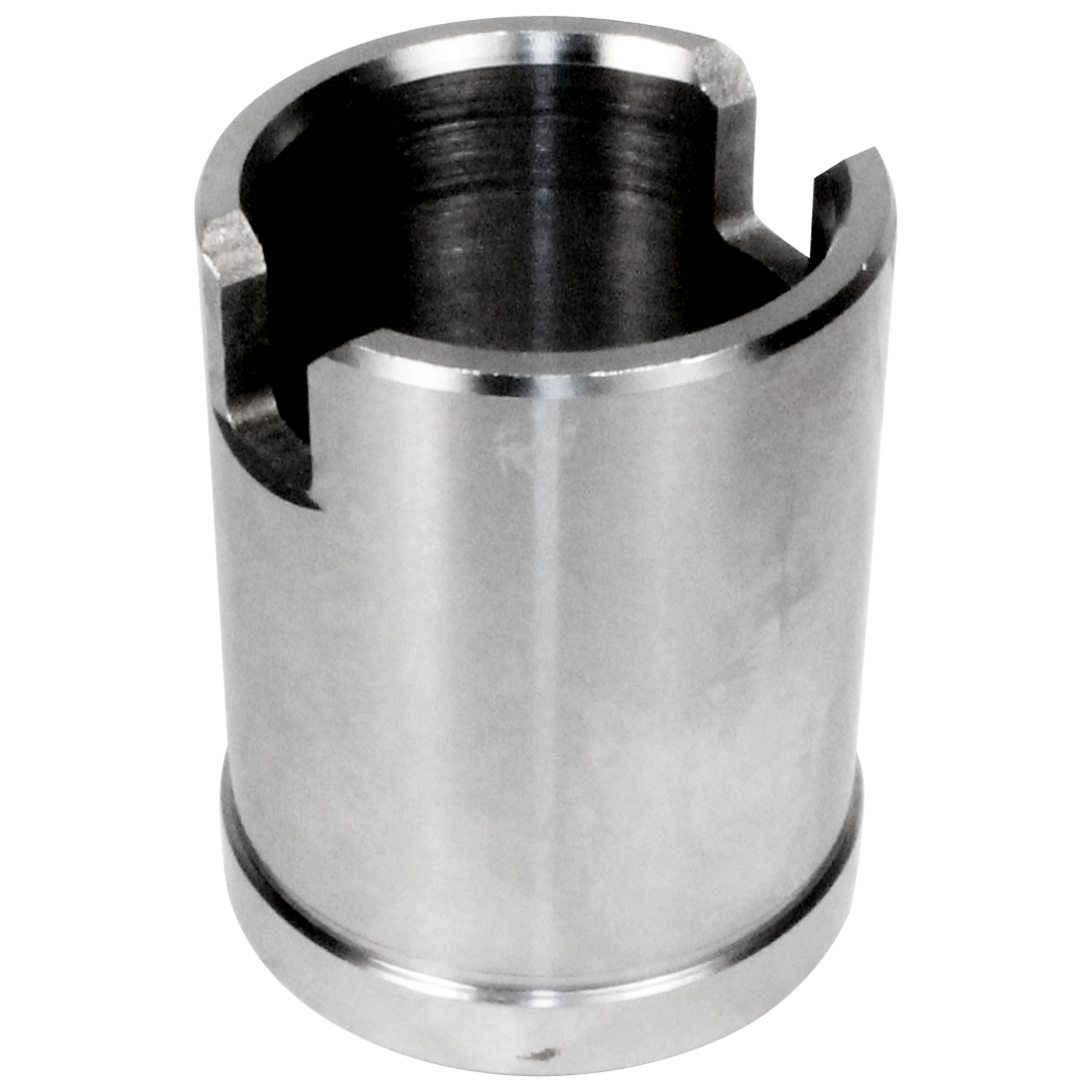

3 Impeller Hub TH200C, TH700-R4 (S10 only)
  • Journal Dia: 1.748"
  • Installed Height: 2.195"
  • Height: 2.312
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.620"
  • Hardness: Rc 32-36

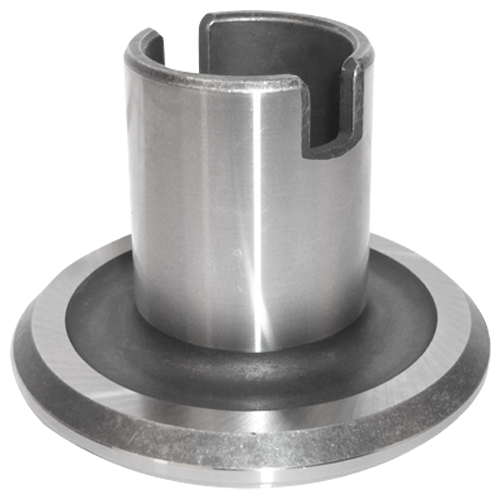

 SH-1-20GRC
3 Impeller Hub TH125C, TH440-T4
  • Journal Dia: 1.789"
  • Installed Height: .840"
  • Hub Mount: Flanged
  • Flange Dia: 2.62"
  • Inside Dia: 2.23"
 SH-1-17G
3 Impeller Hub TH125C, TH440-T4
  • Journal Dia: 1.789"
  • Installed Height: .750"
  • Hub Mount: Butt
 SH-1-9G
3 Impeller Hub TH125C, TH440-T4
  • Journal Dia: 1.789"
  • Installed Height: .840"
  • Height: 0.938
  • Hub Mount: Flanged
  • Pump Drive Type: Bushing
  • Flange Dia: 2.23"
  • Hardness: Rc 32-36
  • Inside Dia: 2.23"
 SH-1-17GRC
3 Impeller Hub TH125C, TH440-T4
  • Journal Dia: 1.789"
  • Height: 0.825"
  • Inside Dia: 1.563"
 SH-1-BU-21G
3 Impeller Hub TH125C, TH440-T4
  • Journal Dia: 1.789"
  • Installed Height: .842"
  • Hub Mount: Flanged
  • Pump Drive Type: Bushing
  • Inside Dia: 2.23"
 SH-1-45G
3 Impeller Hub TH125C, TH440-T4
  • Journal Dia: 1.789"
  • Installed Height: .750"
  • Hub Mount: Butt
  • Hardness: Rc 32-36
 SH-1-9GRC
3 Impeller Hub TH125C, TH440-T4
  • Journal Dia: 1.789"
  • Installed Height: .842"
  • Hub Mount: Flanged
  • Pump Drive Type: Bushing
  • Hardness: Rc 32-36
  • Inside Dia: 2.23"
 SH-1-45GRC
3 Impeller Hub TH180C
  • Journal Dia: 1.874"
  • Height: 1.930"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
 SH-1-36G

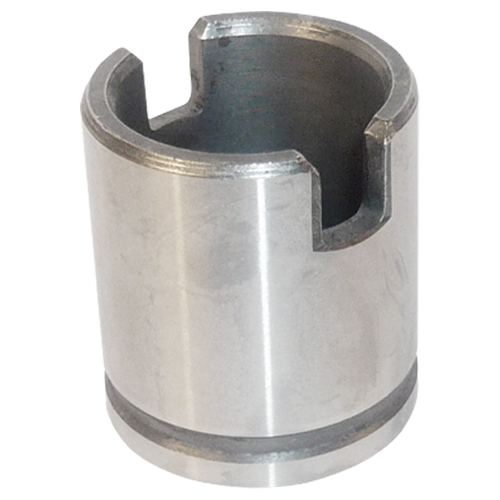

3 Impeller Hub TH180C
  • Journal Dia: 1.874"
  • Installed Height: 2.200"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 SH-1-5GRC
3 Impeller Hub TH180C
  • Journal Dia: 1.874"
  • Height: 1.930"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 SH-1-36GRC
3 Impeller Hub Without Groove TH180C
  • Journal Dia: 1.874"
  • Installed Height: 2.075"
  • Pump Drive Type: Slots
 SH-1-6G
3 Impeller Hub TH180C
  • Journal Dia: 1.874"
  • Installed Height: 2.125"
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
  • Inside Dia: 2.23"
 SH-1-44GRC
3 Impeller Hub TH180C
  • Journal Dia: 1.874"
  • Height: 2.080"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 SH-1-16GRC
3 Impeller Hub TH180C
  • Journal Dia: 1.874"
  • Installed Height: 2.075"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36

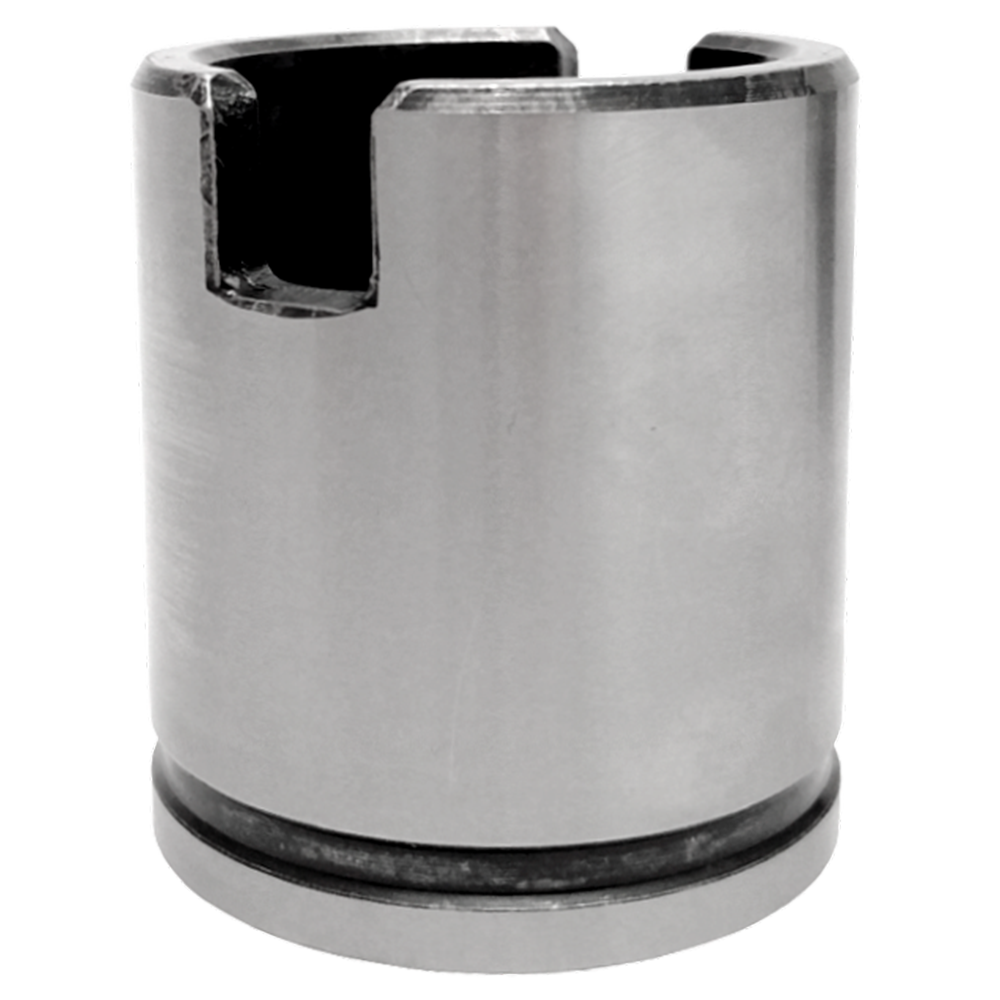

 SH-1-6GRC
4 Impeller NPN-1-4-4
5 Bearing Front & Rear 2 Pieces Required.
  • Thickness: 0.150"
  • Thickness metric: 3.81
  • Bearing type: Enclosed
  • Outside Dia: 3.380"
  • Inside Dia: 2.500"
  • Outside Dia Metric: 85.85
  • Inside Dia metric: 63.5
 SW-2-11
6 Shim Under Bearing
  • Thickness: .010"
  • Outside Dia: 3.275"
  • Inside Dia: 2.5"
 SW-2-110
6 Shim
  • Thickness: .020"
  • Outside Dia: 3.275"
  • Inside Dia: 2.5"
 SW-2-120
6 Shim
  • Thickness: 0.030"
  • Material: Steel
  • Outside Dia: 3.275"
  • Inside Dia: 2.500"
 SW-2-130
7 Stator
  • OE# 8636086
 SX-5-9
8 Outer Race (Cam) Stator SX-15-4
9 Accordion Spring 8 Pieces Required.
  • Width: 0.375"
  • Relaxed Length: 0.45"
  • Folds: 3
  • Relaxed Height: 0.22"
 SS-6-2
10 Roller 8 Pieces Required.
  • Dia: 0.312"
  • Length: 0.375"
 SR-7-2
11 Inner Race Stator
  • Height: 0.725"
  • Internal Teeth: 27 (3 Removed)
  • Outside Dia: 2.156"
 SX-14-4
12 Stator Cap Upgrade, 12 Grooves, O.E.#24204224
  • Thickness: .27"
  • Material: Phenolic
  • Outside Dia: 3.74"
  • Inside Dia: 1.67"

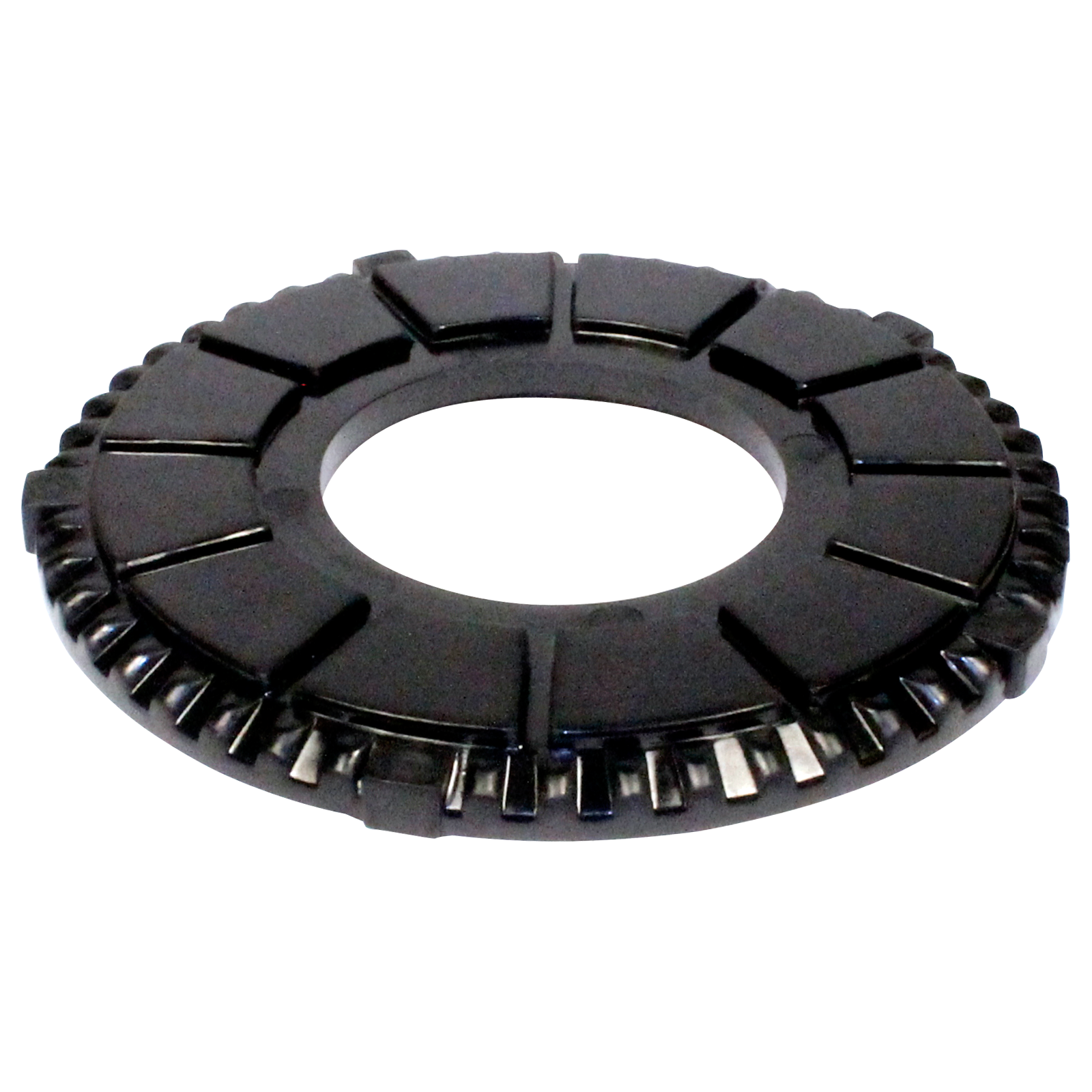

 SW-4-16
12 Washer
  • Outside Dia: 3.64"
  • Inside Dia: 1.58"
 SW-4-6

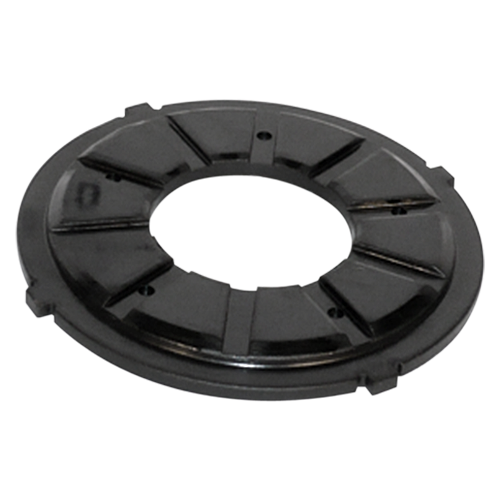

12 Stator Cap
  • Thickness: 0.24"
  • Material: Phenolic
  • Outside Dia: 3.64"
  • Inside Dia: 1.58"
 SW-4-8

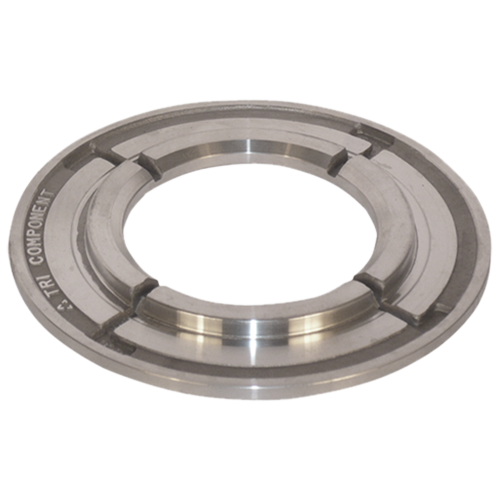

12 Stator Cap Bearing Adapter
  • Thickness: 0.270"
  • Material: Aluminum
  • Outside Dia: 3.65"
  • Inside Dia: 1.93"
  • Use With SW-2-11 Bearing. OE# 8636120
 SW-4-9
12 Stator Cap Bearing Adapter
  • Thickness: 0.250"
  • Material: Aluminum
  • Outside Dia: 3.65"
  • Inside Dia: 1.93"
  • Use With SW-2-11 Bearing. OE# 8636120
 SW-4-9A
13 Snap Ring 1 Pieces Required.
  • Inside Dia: 3.785"

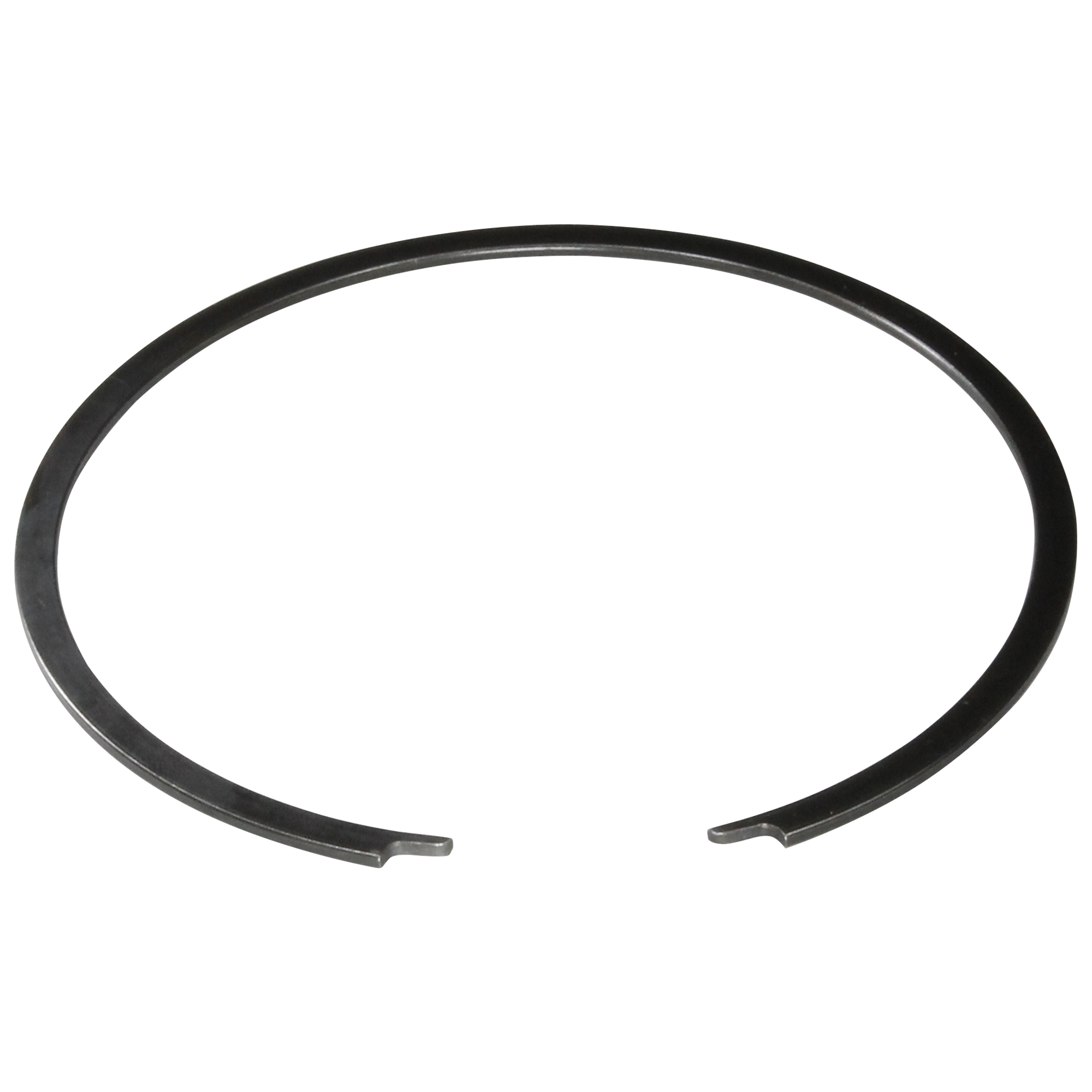

 FX-20-12
13 Snap Ring 1 Pieces Required.
  • Inside Dia: 3.785"
 TX-20-1
14 Turbine NPN-1-4-14
15 Insert Convert early-type unit to late-type, use with late-style Clutch plate & modify early-type turbine
  • Height: 1.120
  • Internal Teeth: 27
  • External Teeth: 30
 SX-13-27FL
15 Insert First Type, Plug High Performance
  • Height: 1.750
  • Internal Teeth: 30
  • External Teeth: 30
  • Inside Dia: .932"
 SX-13-30C
15 Insert Flanged High Performance
  • Height: 1.720"
  • Internal Teeth: 30
  • External Teeth: 30
 SX-13-30F
15 Insert Flanged, High Performance
  • Height: 1.720"
  • Internal Teeth: 30
  • External Teeth: 30
  • Hardness: Heat-Treated (hardened)
  • For O.E.Turbines, Weld-In, Straight Flange
 SX-13-30FHT
15 Turbine Hub First Type, Plug
  • Height: 1.750
  • Internal Teeth: 27
  • External Teeth: 30
  • Outside Dia: 1.53"
 SX-13-27C
15 Insert Flanged Retrofit Early
  • Height: 1.720
  • Internal Teeth: 27
  • External Teeth: 30
  • Outside Dia: 2.31"
 SX-13-27F
15_N.I. Fixture Hub Installation SX-13TK
16 O-Ring
  • Thickness: 0.07
  • Thickness metric: 1.778
  • Material: Fluorocarbon
  • Inside Dia: 1.24"
  • Inside Dia metric: 31.496
  • PTFE Coating
 SO-23-21

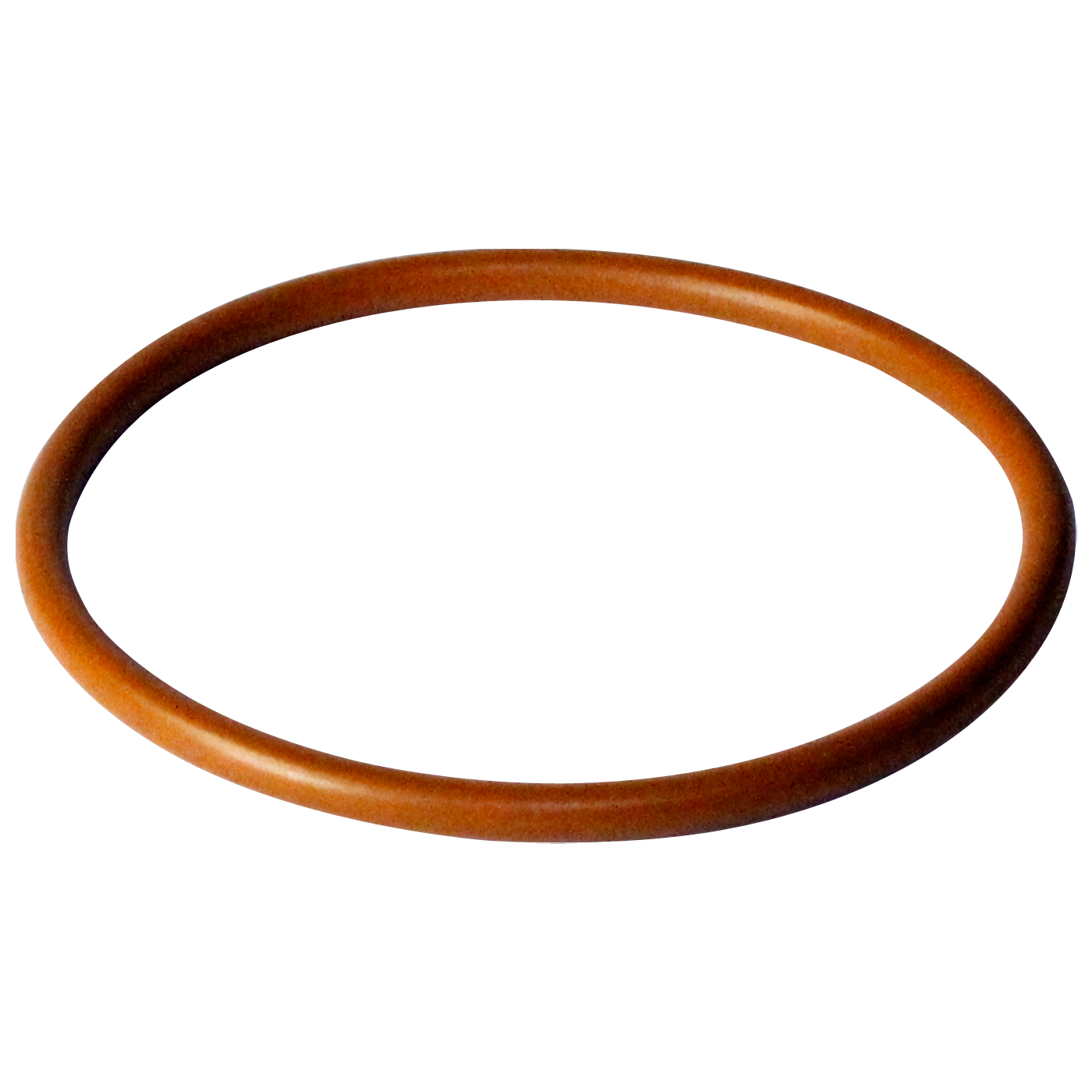

16 O-Ring
  • Thickness: .070"
  • Material: Fluorocarbon, PTFE Coating
  • Inside Dia: 1.24"
 SO-23-21D
16 O-Ring
  • Thickness: 0.075
  • Thickness metric: 1.905
  • Color: Green
  • Material: Fluorocarbon
  • Inside Dia: 1.24"
  • Inside Dia metric: 31.496
  • Oversized, (Salvages Worn Pressure Plate)
 SO-23-21A
17 Turbine Spacer Hard Lube Coated Use with shim SW-9-11S
  • Thickness: 0.079"
  • Material: Aluminum
  • Outside Dia: 1.340"
  • Inside Dia: 0.940"
 SW-9-11
17 Shim Use with turbine spacer SW-9-11
  • Thickness: .056"
  • Outside Dia: 1.35"
  • Inside Dia: 1.122"
 SW-9-11S

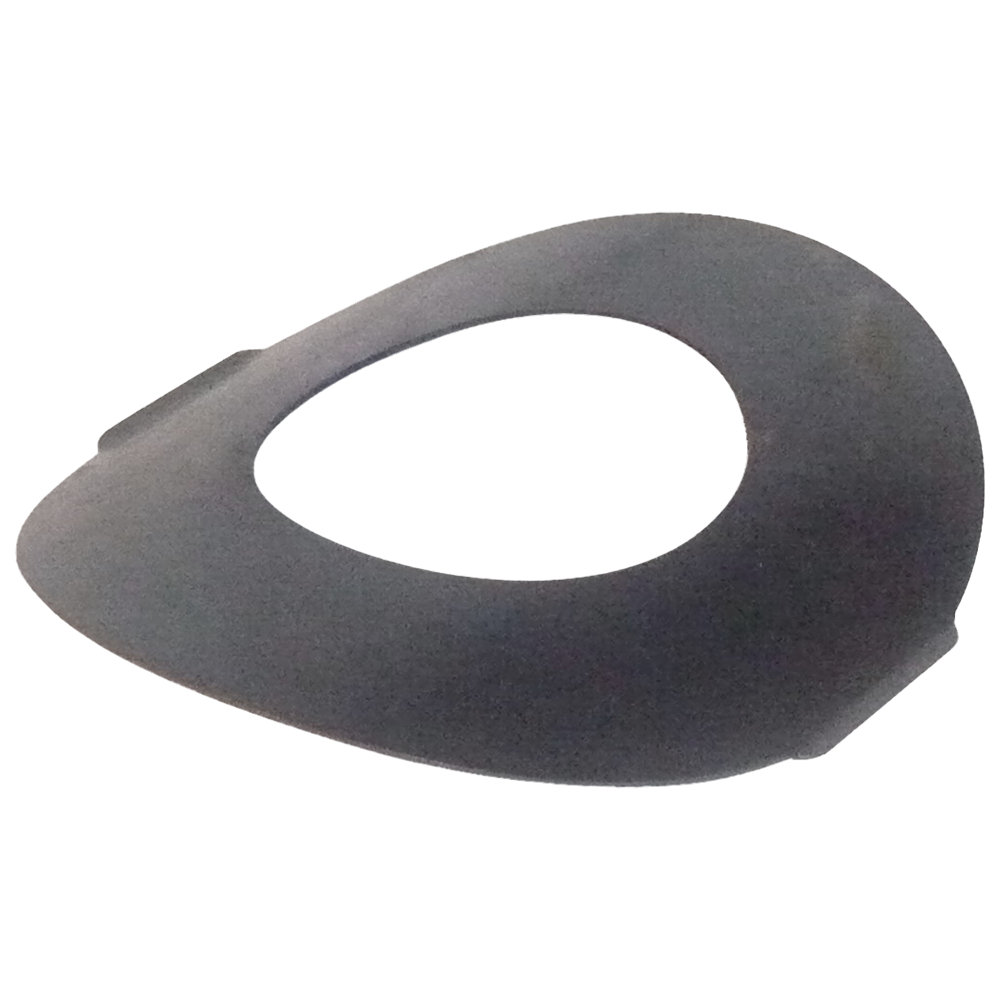

18 Spring Wave, Heavy Duty
  • Thickness: .02"
  • Outside Dia: 3.16"
  • Inside Dia: 1.59"
 SW-9-10

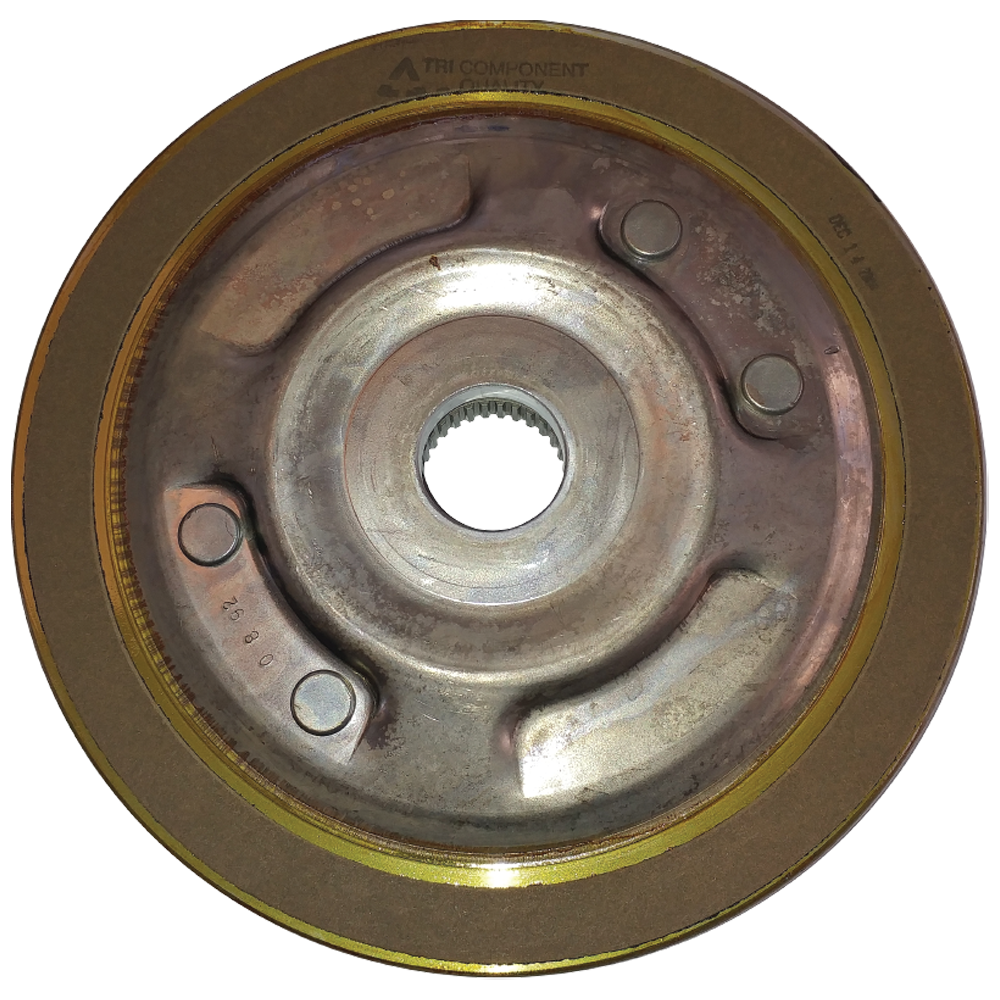

19 Lockup Clutch SX-23-104
19 Clutch Plate Assembly And Damper, O.E. Style, Gasoline, No Valve SX-23-22A

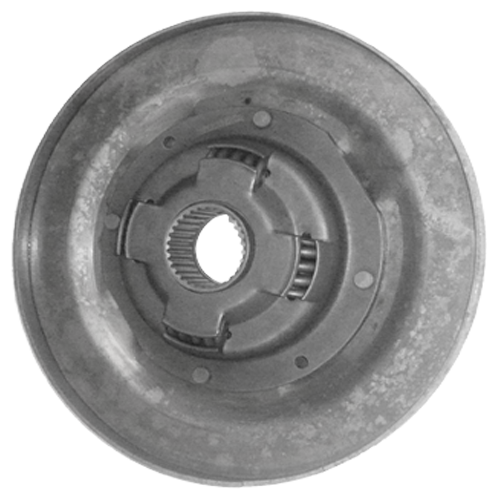

19 Clutch Plate Assembly SX-23-22

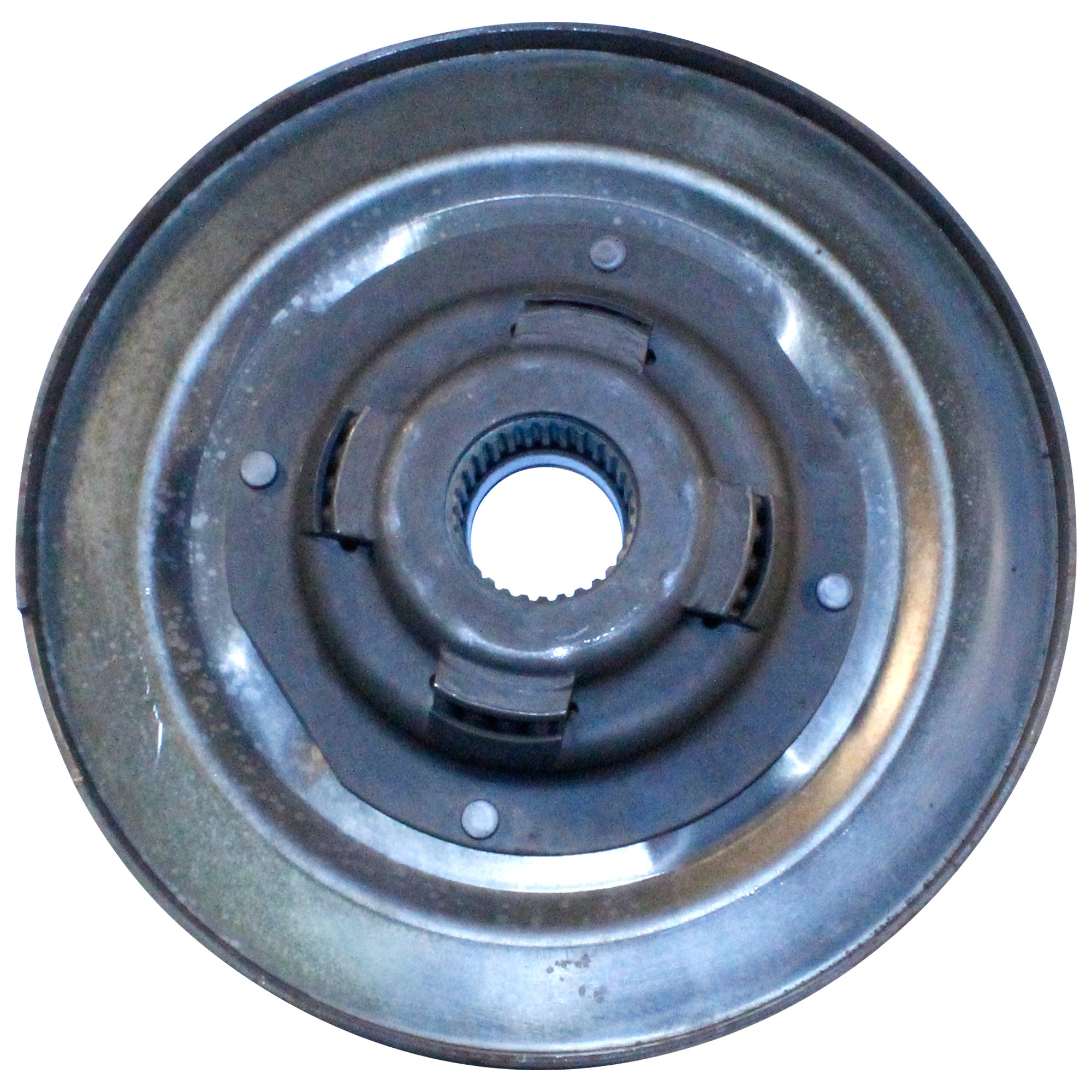

19 Pressure Plate And Damper Assy., Diesel, With Valve SX-23-22B
19 Lockup Clutch And Damper Assy., Viscous Damper, Aluminum, 8646407 SX-23-22C
19 Repair Sleeve Flanged, For Seal Bore SX-23-39
19 Pressure Plate Luk Style SX-23-111
19_N.I. Rivet 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 JX-12
19_N.I. Rivet 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 JX-12S
19_N.I. Rivet 8 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet Head Dia: 0.300"
  • Rivet Head: Flat
 SX-12-14
19_N.I. Rivet 8 Pieces Required.
  • Length: 0.38"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 WX-12B
19_N.I. Rivet 8 Pieces Required.
  • Length: 0.38"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 WX-12BS
19_N.I. Damper Part Pressure Plate, Less Damper, Diesel Type With 2 Oil Ports SX-23-15A

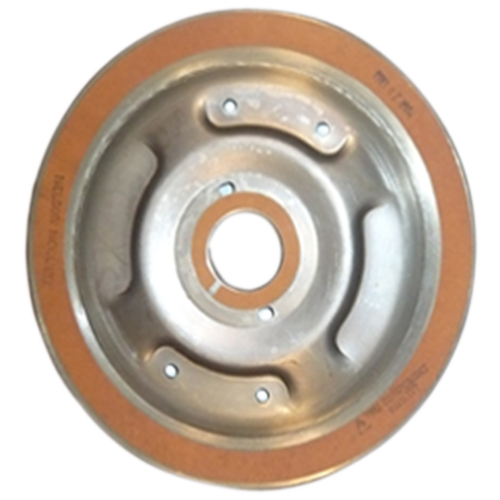

19_N.I. Damper Part Damper Only, Gasoline SX-23-0379

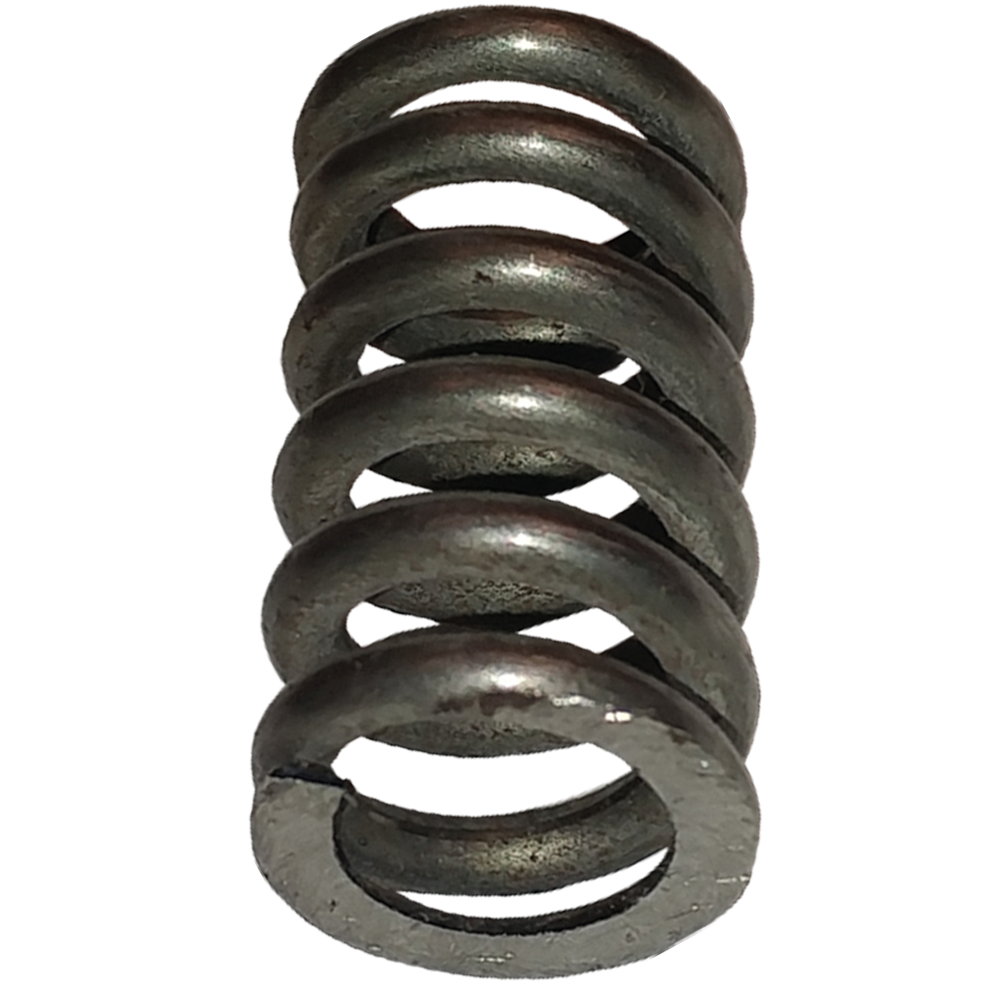

19_N.I. Damper Spring Intermediate 4 Pieces Required.
  • Length: 1.12"
  • Outside Dia: 0.625
 SX-23-27
19_N.I. Rivet Damper. 6 Pieces Required.
  • Length: 0.34"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.17"
  • Rivet Head Dia: 0.281"
 SX-12-5
19_N.I. Rivet Drive Tang Rivet 4 Pieces Required.
  • Length: 0.37"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.245"
  • Rivet Head Dia: 0.580"
 SX-12-7
19_N.I. Damper Part Nylon Washer Valve, Diesel (Damper To Pressure Plate) SW-23-17

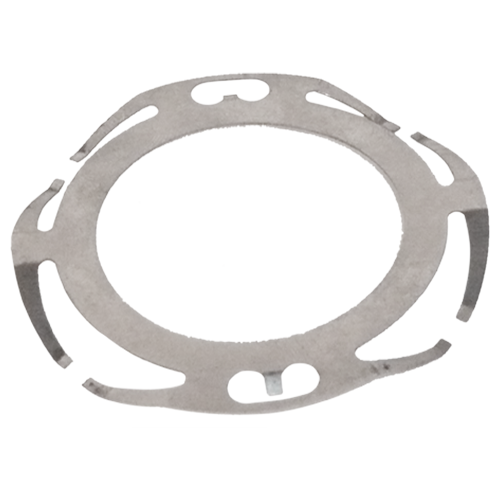

19_N.I. Damper Spring Spider Spring (For Above) SW-23-18
20 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9"
  • Inside Dia: 7.75"

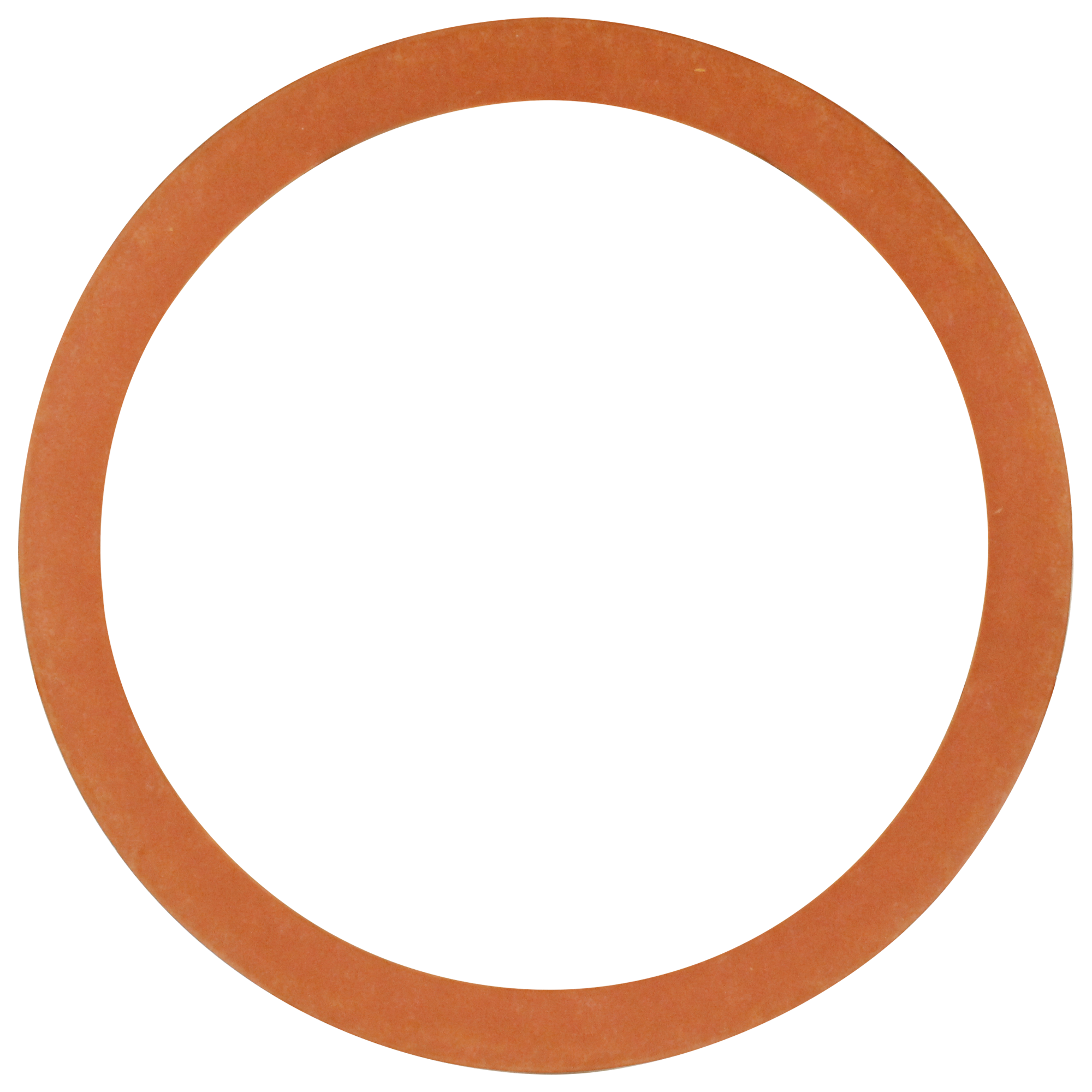

 SX-23-13
20 Lining (Friction Ring,Wafer) For Viscous Damper
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9"
  • Inside Dia: 8.25"
 JX-23-3

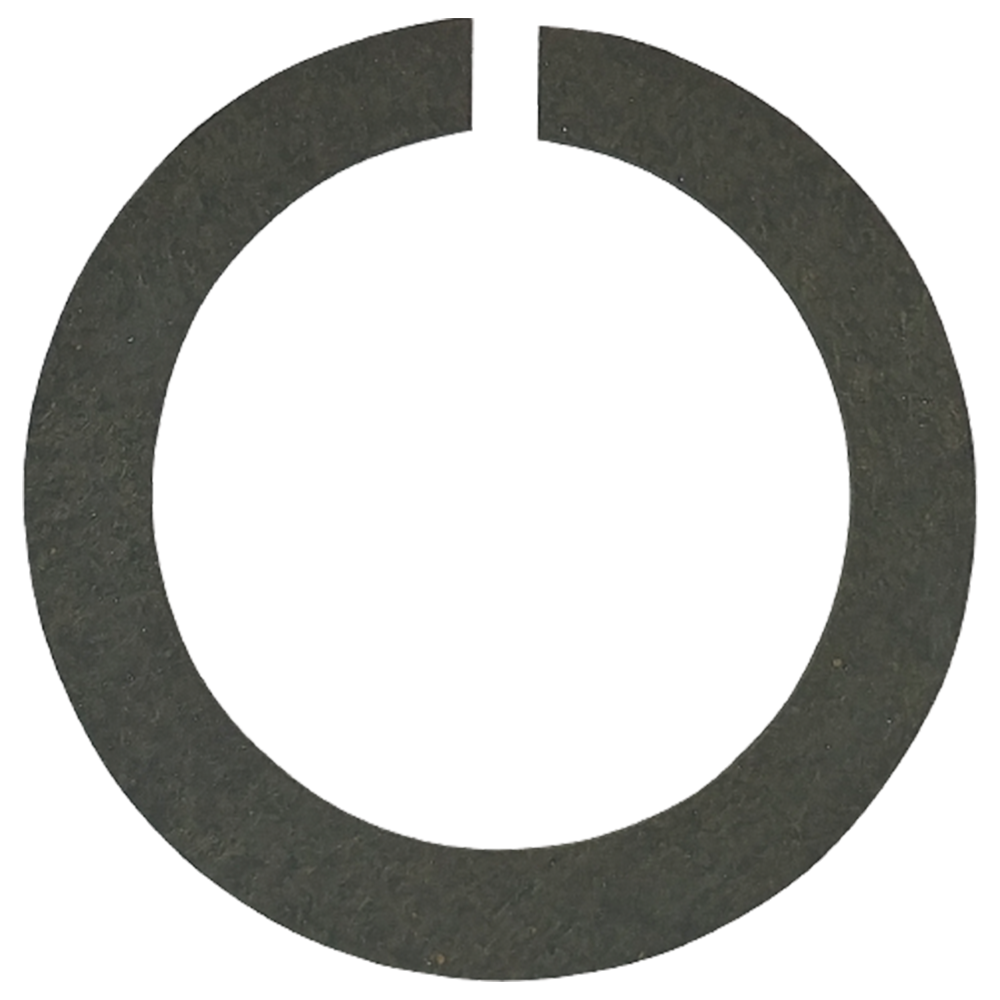

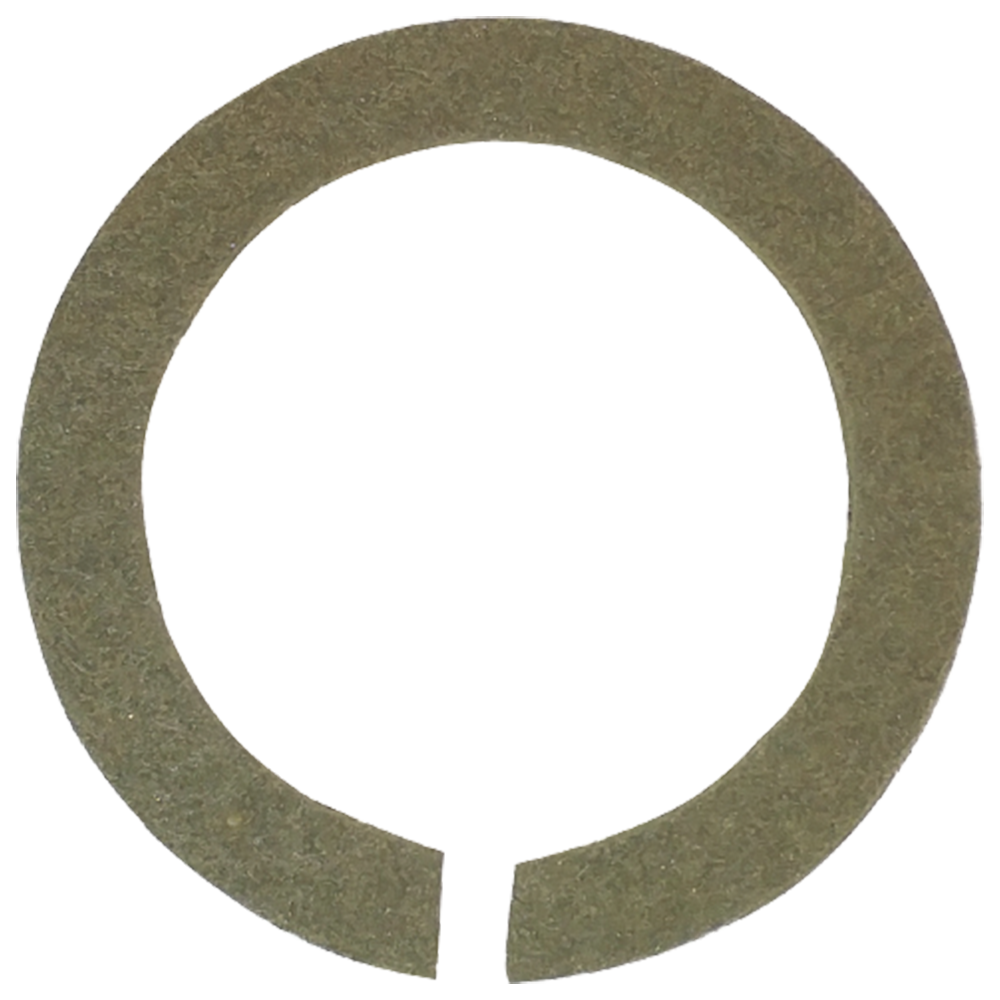

20 Snubber Friction
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 2.188"
  • Inside Dia: 1.563"
 SX-23-SS45
20 Snubber Friction
  • Thickness: 0.045"
  • Material: Carbon
  • Outside Dia: 2.188"
  • Inside Dia: 1.563"
 SX-23-SS45C
20 Snubber Friction
  • Thickness: .045"
  • Material: Kevlar®™
  • Outside Dia: 2.188"
  • Inside Dia: 1.563"
 SX-23-SS45K
20 Snubber Friction
  • Thickness: 0.070"
  • Material: Kevlar®™
  • Outside Dia: 2.188"
  • Inside Dia: 1.563"
 SX-23-SS45X70K
20 Snubber Friction
  • Thickness: .070"
  • Material: Red
  • Outside Dia: 2.188"
  • Inside Dia: 1.563"
 SX-23-SS70
20 Snubber Friction
  • Thickness: 0.070"
  • Material: Kevlar®™
  • Outside Dia: 2.188"
  • Inside Dia: 1.563"
 SX-23-SS70K
20.1 Floating Ring
  • Outside Dia: 9.500
  • Inside Dia: 8"
 SX-23-14
21 Insert Pump Drive
  • Height: 0.78"
  • Internal Teeth: 14 (2 removed)
  • Outside Dia: 0.76"
 SX-22XA
22 Front Cover NPN-1-4-22
23 Mounting Pad
  • Dimensions: M10 × 1.5, .375 High
 SX-10-12
23 Nut Mounting, M10 x 1.5mm, GM S10 For S10 only
  • Dimensions: M10 x 1.5mm
  • Length: 25.4mm
 SX-10-2
24 Bolt Hex Head, Flanged
  • Dimensions: M10-1.50mm
  • Length: 15mm
 B-78
