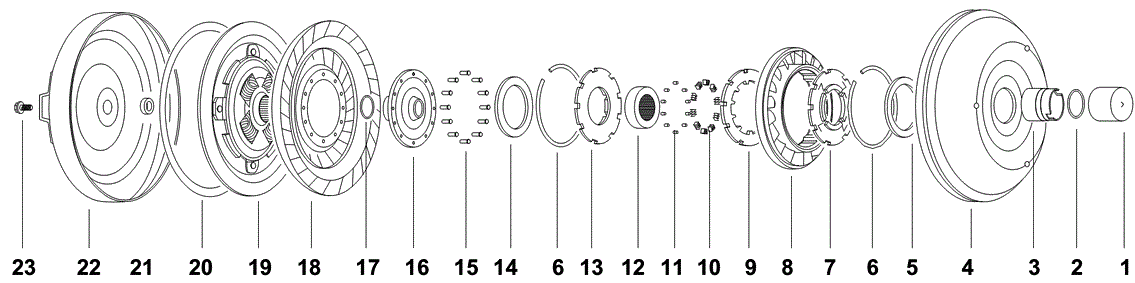

Torque Converter | GM | 228mm Saturn | General Motors

Ill.# Image Description Specification Part #
Misc NPN-SPL
Misc NPN-SPL
&
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
Hubcap MHC-B
Fits 1-5/8" (41.3mm). Length: 1-3/8" &
  • Color: Black
  • Fits 1-5/8" (41.3mm)
2 O-Ring
  • Thickness: 0.07
  • Thickness metric: 1.778
  • Material: Fluorocarbon
  • Inside Dia: 1.364
  • Inside Dia metric: 34.6456
 SO-23-26
O-Ring SO-23-26
&
  • Thickness: 0.07
  • Thickness metric: 1.778
  • Material: Fluorocarbon
  • Inside Dia: 1.364
  • Inside Dia metric: 34.6456
3 Impeller Hub
  • Journal Dia: 1.650"
  • Height: 2.150"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 SH-1-29GRC
Impeller Hub SH-1-29GRC
&
  • Journal Dia: 1.650"
  • Height: 2.150"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
4 Impeller NPN-1-2-4
Impeller NPN-1-2-4
&
5 Bearing Use With Stator Cap SW-4-20
  • Thickness: 0.150"
  • Thickness metric: 3.81
  • Bearing type: Enclosed
  • Outside Dia: 3.380"
  • Inside Dia: 2.500"
  • Outside Dia Metric: 85.85
  • Inside Dia metric: 63.5
 SW-2-11
Bearing SW-2-11
& Use With Stator Cap SW-4-20
  • Thickness: 0.150"
  • Thickness metric: 3.81
  • Bearing type: Enclosed
  • Outside Dia: 3.380"
  • Inside Dia: 2.500"
  • Outside Dia Metric: 85.85
  • Inside Dia metric: 63.5
6 Snap Ring NPN-1-2-6
Snap Ring NPN-1-2-6
&
7 Stator Cap
  • Thickness: 0.247"
  • Material: Aluminum
  • Outside Dia: 4.01"
  • Inside Dia: 1.805"
 SW-4-20
Stator Cap SW-4-20
&
  • Thickness: 0.247"
  • Material: Aluminum
  • Outside Dia: 4.01"
  • Inside Dia: 1.805"
8 Stator NPN-1-2-8
Stator NPN-1-2-8
&
9 Cam NPN-1-2-9
Cam NPN-1-2-9
&
10 Accordion Spring 10 Pieces Required.
  • Width: 0.15"
  • Relaxed Length: 0.437"
  • Folds: 3
  • Relaxed Height: 0.303"
 SS-6-5
Accordion Spring SS-6-5
& 10 Pieces Required.
  • Width: 0.15"
  • Relaxed Length: 0.437"
  • Folds: 3
  • Relaxed Height: 0.303"
11 Roller 10 Pieces Required.
  • Dia: .235"
  • Length: .31"
 SR-7-5
Roller SR-7-5
& 10 Pieces Required.
  • Dia: .235"
  • Length: .31"
12 Inner Race
  • Internal Teeth: 29
 NPN-1-2-12
Inner Race NPN-1-2-12
&
  • Internal Teeth: 29
13 Stator Cap Replaced by Stator Cap
  • OE Style
 NPN-1-2-13
Stator Cap NPN-1-2-13
& Replaced by Stator Cap
  • OE Style
14 Bearing Replaced by Bearing Kit
  • OE Style
 NPN-1-2-14
Bearing NPN-1-2-14
& Replaced by Bearing Kit
  • OE Style

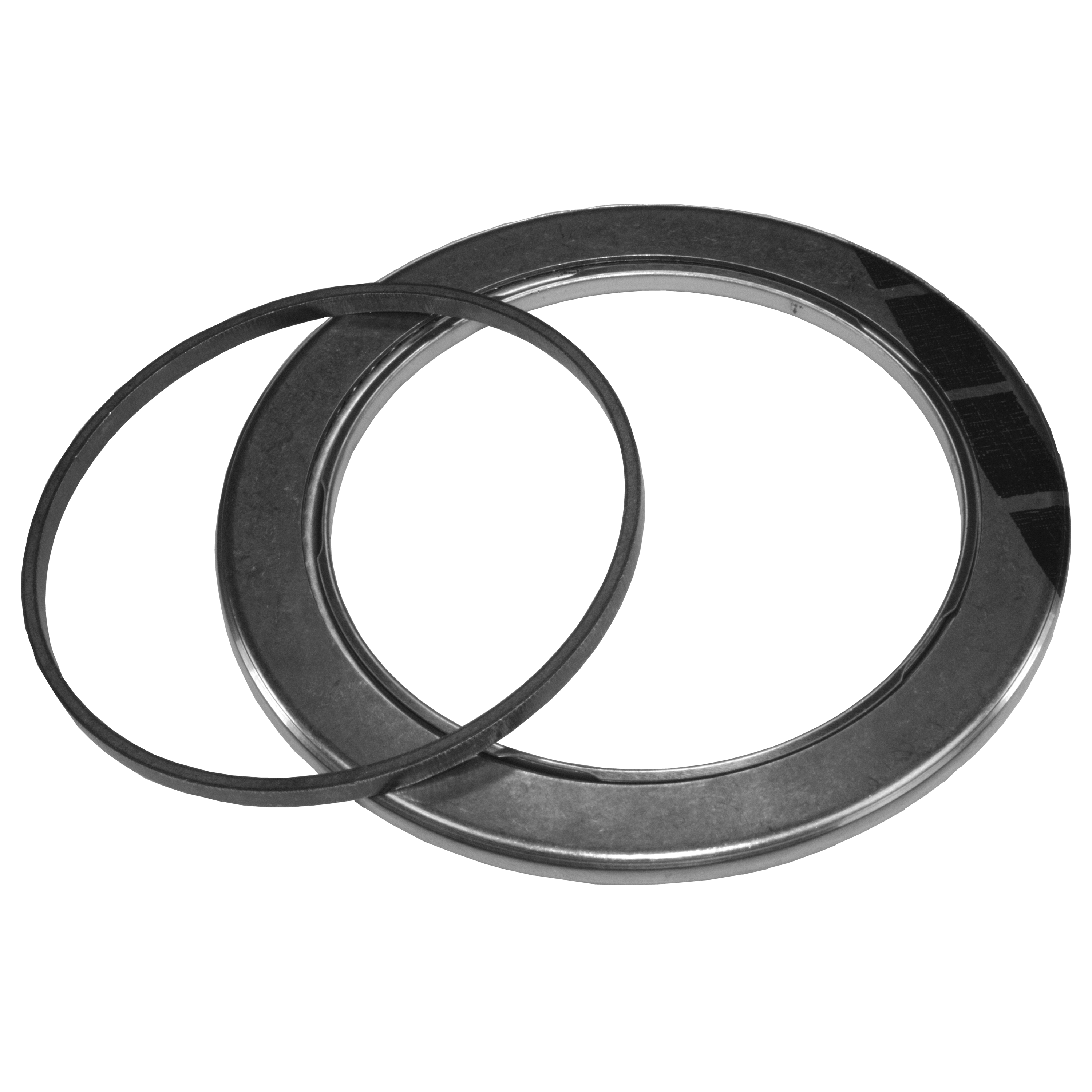

14 Bearing & Race Kit
  • Includes: Bearing SW-2-11 and race SW-2-20R
 SW-2-20K
Bearing & Race Kit SW-2-20K
&
  • Includes: Bearing SW-2-11 and race SW-2-20R
15 Rivet 12 Pieces Required.
  • Length: 0.34"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.17"
  • Rivet Head Dia: 0.281"
 SX-12-5
Rivet SX-12-5
& 12 Pieces Required.
  • Length: 0.34"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.17"
  • Rivet Head Dia: 0.281"

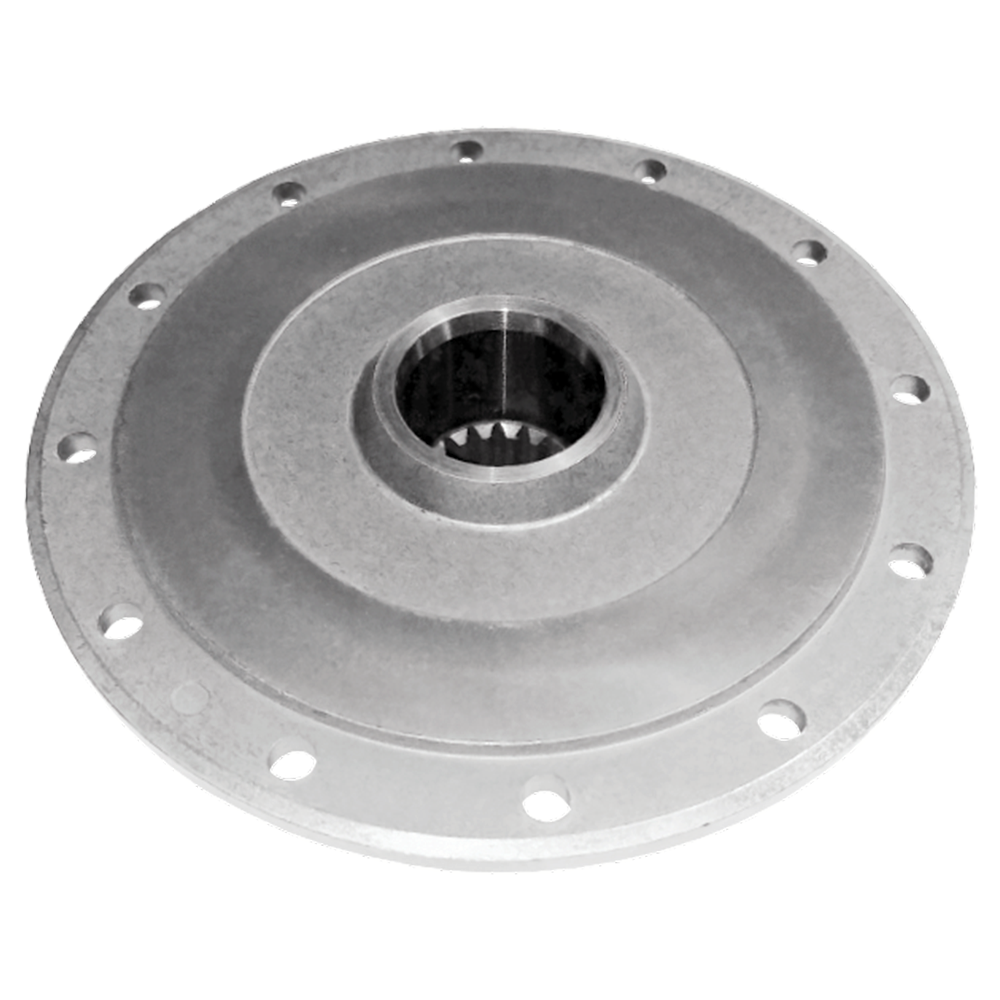

16 Turbine Hub
  • Internal Teeth: 19
  • External Teeth: 30
  • Outside Dia: 4.08"
 SX-13-15
Turbine Hub SX-13-15
&
  • Internal Teeth: 19
  • External Teeth: 30
  • Outside Dia: 4.08"
17 O-Ring
  • Thickness: 0.098
  • Thickness metric: 2.4892
  • Material: Fluorocarbon
  • Inside Dia: 1.102
  • Inside Dia metric: 27.9908
 SO-23-27
O-Ring SO-23-27
&
  • Thickness: 0.098
  • Thickness metric: 2.4892
  • Material: Fluorocarbon
  • Inside Dia: 1.102
  • Inside Dia metric: 27.9908
18 Turbine NPN-1-2-18
Turbine NPN-1-2-18
&
19 Lockup Clutch SX-23-103
Lockup Clutch SX-23-103
&
20 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8.875"
  • Inside Dia: 8"
 SX-23-31
Lining (Friction Ring,Wafer) SX-23-31
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 8.875"
  • Inside Dia: 8"

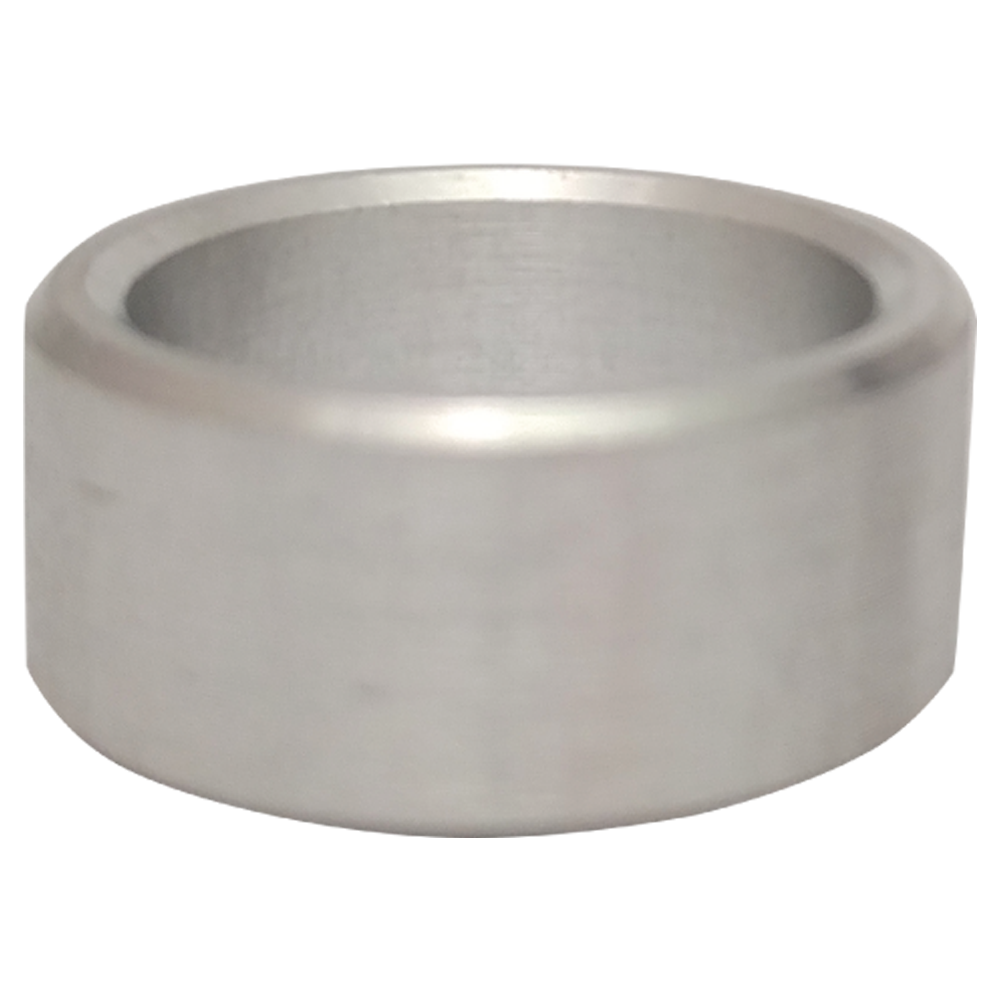

21 Bushing Cover
  • Thickness: 0.312"
  • Housing Bore Dia: 0.73"
  • Shaft Dia: 0.574"
  • Material: Aluminum
 SB-18-4
Bushing SB-18-4
Cover &
  • Thickness: 0.312"
  • Housing Bore Dia: 0.73"
  • Shaft Dia: 0.574"
  • Material: Aluminum
22 Front Cover NPN-1-2-22
Front Cover NPN-1-2-22
&
23 Bolt Hex Head 4 Pieces Required.
  • Dimensions: M10 × 1.5mm
  • Length: 15mm
  • OE# 25509226
 B-79
Bolt B-79
Hex Head & 4 Pieces Required.
  • Dimensions: M10 × 1.5mm
  • Length: 15mm
  • OE# 25509226
