Part Search

Torque Converter | Ford | Miscellaneous/Multi-Purpose (Ford)

Ill.# Image Description Specification Part #

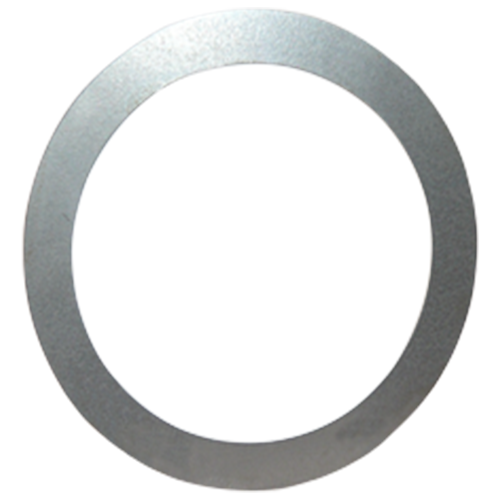

Washer
  • Outside Dia: 4.125"
  • Inside Dia: 3.250"
 5266
Washer 5266
&
  • Outside Dia: 4.125"
  • Inside Dia: 3.250"

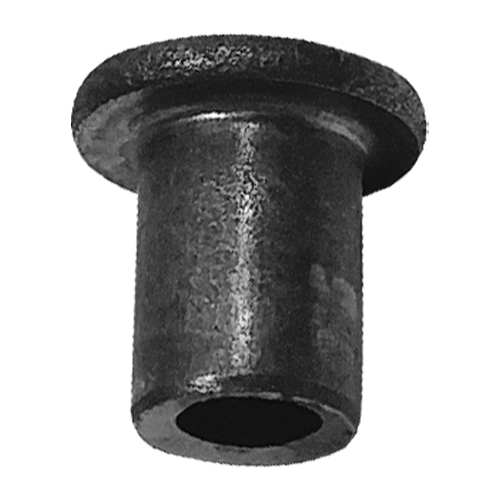

Rivet
  • Length: 0.312"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.23"
  • Rivet Head Dia: 0.38"
 FX-12F
Rivet FX-12F
&
  • Length: 0.312"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.23"
  • Rivet Head Dia: 0.38"
Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 11.625"
  • Inside Dia: 9.75"
 FX-23-15
Lining (Friction Ring,Wafer) FX-23-15
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 11.625"
  • Inside Dia: 9.75"

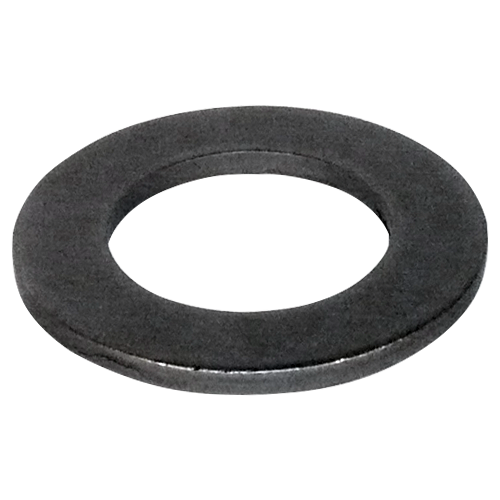

Shim
  • Thickness: 0.175"
  • Outside Dia: 2.855"
  • Inside Dia: 1.7"
 MW-2-135
Shim MW-2-135
&
  • Thickness: 0.175"
  • Outside Dia: 2.855"
  • Inside Dia: 1.7"

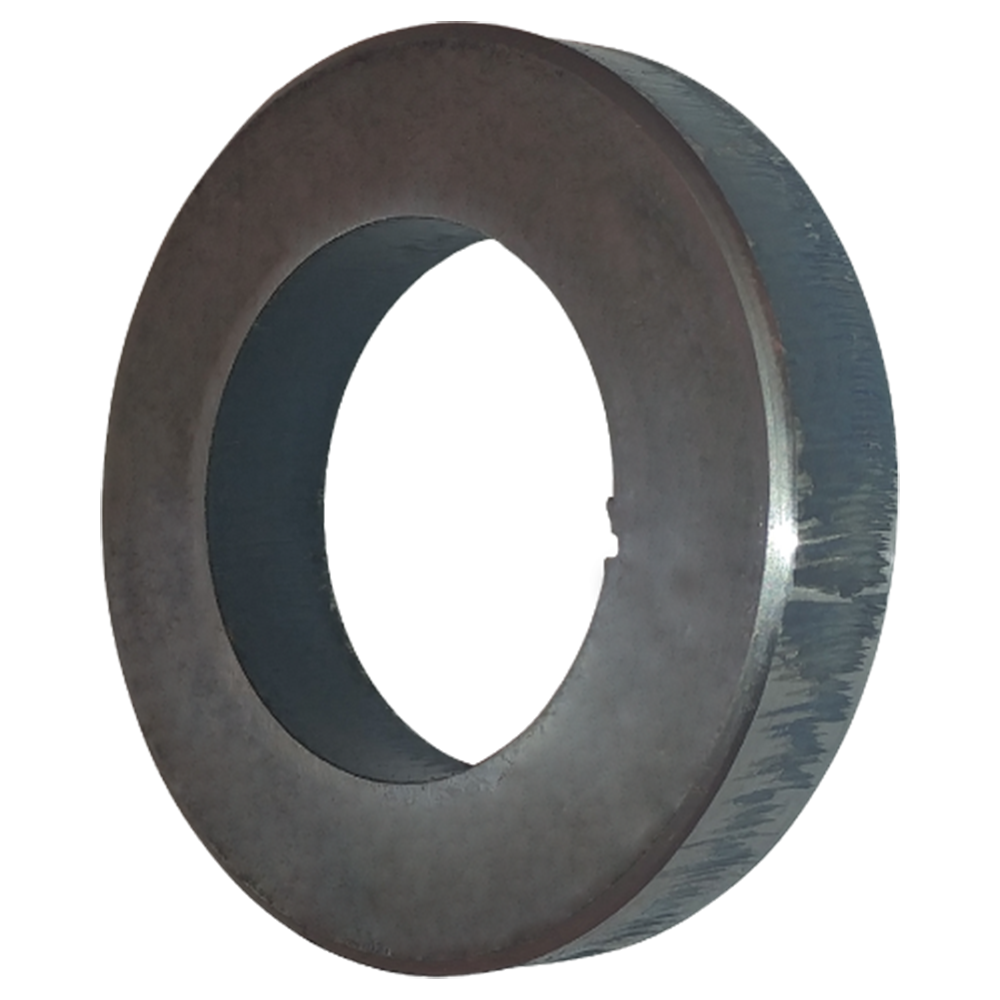

Washer Steel
  • Thickness: 0.50"
  • Material: Steel
  • Outside Dia: 2.50"
  • Inside Dia: 1.50"
  • OD Chamfer: 1/32" x 45
 MW-25155
Washer MW-25155
Steel &
  • Thickness: 0.50"
  • Material: Steel
  • Outside Dia: 2.50"
  • Inside Dia: 1.50"
  • OD Chamfer: 1/32" x 45

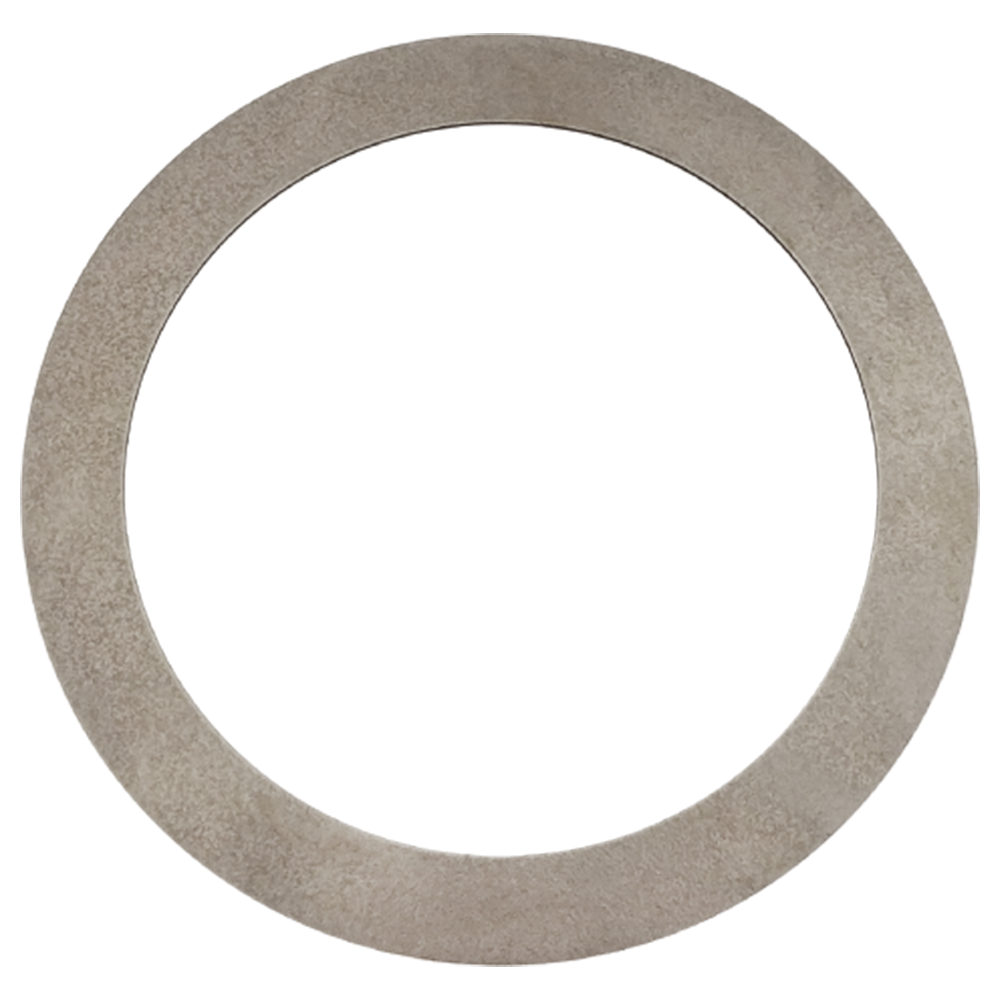

Shim
  • Thickness: 0.034"
  • Outside Dia: 4.125"
  • Inside Dia: 3.250"
 MW-2-5266
Shim MW-2-5266
&
  • Thickness: 0.034"
  • Outside Dia: 4.125"
  • Inside Dia: 3.250"

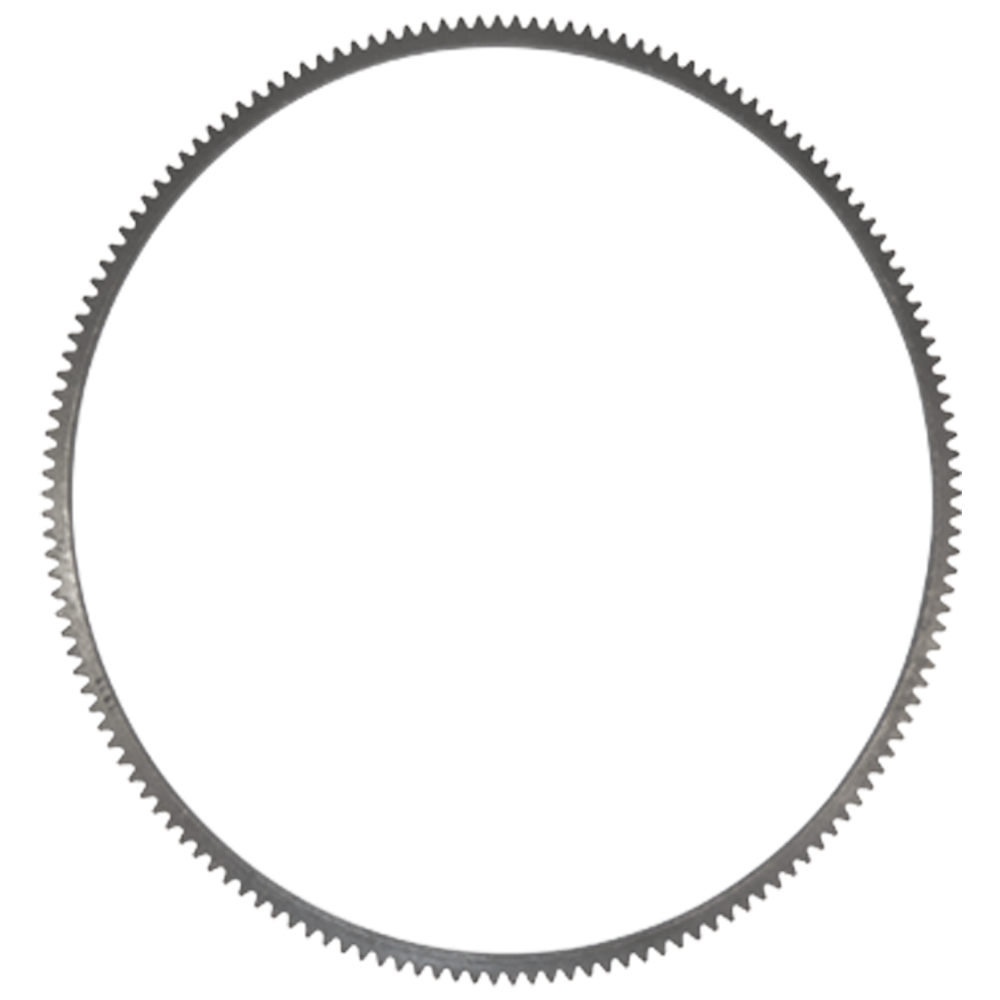

Ring Gear
  • External Teeth: 153
  • Outside Dia: 15.46"
  • Inside Dia: 14.58"
 RG-153S
Ring Gear RG-153S
&
  • External Teeth: 153
  • Outside Dia: 15.46"
  • Inside Dia: 14.58"
Ring Gear
  • Thickness: 0.42"
  • External Teeth: 164
  • Outside Dia: 13.92"
  • Inside Dia: 12.98"
 RG-164D
Ring Gear RG-164D
&
  • Thickness: 0.42"
  • External Teeth: 164
  • Outside Dia: 13.92"
  • Inside Dia: 12.98"
Ring Gear
  • Thickness: 0.44"
  • External Teeth: 164
  • Outside Dia: 13.92"
  • Inside Dia: 12.98"
 RG-164F
Ring Gear RG-164F
&
  • Thickness: 0.44"
  • External Teeth: 164
  • Outside Dia: 13.92"
  • Inside Dia: 12.98"
Ring Gear
  • External Teeth: 164
  • Outside Dia: 13.83"
  • Inside Dia: 12.906"
 RG-164R
Ring Gear RG-164R
&
  • External Teeth: 164
  • Outside Dia: 13.83"
  • Inside Dia: 12.906"

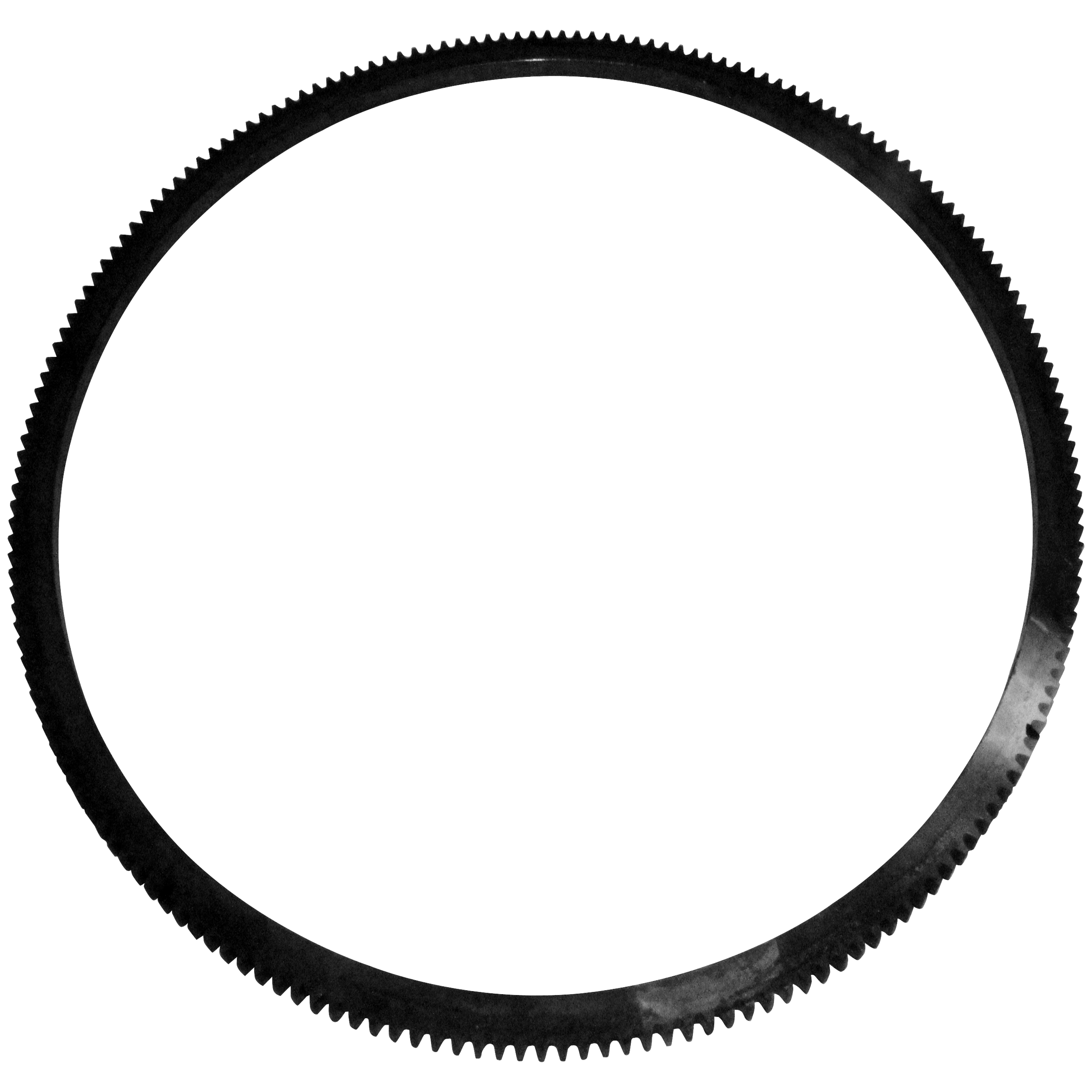

Ring Gear Ford 1964 - 1978
  • Thickness: 0.375"
  • External Teeth: 188
  • Outside Dia: 16.10"
  • Inside Dia: 14.728"
 RG-188T
Ring Gear RG-188T
Ford & 1964 - 1978
  • Thickness: 0.375"
  • External Teeth: 188
  • Outside Dia: 16.10"
  • Inside Dia: 14.728"
Impeller Hub
  • Journal Dia: 1.997"
  • Installed Height: 2.385"
  • Hub Mount: Thru
  • Inside Dia: 1.69"
 FH-1-2G
Impeller Hub FH-1-2G
&
  • Journal Dia: 1.997"
  • Installed Height: 2.385"
  • Hub Mount: Thru
  • Inside Dia: 1.69"

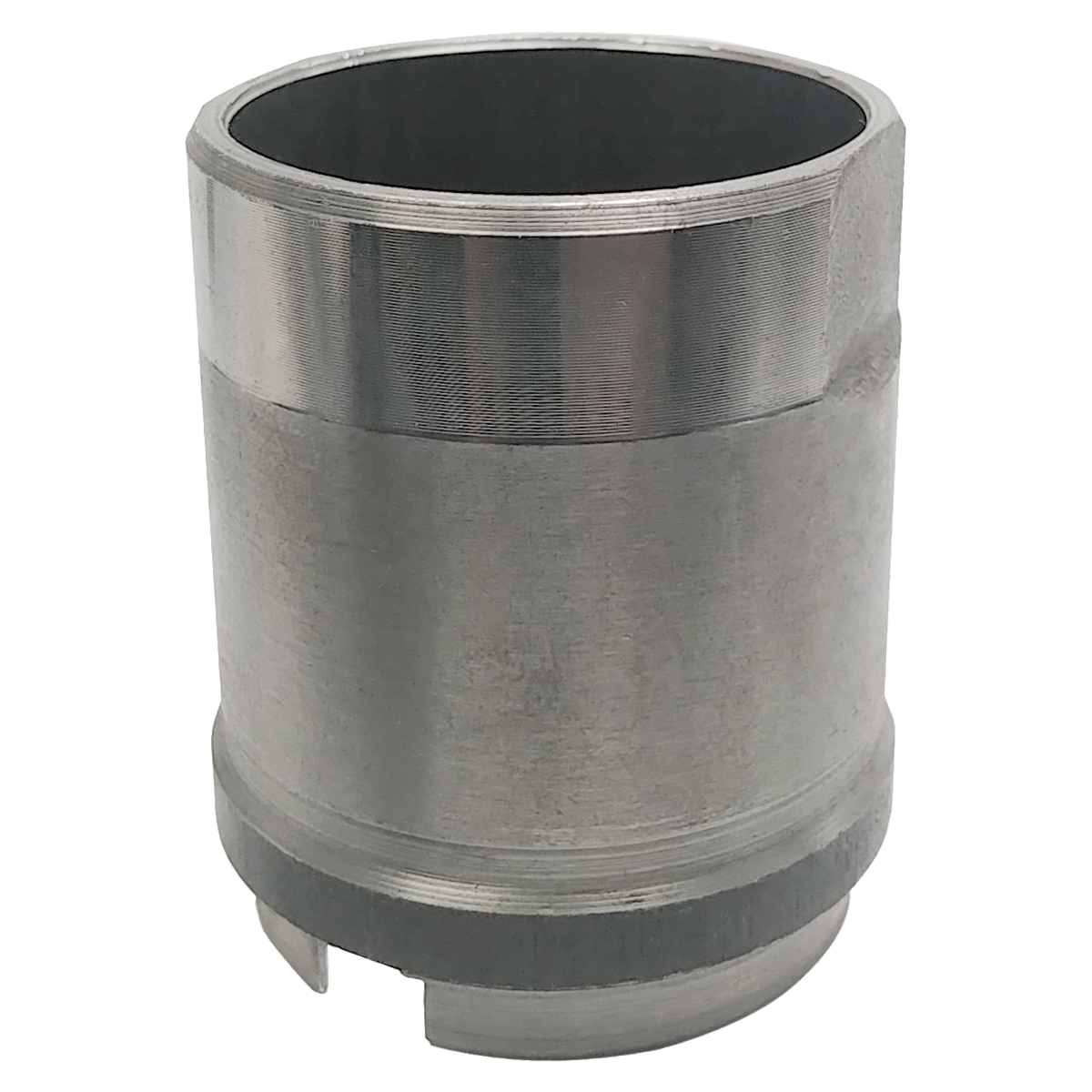

Impeller Hub Unfinished
  • Journal Dia: 1.997"
  • Installed Height: 2.385"
  • Hub Mount: Thru
  • Inside Dia: 1.69"
 FH-1-2HT
Impeller Hub FH-1-2HT
Unfinished &
  • Journal Dia: 1.997"
  • Installed Height: 2.385"
  • Hub Mount: Thru
  • Inside Dia: 1.69"
