Torque Converter | Ford | Jatco, Granada & Monarch '77-Up

Ill.# Image Description Specification Part #
1 Impeller Hub 2 Pieces Required.
  • Journal Dia: 1.651"
  • Installed Height: 2.060"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
 JH-1-2G
Impeller Hub JH-1-2G
& 2 Pieces Required.
  • Journal Dia: 1.651"
  • Installed Height: 2.060"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
2 Bearing Race
  • Thickness: 0.030"
  • Bearing type: Outside & Inside Lips
  • Outside Dia: 2.370"
  • Inside Dia: 1.376"
 JW-2-6
Bearing Race JW-2-6
&
  • Thickness: 0.030"
  • Bearing type: Outside & Inside Lips
  • Outside Dia: 2.370"
  • Inside Dia: 1.376"
2 Bearing Race USE (2) JW-2-5T
  • Thickness: .08"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5
Bearing Race JW-2-5
& USE (2) JW-2-5T
  • Thickness: .08"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
2 Bearing Race
  • Thickness: 0.042"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5T
Bearing Race JW-2-5T
&
  • Thickness: 0.042"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
2 Bearing Race
  • Thickness: .03"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
 JW-2-5TT
Bearing Race JW-2-5TT
&
  • Thickness: .03"
  • Outside Dia: 2.345"
  • Inside Dia: 1.585"
2 Bearing
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2N
Bearing JW-2N
&
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
2 Bearing
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2ND
Bearing JW-2ND
&
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6

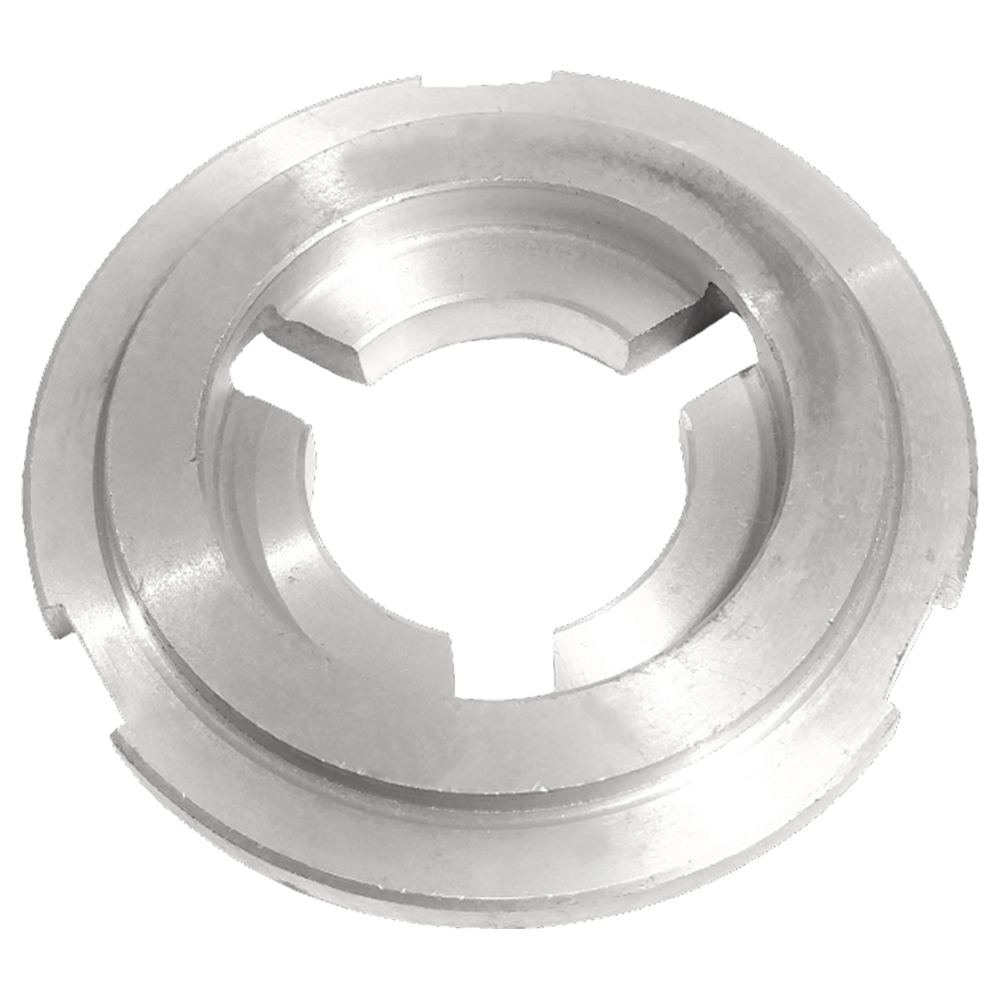

4 Stator Cap 2 Pieces Required.
  • Material: Aluminum
  • Outside Dia: 3.23"
  • Inside Dia: 1.33"
 JW-4-2
Stator Cap JW-4-2
& 2 Pieces Required.
  • Material: Aluminum
  • Outside Dia: 3.23"
  • Inside Dia: 1.33"
6 Cam (Sprag Element) 24 Pieces Required. F-240
Cam (Sprag Element) F-240
& 24 Pieces Required.
6 Sprag
  • Thickness: 0.450"
  • Cam Count: 26 elements
  • Outer Race Inside Dia: 2.820"
  • Inner Race Outside Dia: 2.410"
  • Cam part-ID: F-240 or S-240
 JC-6-2
Sprag JC-6-2
&
  • Thickness: 0.450"
  • Cam Count: 26 elements
  • Outer Race Inside Dia: 2.820"
  • Inner Race Outside Dia: 2.410"
  • Cam part-ID: F-240 or S-240
9 Turbine Washer
  • Material: Fiber
  • Outside Dia: 2.42"
  • Inside Dia: 1.18"
  • Replaces Bronze
 CW-9-1F
Turbine Washer CW-9-1F
&
  • Material: Fiber
  • Outside Dia: 2.42"
  • Inside Dia: 1.18"
  • Replaces Bronze
9 Turbine Washer
  • Material: Plastic
  • Outside Dia: 2.42"
  • Inside Dia: 1.18"
  • Replaces Bronze

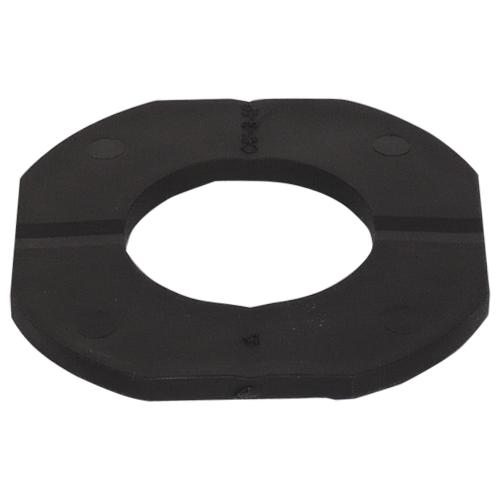

 CW-9-1P
Turbine Washer CW-9-1P
&
  • Material: Plastic
  • Outside Dia: 2.42"
  • Inside Dia: 1.18"
  • Replaces Bronze
9 Turbine Washer USE TW 9-7A
  • Thickness: .14"
  • Material: Fiber
  • Outside Dia: 2.12"
  • Inside Dia: 1.26"
 TW-9-7A
Turbine Washer TW-9-7A
& USE TW 9-7A
  • Thickness: .14"
  • Material: Fiber
  • Outside Dia: 2.12"
  • Inside Dia: 1.26"
9 Turbine Washer USE TW-9-7B
  • Thickness: 0.125"
  • Material: Fiber
  • Outside Dia: 2.42"
  • Inside Dia: 1.18"
 TW-9-7AF
Turbine Washer TW-9-7AF
& USE TW-9-7B
  • Thickness: 0.125"
  • Material: Fiber
  • Outside Dia: 2.42"
  • Inside Dia: 1.18"
9 Turbine Washer USE TW-9-7B
  • Thickness: .16"
  • Material: Plastic
  • Outside Dia: 2.12"
  • Inside Dia: 1.26"
 TW-9-7B
Turbine Washer TW-9-7B
& USE TW-9-7B
  • Thickness: .16"
  • Material: Plastic
  • Outside Dia: 2.12"
  • Inside Dia: 1.26"
9 Turbine Washer USE TW-9-7B
  • Thickness: 0.156"
  • Material: Fiber
  • Outside Dia: 2.42"
  • Inside Dia: 1.18"
  • Oversized
 TW-9-7BF
Turbine Washer TW-9-7BF
& USE TW-9-7B
  • Thickness: 0.156"
  • Material: Fiber
  • Outside Dia: 2.42"
  • Inside Dia: 1.18"
  • Oversized
9 Turbine Washer
  • Thickness: .07"
  • Material: Fiber
  • Outside Dia: 2.12"
  • Inside Dia: 1.26"
 TW-9-7C
Turbine Washer TW-9-7C
&
  • Thickness: .07"
  • Material: Fiber
  • Outside Dia: 2.12"
  • Inside Dia: 1.26"
9 Turbine Washer USE TW 9-7A
  • Thickness: 0.062"
  • Material: Fiber
  • Outside Dia: 2.42"
  • Inside Dia: 1.18"
 TW-9-7CF
Turbine Washer TW-9-7CF
& USE TW 9-7A
  • Thickness: 0.062"
  • Material: Fiber
  • Outside Dia: 2.42"
  • Inside Dia: 1.18"
9 Turbine Washer USE TW 9-7A
  • Thickness: .094"
  • Material: Fiber
  • Outside Dia: 2.42"
  • Inside Dia: 1.18"
 TW-9-7DF
Turbine Washer TW-9-7DF
& USE TW 9-7A
  • Thickness: .094"
  • Material: Fiber
  • Outside Dia: 2.42"
  • Inside Dia: 1.18"
12 Rivet 8 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12L
Rivet FX-12L
& 8 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
13 Spline Insert Pump Drive
  • Height: 0.880
  • External Teeth: 18
 JX-13-18X
Spline Insert JX-13-18X
Pump Drive &
  • Height: 0.880
  • External Teeth: 18
13 Turbine Hub
  • Internal Teeth: 18
  • Outside Dia: 3.54"
 JX-13-3
Turbine Hub JX-13-3
&
  • Internal Teeth: 18
  • Outside Dia: 3.54"
18 Bushing
  • Thickness: 0.342"
  • Housing Bore Dia: 1.299"
  • Shaft Dia: 1.179"
  • Material: Babbit
 JB-18-1
Bushing JB-18-1
&
  • Thickness: 0.342"
  • Housing Bore Dia: 1.299"
  • Shaft Dia: 1.179"
  • Material: Babbit
20 Snap Ring 2 Pieces Required. TX-20
Snap Ring TX-20
& 2 Pieces Required.

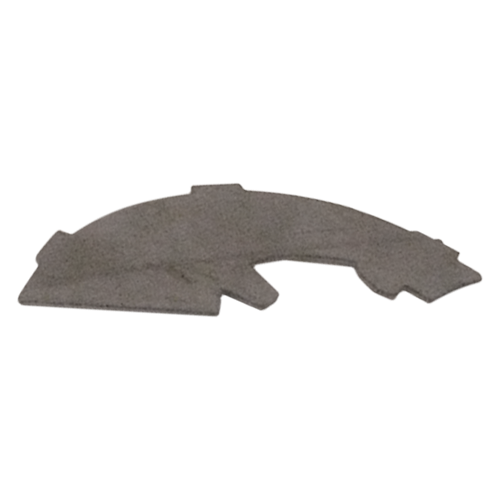

21 Vane JX-21-31
Vane JX-21-31
&
22 Retainer
  • Thickness: .04"
  • Material: Steel
  • Outside Dia: 2.75"
  • Inside Dia: 1.60"
 JX-22-2
Retainer JX-22-2
&
  • Thickness: .04"
  • Material: Steel
  • Outside Dia: 2.75"
  • Inside Dia: 1.60"
