Torque Converter | Ford | FNR5 (FS5A-EL)

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
2 Misc NPN-SPL
9 Bearing
  • Outer Dia: 2.244
  • Inner Dia: 1.3
  • Thickness: 0.228
  • Outer Dia Metric: 57
  • Inner Dia metric: 33.02
  • Thickness metric: 5.79
  • Bearing type: Enclosed
 TW-2-21
9 Bearing
  • Outer Dia: 2.237
  • Inner Dia: 1.307
  • Thickness: 0.226
  • Outer Dia Metric: 56.82
  • Inner Dia metric: 33.2
  • Thickness metric: 5.74
  • Bearing type: Enclosed
 TW-2-25
12 Seal Ring Solid
  • Height: 0.113
  • Outer Dia: 3.493
  • Width: 0.093"
  • Outer Dia Metric: 88.7222
  • Material: PTFE
  • Height Metric: 2.8702
 JO-25-20
12 Seal Ring
  • Height: 0.113
  • Outer Dia: 3.499
  • Width: 0.094
  • Outer Dia Metric: 88.8746
  • Material: PTFE
  • Height Metric: 2.8702
 TO-25-11
13 Metal Clad Seal
  • housing bore dia: 0.906
  • housing bore dia metric: 23
  • Shaft Dia metric: 15
  • Shaft Dia: 0.59
  • Material: Fluorocarbon
 TO-25-12
21 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Outer Dia: 10"
  • Inner Dia: 9"
  • Thickness: 0.045"
  • Material: Red
 NX-23-7

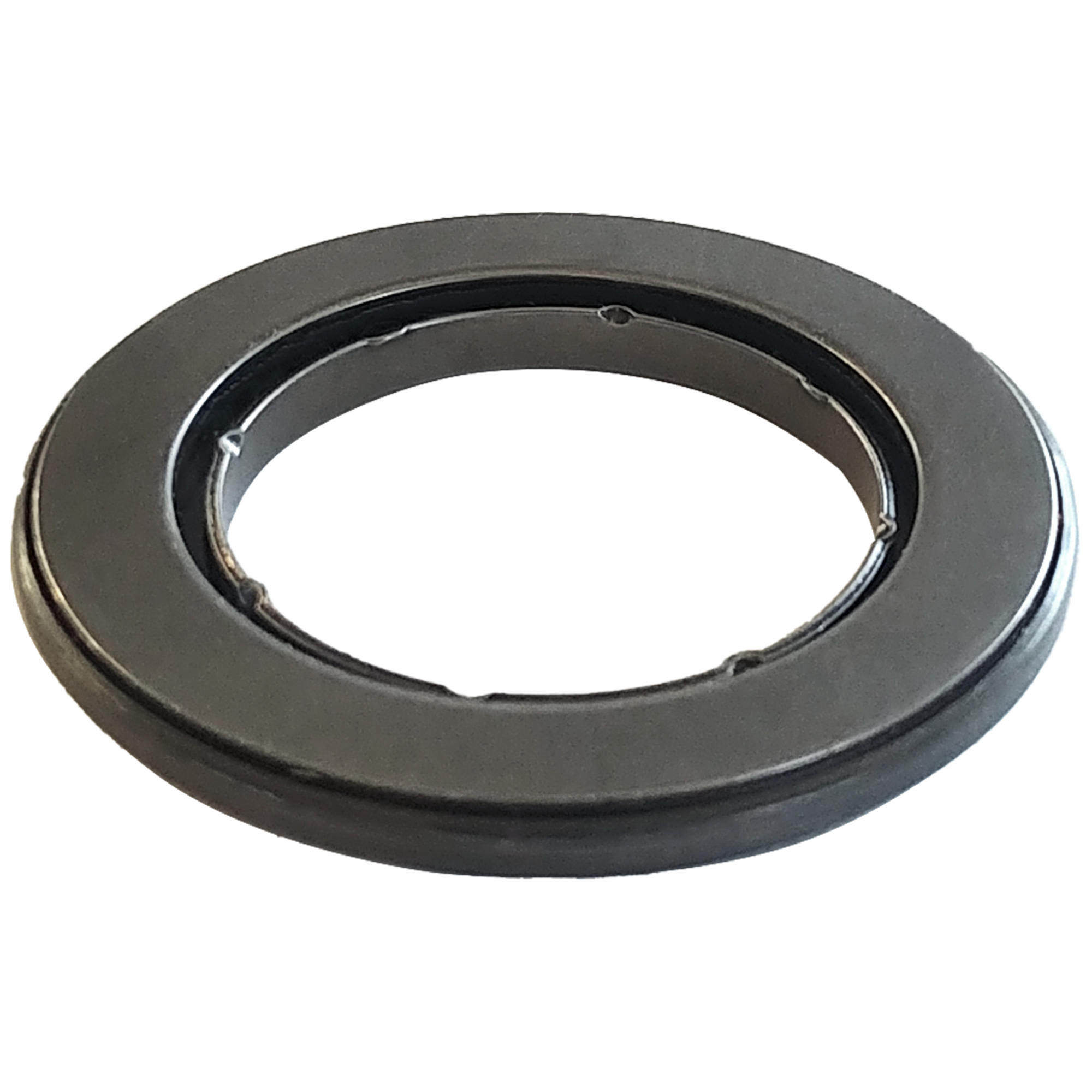

22 Bearing
  • Outer Dia: 2.047"
  • Inner Dia: 1.260"
  • Thickness: 0.208"
  • Outer Dia Metric: 52
  • Inner Dia metric: 32
  • Thickness metric: 5.5
  • Bearing type: Enclosed
 FW-9-31

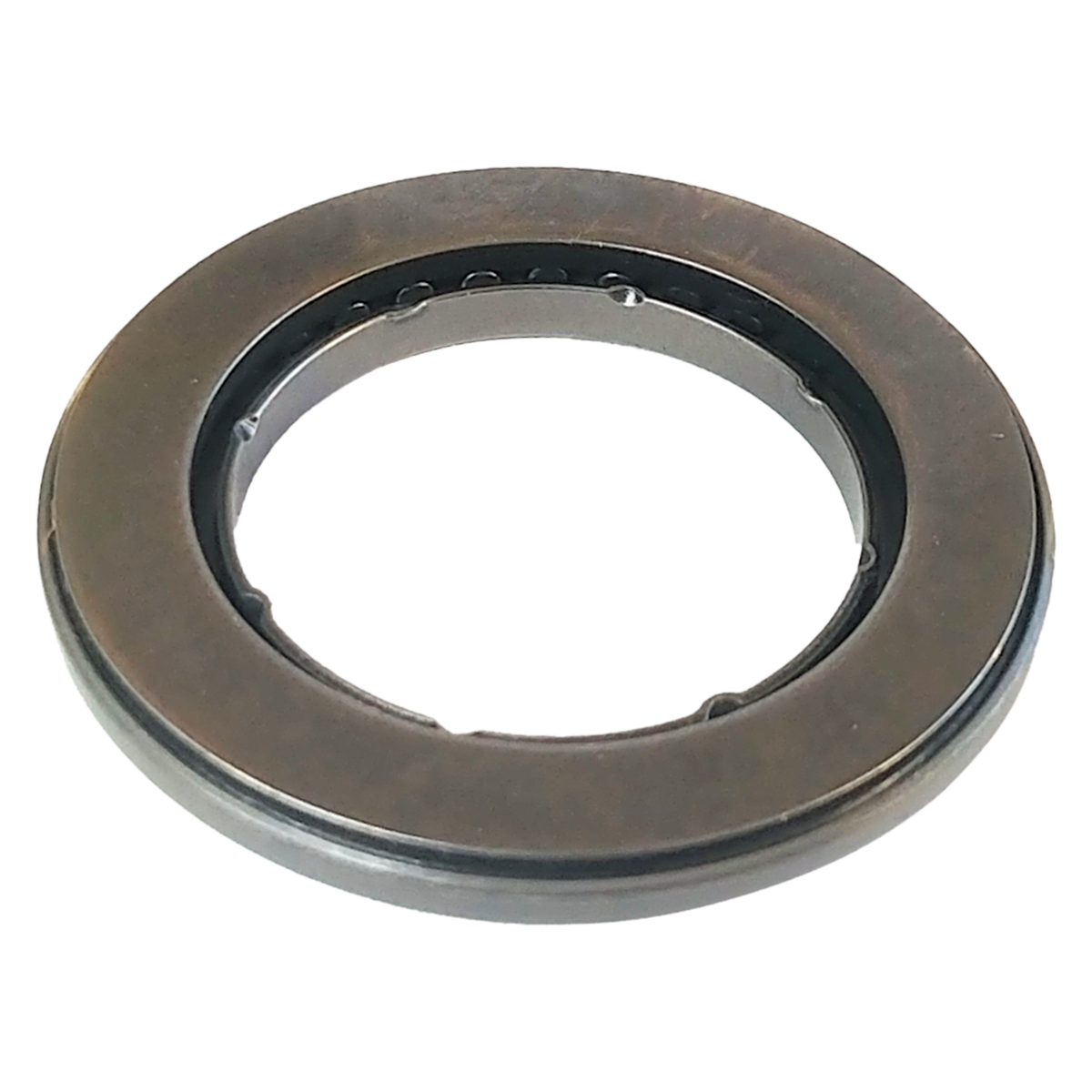

22 Bearing
  • Outer Dia: 2.047"
  • Inner Dia: 1.260"
  • Thickness: 0.232"
  • Outer Dia Metric: 52
  • Inner Dia metric: 32
  • Thickness metric: 5.9
 FW-9-32
