Torque Converter | Ford | E4OD

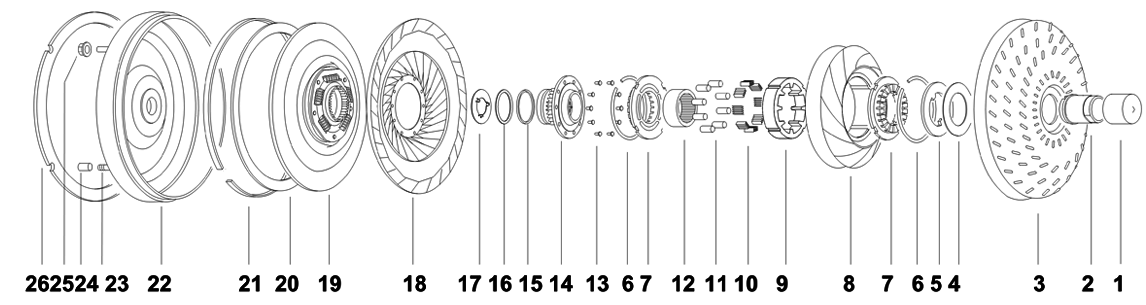

Ill.# Image Description Specification Part #
0 Stator Cap Bearing Adapter Impeller side only
  • Thickness: .66"
  • Material: Aluminum
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Bearing: SW-2-12
 FW-4-14A
0 Misc NPN-SPL
0 Impeller Hub Flanged
  • Journal Dia: 1.997"
  • Installed Height: 2.175"
  • Height: 2.753"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 3.810"
 FH-1-55FLG
0 Impeller Hub Flanged
  • Journal Dia: 1.997"
  • Installed Height: 2.375"
  • Height: 2.750"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 2.500"
 FH-1-43FLG
1 Hubcap Fits 2" (50.8mm). Length: 1-1/2"
  • Color: Red
  • Fits 2" (50.8mm)
 MHC-R
2 Impeller Hub
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75
 FH-1-5FGRCD
2 Impeller Hub
  • Inside Dia: 1.75
 FH-1-6F
2 Impeller Hub
  • Journal Dia: 1.997"
  • Installed Height: 2.318"
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-2312GRC
2 Impeller Hub
  • Inside Dia: 1.688
 FH-1-CB6
2 Impeller Hub Heat Treated
  • Journal Dia: 1.997"
  • Installed Height: 2.312"
  • Height: 2.622"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-3107GRC
2 Impeller Hub
  • Journal Dia: 1.997"
  • Height: 2.312"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.688
 FH-1-CB5GRC
2 Impeller Hub
  • Journal Dia: 1.997"
  • Height: 2.312"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Inside Dia: 1.688
 FH-1-CB6G
2 Impeller Hub
  • Journal Dia: 1.997"
  • Height: 2.312"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.688
 FH-1-CB6GRC
2 Impeller Hub Flanged, AOD, C-6, C-4
  • Journal Dia: 1.997"
  • Installed Height: 2.624"
  • Height: 2.774"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 3.645"
 FH-1-25FLG
2 Impeller Hub
  • Journal Dia: 1.997"
  • Installed Height: 2.396
  • Length: 2.697
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75
 FH-1-5FGRC
2 Impeller Hub
  • Journal Dia: 1.997"
  • Installed Height: 2.396
  • Length: 2.697
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75
 FH-1-6FGRC
3 Impeller NPN-2-46-3
4 Shim
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-10
4 Shim
  • Thickness: 0.02"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-20
4 Shim
  • Thickness: .030"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-30
4 Shim
  • Thickness: 0.05"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-50
5 Washer Standard
  • Thickness: .09"
  • Material: Steel
  • Outside Dia: 3.125"
  • Inside Dia: 1.875"
 FW-2-1
5 Washer Oversized
  • Thickness: 0.105"
  • Material: Steel
  • Outside Dia: 3.125"
  • Inside Dia: 1.875"
  • Oversized
 FW-2-1A
6 Snap Ring 2 Pieces Required.
  • Inside Dia: 3.600"
 FX-20-11
7 Stator Cap Bearing Adapter Turbine side only. Use with bearing TW-2-4
  • Material: Aluminum
  • Functional Thickness: 0.407"
  • Lug Count: 4 Outer Lugs
  • Outside Dia: 3.590"
  • Inside Dia: 1.930"
 FW-4-35
7 Stator Cap 2 Pieces Required.
  • Thickness: 0.65"
  • Material: Phenolic
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Casting#: E5DP-7937AA E9TP-7937AA
 FW-4-13
7 Stator Cap Non-OE Substitutes Are Not Reccomended. 2 Pieces Required.
  • Thickness: 0.59"
  • Material: Phenolic
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Casting#: F5TP-7937AA
 FW-4-15
7 Stator Cap Plastic 2 Pieces Required.
  • Outside Dia: 3.6"
  • Inside Dia: 2.04"
 FW-4-3
7 Stator Cap 2 Pieces Required.
  • Thickness: 0.50"
  • Material: Aluminum
  • Outside Dia: 3.6"
  • Inside Dia: 2.04"
  • Casting#: D2AP-7937AA C7AP-7937B
 FW-4-3A
7 Washer 2 Pieces Required.
  • Thickness: 0.68"
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Casting#: E5DP-7937AA
 FW-4-8
7 Stator Cap Heavy Duty Non-OE Substitutes Are Not Reccomended. 2 Pieces Required.
  • Thickness: 0.69"
  • Material: Phenolic
  • Outside Dia: 3.60"
  • Inside Dia: 2"
  • OE# F7AP-7937-AA
 FW-4-19

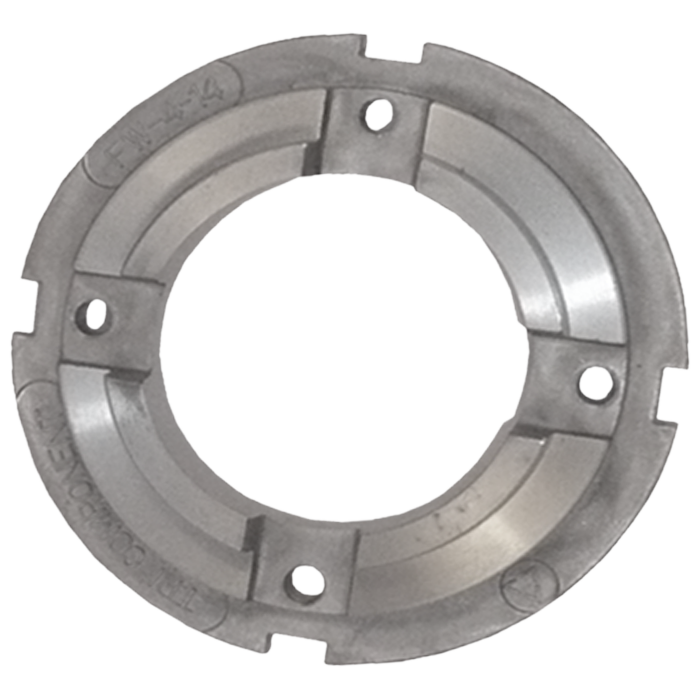

7 Stator Cap Bearing Adapter Impeller side only
  • Thickness: .56"
  • Material: Aluminum
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Fits SW-2-12 bearing (0.900" Rollers)
 FW-4-18
7 Stator Cap Bearing Adapter Impeller side only
  • Thickness: .66"
  • Material: Aluminum
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Bearing: SW-2-12
 FW-4-14
7 Stator Cap Bearing Adapter Impeller side only
  • Thickness: .66"
  • Material: Plastic
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Bearing: SW-2-12
 FW-4-14P

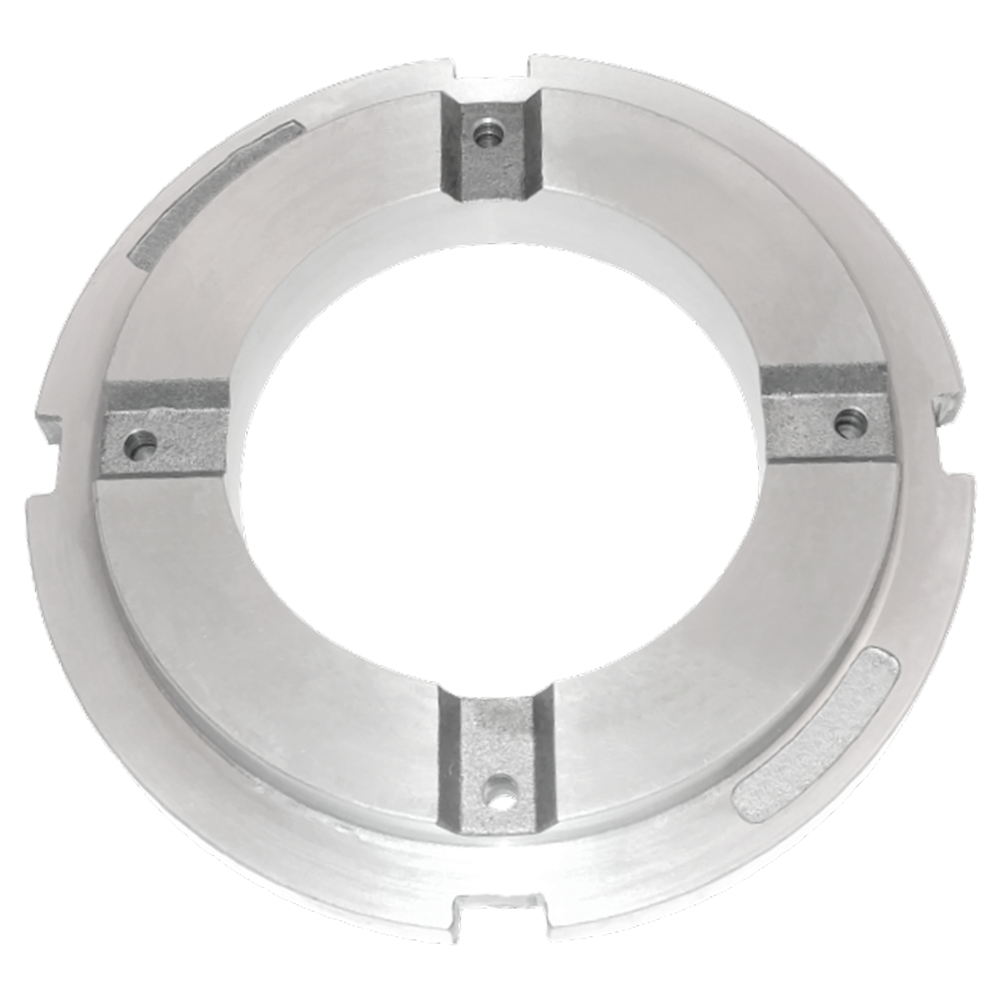

7 Stator Cap Bearing Adapter OE Design Turbine Hubs Require Modification.
  • Thickness: 0.497"
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • To Adapt to Bearing TW-2-4 (For .900" Rollers)
 FW-4-27
8 Stator
  • OE #E0AP-7934AA
 FX-5L
9 Outer Race (Cam) Stator
  • Height: .90"
  • Outside Dia: 3.60"
 FX-15-4
9 Outer Race (Cam) Stator
  • Dimensions: 3.60" x .80"
 FX-15-6

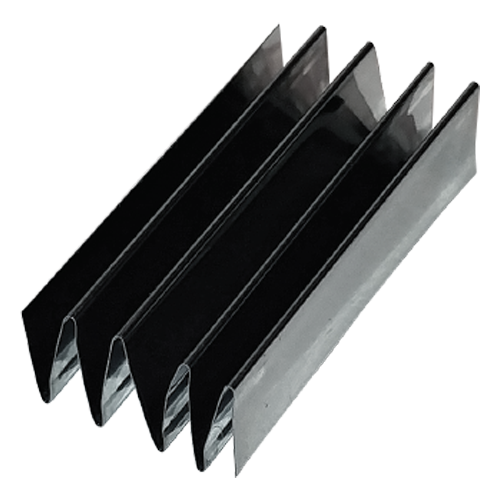

10 Accordion Spring 8 Pieces Required.
  • Height: 0.28"
  • Width: 0.93"
  • Folds: 4
 FS-6-2
10 Accordion Spring 8 Pieces Required.
  • Height: 0.28"
  • Width: 0.73"
  • Folds: 3
 FS-6-11
10 Accordion Spring 8 Pieces Required.
  • Height: 0.28"
  • Width: 0.73"
  • Folds: 4
 FS-6-8

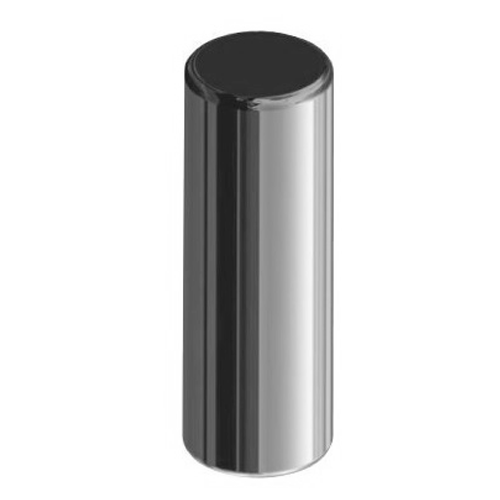

11 Roller 8 Pieces Required.
  • Dia: 0.313"
  • Length: .90"
 FR-7
11 Roller 8 Pieces Required.
  • Dia: 0.312"
  • Length: 0.705"
 12960R
11 Roller 8 Pieces Required.
  • Dia: 0.312"
  • Length: 0.71"
 FR-7-2

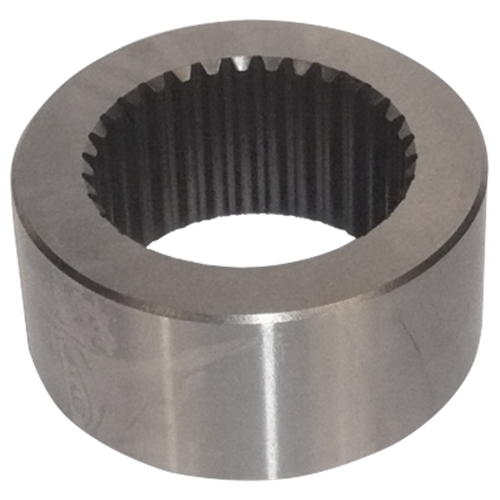

12 Inner Race Stator
  • Height: 0.985"
  • Internal Teeth: 32
  • Outside Dia: 2.375"
 FX-14-1
12 Inner Race Stator
  • Height: 0.781"
  • Internal Teeth: 32
  • Outside Dia: 2.375"
 FX-14-5
13 Rivet **Recommended To Use Solid Rivet FX-12LS To Eliminate Loosening. 10 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet head dia: 0.312"
 FX-12L
13 Rivet 10 Pieces Required.
  • Length: 0.385"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.214"
  • Rivet head dia: 0.312"
 FX-12LS
13 Rivet use with FX-13-45HTK
  • Length: 0.445"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.224"
  • Rivet head dia: 0.328"
 SX-12-10

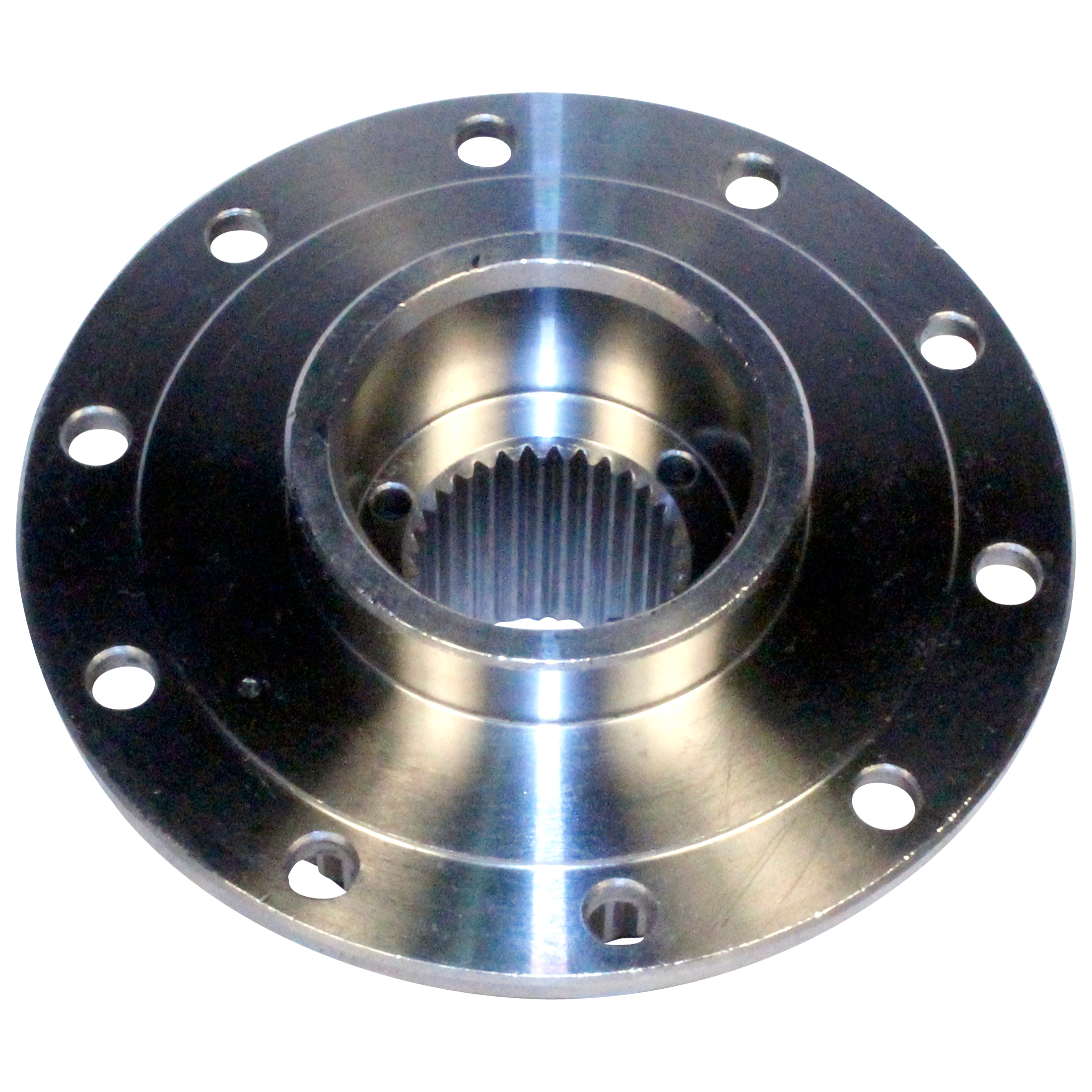

14 Turbine Hub Bearing Type Use with 35402B Bearing
  • Internal Teeth: 31
  • External teeth: 68
  • Outside Dia: 3.88"
  • Use 35402B or 65405 (8628202)
 FX-13-19B
14 Turbine Hub Kit, Bearing Type
  • Internal Teeth: 31
  • External teeth: 68
  • Outside Dia: 3.88"
  • Includes Bearing 35402B
 FX-13-19BK
14 Turbine Hub
  • Internal Teeth: 31
  • External teeth: 68
  • Outside Dia: 3.88"
 FX-13-19C
14 Turbine Hub Kit
  • Height: 4.000
  • Internal Teeth: 31
  • External teeth: 68
 FX-13-19CK

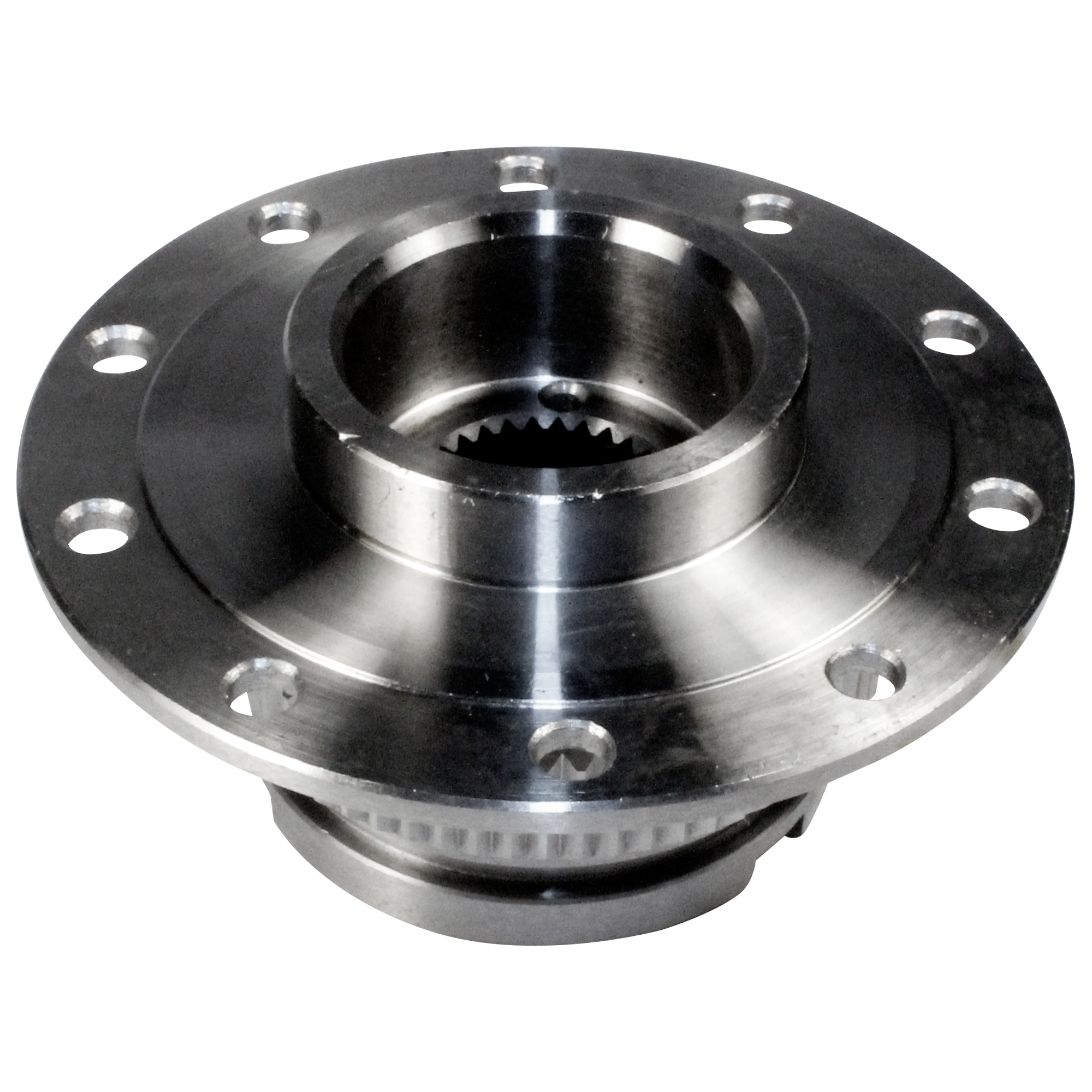

14 Turbine Hub
  • Height: 2.02"
  • Internal Teeth: 31
  • External teeth: 68
  • Hardness: Heat-Treated (hardened)
  • Tab Count: Adaptable To Bronze Washers FW-9-15A/F
  • Outside Dia: 3.88"
  • Adaptable To Bronze Washers FW-9-15A/F
 FX-13-19SHT
14 Turbine Hub Converts a Ford C5, C6, AOD and E4OD turbine to fita Ford 4R100 multi-plate clutch.
  • Height: 2.00"
  • Outside Dia: 4.050"
 FX-13-45HT

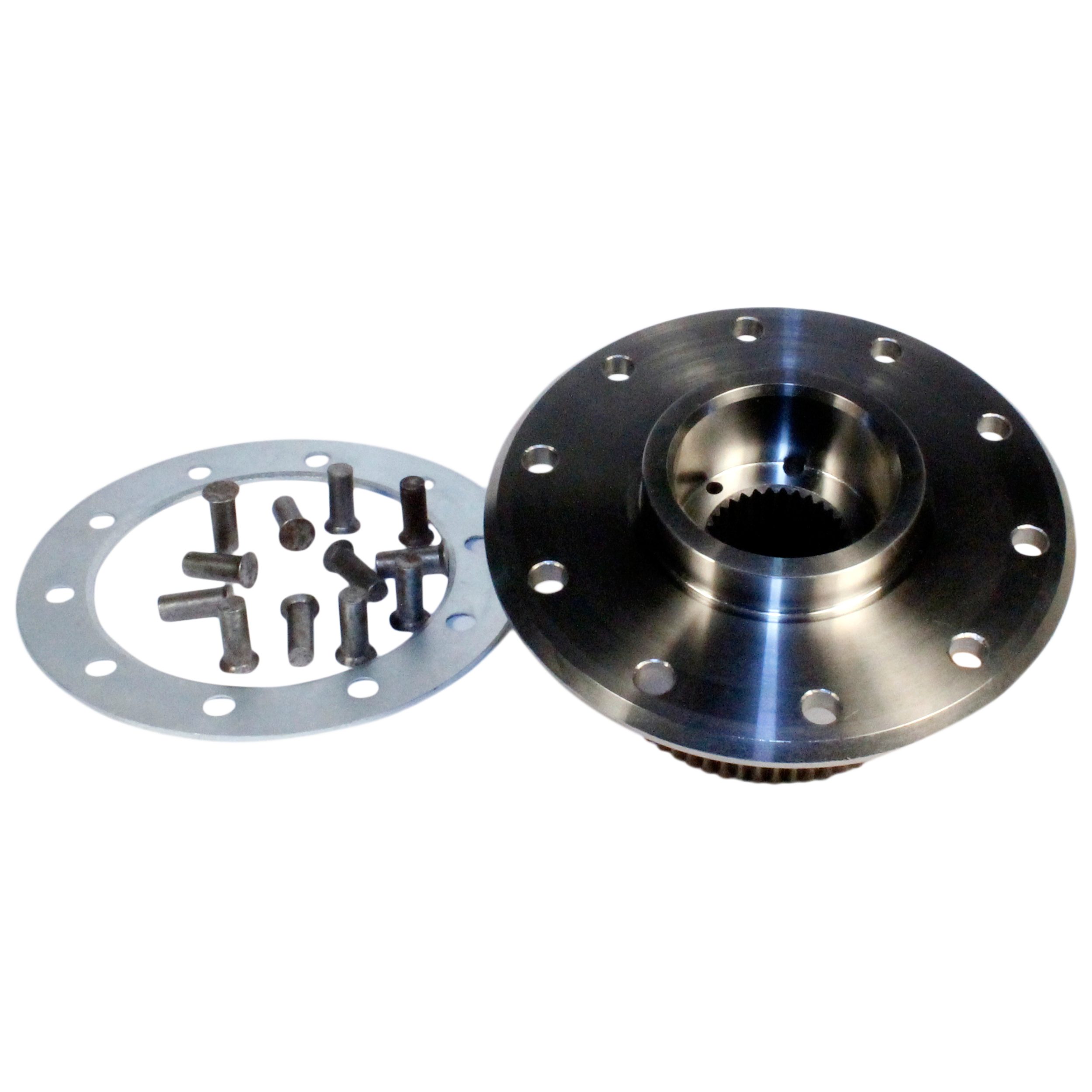

14 Turbine Hub Conversion Kit Converts a Ford C5, C6, AOD and E4OD turbine to fit a Ford 4R100 multi-plate clutch.
  • Height: 4.000
  • Internal Teeth: 31
  • External teeth: 68
  • Material: Steel
  • Adapts Ford C5, C6, AOD and E4OD turbine to 4R100 multi-plate clutch-assembly.
 FX-13-45HTK
15 O-Ring
  • Thickness: 0.128
  • Thickness metric: 3.2512
  • Material: Fluorocarbon
  • Inside Dia: 2.087
  • Inside Dia metric: 54.7624
 FO-25-5V
15 O-Ring
  • Thickness: 0.138
  • Thickness metric: 3.5052
  • Material: Fluorocarbon
  • Inside Dia: 2.087
  • Inside Dia metric: 53.0098
 FO-25-5X
16 Shim Adjusts Clearance of Clutch ToTurbine. Eliminates Contact (25 Pieces Per Bag, With Instructions)
  • Thickness: .02"
  • Outside Dia: 2.582"
  • Inside Dia: 2.406"
 FW-9-18
16 Shim
  • Thickness: 0.02"
  • Outside Dia: 2.59"
  • Inside Dia: 2.415"
 FW-9-23
17 Turbine Washer
  • Thickness: 0.062"
  • Material: Bronze
  • Lug Width: 0.170"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-12A
17 Turbine Washer AOD-E
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-12AJ
17 Turbine Washer
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-15
17 Turbine Washer
  • Thickness: 0.062"
  • Material: Bronze
  • Lug Width: .280"
  • Outside Dia: 2.360"
  • Inside Dia: 1.150"
 FW-9-15A
17 Turbine Washer
  • Thickness: 0.062
  • Material: Bronze
  • Lug Width: .280"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-16A
17 Turbine Washer
  • Thickness: 0.070"
  • Material: Bronze
  • Lug Width: 0.170"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-12B
17 Turbine Washer 3 Lugs
  • Thickness: 0.04"
  • Material: Bronze
  • Lug Width: .280
  • Outside Dia: 2.36"
  • Inside Dia: 1.15"
 FW-9-15B
17 Turbine Washer
  • Thickness: .070"
  • Material: Bronze
  • Lug Width: .280"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-16B
17 Turbine Washer
  • Thickness: 0.080"
  • Material: Bronze
  • Lug Width: 0.170"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-12C
17 Turbine Washer AOD-E
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-12CJ
17 Turbine Washer
  • Thickness: 0.108"
  • Material: Bronze
  • Lug Width: 0.170"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-12F
17 Kit Turbine Washer, A4LD
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-12K

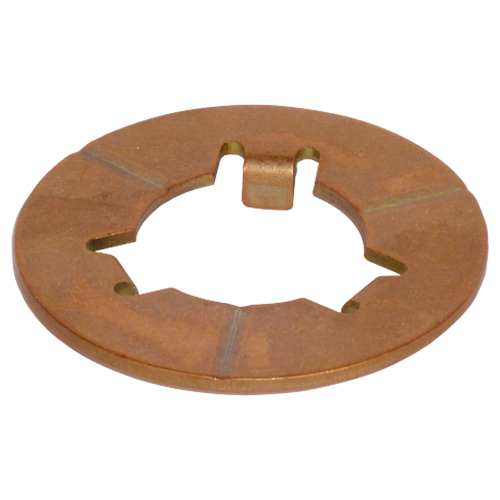

17 Turbine Washer 3 Lugs
  • Thickness: 0.081"
  • Material: Bronze
  • Lug Width: .280
  • Outside Dia: 2.36"
  • Inside Dia: 1.15"
 FW-9-15C
17 Turbine Washer
  • Thickness: .080"
  • Material: Bronze
  • Lug Width: .280"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-16C
17 Turbine Washer
  • Thickness: 0.088"
  • Material: Bronze
  • Lug Width: 0.170"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-12D

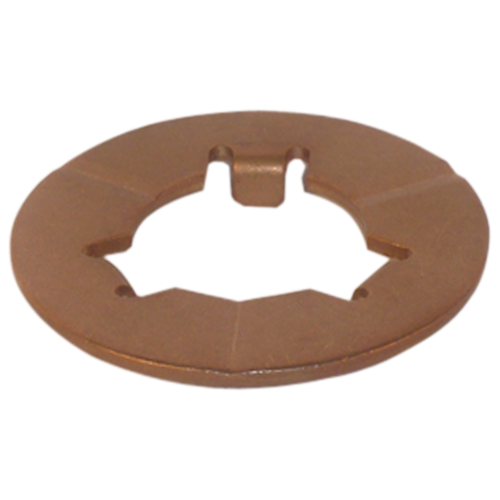

17 Turbine Washer
  • Thickness: 0.088"
  • Material: Bronze
  • Lug Count: 3
  • Lug Width: .0280"
  • Outside Dia: 2.36"
  • Inside Dia: 1.15"
 FW-9-15D

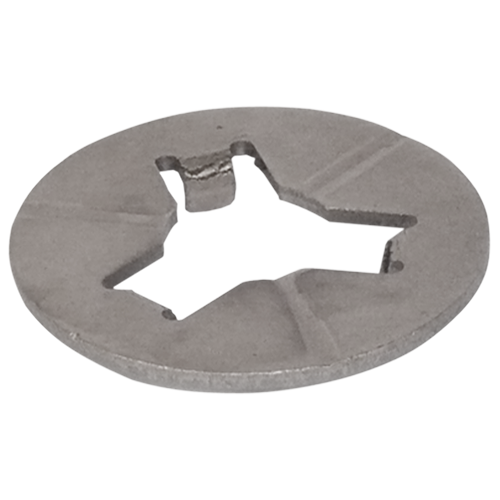

17 Turbine Washer
  • Thickness: .088"
  • Material: Bronze
  • Lug Width: .280"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-16D
17 Turbine Washer
  • Thickness: .088"
  • Material: Bronze
  • Outside Dia: 2.36"
  • Inside Dia: 1.15"
 FW-9-16DD
17 Turbine Washer
  • Thickness: 0.098"
  • Material: Bronze
  • Lug Width: 0.170"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-12E

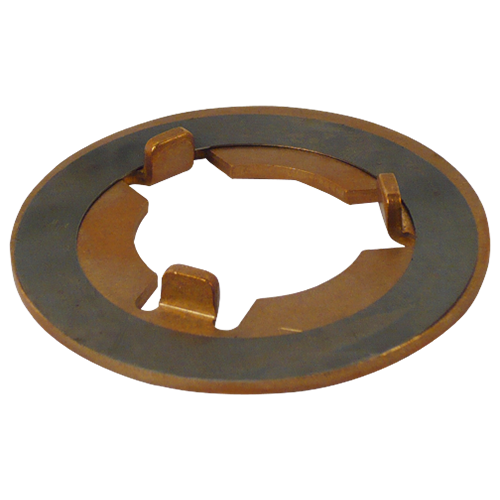

17 Turbine Washer
  • Thickness: 0.098"
  • Material: Bronze
  • Lug Count: 3
  • Lug Width: 0.280"
  • Outside Dia: 2.36"
  • Inside Dia: 1.15"
  • Includes a shim and FW-9-15D
 FW-9-15E
17 Turbine Washer
  • Thickness: .098"
  • Material: Bronze
  • Lug Width: .280"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-16E
17 Turbine Washer 3 Lugs Note:Only .28" Wide Lug Design Recommended
  • Thickness: .108"
  • Material: Bronze
  • Lug Width: .280"
  • Outside Dia: 2.36"
  • Inside Dia: 1.15"
 FW-9-15F
17 Turbine Washer Kit Cover, E4OD
  • Thickness: 0.098"
  • Outside Dia: 2.36"
  • Inside Dia: 1.15"
 FW-9-15K
17 Turbine Washer
  • Thickness: .108"
  • Material: Bronze
  • Lug Width: .280"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-16F

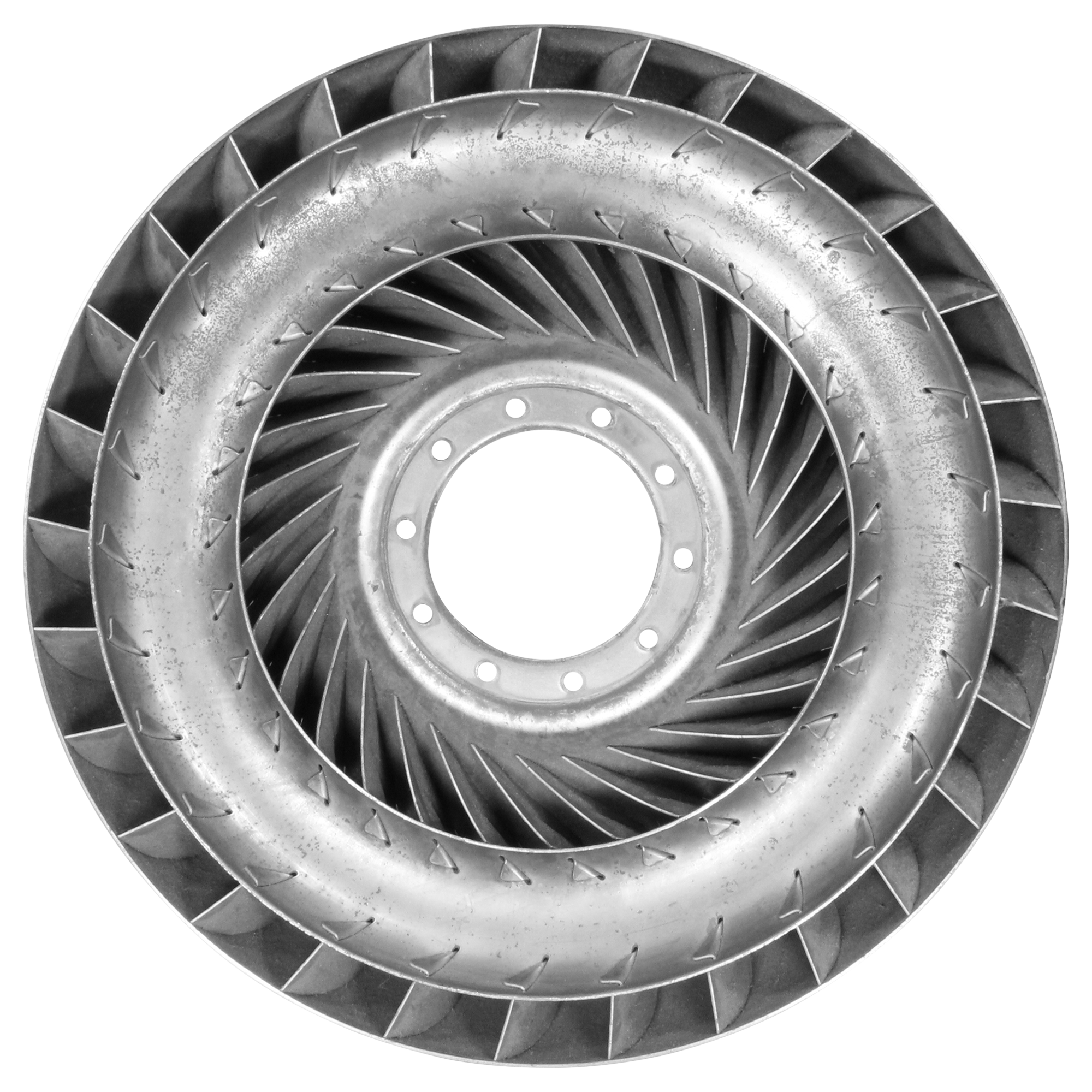

18 Turbine 12" FX-8-14

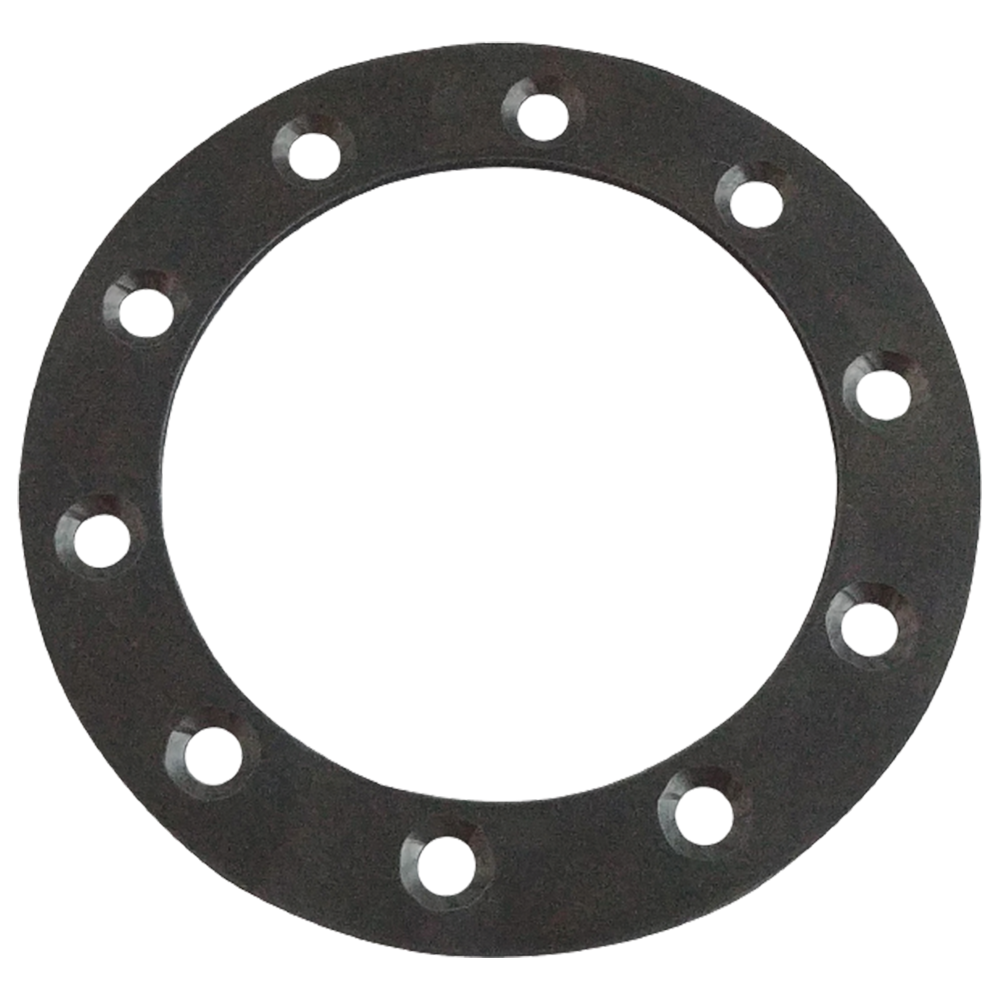

18 Reinforcement Ring
  • Thickness: .0060"
  • Outside Dia: 3.95"
  • Inside Dia: 3.01"
  • 10 holes
 FX-8-15
18 Turbine
  • Outside Dia: 12"
 NPN-2-46-18
19 Clutch Plate Assembly Intermediate Design, 6 Springs FX-23-33

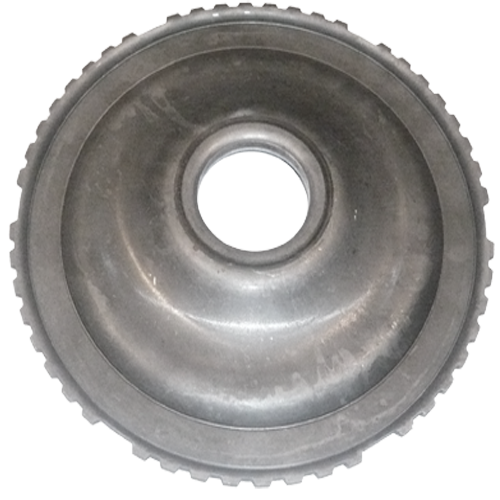

19 Clutch Plate Assembly Late Design, 8 Springs FX-23-34
19 Clutch Plate Assembly Gasoline, Single Spring, First Design NPN-2-46-19

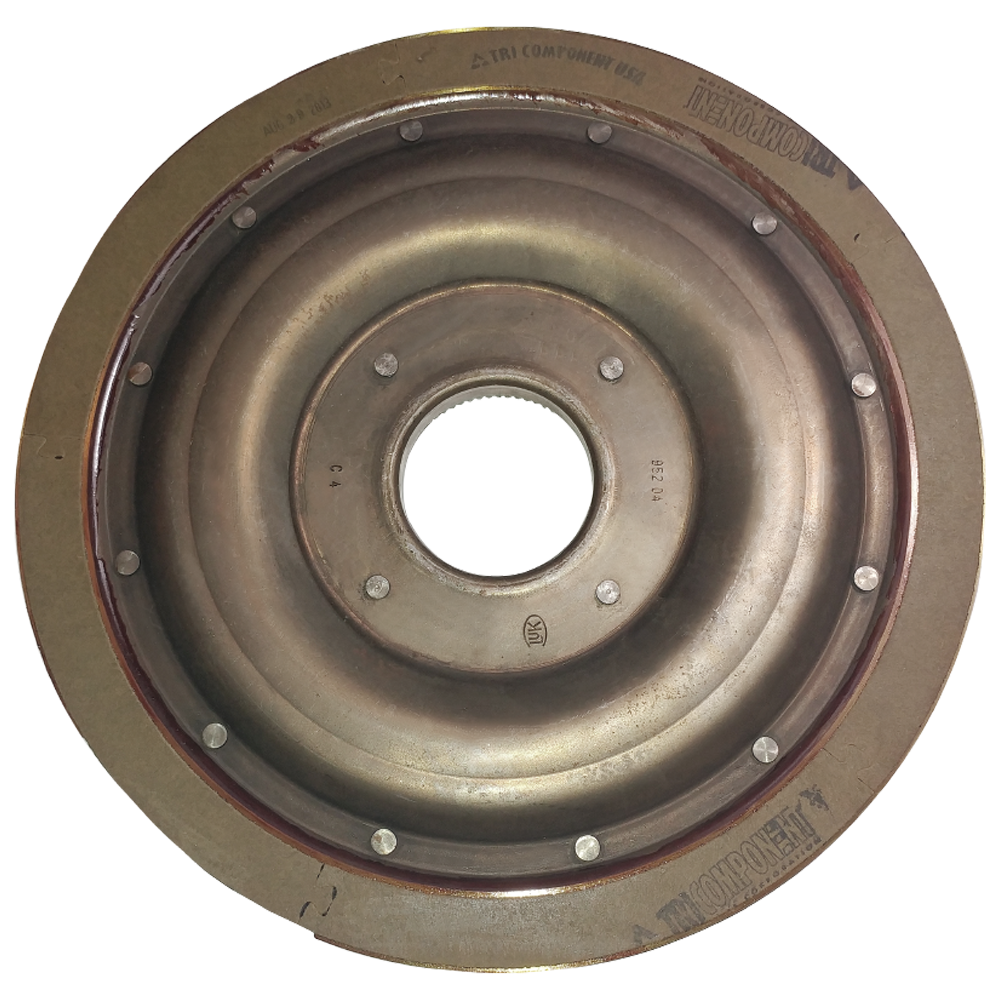

19 Clutch Plate Assembly Rebuilt FX-23-11

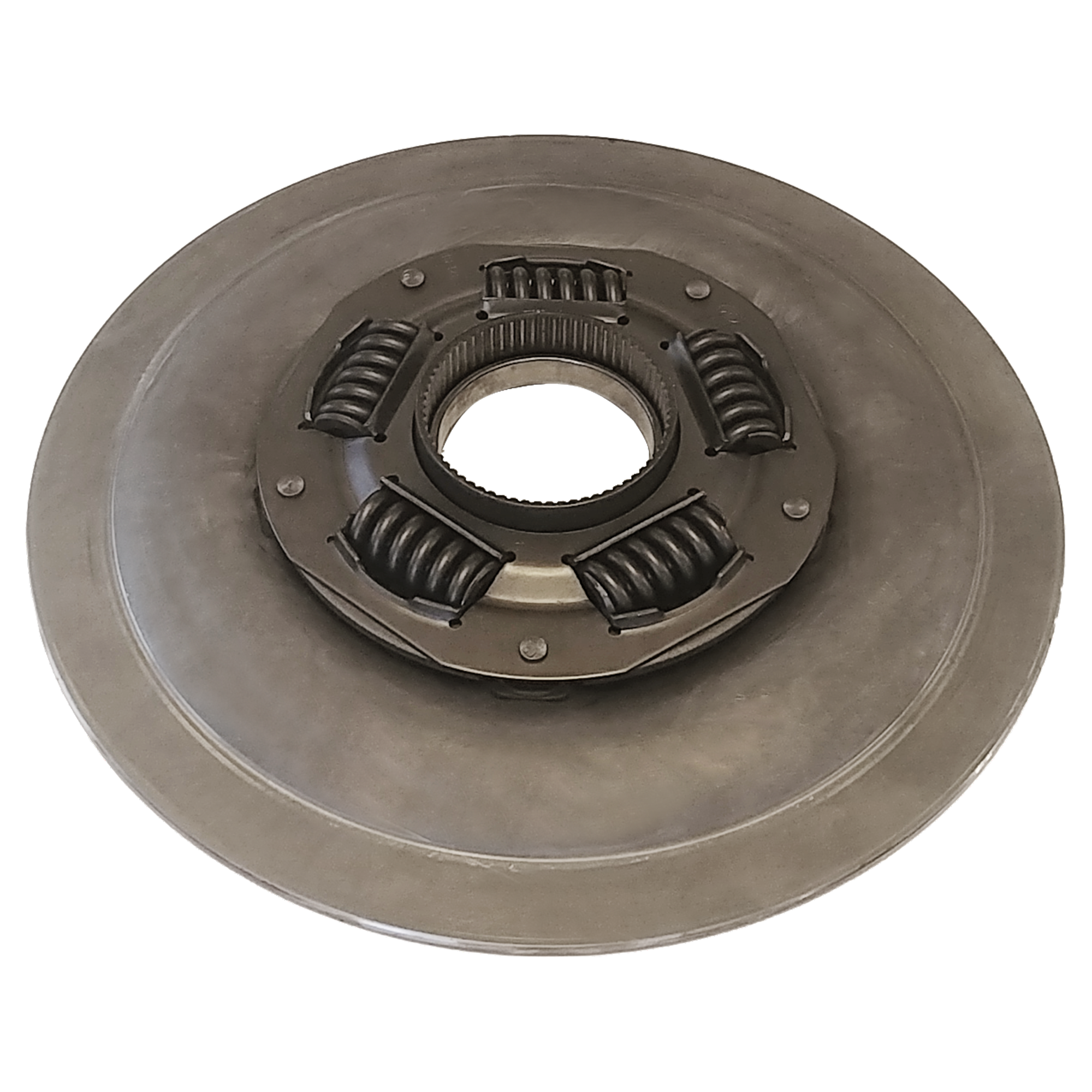

19 Clutch Plate Assembly FX-23-11K

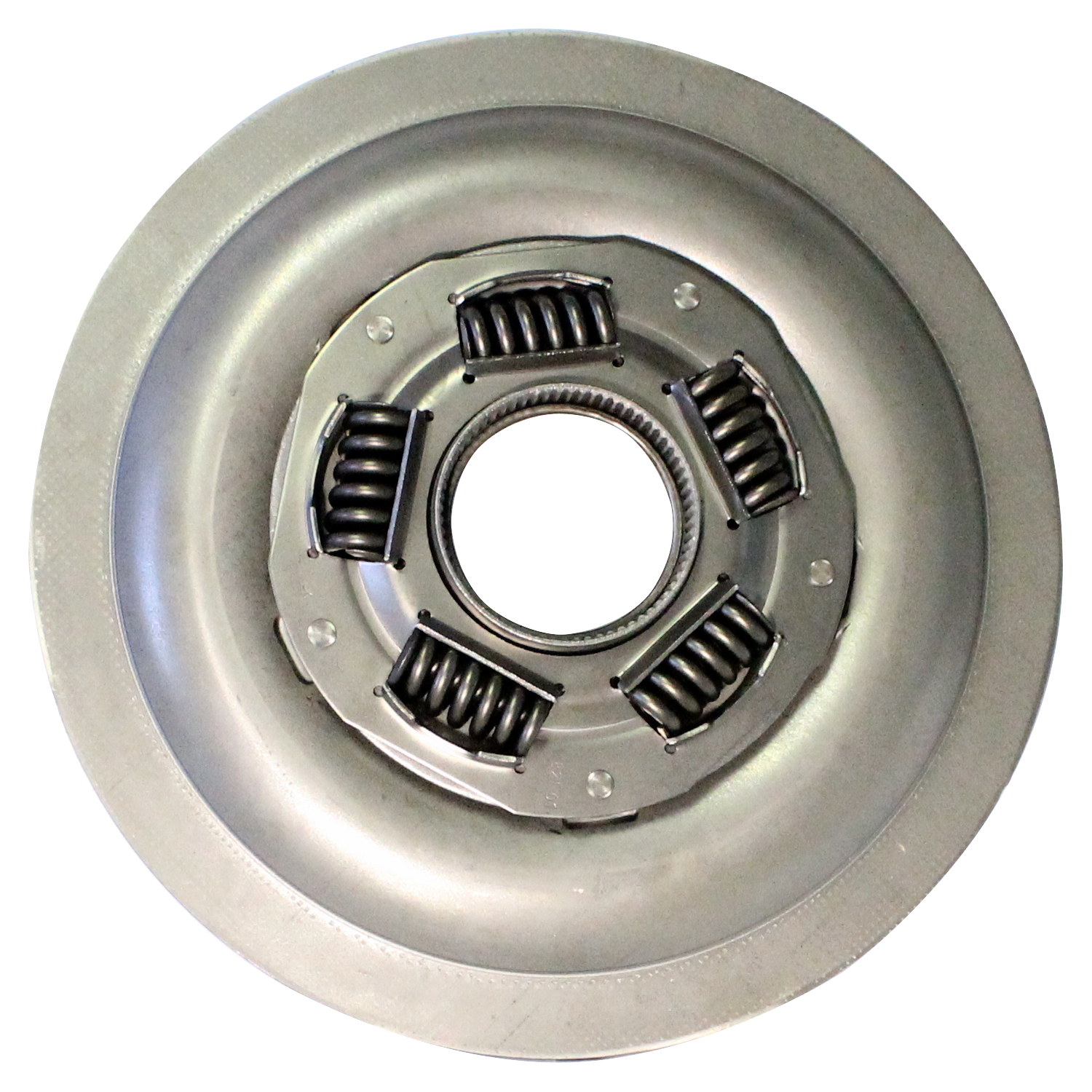

19 Clutch Plate Assembly Luk Design, Not Suited For Power Stroke Engine. (Lad-112) FX-23-11N
19 Lockup Clutch FX-23-11X
19 Clutch Plate Assembly
  • Diesel, Double Spring, First Design (Single Plate)
 FX-23-20
19 Clutch Plate Assembly 10 Springs, Carbon
  • Thickness: 0.045"
  • Material: Carbon
 FX-23-43C
19 Clutch Plate Assembly Heavy-Duty, 10 SPRING High Carbon Lining FX-23-43HC

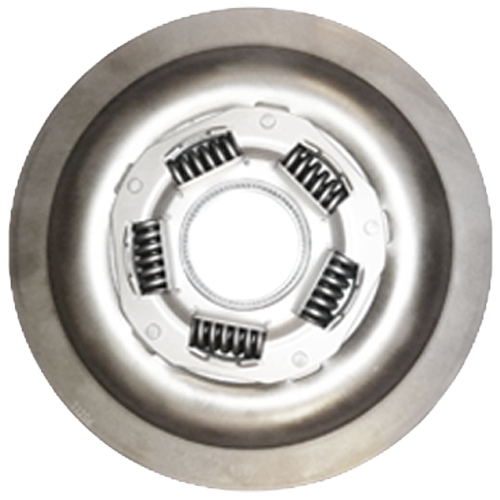

19 Clutch Plate Assembly 10 Springs, Kevlar® FX-23-43K
19 Clutch Plate Assembly Kevlar®, (non segmented) FX-23-43KCVC
19 Clutch Plate Assembly Un-lined & un-machined FX-23-43U

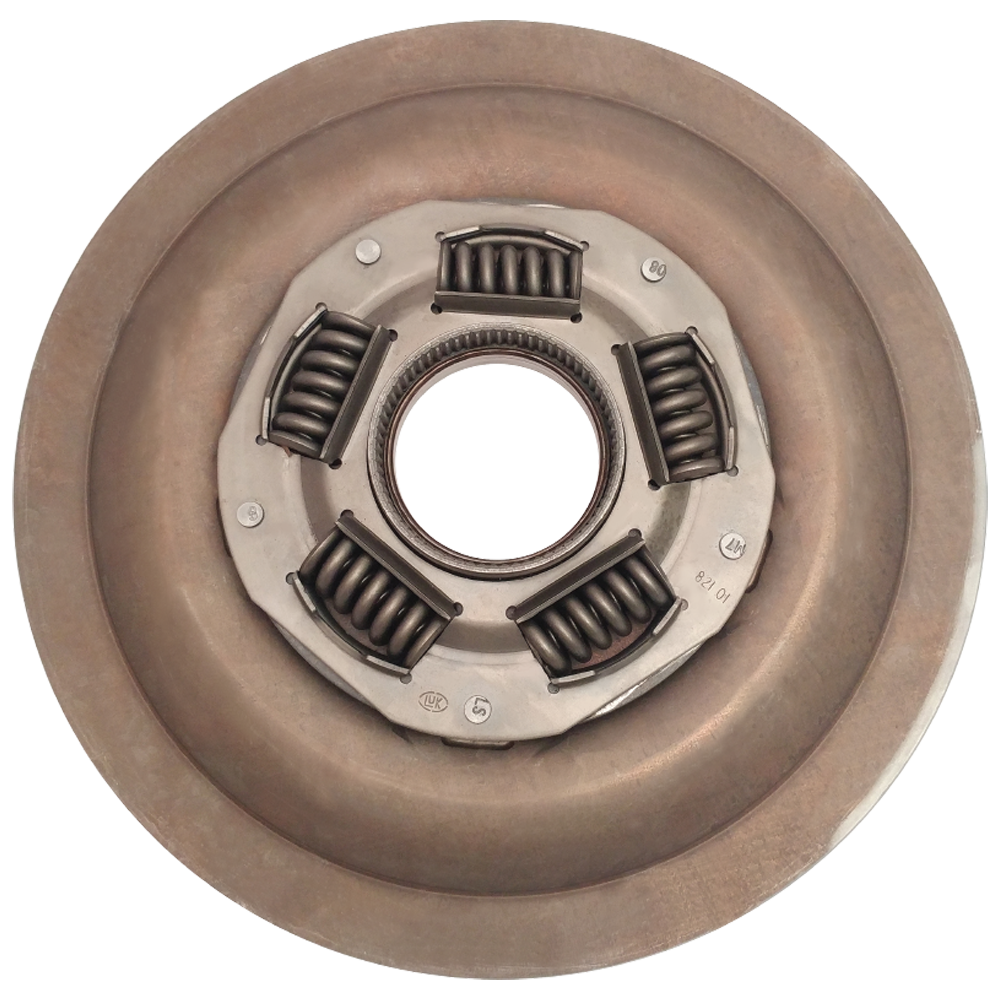

19 Clutch Plate Assembly Reman, HD FX-23-43XR

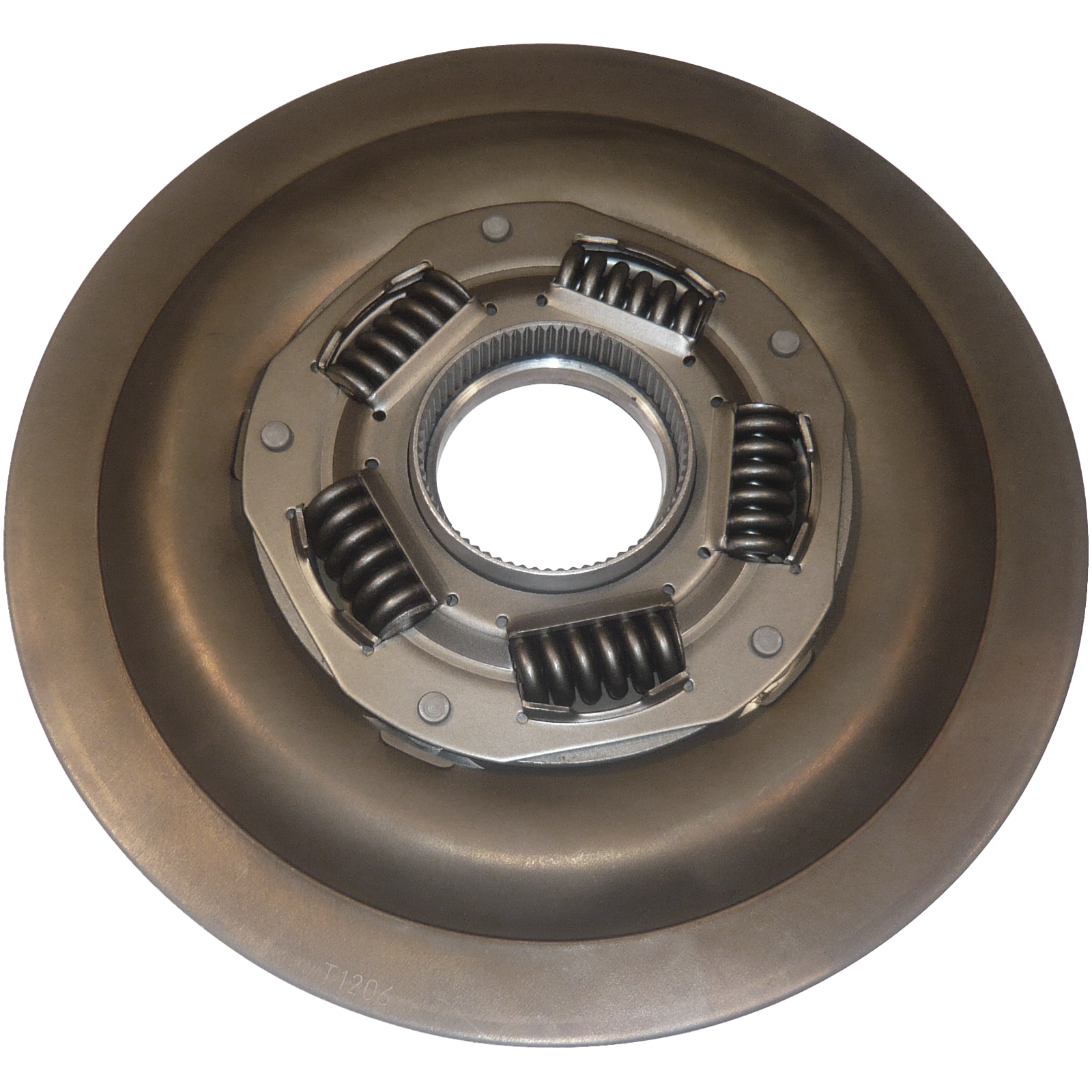

19 Clutch Plate Assembly Luk Design, 5 Double Springs, Heavy Duty
  • Lining Count: 1
  • Lining Part-ID: FX-23-10K
FX-23-43

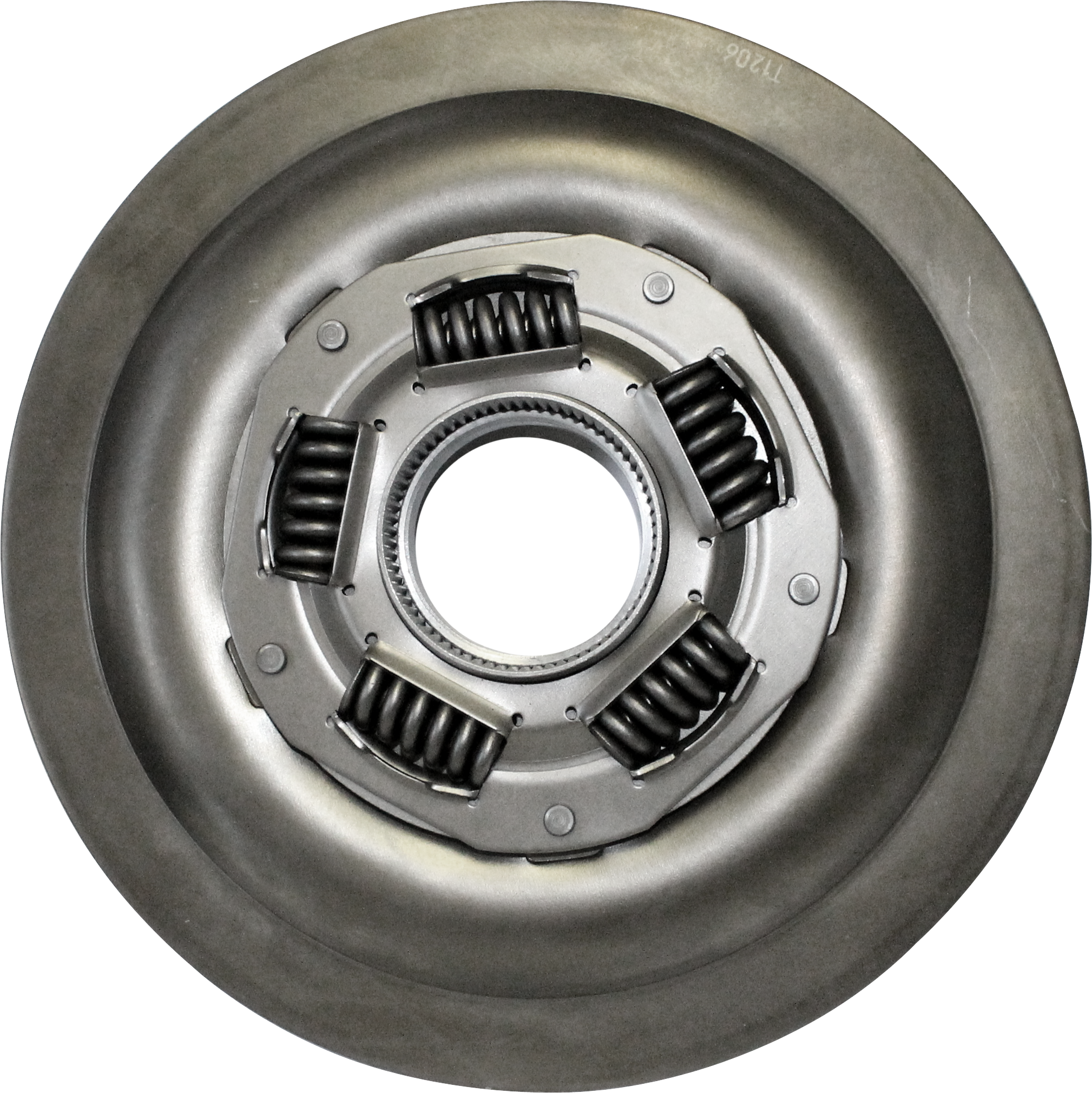

19 Clutch Plate Assembly 10 Springs, Unlined FX-23-43X
19 Clutch Plate Assembly Multi-Clutch, Diesel
  • Lining Count: 3
  • Uses 3 FX-23-23 Linings
 FX-23-21

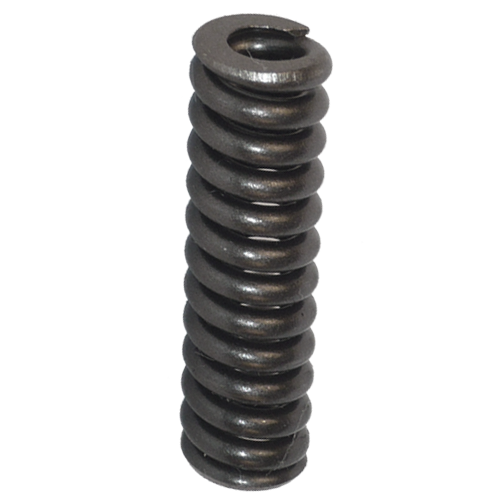

19.1 Damper Spring Inner FX-23-44
19.1 Damper Spring Outer FX-23-50
19_N.I. Repair Sleeve
  • Thickness: .65"
  • Outside Dia: 3.10"
  • Inside Dia: 2.40"
 FX-23-64

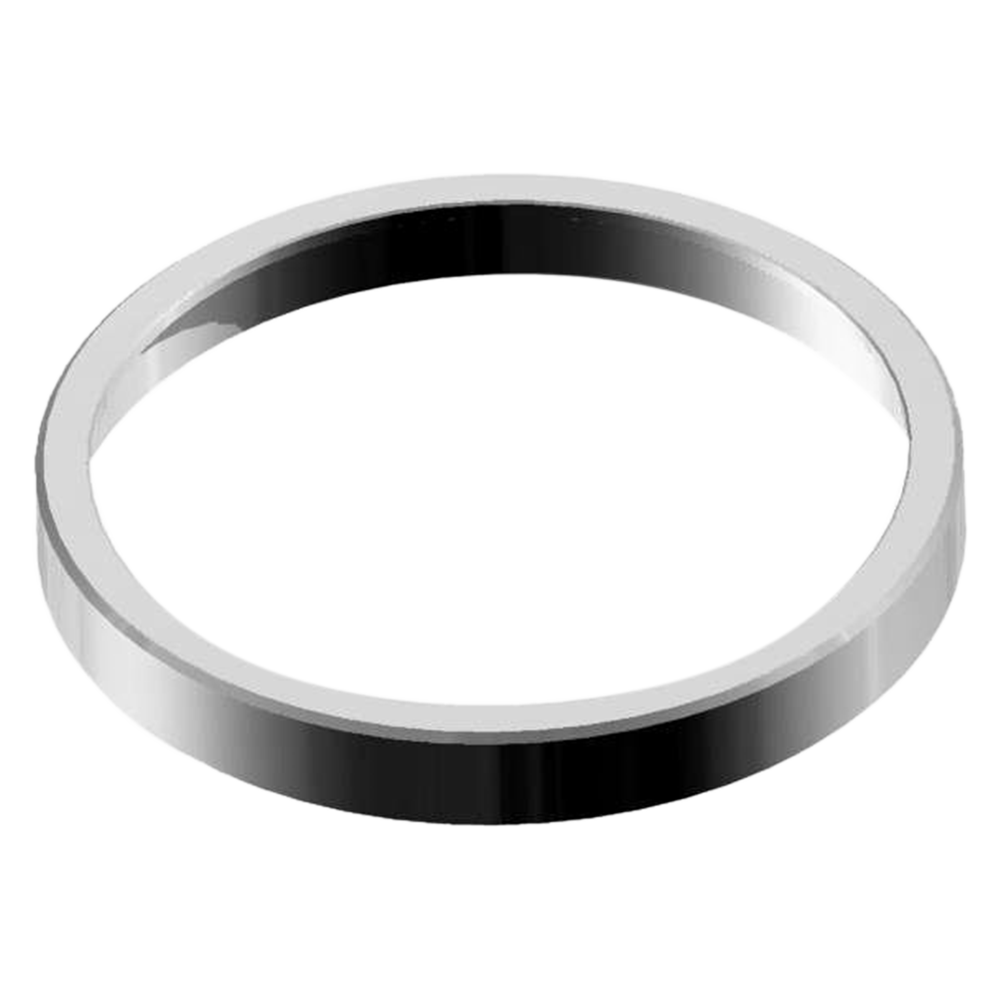

19_N.I. Reinforcement Ring
  • Thickness: .38"
  • Outside Dia: 3.10"
  • Inside Dia: 2.73"
  • For FX-23-11N
 FX-23-61
20 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 11.5"
  • Inside Dia: 10"
 FX-23-10
20 Lining (Friction Ring,Wafer) Same O.D. As Piston
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 11.625"
  • Inside Dia: 10"
 FX-23-12
20 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 11.375
  • Inside Dia: 10
  • O.E. Size
 FX-23-27
20 Lining (Friction Ring,Wafer) (Multi-Clutch) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN. 3 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 11.2"
  • Inside Dia: 10.4"
 FX-23-23
21 Salvage Ring&Trade FX-21-1005
21 Salvage Ring&Trade FX-21-1005NR
22 Front Cover Heavyduty, 4 Lug, Gas, Short Studs FX-22-4G

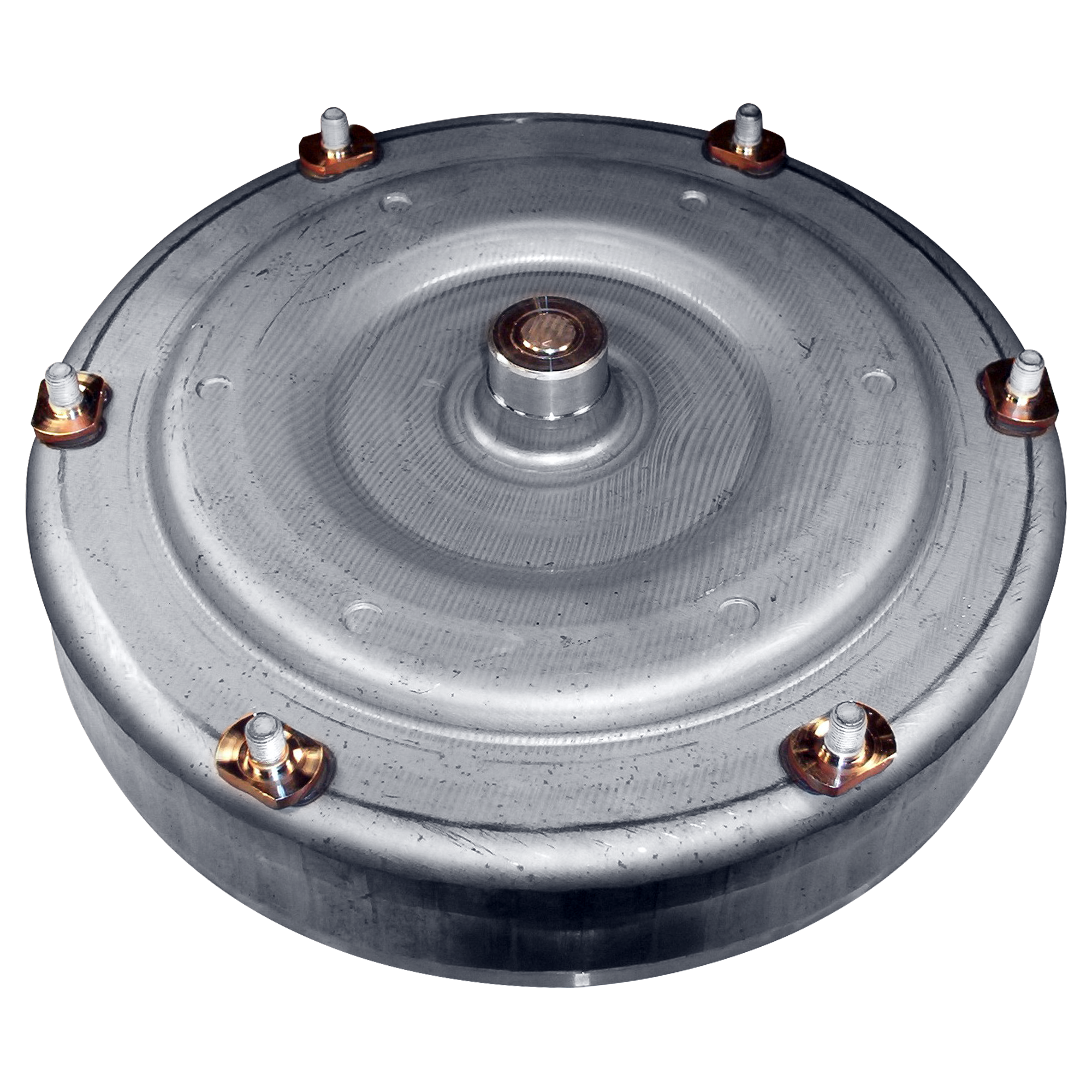

22 Front Cover Heavyduty, 6 Lug, Gas & Diesel, Short Studs FX-22-6G
22 Front Cover Heavy Duty,Diesel
  • Lug Count: 4
  • Long Studs
 FX-22-4D
22 Front Cover Heavyduty
  • Lug Count: 4
  • Diesel, Long Studs, Billet
 FX-22-35
22 Front Cover Heavy Duty
  • 4 Long Studs, Billet, Grob Design, Gas Only
 FX-22-36
22 Front Cover Heavyduty, 6 Lug, Diesel, Long Studs FX-22-6D
23 Stud 4-6 Pieces Required.
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 0.83"
  • Bolt Head Thickness: 0.21"
 FX-10-11
23 Stud T-Head 4-6 Pieces Required.
  • Length: .50" under the head
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 1.06"
  • Bolt Head Thickness: 0.23"
 FX-10-14
23 Stud 4-6 Pieces Required.
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 0.83"
  • Bolt Head Thickness: 0.21"
 FX-10-3
23 Stud
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 0.75"
  • Bolt Head Thickness: 0.16"
 FX-10-4
24 Studcap Plastic Stud Protector 4 Pieces Required.
  • Length: 0.50"
  • Color: Red
  • Inside Dia: 0.375
  • Fits 3/8" (9.5mm)
 MHC-STD
24 Studcap 4 Pieces Required.
  • Inside Dia: 0.375
 MHC-STE
24_N.I. Drain Plug 1/8-27 NPT, PTFE, Wrap FX-11A
24_N.I. Drain Plug
  • Material: Steel
  • 1/8-27 NPT
 FX-11
24_N.I. Drain Plug
  • Allen socket drain plug for use with drilled converters.
 FX-11B
25 Nut Converter 4-6 Pieces Required. 26761
25 Nut Special Locking 4-6 Pieces Required.
  • Height: .34"
  • Dimensions: 3/8"-24
  • Length: 0.330"
 FX-10-7
25 Nut & Studcap Kit 4 Pieces Each FX-10-7K4STD
25 Nut Hex 4-6 Pieces Required.
  • Dimensions: 3/8"- 24
  • Length: 0.330"
 N-63
25 Stud Thin Head Type
  • (Use FX-10-4)
 FX-10-2
26 Plate
  • Outside Dia: 12.500
  • Beefplate™, Welds To Cover To Reinforce Stud Area
 FX-22-9

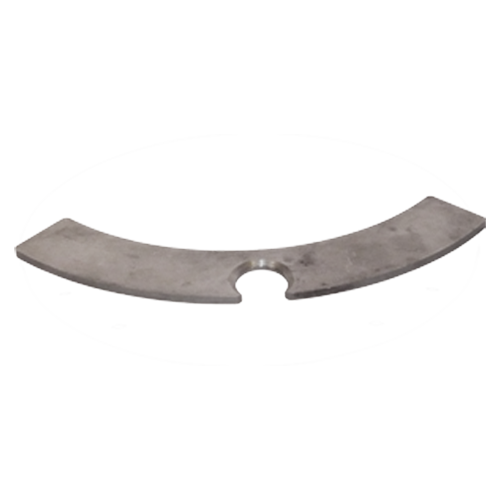

26 Kit Beefplate™, 4 Piece Segment Kit FX-22-10K
