Torque Converter | Ford | Cast Iron 3 Speed, FMX, AMC, Borg & Beck

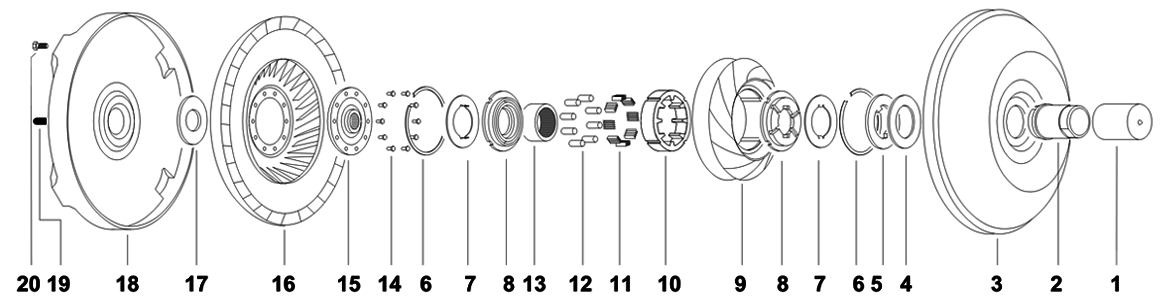

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1-3/4"
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
 MHC-Y
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1"
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
 MHC-YA
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1"
  • Color: Yellow
 MHC-YB
1 Hubcap Fits 2" (50.8mm). Length: 1-1/2"
  • Color: Red
  • Fits 2" (50.8mm)
 MHC-R

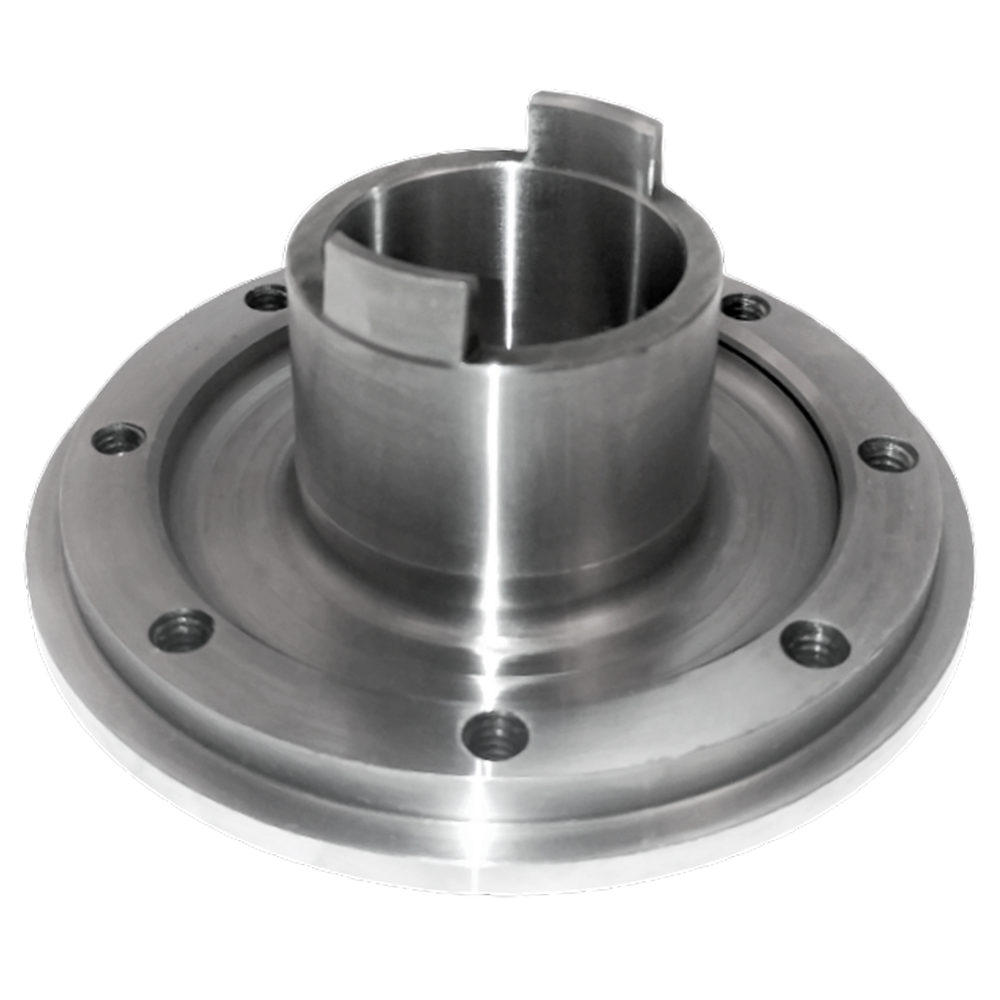

2 Impeller Hub 8 Bolt Holes Only for Borg & Beck Bolted Aluminum Converters. 1952 - 1964
  • Journal Dia: 1.937"
  • Installed Height: 2.150"
  • Inner Dia: 4.062"
  • Hub Mount: Flanged
  • Pump Drive Type: 2 lugs
  • Flange Dia: 4.062"
  • Hardness: Rc 32-36
  • Bolt-In, Flat Back
 FH-1-7GRC

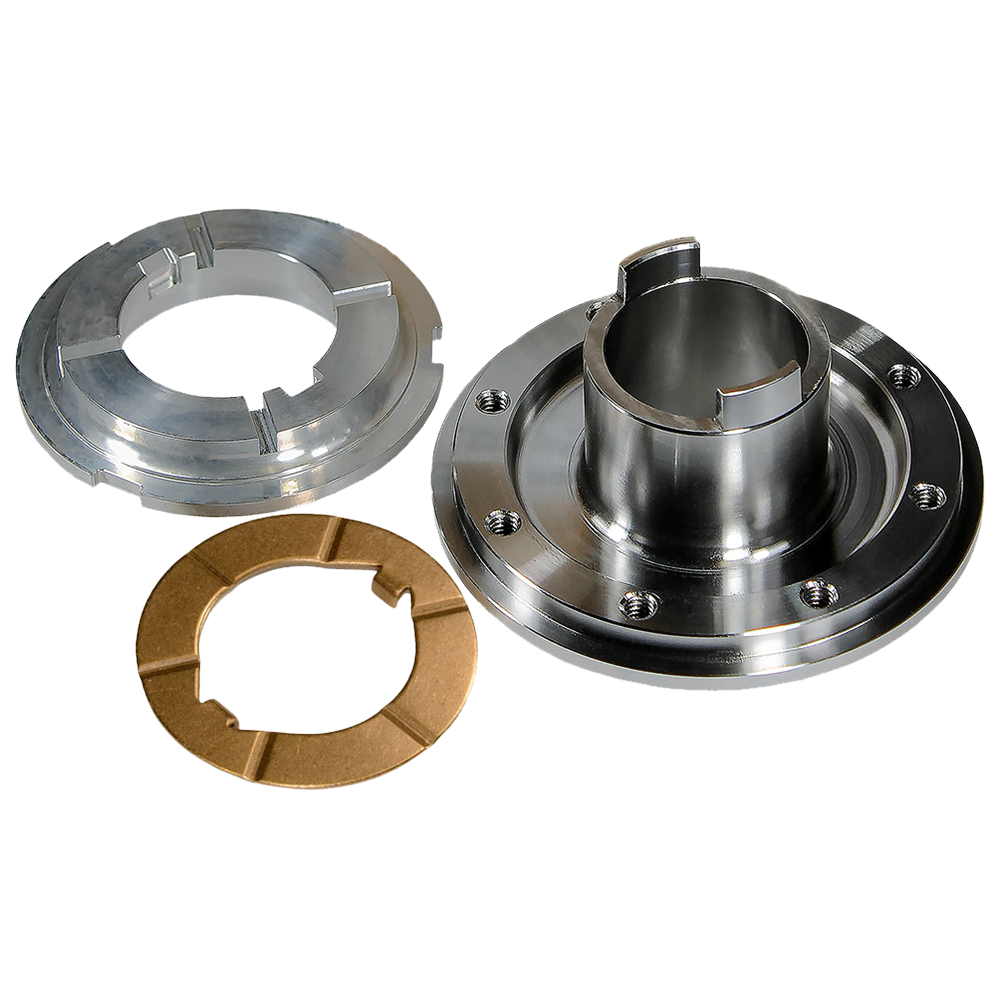

2 Impeller Hub Kit 8 Bolt Holes Only for Borg & Beck Bolted Aluminum Converters. 1952 - 1964
  • Journal Dia: 1.937"
  • Installed Height: 2.150"
  • Inner Dia: 4.062"
  • Hub Mount: Flanged
  • Pump Drive Type: 2 lugs
  • Flange Dia: 4.062"
  • Replaces Recessed Back Hub. Kit Consists Of: FH-1-7GRC, FW-3, FW-4
 FH-1-7K
2 Impeller Hub Early
  • Journal Dia: 1.937"
  • Installed Height: 1.890"
  • Pump Drive Type: lug
  • Hardness: Rc 32-36
 FH-1MGRC
2 Impeller Hub
  • Journal Dia: 1.937"
  • Installed Height: 1.880"
  • Hub Mount: Thru
  • Pump Drive Type: lug
 FH-1-1MG

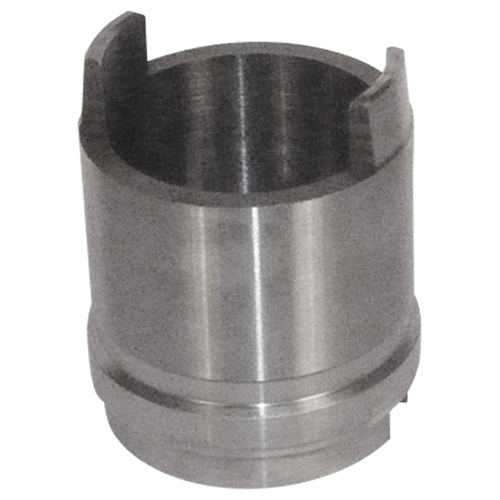

2 Impeller Hub Late
  • Journal Dia: 1.937"
  • Installed Height: 1.880"
  • Hub Mount: Thru
  • Pump Drive Type: lug
 FH-1-1MGRC
2 Impeller Hub
  • Journal Dia: 1.937"
  • Installed Height: 1.890"
  • Pump Drive Type: lug
 FH-1MG

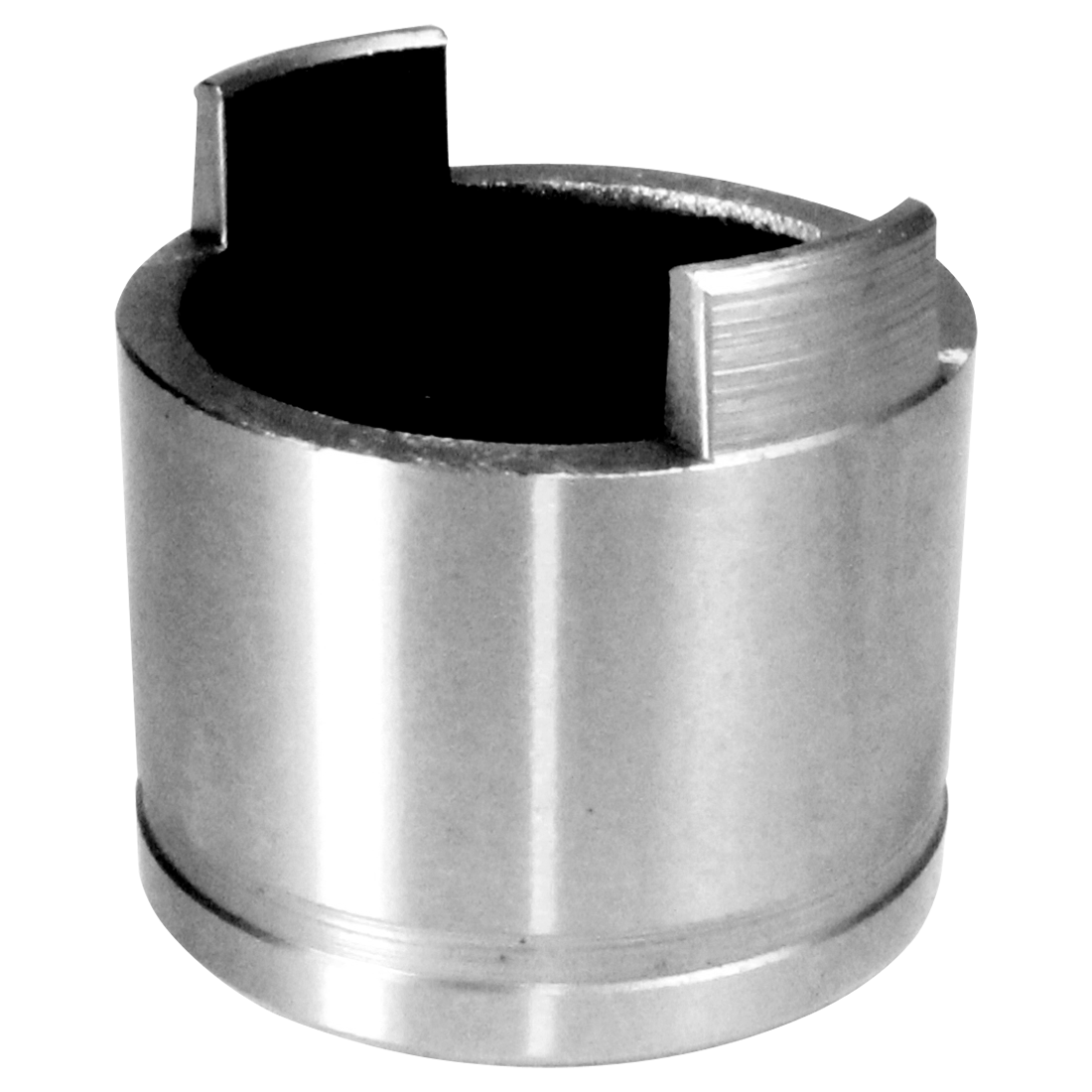

2 Impeller Hub
  • Journal Dia: 1.937"
  • Installed Height: 1.812"
  • Pump Drive Type: lug
 FH-1MTG
2 Impeller Hub FH-1LM
2 Impeller Hub
  • Journal Dia: 1.937"
  • Installed Height: 1.985"
  • Hub Mount: Thru
  • Pump Drive Type: lug
 FH-1LMG
2 Impeller Hub
  • Journal Dia: 1.937"
  • Installed Height: 1.985"
  • Hub Mount: Thru
  • Pump Drive Type: lug
  • Hardness: Rc 32-36
 FH-1LMGRC
2 Impeller Hub
  • Journal Dia: 1.937"
  • Installed Height: 2.05"
 FH-1MTAG
2 Impeller Hub
  • Journal Dia: 1.937"
  • Installed Height: 2.025"
  • Hub Mount: Thru
  • Pump Drive Type: lug
 WH-1-13G
2 Impeller Hub
  • Journal Dia: 1.937"
  • Installed Height: 2.025"
  • Hub Mount: Thru
  • Pump Drive Type: lug
  • Hardness: Rc 32-36
 WH-1-13GRC
2 Impeller Hub
  • Journal Dia: 1.938"
  • Installed Height: 1.939"
  • Hub Mount: Butt
  • Pump Drive Type: 2 Lugs
 WH-1-23GRC
2 Impeller Hub
  • Journal Dia: 1.937"
  • Installed Height: 2.05"
  • Hardness: Rc 32-36
 FH-1MTAGRC
2 Impeller Hub
  • Journal Dia: 1.937"
  • Height: 2.000"
  • Hub Mount: Butt
  • Pump Drive Type: lug
  • Hardness: Rc 32-36
 WH-1-19GRC
2 Impeller Hub
  • Journal Dia: 1.996"
  • Installed Height: 2.396
  • Inner Dia: 1.75
  • Hub Mount: Thru
  • Pump Drive Type: Flats
 FH-1-5FG
2 Impeller Hub
  • Journal Dia: 1.996"
  • Installed Height: 2.396
  • Inner Dia: 1.75
  • Length: 2.697
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-5FGRC
2 Impeller Hub
  • Inner Dia: 1.75
  • Hub Mount: Thru
  • Pump Drive Type: Flats
 FH-1-5FGRCD
2 Impeller Hub
  • Journal Dia: 1.997"
  • Installed Height: 2.312"
  • Inner Dia: 1.75
  • Pump Drive Type: flats
 FH-1-5MG
2 Impeller Hub
  • Inner Dia: 1.75
 FH-1-6F
2 Impeller Hub
  • Journal Dia: 1.997"
  • Installed Height: 2.396
  • Inner Dia: 1.75
  • Length: 2.697
  • Hub Mount: Thru
  • Pump Drive Type: flats
 FH-1-6FG
2 Impeller Hub
  • Journal Dia: 1.997"
  • Installed Height: 2.318"
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-2312GRC
2 Impeller Hub Heat Treated FH-1-3107GRC
2 Impeller Hub
  • Journal Dia: 1.996"
  • Installed Height: 2.396
  • Inner Dia: 1.75
  • Length: 2.697
  • Hub Mount: Thru
  • Pump Drive Type: flats
  • Hardness: Rc 32-36
 FH-1-6FGRC
3 Impeller NPN-2-12-3
4 Shim
  • Outer Dia: 2.943"
  • Inner Dia: 1.885"
  • Thickness: 0.010"
  • Material: Steel
 MW-2-10
4 Shim
  • Outer Dia: 2.938"
  • Inner Dia: 1.875"
  • Thickness: 0.02
 MW-2-20
4 Shim
  • Outer Dia: 2.938"
  • Inner Dia: 1.875"
  • Thickness: .030"
 MW-2-30
4 Shim
  • Outer Dia: 2.938"
  • Inner Dia: 1.875"
  • Thickness: .050
 MW-2-50

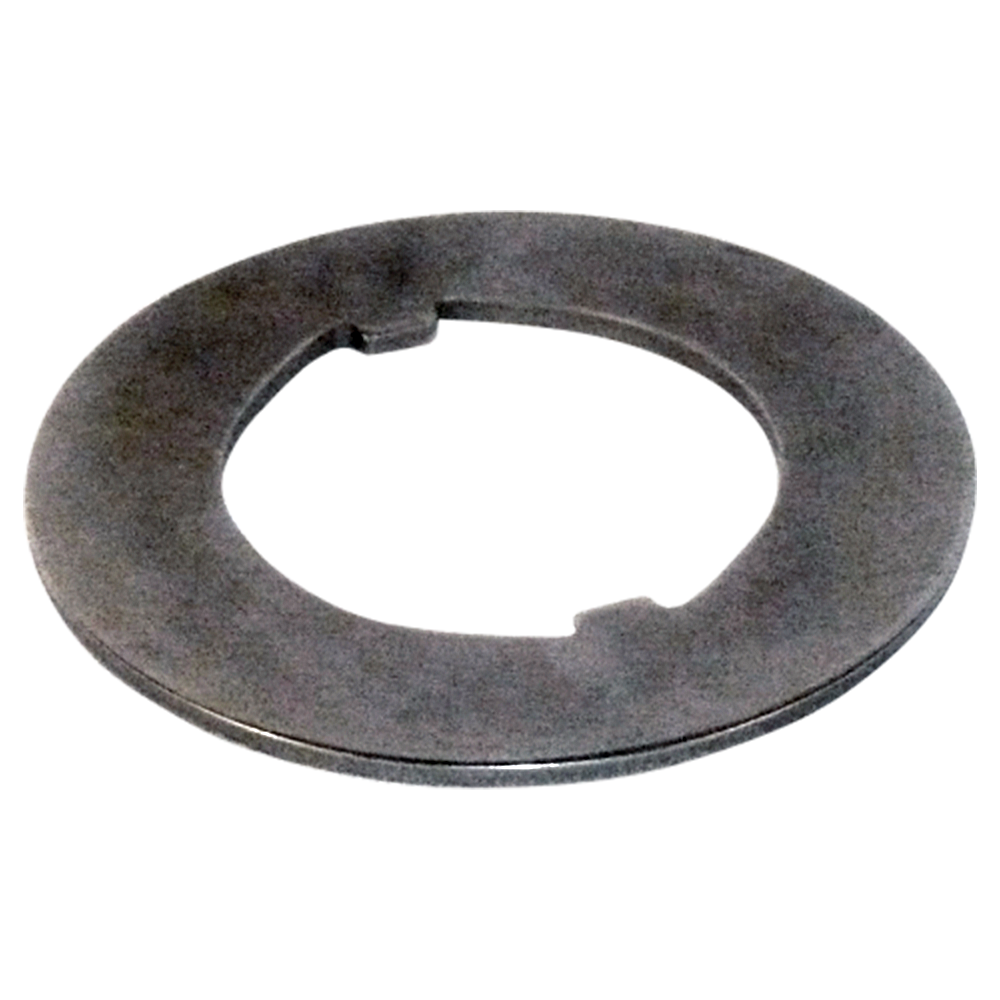

5 Washer Hub 3 Speed '56-'62, B&B
  • Outer Dia: 3.000"
  • Inner Dia: 1.750"
  • Thickness: 0.090"
  • Material: Steel
 FW-2
5 Washer Standard
  • Outer Dia: 3.125"
  • Inner Dia: 1.875"
  • Thickness: .09"
  • Material: Steel
 FW-2-1
5 Washer Oversized
  • Outer Dia: 3.125"
  • Inner Dia: 1.875"
  • Thickness: 0.105"
  • Material: Steel
  • Oversized
 FW-2-1A
6 Snap Ring 2 Pieces Required.
  • Inner Dia: 3.600"
 FX-20-11
6 Snap Ring 2 Pieces Required.
  • Inner Dia: 3.785"
 FX-20-12
6 Snap Ring
  • Inner Dia: 3.785"
 TX-20-1

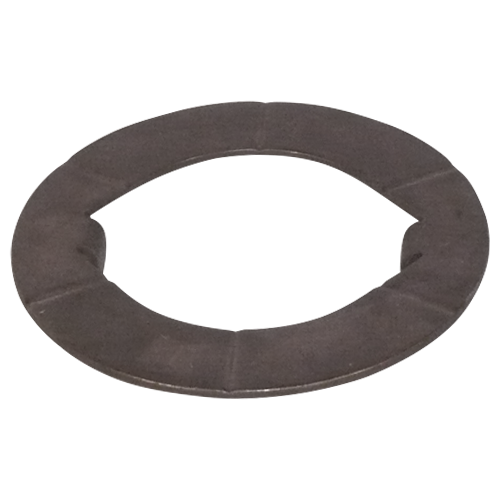

7 Washer 3 Speed, '51-'62, B&B. 2 Pieces Required.
  • Outer Dia: 2.91"
  • Inner Dia: 1.80"
  • Thickness: .063"
  • Material: Bronze
 FW-3DW

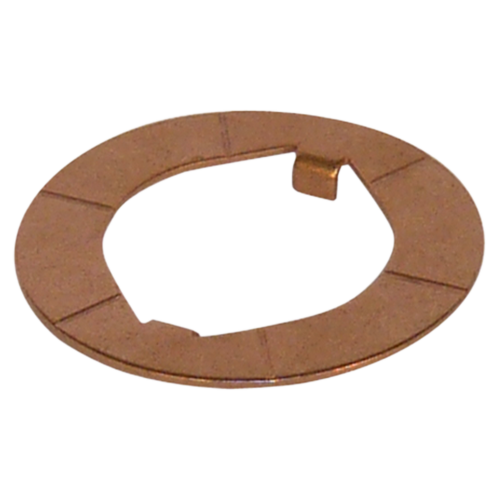

7 Washer Bronze, 2 lugs, HD 3 Speed, '51-'62, B&B. 2 Pieces Required.
  • Outer Dia: 2.91"
  • Inner Dia: 1.8"
  • Thickness: .080"
  • Material: Bronze
 FW-3
7 Washer 2 Tangs FMX. 2 Pieces Required.
  • Outer Dia: 2.95"
  • Inner Dia: 1.99"
  • Material: Bronze
  • .250" Long Tangs
 FW-3-1A
7 Washer 4 Tangs
  • Outer Dia: 2.95"
  • Inner Dia: 1.99"
  • Material: Bronze
 FW-3-2

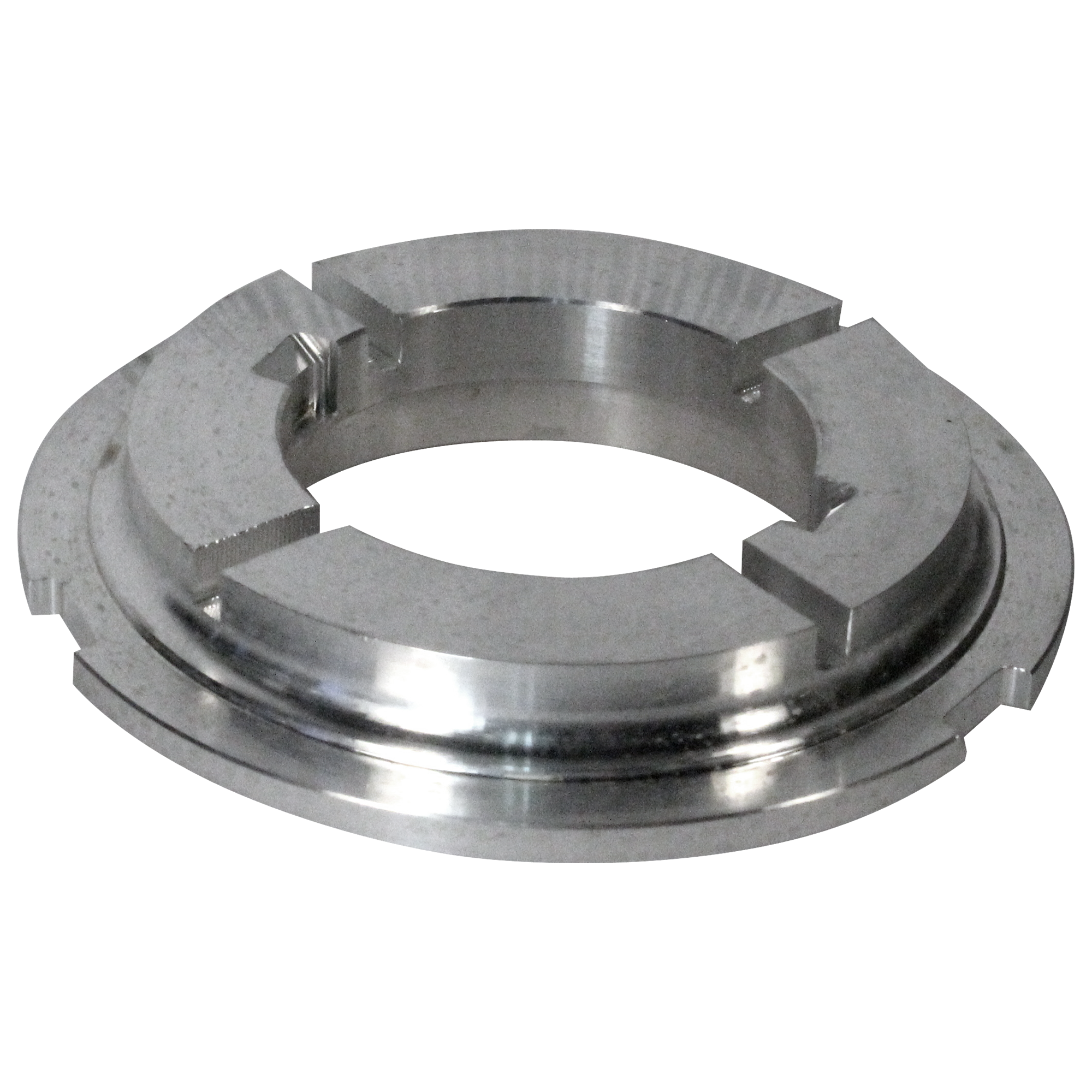

8 Stator Cap 2 Pieces Required.
  • Outer Dia: 3.6"
  • Inner Dia: 1.78"
  • Thickness: .73"
  • Material: Aluminum
  • Casting#: C2AP-7937-D and C2VP-7937-A
 FW-4
8 Stator Cap
  • Outer Dia: 3.6"
  • Inner Dia: 2"
  • Thickness: 0.65"
  • Material: Phenolic
  • Casting#: E5DP-7937AA E9TP-7937AA
 FW-4-13
8 Stator Cap
  • Outer Dia: 3.6"
  • Inner Dia: 2"
  • Thickness: 0.59"
  • Material: Phenolic
  • Casting#: F5TP-7937AA
 FW-4-15
8 Stator Cap Plastic
  • Outer Dia: 3.6"
  • Inner Dia: 2.04"
 FW-4-3
8 Stator Cap 2 Pieces Required.
  • Outer Dia: 3.6"
  • Inner Dia: 2.04"
  • Thickness: 0.50"
  • Material: Aluminum
  • Casting#: D2AP-7937AA C7AP-7937B
 FW-4-3A
8 Washer
  • Outer Dia: 3.6"
  • Inner Dia: 2"
  • Thickness: 0.68"
  • Casting#: E5DP-7937AA
 FW-4-8
9 Stator Roller Type FX-5

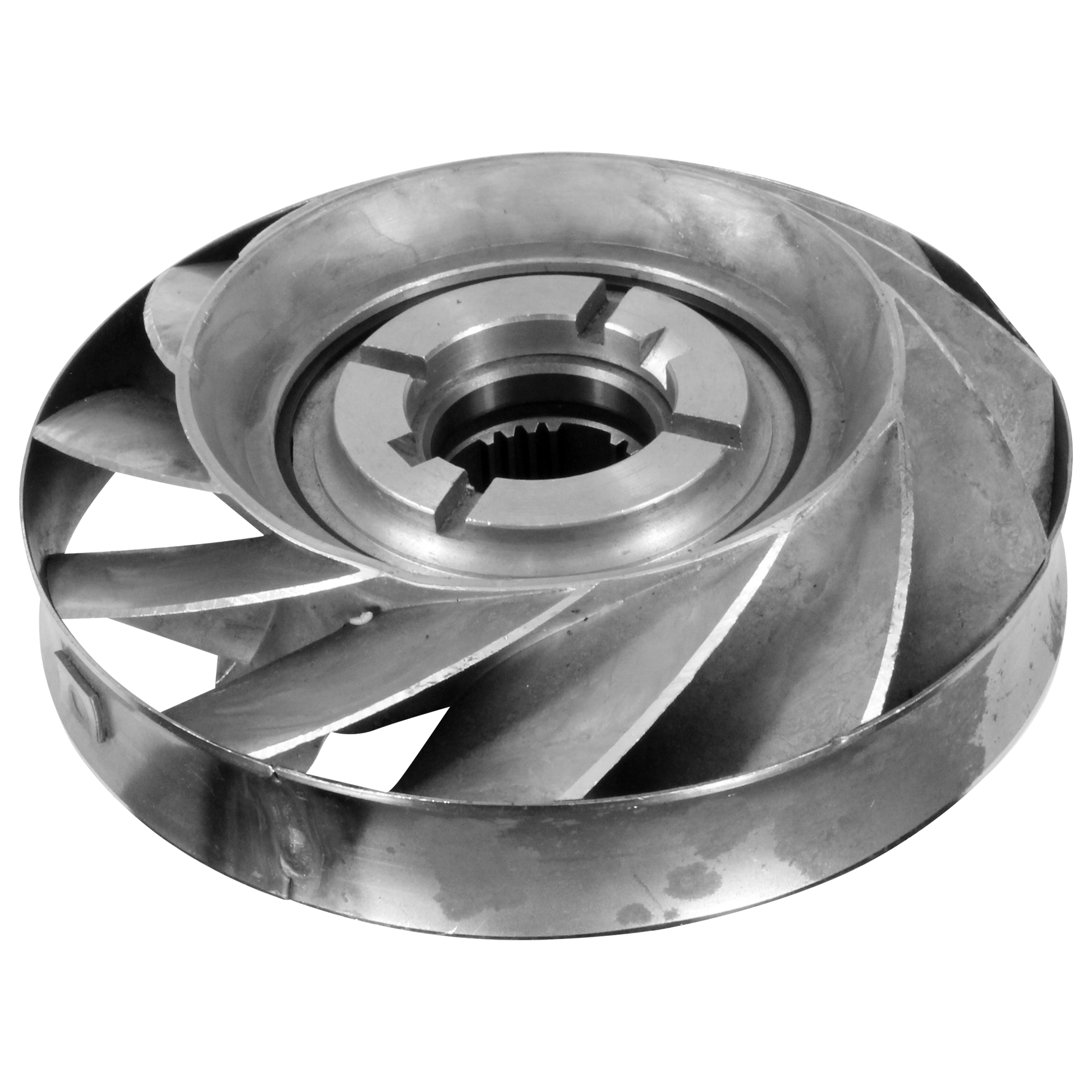

9 Stator Heavy Duty FX-5K
9 Stator Sprag Type FX-5E
9 Stator
  • For 11-3/4" Turbine
 FX-5ES
10 Outer Race (Cam) Stator
  • Outer Dia: 3.60"
 FX-15
10 Outer Race (Cam) Stator
  • Outer Dia: 3.80"
  • Roller Type
 FX-15-2
11 Accordion Spring 8 Pieces Required.
  • Height: 0.28"
  • Width: 0.93"
  • Folds: 4
 FS-6-2
12 Roller 8 Pieces Required.
  • Dia: 0.313"
  • Length: .90"
 FR-7
12_N.I. Sprag
  • Outer Dia: 2.812"
  • Inner Dia: 2.156"
  • Standard Duty, 14 Cams
 FC-6
12_N.I. Sprag Drag Strip FC-6D
12_N.I. Cam (Sprag Element) For FC-6-10 F-395
12_N.I. Cam (Sprag Element) For FC-6-10 F-407
12_N.I. Sprag 20 cam
  • Outer Dia: 2.812"
  • Inner Dia: 2.156"
  • Thickness: 0.625"
  • 20 Cams (part-ID F-407), 2 Inside Strips Replaced By part-ID FC-6-10
 FC-6-1
12_N.I. Sprag Heavy Duty
  • Outer Dia: 2.812"
  • Inner Dia: 2.156"
  • Thickness: 0.625"
  • 24 Cams (part-ID F-395), 12 Outside Clips, 3 Inside Strips
 FC-6-10
12_N.I. Sprag
  • Outer Dia: 2.812"
  • Inner Dia: 2.156"
  • Thickness: 0.625"
  • 20 Cams (F-395), 5 Outside Clips, 3 Inside Strips Replaced By FC-6-10
 FC-6-3
12_N.I. Sprag Heavy Duty
  • Outer Dia: 2.812"
  • Inner Dia: 2.156"
  • Thickness: 0.625"
  • 20 Cams (F-407), 10 Outside Clips, 3 Inside Strips Replaced By FC-6-10
 FC-6-4
12_N.I. Sprag
  • Outer Dia: 2.812
  • Inner Dia: 2.156
  • Thickness: 0.625"
  • 22/24 Cams (F-407), 10 Outside Clips, 2/3 Inside Strips Replaced By part-ID FC-6-10
 FC-6-9
13 Inner Race Stator
  • Height: 1.360"
  • Outer Dia: 2.156"
  • Internal Teeth: 29 (10Removed)
 FX-14
13 Inner Race Stator FMX
  • Height: 0.985"
  • Outer Dia: 2.375"
  • Internal Teeth: 32
 FX-14-1

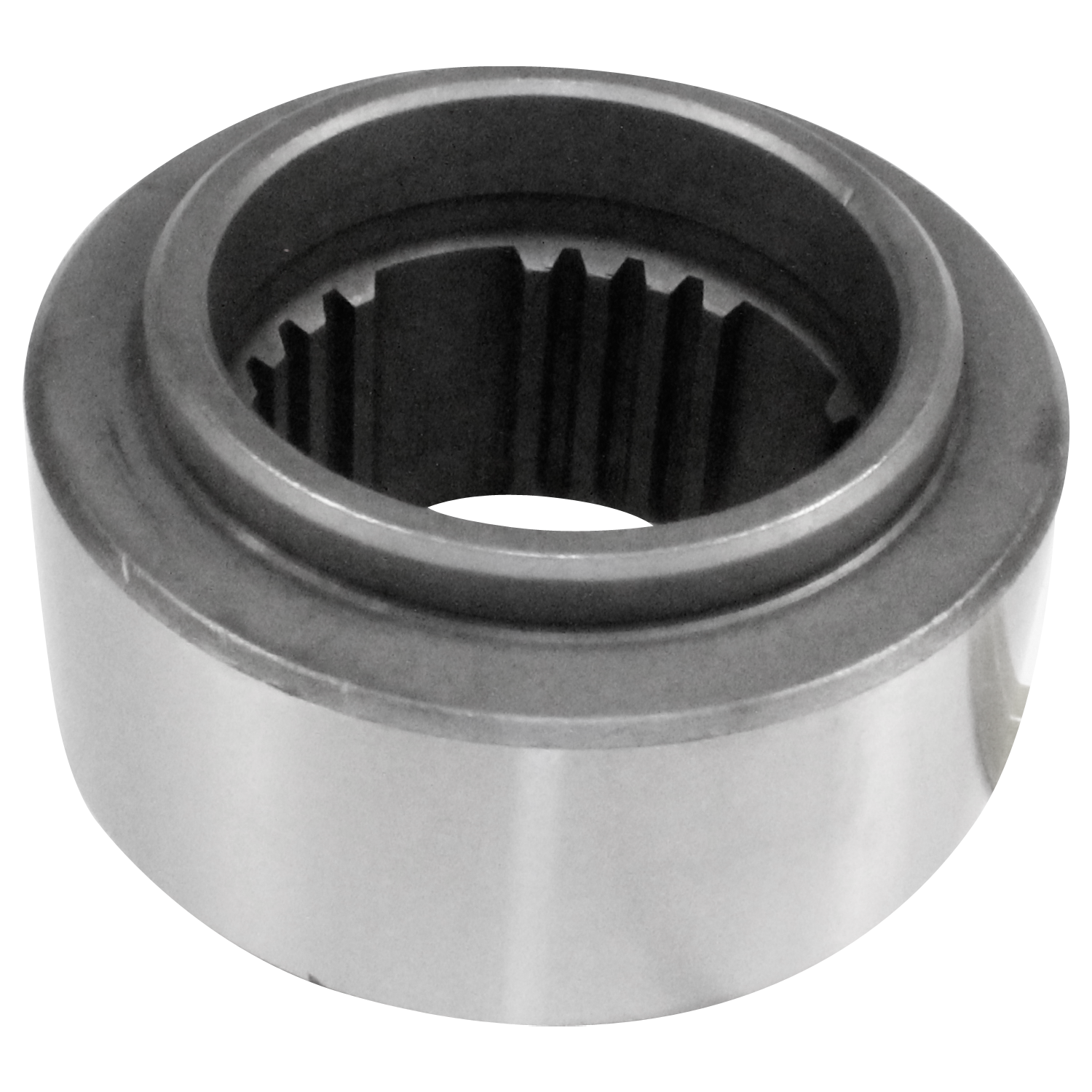

13 Inner Race Stator
  • Height: 1.360"
  • Outer Dia: 2.375"
  • Internal Teeth: 29 (10Removed)
  • (For Rollers)
 FX-14-3
14 Rivet 10 Pieces Required.
  • Length: 0.312"
  • Rivet solid or tubular: T
  • Rivet Shank Dia: 0.214"
  • Rivet head dia: 0.312"
 FX-12
14 Rivet 10 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: T
  • Rivet Shank Dia: 0.214"
  • Rivet head dia: 0.312"
 FX-12L

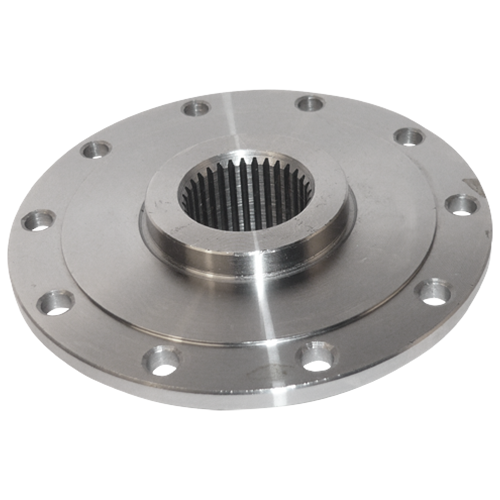

15 Turbine Hub Lincoln, '58-'65, C2VP-7926A, B8SZ-7926B
  • Height: 0.95"
  • Outer Dia: 3.82"
  • Internal Teeth: 31
 FX-13
15 Turbine Hub High Type
  • Outer Dia: 3.85"
  • Internal Teeth: 29
  • FMX, C5TP-7926B
 FX-13-3

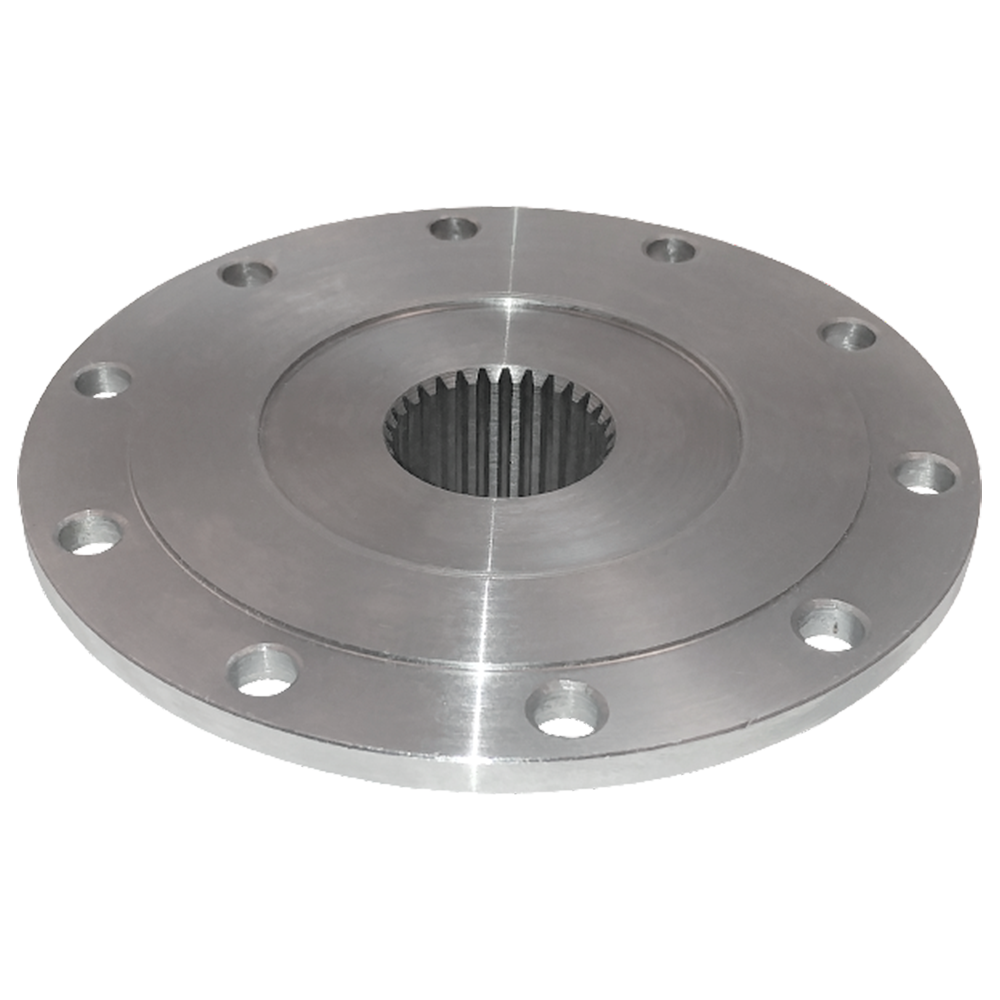

15 Turbine Hub High Type
  • Height: 1.180"
  • Outer Dia: 3.85"
  • Internal Teeth: 29
  • FMX, C5TP-7926B
 FX-13-3S

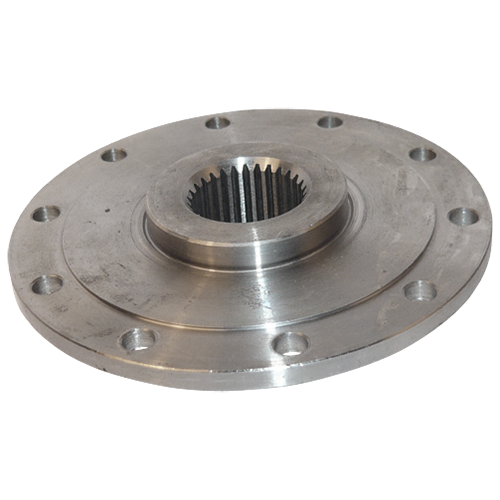

15 Turbine Hub
  • Height: 1.450
  • Outer Dia: 3.8"
  • Internal Teeth: 29
  • Low Type, With Shoulder
 FX-13-7

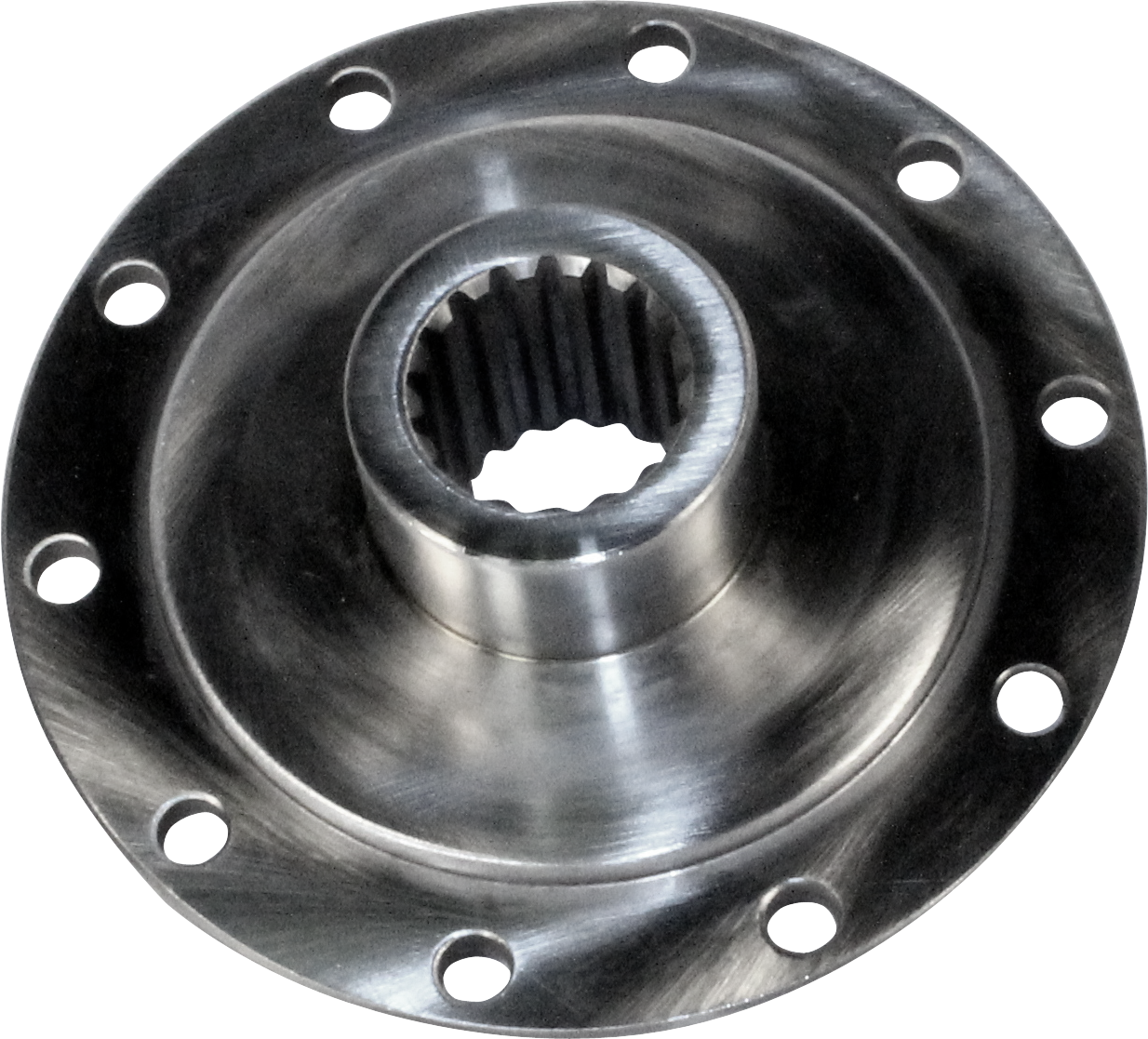

15 Turbine Hub
  • Height: 1.450
  • Outer Dia: 3.8"
  • Internal Teeth: 17
  • C2AP-7926C, PAZ-7926B
 FX-13-8
15 Turbine Hub
  • Height: 1.450
  • Outer Dia: 3.8"
 FX-13-8HT
159 Seal Ring Square-Cut
  • Height: 0.137
  • Outer Dia: 3.976
  • Width: 0.137
  • Outer Dia Metric: 100.9904
  • Height Metric: 3.4798
 FO-1-20
16 Turbine NPN-2-12-16
160 Seal Ring Square-Cut, Large Cover
  • Height: 0.125
  • Outer Dia: 12.25
  • Inner Dia: 11.752
  • Thickness: 0.126"
  • Width: 0.125
  • Outer Dia Metric: 311.15
  • Thickness metric: 3.2mm
  • Height Metric: 3.175
 FO-1-21

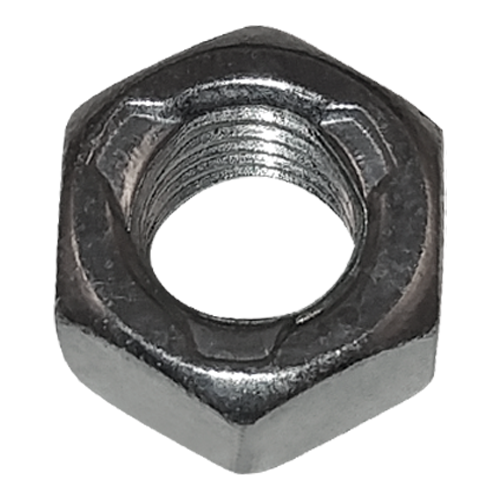

166 Nut Cover
  • Dimensions: 5/16"-24 x 0.33"
 FX-10-6

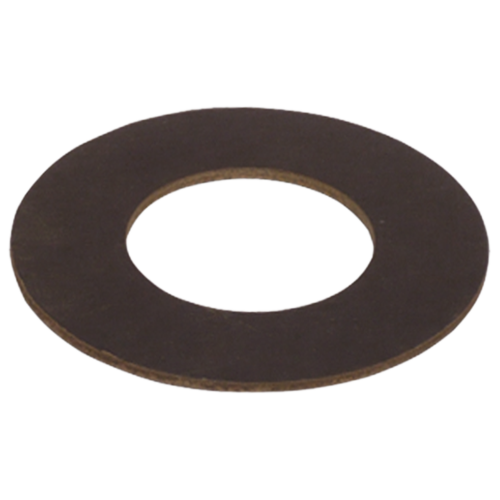

17 Turbine Washer Fiber '52-'62, 3 Speed, B&B
  • Outer Dia: 2.43"
  • Inner Dia: 1.26"
  • Thickness: .062"
  • Material: Fiber
 FW-9

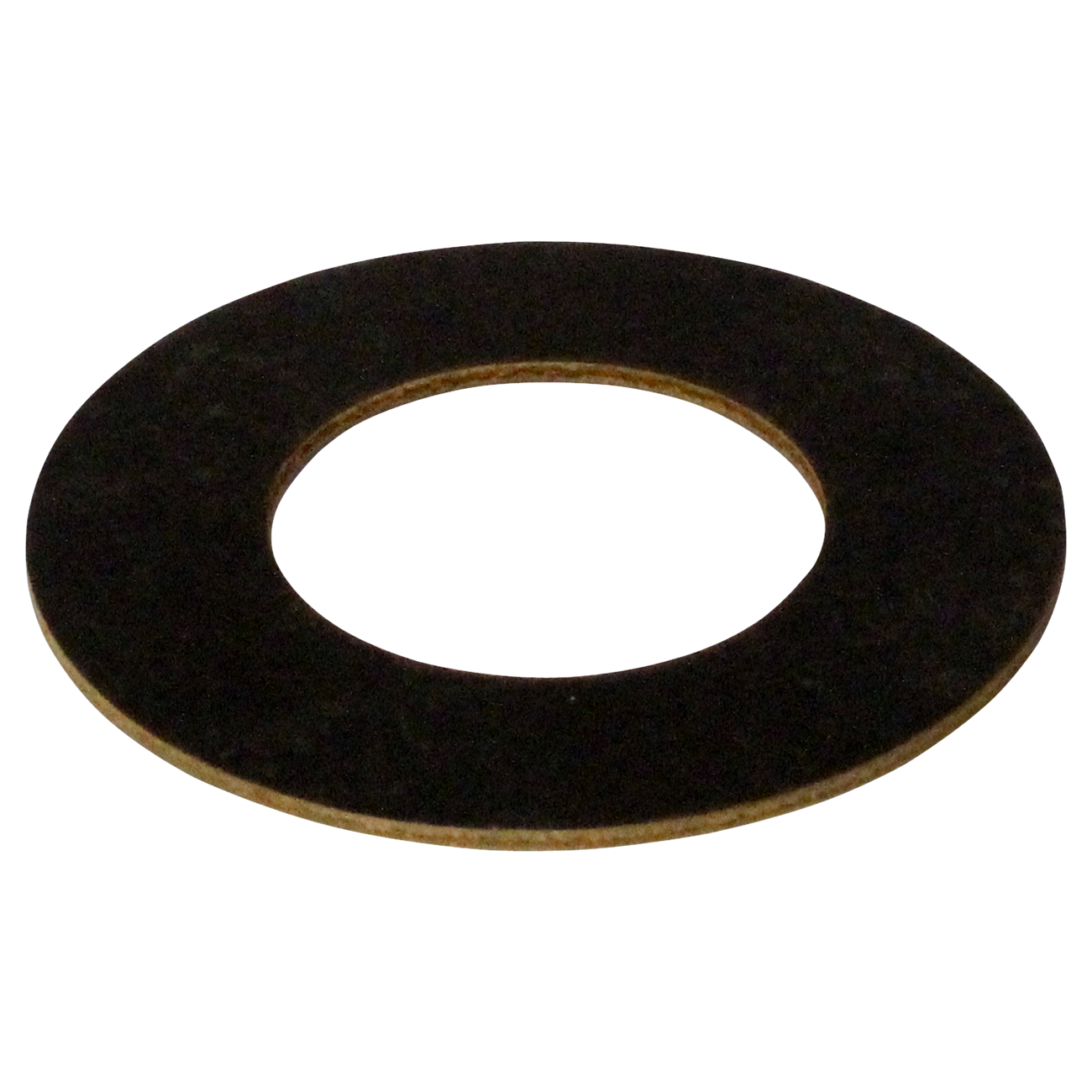

17 Turbine Washer '58-'65 Lincoln
  • Outer Dia: 2.50"
  • Inner Dia: 1.32"
  • Thickness: .062"
  • For fiber, Use FW-9-1F
 FW-9-1

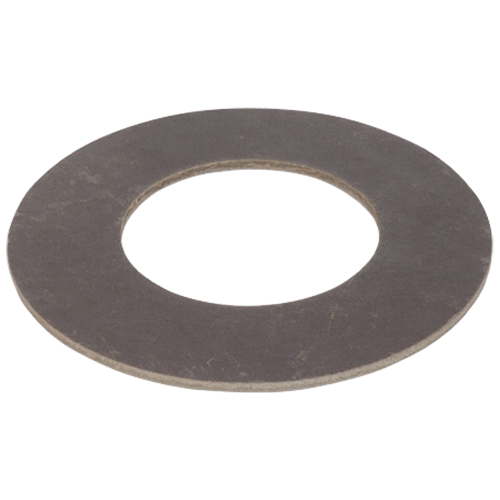

17 Turbine Washer '58-'65 Lincoln
  • Outer Dia: 2.50"
  • Inner Dia: 1.32"
 FW-9-1F
17 Turbine Washer
  • Outer Dia: 2.75"
  • Inner Dia: 1.33"
  • Thickness: .045"
  • Material: Plastic
 FW-9-4T
17 Turbine Washer
  • Outer Dia: 2.75"
  • Inner Dia: 1.33"
  • Thickness: .045"
  • Material: Fiber
 FW-9-4TF
17 Turbine Washer
  • Outer Dia: 2.75"
  • Inner Dia: 1.33"
  • Thickness: .062
  • Material: Plastic
 FW-9-4A
17 Turbine Washer
  • Outer Dia: 2.75"
  • Inner Dia: 1.33"
  • Thickness: .062
  • Material: Fiber
 FW-9-4AF
17 Turbine Washer
  • Outer Dia: 2.75"
  • Inner Dia: 1.33"
  • Thickness: .070"
  • Material: Plastic
 FW-9-4B
17 Turbine Washer
  • Outer Dia: 2.75"
  • Inner Dia: 1.33"
  • Thickness: .070"
  • Material: Fiber
 FW-9-4BF
17 Turbine Washer
  • Outer Dia: 2.76"
  • Inner Dia: 1.34"
  • Thickness: .072"
  • Material: Plastic
 FW-9-4C
17 Turbine Washer
  • Outer Dia: 2.76"
  • Inner Dia: 1.34"
  • Thickness: . 079"
  • Material: Fiber
 FW-9-4CF
17 Turbine Washer
  • Outer Dia: 2.75"
  • Inner Dia: 1.33"
  • Thickness: .087"
  • Material: Plastic
 FW-9-4D
17 Turbine Washer
  • Outer Dia: 2.75"
  • Inner Dia: 1.33"
  • Thickness: .087"
  • Material: Fiber
 FW-9-4DF
17 Turbine Washer
  • Outer Dia: 2.75"
  • Inner Dia: 1.33"
  • Thickness: .087"
 FW-9-4DS
17 Turbine Washer
  • Outer Dia: 2.75"
  • Inner Dia: 1.33"
  • Thickness: .094
  • Material: Plastic
 FW-9-4E
17 Turbine Washer
  • Outer Dia: 2.75"
  • Inner Dia: 1.33"
  • Thickness: .094
  • Material: Fiber
 FW-9-4EF
17 Turbine Washer
  • Outer Dia: 2.75"
  • Inner Dia: 1.33"
  • Thickness: .106"
  • Material: Plastic
 FW-9-4F
17 Turbine Washer
  • Outer Dia: 2.75"
  • Inner Dia: 1.33"
  • Thickness: .106"
  • Material: Fiber
 FW-9-4FF
17 Turbine Washer
  • Outer Dia: 2.75"
  • Inner Dia: 1.33"
  • Thickness: .188"
  • Material: Fiber
 FW-9-4GF
17 Turbine Washer
  • Outer Dia: 2.75"
  • Inner Dia: 1.33"
  • Material: Plastic
 CW-9-3
17 Turbine Washer
  • Outer Dia: 2.75"
  • Inner Dia: 1.33"
  • Material: Plastic
 CW-9-3B
17 Turbine Washer
  • Outer Dia: 2.75"
  • Inner Dia: 1.33"
  • Material: Fiber
 CW-9-3BF
17 Turbine Washer
  • Outer Dia: 2.75"
  • Inner Dia: 1.33"
  • Thickness: .125"
  • Material: Fiber
 CW-9-3F
17 Turbine Washer
  • Outer Dia: 2.75"
  • Inner Dia: 1.33"
  • Thickness: .188"
  • Material: Plastic
 FW-9-4G
17_N.I. Salvage Ring™
  • Outer Dia: 12.92"
  • Width: 0.375"
  • Restores Engagement Step
 FX-21-1005
17_N.I. Salvage Ring™ Coresaver™
  • Outer Dia: 12.92"
  • Width: 0.250"
 FX-21-1005NR

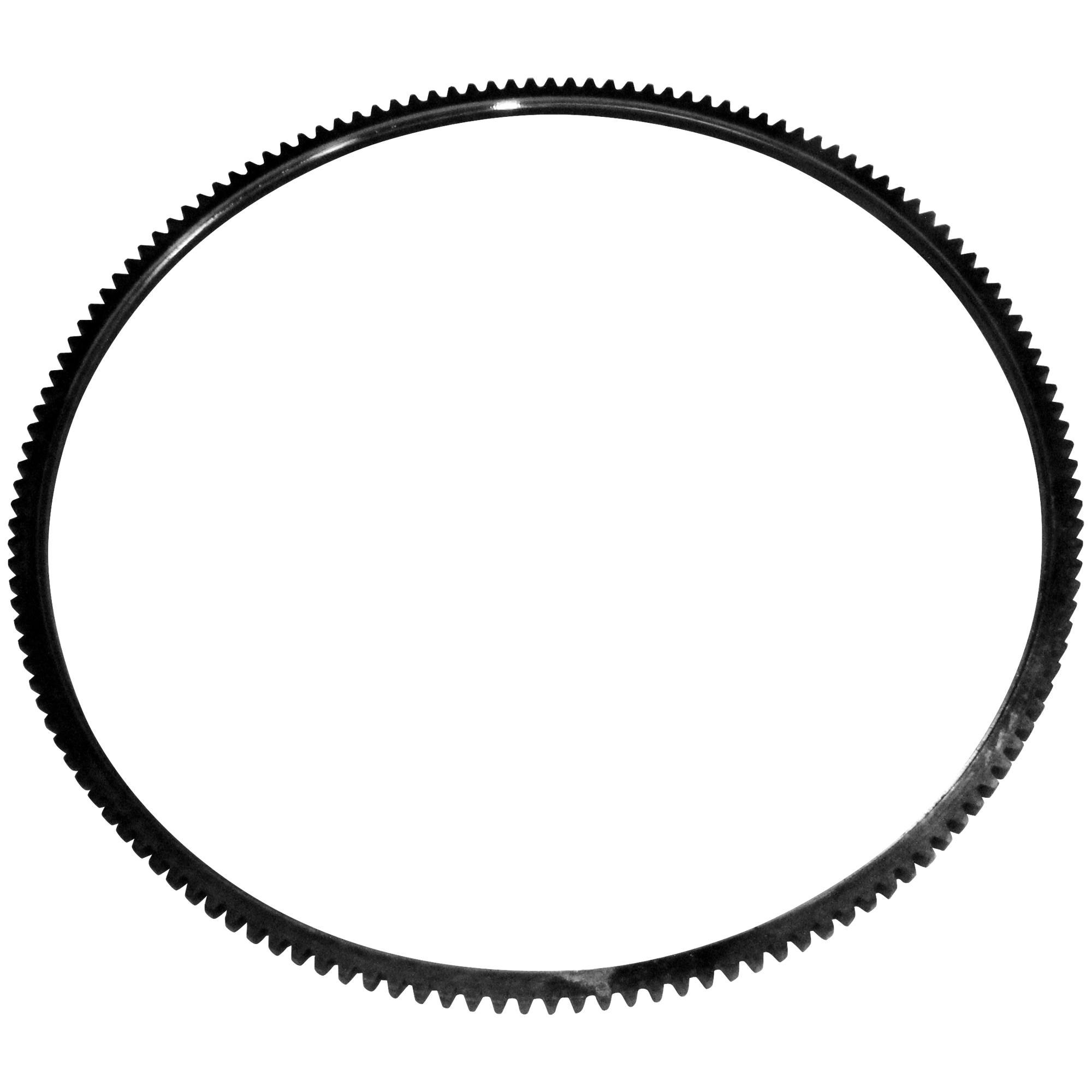

171 Ring Gear 146 Teeth
  • Outer Dia: 14.81"
  • Inner Dia: 13.81"
  • Thickness: 0.370"
  • External teeth: 146
  • (Machining Required)
 RG-146S

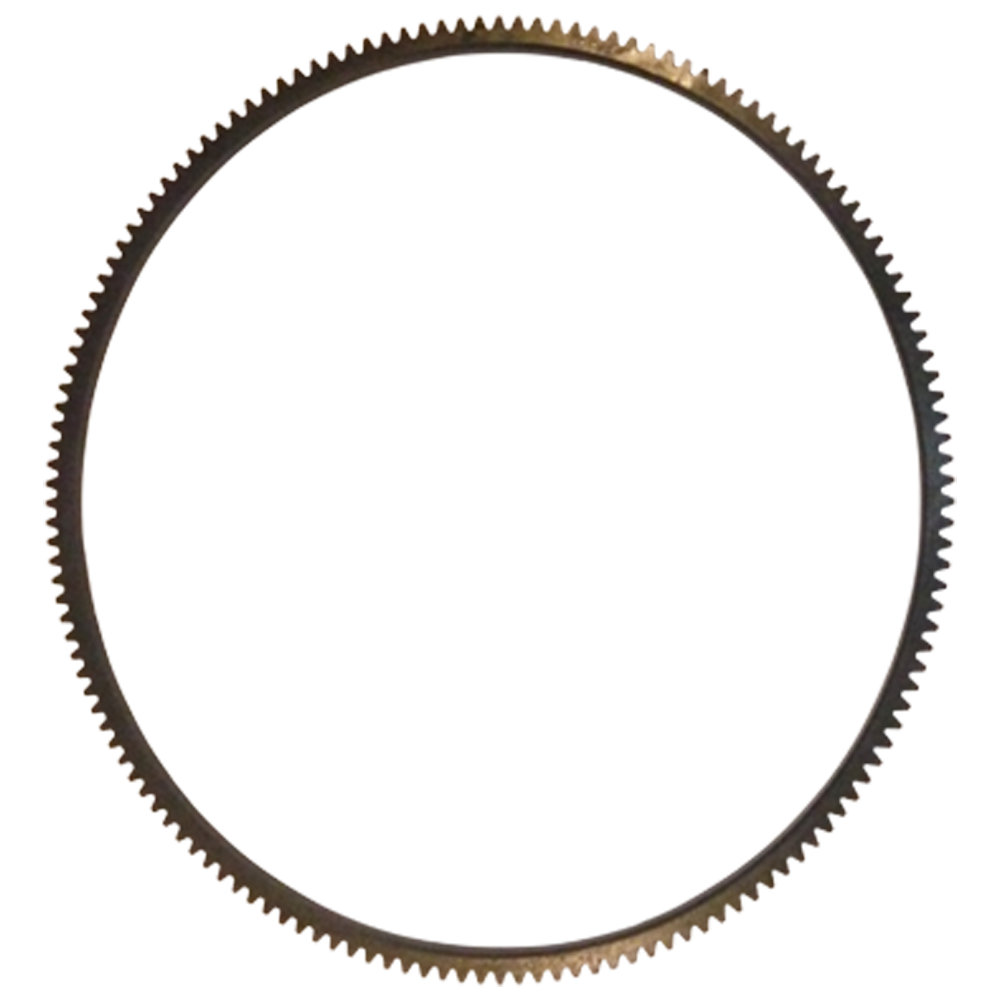

172 Ring Gear
  • Outer Dia: 15.01"
  • Inner Dia: 14.012"
  • External teeth: 148
 RG-148S
18 Front Cover NPN-2-12-18
19 Stud T-Head
  • Length: .50" under the head
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 1.06"
  • Bolt Head Thickness: 0.23"
 FX-10-14
19 Stud Thin Head Type '58-'62 and B&B. 4 Pieces Required.
  • (Use FX-10-4)
 FX-10-2
19 Stud
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 0.83"
  • Bolt Head Thickness: 0.21"
 FX-10-3
19 Stud
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 0.75"
  • Bolt Head Thickness: 0.16"
 FX-10-4
20 Drain Plug 1/8-27 NPT, PTFE, Wrap FX-11A
20 Drain Plug
  • Material: Steel
  • 1/8-27 NPT
 FX-11
20 Drain Plug
  • Allen socket drain plug for use with drilled converters.
 FX-11B

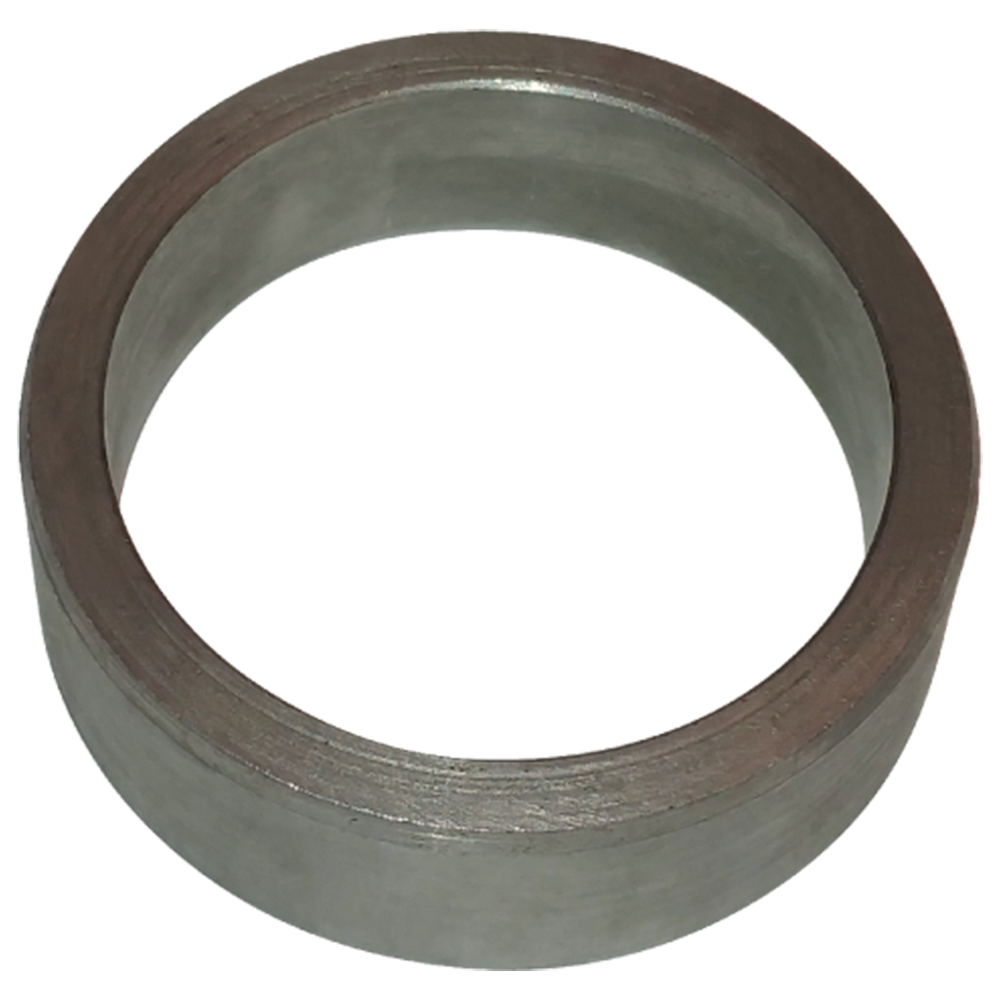

20_N.I. Pilot Sleeve Adapter, From 1.515" To 1.848" FX-17
20_N.I. Studcap Plastic Stud Protector 4 Pieces Required.
  • Inner Dia: 0.375
  • Length: 0.50"
  • Color: Red
  • Fits 3/8" (9.5mm)
 MHC-STD
20_N.I. Studcap 4 Pieces Required.
  • Inner Dia: 0.375
 MHC-STE
20_N.I. Pilot Sleeve Adapter, From 1.624" To 1.848", Rambler FX-17-1

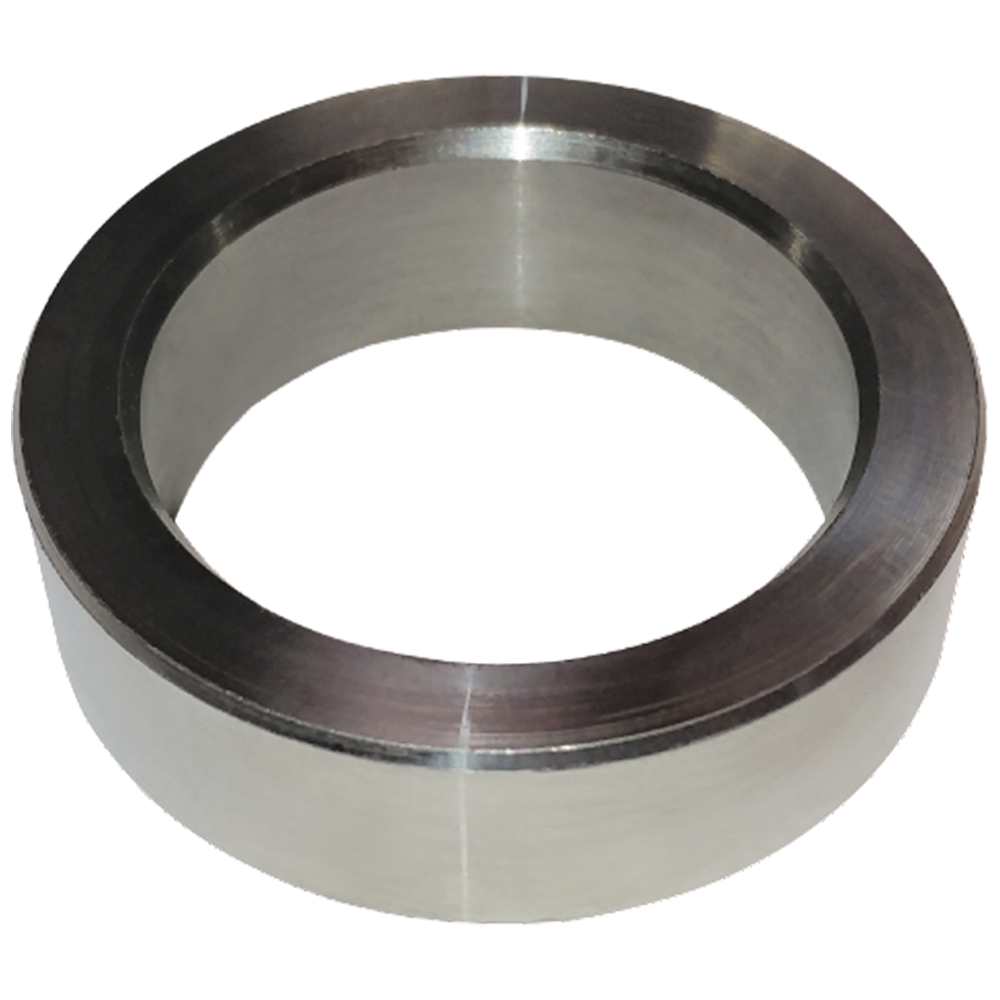

20_N.I. Pilot Sleeve Adapter,
  • Dimensions: From 1.375" To 1.848"
 FX-17-6
20_N.I. Pilot Cup Type FMX
  • Outer Dia: 1.375"
  • Length: .375"
 FX-17-3
20_N.I. Pilot Unfinished B & B, Rambler
  • Outer Dia: 0.750
 WX-17-19X
