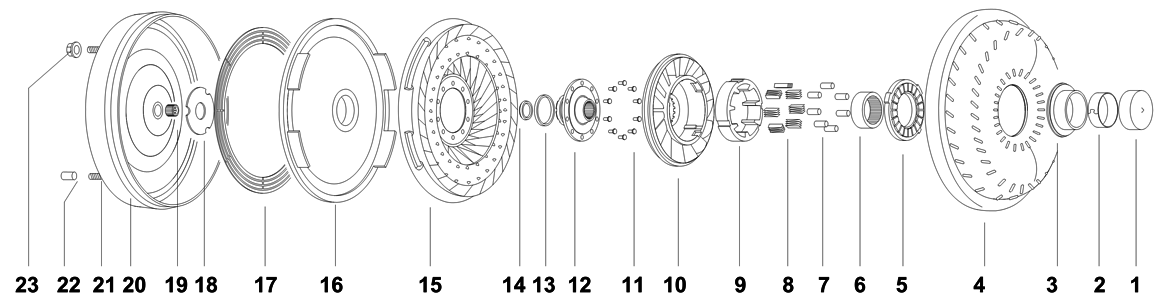

Torque Converter | Ford | CD4E 9-1/4" (3.0L & 2.3L)

Ill.# Image Description Specification Part #
Bushing Fits late Luk units. Use with OE size impeller hub
  • Thickness: 0.51"
  • Housing Bore Dia: 1.892"
  • Shaft Dia: 1.764"
  • Material: Bi-metal
  • Type: Precision
 FB-18-8
Bushing FB-18-8
& Fits late Luk units. Use with OE size impeller hub
  • Thickness: 0.51"
  • Housing Bore Dia: 1.892"
  • Shaft Dia: 1.764"
  • Material: Bi-metal
  • Type: Precision
Rivet 12 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 JX-12
Rivet JX-12
& 12 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
Rivet 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 JX-12S
Rivet JX-12S
& 8 Pieces Required.
  • Length: 0.5"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
Rivet Fits FX-13-46HT turbine hub 12 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet Head Dia: 0.300"
  • Rivet Head: Flat
 SX-12-14
Rivet SX-12-14
& Fits FX-13-46HT turbine hub 12 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.198"
  • Rivet Head Dia: 0.300"
  • Rivet Head: Flat
1 Hubcap Fits 2-1/8" (54.0mm). Length: 1/2"
  • Color: Brown
  • Fits 2-1/8" (54.0mm)
 MHC-BR
Hubcap MHC-BR
Fits 2-1/8" (54.0mm). Length: 1/2" &
  • Color: Brown
  • Fits 2-1/8" (54.0mm)
2 Bushing
  • Thickness: 0.5"
  • Housing Bore Dia: 1.891"
  • Shaft Dia: 1.764"
  • Material: Bronze
  • Type: Precision
 FB-18-6
Bushing FB-18-6
&
  • Thickness: 0.5"
  • Housing Bore Dia: 1.891"
  • Shaft Dia: 1.764"
  • Material: Bronze
  • Type: Precision
2 Misc NPN-SPL
Misc NPN-SPL
&
3 Impeller Hub Heat Treated
  • Journal Dia: 2.140"
  • Installed Height: .67"
  • Hub Mount: Thru
  • Hardness: Rc 32-36
 FH-1-20GRC
Impeller Hub FH-1-20GRC
Heat Treated &
  • Journal Dia: 2.140"
  • Installed Height: .67"
  • Hub Mount: Thru
  • Hardness: Rc 32-36
3 Impeller Hub Flanged
  • Journal Dia: 2.140"
  • Installed Height: .67"
  • Hub Mount: Thru
 FH-1-20G
Impeller Hub FH-1-20G
Flanged &
  • Journal Dia: 2.140"
  • Installed Height: .67"
  • Hub Mount: Thru
4 Impeller NPN-2-44-4
Impeller NPN-2-44-4
&
5 Stator Cap
  • Material: Phenolic
  • Outside Dia: 3.352"
  • Inside Dia: 1.880"
  • YL8-7937-AB. Tab O.D.: 3.588" Total Thickness: 0.336" Tab Count: 3
 FW-4-28
Stator Cap FW-4-28
&
  • Material: Phenolic
  • Outside Dia: 3.352"
  • Inside Dia: 1.880"
  • YL8-7937-AB. Tab O.D.: 3.588" Total Thickness: 0.336" Tab Count: 3
5 Stator Cap
  • Material: Phenolic
  • Outside Dia: 3.34"
  • 3 Slots F3RP-7937-CA1

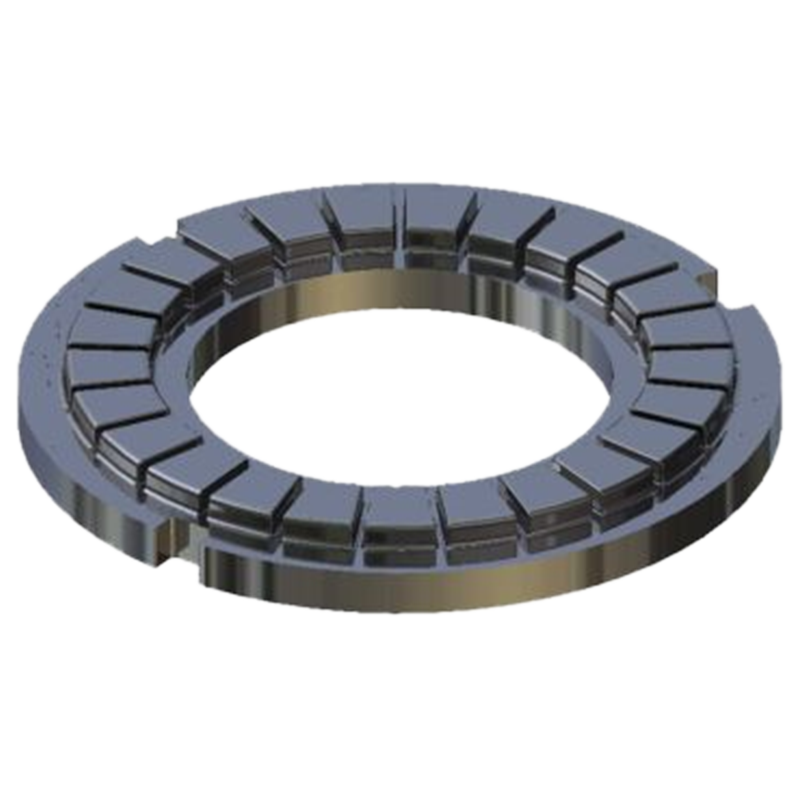

 FW-4-36
Stator Cap FW-4-36
&
  • Material: Phenolic
  • Outside Dia: 3.34"
  • 3 Slots F3RP-7937-CA1
6 Inner Race Stator
  • Height: .620"
  • Length: 0.618"
  • Internal Teeth: 32
  • Outside Dia: 2.100"
 FX-14-9
Inner Race FX-14-9
Stator &
  • Height: .620"
  • Length: 0.618"
  • Internal Teeth: 32
  • Outside Dia: 2.100"
7 Roller 7/10 Pieces Required.
  • Dia: 0.312"
  • Length: 0.572"
  • Material: Steel
 SR-7
Roller SR-7
& 7/10 Pieces Required.
  • Dia: 0.312"
  • Length: 0.572"
  • Material: Steel
8 Accordion Spring 7 Pieces Required. 1942187
Accordion Spring 1942187
& 7 Pieces Required.
8 Accordion Spring 7 Pieces Required.
  • Width: 0.28"
  • Relaxed Length: 0.437"
  • Folds: 3
  • Relaxed Height: 0.56"
 FS-6-10
Accordion Spring FS-6-10
& 7 Pieces Required.
  • Width: 0.28"
  • Relaxed Length: 0.437"
  • Folds: 3
  • Relaxed Height: 0.56"
8 Accordion Spring 8 Pieces Required.
  • Width: 0.6"
  • Relaxed Length: 0.43"
  • Folds: 4
  • Relaxed Height: 0.285"
 TS-6
Accordion Spring TS-6
& 8 Pieces Required.
  • Width: 0.6"
  • Relaxed Length: 0.43"
  • Folds: 4
  • Relaxed Height: 0.285"
9 Cam
  • Height: .63"
  • Outside Dia: 3.35"
 NPN-2-44-9
Cam NPN-2-44-9
&
  • Height: .63"
  • Outside Dia: 3.35"
10 Stator 24 Blade
  • Outside Dia: 6.12"
  • OE# YL8P-7934-BA
 NPN-2-44-10
Stator NPN-2-44-10
24 Blade &
  • Outside Dia: 6.12"
  • OE# YL8P-7934-BA
11 Rivet 10 Pieces Required.
  • Length: 0.312"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12
Rivet FX-12
& 10 Pieces Required.
  • Length: 0.312"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
11 Rivet 10 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12L
Rivet FX-12L
& 10 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
11 Rivet Fits FX-13-39HT 10 Pieces Required.
  • Length: 0.385"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12LS
Rivet FX-12LS
& Fits FX-13-39HT 10 Pieces Required.
  • Length: 0.385"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
11 Rivet FX-12-9
Rivet FX-12-9
&
12 Turbine Hub 3L8P-7926-AA For 3.0L, OE# 3L8P-7926-AA
  • Height: 1.372
  • Internal Teeth: 30
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.38"

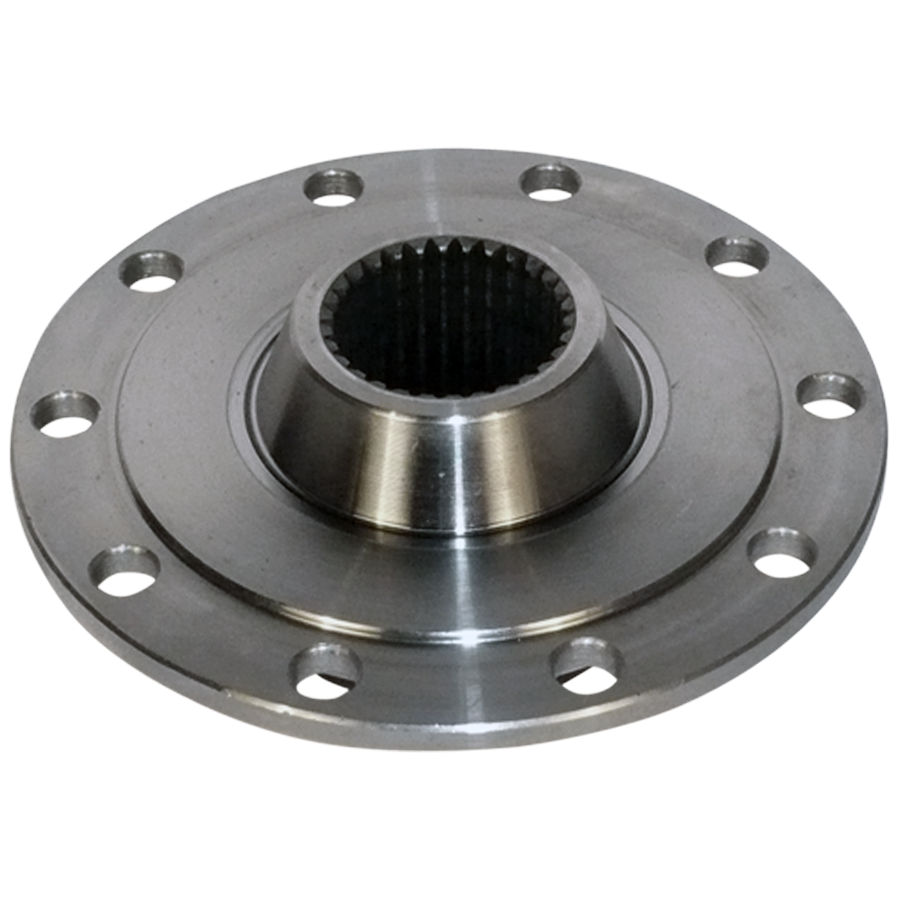

 FX-13-39HT
Turbine Hub FX-13-39HT
3L8P-7926-AA & For 3.0L, OE# 3L8P-7926-AA
  • Height: 1.372
  • Internal Teeth: 30
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.38"
12 Turbine Hub
  • Internal Teeth: 30
  • Outside Dia: 3.38"
  • 3L8P-7926-AA
 FX-13-39S
Turbine Hub FX-13-39S
&
  • Internal Teeth: 30
  • Outside Dia: 3.38"
  • 3L8P-7926-AA
12 Turbine Hub 2.3L Escape, 2005-up
  • Internal Teeth: 30
  • Outside Dia: 4.650"

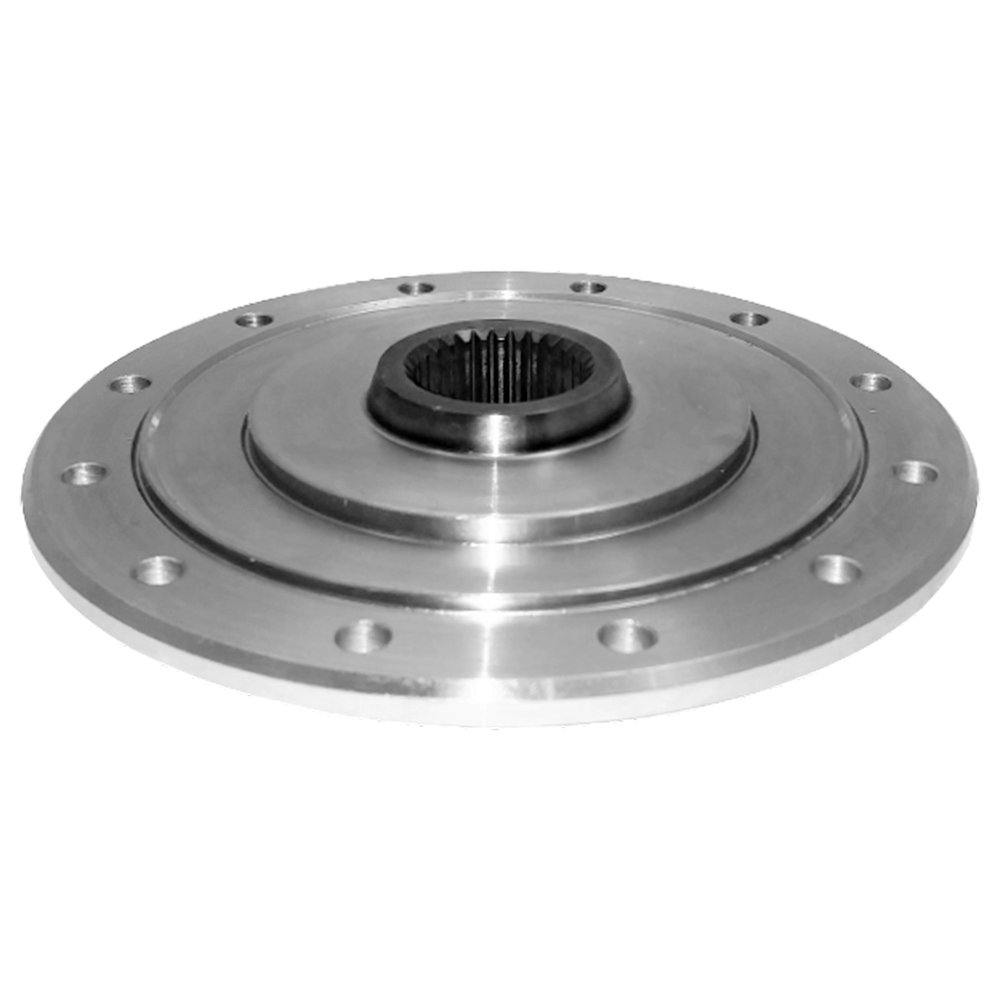

 FX-13-46HT
Turbine Hub FX-13-46HT
& 2.3L Escape, 2005-up
  • Internal Teeth: 30
  • Outside Dia: 4.650"
13 Seal Ring For use conversion-plates with FX-23-68A & FX-23-68
  • Height: 0.095
  • Width: 0.13
  • Color: Red
  • Material: PTFE
  • Height Metric: 2.413
  • Seal Type: Solid
  • Outside Dia: 1.683
  • Outside Dia Metric: 42.7482
 FO-25-13
Seal Ring FO-25-13
& For use conversion-plates with FX-23-68A & FX-23-68
  • Height: 0.095
  • Width: 0.13
  • Color: Red
  • Material: PTFE
  • Height Metric: 2.413
  • Seal Type: Solid
  • Outside Dia: 1.683
  • Outside Dia Metric: 42.7482
13 Seal Ring Scarf Cut. (Used with FX-23-66A & FX-23-68A) use with FX-23-68 & FX-23-68A
  • Height: 0.094"
  • Width: 0.130"
  • Material: PTFE
  • Height Metric: 2.4384
  • Seal Type: Scarf Cut
  • Outside Dia: 1.675
  • Outside Dia Metric: 42.545
 FO-25-16
Seal Ring FO-25-16
Scarf Cut. (Used with FX-23-66A & FX-23-68A) & use with FX-23-68 & FX-23-68A
  • Height: 0.094"
  • Width: 0.130"
  • Material: PTFE
  • Height Metric: 2.4384
  • Seal Type: Scarf Cut
  • Outside Dia: 1.675
  • Outside Dia Metric: 42.545
14 Metal Clad Seal
  • Housing Bore Dia: 1.024
  • Housing Bore Dia Metric: 26.01
  • Shaft Dia metric: 19.5
  • Shaft Dia: 0.769
  • Material: Fluorocarbon
 FO-25-9
Metal Clad Seal FO-25-9
&
  • Housing Bore Dia: 1.024
  • Housing Bore Dia Metric: 26.01
  • Shaft Dia metric: 19.5
  • Shaft Dia: 0.769
  • Material: Fluorocarbon
15 Turbine & Damper
  • Outside Dia: 9-1/4"
 NPN-2-44-15
Turbine & Damper NPN-2-44-15
&
  • Outside Dia: 9-1/4"
16 Piston 4 Lugs NPN-2-44-16
Piston NPN-2-44-16
4 Lugs &
16 Clutch Plate Piston
  • Thickness: 0.200"
 FX-23-66
Clutch Plate FX-23-66
Piston &
  • Thickness: 0.200"
16 Friction Plate
  • Thickness: 0.27"
  • Lining Count: 1
  • 4 Outer Lugs . Lining Part-ID: PX-23-9X70HC .
 FX-23-66A
Friction Plate FX-23-66A
&
  • Thickness: 0.27"
  • Lining Count: 1
  • 4 Outer Lugs . Lining Part-ID: PX-23-9X70HC .
17 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.625"
  • Inside Dia: 8.063"
 FX-23-25
Lining (Friction Ring,Wafer) FX-23-25
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.625"
  • Inside Dia: 8.063"
17 Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.75"
  • Inside Dia: 8.125"
 FX-23-89
Lining (Friction Ring,Wafer) FX-23-89
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.75"
  • Inside Dia: 8.125"
18 Wear Plate
  • Thickness: 0.080"
  • Material: Steel
  • Outside Dia: 2.55"
  • Inside Dia: 0.91"
 FX-22-28
Wear Plate FX-22-28
&
  • Thickness: 0.080"
  • Material: Steel
  • Outside Dia: 2.55"
  • Inside Dia: 0.91"
19 Insert Pump Drive, Knurled, 8mm Internal Hex
  • Length: 0.500"
  • Outside Dia: 0.660"
 FX-22-25
Insert FX-22-25
Pump Drive, Knurled, 8mm Internal Hex &
  • Length: 0.500"
  • Outside Dia: 0.660"
20 Front Cover NPN-2-44-20
Front Cover NPN-2-44-20
&
21 Stud Threaded, " T" Head 4 Pieces Required.
  • Length: .50" under the head
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 1.06"
  • Bolt Head Thickness: 0.23"
 FX-10-13
Stud FX-10-13
Threaded, " T" Head & 4 Pieces Required.
  • Length: .50" under the head
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 1.06"
  • Bolt Head Thickness: 0.23"
21 Stud 4 Pieces Required.
  • Length: 16mm
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 0.77"
  • Bolt Head Thickness: 0.16"
 FX-10-9
Stud FX-10-9
& 4 Pieces Required.
  • Length: 16mm
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 0.77"
  • Bolt Head Thickness: 0.16"
22 Studcap Plastic Stud Protector 4 Pieces Required.
  • Length: 0.50"
  • Color: Red
  • Inside Dia: 0.375
  • Fits 3/8" (9.5mm)
 MHC-STD
Studcap MHC-STD
Plastic Stud Protector & 4 Pieces Required.
  • Length: 0.50"
  • Color: Red
  • Inside Dia: 0.375
  • Fits 3/8" (9.5mm)
22 Studcap 4 Pieces Required.
  • Inside Dia: 0.375
 MHC-STE
Studcap MHC-STE
& 4 Pieces Required.
  • Inside Dia: 0.375
23 Nut 4 Pieces Required.
  • Dimensions: M10 x 1mm
  • Length: 8.5mm
 FX-10-17
Nut FX-10-17
& 4 Pieces Required.
  • Dimensions: M10 x 1mm
  • Length: 8.5mm
