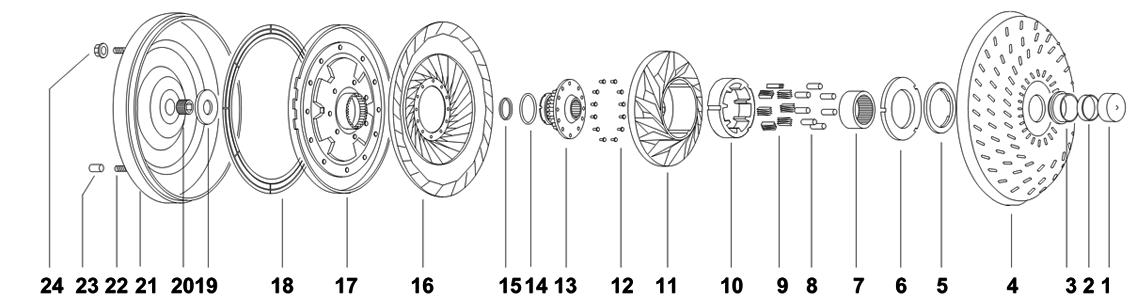

Torque Converter | Ford | CD4E (9-1/4" & 10-1/4")

Ill.# Image Description Specification Part #

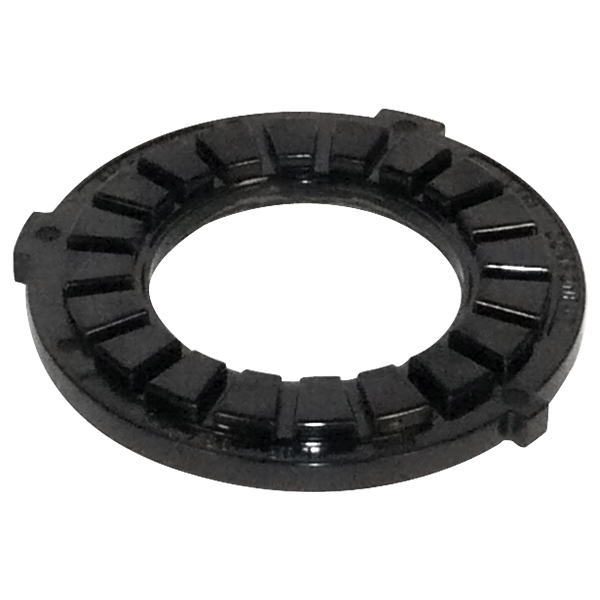

Stator Cap Late-Type
  • Material: Phenolic
  • Outside Dia: 3.352"
  • Inside Dia: 1.880"
  • YL8-7937-AB. Tab O.D.: 3.588" Total Thickness: 0.336" Tab Count: 3
 FW-4-28
Stator Cap FW-4-28
& Late-Type
  • Material: Phenolic
  • Outside Dia: 3.352"
  • Inside Dia: 1.880"
  • YL8-7937-AB. Tab O.D.: 3.588" Total Thickness: 0.336" Tab Count: 3
Rivet 10 Pieces Required.
  • Length: 0.385"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12LS
Rivet FX-12LS
& 10 Pieces Required.
  • Length: 0.385"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.75"
  • Inside Dia: 8.125"
 FX-23-89
Lining (Friction Ring,Wafer) FX-23-89
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.75"
  • Inside Dia: 8.125"
1 Hubcap Fits 2-1/8" (54.0mm). Length: 1/2"
  • Color: Brown
  • Fits 2-1/8" (54.0mm)
 MHC-BR
Hubcap MHC-BR
Fits 2-1/8" (54.0mm). Length: 1/2" &
  • Color: Brown
  • Fits 2-1/8" (54.0mm)
2 Bushing
  • Thickness: 0.5"
  • Housing Bore Dia: 1.891"
  • Shaft Dia: 1.764"
  • Material: Bronze
  • Type: Precision

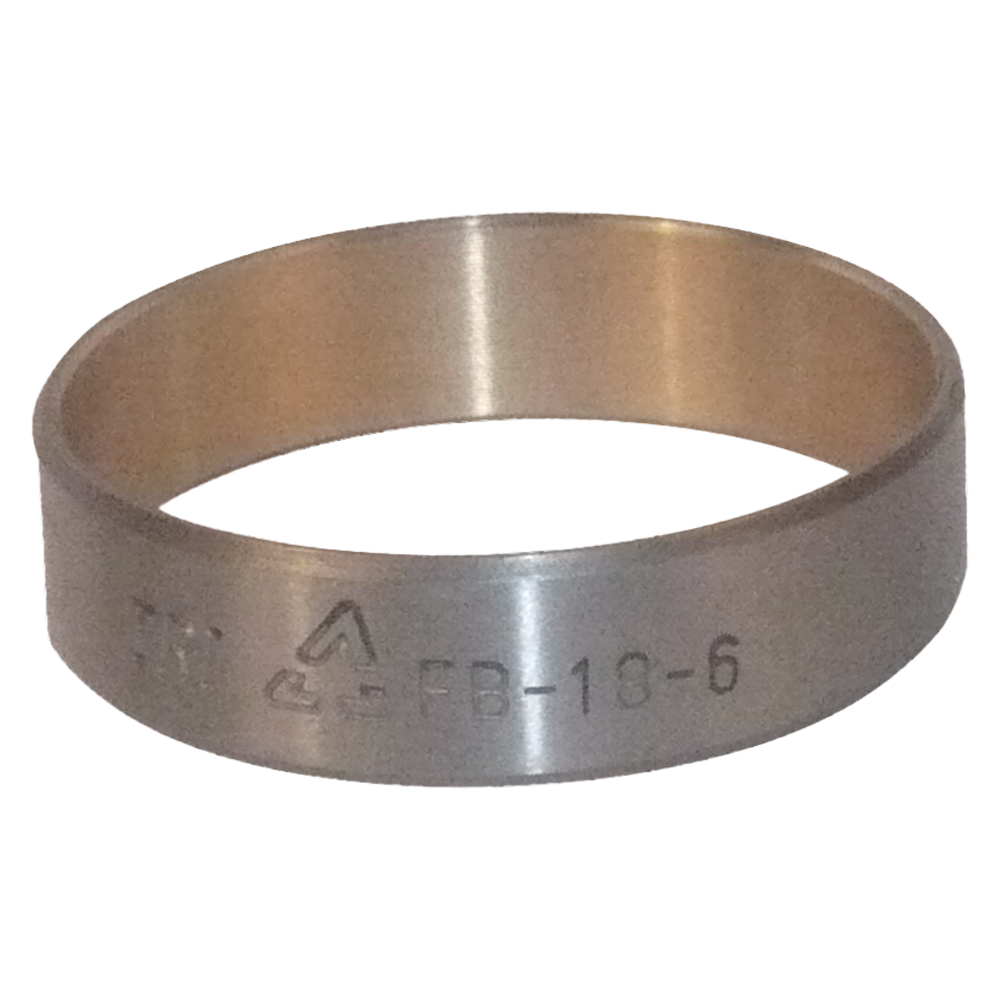

 FB-18-6
Bushing FB-18-6
&
  • Thickness: 0.5"
  • Housing Bore Dia: 1.891"
  • Shaft Dia: 1.764"
  • Material: Bronze
  • Type: Precision
2 Misc NPN-SPL
Misc NPN-SPL
&
3 Impeller Hub Flanged
  • Journal Dia: 2.140"
  • Installed Height: .67"
  • Hub Mount: Thru

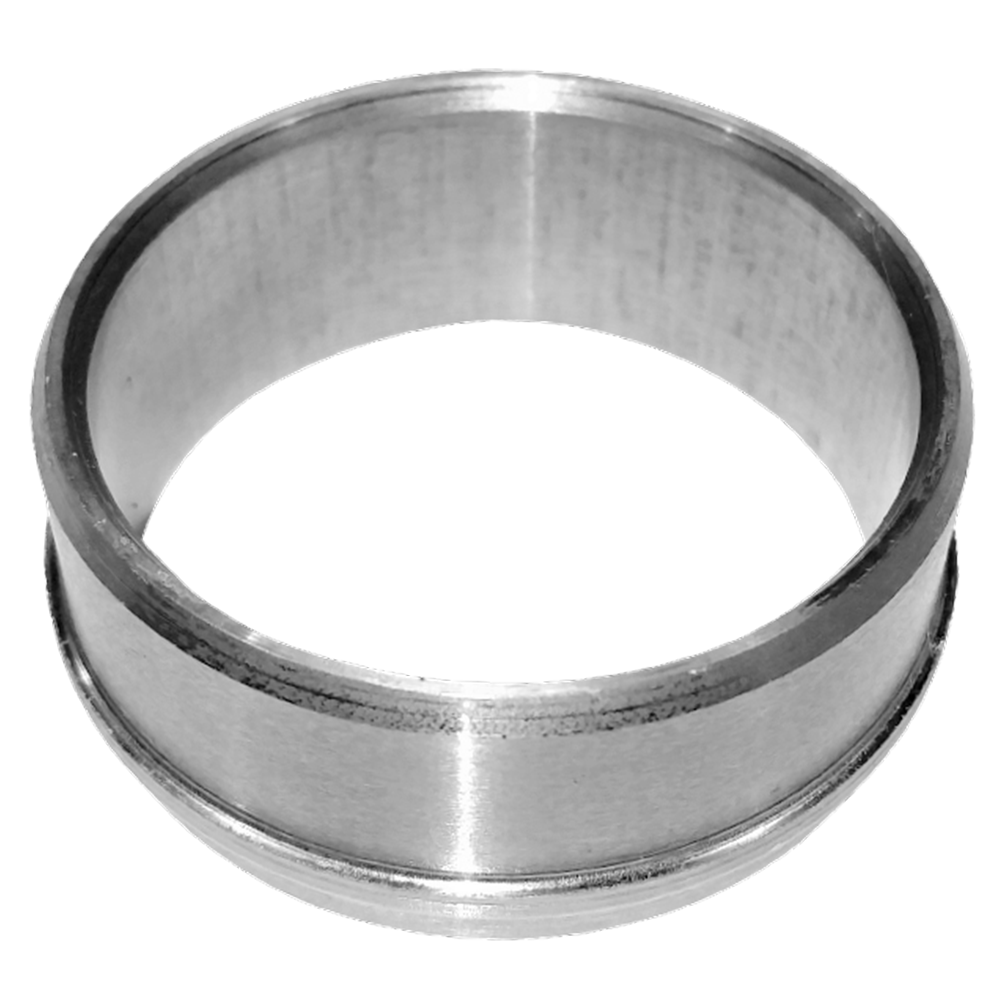

 FH-1-20G
Impeller Hub FH-1-20G
Flanged &
  • Journal Dia: 2.140"
  • Installed Height: .67"
  • Hub Mount: Thru
3 Impeller Hub Heat Treated
  • Journal Dia: 2.140"
  • Installed Height: .67"
  • Hub Mount: Thru
  • Hardness: Rc 32-36

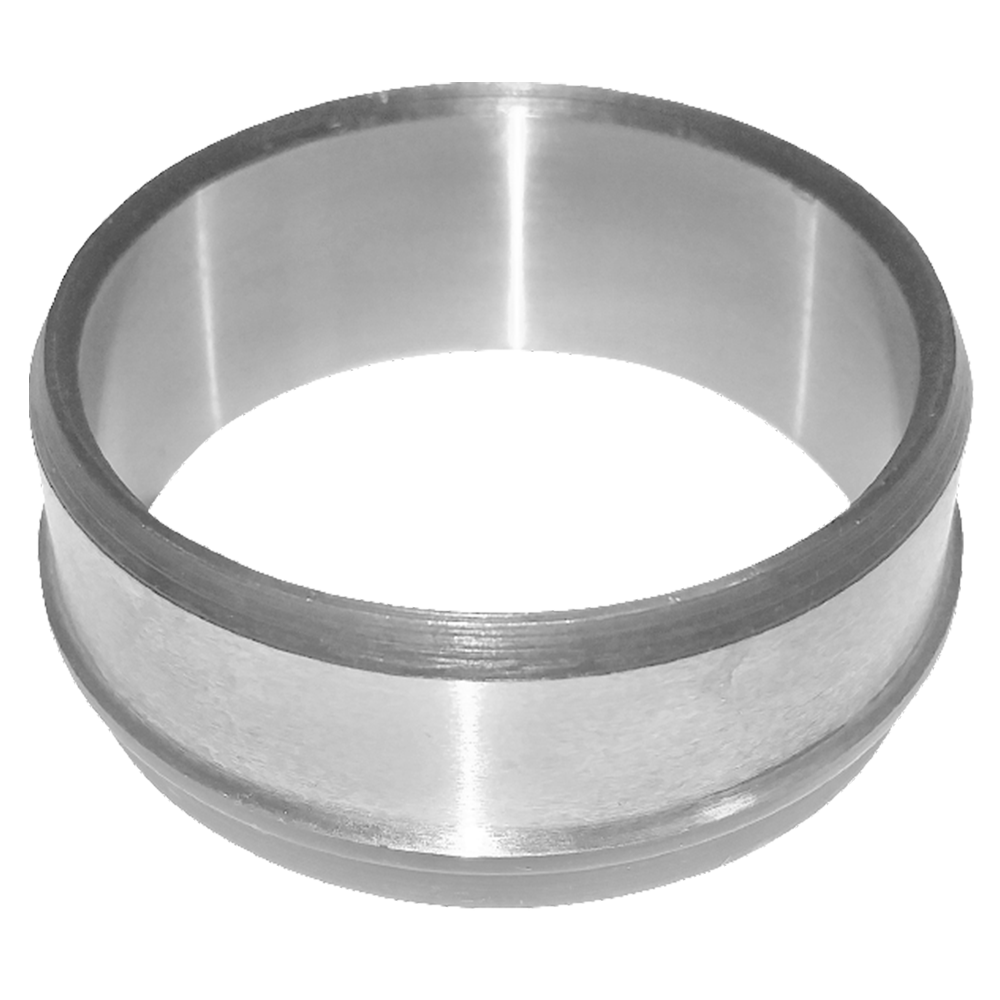

 FH-1-20GRC
Impeller Hub FH-1-20GRC
Heat Treated &
  • Journal Dia: 2.140"
  • Installed Height: .67"
  • Hub Mount: Thru
  • Hardness: Rc 32-36
4 Impeller NPN-2-42-4
Impeller NPN-2-42-4
&
5 Bearing can be substitued with adapter kit FW-4-21K
  • Thickness: 0.163
  • Thickness metric: 4.14
  • Bearing type: Enclosed
  • Outside Dia: 2.784
  • Inside Dia: 1.84
  • Outside Dia Metric: 70.71
  • Inside Dia metric: 46.74
 FW-2-5
Bearing FW-2-5
& can be substitued with adapter kit FW-4-21K
  • Thickness: 0.163
  • Thickness metric: 4.14
  • Bearing type: Enclosed
  • Outside Dia: 2.784
  • Inside Dia: 1.84
  • Outside Dia Metric: 70.71
  • Inside Dia metric: 46.74

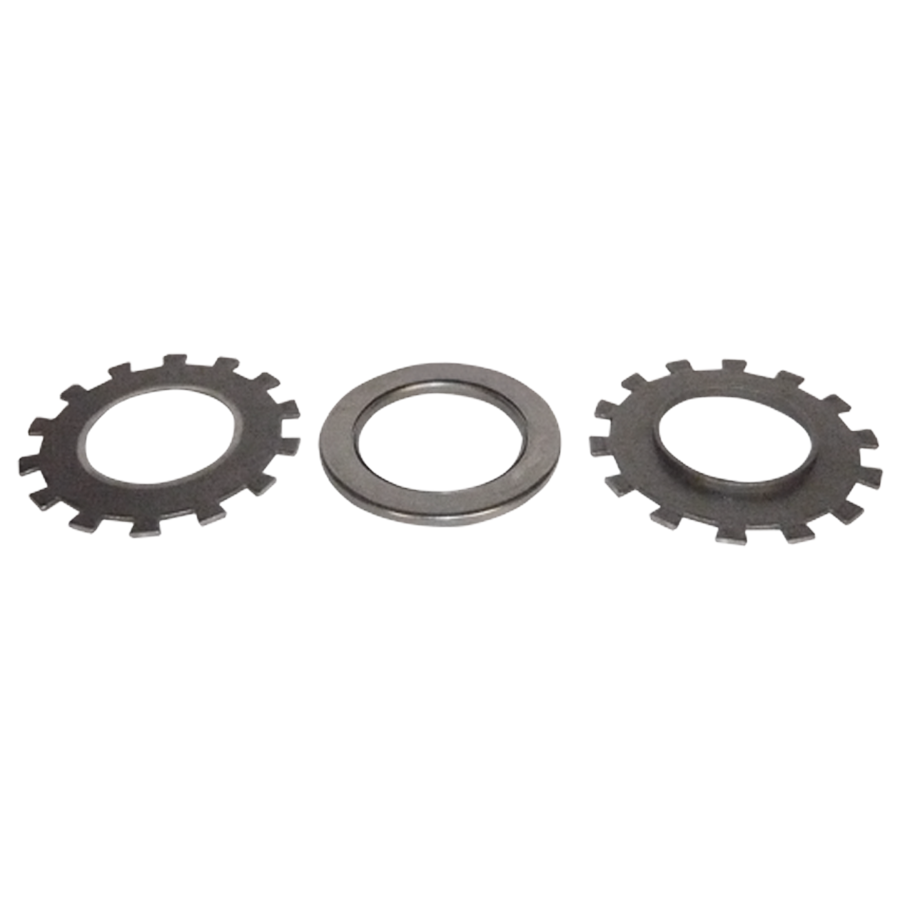

6 Bearing Adapter Kit
  • Outside Dia: 2.784
  • Inside Dia: 1.84
  • Includes Bearing TW-2-4
 FW-4-21K
Bearing Adapter Kit FW-4-21K
&
  • Outside Dia: 2.784
  • Inside Dia: 1.84
  • Includes Bearing TW-2-4

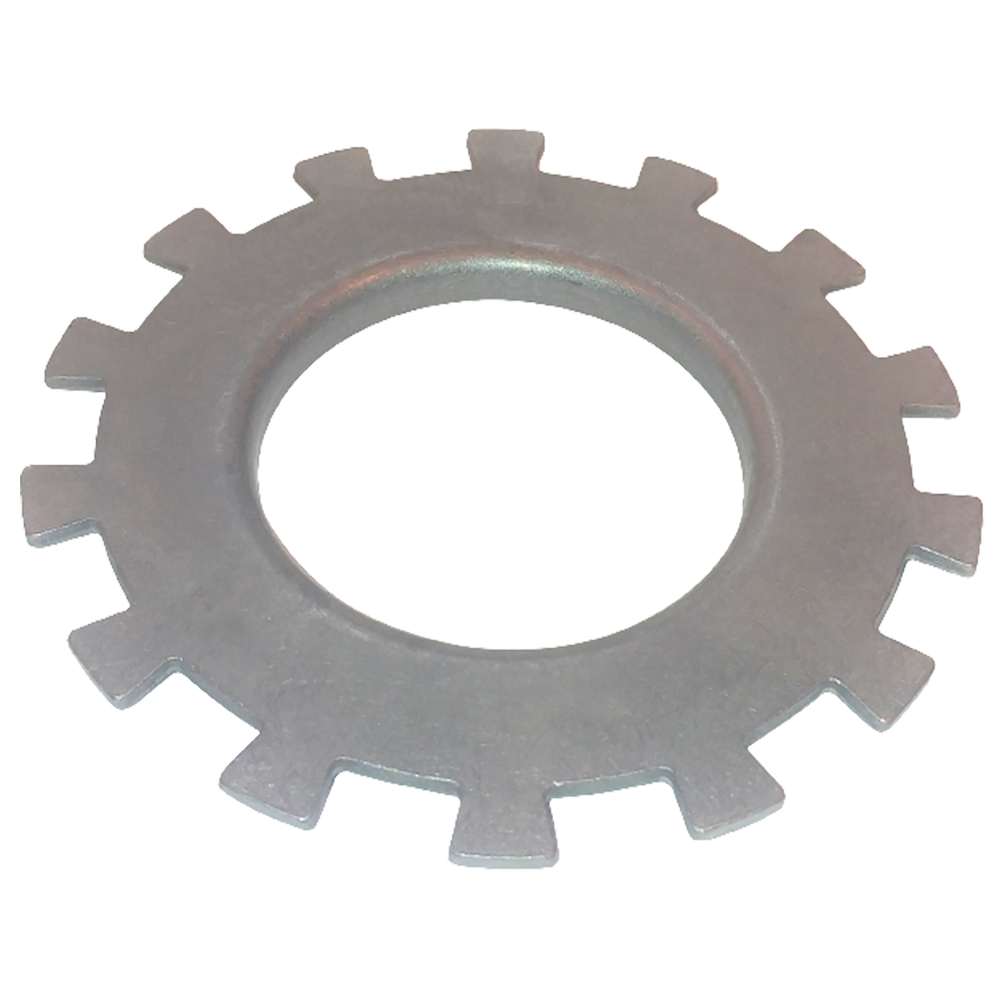

6 Stator Cap JW-4-11A
Stator Cap JW-4-11A
&

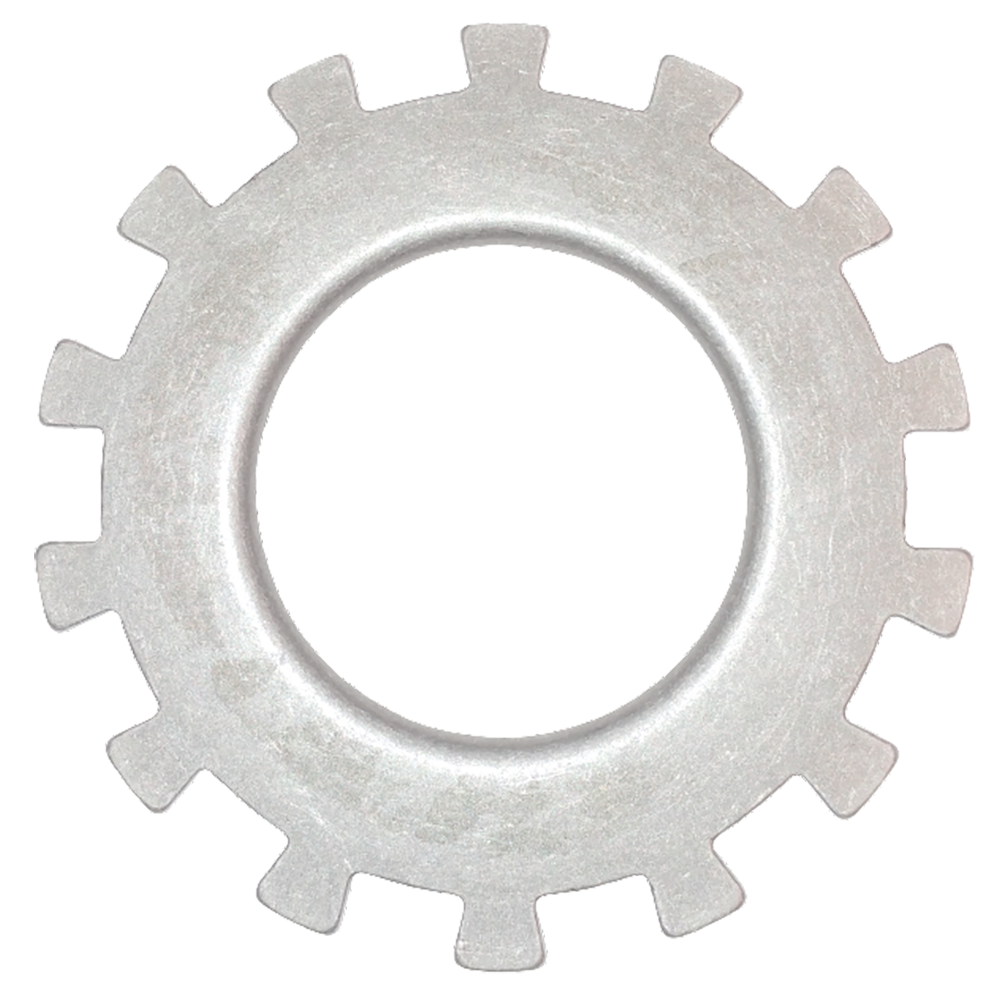

6 Stator Cap JW-4-11B
Stator Cap JW-4-11B
&
6 Stator Cap Use with bearing TW-2-4
  • Thickness: 0.32"
  • Material: Aluminum
  • Functional Thickness: 0.157"
  • Outside Dia: 3.35"
  • Inside Dia: 1.69"
  • Functional Thickness: 0.157". Bearing: TW-2-4. Replaced with bearing kit FW-4-21K
 FW-4-23
Stator Cap FW-4-23
& Use with bearing TW-2-4
  • Thickness: 0.32"
  • Material: Aluminum
  • Functional Thickness: 0.157"
  • Outside Dia: 3.35"
  • Inside Dia: 1.69"
  • Functional Thickness: 0.157". Bearing: TW-2-4. Replaced with bearing kit FW-4-21K
7 Inner Race Stator
  • Height: 0.781"
  • Internal Teeth: 32
  • Outside Dia: 2.100"
 FX-14-8
Inner Race FX-14-8
Stator &
  • Height: 0.781"
  • Internal Teeth: 32
  • Outside Dia: 2.100"
7 Inner Race Stator for CD4E Late
  • Height: .620"
  • Length: 0.618"
  • Internal Teeth: 32
  • Outside Dia: 2.100"
 FX-14-9
Inner Race FX-14-9
Stator & for CD4E Late
  • Height: .620"
  • Length: 0.618"
  • Internal Teeth: 32
  • Outside Dia: 2.100"
8 Roller 7/10 Pieces Required.
  • Dia: 0.312"
  • Length: 0.572"
  • Material: Steel
 SR-7
Roller SR-7
& 7/10 Pieces Required.
  • Dia: 0.312"
  • Length: 0.572"
  • Material: Steel
8 Roller 7 Pieces Required.
  • Dia: 0.312"
  • Length: 0.705"
 12960R
Roller 12960R
& 7 Pieces Required.
  • Dia: 0.312"
  • Length: 0.705"
8 Roller 7 Pieces Required.
  • Dia: 0.312"
  • Length: 0.71"
 FR-7-2
Roller FR-7-2
& 7 Pieces Required.
  • Dia: 0.312"
  • Length: 0.71"
9 Accordion Spring 8 Pieces Required. 1942187
Accordion Spring 1942187
& 8 Pieces Required.
9 Accordion Spring 7 Pieces Required.
  • Width: 0.28"
  • Relaxed Length: 0.437"
  • Folds: 3
  • Relaxed Height: 0.56"
 FS-6-10
Accordion Spring FS-6-10
& 7 Pieces Required.
  • Width: 0.28"
  • Relaxed Length: 0.437"
  • Folds: 3
  • Relaxed Height: 0.56"
9 Accordion Spring 8 Pieces Required.
  • Width: 0.6"
  • Relaxed Length: 0.43"
  • Folds: 4
  • Relaxed Height: 0.285"
 TS-6
Accordion Spring TS-6
& 8 Pieces Required.
  • Width: 0.6"
  • Relaxed Length: 0.43"
  • Folds: 4
  • Relaxed Height: 0.285"
9 Accordion Spring 7 Pieces Required.
  • Width: 0.28"
  • Relaxed Length: 0.255"
  • Folds: 3
  • Relaxed Height: 0.733"
 FS-6-11
Accordion Spring FS-6-11
& 7 Pieces Required.
  • Width: 0.28"
  • Relaxed Length: 0.255"
  • Folds: 3
  • Relaxed Height: 0.733"
9 Accordion Spring 8 Pieces Required.
  • Width: 0.73"
  • Relaxed Length: 0.42"
  • Folds: 4
  • Relaxed Height: 0.28"
 FS-6-8
Accordion Spring FS-6-8
& 8 Pieces Required.
  • Width: 0.73"
  • Relaxed Length: 0.42"
  • Folds: 4
  • Relaxed Height: 0.28"
10 Outer Race (Cam) Stator
  • Height: .63"
  • Outside Dia: 3.35"
 FX-15-9
Outer Race (Cam) FX-15-9
Stator &
  • Height: .63"
  • Outside Dia: 3.35"
10 Outer Race (Cam) Stator
  • Outside Dia: 3.360"
 FX-15-3
Outer Race (Cam) FX-15-3
Stator &
  • Outside Dia: 3.360"
11 Stator
  • F3RP-7934-GA
 FX-5-7
Stator FX-5-7
&
  • F3RP-7934-GA
11 Stator
  • F3RP-7934-CA
 FX-5-8
Stator FX-5-8
&
  • F3RP-7934-CA
12 Rivet 10 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12L
Rivet FX-12L
& 10 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"

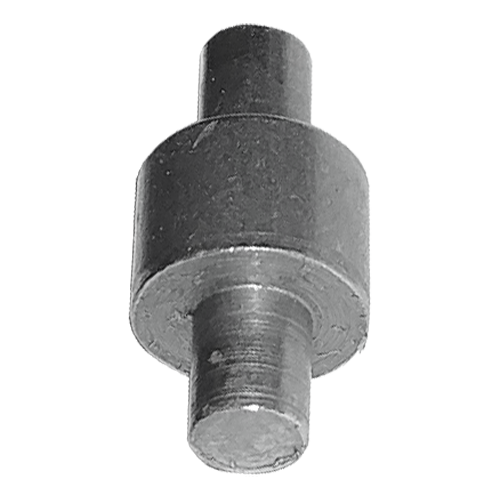

12 Rivet FX-12-9
Rivet FX-12-9
&

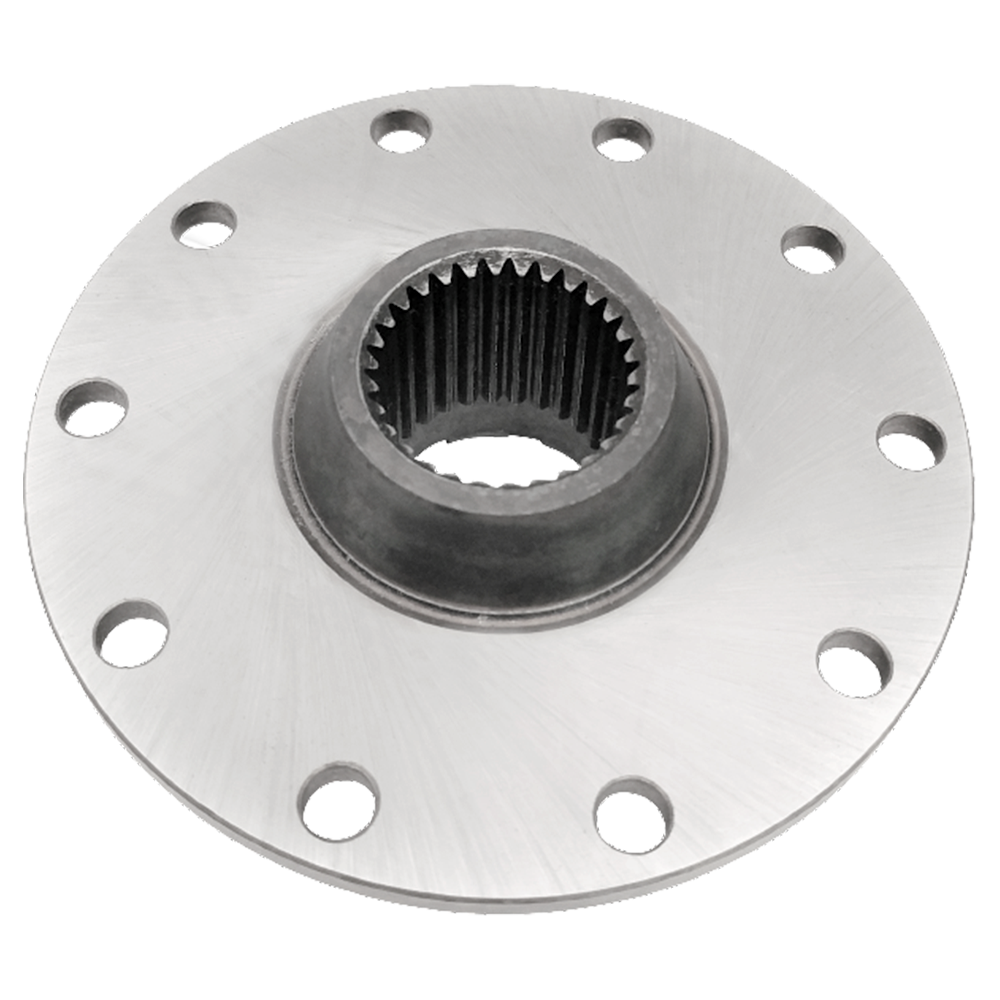

13 Turbine Hub
  • Internal Teeth: 30
  • Outside Dia: 3.38"
 FX-13-21
Turbine Hub FX-13-21
&
  • Internal Teeth: 30
  • Outside Dia: 3.38"
13 Turbine Hub 9-1/4" torque converter
  • Height: 1.382
  • Internal Teeth: 30
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.38"
  • Uses 10 rivets
 FX-13-21HT
Turbine Hub FX-13-21HT
& 9-1/4" torque converter
  • Height: 1.382
  • Internal Teeth: 30
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.38"
  • Uses 10 rivets
13 Turbine Hub
  • Internal Teeth: 30
  • External Teeth: 54
  • Outside Dia: 3.38"
 FX-13-22
Turbine Hub FX-13-22
&
  • Internal Teeth: 30
  • External Teeth: 54
  • Outside Dia: 3.38"
13 Turbine Hub
  • Internal Teeth: 30
  • External Teeth: 54
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.38"
 FX-13-22HT
Turbine Hub FX-13-22HT
&
  • Internal Teeth: 30
  • External Teeth: 54
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.38"
14 O-Ring
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 1.516"
  • Inside Dia metric: 39.3446
 FO-25-8
O-Ring FO-25-8
&
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 1.516"
  • Inside Dia metric: 39.3446
14 O-Ring
  • Thickness: 0.079
  • Thickness metric: 2.0066
  • Material: Fluorocarbon
  • Inside Dia: 1.516"
  • Inside Dia metric: 38.5064
 JO-25-12
O-Ring JO-25-12
&
  • Thickness: 0.079
  • Thickness metric: 2.0066
  • Material: Fluorocarbon
  • Inside Dia: 1.516"
  • Inside Dia metric: 38.5064
14 O-Ring
  • Material: Fluorocarbon
  • Inside Dia: 1.516"
  • Oversized
 JO-25-12X
O-Ring JO-25-12X
&
  • Material: Fluorocarbon
  • Inside Dia: 1.516"
  • Oversized
14 O-Ring
  • Thickness: 0.109
  • Thickness metric: 2.7686
  • Material: Fluorocarbon
  • Inside Dia: 1.516"
  • Inside Dia metric: 40.005
  • Machine Clutch Bore To 1.800"/1.802"
 FO-25-8A
O-Ring FO-25-8A
&
  • Thickness: 0.109
  • Thickness metric: 2.7686
  • Material: Fluorocarbon
  • Inside Dia: 1.516"
  • Inside Dia metric: 40.005
  • Machine Clutch Bore To 1.800"/1.802"
14 Seal Ring For CD4E Late
  • Height: 0.095
  • Width: 0.13
  • Color: Red
  • Material: PTFE
  • Height Metric: 2.413
  • Seal Type: Solid
  • Outside Dia: 1.683
  • Outside Dia Metric: 42.7482
 FO-25-13
Seal Ring FO-25-13
& For CD4E Late
  • Height: 0.095
  • Width: 0.13
  • Color: Red
  • Material: PTFE
  • Height Metric: 2.413
  • Seal Type: Solid
  • Outside Dia: 1.683
  • Outside Dia Metric: 42.7482
15 Metal Clad Seal
  • Housing Bore Dia: 1.024
  • Housing Bore Dia Metric: 26.01
  • Shaft Dia metric: 19.5
  • Shaft Dia: 0.769
  • Material: Fluorocarbon
 FO-25-9
Metal Clad Seal FO-25-9
&
  • Housing Bore Dia: 1.024
  • Housing Bore Dia Metric: 26.01
  • Shaft Dia metric: 19.5
  • Shaft Dia: 0.769
  • Material: Fluorocarbon
16 Turbine
  • Outside Dia: 9-1/4"
 NPN-2-42-16A
Turbine NPN-2-42-16A
&
  • Outside Dia: 9-1/4"
16 Turbine
  • Outside Dia: 9-1/4"
 NPN-2-42-16B
Turbine NPN-2-42-16B
&
  • Outside Dia: 9-1/4"
17 Clutch Plate Assembly Remanufactured
  • Outside Dia: 9.375

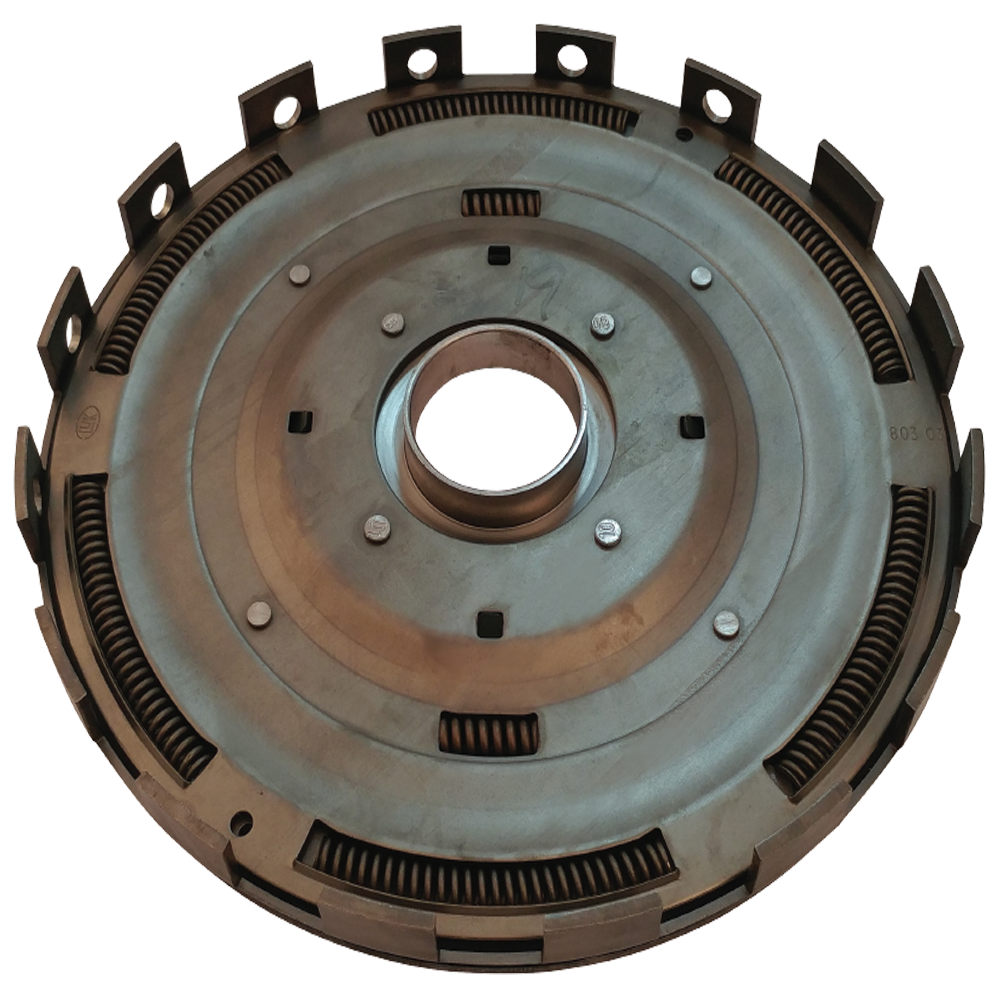

 FX-23-108
Clutch Plate Assembly FX-23-108
Remanufactured &
  • Outside Dia: 9.375
17 Clutch Plate Assembly Unlined
  • Outside Dia: 10"

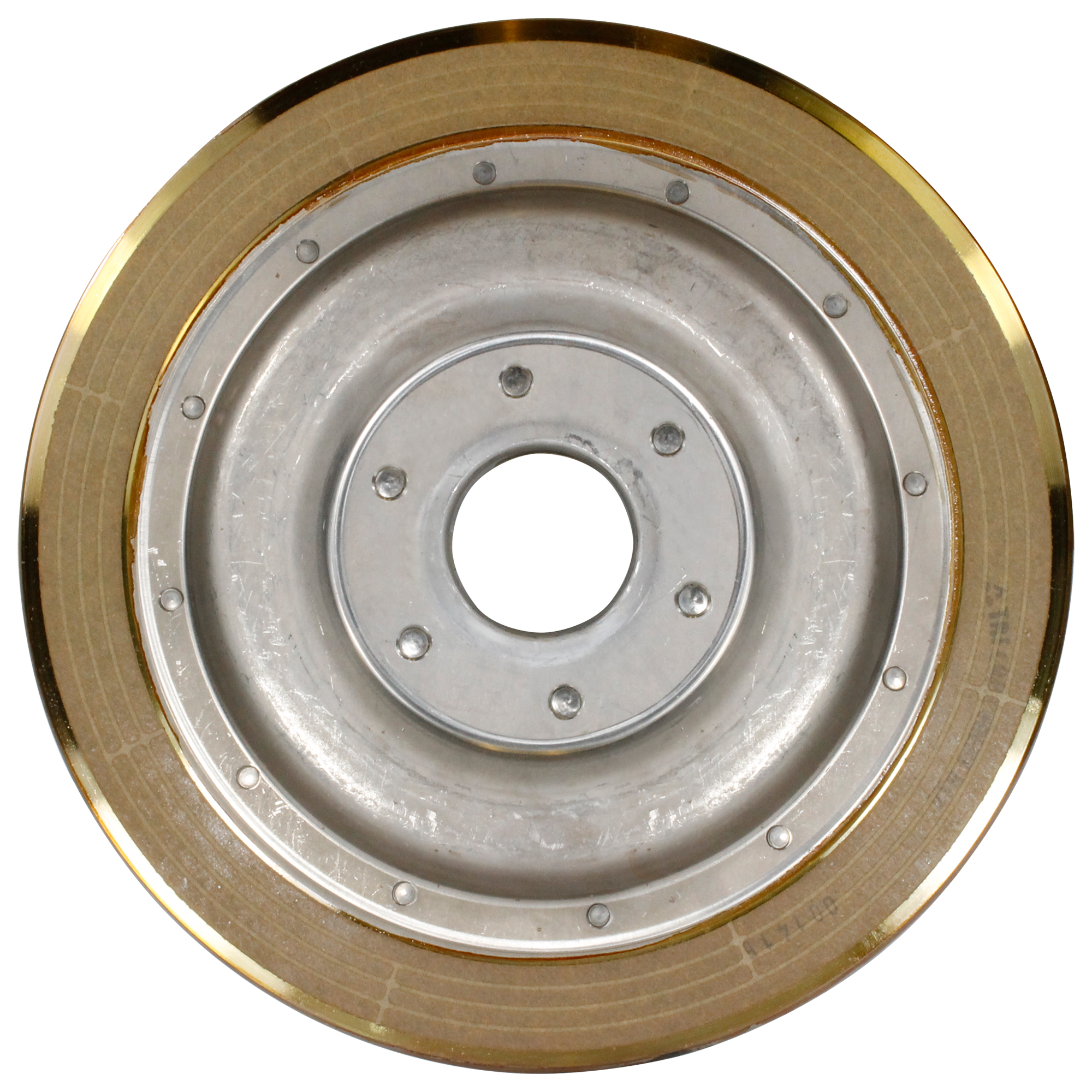

 FX-23-208
Clutch Plate Assembly FX-23-208
Unlined &
  • Outside Dia: 10"
17.1 Shim
  • Thickness: 0.02"
  • Outside Dia: 2"
  • Inside Dia: 1.75"
 FW-9-24
Shim FW-9-24
&
  • Thickness: 0.02"
  • Outside Dia: 2"
  • Inside Dia: 1.75"
18 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.125"
  • Inside Dia: 8.063"
 FX-23-24
Lining (Friction Ring,Wafer) FX-23-24
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.125"
  • Inside Dia: 8.063"
18 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.625"
  • Inside Dia: 8.063"
 FX-23-25
Lining (Friction Ring,Wafer) FX-23-25
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.625"
  • Inside Dia: 8.063"
18 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.25"
  • Inside Dia: 8.125"
  • 9 Springs, 6 Deep Dimples
 FX-23-6
Lining (Friction Ring,Wafer) FX-23-6
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.25"
  • Inside Dia: 8.125"
  • 9 Springs, 6 Deep Dimples
19 Wear Plate
  • Thickness: 0.080"
  • Material: Steel
  • Outside Dia: 2.55"
  • Inside Dia: 0.91"
 FX-22-28
Wear Plate FX-22-28
&
  • Thickness: 0.080"
  • Material: Steel
  • Outside Dia: 2.55"
  • Inside Dia: 0.91"
20 Insert Pump Drive, Knurled, 8mm Internal Hex
  • Length: 0.500"
  • Outside Dia: 0.660"
 FX-22-25
Insert FX-22-25
Pump Drive, Knurled, 8mm Internal Hex &
  • Length: 0.500"
  • Outside Dia: 0.660"
21 Front Cover NPN-2-42-21
Front Cover NPN-2-42-21
&
22 Stud Threaded, " T" Head 4 Pieces Required.
  • Length: .50" under the head
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 1.06"
  • Bolt Head Thickness: 0.23"
 FX-10-13
Stud FX-10-13
Threaded, " T" Head & 4 Pieces Required.
  • Length: .50" under the head
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 1.06"
  • Bolt Head Thickness: 0.23"
22 Stud 4 Pieces Required.
  • Length: 16mm
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 0.77"
  • Bolt Head Thickness: 0.16"
 FX-10-9
Stud FX-10-9
& 4 Pieces Required.
  • Length: 16mm
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 0.77"
  • Bolt Head Thickness: 0.16"
23 Studcap Plastic Stud Protector 4 Pieces Required.
  • Length: 0.50"
  • Color: Red
  • Inside Dia: 0.375
  • Fits 3/8" (9.5mm)
 MHC-STD
Studcap MHC-STD
Plastic Stud Protector & 4 Pieces Required.
  • Length: 0.50"
  • Color: Red
  • Inside Dia: 0.375
  • Fits 3/8" (9.5mm)
23 Studcap 4 Pieces Required.
  • Inside Dia: 0.375
 MHC-STE
Studcap MHC-STE
& 4 Pieces Required.
  • Inside Dia: 0.375
24 Nut 4 Pieces Required.
  • Dimensions: M10 x 1mm
  • Length: 8.5mm
 FX-10-17
Nut FX-10-17
& 4 Pieces Required.
  • Dimensions: M10 x 1mm
  • Length: 8.5mm
