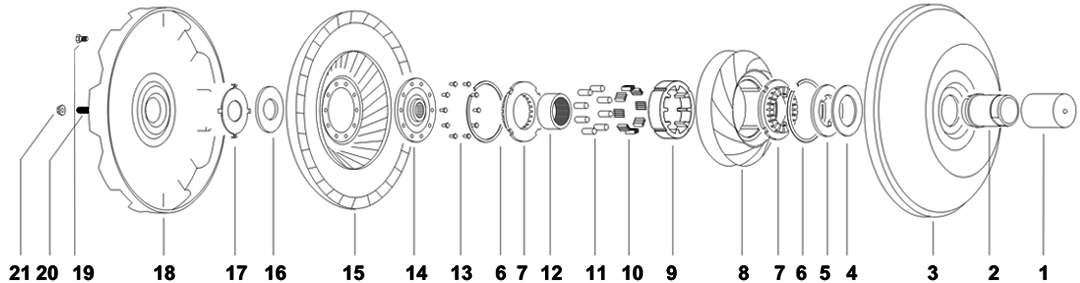

Torque Converter | Ford | C4, C6, 12" & C4 11-1/4", 2 Speed

Ill.# Image Description Specification Part #
Roller 8 Pieces Required.
  • Dia: 0.312"
  • Length: 0.705"
 12960R
Roller 12960R
& 8 Pieces Required.
  • Dia: 0.312"
  • Length: 0.705"
Roller 8 Pieces Required.
  • Dia: 0.312"
  • Length: 0.71"
 FR-7-2
Roller FR-7-2
& 8 Pieces Required.
  • Dia: 0.312"
  • Length: 0.71"
Accordion Spring 8 Pieces Required.
  • Width: 0.28"
  • Relaxed Length: 0.255"
  • Folds: 3
  • Relaxed Height: 0.733"
 FS-6-11
Accordion Spring FS-6-11
& 8 Pieces Required.
  • Width: 0.28"
  • Relaxed Length: 0.255"
  • Folds: 3
  • Relaxed Height: 0.733"
Accordion Spring 8 Pieces Required.
  • Width: 0.73"
  • Relaxed Length: 0.42"
  • Folds: 4
  • Relaxed Height: 0.28"
 FS-6-8
Accordion Spring FS-6-8
& 8 Pieces Required.
  • Width: 0.73"
  • Relaxed Length: 0.42"
  • Folds: 4
  • Relaxed Height: 0.28"
Stator Cap Bearing Adapter
  • Thickness: .66"
  • Material: Aluminum
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Bearing: SW-2-12
 FW-4-14
Stator Cap FW-4-14
Bearing Adapter &
  • Thickness: .66"
  • Material: Aluminum
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Bearing: SW-2-12
Stator Cap Bearing Adapter Fits SW-2-12 bearing
  • Thickness: .66"
  • Material: Aluminum
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Bearing: SW-2-12
 FW-4-14A
Stator Cap FW-4-14A
Bearing Adapter & Fits SW-2-12 bearing
  • Thickness: .66"
  • Material: Aluminum
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Bearing: SW-2-12
Stator Cap Bearing Adapter
  • Thickness: .66"
  • Material: Plastic
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Bearing: SW-2-12
 FW-4-14P
Stator Cap FW-4-14P
Bearing Adapter &
  • Thickness: .66"
  • Material: Plastic
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Bearing: SW-2-12
Stator Cap Bearing Adapter
  • Thickness: .56"
  • Material: Aluminum
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Fits SW-2-12 bearing (0.900" Rollers)
 FW-4-18
Stator Cap FW-4-18
Bearing Adapter &
  • Thickness: .56"
  • Material: Aluminum
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Fits SW-2-12 bearing (0.900" Rollers)
Stator Cap Bearing Adapter
  • Thickness: .56"
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Fits SW-2-12 bearing (0.900" Rollers)
 FW-4-18A
Stator Cap FW-4-18A
Bearing Adapter &
  • Thickness: .56"
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Fits SW-2-12 bearing (0.900" Rollers)

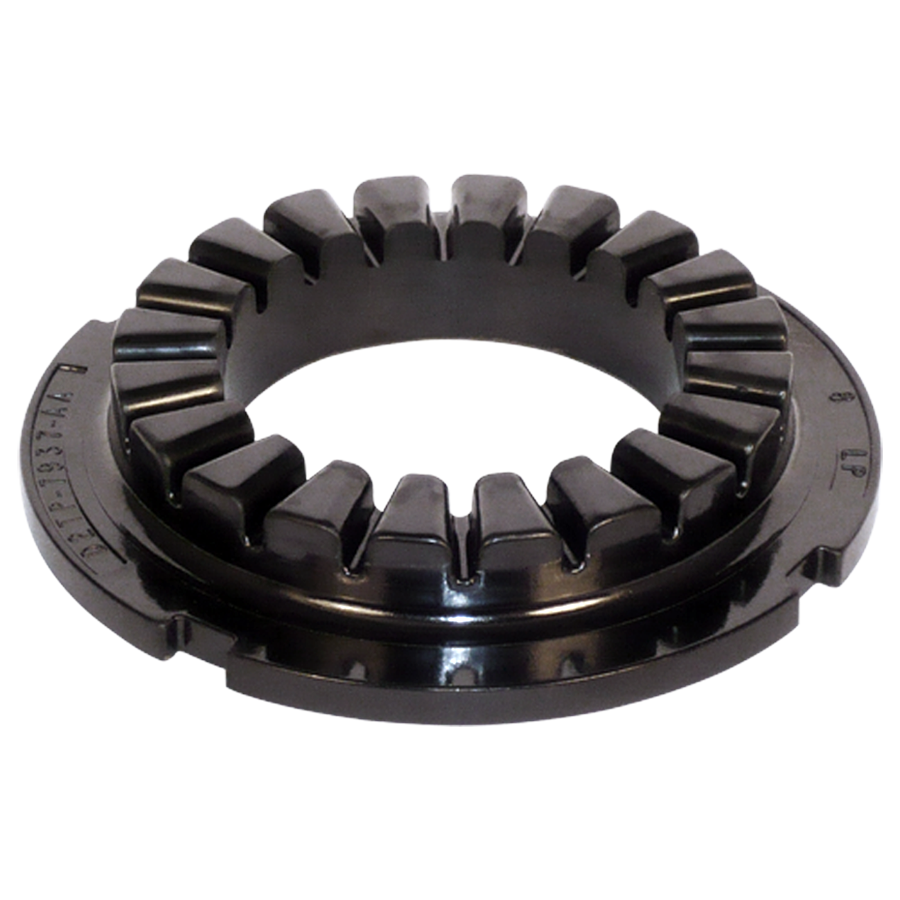

Stator Cap Heavy Duty 2 Pieces Required.
  • Thickness: 0.69"
  • Material: Phenolic
  • Outside Dia: 3.60"
  • Inside Dia: 2"
  • OE# F7AP-7937-AA
 FW-4-19
Stator Cap FW-4-19
Heavy Duty & 2 Pieces Required.
  • Thickness: 0.69"
  • Material: Phenolic
  • Outside Dia: 3.60"
  • Inside Dia: 2"
  • OE# F7AP-7937-AA
Rivet 10 Pieces Required.
  • Length: 0.385"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12LS
Rivet FX-12LS
& 10 Pieces Required.
  • Length: 0.385"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
Misc NPN-SPL
Misc NPN-SPL
&
1 Hubcap Fits 2" (50.8mm). Length: 1-1/2"
  • Color: Red
  • Fits 2" (50.8mm)
 MHC-R
Hubcap MHC-R
Fits 2" (50.8mm). Length: 1-1/2" &
  • Color: Red
  • Fits 2" (50.8mm)
2 Impeller Hub 12", C-4, C-6
  • Journal Dia: 1.997"
  • Height: 2.312"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.688
 FH-1-CB6GRC
Impeller Hub FH-1-CB6GRC
& 12", C-4, C-6
  • Journal Dia: 1.997"
  • Height: 2.312"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.688

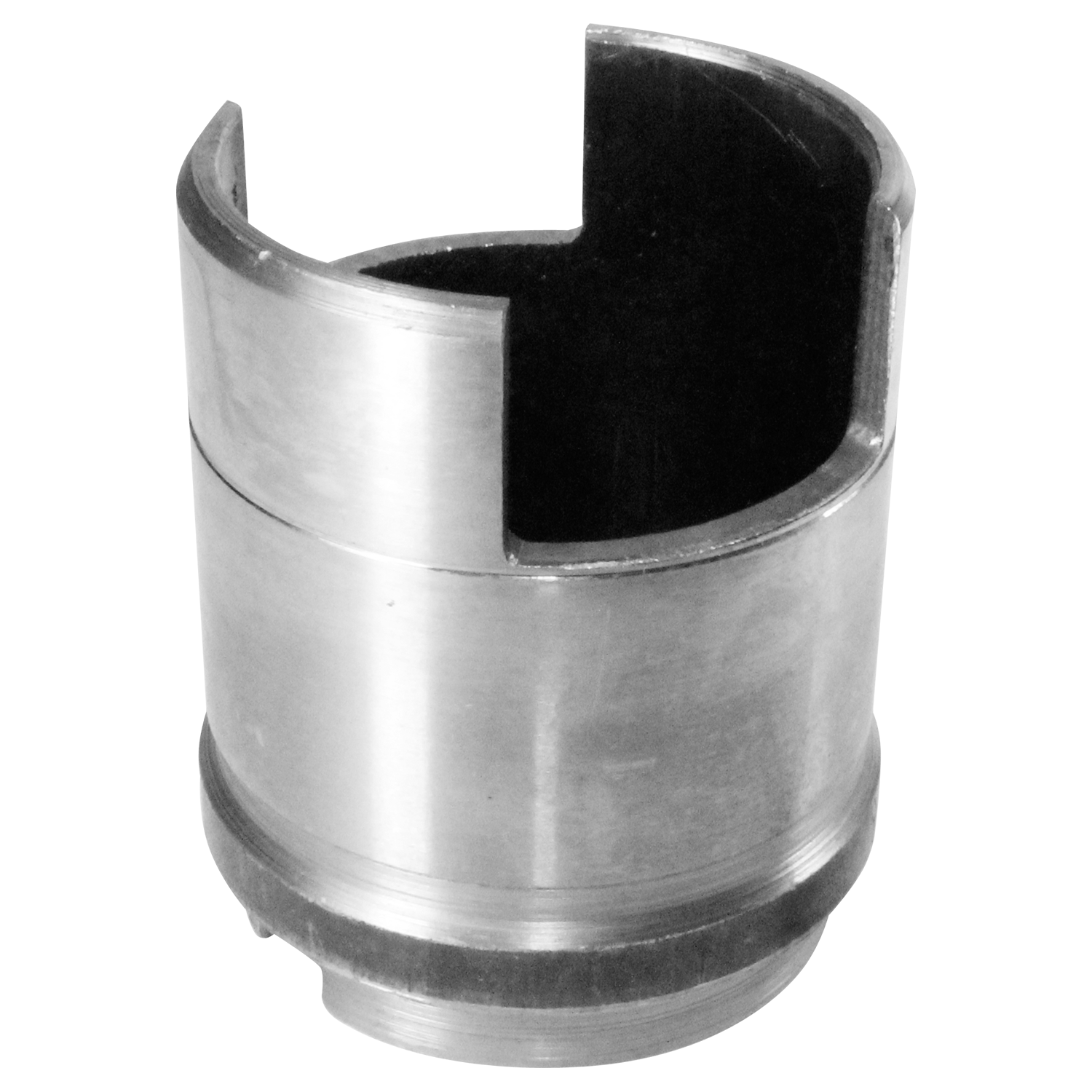

2 Impeller Hub For 2 speed
  • Journal Dia: 1.997"
  • Installed Height: 2.135"
  • Hub Mount: Thru
  • Pump Drive Type: 2 lugs
 FH-1-2EG
Impeller Hub FH-1-2EG
& For 2 speed
  • Journal Dia: 1.997"
  • Installed Height: 2.135"
  • Hub Mount: Thru
  • Pump Drive Type: 2 lugs

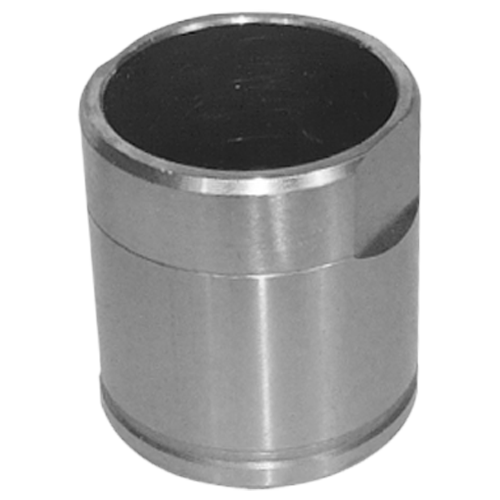

2 Impeller Hub C-4, C-6, FMX
  • Journal Dia: 1.997"
  • Height: 2.187"
  • Hub Mount: Butt
  • Inside Dia: 1.750"
 FH-1-CB11G
Impeller Hub FH-1-CB11G
& C-4, C-6, FMX
  • Journal Dia: 1.997"
  • Height: 2.187"
  • Hub Mount: Butt
  • Inside Dia: 1.750"
2 Impeller Hub Heat Treated C-4, C-6, FMX
  • Journal Dia: 1.997"
  • Height: 2.187"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.750"
 FH-1-CB11GRC
Impeller Hub FH-1-CB11GRC
Heat Treated & C-4, C-6, FMX
  • Journal Dia: 1.997"
  • Height: 2.187"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.750"
2 Impeller Hub
  • Inside Dia: 1.688
 FH-1-CB6
Impeller Hub FH-1-CB6
&
  • Inside Dia: 1.688

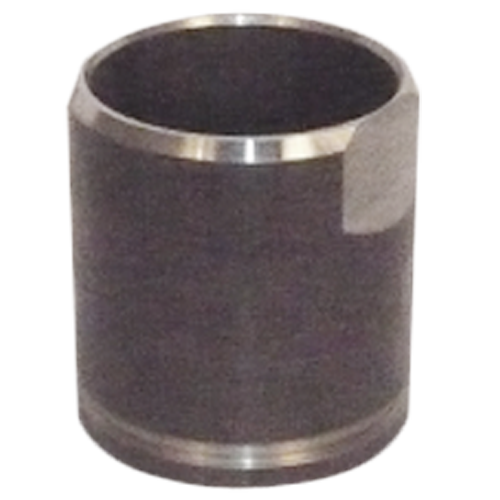

2 Impeller Hub Unfinished, Short C-4, C-6, FMX
  • Journal Dia: 1.997"
  • Height: 2.187"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Inside Dia: 1.750"
 FH-1-CB3
Impeller Hub FH-1-CB3
Unfinished, Short & C-4, C-6, FMX
  • Journal Dia: 1.997"
  • Height: 2.187"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Inside Dia: 1.750"

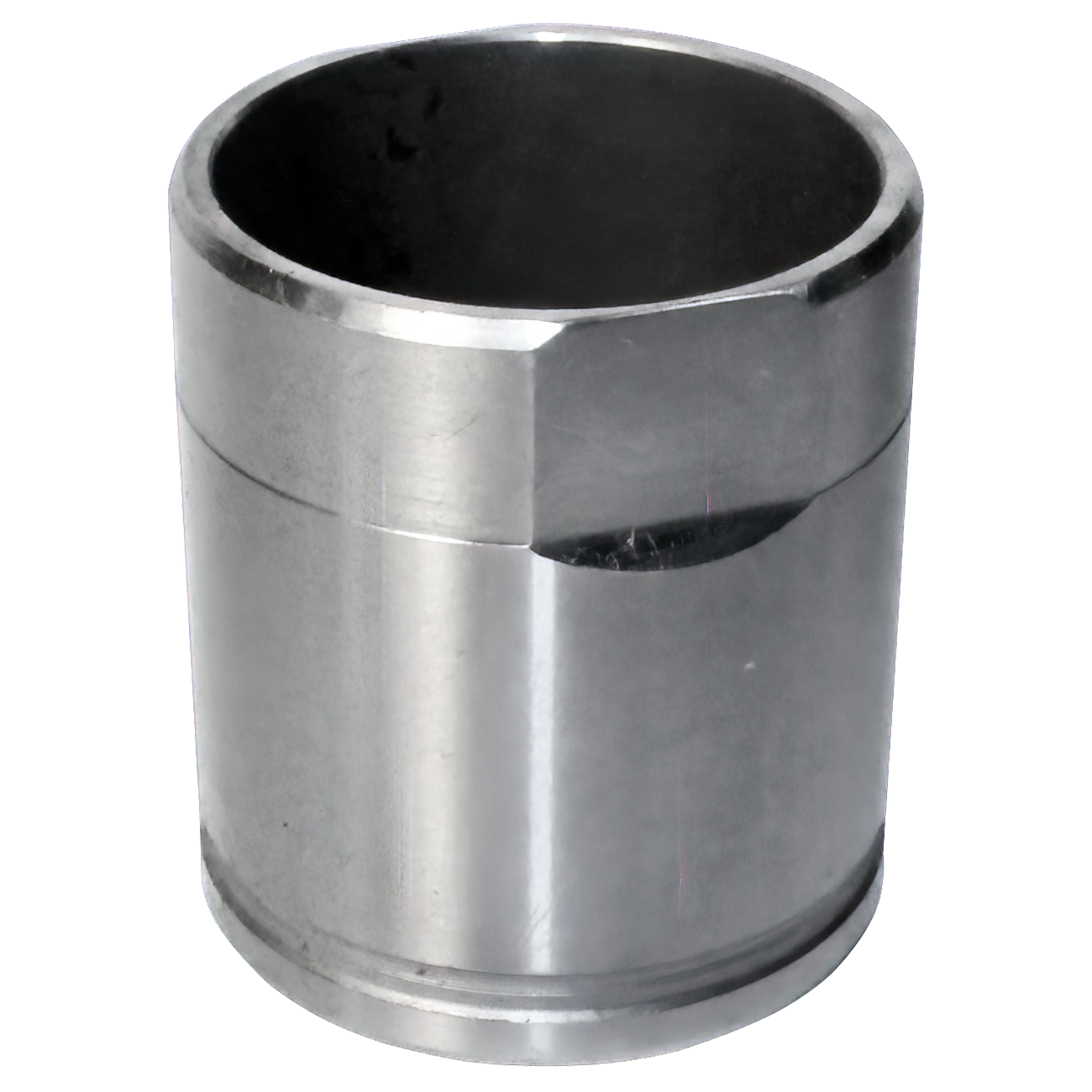

2 Impeller Hub C-4, 11-1/4", C-6, FMX
  • Journal Dia: 1.997"
  • Height: 2.187"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.750"
 FH-1-CB3GRC
Impeller Hub FH-1-CB3GRC
& C-4, 11-1/4", C-6, FMX
  • Journal Dia: 1.997"
  • Height: 2.187"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.750"
2 Impeller Hub
  • Inside Dia: 1.75
 FH-1-11FG
Impeller Hub FH-1-11FG
&
  • Inside Dia: 1.75
2 Impeller Hub
  • Hardness: Rc 32-36
  • Inside Dia: 1.75
 FH-1-11FGRCD
Impeller Hub FH-1-11FGRCD
&
  • Hardness: Rc 32-36
  • Inside Dia: 1.75
2 Impeller Hub
  • Inside Dia: 1.75
 FH-1-3F
Impeller Hub FH-1-3F
&
  • Inside Dia: 1.75

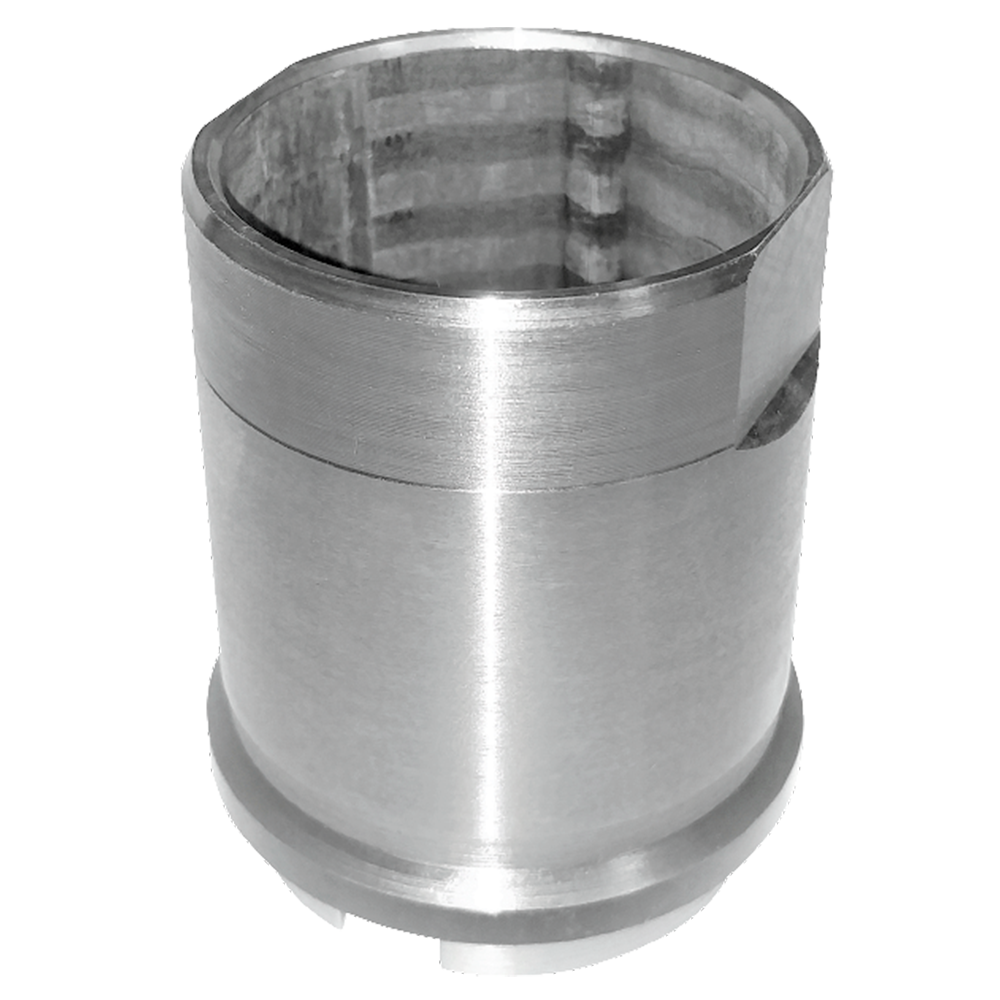

2 Impeller Hub
  • Inside Dia: 1.75
 FH-1-3FG
Impeller Hub FH-1-3FG
&
  • Inside Dia: 1.75

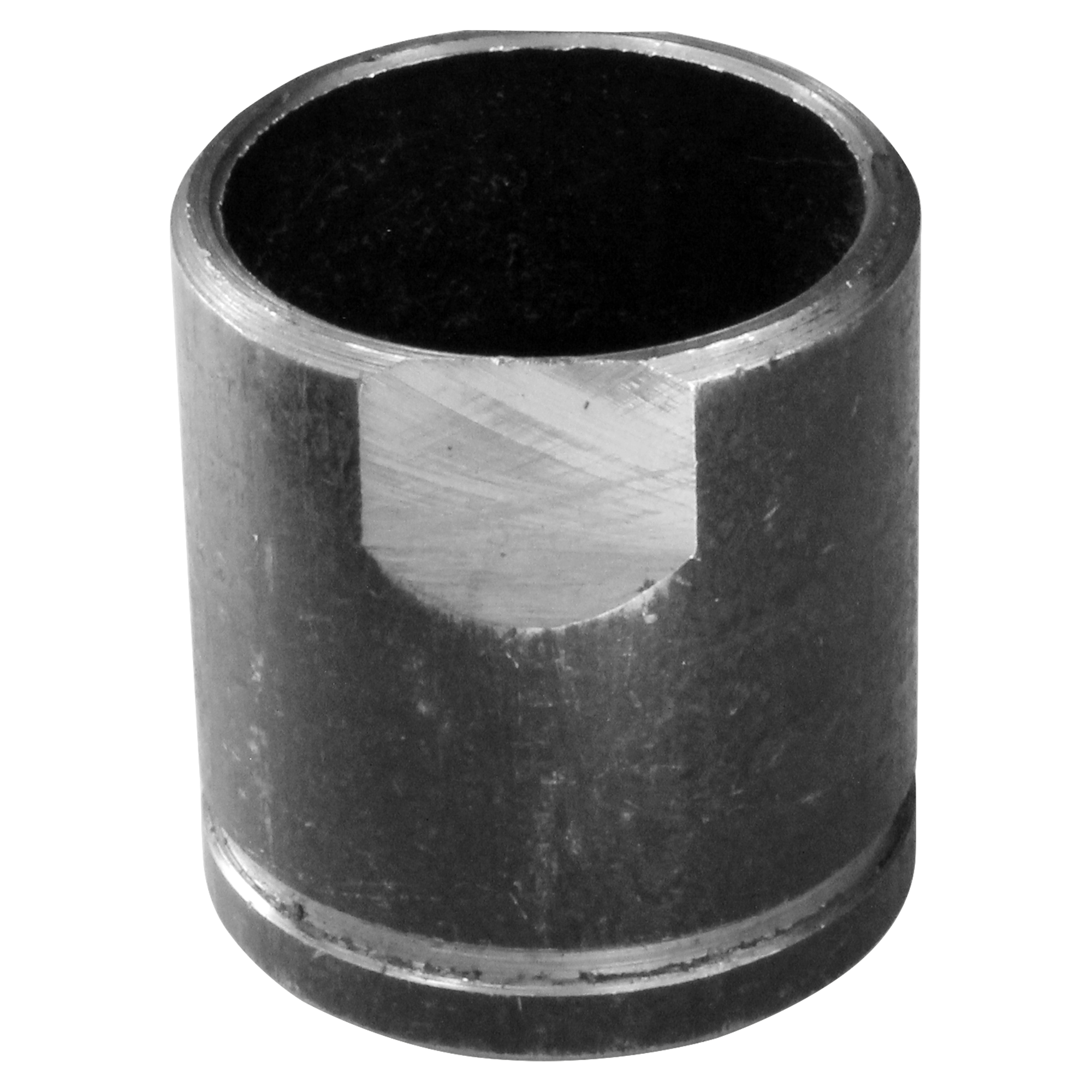

2 Impeller Hub Unfinished, Without Weld Groove C-4, 11-1/4", C-6, FMX
  • Journal Dia: 1.997"
  • Height: 2.187"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Inside Dia: 1.750"
 FH-1-CB3W
Impeller Hub FH-1-CB3W
Unfinished, Without Weld Groove & C-4, 11-1/4", C-6, FMX
  • Journal Dia: 1.997"
  • Height: 2.187"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Inside Dia: 1.750"
2 Impeller Hub C-4 11-1/4"
  • Journal Dia: 1.997"
  • Height: 2.25"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75"
 FH-1-CB14GRC
Impeller Hub FH-1-CB14GRC
& C-4 11-1/4"
  • Journal Dia: 1.997"
  • Height: 2.25"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75"
2 Impeller Hub
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75
 FH-1-5FGRCD
Impeller Hub FH-1-5FGRCD
&
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75
2 Impeller Hub
  • Inside Dia: 1.75
 FH-1-6F
Impeller Hub FH-1-6F
&
  • Inside Dia: 1.75

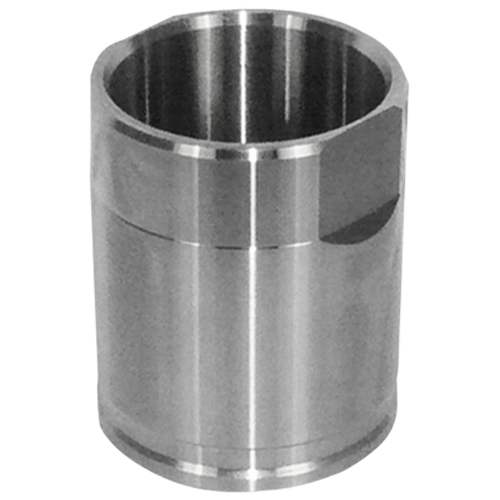

2 Impeller Hub Ford,C4 C-4 11-1/4"
  • Journal Dia: 1.997"
  • Height: 2.250"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.69"
 FH-1-CB16GRC
Impeller Hub FH-1-CB16GRC
Ford,C4 & C-4 11-1/4"
  • Journal Dia: 1.997"
  • Height: 2.250"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.69"
2 Impeller Hub C-4, C-6, FMX
  • Journal Dia: 1.997"
  • Height: 2.187"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Inside Dia: 1.750"
 FH-1-CB3G
Impeller Hub FH-1-CB3G
& C-4, C-6, FMX
  • Journal Dia: 1.997"
  • Height: 2.187"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Inside Dia: 1.750"
2 Impeller Hub C4, 11-1/4"
  • Journal Dia: 1.997"
  • Installed Height: 2.296
  • Length: 2.597
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75

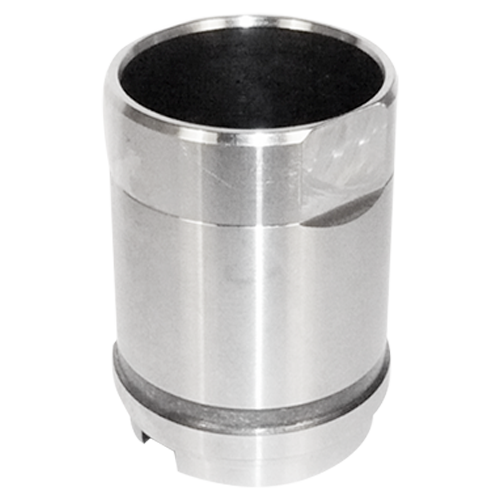

 FH-1-3FGRC
Impeller Hub FH-1-3FGRC
& C4, 11-1/4"
  • Journal Dia: 1.997"
  • Installed Height: 2.296
  • Length: 2.597
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75

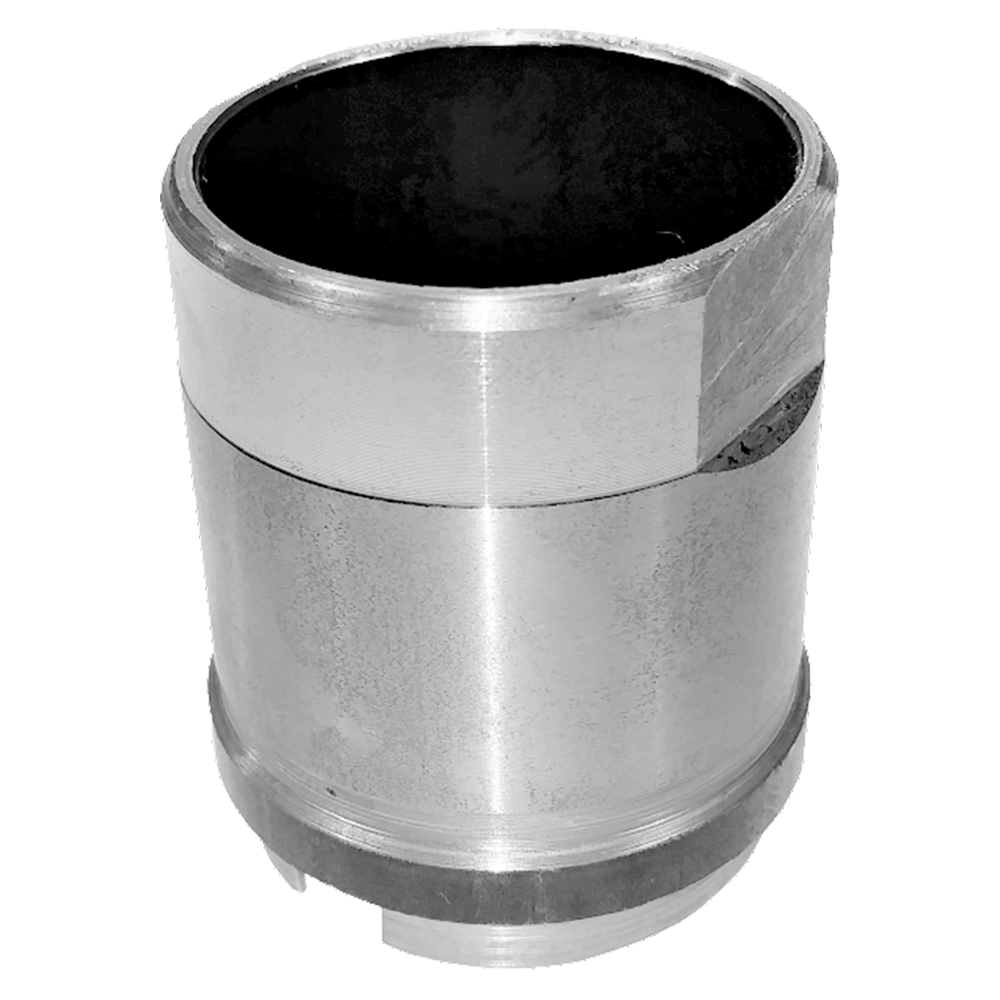

2 Impeller Hub For 2 speed
  • Journal Dia: 1.997"
  • Installed Height: 2.146"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
 FH-1-2FG
Impeller Hub FH-1-2FG
& For 2 speed
  • Journal Dia: 1.997"
  • Installed Height: 2.146"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
2 Impeller Hub C4, C6
  • Journal Dia: 1.997"
  • Installed Height: 2.396
  • Length: 2.697
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75
 FH-1-5FGRC
Impeller Hub FH-1-5FGRC
& C4, C6
  • Journal Dia: 1.997"
  • Installed Height: 2.396
  • Length: 2.697
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75
2 Impeller Hub C4, C6
  • Journal Dia: 1.997"
  • Installed Height: 2.318"
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-2312GRC
Impeller Hub FH-1-2312GRC
& C4, C6
  • Journal Dia: 1.997"
  • Installed Height: 2.318"
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
2 Impeller Hub Heat Treated C4, C6
  • Journal Dia: 1.997"
  • Installed Height: 2.312"
  • Height: 2.622"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-3107GRC
Impeller Hub FH-1-3107GRC
Heat Treated & C4, C6
  • Journal Dia: 1.997"
  • Installed Height: 2.312"
  • Height: 2.622"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
2 Impeller Hub C-4 11-1/4"
  • Journal Dia: 1.997"
  • Height: 2.250"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Inside Dia: 1.75"
 FH-1-CB14G
Impeller Hub FH-1-CB14G
& C-4 11-1/4"
  • Journal Dia: 1.997"
  • Height: 2.250"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Inside Dia: 1.75"
2 Impeller Hub 12", C-4, C-6
  • Journal Dia: 1.997"
  • Height: 2.312"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.688
 FH-1-CB5GRC
Impeller Hub FH-1-CB5GRC
& 12", C-4, C-6
  • Journal Dia: 1.997"
  • Height: 2.312"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.688
2 Impeller Hub
  • Journal Dia: 1.997"
  • Height: 2.312"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Inside Dia: 1.688
 FH-1-CB6G
Impeller Hub FH-1-CB6G
&
  • Journal Dia: 1.997"
  • Height: 2.312"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Inside Dia: 1.688
2 Impeller Hub C4, 11-1/4"
  • Journal Dia: 1.997"
  • Installed Height: 2.296
  • Length: 2.597
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75

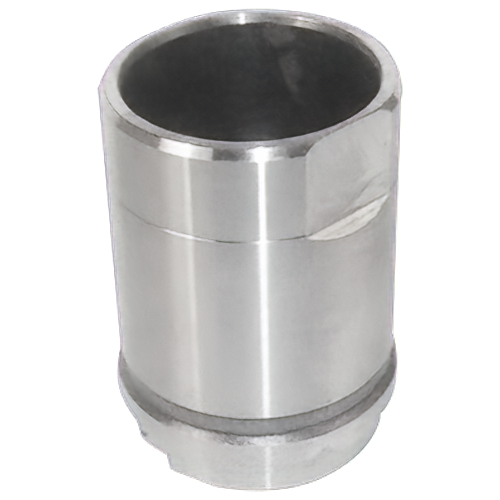

 FH-1-11FGRC
Impeller Hub FH-1-11FGRC
& C4, 11-1/4"
  • Journal Dia: 1.997"
  • Installed Height: 2.296
  • Length: 2.597
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75
2 Impeller Hub Flanged, AOD, C-6, C-4 C4, C6
  • Journal Dia: 1.997"
  • Installed Height: 2.624"
  • Height: 2.774"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 3.645"
 FH-1-25FLG
Impeller Hub FH-1-25FLG
Flanged, AOD, C-6, C-4 & C4, C6
  • Journal Dia: 1.997"
  • Installed Height: 2.624"
  • Height: 2.774"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 3.645"
2 Impeller Hub C4, C6
  • Journal Dia: 1.997"
  • Installed Height: 2.396
  • Length: 2.697
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75
 FH-1-6FGRC
Impeller Hub FH-1-6FGRC
& C4, C6
  • Journal Dia: 1.997"
  • Installed Height: 2.396
  • Length: 2.697
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.75
2 Impeller Hub
  • Journal Dia: 1.997"
  • Height: 2.062"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Inside Dia: 1.75"
 FH-1-CB2G
Impeller Hub FH-1-CB2G
&
  • Journal Dia: 1.997"
  • Height: 2.062"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Inside Dia: 1.75"
3 Impeller NPN-2-8-3
Impeller NPN-2-8-3
&
4 Shim
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-10
Shim MW-2-10
&
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
4 Shim
  • Thickness: 0.02"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-20
Shim MW-2-20
&
  • Thickness: 0.02"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
4 Shim
  • Thickness: .030"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-30
Shim MW-2-30
&
  • Thickness: .030"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
4 Shim
  • Thickness: 0.05"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-50
Shim MW-2-50
&
  • Thickness: 0.05"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
5 Washer Standard
  • Thickness: .09"
  • Material: Steel
  • Outside Dia: 3.125"
  • Inside Dia: 1.875"
 FW-2-1
Washer FW-2-1
Standard &
  • Thickness: .09"
  • Material: Steel
  • Outside Dia: 3.125"
  • Inside Dia: 1.875"
5 Washer Oversized
  • Thickness: 0.105"
  • Material: Steel
  • Outside Dia: 3.125"
  • Inside Dia: 1.875"
  • Oversized
 FW-2-1A
Washer FW-2-1A
Oversized &
  • Thickness: 0.105"
  • Material: Steel
  • Outside Dia: 3.125"
  • Inside Dia: 1.875"
  • Oversized
6 Snap Ring 2 Pieces Required.
  • Inside Dia: 3.600"
 FX-20-11
Snap Ring FX-20-11
& 2 Pieces Required.
  • Inside Dia: 3.600"
6 Snap Ring 2 Pieces Required.
  • Inside Dia: 3.785"
 FX-20-12
Snap Ring FX-20-12
& 2 Pieces Required.
  • Inside Dia: 3.785"
6 Snap Ring 2 Pieces Required.
  • Inside Dia: 3.785"
 TX-20-1
Snap Ring TX-20-1
& 2 Pieces Required.
  • Inside Dia: 3.785"
6_N.I. Washer 2 Tangs 2 Pieces Required.
  • Material: Bronze
  • Outside Dia: 2.95"
  • Inside Dia: 1.99"
  • .250" Long Lugs
 FW-3-1A
Washer FW-3-1A
2 Tangs & 2 Pieces Required.
  • Material: Bronze
  • Outside Dia: 2.95"
  • Inside Dia: 1.99"
  • .250" Long Lugs
6_N.I. Washer 4 Tangs 2 Pieces Required.
  • Material: Bronze
  • Outside Dia: 2.95"
  • Inside Dia: 1.99"

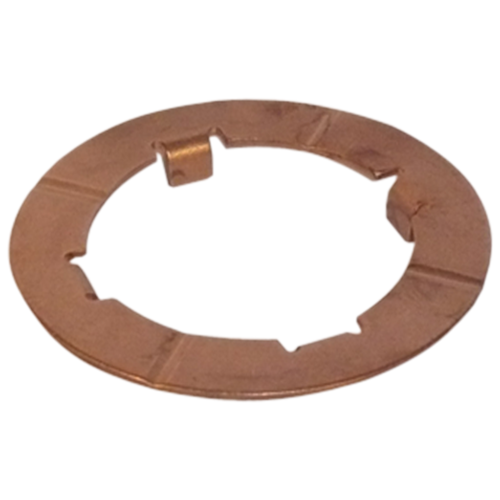

 FW-3-2
Washer FW-3-2
4 Tangs & 2 Pieces Required.
  • Material: Bronze
  • Outside Dia: 2.95"
  • Inside Dia: 1.99"
7 Stator Cap
  • Thickness: 0.65"
  • Material: Phenolic
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Casting#: E5DP-7937AA E9TP-7937AA
 FW-4-13
Stator Cap FW-4-13
&
  • Thickness: 0.65"
  • Material: Phenolic
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Casting#: E5DP-7937AA E9TP-7937AA
7 Stator Cap
  • Thickness: 0.59"
  • Material: Phenolic
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Casting#: F5TP-7937AA
 FW-4-15
Stator Cap FW-4-15
&
  • Thickness: 0.59"
  • Material: Phenolic
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Casting#: F5TP-7937AA
7 Stator Cap Plastic
  • Outside Dia: 3.6"
  • Inside Dia: 2.04"
 FW-4-3
Stator Cap FW-4-3
Plastic &
  • Outside Dia: 3.6"
  • Inside Dia: 2.04"
7 Stator Cap
  • Thickness: 0.50"
  • Material: Aluminum
  • Outside Dia: 3.6"
  • Inside Dia: 2.04"
  • Casting#: D2AP-7937AA C7AP-7937B
 FW-4-3A
Stator Cap FW-4-3A
&
  • Thickness: 0.50"
  • Material: Aluminum
  • Outside Dia: 3.6"
  • Inside Dia: 2.04"
  • Casting#: D2AP-7937AA C7AP-7937B
7 Washer
  • Thickness: 0.68"
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Casting#: E5DP-7937AA
 FW-4-8
Washer FW-4-8
&
  • Thickness: 0.68"
  • Outside Dia: 3.6"
  • Inside Dia: 2"
  • Casting#: E5DP-7937AA
7 Washer 2 Pieces Required.
  • Outside Dia: 3.78"
  • Inside Dia: 2.03"
 FW-4-4
Washer FW-4-4
& 2 Pieces Required.
  • Outside Dia: 3.78"
  • Inside Dia: 2.03"
7 Stator Cap 2 Pieces Required.
  • Thickness: 0.58"
  • Material: Aluminum
  • Outside Dia: 3.78"
  • Inside Dia: 2.03"
  • Casting#: C9AP-7937A D2TP-7937AA D3TZ-7937A
 FW-4-4A
Stator Cap FW-4-4A
& 2 Pieces Required.
  • Thickness: 0.58"
  • Material: Aluminum
  • Outside Dia: 3.78"
  • Inside Dia: 2.03"
  • Casting#: C9AP-7937A D2TP-7937AA D3TZ-7937A
7 Stator Cap 2 Pieces Required.
  • Thickness: 0.59"
  • Material: Phenolic
  • Outside Dia: 3.78"
  • Inside Dia: 2.03"
  • Casting#: C9AP-7937A D2TP-7937AA D3TZ-7937A
 FW-4-4P
Stator Cap FW-4-4P
& 2 Pieces Required.
  • Thickness: 0.59"
  • Material: Phenolic
  • Outside Dia: 3.78"
  • Inside Dia: 2.03"
  • Casting#: C9AP-7937A D2TP-7937AA D3TZ-7937A
8 Stator NPN-2-8-8
Stator NPN-2-8-8
&

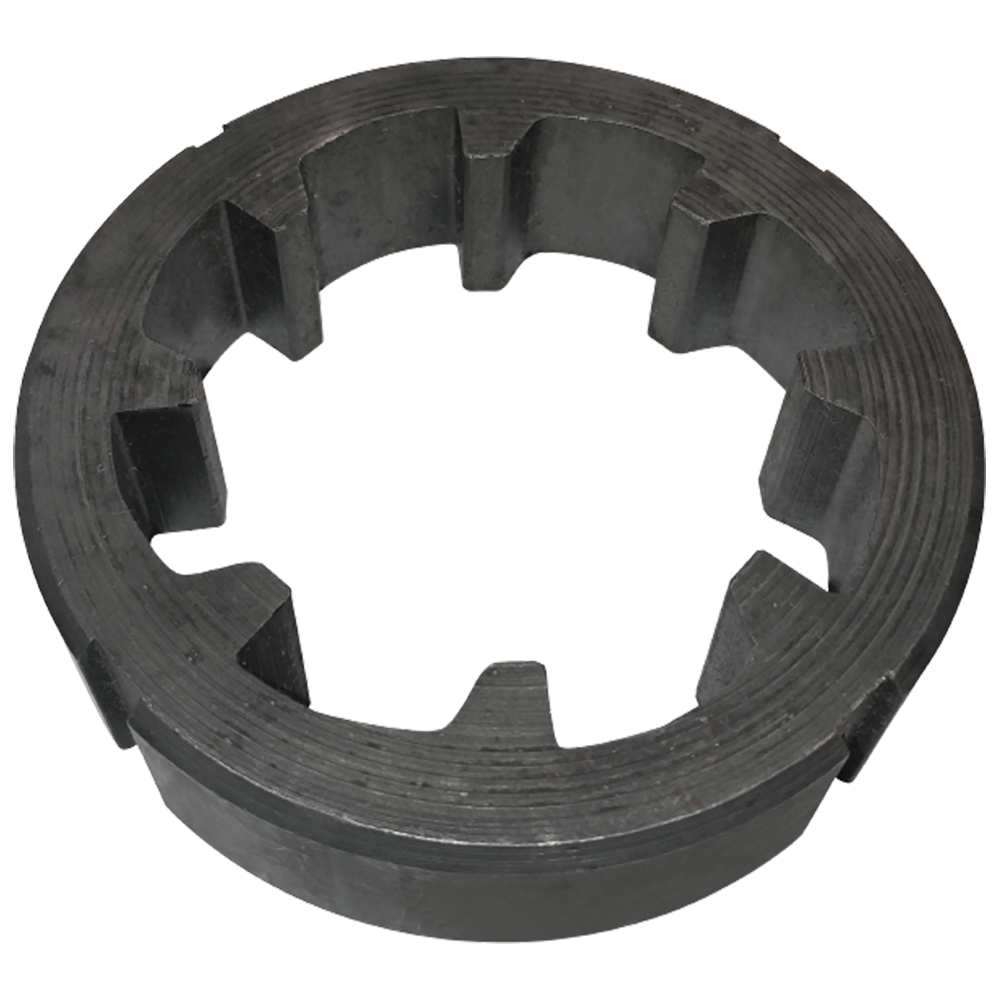

9 Outer Race (Cam) Stator
  • Outside Dia: 3.80"
  • Roller Type
 FX-15-2
Outer Race (Cam) FX-15-2
Stator &
  • Outside Dia: 3.80"
  • Roller Type
10 Accordion Spring 8 Pieces Required.
  • Width: 0.93"
  • Relaxed Length: 0.42"
  • Folds: 4
  • Relaxed Height: 0.28"
 FS-6-2
Accordion Spring FS-6-2
& 8 Pieces Required.
  • Width: 0.93"
  • Relaxed Length: 0.42"
  • Folds: 4
  • Relaxed Height: 0.28"
11 Roller 8 Pieces Required.
  • Dia: 0.313"
  • Length: .90"
 FR-7
Roller FR-7
& 8 Pieces Required.
  • Dia: 0.313"
  • Length: .90"
12 Inner Race Stator
  • Height: 0.985"
  • Internal Teeth: 32
  • Outside Dia: 2.375"
 FX-14-1
Inner Race FX-14-1
Stator &
  • Height: 0.985"
  • Internal Teeth: 32
  • Outside Dia: 2.375"
13 Rivet 10 Pieces Required.
  • Length: 0.312"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12
Rivet FX-12
& 10 Pieces Required.
  • Length: 0.312"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
13 Rivet 10 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12L
Rivet FX-12L
& 10 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
14 Turbine Hub With Chamfer
  • Height: 0.900"
  • Internal Teeth: 24
  • Material: Solid Steel
  • Outside Dia: 3.85"
 FX-13-1S
Turbine Hub FX-13-1S
With Chamfer &
  • Height: 0.900"
  • Internal Teeth: 24
  • Material: Solid Steel
  • Outside Dia: 3.85"
14 Turbine Hub Spline Adapter Fits C-6 Turbine Hubs, Converts To C-4, (30° Pressure Angle)
  • Height: 0.910
  • Internal Teeth: 26
  • External Teeth: 31
  • Outside Dia: 1"
 FX-13-26X
Turbine Hub Spline Adapter FX-13-26X
Fits C-6 Turbine Hubs, Converts To C-4, (30° Pressure Angle) &
  • Height: 0.910
  • Internal Teeth: 26
  • External Teeth: 31
  • Outside Dia: 1"

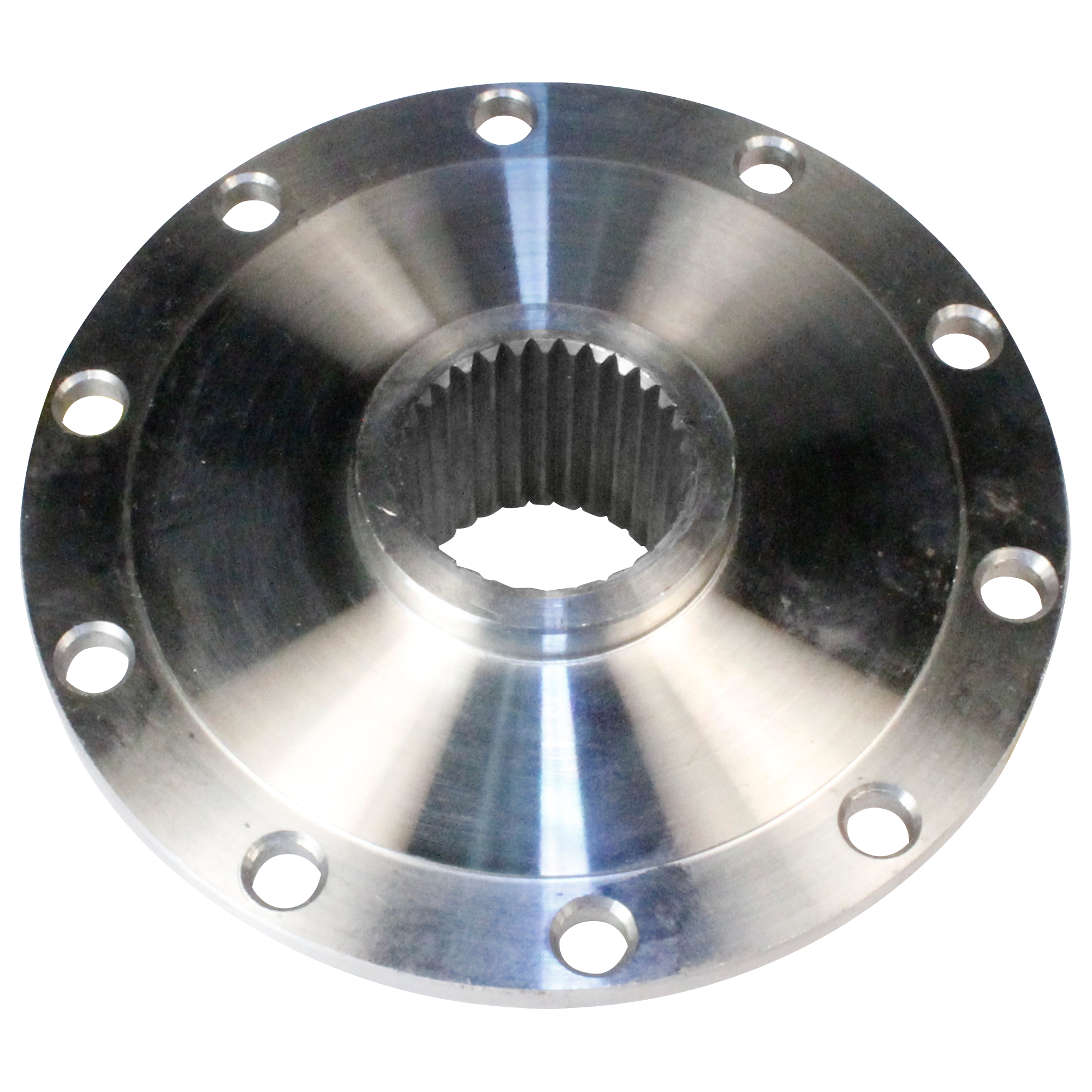

14 Turbine Hub C-6
  • Height: 0.95"
  • Internal Teeth: 31
  • Material: Solid Steel
  • Outside Dia: 3.88"
 FX-13-2S
Turbine Hub FX-13-2S
& C-6
  • Height: 0.95"
  • Internal Teeth: 31
  • Material: Solid Steel
  • Outside Dia: 3.88"
14 Turbine Hub
  • Outside Dia: 3.85"
 FX-13-4HT
Turbine Hub FX-13-4HT
&
  • Outside Dia: 3.85"

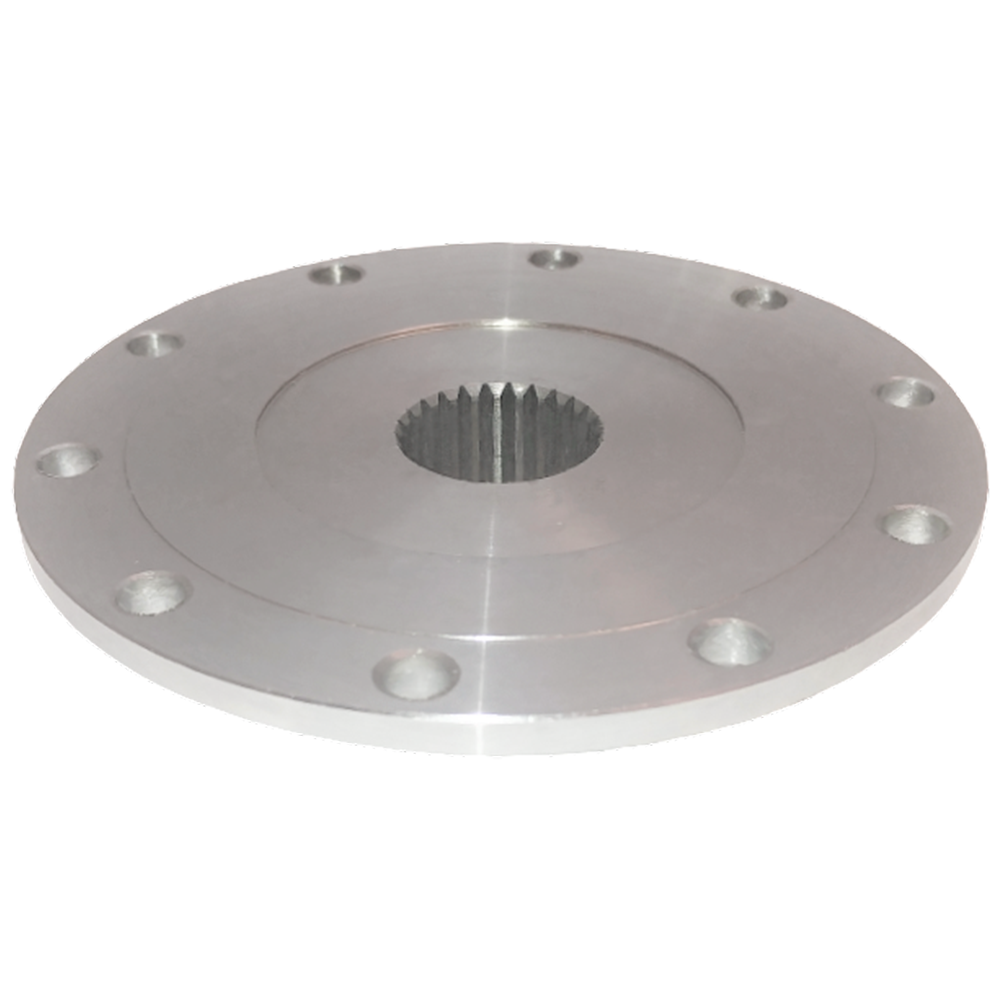

14 Turbine Hub C-4
  • Height: 0.900"
  • Internal Teeth: 26
  • Material: Solid Steel
  • Outside Dia: 3.85"
 FX-13-4S
Turbine Hub FX-13-4S
& C-4
  • Height: 0.900"
  • Internal Teeth: 26
  • Material: Solid Steel
  • Outside Dia: 3.85"
15 Turbine NPN-2-8-15
Turbine NPN-2-8-15
&
16 Turbine Washer
  • Thickness: .045"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4T
Turbine Washer FW-9-4T
&
  • Thickness: .045"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Thickness: .045"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4TF
Turbine Washer FW-9-4TF
&
  • Thickness: .045"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Thickness: .062
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4A
Turbine Washer FW-9-4A
&
  • Thickness: .062
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Thickness: .062
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4AF
Turbine Washer FW-9-4AF
&
  • Thickness: .062
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Thickness: .070"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4B
Turbine Washer FW-9-4B
&
  • Thickness: .070"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Thickness: .070"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4BF
Turbine Washer FW-9-4BF
&
  • Thickness: .070"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Thickness: .072"
  • Material: Plastic
  • Outside Dia: 2.76"
  • Inside Dia: 1.34"
 FW-9-4C
Turbine Washer FW-9-4C
&
  • Thickness: .072"
  • Material: Plastic
  • Outside Dia: 2.76"
  • Inside Dia: 1.34"
16 Turbine Washer
  • Thickness: .079"
  • Material: Fiber
  • Outside Dia: 2.76"
  • Inside Dia: 1.34"
 FW-9-4CF
Turbine Washer FW-9-4CF
&
  • Thickness: .079"
  • Material: Fiber
  • Outside Dia: 2.76"
  • Inside Dia: 1.34"
16 Turbine Washer
  • Thickness: .087"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4D
Turbine Washer FW-9-4D
&
  • Thickness: .087"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Thickness: .087"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4DF
Turbine Washer FW-9-4DF
&
  • Thickness: .087"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Thickness: .087"
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4DS
Turbine Washer FW-9-4DS
&
  • Thickness: .087"
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Thickness: .094
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4E
Turbine Washer FW-9-4E
&
  • Thickness: .094
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Thickness: .094
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4EF
Turbine Washer FW-9-4EF
&
  • Thickness: .094
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Thickness: .106"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4F
Turbine Washer FW-9-4F
&
  • Thickness: .106"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Thickness: .106"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4FF
Turbine Washer FW-9-4FF
&
  • Thickness: .106"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Thickness: .188"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4GF
Turbine Washer FW-9-4GF
&
  • Thickness: .188"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 CW-9-3
Turbine Washer CW-9-3
&
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 CW-9-3B
Turbine Washer CW-9-3B
&
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"

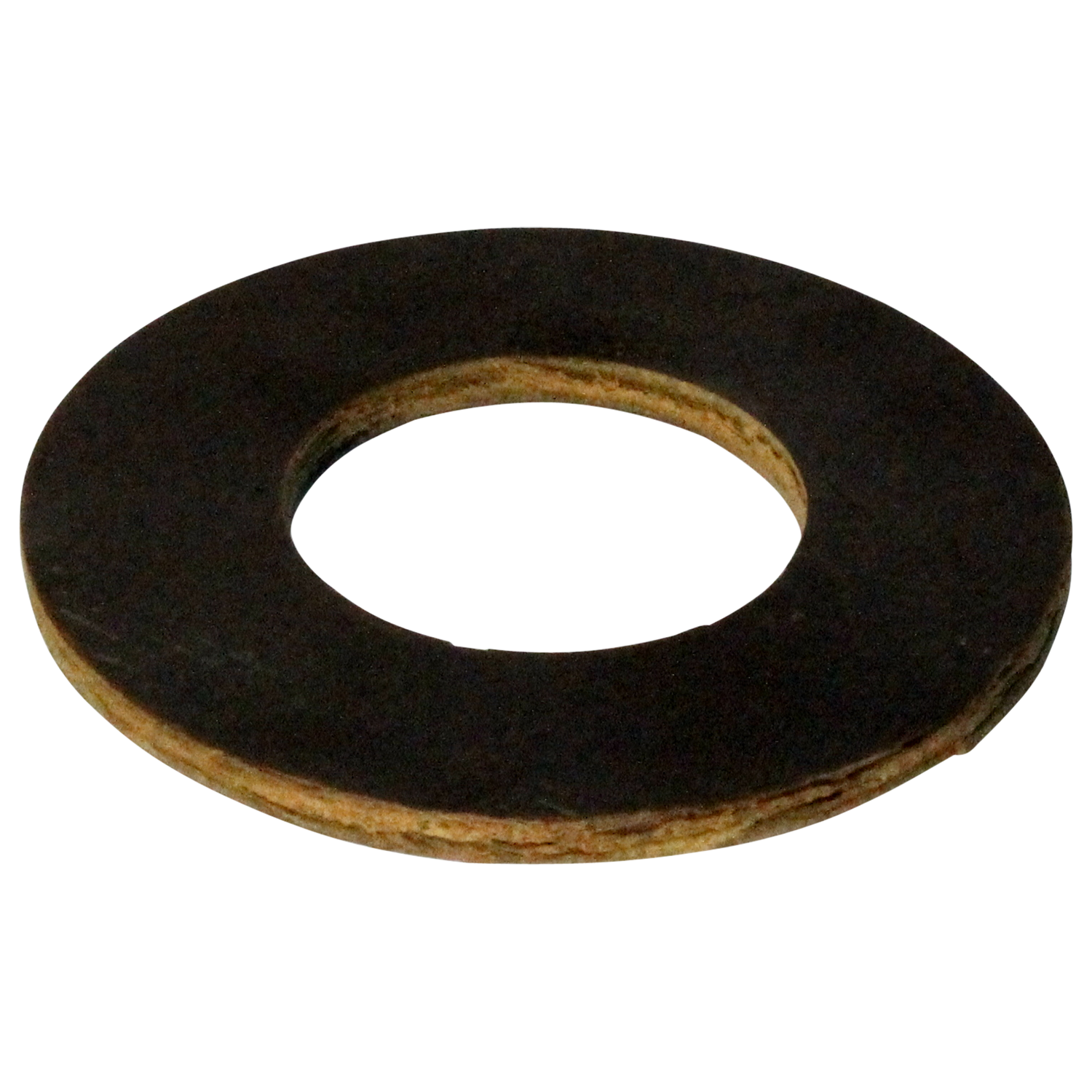

 CW-9-3BF
Turbine Washer CW-9-3BF
&
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Thickness: .125"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"

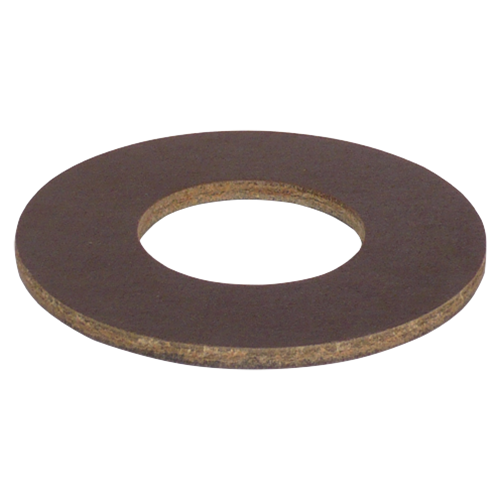

 CW-9-3F
Turbine Washer CW-9-3F
&
  • Thickness: .125"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
16 Turbine Washer
  • Thickness: .188"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"
 FW-9-4G
Turbine Washer FW-9-4G
&
  • Thickness: .188"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.33"

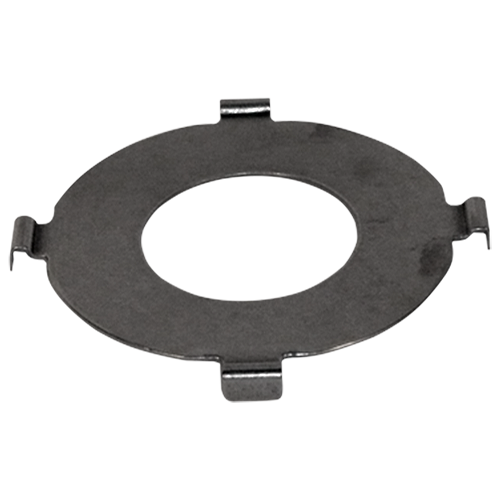

17 Washer Cover For C-6
  • Material: Steel
  • Lug Count: 4
 FW-9-5
Washer FW-9-5
Cover & For C-6
  • Material: Steel
  • Lug Count: 4
18 Front Cover NPN-2-8-18
Front Cover NPN-2-8-18
&
19 Drain Plug 1/8-27 NPT, PTFE, Wrap FX-11A
Drain Plug FX-11A
1/8-27 NPT, PTFE, Wrap &
19 Drain Plug
  • Material: Steel
  • 1/8-27 NPT
 FX-11
Drain Plug FX-11
&
  • Material: Steel
  • 1/8-27 NPT
19 Drain Plug
  • Allen socket drain plug for use with drilled converters.
 FX-11B
Drain Plug FX-11B
&
  • Allen socket drain plug for use with drilled converters.
20 Stud T-Head 1963-Up. 4 Pieces Required.
  • Length: .50" under the head
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 1.06"
  • Bolt Head Thickness: 0.23"
 FX-10-14
Stud FX-10-14
T-Head & 1963-Up. 4 Pieces Required.
  • Length: .50" under the head
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 1.06"
  • Bolt Head Thickness: 0.23"
20 Stud 4 Pieces Required.
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 0.83"
  • Bolt Head Thickness: 0.21"
 FX-10-3
Stud FX-10-3
& 4 Pieces Required.
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 0.83"
  • Bolt Head Thickness: 0.21"
20 Stud Thin Head Type 4 Pieces Required.
  • (Use FX-10-4)
 FX-10-2
Stud FX-10-2
Thin Head Type & 4 Pieces Required.
  • (Use FX-10-4)
20 Stud 1958-1962. 4 Pieces Required.
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 0.75"
  • Bolt Head Thickness: 0.16"
 FX-10-4
Stud FX-10-4
& 1958-1962. 4 Pieces Required.
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 0.75"
  • Bolt Head Thickness: 0.16"
20_N.I. Studcap Plastic Stud Protector 4 Pieces Required.
  • Length: 0.50"
  • Color: Red
  • Inside Dia: 0.375
  • Fits 3/8" (9.5mm)
 MHC-STD
Studcap MHC-STD
Plastic Stud Protector & 4 Pieces Required.
  • Length: 0.50"
  • Color: Red
  • Inside Dia: 0.375
  • Fits 3/8" (9.5mm)
20_N.I. Studcap 4 Pieces Required.
  • Inside Dia: 0.375
 MHC-STE
Studcap MHC-STE
& 4 Pieces Required.
  • Inside Dia: 0.375
21 Nut Converter 4/6 Pieces Required. 26761
Nut 26761
Converter & 4/6 Pieces Required.
21 Nut Special Locking 4/6 Pieces Required.
  • Height: .34"
  • Dimensions: 3/8"-24
  • Length: 0.330"
 FX-10-7
Nut FX-10-7
Special Locking & 4/6 Pieces Required.
  • Height: .34"
  • Dimensions: 3/8"-24
  • Length: 0.330"
21 Nut & Studcap Kit 4 Pieces Each FX-10-7K4STD
Nut & Studcap Kit FX-10-7K4STD
4 Pieces Each &

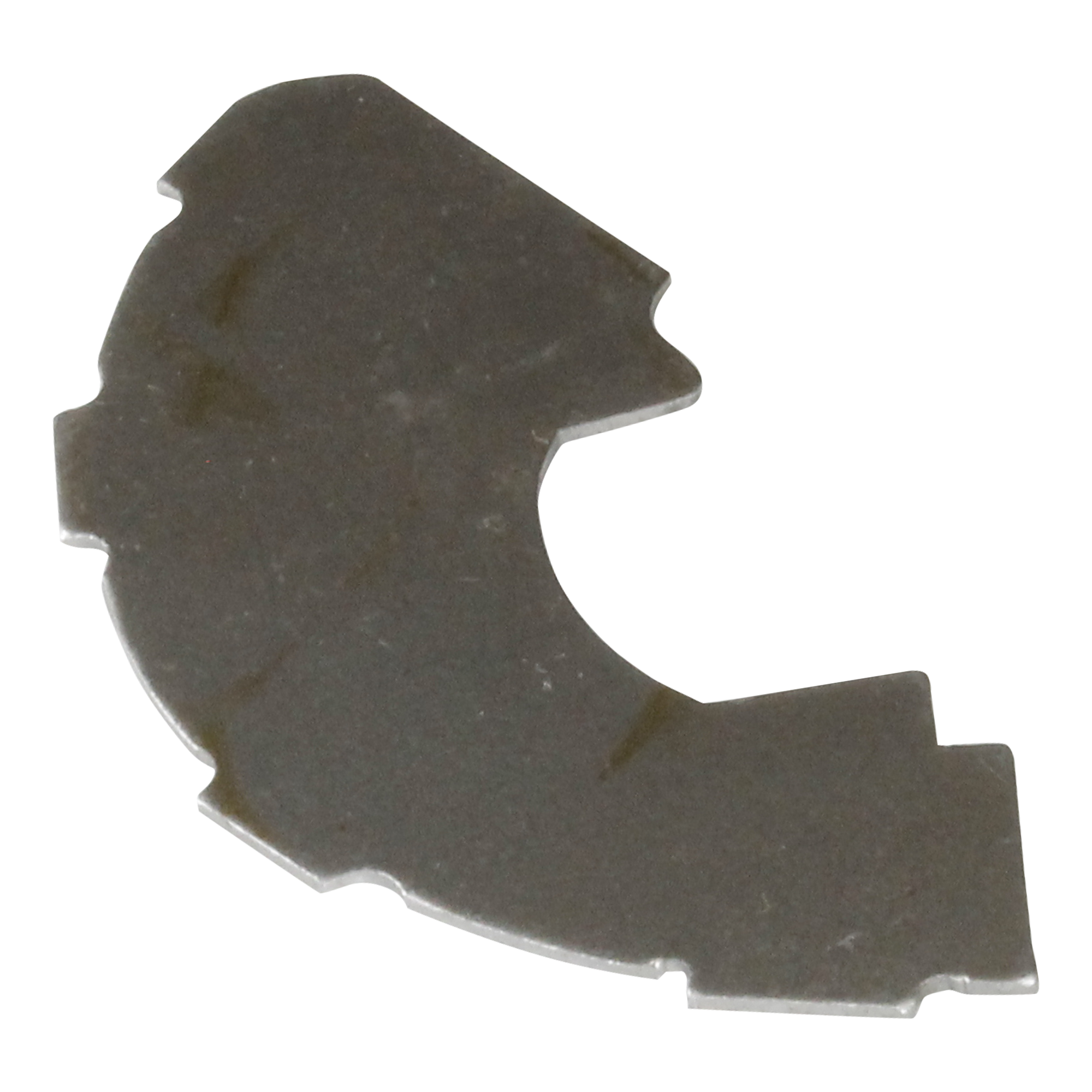

21 Vane Core Repair Fits 12" C-4 Converter. 1976 - Up FX-21-1231A
Vane FX-21-1231A
Core Repair & Fits 12" C-4 Converter. 1976 - Up

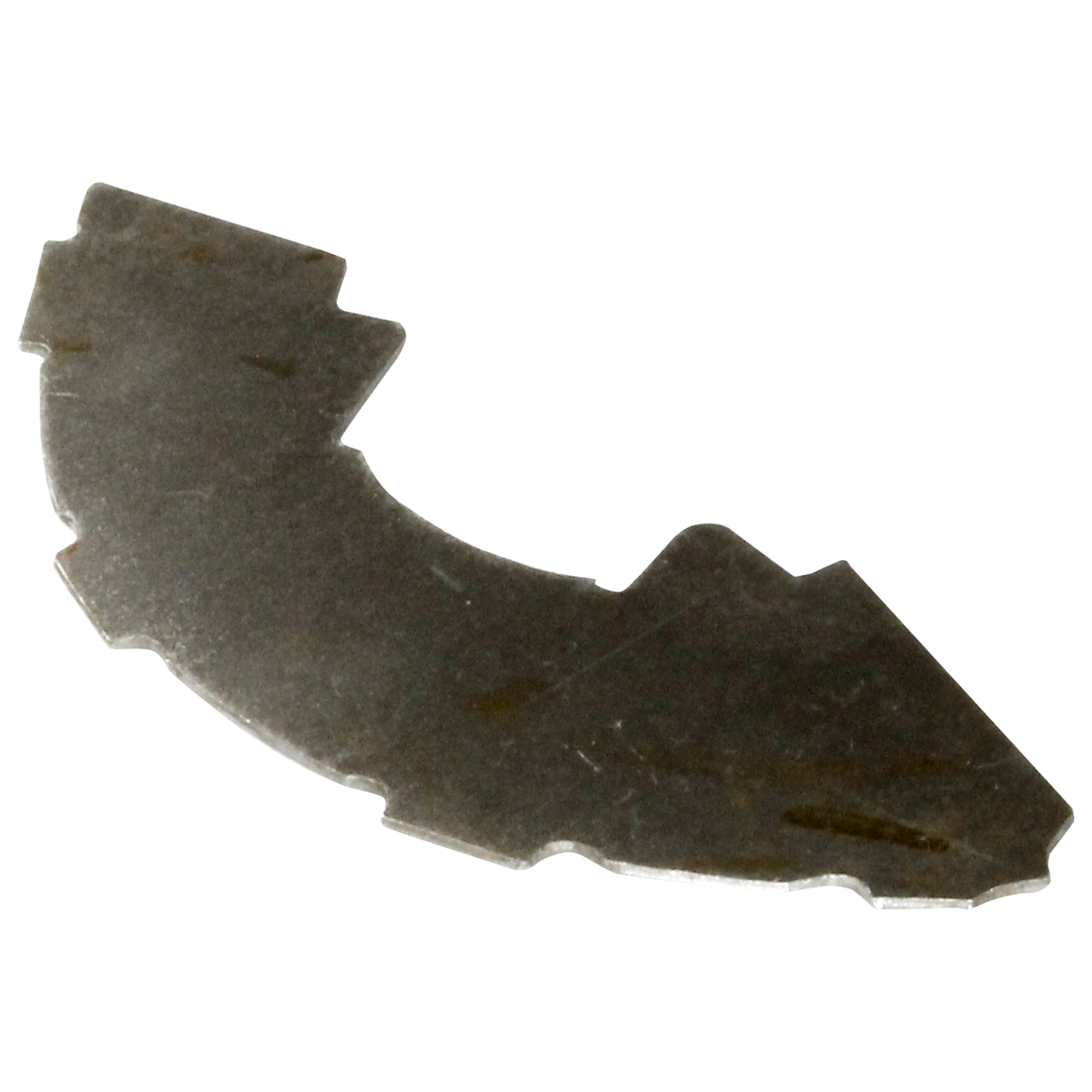

21 Vane Core Repair Fits 12" C-6 Converter. 1976 - Up FX-21-1231B
Vane FX-21-1231B
Core Repair & Fits 12" C-6 Converter. 1976 - Up
21 Nut Hex 4/6 Pieces Required.
  • Dimensions: 3/8"- 24
  • Length: 0.330"
 N-63
Nut N-63
Hex & 4/6 Pieces Required.
  • Dimensions: 3/8"- 24
  • Length: 0.330"
21_N.I. Salvage Ring™
  • Width: 0.375"
  • Outside Dia: 11.25"
 TX-22-878
Salvage Ring™ TX-22-878
&
  • Width: 0.375"
  • Outside Dia: 11.25"
21_N.I. Salvage Ring™
  • Width: 0.750"
  • Outside Dia: 11.25"
 TX-22-878W
Salvage Ring™ TX-22-878W
&
  • Width: 0.750"
  • Outside Dia: 11.25"
21_N.I. Salvage Ring™ Coresaver™
  • Width: 0.250"
  • Outside Dia: 11.25"
 TX-22-878NR
Salvage Ring™ TX-22-878NR
Coresaver™ &
  • Width: 0.250"
  • Outside Dia: 11.25"
21_N.I. Salvage Ring™
  • Width: 0.375"
  • Outside Dia: 12.92"
  • Restores Engagement Step
 FX-21-1005
Salvage Ring™ FX-21-1005
&
  • Width: 0.375"
  • Outside Dia: 12.92"
  • Restores Engagement Step
21_N.I. Salvage Ring™ Coresaver™
  • Width: 0.250"
  • Outside Dia: 12.92"
 FX-21-1005NR
Salvage Ring™ FX-21-1005NR
Coresaver™ &
  • Width: 0.250"
  • Outside Dia: 12.92"
