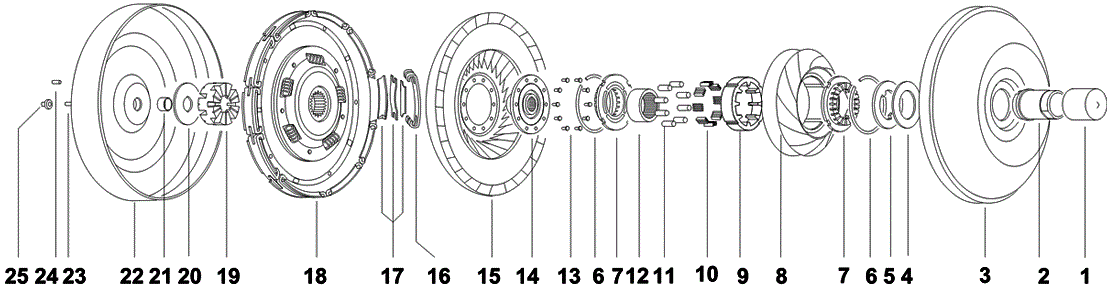

Torque Converter | Ford | C-5

Ill.# Image Description Specification Part #
0 Accordion Spring
  • Height: 0.28"
  • Width: 0.93"
  • Folds: 4
 FS-6-2
0 Rivet 10 Pieces Required.
  • Length: 0.385"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.214"
  • Rivet head dia: 0.312"
 FX-12LS
0 Inner Race Stator
  • Height: 0.985"
  • Outer Dia: 2.375"
  • Internal Teeth: 32
 FX-14-1
1 Hubcap Fits 2" (50.8mm). Length: 1-1/2"
  • Color: Red
  • Fits 2" (50.8mm)
 MHC-R
2 Impeller Hub
  • Inner Dia: 1.75
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-5FGRCD
2 Impeller Hub
  • Inner Dia: 1.75
 FH-1-6F
2 Impeller Hub
  • Journal Dia: 1.997"
  • Installed Height: 2.318"
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-2312GRC
2 Impeller Hub
  • Inner Dia: 1.688
 FH-1-CB6
2 Impeller Hub Heat Treated
  • Journal Dia: 1.997"
  • Installed Height: 2.312"
  • Height: 2.622"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-3107GRC
2 Impeller Hub
  • Journal Dia: 1.997"
  • Height: 2.312"
  • Inner Dia: 1.688
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-CB5GRC
2 Impeller Hub
  • Journal Dia: 1.997"
  • Height: 2.312"
  • Inner Dia: 1.688
  • Hub Mount: Butt
  • Pump Drive Type: Flats
 FH-1-CB6G
2 Impeller Hub Flanged, AOD, C-6, C-4
  • Journal Dia: 1.997"
  • Installed Height: 2.624"
  • Height: 2.774"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 3.645"
 FH-1-25FLG
2 Impeller Hub
  • Journal Dia: 1.997"
  • Installed Height: 2.396
  • Inner Dia: 1.75
  • Length: 2.697
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-5FGRC
2 Impeller Hub
  • Journal Dia: 1.997"
  • Installed Height: 2.396
  • Inner Dia: 1.75
  • Length: 2.697
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-6FGRC
2 Impeller Hub
  • Journal Dia: 1.997"
  • Height: 2.312"
  • Inner Dia: 1.688
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-CB6GRC
3 Impeller NPN-2-16-3
4 Shim
  • Outer Dia: 2.943"
  • Inner Dia: 1.885"
  • Thickness: 0.010"
  • Material: Steel
 MW-2-10
4 Shim
  • Outer Dia: 2.938"
  • Inner Dia: 1.875"
  • Thickness: 0.02
 MW-2-20
4 Shim
  • Outer Dia: 2.938"
  • Inner Dia: 1.875"
  • Thickness: .030"
 MW-2-30
4 Shim
  • Outer Dia: 2.938"
  • Inner Dia: 1.875"
  • Thickness: .050
 MW-2-50
5 Washer Standard
  • Outer Dia: 3.125"
  • Inner Dia: 1.875"
  • Thickness: .09"
  • Material: Steel
 FW-2-1
5 Washer Oversized
  • Outer Dia: 3.125"
  • Inner Dia: 1.875"
  • Thickness: 0.105"
  • Material: Steel
  • Oversized
 FW-2-1A
6 Snap Ring 2 Pieces Required.
  • Inner Dia: 3.600"
 FX-20-11
7 Stator Cap 2 Pieces Required.
  • Outer Dia: 3.6"
  • Inner Dia: 2"
  • Thickness: 0.65"
  • Material: Phenolic
  • Casting#: E5DP-7937AA E9TP-7937AA
 FW-4-13
7 Stator Cap 2 Pieces Required.
  • Outer Dia: 3.6"
  • Inner Dia: 2"
  • Thickness: 0.59"
  • Material: Phenolic
  • Casting#: F5TP-7937AA
 FW-4-15
7 Stator Cap Plastic 2 Pieces Required.
  • Outer Dia: 3.6"
  • Inner Dia: 2.04"
 FW-4-3
7 Stator Cap 2 Pieces Required.
  • Outer Dia: 3.6"
  • Inner Dia: 2.04"
  • Thickness: 0.50"
  • Material: Aluminum
  • Casting#: D2AP-7937AA C7AP-7937B
 FW-4-3A
7 Washer 2 Pieces Required.
  • Outer Dia: 3.6"
  • Inner Dia: 2"
  • Thickness: 0.68"
  • Casting#: E5DP-7937AA
 FW-4-8
7 Stator Cap Heavy Duty 2 Pieces Required.
  • Outer Dia: 3.60"
  • Inner Dia: 2"
  • Thickness: 0.69"
  • Material: Phenolic
  • OE# F7AP-7937-AA
 FW-4-19
7 Stator Cap Bearing Adapter 2 Pieces Required.
  • Outer Dia: 3.6"
  • Inner Dia: 2"
  • Thickness: .56"
  • Material: Aluminum
  • Fits SW-2-12 bearing (0.900" Rollers)
 FW-4-18
8 Stator NPN-2-16-8
9 Outer Race (Cam) Stator
  • Dimensions: 3.60" x .80"
 FX-15-6
10 Accordion Spring 8 Pieces Required.
  • Height: 0.28"
  • Width: 0.73"
  • Folds: 3
 FS-6-11
10 Accordion Spring 8 Pieces Required.
  • Height: 0.28"
  • Width: 0.73"
  • Folds: 4
 FS-6-8
10 Misc high performance 8 Pieces Required. NPN-SPL
11 Roller 8 Pieces Required.
  • Dia: 0.312"
  • Length: 0.705"
 12960R
11 Roller 8 Pieces Required.
  • Dia: 0.312"
  • Length: 0.71"
 FR-7-2
11 Roller 8 Pieces Required.
  • Dia: 0.313"
  • Length: .90"
 FR-7
12 Inner Race Stator
  • Height: 0.781"
  • Outer Dia: 2.375"
  • Internal Teeth: 32
 FX-14-5
13 Rivet 10 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet head dia: 0.312"
 FX-12L
14 Turbine Hub
  • Outer Dia: 3.85"
  • Internal Teeth: 26
  • External teeth: 36
 FX-13-12
14 Turbine Hub
  • Outer Dia: 3.85"
  • Internal Teeth: 26
  • External teeth: 36
  • Hardness: Heat-Treated (hardened)
 FX-13-12HT
14 Turbine Hub Use with Spacer FW-9-10
  • Outer Dia: 3.85"
 FX-13-4HT
14 Turbine Hub
  • Height: 0.900"
  • Outer Dia: 3.85"
  • Internal Teeth: 26
  • Material: Solid Steel
 FX-13-4S
15 Turbine
  • Outer Dia: 12"
 NPN-2-16-15

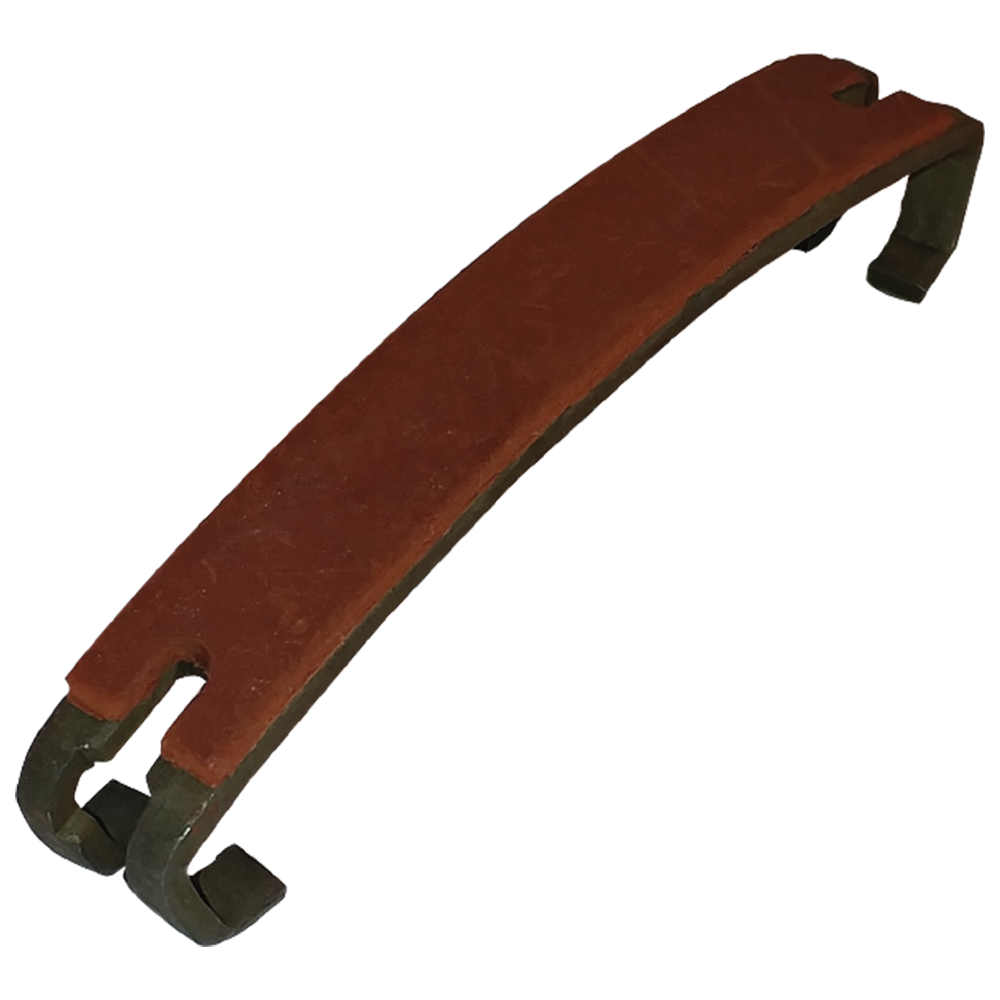

16 Brake Shoe Lined, Red, .020" 10 Pieces Required.
  • Oversized
 FX-23-201R
17 Spring Flat NPN-2-16-17
18 Lockup Clutch NPN-2-16-18
18.1 Rivet 5 Pieces Required.
  • Length: .705.150/.150"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.248"
  • Rivet head dia: 0.248"
 FX-12-3
19 Spacer Clutch Eliminator™ used with FX-13-4S turbine hub
  • Outer Dia: 2.76"
  • Inner Dia: 1.35"
  • Thickness: 1.19"
  • Cover to Turbine, Clutch Eliminator. OE Style, Use With FX-13-4 Turbine Hub.
 FW-9-10
19 Spacer Clutch Eliminator™, Floating
  • Outer Dia: 2.5"
  • Inner Dia: 1.55"
  • Thickness: 1.17"
  • Use OE Turbine Hub
 FW-9-10C
20 Turbine Washer
  • Outer Dia: 3.2"
  • Inner Dia: 1.06"
  • Thickness: 0.047"
  • Material: Plastic
 FW-9-9A
20 Turbine Washer
  • Outer Dia: 3.2"
  • Inner Dia: 1.06"
  • Thickness: 0.062"
  • Material: Plastic
 FW-9-9
20 Turbine Washer
  • Outer Dia: 3.2"
  • Inner Dia: 1.06"
  • Thickness: 0.047"
  • Material: Fiber
 FW-9-9AF
20 Turbine Washer
  • Outer Dia: 3.2"
  • Inner Dia: 1.06"
  • Thickness: 0.68"
 FW-9-9B
20 Turbine Washer
  • Outer Dia: 3.2"
  • Inner Dia: 1.06"
  • Thickness: 0.094"
  • Material: Fiber
 FW-9-9CF
20 Turbine Washer
  • Outer Dia: 3.2"
  • Inner Dia: 1.06"
  • Thickness: 0.062"
  • Material: Fiber
 FW-9-9F
20 Turbine Washer
  • Outer Dia: 3.2"
  • Inner Dia: 1.06"
  • Thickness: 0.094"
  • Material: Plastic
 FW-9-9C
20.1 Drain Plug
  • Material: Steel
  • 1/8-27 NPT
 FX-11
20.1 Drain Plug 1/8-27 NPT, PTFE, Wrap FX-11A
20.1 Drain Plug
  • Allen socket drain plug for use with drilled converters.
 FX-11B
21 Bushing oversized O.D.
  • Inner Dia: 1.0520
  • Width: 0.625
  • housing bore dia: 1.174
  • Shaft Dia: 1.048
  • Folds: Oversized
 FB-18-3X
21_N.I. Salvage Ring™
  • Outer Dia: 12.92"
  • Width: 0.375"
  • Restores Engagement Step
 FX-21-1005
21_N.I. Salvage Ring™ Coresaver™
  • Outer Dia: 12.92"
  • Width: 0.250"
 FX-21-1005NR
22 Front Cover NPN-2-16-22
23 Stud T-Head 4 Pieces Required.
  • Length: .50" under the head
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 1.06"
  • Bolt Head Thickness: 0.23"
 FX-10-14
23 Stud 4 Pieces Required.
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 0.83"
  • Bolt Head Thickness: 0.21"
 FX-10-3
23 Stud Thin Head Type
  • (Use FX-10-4)
 FX-10-2
23 Stud
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 0.75"
  • Bolt Head Thickness: 0.16"
 FX-10-4

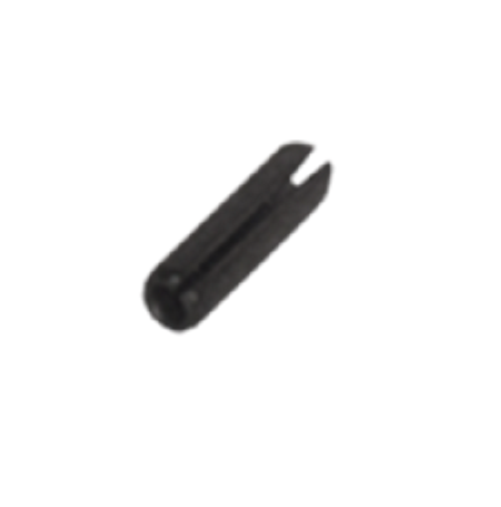

23.1 Roll Pin Brake Shoe, Retaining, Prevents drop-out 20 Pieces Required. FX-23-2
24 Studcap Plastic Stud Protector 4 Pieces Required.
  • Inner Dia: 0.375
  • Length: 0.50"
  • Color: Red
  • Fits 3/8" (9.5mm)
 MHC-STD
24 Studcap 4 Pieces Required.
  • Inner Dia: 0.375
 MHC-STE
25 Nut Converter 4 Pieces Required. 26761
25 Nut Special Locking 4 Pieces Required.
  • Height: .34"
  • Dimensions: 3/8"-24 x 0.33"
 FX-10-7
25 Nut & Studcap Kit 4 Pieces Each 4 Pieces Required. FX-10-7K4STD
25 Nut Hex 4 Pieces Required.
  • Dimensions: 3/8"- 24
 N-63
