0 |
|
Rivet |
10 Pieces Required.
|
- Length: 0.385"
- Rivet solid or tubular: S
- Rivet Shank Dia: 0.214"
- Rivet head dia: 0.312"
|
FX-12LS
|
0 |
|
Misc |
|
|
NPN-SPL
|
1 |
|
Hubcap |
Fits 2" (50.8mm). Length: 1-1/2"
|
- Color: Red
- Fits 2" (50.8mm)
|
MHC-R
|
2 |
|
Impeller Hub |
|
- Journal Dia: 1.997"
- Height: 2.465"
- Inner Dia: 1.75"
- Hub Mount: Butt
- Pump Drive Type: flats
|
FH-1-CB12G
|
2 |
|
Impeller Hub |
|
- Journal Dia: 1.997"
- Height: 2.625"
- Inner Dia: 1.75"
- Hub Mount: Butt
- Pump Drive Type: flats
|
FH-1-CB13GRC
|
2 |
|
Impeller Hub |
|
- Journal Dia: 1.997"
- Height: 2.062"
- Inner Dia: 1.75"
- Hub Mount: Butt
- Pump Drive Type: Flats
|
FH-1-CB2G
|
2 |
|
Impeller Hub |
|
- Journal Dia: 1.997"
- Installed Height: 2.375"
- Inner Dia: 1.75"
- Pump Drive Type: Flats
|
FH-1-CB4G
|
2 |
|
Impeller Hub |
|
- Journal Dia: 1.997"
- Height: 2.375"
- Inner Dia: 1.75"
- Pump Drive Type: Flats
|
FH-1-CB4GRC
|

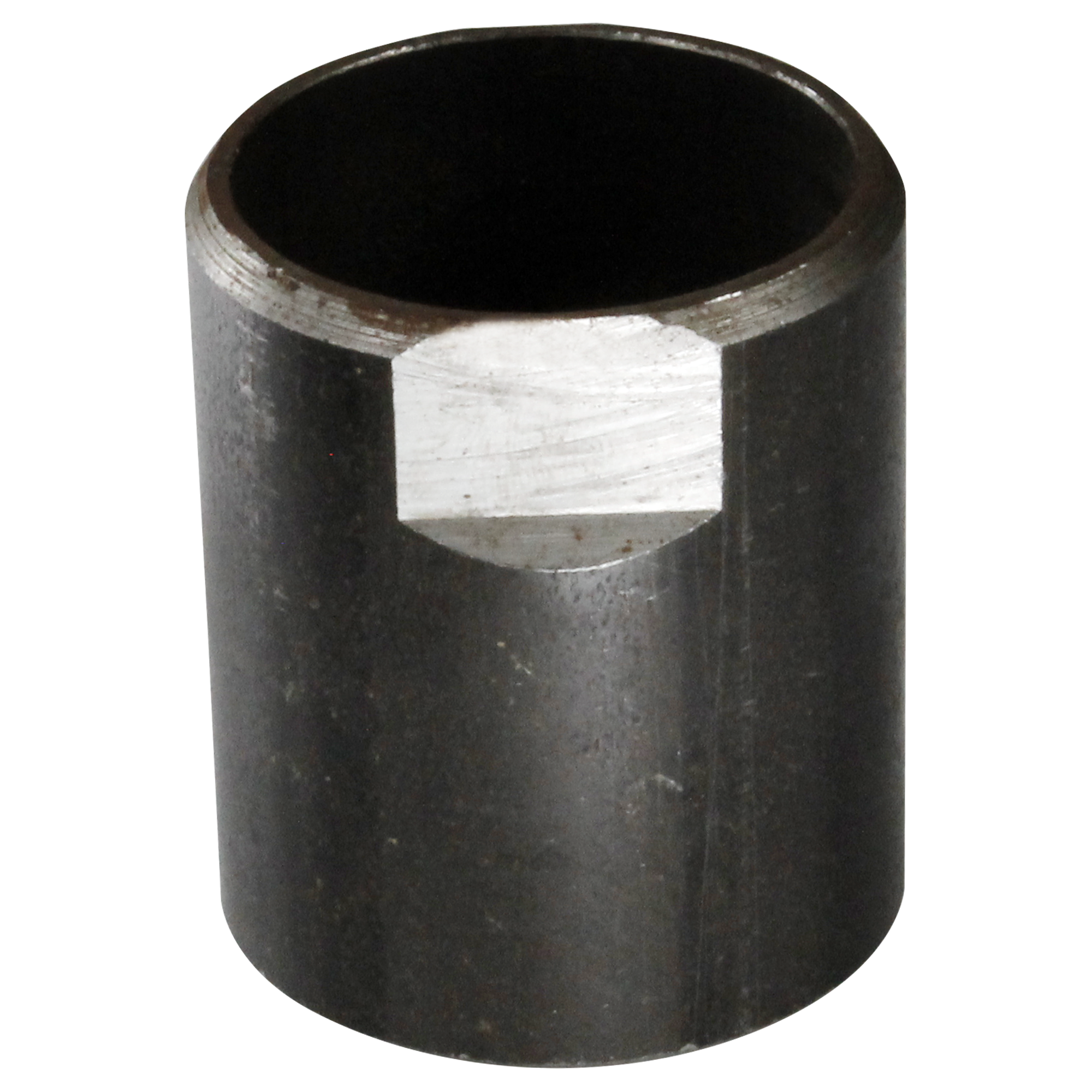

2 |
|
Impeller Hub |
Unfinished, With out rib
|
|
FH-1CB4W
|
2 |
|
Impeller Hub |
|
- Journal Dia: 1.997"
- Height: 2.375"
- Inner Dia: 1.6875"
- Hub Mount: Butt
- Pump Drive Type: Flats
|
FH-1-CB9G
|
2 |
|
Impeller Hub |
|
- Journal Dia: 1.997"
- Height: 2.375"
- Inner Dia: 1.6875"
- Hub Mount: Butt
- Pump Drive Type: Flats
- Hardness: Rc 32-36
|
FH-1-CB9GRC
|

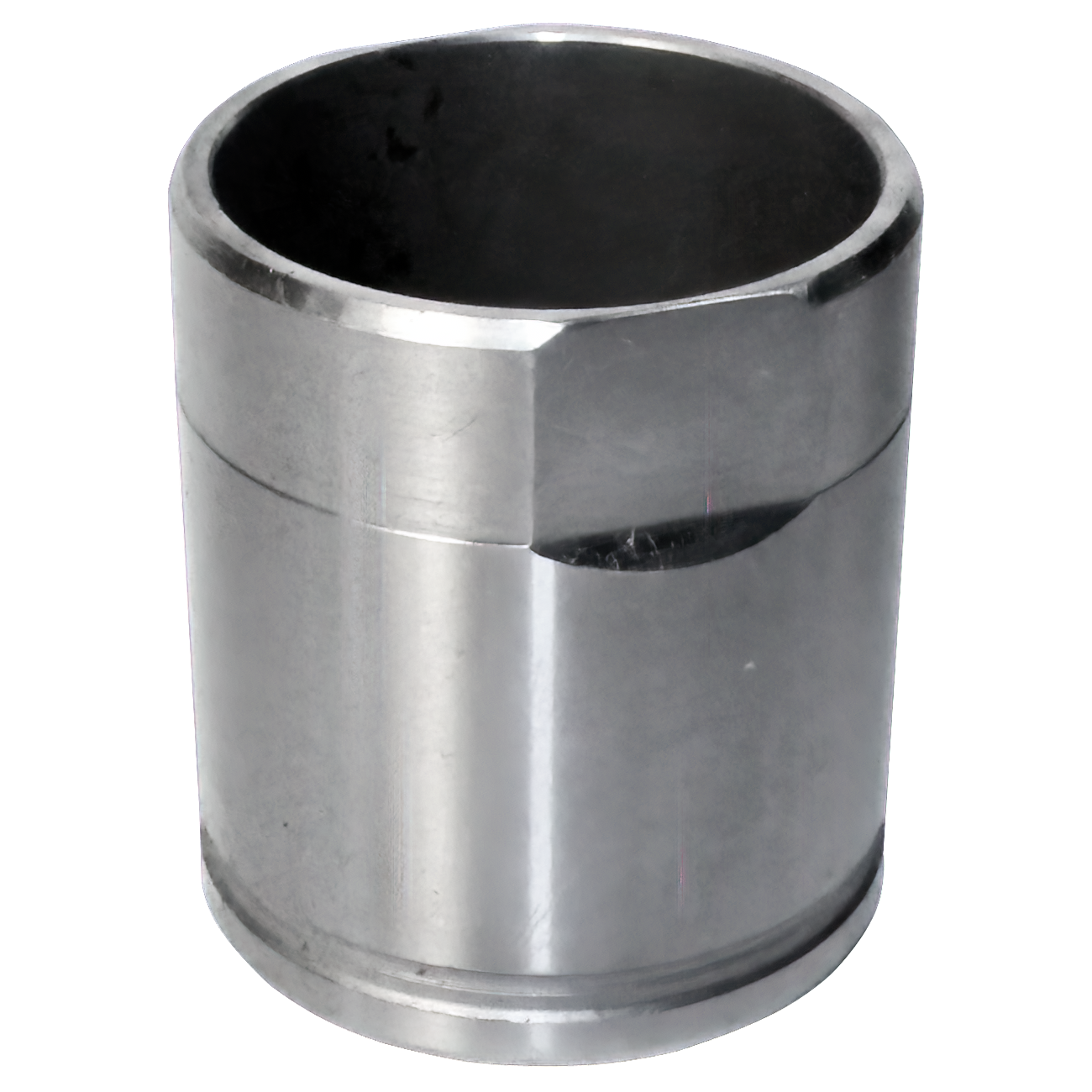

2 |
|
Impeller Hub |
|
- Journal Dia: 1.997"
- Height: 2.562"
- Inner Dia: 1.75"
- Hub Mount: Butt
- Pump Drive Type: Flats
|
FH-1-CB8G
|
2 |
|
Impeller Hub |
Heat Treated, Ground, Short
|
- Journal Dia: 1.997"
- Height: 2.562"
- Inner Dia: 1.75"
- Hub Mount: Butt
- Pump Drive Type: Flats
|
FH-1-CB8GHT
|
2 |
|
Impeller Hub |
|
|
FH-1-CB8GRC
|
2 |
|
Impeller Hub |
|
- Journal Dia: 1.997"
- Installed Height: 2.562"
- Inner Dia: 1.6875"
- Hub Mount: Thru
- Pump Drive Type: Flats
|
FH-1-CB10G
|

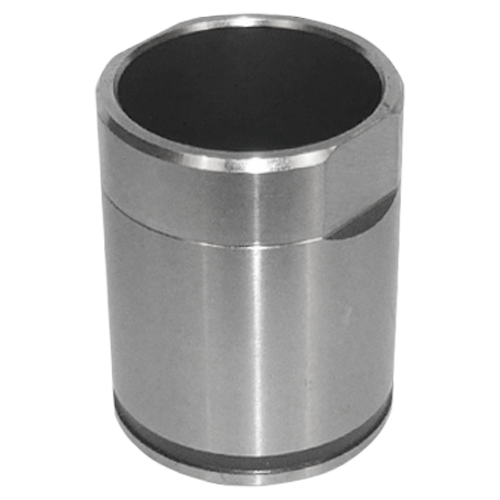

2 |
|
Impeller Hub |
|
- Journal Dia: 1.997"
- Height: 2.562"
- Inner Dia: 1.6875"
- Hub Mount: Thru
- Pump Drive Type: Flats
|
FH-1-CB10GRC
|
2 |
|
Impeller Hub |
C-4, 10-1/4"
|
- Journal Dia: 1.997"
- Installed Height: 2.531
- Outer Dia: 2"
- Inner Dia: 1.75
|
FH-1-4FG
|

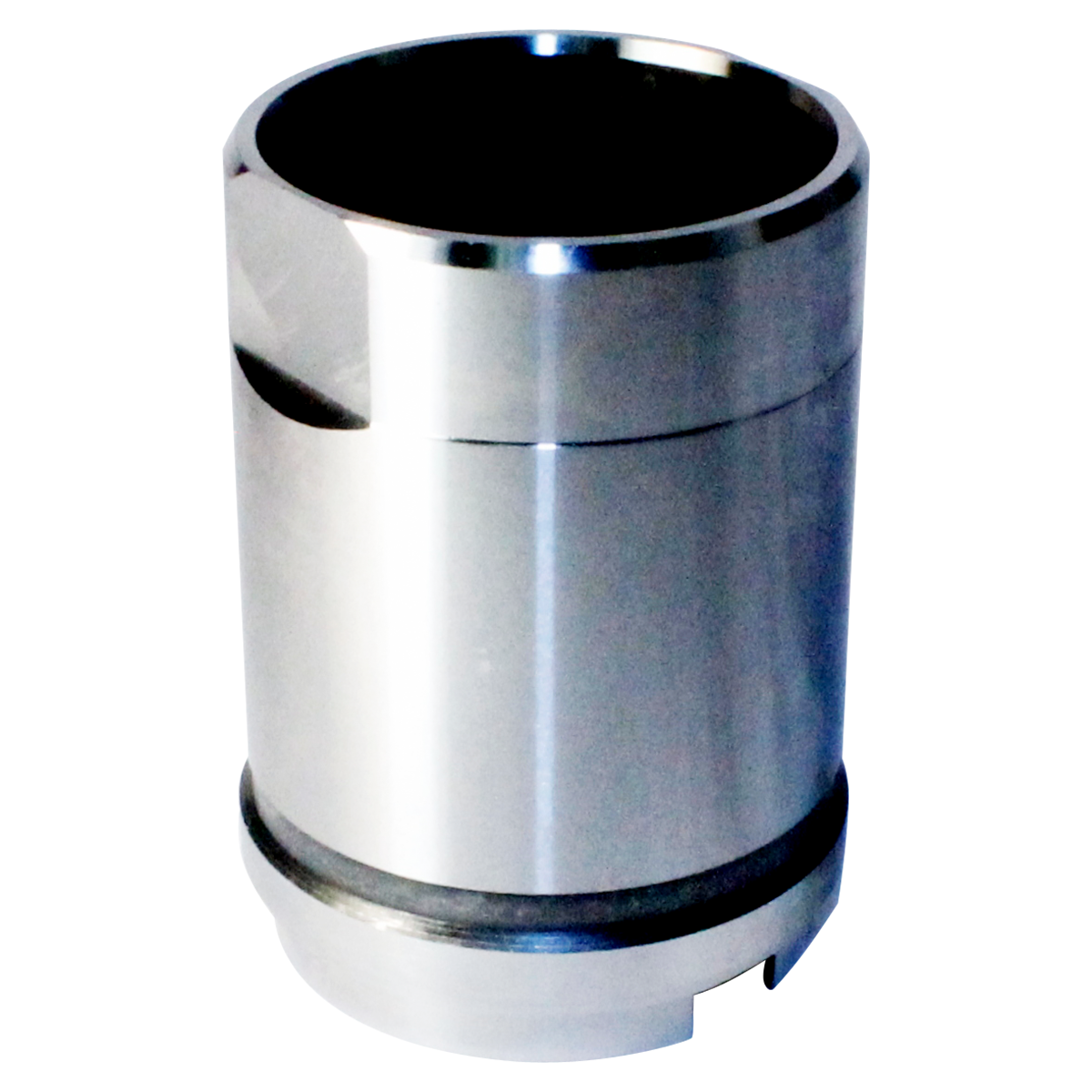

2 |
|
Impeller Hub |
C-4, 10-1/4"
|
- Journal Dia: 1.996"
- Installed Height: 2.531
- Outer Dia: 2"
- Inner Dia: 1.75
- Hub Mount: Thru mount
|
FH-1-4FGRC
|
2 |
|
Impeller Hub |
|
- Journal Dia: 1.997"
- Installed Height: 2.531
- Inner Dia: 1.688
- Length: 2.832
- Hub Mount: Thru
- Pump Drive Type: flats
- Hardness: Rc 32-36
|
FH-1-9FGRC
|

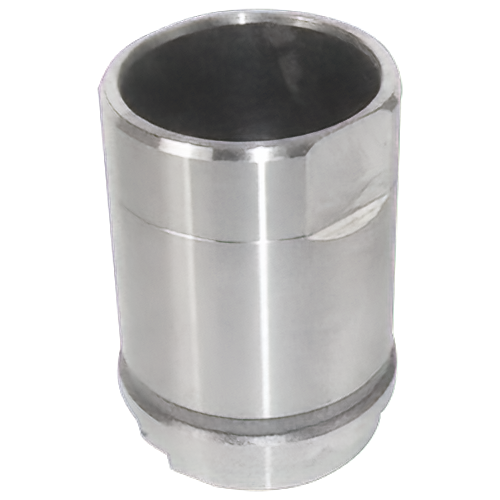

2 |
|
Impeller Hub |
|
- Journal Dia: 1.997"
- Installed Height: 2.696"
- Inner Dia: 1.750"
- Hub Mount: Thru
- Pump Drive Type: flats
|
FH-1-8FG
|
2 |
|
Impeller Hub |
|
- Journal Dia: 1.996"
- Installed Height: 2.696"
- Inner Dia: 1.750"
- Length: 2.997"
- Hub Mount: Thru
- Pump Drive Type: Flats
- Hardness: Rc 32-36
|
FH-1-8FGRC
|

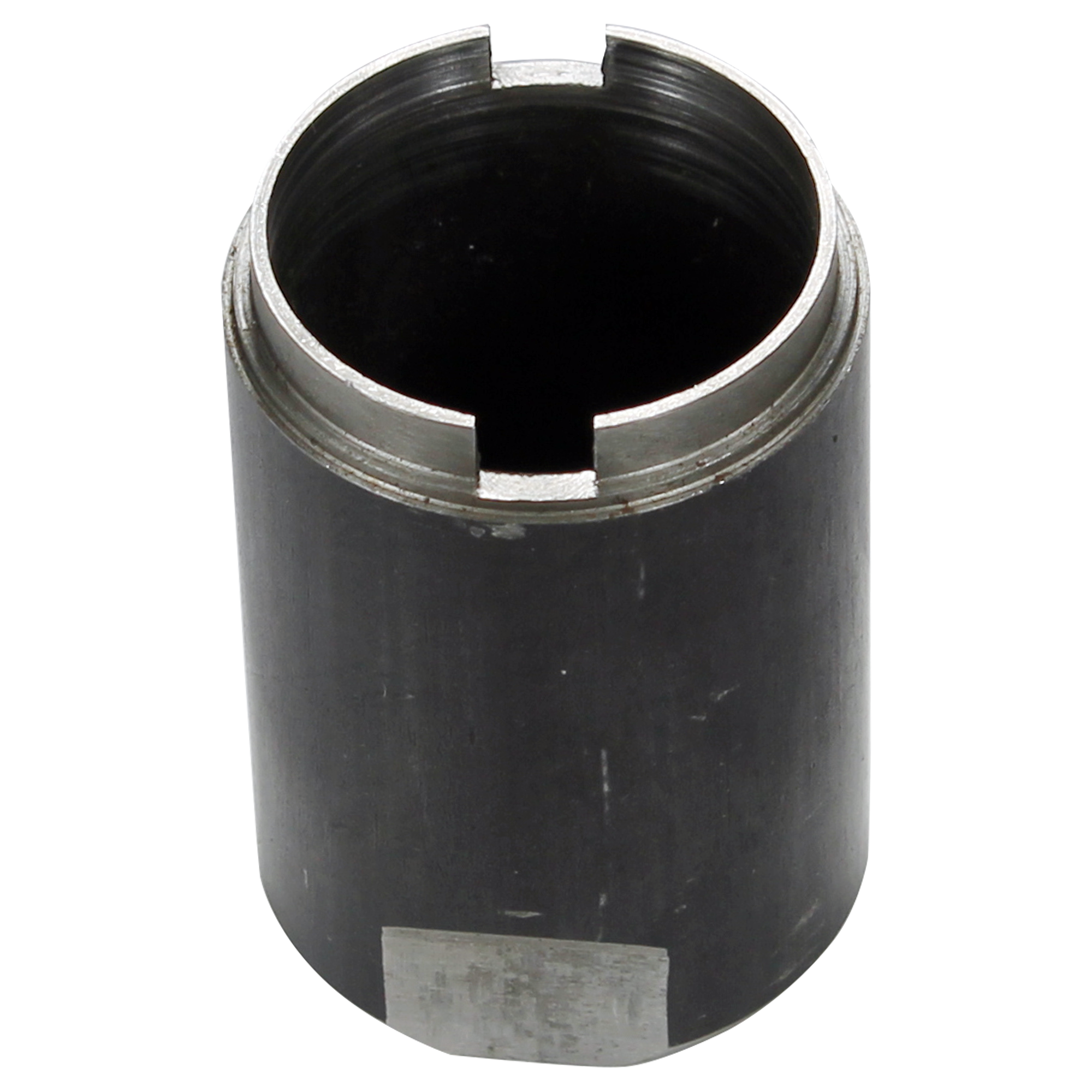

2 |
|
Impeller Hub |
Unfinished, Without Weld Groove
|
|
FH-1-8FW
|
2 |
|
Impeller Hub |
|
- Journal Dia: 1.997"
- Installed Height: 2.696
- Inner Dia: 1.688
- Length: 2.997
- Hub Mount: Thru
- Pump Drive Type: flats
- Hardness: Rc 32-36
|
FH-1-10FGRC
|
2 |
|
Impeller Hub |
For 2 speed
|
- Journal Dia: 1.996"
- Installed Height: 2.135"
- Hub Mount: Thru
- Pump Drive Type: 2 lugs
|
FH-1-2EG
|
2 |
|
Impeller Hub |
for 2 speed
|
- Journal Dia: 1.996"
- Installed Height: 2.146"
- Hub Mount: Thru
- Pump Drive Type: flats
|
FH-1-2FG
|
2_N.I. |
|
Adapter Ring |
Convert To C-3 Hub
|
|
FX-1-32
|
3 |
|
Impeller |
|
|
NPN-2-4-3
|
3 |
|
Impeller Vane Kit |
|
|
FX-21-10K
|
4 |
|
Shim |
|
- Outer Dia: 2.943"
- Inner Dia: 1.885"
- Thickness: 0.010"
- Material: Steel
|
MW-2-10
|
4 |
|
Shim |
|
- Outer Dia: 2.938"
- Inner Dia: 1.875"
- Thickness: 0.02
|
MW-2-20
|
4 |
|
Shim |
|
- Outer Dia: 2.938"
- Inner Dia: 1.875"
- Thickness: .030"
|
MW-2-30
|
4 |
|
Shim |
|
- Outer Dia: 2.938"
- Inner Dia: 1.875"
- Thickness: .050
|
MW-2-50
|
5 |
|
Washer |
Standard
|
- Outer Dia: 3.125"
- Inner Dia: 1.875"
- Thickness: .09"
- Material: Steel
|
FW-2-1
|
5 |
|
Washer |
Oversized
|
- Outer Dia: 3.125"
- Inner Dia: 1.875"
- Thickness: 0.105"
- Material: Steel
- Oversized
|
FW-2-1A
|
6 |
|
Snap Ring |
2 Pieces Required.
|
|
FX-20-10
|
6_N.I. |
|
Washer |
2 Tangs
2 Pieces Required.
|
- Outer Dia: 2.95"
- Inner Dia: 1.99"
- Material: Bronze
- .250" Long Tangs
|
FW-3-1A
|
6_N.I. |
|
Washer |
4 Tangs
2 Pieces Required.
|
- Outer Dia: 2.95"
- Inner Dia: 1.99"
- Material: Bronze
|
FW-3-2
|

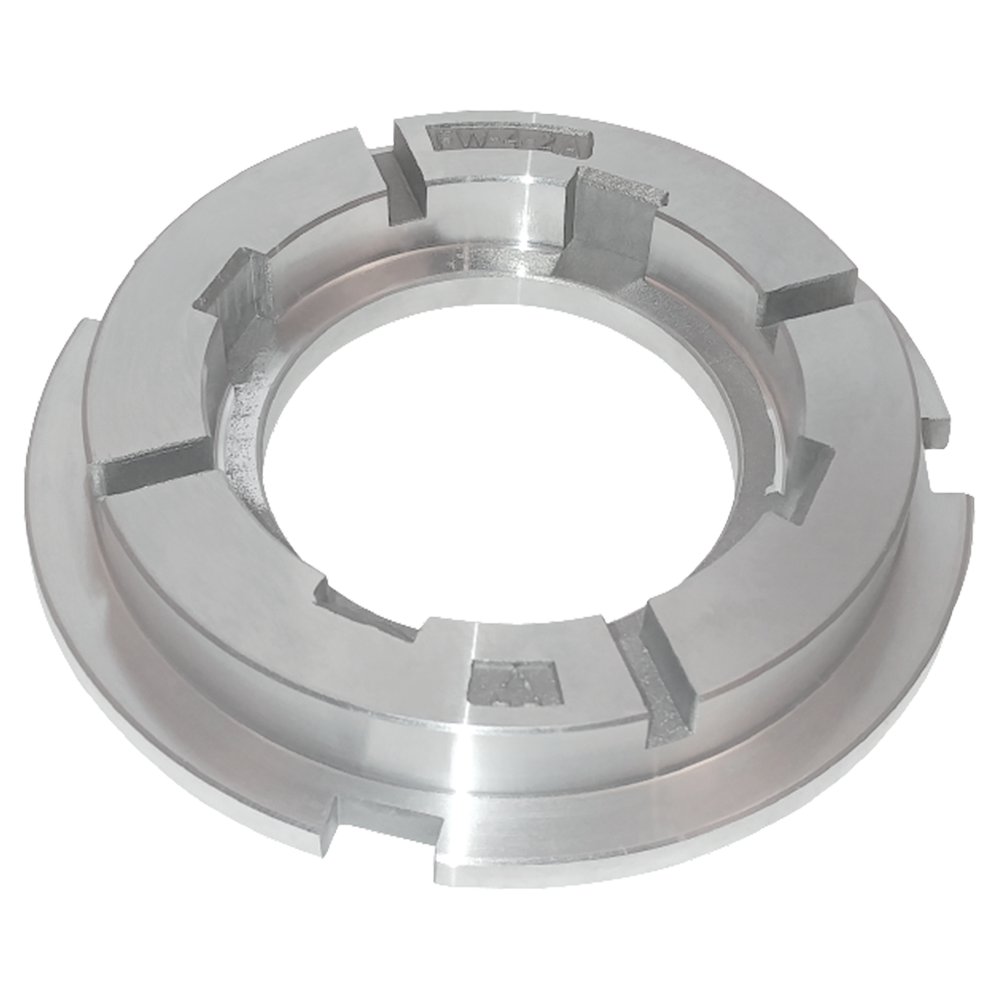

7 |
|
Stator Cap |
2 Pieces Required.
|
- Outer Dia: 3.5"
- Inner Dia: 1.7"
- Material: Aluminum
|
FW-4-2A
|

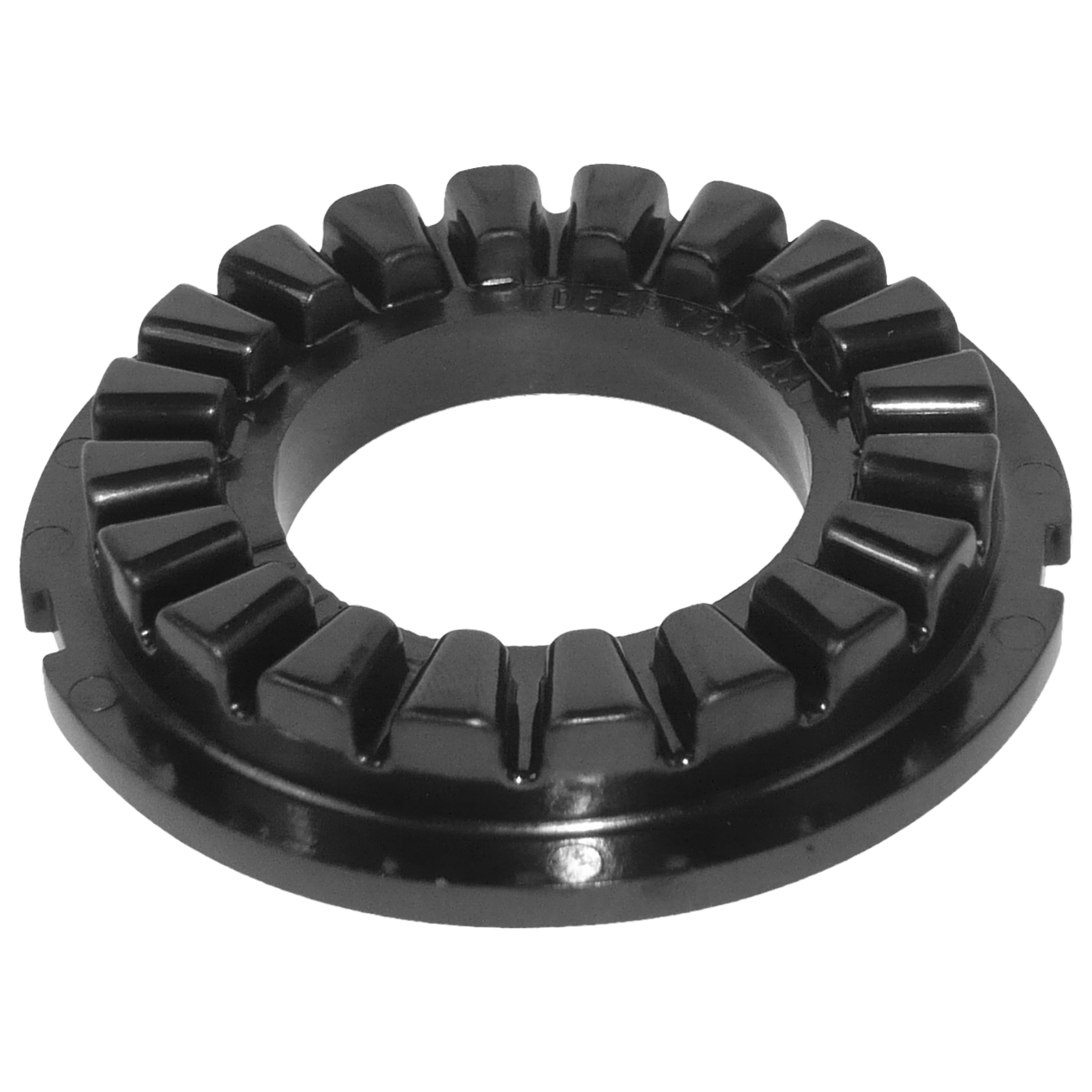

7 |
|
Stator Cap |
2 Pieces Required.
|
- Outer Dia: 3.35"
- Inner Dia: 1.7"
- Thickness: 0.59"
- Material: Phenolic
- OE#: C8DP-7937A D5ZP-7937AA
|
FW-4-2P
|

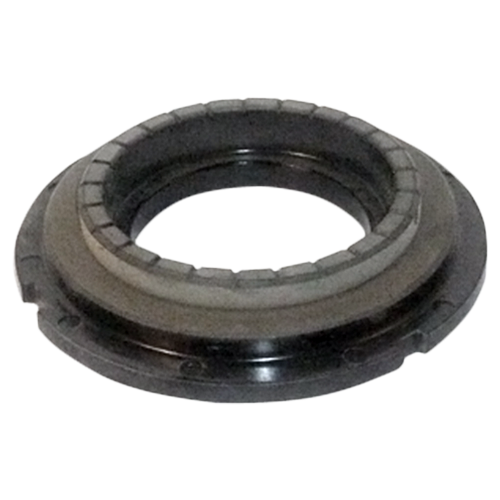

7 |
|
Stator Cap |
Used with SW-2-12
|
- Outer Dia: 3.34"
- Inner Dia: 1.690"
- Thickness: 0.560"
- Material: Phenolic
- Functional Thickness: 0.369". Use With Bearing SW-2-12
|
FW-4-17
|

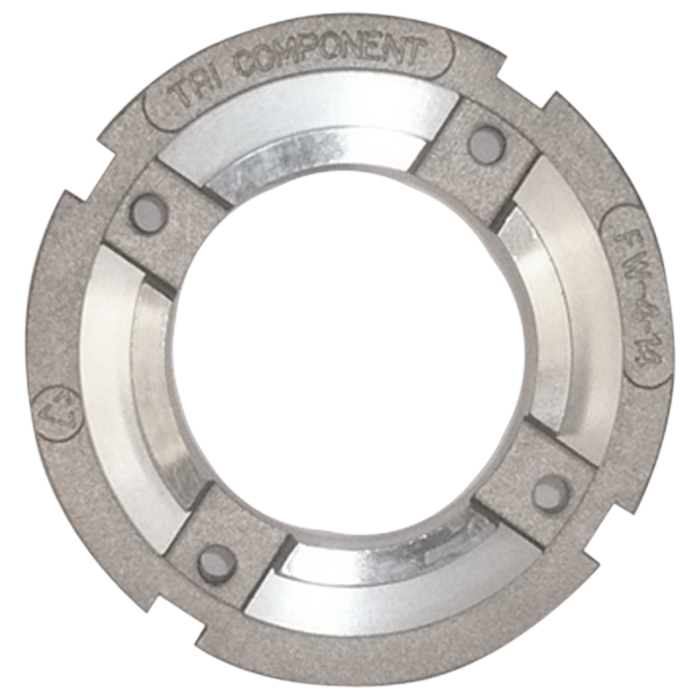

7 |
|
Stator Cap |
Bearing Adapter
for C4 10 -1/4"
|
- Outer Dia: 3.34"
- Inner Dia: 1.690"
- Material: Aluminum
|
FW-4-17A
|
7.1 |
|
Bearing |
Use with FW-4-17
|
- Outer Dia: 3.28
- Inner Dia: 2.388
- Thickness: 0.255
- Outer Dia Metric: 83.31
- Inner Dia metric: 60.66
- Thickness metric: 6.48
- Bearing type: Enclosed
|
SW-2-12
|
7.1 |
|
Bearing |
Timken
|
- Outer Dia: 3.28"
- Inner Dia: 2.39"
- Thickness: 0.25"
- Bearing type: Enclosed
|
SW-2-12T
|
8 |
|
Inner Race |
Stator
|
- Height: 0.984"
- Outer Dia: 2.10"
- Internal Teeth: 32
|
FX-14-2
|
8 |
|
Inner Race |
Stator, FORD 10"
High Performance, Chrysler & GM
|
- Height: 1.045"
- BE SURE INNER RACES ARE PROPERLY PILOTED IN END WASHERS AND RUNNING TRUE TO OUTER RACE
|
FX-14CA
|
8 |
|
Inner Race |
StatorFORD 10"
High Performance, Chrysler & GM
|
- Height: 0.985"
- BE SURE INNER RACES ARE PROPERLY PILOTED IN END WASHERS AND RUNNING TRUE TO OUTER RACE
|
FX-14CB
|
8 |
|
Inner Race |
Stator
|
|
FX-14CC
|
9 |
|
Roller |
7 Pieces Required.
|
|
FR-7
|
10 |
|
Accordion Spring |
7 Pieces Required.
|
- Height: 0.28"
- Width: 0.93"
- Folds: 4
|
FS-6-2
|
11 |
|
Outer Race (Cam) |
Stator
|
|
FX-15-3
|
12 |
|
Stator |
|
|
NPN-2-4-12
|
13 |
|
Rivet |
10 Pieces Required.
|
- Length: 0.312"
- Rivet solid or tubular: T
- Rivet Shank Dia: 0.214"
- Rivet head dia: 0.312"
|
FX-12
|
13 |
|
Rivet |
10 Pieces Required.
|
- Length: .385"
- Rivet solid or tubular: T
- Rivet Shank Dia: 0.214"
- Rivet head dia: 0.312"
|
FX-12L
|
14 |
|
Turbine Hub |
With Chamfer
For 1964-1969 Early
|
- Height: 0.900"
- Outer Dia: 3.85"
- Internal Teeth: 24
- Material: Solid Steel
|
FX-13-1S
|
14 |
|
Turbine Hub Spline Adapter |
Fits 2-Speed Ford, Converts To C-4 (45° Pressure Angle)
|
- Height: 1.100
- Outer Dia: 1.06"
- Internal Teeth: 24
- External teeth: 31
|
FX-13-24
|
14 |
|
Turbine Hub |
For C-4 W/Ring Gear
|
- Outer Dia: 3.85"
- Internal Teeth: 26
|
FX-13-4
|
14 |
|
Turbine Hub |
For C-4 W/Ring Gear
|
|
FX-13-4HT
|
14 |
|
Turbine Hub |
Pinto, For C-4 Without Ring Gear
|
- Height: 0.900"
- Outer Dia: 3.85"
- Internal Teeth: 26
- Material: Solid Steel
|
FX-13-4S
|
14 |
|
Turbine Hub |
Pinto, For C-4 Without Ring Gear
|
- Outer Dia: 3.85"
- Internal Teeth: 26
|
FX-13-6
|

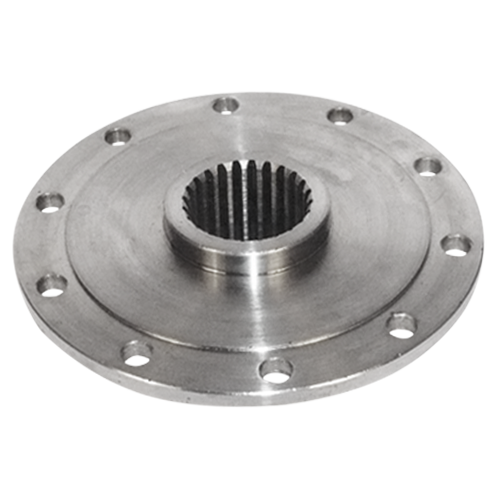

14 |
|
Turbine Hub |
High Performance, Chrysler
|
- Internal Teeth: 24
- Material: STEEL
|
FX-13C
|

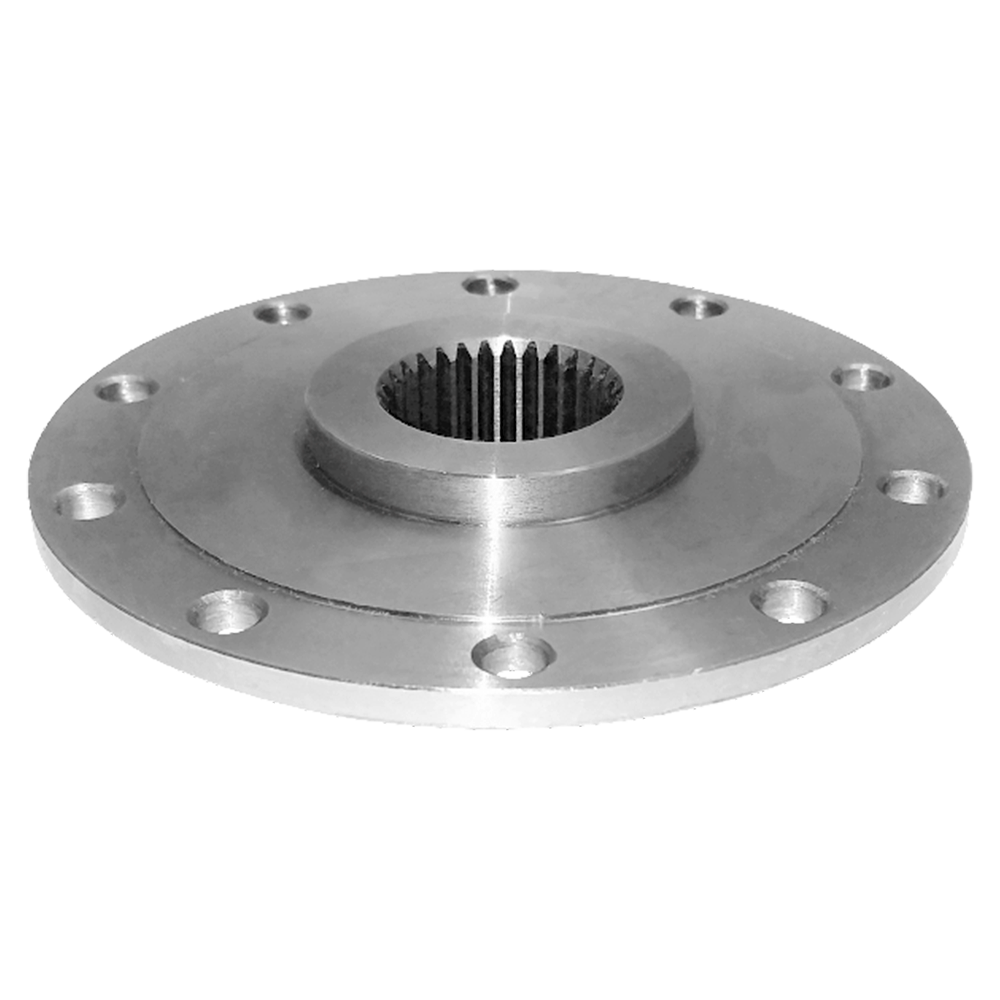

14 |
|
Turbine Hub |
High Performance, GM
|
- Internal Teeth: 30
- Material: STEEL
|
FX-13GM
|
14 |
|
Turbine Hub |
|
- Internal Teeth: 30
- Material: STEEL
- WELD TYPE
|
FX-13GMD
|
14 |
|
Turbine Hub |
|
- Internal Teeth: 30
- Hardness: Heat Treated
|
FX-13GMHT
|
14 |
|
Turbine Hub |
C4DP-7926A, 2 Speed
|
|
FX-13-9
|
15 |
|
Turbine |
|
|
NPN-2-4-15
|
16 |
|
Turbine Washer |
|
- Outer Dia: 2.75"
- Inner Dia: 1.33"
- Thickness: .045"
- Material: Plastic
|
FW-9-4T
|
16 |
|
Turbine Washer |
|
- Outer Dia: 2.75"
- Inner Dia: 1.33"
- Thickness: .045"
- Material: Fiber
|
FW-9-4TF
|
16 |
|
Turbine Washer |
|
- Outer Dia: 2.75"
- Inner Dia: 1.33"
- Thickness: .062
- Material: Plastic
|
FW-9-4A
|
16 |
|
Turbine Washer |
|
- Outer Dia: 2.75"
- Inner Dia: 1.33"
- Thickness: .062
- Material: Fiber
|
FW-9-4AF
|
16 |
|
Turbine Washer |
|
- Outer Dia: 2.75"
- Inner Dia: 1.33"
- Thickness: .070"
- Material: Plastic
|
FW-9-4B
|
16 |
|
Turbine Washer |
|
- Outer Dia: 2.75"
- Inner Dia: 1.33"
- Thickness: .070"
- Material: Fiber
|
FW-9-4BF
|
16 |
|
Turbine Washer |
|
- Outer Dia: 2.76"
- Inner Dia: 1.34"
- Thickness: .072"
- Material: Plastic
|
FW-9-4C
|
16 |
|
Turbine Washer |
|
- Outer Dia: 2.76"
- Inner Dia: 1.34"
- Thickness: . 079"
- Material: Fiber
|
FW-9-4CF
|
16 |
|
Turbine Washer |
|
- Outer Dia: 2.75"
- Inner Dia: 1.33"
- Thickness: .087"
- Material: Plastic
|
FW-9-4D
|
16 |
|
Turbine Washer |
|
- Outer Dia: 2.75"
- Inner Dia: 1.33"
- Thickness: .087"
- Material: Fiber
|
FW-9-4DF
|
16 |
|
Turbine Washer |
|
- Outer Dia: 2.75"
- Inner Dia: 1.33"
- Thickness: .087"
|
FW-9-4DS
|
16 |
|
Turbine Washer |
|
- Outer Dia: 2.75"
- Inner Dia: 1.33"
- Thickness: .094
- Material: Plastic
|
FW-9-4E
|
16 |
|
Turbine Washer |
|
- Outer Dia: 2.75"
- Inner Dia: 1.33"
- Thickness: .094
- Material: Fiber
|
FW-9-4EF
|
16 |
|
Turbine Washer |
|
- Outer Dia: 2.75"
- Inner Dia: 1.33"
- Thickness: .106"
- Material: Plastic
|
FW-9-4F
|
16 |
|
Turbine Washer |
|
- Outer Dia: 2.75"
- Inner Dia: 1.33"
- Thickness: .106"
- Material: Fiber
|
FW-9-4FF
|
16 |
|
Turbine Washer |
|
- Outer Dia: 2.75"
- Inner Dia: 1.33"
- Thickness: .188"
- Material: Fiber
|
FW-9-4GF
|
16 |
|
Turbine Washer |
|
- Outer Dia: 2.75"
- Inner Dia: 1.33"
- Material: Plastic
|
CW-9-3
|
16 |
|
Turbine Washer |
|
- Outer Dia: 2.75"
- Inner Dia: 1.33"
- Material: Plastic
|
CW-9-3B
|
16 |
|
Turbine Washer |
|
- Outer Dia: 2.75"
- Inner Dia: 1.33"
- Material: Fiber
|
CW-9-3BF
|
16 |
|
Turbine Washer |
|
- Outer Dia: 2.75"
- Inner Dia: 1.33"
- Thickness: .125"
- Material: Fiber
|
CW-9-3F
|
16 |
|
Turbine Washer |
|
- Outer Dia: 2.75"
- Inner Dia: 1.33"
- Thickness: .188"
- Material: Plastic
|
FW-9-4G
|
16_N.I. |
|
Salvage Ring™ |
Coresaver™
|
|
NPN-2-4-16_N.I.
|
17 |
|
Front Cover |
|
|
NPN-2-4-17
|

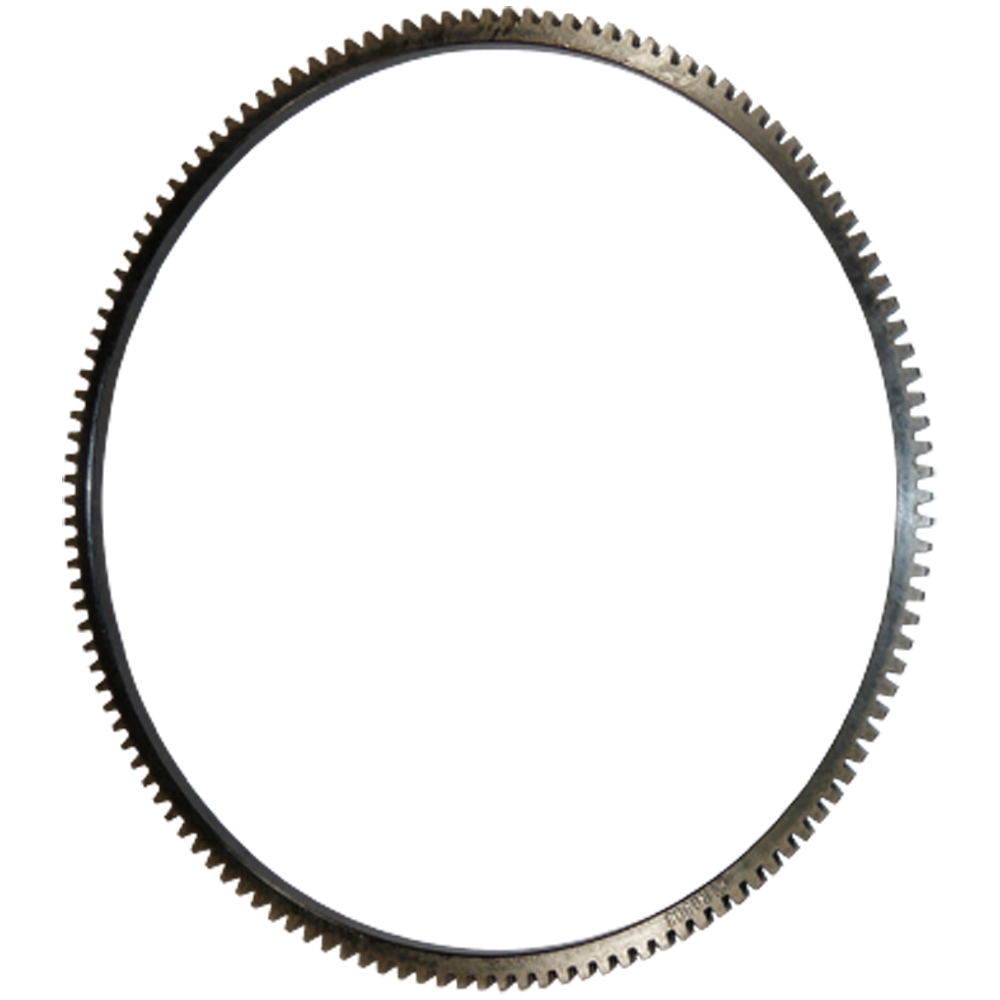

18 |
|
Ring Gear |
|
- Outer Dia: 11.16"
- Inner Dia: 10.31"
- Thickness: 0.365"
- External teeth: 132
|
RG-132
|
19 |
|
Stud |
Thin Head Type
|
|
FX-10-2
|
19 |
|
Stud |
4 Pieces Required.
|
- Thread dimensions: 3/8"-24
- Bolt head OD: 0.75"
- Bolt Head Thickness: 0.16"
|
FX-10-4
|
20 |
|
Studcap |
Plastic Stud Protector
4 Pieces Required.
|
- Inner Dia: 0.375
- Length: 0.50"
- Color: Red
- Fits 3/8" (9.5mm)
|
MHC-STD
|
20 |
|
Studcap |
4 Pieces Required.
|
|
MHC-STE
|
21 |
|
Drain Plug |
1/8-27 NPT, PTFE, Wrap
|
|
FX-11A
|
21 |
|
Drain Plug |
|
- Material: Steel
- 1/8-27 NPT
|
FX-11
|
21 |
|
Drain Plug |
|
- Allen socket drain plug for use with drilled converters.
|
FX-11B
|
22 |
|
Nut |
Converter
|
|
26761
|
22 |
|
Nut |
Special Locking
4/6 Pieces Required.
|
- Height: .34"
- Dimensions: 3/8"-24 x 0.33"
|
FX-10-7
|
22 |
|
Nut & Studcap Kit |
4 Pieces Each
4/6 Pieces Required.
|
|
FX-10-7K4STD
|
22 |
|
Nut |
Hex
|
|
N-63
|
22_N.I. |
|
Pilot |
Unfinished
Pinto
|
- Outer Dia: 0.875
- Length: .88"
|

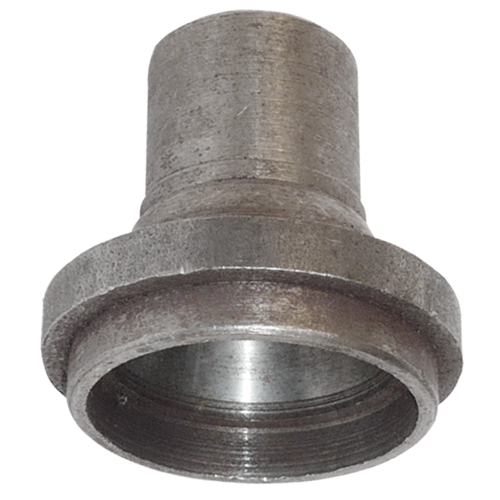

FX-17-30
|
22_N.I. |
|
Pilot |
Taunus, Capri
|
- Outer Dia: 0.77"
- Length: 1.50"
|
FX-17-5
|
