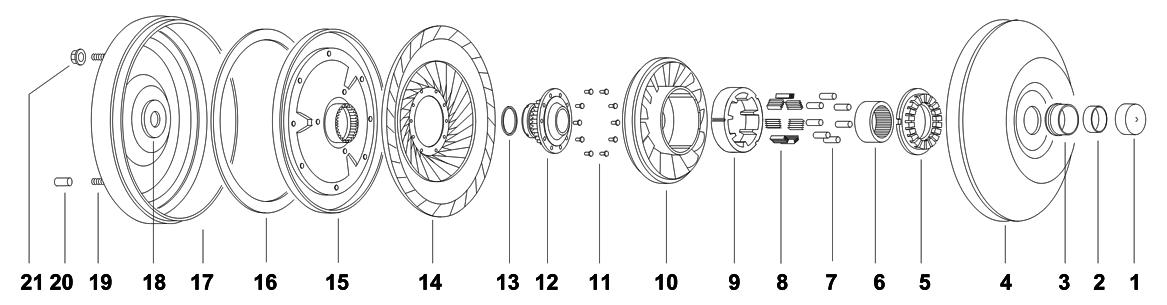

Torque Converter | Ford | AXOD / AXODE

Ill.# Image Description Specification Part #
Seal Ring
  • Height: 0.102"
  • Width: 0.089"
  • Color: Yellow With Green Speckles
  • Material: PTFE
  • Height Metric: 2.54
  • Seal Type: Scarf Cut
  • Outside Dia: 1.541"
  • Outside Dia Metric: 39.1414
 FO-25-11
Seal Ring FO-25-11
&
  • Height: 0.102"
  • Width: 0.089"
  • Color: Yellow With Green Speckles
  • Material: PTFE
  • Height Metric: 2.54
  • Seal Type: Scarf Cut
  • Outside Dia: 1.541"
  • Outside Dia Metric: 39.1414
Rivet 10 Pieces Required.
  • Length: 0.385"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12LS
Rivet FX-12LS
& 10 Pieces Required.
  • Length: 0.385"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
Impeller Hub Kit,Flange Adaptor
  • Journal Dia: 1.610"
  • Installed Height: 2.236"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • To Adapt AXOD Impellers Into A4LD
 FH-1-23-60K
Impeller Hub FH-1-23-60K
Kit,Flange Adaptor &
  • Journal Dia: 1.610"
  • Installed Height: 2.236"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • To Adapt AXOD Impellers Into A4LD
Impeller Hub Adapts AXOD Impellers Into A4LD
  • Journal Dia: 1.610"
  • Installed Height: 2.236"
  • Height: 2.64
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 2
  • Hardness: Rc 32-36
  • To Adapt AXOD Impellers Into A4LD
 FH-1-23GRC
Impeller Hub FH-1-23GRC
& Adapts AXOD Impellers Into A4LD
  • Journal Dia: 1.610"
  • Installed Height: 2.236"
  • Height: 2.64
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 2
  • Hardness: Rc 32-36
  • To Adapt AXOD Impellers Into A4LD
Impeller Hub Kit,Flange Adaptor
  • Journal Dia: 1.610"
  • Installed Height: 2.236"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • To Adapt AXOD Impellers Into A4LD
 FH-1-23K
Impeller Hub FH-1-23K
Kit,Flange Adaptor &
  • Journal Dia: 1.610"
  • Installed Height: 2.236"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • To Adapt AXOD Impellers Into A4LD
1 Hubcap Fits 2" (50.8mm). Length: 1-1/2"
  • Color: Red
  • Fits 2" (50.8mm)
 MHC-R
Hubcap MHC-R
Fits 2" (50.8mm). Length: 1-1/2" &
  • Color: Red
  • Fits 2" (50.8mm)
2 Bushing Hub
  • Thickness: 0.505"
  • Housing Bore Dia: 1.779"
  • Shaft Dia: 1.652"
  • Material: Bronze
  • Type: Precision
 FB-18-4
Bushing FB-18-4
Hub &
  • Thickness: 0.505"
  • Housing Bore Dia: 1.779"
  • Shaft Dia: 1.652"
  • Material: Bronze
  • Type: Precision
2 Bushing Hub
  • Thickness: 0.5"
  • Housing Bore Dia: 1.779"
  • Shaft Dia: 1.652"
  • Material: Bi-metal
  • Type: oversized O.D.
 FB-18-4X
Bushing FB-18-4X
Hub &
  • Thickness: 0.5"
  • Housing Bore Dia: 1.779"
  • Shaft Dia: 1.652"
  • Material: Bi-metal
  • Type: oversized O.D.
3 Misc Adapts AXOD impeller to A4LD NPN-SPL
Misc NPN-SPL
& Adapts AXOD impeller to A4LD
3 Impeller Hub Flanged
  • Journal Dia: 1.999"
  • Installed Height: 1.030"
  • Hub Mount: Flanged
  • Flange Dia: 2.375"
  • Hardness: Rc 32-36
  • Inside Dia: 2.375"
 FH-1-33FLG
Impeller Hub FH-1-33FLG
Flanged &
  • Journal Dia: 1.999"
  • Installed Height: 1.030"
  • Hub Mount: Flanged
  • Flange Dia: 2.375"
  • Hardness: Rc 32-36
  • Inside Dia: 2.375"

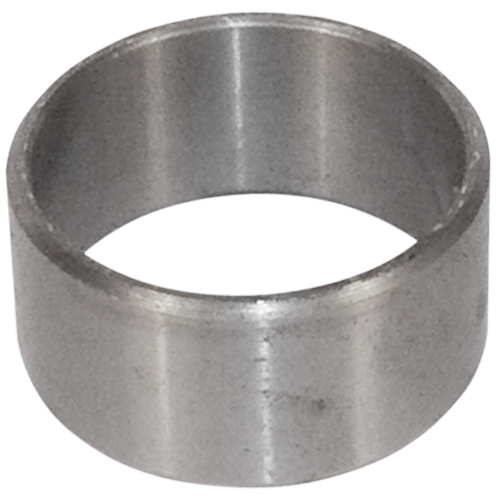

3 Impeller Hub
  • Journal Dia: 1.999"
  • Height: 0.89"
 FH-1-21G
Impeller Hub FH-1-21G
&
  • Journal Dia: 1.999"
  • Height: 0.89"
3 Impeller Hub Flanged
  • Journal Dia: 1.999"
  • Installed Height: .92"
  • Height: 1.030"
  • Hub Mount: Flanged
  • Pump Drive Type: Bushing
  • Flange Dia: 2.375"
  • Hardness: Rc 32-36
  • Inside Dia: 2.375"
 FH-1-13FLG
Impeller Hub FH-1-13FLG
Flanged &
  • Journal Dia: 1.999"
  • Installed Height: .92"
  • Height: 1.030"
  • Hub Mount: Flanged
  • Pump Drive Type: Bushing
  • Flange Dia: 2.375"
  • Hardness: Rc 32-36
  • Inside Dia: 2.375"
3 Impeller Hub Standard
  • Journal Dia: 1.999"
  • Installed Height: 1.050"
  • Hub Mount: Butt
  • Pump Drive Type: Bushing
  • Hardness: Rc 32-36
 FH-1-13GRC
Impeller Hub FH-1-13GRC
Standard &
  • Journal Dia: 1.999"
  • Installed Height: 1.050"
  • Hub Mount: Butt
  • Pump Drive Type: Bushing
  • Hardness: Rc 32-36
3 Impeller Hub
  • Journal Dia: 1.999"
  • Height: .930"
  • Hub Mount: Butt
  • Pump Drive Type: Bushing
  • Hardness: Rc 32-36
  • Mount OD: 1.90"
 FH-1-13AGRC
Impeller Hub FH-1-13AGRC
&
  • Journal Dia: 1.999"
  • Height: .930"
  • Hub Mount: Butt
  • Pump Drive Type: Bushing
  • Hardness: Rc 32-36
  • Mount OD: 1.90"
4 Impeller NPN-2-40-4
Impeller NPN-2-40-4
&
5 Stator Cap E6SP-7937AA, E9DP-7937AA
  • Thickness: 0.73"
  • Material: Phenolic
  • Outside Dia: 3.35"
  • Inside Dia: 1.7"
  • Casting#: E6SP-7937AA E9DP-7937AA
 FW-4-9
Stator Cap FW-4-9
& E6SP-7937AA, E9DP-7937AA
  • Thickness: 0.73"
  • Material: Phenolic
  • Outside Dia: 3.35"
  • Inside Dia: 1.7"
  • Casting#: E6SP-7937AA E9DP-7937AA
5 Stator Cap Use With Bearing SW-2-12
  • Thickness: 0.73"
  • Material: Aluminum
  • Outside Dia: 3.345"
  • Inside Dia: 1.700"
  • Used with bearing: SW-2-12. Outer Notch Count: 3 Total Thickness: 0.730"
 FW-4-25
Stator Cap FW-4-25
& Use With Bearing SW-2-12
  • Thickness: 0.73"
  • Material: Aluminum
  • Outside Dia: 3.345"
  • Inside Dia: 1.700"
  • Used with bearing: SW-2-12. Outer Notch Count: 3 Total Thickness: 0.730"
6 Inner Race Stator
  • Height: 0.781"
  • Internal Teeth: 32
  • Outside Dia: 2.100"
 FX-14-8
Inner Race FX-14-8
Stator &
  • Height: 0.781"
  • Internal Teeth: 32
  • Outside Dia: 2.100"
7 Roller 7 Pieces Required.
  • Dia: 0.312"
  • Length: 0.705"
 12960R
Roller 12960R
& 7 Pieces Required.
  • Dia: 0.312"
  • Length: 0.705"
7 Roller 7 Pieces Required.
  • Dia: 0.312"
  • Length: 0.71"
 FR-7-2
Roller FR-7-2
& 7 Pieces Required.
  • Dia: 0.312"
  • Length: 0.71"
8 Accordion Spring 7 Pieces Required.
  • Width: 0.28"
  • Relaxed Length: 0.255"
  • Folds: 3
  • Relaxed Height: 0.733"
 FS-6-11
Accordion Spring FS-6-11
& 7 Pieces Required.
  • Width: 0.28"
  • Relaxed Length: 0.255"
  • Folds: 3
  • Relaxed Height: 0.733"
8 Accordion Spring 7 Pieces Required.
  • Width: 0.73"
  • Relaxed Length: 0.42"
  • Folds: 4
  • Relaxed Height: 0.28"
 FS-6-8
Accordion Spring FS-6-8
& 7 Pieces Required.
  • Width: 0.73"
  • Relaxed Length: 0.42"
  • Folds: 4
  • Relaxed Height: 0.28"
9 Outer Race (Cam) Stator
  • Outside Dia: 3.360"
 FX-15-3
Outer Race (Cam) FX-15-3
Stator &
  • Outside Dia: 3.360"
10 Stator NPN-2-40-10
Stator NPN-2-40-10
&
11 Rivet 10 Pieces Required.
  • Length: 0.312"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12
Rivet FX-12
& 10 Pieces Required.
  • Length: 0.312"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
11 Rivet 10 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12L
Rivet FX-12L
& 10 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"

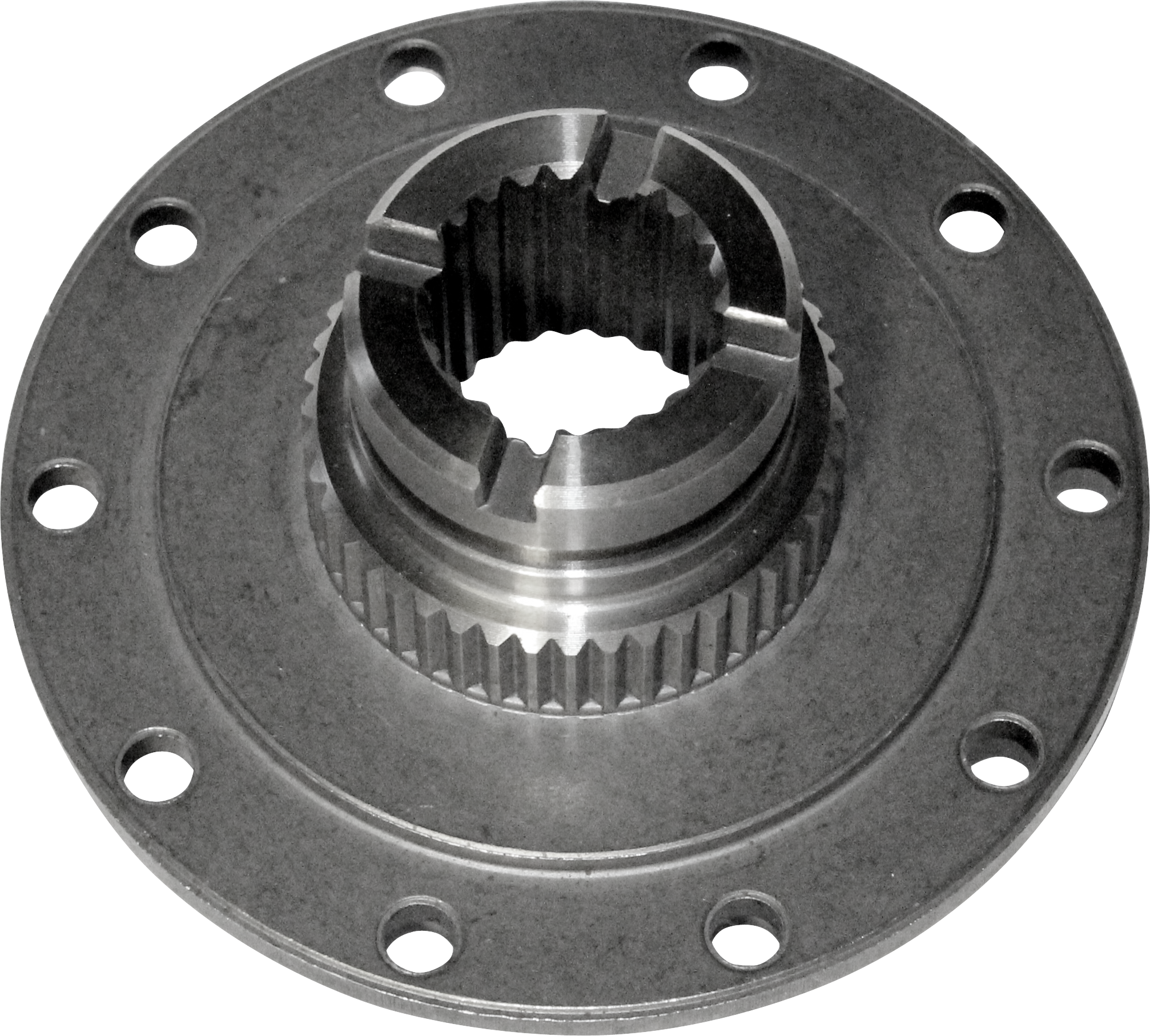

12 Turbine Hub AXOD
  • Internal Teeth: 23
  • External Teeth: 44
  • Outside Dia: 3.8"
 FX-13-14
Turbine Hub FX-13-14
& AXOD
  • Internal Teeth: 23
  • External Teeth: 44
  • Outside Dia: 3.8"
12 Turbine Hub AXODE
  • Internal Teeth: 25
  • External Teeth: 44
  • Outside Dia: 3.8"
 FX-13-31
Turbine Hub FX-13-31
& AXODE
  • Internal Teeth: 25
  • External Teeth: 44
  • Outside Dia: 3.8"

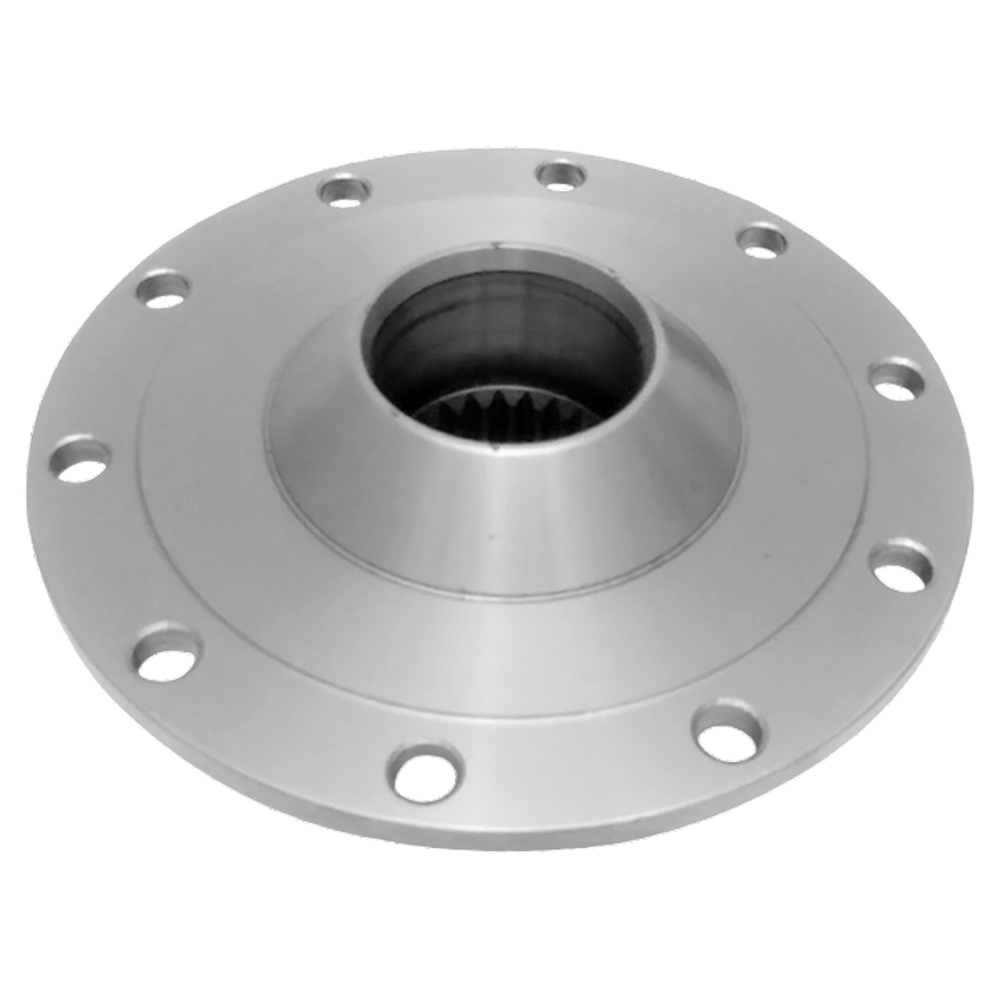

12 Turbine Hub AXODE
  • Internal Teeth: 25
  • External Teeth: 44
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.8"
 FX-13-31HT
Turbine Hub FX-13-31HT
& AXODE
  • Internal Teeth: 25
  • External Teeth: 44
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.8"
13 O-Ring For AXOD
  • Thickness: 0.139
  • Thickness metric: 3.5306
  • Material: Fluorocarbon
  • Inside Dia: 1.181
  • Inside Dia metric: 29.9974
  • For 23 Spline Turbine Hub (1-3/16" x 1/8")
 FO-25-4
O-Ring FO-25-4
& For AXOD
  • Thickness: 0.139
  • Thickness metric: 3.5306
  • Material: Fluorocarbon
  • Inside Dia: 1.181
  • Inside Dia metric: 29.9974
  • For 23 Spline Turbine Hub (1-3/16" x 1/8")
13 O-Ring For AXODE
  • Thickness: 0.094
  • Thickness metric: 2.3876
  • Material: Fluorocarbon
  • Inside Dia: 1.237
  • Inside Dia metric: 31.75
  • For 25 Spline Turbine Hub
 FO-25-7
O-Ring FO-25-7
& For AXODE
  • Thickness: 0.094
  • Thickness metric: 2.3876
  • Material: Fluorocarbon
  • Inside Dia: 1.237
  • Inside Dia metric: 31.75
  • For 25 Spline Turbine Hub
13 O-Ring
  • Thickness: 0.105
  • Thickness metric: 2.667
  • Material: Fluorocarbon
  • Inside Dia: 1.237
  • Inside Dia metric: 31.4198
 FO-25-7X
O-Ring FO-25-7X
&
  • Thickness: 0.105
  • Thickness metric: 2.667
  • Material: Fluorocarbon
  • Inside Dia: 1.237
  • Inside Dia metric: 31.4198
14 Turbine
  • Outside Dia: 10-1/4"
 NPN-2-40-14
Turbine NPN-2-40-14
&
  • Outside Dia: 10-1/4"

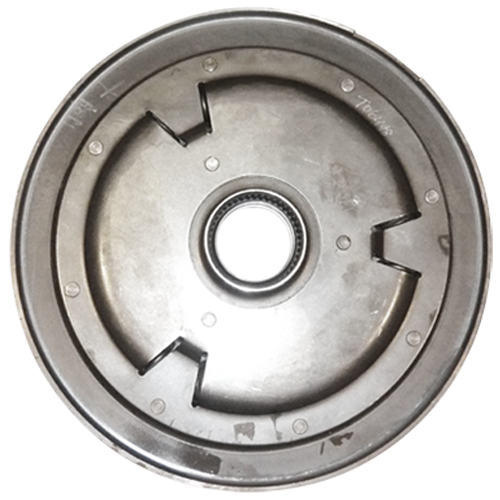

15 Clutch Plate Assembly 3.0 Liter
  • Outside Dia: 9.750
 FX-23-5
Clutch Plate Assembly FX-23-5
& 3.0 Liter
  • Outside Dia: 9.750

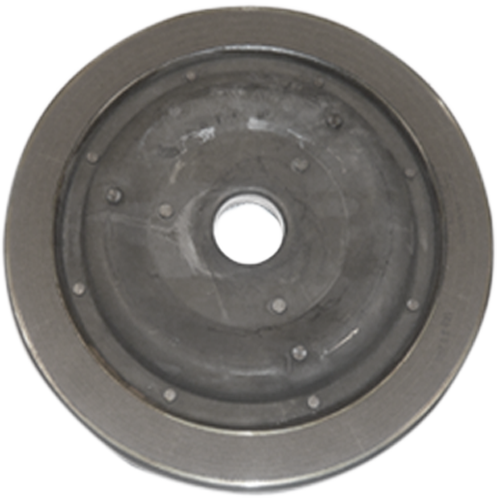

15 Clutch Plate Assembly
  • Outside Dia: 10.250
  • 3.8 Liter
 FX-23-9
Clutch Plate Assembly FX-23-9
&
  • Outside Dia: 10.250
  • 3.8 Liter
16 Lining (Friction Ring,Wafer) 3.0 Liter
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.25"
  • Inside Dia: 8.125"
  • 9 Springs, 6 Deep Dimples
 FX-23-6
Lining (Friction Ring,Wafer) FX-23-6
& 3.0 Liter
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.25"
  • Inside Dia: 8.125"
  • 9 Springs, 6 Deep Dimples
16 Lining (Friction Ring,Wafer) 3.8 Liter
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.75"
  • Inside Dia: 8.25"
 YX-23-3
Lining (Friction Ring,Wafer) YX-23-3
& 3.8 Liter
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.75"
  • Inside Dia: 8.25"
16 Lining (Friction Ring,Wafer) (Alternate)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.688"
  • Inside Dia: 8.25"
 FX-23-19
Lining (Friction Ring,Wafer) FX-23-19
& (Alternate)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.688"
  • Inside Dia: 8.25"
16 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.625"
  • Inside Dia: 8.063"
 FX-23-25
Lining (Friction Ring,Wafer) FX-23-25
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.625"
  • Inside Dia: 8.063"
16 Floating Ring
  • Thickness: .045"
  • Outside Dia: 10.344
  • Inside Dia: 7"
 FX-23-7
Floating Ring FX-23-7
&
  • Thickness: .045"
  • Outside Dia: 10.344
  • Inside Dia: 7"
16 Floating Ring Kevlar®
  • Outside Dia: 10.344
  • Inside Dia: 7"
 FX-23-7K
Floating Ring FX-23-7K
Kevlar® &
  • Outside Dia: 10.344
  • Inside Dia: 7"
16 Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.75"
  • Inside Dia: 8.125"
 FX-23-89
Lining (Friction Ring,Wafer) FX-23-89
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.75"
  • Inside Dia: 8.125"
17 Front Cover NPN-2-40-17
Front Cover NPN-2-40-17
&
18 Pump Drive Plate
  • Thickness: 0.157"
  • Internal Teeth: 18
  • Outside Dia: 2.056"
 FX-22-22
Pump Drive Plate FX-22-22
&
  • Thickness: 0.157"
  • Internal Teeth: 18
  • Outside Dia: 2.056"
18 Plate Pump Drive, Upgrade
  • Thickness: 0.24"
  • Internal Teeth: 18
  • Outside Dia: 2.055"
 FX-22-30
Plate FX-22-30
Pump Drive, Upgrade &
  • Thickness: 0.24"
  • Internal Teeth: 18
  • Outside Dia: 2.055"
19 Stud Threaded, Round Head 4 Pieces Required.
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 0.83"
  • Bolt Head Thickness: 0.21"
 FX-10-12
Stud FX-10-12
Threaded, Round Head & 4 Pieces Required.
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 0.83"
  • Bolt Head Thickness: 0.21"
19 Bracket 4 Pieces Required. FX-10-15
Bracket FX-10-15
& 4 Pieces Required.
19 Stud Threaded, " T" Head 4 Pieces Required.
  • Length: .50" under the head
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 1.06"
  • Bolt Head Thickness: 0.23"
 FX-10-13
Stud FX-10-13
Threaded, " T" Head & 4 Pieces Required.
  • Length: .50" under the head
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 1.06"
  • Bolt Head Thickness: 0.23"
19 Stud 4 Pieces Required.
  • Length: 16mm
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 0.77"
  • Bolt Head Thickness: 0.16"
 FX-10-9
Stud FX-10-9
& 4 Pieces Required.
  • Length: 16mm
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 0.77"
  • Bolt Head Thickness: 0.16"
20 Studcap Plastic Stud Protector 4 Pieces Required.
  • Length: 0.50"
  • Color: Red
  • Inside Dia: 0.375
  • Fits 3/8" (9.5mm)
 MHC-STD
Studcap MHC-STD
Plastic Stud Protector & 4 Pieces Required.
  • Length: 0.50"
  • Color: Red
  • Inside Dia: 0.375
  • Fits 3/8" (9.5mm)
20 Studcap 4 Pieces Required.
  • Inside Dia: 0.375
 MHC-STE
Studcap MHC-STE
& 4 Pieces Required.
  • Inside Dia: 0.375
21 Nut 4 Pieces Required.
  • Dimensions: M10 x 1mm
  • Length: 8.5mm
 FX-10-17
Nut FX-10-17
& 4 Pieces Required.
  • Dimensions: M10 x 1mm
  • Length: 8.5mm
