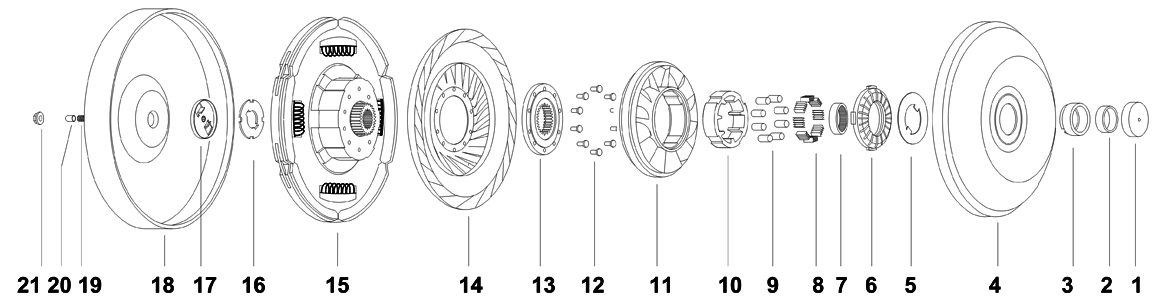

Torque Converter | Ford | ATX Lockup & Non-Lockup

Ill.# Image Description Specification Part #
1 Hubcap Fits 2-3/8" (60.3mm). Length: 1/2"
  • Color: White
 MHC-W
2 Bushing Converter Hub
  • Outer Dia: 2.067
  • Inner Dia: 1.9470
 86001
2 Bushing Hub
  • Outer Dia: 2.067
  • Inner Dia: 1.9470
  • Width: 0.53
  • housing bore dia: 2.063
  • Shaft Dia: 1.941
  • Material: Bronze
 FB-18

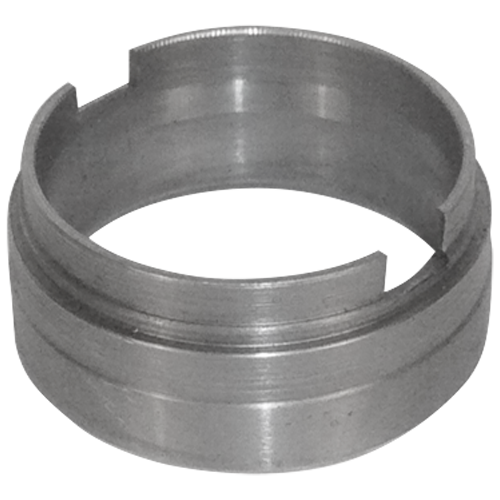

3 Impeller Hub
  • Journal Dia: 2.367"
  • Installed Height: 0.95"
  • Hub Mount: Thru
 FH-1-12G
3 Impeller Hub FH-1-12GRC
3 Impeller Hub FH-1-37G

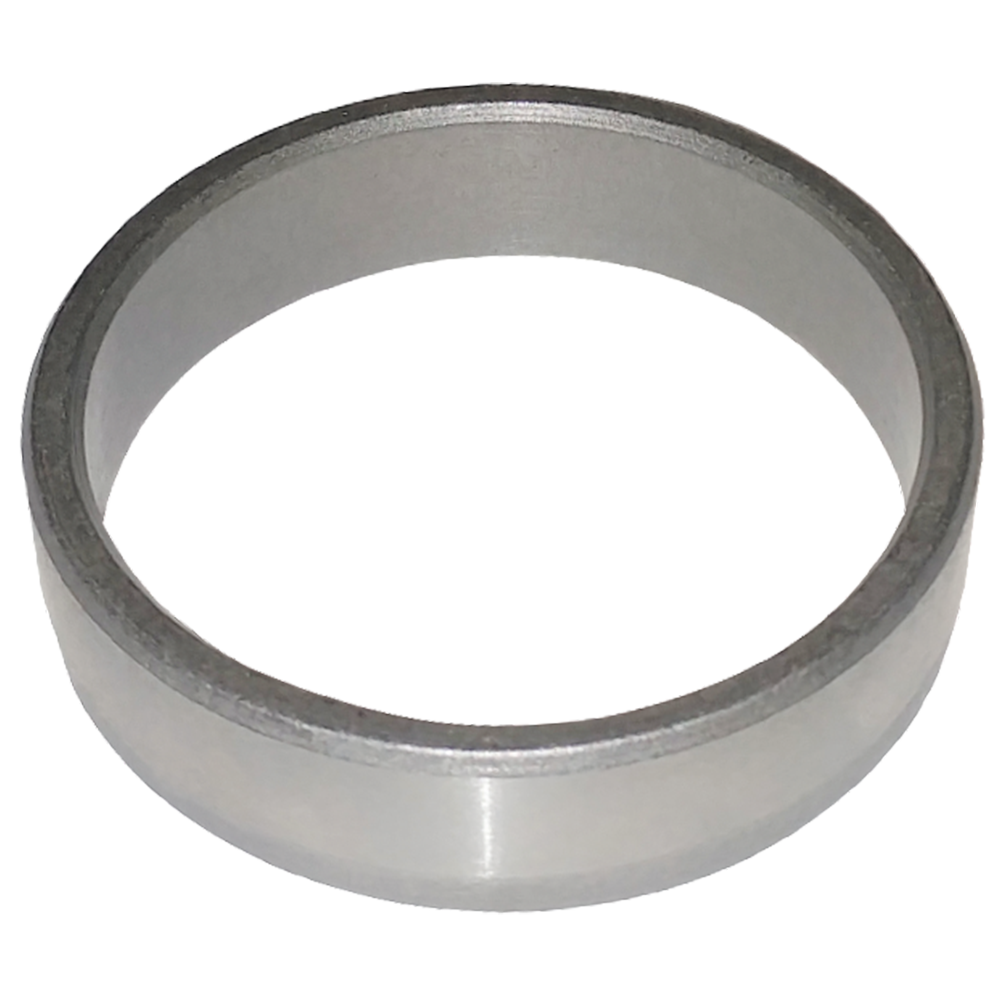

3 Impeller Hub
  • Journal Dia: 2.367"
  • Installed Height: 0.56"
  • Hardness: Rc 32-36
  • Mount OD: 2.33"
 FH-1-37GRC
4 Impeller NPN-2-34-4
5 Washer
  • Outer Dia: 3.70"
  • Inner Dia: 2.18"
  • Thickness: .09"
  • Material: Steel
  • 2 Lugs
 FW-2-2
5_N.I. Washer 4 Tangs, Stator Rear Rear
  • Outer Dia: 3.66"
  • Inner Dia: 2.58"
  • Material: Bronze
 FW-3-3

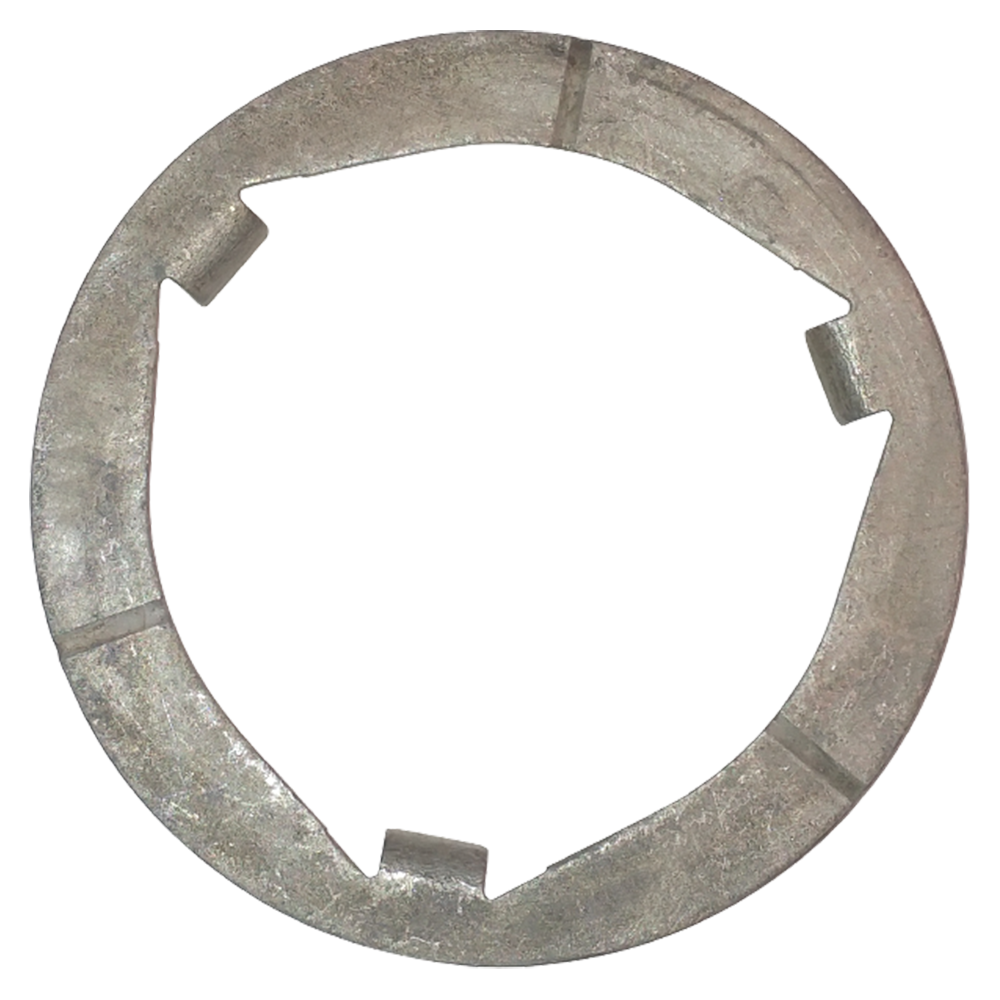

5_N.I. Washer Stator, Front, 3 Tangs
  • Outer Dia: 3.42"
  • Inner Dia: 2.57"
  • Material: Bronze
 FW-3-4
6 Stator Cap Rear
  • Outer Dia: 4"
  • Inner Dia: 2.18"
  • Material: Aluminum
  • 4 Lugs (E1EP-7F435-BA)
 FW-4-5
6 Stator Cap For "Open" (Non-Lockup)
  • Outer Dia: 3.35"
  • Inner Dia: 2.24"
  • Thickness: 0.73"
  • Material: Phenolic
 FW-4-12
6 Stator Cap
  • Outer Dia: 4"
  • Inner Dia: 2.18"
  • Thickness: 0.33"
  • Material: Phenolic
  • Replaces FW-4-5 & FW-3-3 (E4EP-7937-AA)
 FW-4-7
6 Stator Cap Front, 3 Lugs
  • Outer Dia: 4.25"
  • Inner Dia: 2.18"
  • Material: Aluminum
  • (E1EP-7F435-AA)
 FW-4-6
7 Inner Race Stator
  • Height: 0.490"
  • Outer Dia: 2.310"
  • Internal Teeth: 48
 FX-14-4
7 Inner Race Stator
  • Height: 0.781"
  • Outer Dia: 2.100"
  • Internal Teeth: 32
 FX-14-8

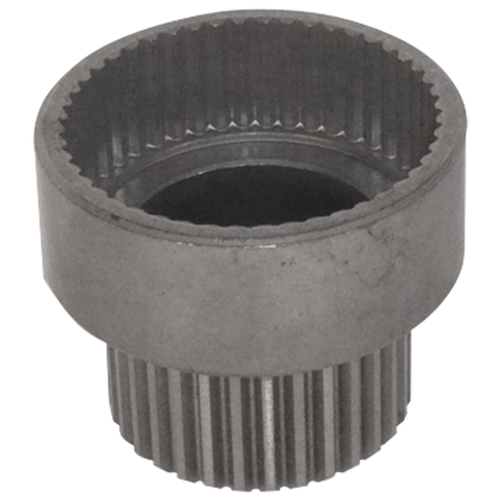

7 Sleeve Double Spline For "Open"(Non-Lockup)
  • Internal Teeth: 32
  • External teeth: 48
 FX-14-7
8 Accordion Spring 8 Pieces Required.
  • Height: 0.28"
  • Width: 0.44"
  • Folds: 4
 FS-6-5
8 Accordion Spring For "Open" (Non-Lockup). 8 Pieces Required.
  • Height: 0.28"
  • Width: 0.73"
  • Folds: 4
 FS-6-8
9 Roller 8 Pieces Required.
  • Dia: 0.312"
  • Length: 0.444"
 SR-7-1
9 Roller 8 Pieces Required.
  • Dia: 0.31"
  • Length: 0.437"
 35724R
9 Roller 8 Pieces Required.
  • Dia: 0.312"
  • Length: 0.432"
 FR-7-1
9 Roller
  • Dia: 0.312"
  • Length: 0.705"
 12960R
9 Roller For "Open" (Non-Lockup). 8 Pieces Required.
  • Dia: 0.312"
  • Length: 0.71"
 FR-7-2
10 Outer Race (Cam) Stator For Split Torque Planetary
  • Height: .50"
 FX-15-5
10 Outer Race (Cam) Stator
  • Outer Dia: 3.360"
 FX-15-3
11 Stator NPN-2-34-11
12 Rivet 10 Pieces Required.
  • Length: 0.312"
  • Rivet solid or tubular: T
  • Rivet Shank Dia: 0.214"
  • Rivet head dia: 0.312"
 FX-12
12 Rivet 10 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: T
  • Rivet Shank Dia: 0.214"
  • Rivet head dia: 0.312"
 FX-12L

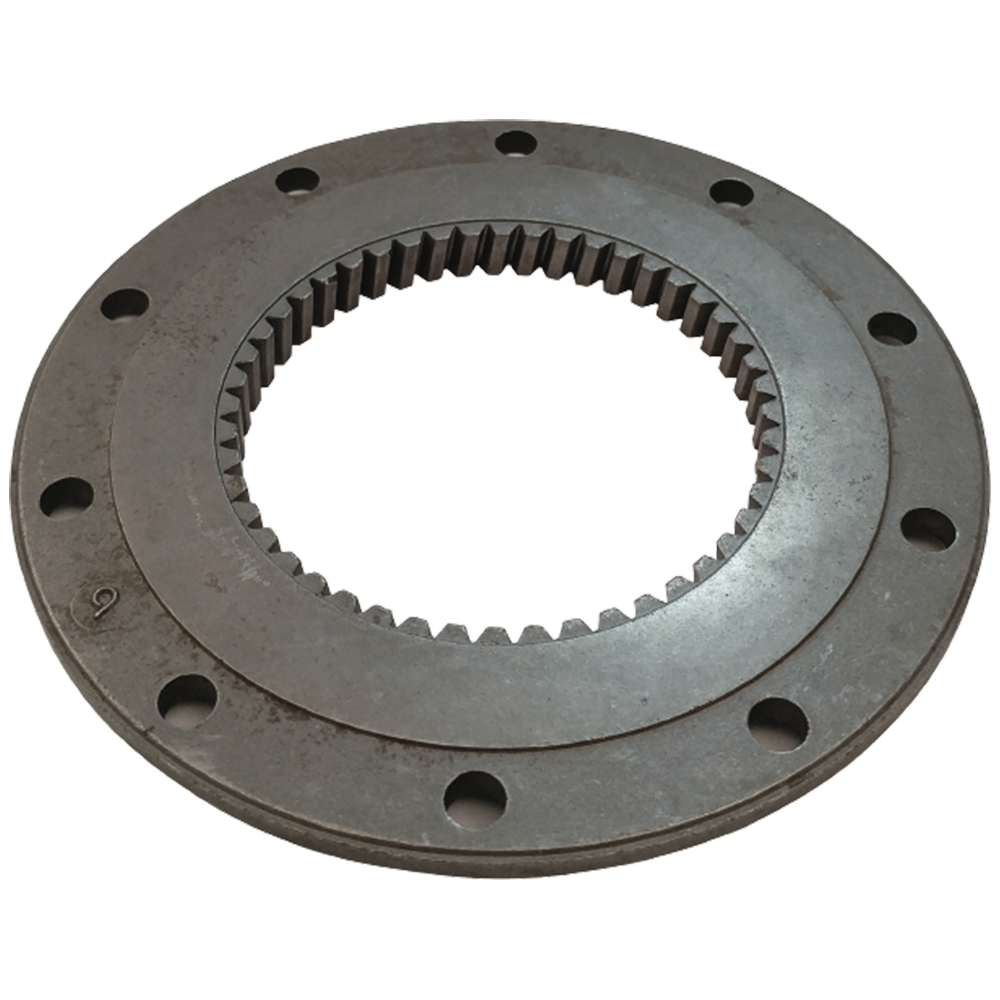

13 Turbine Hub
  • Internal Teeth: 48
  • For Split Torque Planetary
 FX-13-11
13 Turbine Hub
  • Outer Dia: 4.3"
  • Internal Teeth: 44

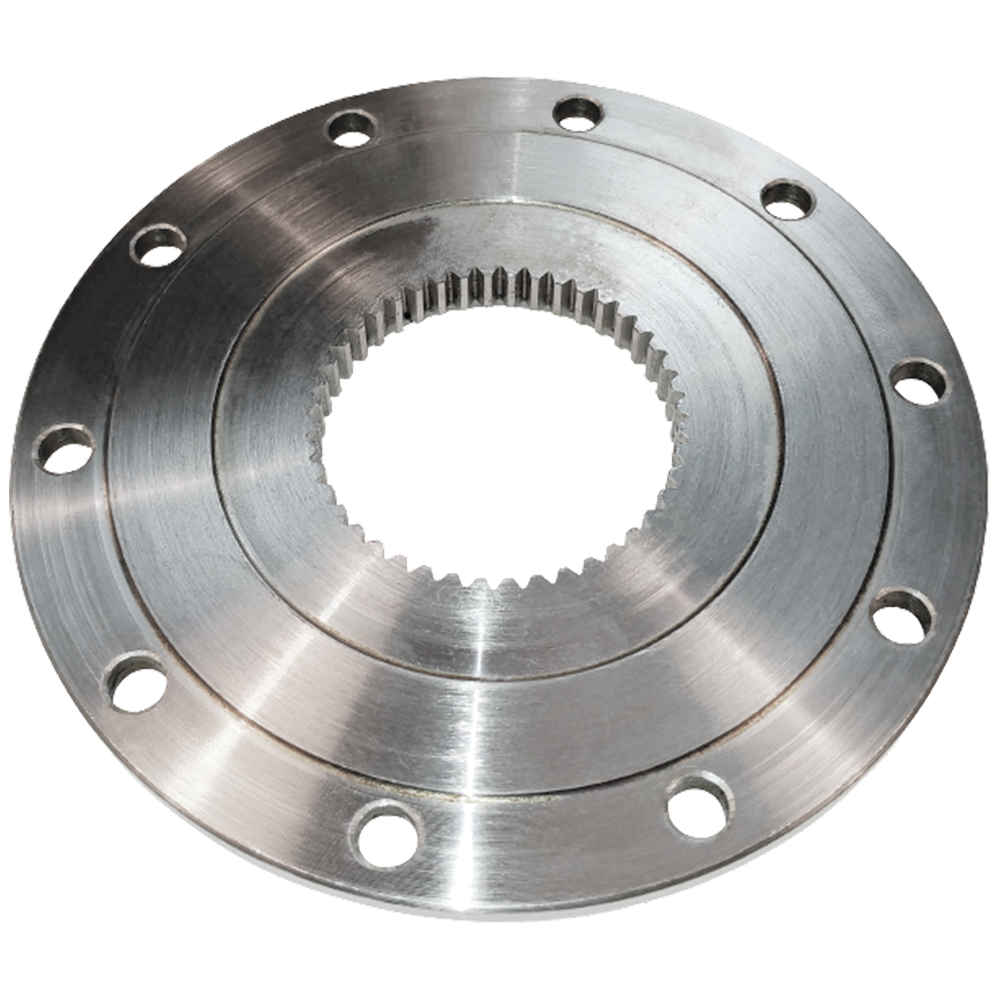

  • For CLC With Brake Shoes
 FX-13-15
13 Turbine Hub
  • Outer Dia: 4.3"
  • Internal Teeth: 44
  • Hardness: Heat Treated
 FX-13-15HT
13 Turbine Hub "Open" (Non-Lockup)
  • Outer Dia: 3.8"
  • Internal Teeth: 30
 FX-13-16
13 Sleeve Turbine, Triple Spline
  • For "Open" (Non-Lockup)
 FX-13-17
14 Turbine
  • Outer Dia: 9 1/4"
 NPN-2-34-14
15 Misc NPN-SPL
15 Clutch NPN-2-34-15
15 Insert Planetary Repair
  • Height: 0.970
  • Outer Dia: 1.15"
  • Internal Teeth: 24
 FX-13-18

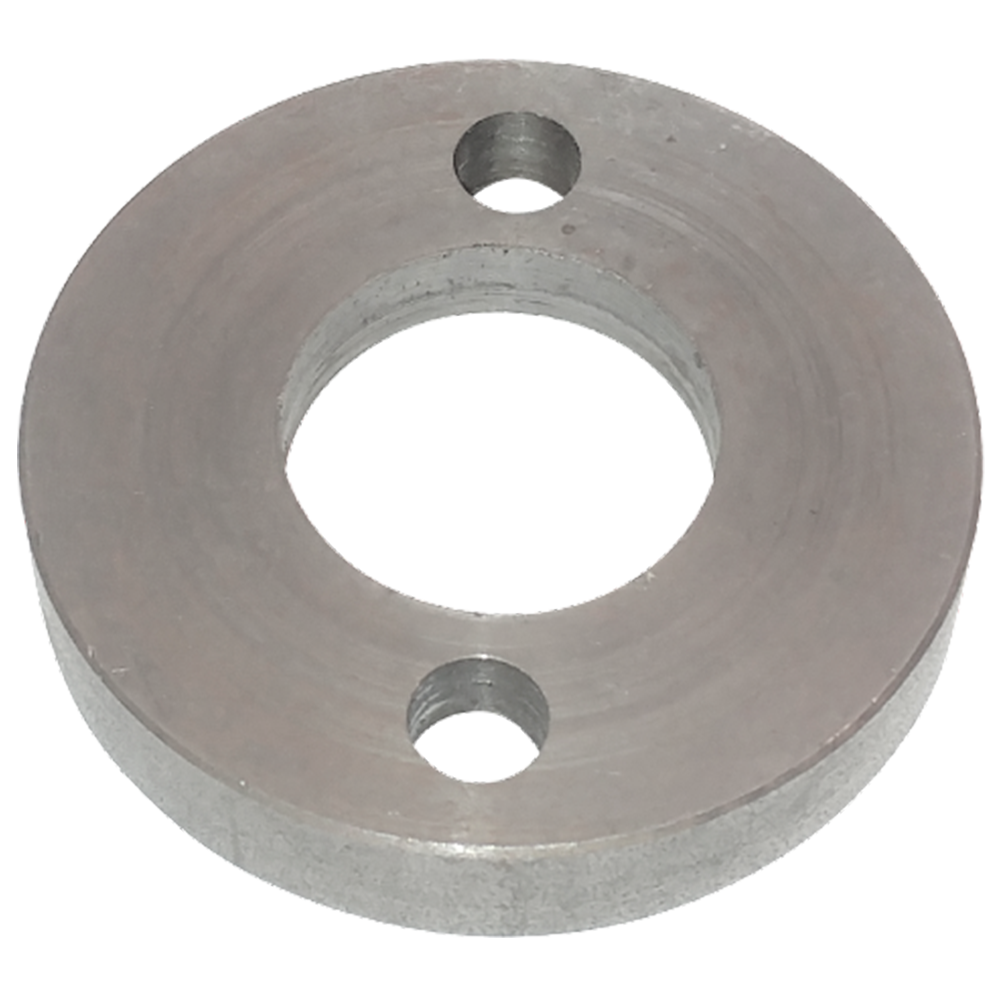

15 Thrust Pad Use with FX-13-18 & FW-9-7 To Eliminate Planetary FX-22-24
15 Insert Kit
  • Weld-In Kit, Eliminates Planetary Gear Set, With Instructions.
 FX-13-28K
15 Bushing Sun Gear, For Split Torque Planetary
  • Outer Dia: 1.284
  • Inner Dia: 1.1630
  • Width: 0.408
  • Material: Bronze
 FB-18-1
15 Washer Sun Gear, For Split Torque Planetary FW-9-7
15 Washer Ring Gear For Split Torque Planetary FW-9-8
15 Lining, Brake Shoe AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN. 6 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
 FX-23-222L
15 Brake Shoe 6 Pieces Required.
  • For CLC
 FX-23-222R

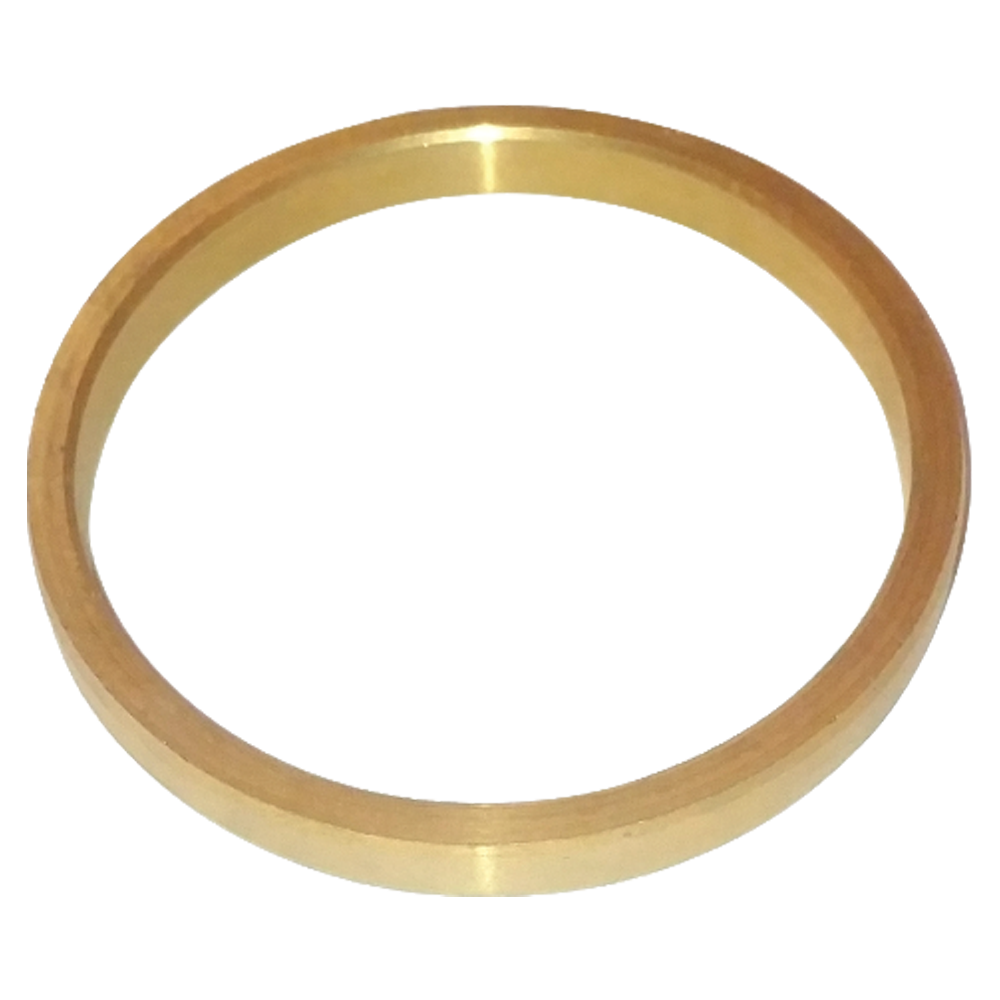

15 Bushing Clutch To Cover For CLC
  • Outer Dia: 2.682
  • Inner Dia: 2.4840
  • Width: 0.3
  • Material: Bronze
 FB-18-5
16 Turbine Washer For ATX "Open" Late Model
  • Outer Dia: 2.02"
  • Inner Dia: 0.312"
  • Thickness: 0.155"
  • Material: Bronze
 FW-9-14

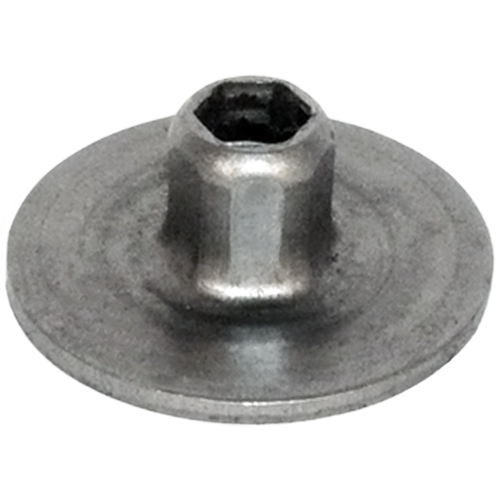

17 Insert Hex, Pump Drive, OE Style Weld in
  • Height: 0.58"
  • Outer Dia: 1.18"
  • Internal Teeth: Hex
  • Drive Style: 5/16" Hex
 FX-22-21
17 Plate Hex
  • Height: 0.58"
  • Outer Dia: 1.87"
  • Internal Teeth: Hex
  • For "Open" Non-Lockup
 FX-22-23
17 Plate Hex For ATX With Centrifugal Lockup Clutch FX-22-26
17 Damper Eliminator FX-22-26K
17.N.I Thrust Plate Ring Gear, Ext. Spline, (Split Torque Planetary)
  • Outer Dia: 4.00"
 FX-27-5
18 Front Cover NPN-2-34-18
19 Stud Threaded, " T" Head 4 Pieces Required.
  • Length: .50" under the head
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 1.06"
  • Bolt Head Thickness: 0.23"
 FX-10-13
19 Stud
  • Length: 16mm
  • Thread dimensions: M10 x 1.0
  • Bolt head OD: 0.77"
  • Bolt Head Thickness: 0.16"
 FX-10-9
20 Studcap Plastic Stud Protector 4 Pieces Required.
  • Inner Dia: 0.375
  • Length: 0.50"
  • Color: Red
  • Fits 3/8" (9.5mm)
 MHC-STD
20 Studcap 4 Pieces Required.
  • Inner Dia: 0.375
 MHC-STE

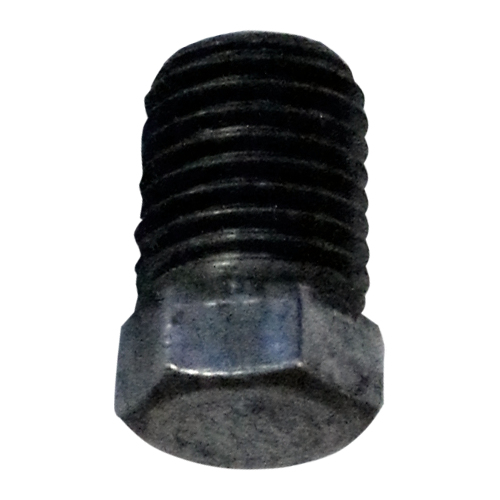

20_N.I. Drain Plug 1/16 Npt For Split Torque Planetary TX-11
21 Nut 4 Pieces Required.
  • Dimensions: M10 x 1mm x 8.5mm
 FX-10-17
0 Rivet
  • Length: 0.385"
  • Rivet solid or tubular: S
  • Rivet Shank Dia: 0.214"
  • Rivet head dia: 0.312"
 FX-12LS
8 Accordion Spring
  • Height: 0.28"
  • Width: 0.44"
  • Folds: 4
 VS-6
8 Accordion Spring
  • Height: 0.28"
  • Width: 0.73"
  • Folds: 3
 FS-6-11
