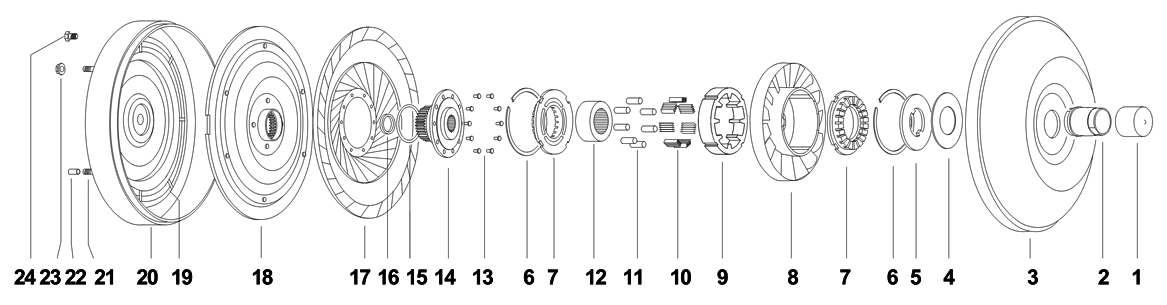

Torque Converter | Ford | AOD-E, 4R70W & 4R75W

Ill.#		Description	Specification	Part #
	Impeller Hub		Inside Dia: 1.688	FH-1-CB6
	Stator Cap	Bearing Adapter Fits SW-2-12 bearing	Thickness: .66" Material: Aluminum Outside Dia: 3.6" Inside Dia: 2" Bearing: SW-2-12	FW-4-14A
	Rivet	10 Pieces Required.	Length: 0.385" Rivet solid or tubular: Solid Rivet Shank Dia: 0.214" Rivet Head Dia: 0.312"	FX-12LS
	Lining (Friction Ring,Wafer)		Thickness: 0.045" Material: Red Outside Dia: 10.5 Inside Dia: 9.125	FX-23-59
	Misc			NPN-SPL

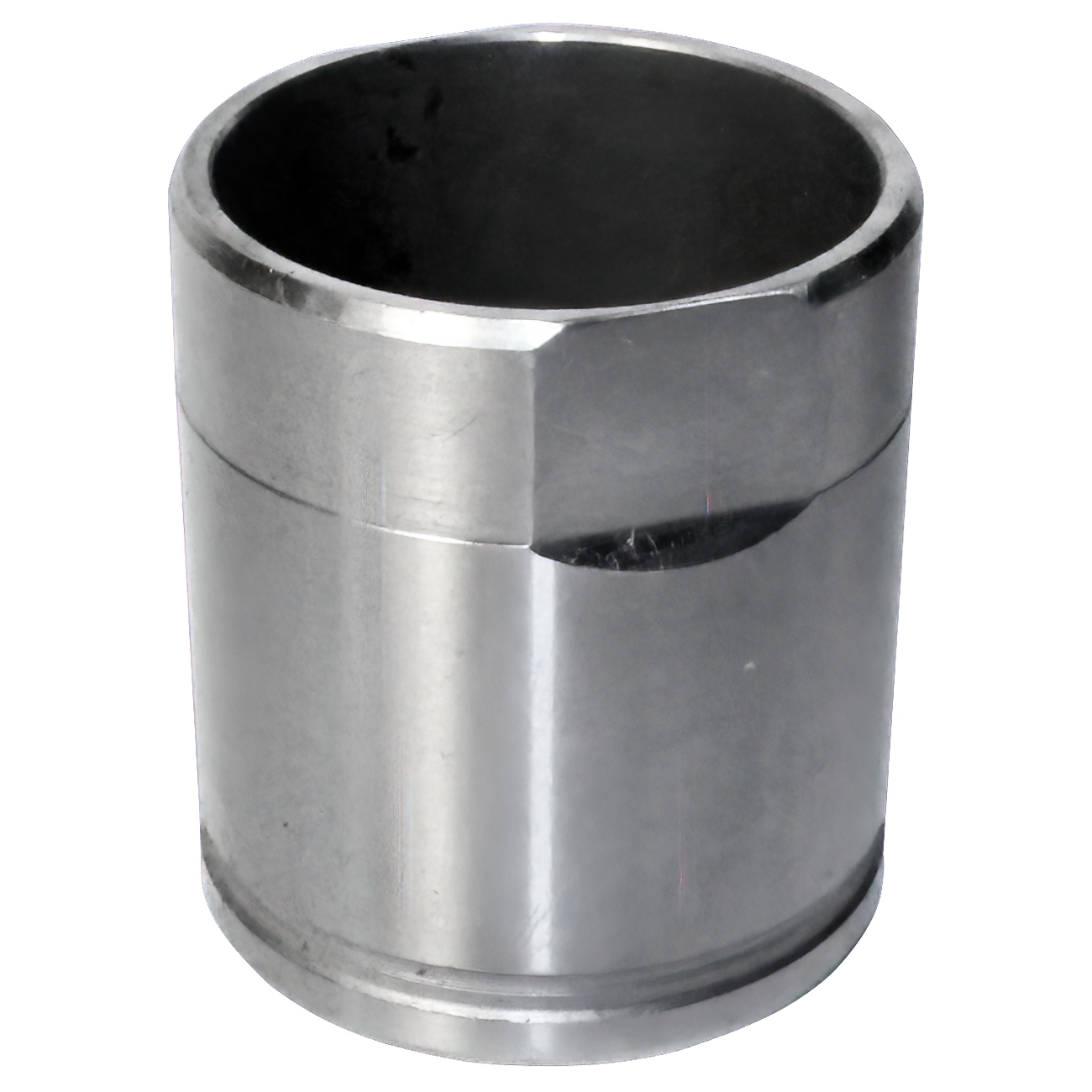

	Impeller Hub		Journal Dia: 1.997" Height: 2.312" Hub Mount: Butt Pump Drive Type: Flats Hardness: Rc 32-36 Inside Dia: 1.688	FH-1-CB5GRC
	Impeller Hub		Journal Dia: 1.997" Height: 2.312" Hub Mount: Butt Pump Drive Type: Flats Inside Dia: 1.688	FH-1-CB6G
	Impeller Hub		Journal Dia: 1.997" Height: 2.312" Hub Mount: Butt Pump Drive Type: Flats Hardness: Rc 32-36 Inside Dia: 1.688	FH-1-CB6GRC
1	Hubcap	Fits 2" (50.8mm). Length: 1-1/2"	Color: Red Fits 2" (50.8mm)	MHC-R
2	Impeller Hub		Hub Mount: Thru Pump Drive Type: Flats Hardness: Rc 32-36 Inside Dia: 1.75	FH-1-5FGRCD
2	Impeller Hub		Inside Dia: 1.75	FH-1-6F

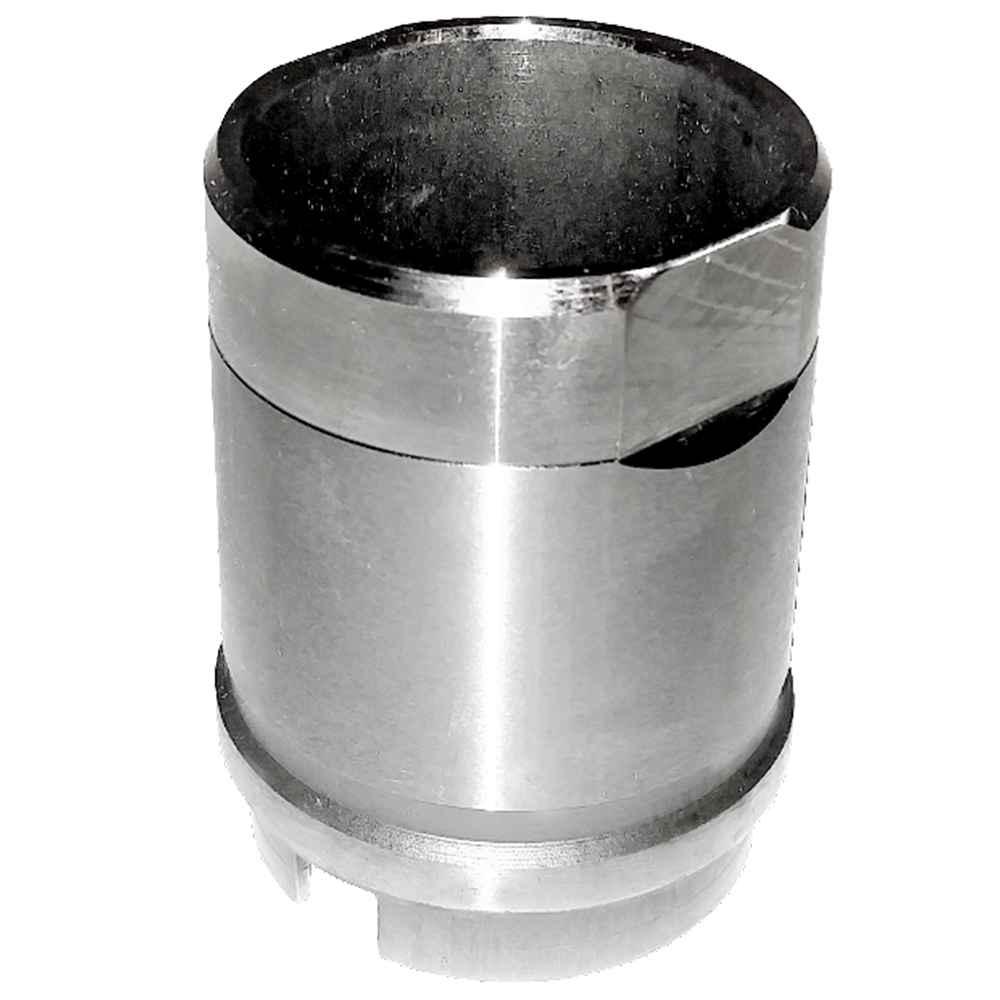

2	Impeller Hub		Journal Dia: 1.997" Installed Height: 2.318" Pump Drive Type: Flats Hardness: Rc 32-36	FH-1-2312GRC

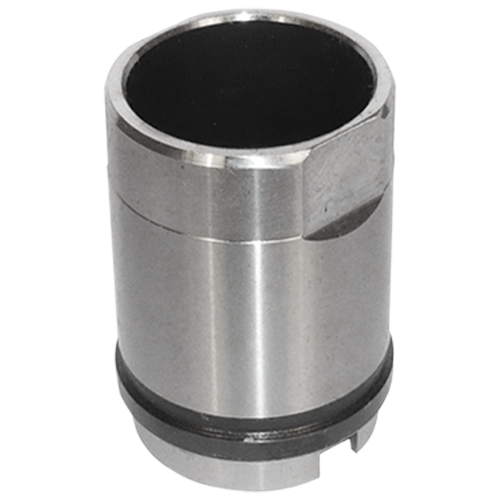

2	Impeller Hub	Heat Treated	Journal Dia: 1.997" Installed Height: 2.312" Height: 2.622" Hub Mount: Thru Pump Drive Type: Flats Hardness: Rc 32-36	FH-1-3107GRC

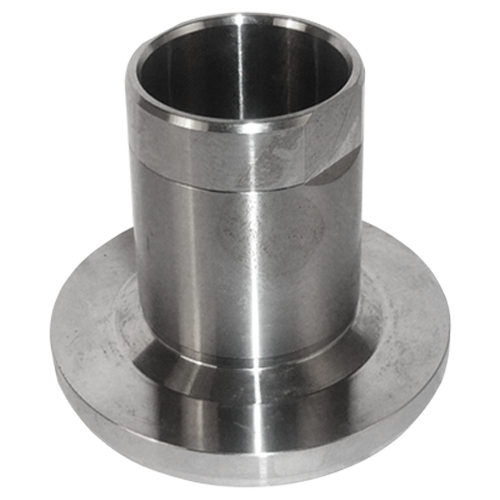

2	Impeller Hub	Flanged, AOD, C-6, C-4	Journal Dia: 1.997" Installed Height: 2.624" Height: 2.774" Hub Mount: Flanged Pump Drive Type: Flats Flange Dia: 3.645"	FH-1-25FLG

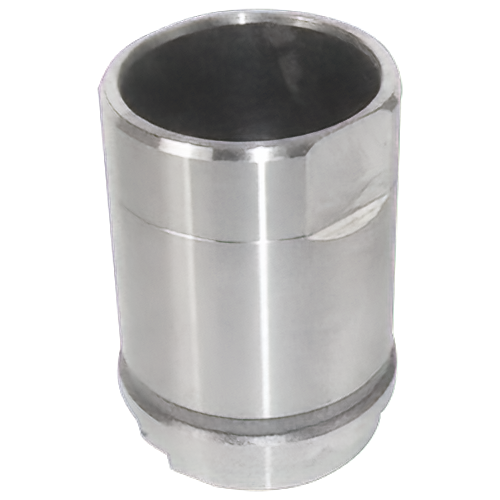

2	Impeller Hub		Journal Dia: 1.997" Installed Height: 2.396 Length: 2.697 Hub Mount: Thru Pump Drive Type: Flats Hardness: Rc 32-36 Inside Dia: 1.75	FH-1-5FGRC

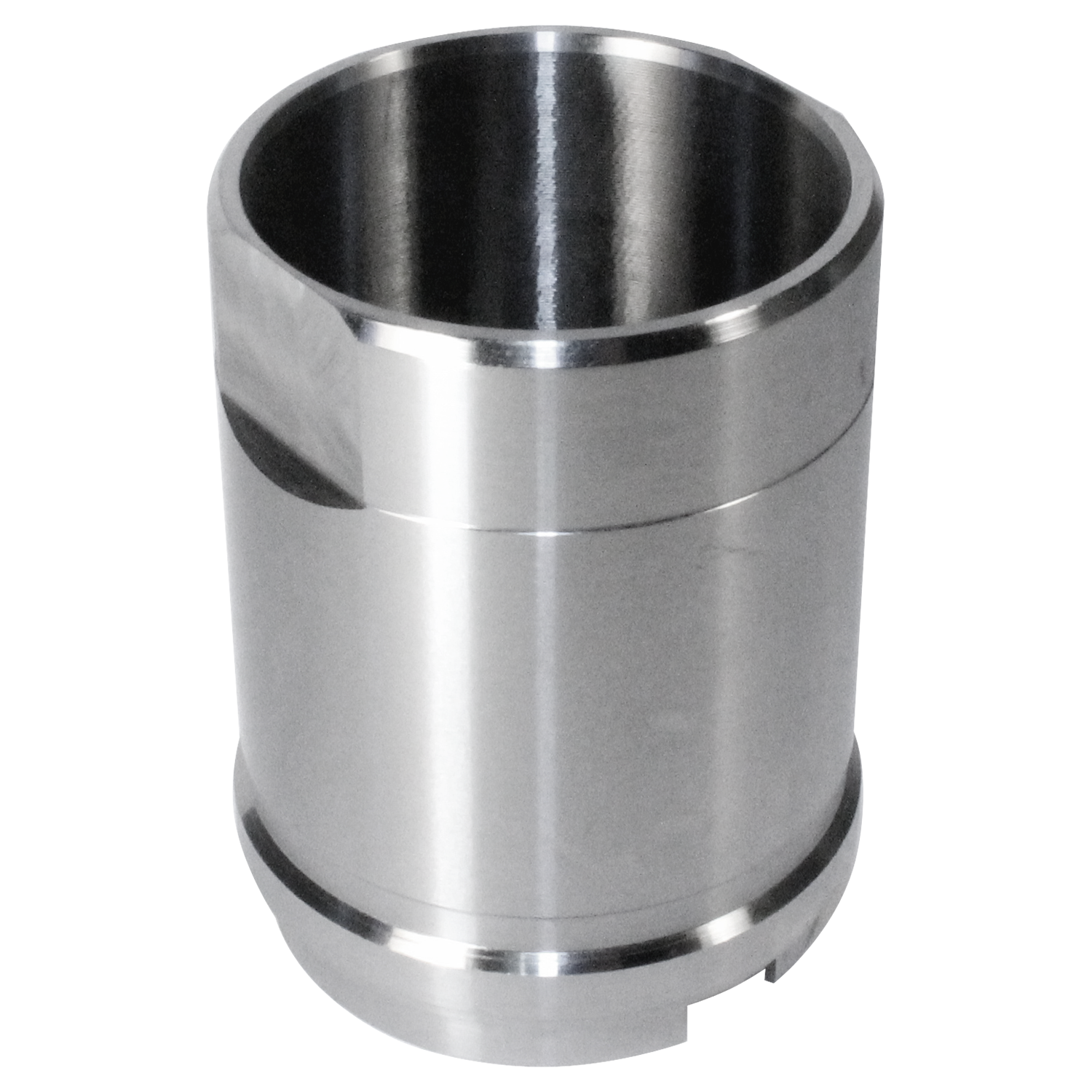

2	Impeller Hub		Journal Dia: 1.997" Installed Height: 2.396 Length: 2.697 Hub Mount: Thru Pump Drive Type: Flats Hardness: Rc 32-36 Inside Dia: 1.75	FH-1-6FGRC
3	Impeller			NPN-2-32-3

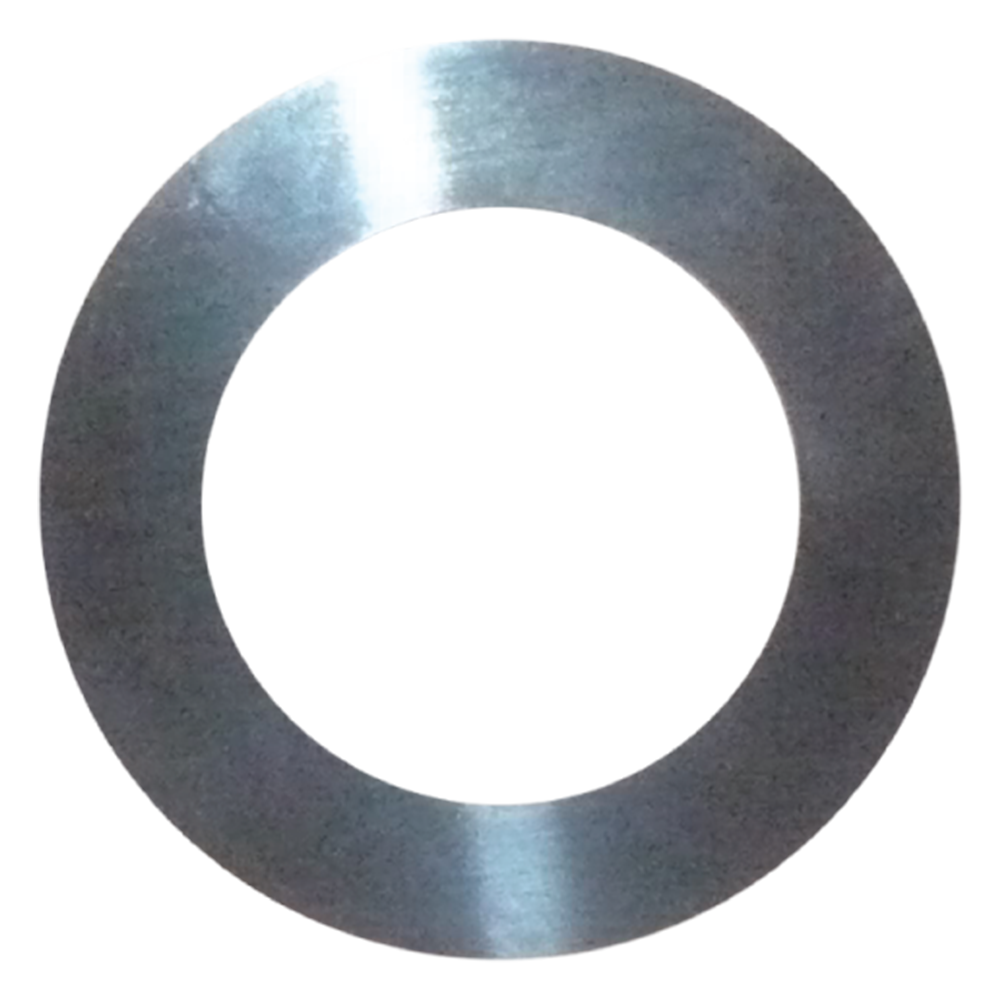

4	Shim		Thickness: 0.010" Material: Steel Outside Dia: 2.938" Inside Dia: 1.875"	MW-2-10

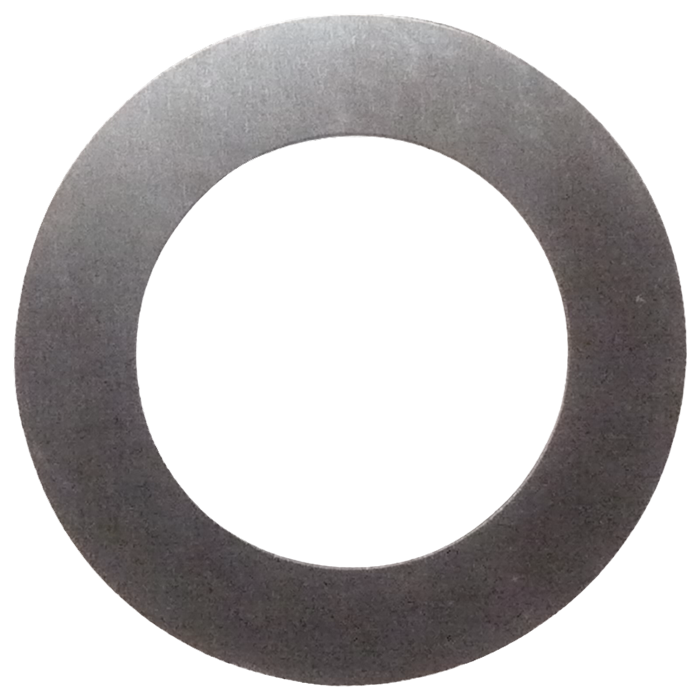

4	Shim		Thickness: 0.02" Outside Dia: 2.938" Inside Dia: 1.875"	MW-2-20

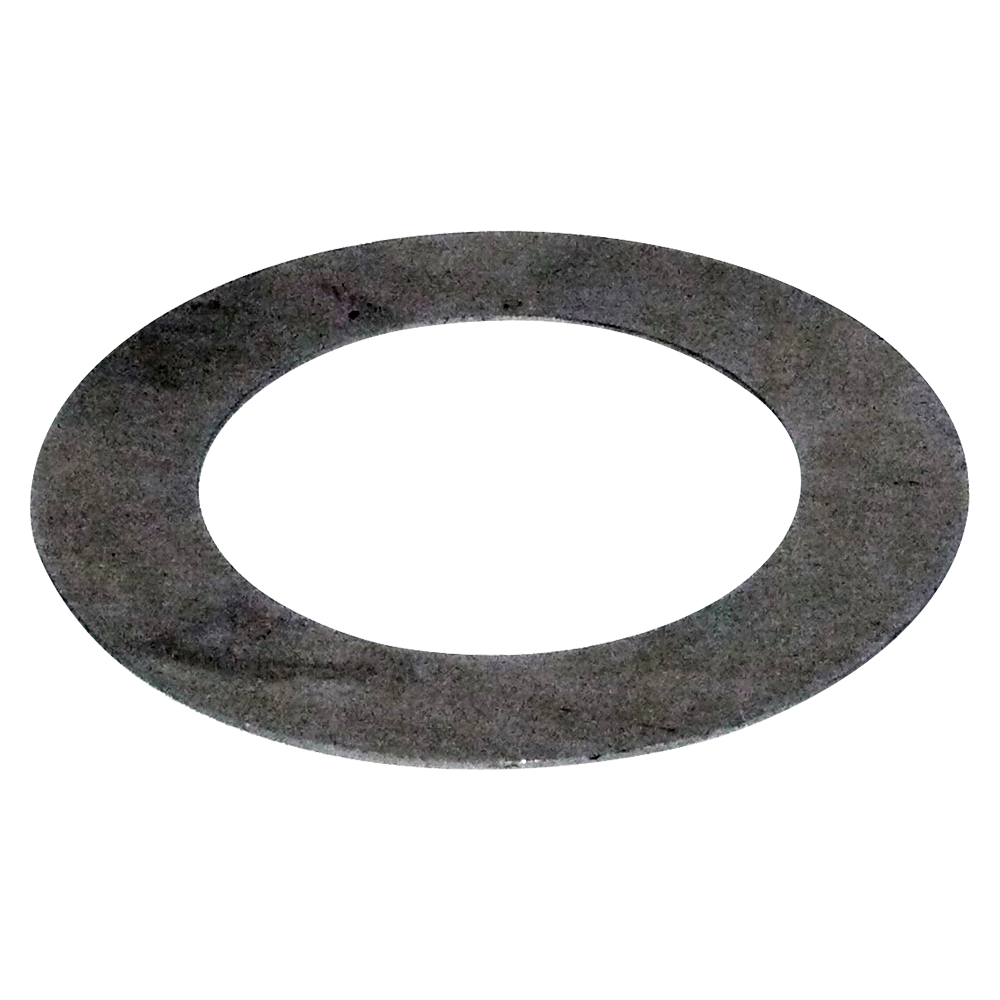

4	Shim		Thickness: .030" Outside Dia: 2.938" Inside Dia: 1.875"	MW-2-30

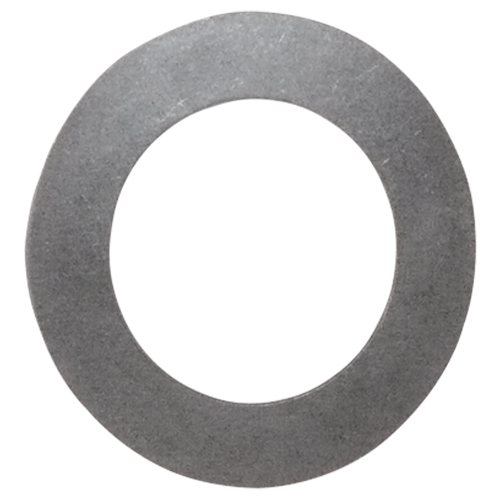

4	Shim		Thickness: 0.05" Outside Dia: 2.938" Inside Dia: 1.875"	MW-2-50

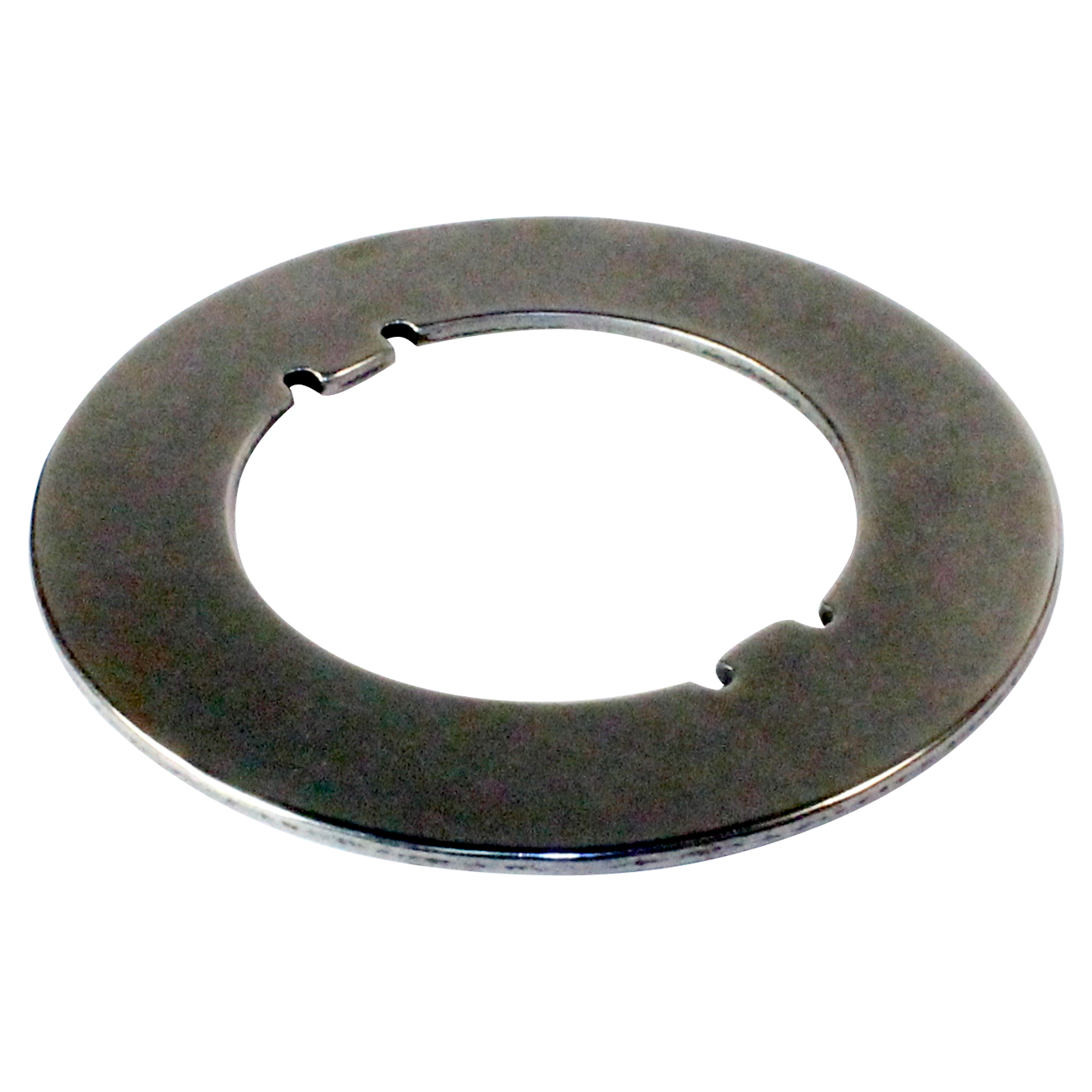

5	Washer	Standard	Thickness: .09" Material: Steel Outside Dia: 3.125" Inside Dia: 1.875"	FW-2-1
5	Washer	Oversized	Thickness: 0.105" Material: Steel Outside Dia: 3.125" Inside Dia: 1.875" Oversized	FW-2-1A

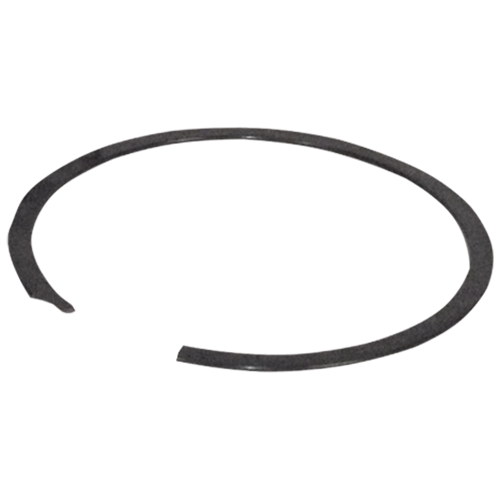

6	Snap Ring	2 Pieces Required.	Inside Dia: 3.600"	FX-20-11
7	Stator Cap	2 Pieces Required.	Thickness: 0.65" Material: Phenolic Outside Dia: 3.6" Inside Dia: 2" Casting#: E5DP-7937AA E9TP-7937AA	FW-4-13

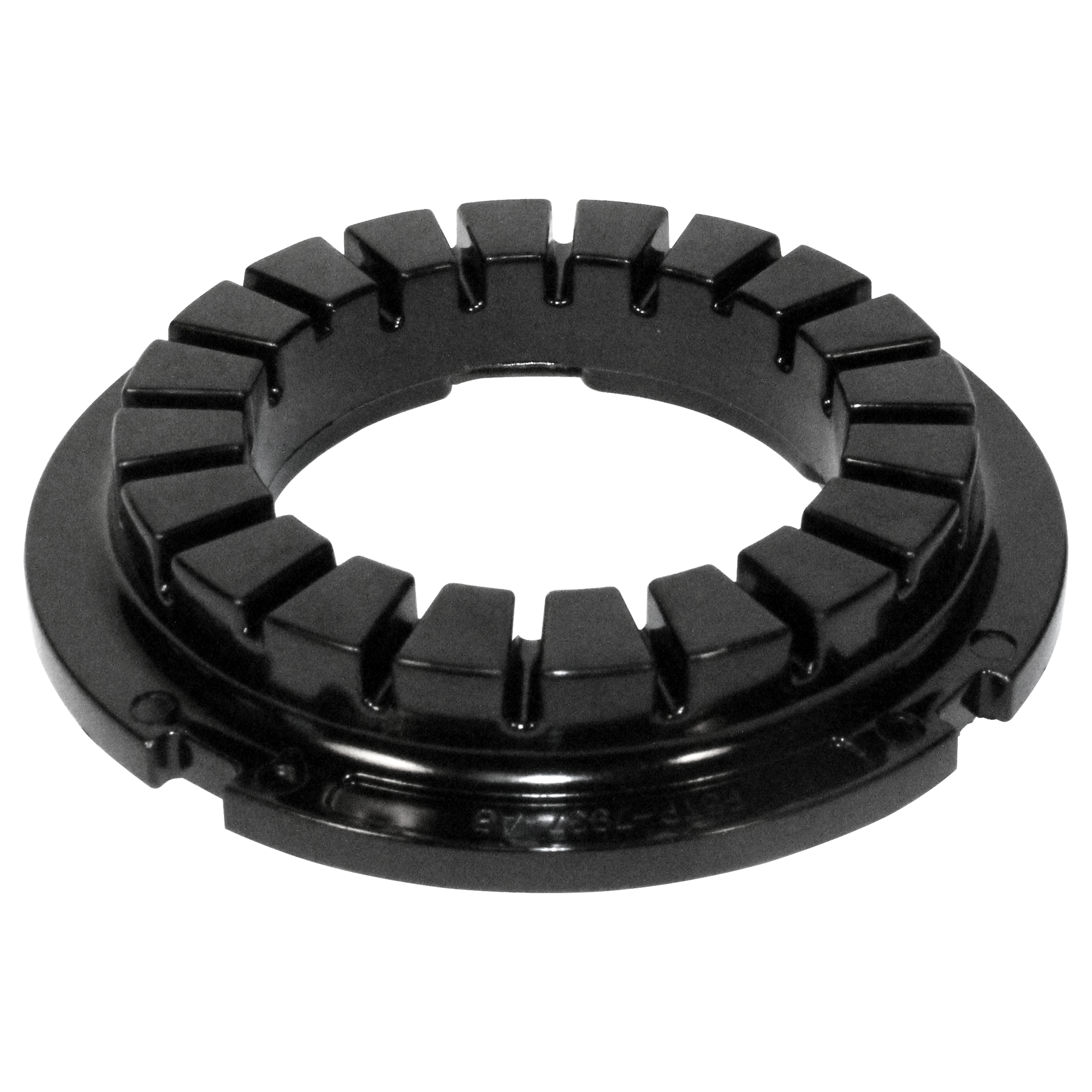

7	Stator Cap	2 Pieces Required.	Thickness: 0.59" Material: Phenolic Outside Dia: 3.6" Inside Dia: 2" Casting#: F5TP-7937AA	FW-4-15
7	Stator Cap	Plastic 2 Pieces Required.	Outside Dia: 3.6" Inside Dia: 2.04"	FW-4-3
7	Stator Cap	2 Pieces Required.	Thickness: 0.50" Material: Aluminum Outside Dia: 3.6" Inside Dia: 2.04" Casting#: D2AP-7937AA C7AP-7937B	FW-4-3A
7	Washer	2 Pieces Required.	Thickness: 0.68" Outside Dia: 3.6" Inside Dia: 2" Casting#: E5DP-7937AA	FW-4-8

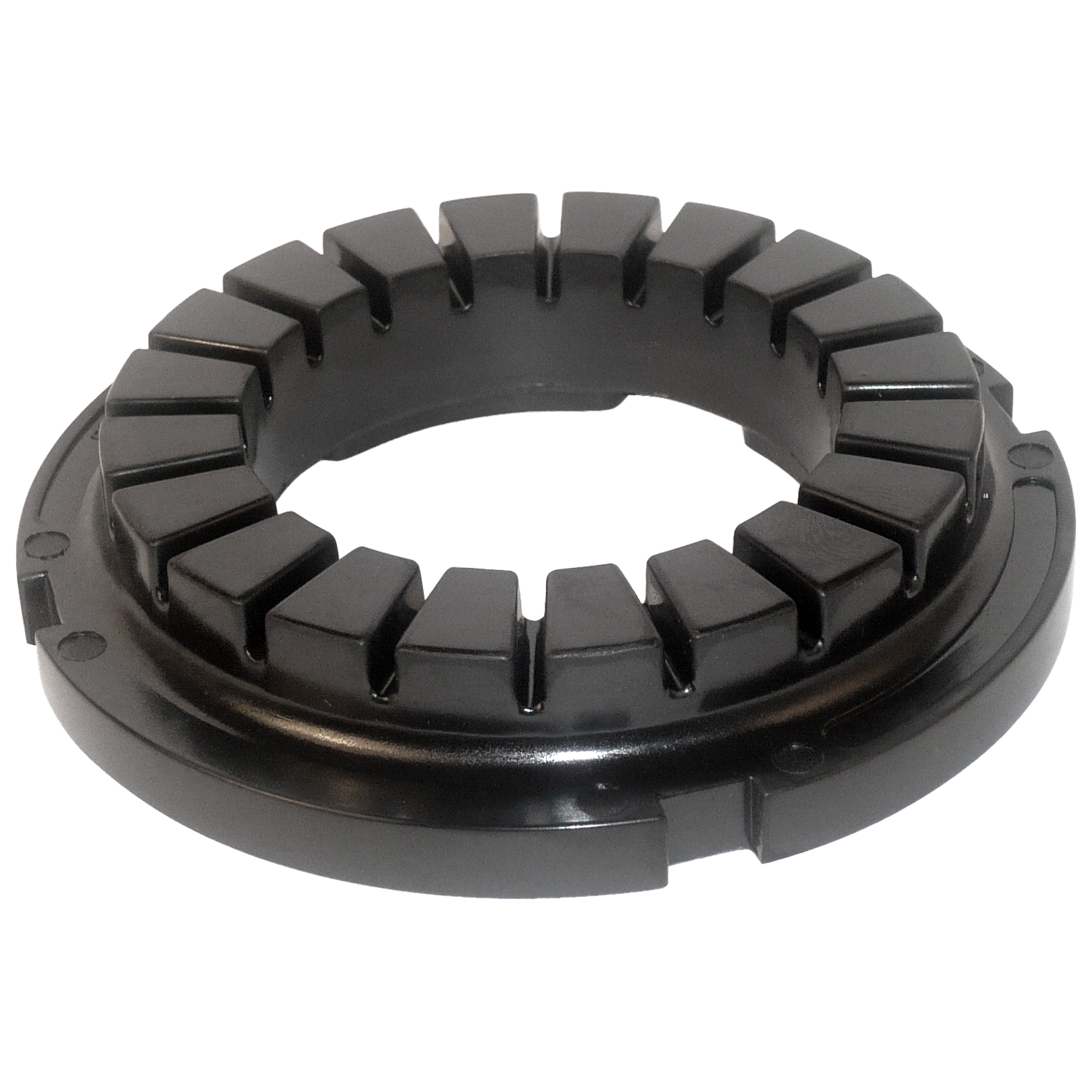

7	Stator Cap	Heavy Duty 2 Pieces Required.	Thickness: 0.69" Material: Phenolic Outside Dia: 3.60" Inside Dia: 2" OE# F7AP-7937-AA	FW-4-19

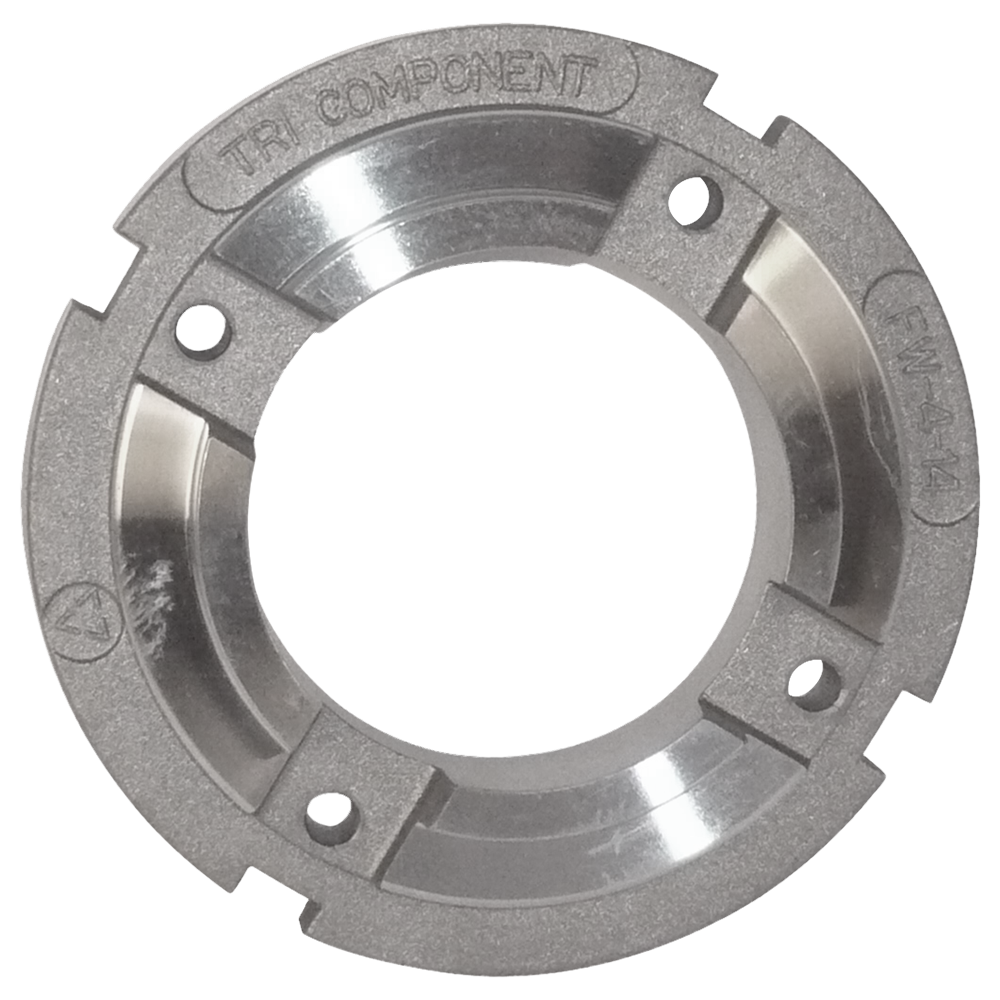

7	Stator Cap	Bearing Adapter	Thickness: .66" Material: Aluminum Outside Dia: 3.6" Inside Dia: 2" Bearing: SW-2-12	FW-4-14

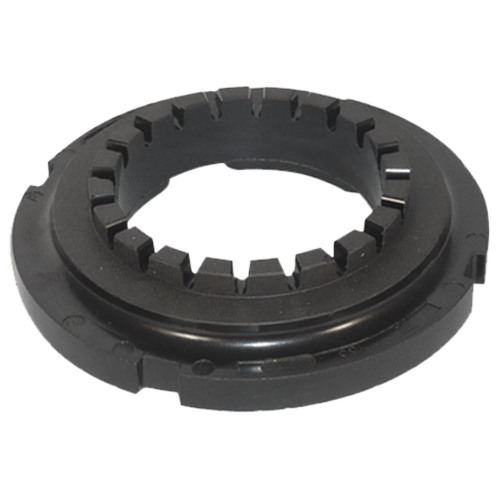

7	Stator Cap	Bearing Adapter	Thickness: .66" Material: Plastic Outside Dia: 3.6" Inside Dia: 2" Bearing: SW-2-12	FW-4-14P
8	Stator			NPN-2-32-8
9	Outer Race (Cam)	Stator	Dimensions: 3.60" x .80"	FX-15-6
10	Accordion Spring	8 Pieces Required.	Width: 0.28" Relaxed Length: 0.255" Folds: 3 Relaxed Height: 0.733"	FS-6-11
10	Accordion Spring	8 Pieces Required.	Width: 0.73" Relaxed Length: 0.42" Folds: 4 Relaxed Height: 0.28"	FS-6-8

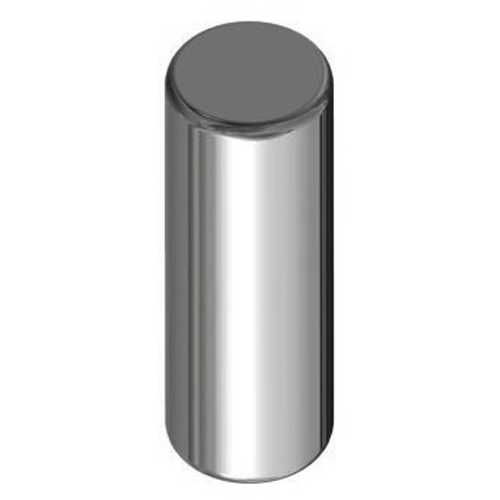

11	Roller	8 Pieces Required.	Dia: 0.312" Length: 0.705"	12960R

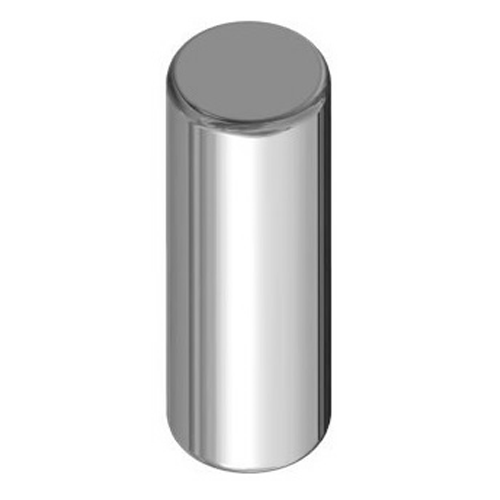

11	Roller	8 Pieces Required.	Dia: 0.312" Length: 0.71"	FR-7-2
12	Inner Race	Stator	Height: 0.781" Internal Teeth: 32 Outside Dia: 2.375"	FX-14-5
13	Rivet	10 Pieces Required.	Length: .385" Rivet solid or tubular: Tubular Rivet Shank Dia: 0.214" Rivet Head Dia: 0.312"	FX-12L

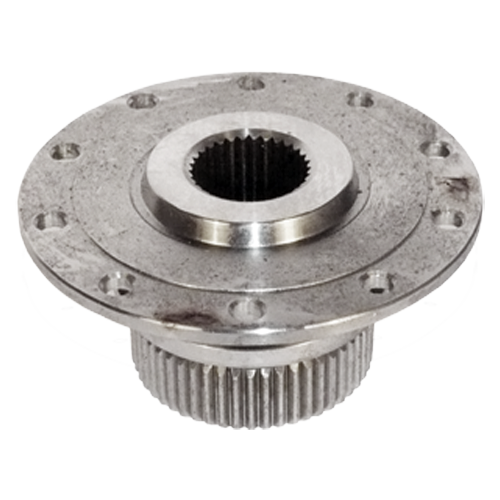

14	Turbine Hub		Internal Teeth: 31 External Teeth: 54 Outside Dia: 3.88"	FX-13-20
14	Turbine Hub		Internal Teeth: 31 External Teeth: 54 Outside Dia: 3.88"	FX-13-20HT
15	Seal Ring	Ford AODe,4R70W, Late Late	Height: 0.104 Width: 0.168 Material: PTFE Height Metric: 2.6416 Seal Type: Solid Outside Dia: 2.385 Outside Dia Metric: 60.579	FO-25-17
15	O-Ring	Early	Thickness: 0.128 Thickness metric: 3.2512 Material: Fluorocarbon Inside Dia: 2.087 Inside Dia metric: 54.7624	FO-25-5V
15	O-Ring	Early Style	Thickness: 0.138 Thickness metric: 3.5052 Material: Fluorocarbon Inside Dia: 2.087 Inside Dia metric: 53.0098	FO-25-5X
16	Metal Clad Seal		Housing Bore Dia: 1.083 Housing Bore Dia Metric: 27.51 Shaft Dia metric: 22 Shaft Dia: 0.869 Material: Fluorocarbon	FO-25-6
17	Turbine		Outside Dia: 12"	NPN-2-32-17A
17	Turbine		Outside Dia: 12"	NPN-2-32-17B
18	Lockup Clutch	R.W.D. Passenger	Outside Dia: 10.750	FX-23-106
18	Lockup Clutch	T-Bird Super Coupe	Outside Dia: 11.750	FX-23-109

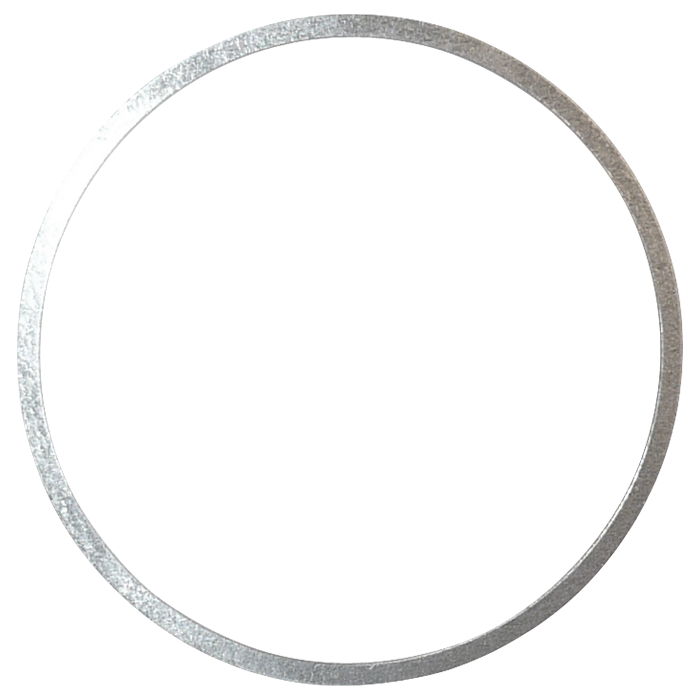

18.1	Shim		Thickness: .02" Outside Dia: 2.582" Inside Dia: 2.406"	FW-9-18
18.1	Shim		Thickness: 0.02" Outside Dia: 2.59" Inside Dia: 2.415"	FW-9-23
19	Lining (Friction Ring,Wafer)		Thickness: 0.045" Material: Red Outside Dia: 10.5 Inside Dia: 9.5	FX-23-67
19	Lining (Friction Ring,Wafer)	AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.	Thickness: 0.045" Material: Red Outside Dia: 10.563 Inside Dia: 9.313 For 12" Cover Only, & For 11-1/4" Cover or Piston	FX-23-26
19	Lining (Friction Ring,Wafer)	AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.	Thickness: 0.045" Material: Red Outside Dia: 11.25 Inside Dia: 10 For 12" Cover or Piston, Heavy Duty	FX-23-28
19_N.I.	Salvage Ring™		Width: 0.375" Outside Dia: 12.92" Restores Engagement Step	FX-21-1005
19_N.I.	Salvage Ring™	Coresaver™	Width: 0.250" Outside Dia: 12.92"	FX-21-1005NR
20	Front Cover			NPN-2-32-20
21	Stud	T-Head 4 Pieces Required.	Length: .50" under the head Thread dimensions: 3/8"-24 Bolt head OD: 1.06" Bolt Head Thickness: 0.23"	FX-10-14
21	Stud	4 Pieces Required.	Thread dimensions: 3/8"-24 Bolt head OD: 0.83" Bolt Head Thickness: 0.21"	FX-10-3
21	Stud		Thread dimensions: 3/8"-24 Bolt head OD: 0.75" Bolt Head Thickness: 0.16"	FX-10-4
22	Studcap	Plastic Stud Protector 4 Pieces Required.	Length: 0.50" Color: Red Inside Dia: 0.375 Fits 3/8" (9.5mm)	MHC-STD
22	Studcap	4 Pieces Required.	Inside Dia: 0.375	MHC-STE
23	Nut	Converter 4/6 Pieces Required.		26761
23	Washer	4/6 Pieces Required.	Thickness: 0.125" Material: Steel Outside Dia: 0.85" Inside Dia: 0.42"	FX-10-19

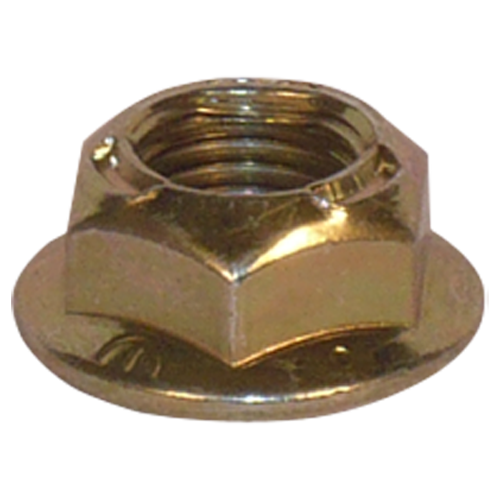

23	Nut	Special Locking 4/6 Pieces Required.	Height: .34" Dimensions: 3/8"-24 Length: 0.330"	FX-10-7
23	Nut & Studcap Kit	4 Pieces Each		FX-10-7K4STD

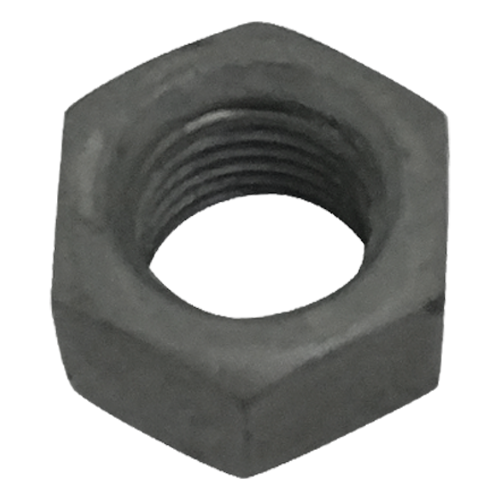

23	Nut	Hex 4/6 Pieces Required.	Dimensions: 3/8"- 24 Length: 0.330"	N-63
23	Stud	Thin Head Type	(Use FX-10-4)	FX-10-2
24	Drain Plug	1/8-27 NPT, PTFE, Wrap		FX-11A
24	Drain Plug		Material: Steel 1/8-27 NPT	FX-11
24	Drain Plug		Allen socket drain plug for use with drilled converters.	FX-11B
