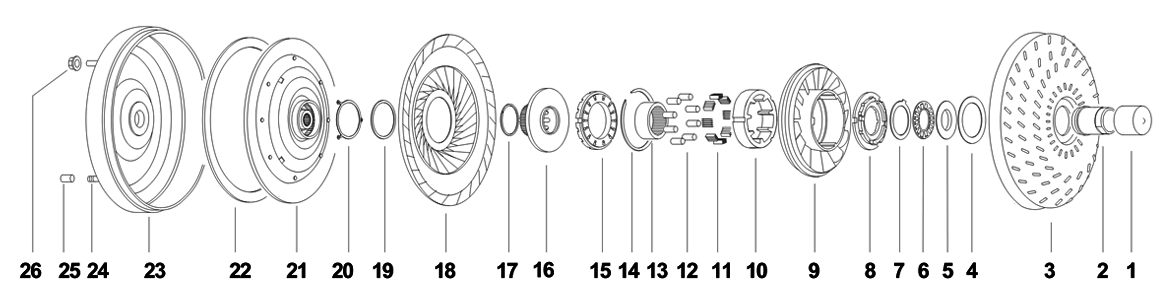

Torque Converter | Ford | A4LD, 4R55E, Late

Ill.# Image Description Specification Part #
Lining (Friction Ring,Wafer) PWM torque converter systems
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.000"
  • Inside Dia: 7.50"
 FX-23-87
Lining (Friction Ring,Wafer) FX-23-87
& PWM torque converter systems
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.000"
  • Inside Dia: 7.50"
Misc NPN-SPL
Misc NPN-SPL
&
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
Hubcap MHC-B
Fits 1-5/8" (41.3mm). Length: 1-3/8" &
  • Color: Black
  • Fits 1-5/8" (41.3mm)
2 Impeller Hub Kit
  • Inside Dia: 2.950"
 FH-1-18K
Impeller Hub Kit FH-1-18K
&
  • Inside Dia: 2.950"
2 Impeller Hub
  • Pump Drive Type: Flats
 FH-1-14TGMSRC
Impeller Hub FH-1-14TGMSRC
&
  • Pump Drive Type: Flats
2 Impeller Hub FH-1-30FGHT
Impeller Hub FH-1-30FGHT
&
2 Impeller Hub
  • Journal Dia: 1.610"
  • Height: 2.145"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
 FH-1-14TGMRC
Impeller Hub FH-1-14TGMRC
&
  • Journal Dia: 1.610"
  • Height: 2.145"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
2 Impeller Hub
  • Journal Dia: 1.610"
  • Installed Height: 2.390"
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-31FGRC
Impeller Hub FH-1-31FGRC
&
  • Journal Dia: 1.610"
  • Installed Height: 2.390"
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
2 Impeller Hub
  • Journal Dia: 1.610"
  • Height: 2.170"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-14TGRC
Impeller Hub FH-1-14TGRC
&
  • Journal Dia: 1.610"
  • Height: 2.170"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36

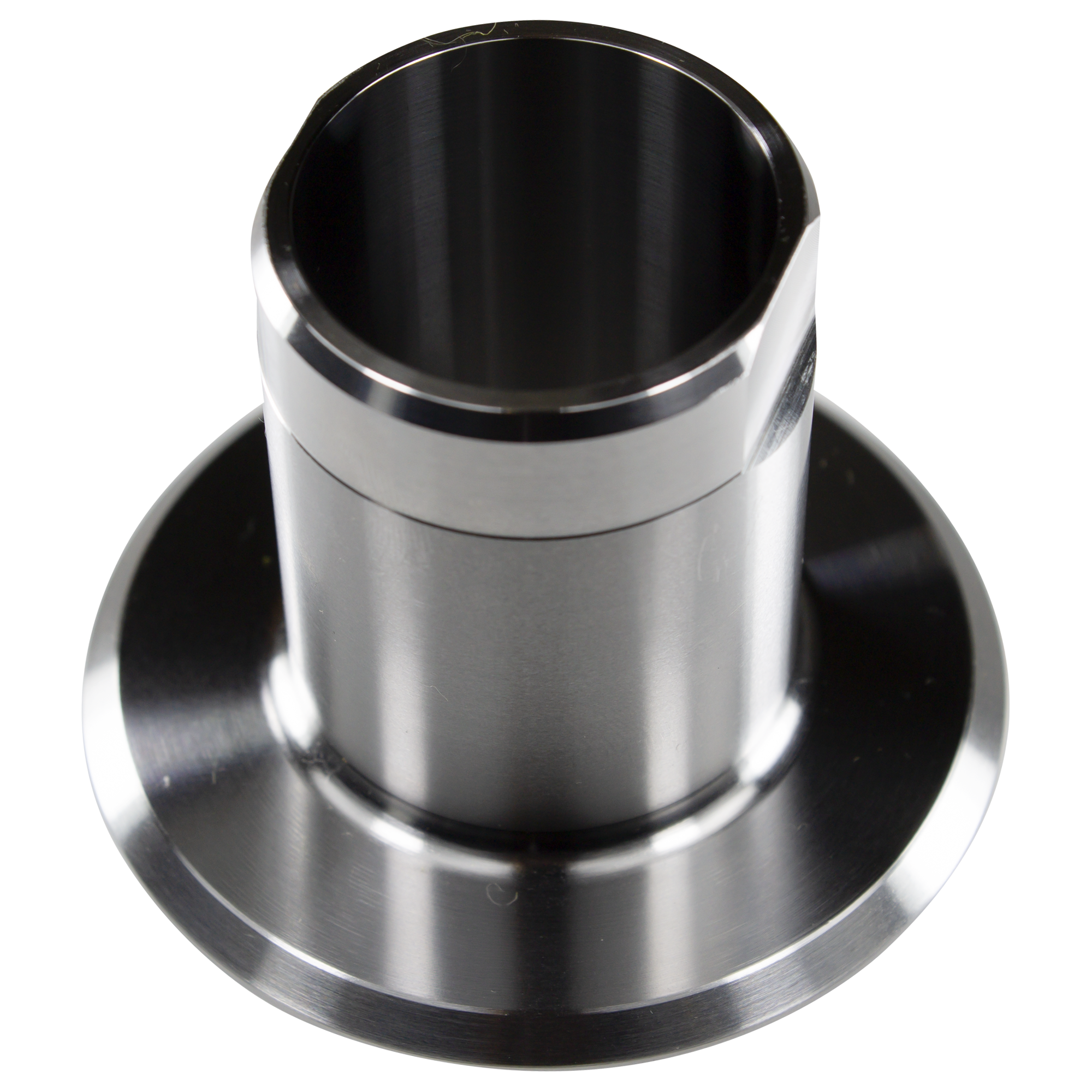

2 Impeller Hub
  • Journal Dia: 1.610"
  • Installed Height: 2.177"
  • Height: 2.600"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 2.950"
  • Hardness: Rc 32-36
  • Inside Dia: 2.950"
 FH-1-18FLG
Impeller Hub FH-1-18FLG
&
  • Journal Dia: 1.610"
  • Installed Height: 2.177"
  • Height: 2.600"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 2.950"
  • Hardness: Rc 32-36
  • Inside Dia: 2.950"
2 Impeller Hub
  • Journal Dia: 1.610"
  • Installed Height: 2.335"
  • Pump Drive Type: Flats
 FH-1-30FG
Impeller Hub FH-1-30FG
&
  • Journal Dia: 1.610"
  • Installed Height: 2.335"
  • Pump Drive Type: Flats
2 Impeller Hub Unfinished
  • Journal Dia: 1.610"
  • Installed Height: 2.390"
  • Pump Drive Type: Flats
 FH-1-31F
Impeller Hub FH-1-31F
Unfinished &
  • Journal Dia: 1.610"
  • Installed Height: 2.390"
  • Pump Drive Type: Flats
2 Impeller Hub
  • Journal Dia: 1.612"
  • Installed Height: 2.350"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-16FGRC
Impeller Hub FH-1-16FGRC
&
  • Journal Dia: 1.612"
  • Installed Height: 2.350"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
2 Impeller Hub
  • Journal Dia: 1.612"
  • Height: 2.170"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-15TGRC
Impeller Hub FH-1-15TGRC
&
  • Journal Dia: 1.612"
  • Height: 2.170"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
3 Impeller NPN-2-22-3
Impeller NPN-2-22-3
&
4 Shim
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
 TW-2X10
Shim TW-2X10
&
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
4 Shim
  • Thickness: .010"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X10)
 FW-2-010
Shim FW-2-010
&
  • Thickness: .010"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X10)
4 Shim
  • Thickness: .020"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X)
 FW-2-020
Shim FW-2-020
&
  • Thickness: .020"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X)
4 Shim
  • Thickness: .030"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X30)
 FW-2-030
Shim FW-2-030
&
  • Thickness: .030"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X30)
4 Shim
  • Thickness: .010"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
  • Minimize Race Rubbing
 TW-2-10
Shim TW-2-10
&
  • Thickness: .010"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
  • Minimize Race Rubbing
4 Shim
  • Thickness: .020"
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
 TW-2X
Shim TW-2X
&
  • Thickness: .020"
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
4 Shim
  • Thickness: .03"
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
 TW-2X30
Shim TW-2X30
&
  • Thickness: .03"
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
4 Shim
  • Outside Dia: 2.875"
  • Inside Dia: 1.497"
 TW-2X-30
Shim TW-2X-30
&
  • Outside Dia: 2.875"
  • Inside Dia: 1.497"
5 Bearing Race Lipped
  • Thickness: 0.04"
  • Outside Dia: 2.35"
  • Inside Dia: 1.480"
  • Inside Lip
 FW-2-3
Bearing Race FW-2-3
Lipped &
  • Thickness: 0.04"
  • Outside Dia: 2.35"
  • Inside Dia: 1.480"
  • Inside Lip
6 Bearing
  • Thickness: 0.125
  • Bearing type: Exposed
  • Outside Dia: 2.360"
  • Inside Dia: 1.575
  • Race: JW-2-5TT (TRA-4060) .030 thick, Race: JW-2-5T (.040 Thick), JW-2-5 (.080 Thick) .060 thick .
 FNT-4060
Bearing FNT-4060
&
  • Thickness: 0.125
  • Bearing type: Exposed
  • Outside Dia: 2.360"
  • Inside Dia: 1.575
  • Race: JW-2-5TT (TRA-4060) .030 thick, Race: JW-2-5T (.040 Thick), JW-2-5 (.080 Thick) .060 thick .
6 Bearing
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2N
Bearing JW-2N
&
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
6 Bearing
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2ND
Bearing JW-2ND
&
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
6_N.I. Bearing & Race Kit
  • Includes FW-2-3, JW-2N, FW-2-4
 FW-2BK
Bearing & Race Kit FW-2BK
&
  • Includes FW-2-3, JW-2N, FW-2-4
6_N.I. Bearing & Race Kit Heavy Duty
  • Includes FW-2-3, JW-2ND, FW-2-4
 FW-2BKHD
Bearing & Race Kit FW-2BKHD
Heavy Duty &
  • Includes FW-2-3, JW-2ND, FW-2-4
7 Bearing Race
  • Thickness: 0.04"
  • Lug Count: 1
  • Outside Dia: 2.48"
  • Inside Dia: 1.71"
 FW-2-4
Bearing Race FW-2-4
&
  • Thickness: 0.04"
  • Lug Count: 1
  • Outside Dia: 2.48"
  • Inside Dia: 1.71"
7 Bearing Race
  • Thickness: 0.08"
  • Lug Count: 1
  • Outside Dia: 2.48"
  • Inside Dia: 1.71"
 FW-2-4A
Bearing Race FW-2-4A
&
  • Thickness: 0.08"
  • Lug Count: 1
  • Outside Dia: 2.48"
  • Inside Dia: 1.71"

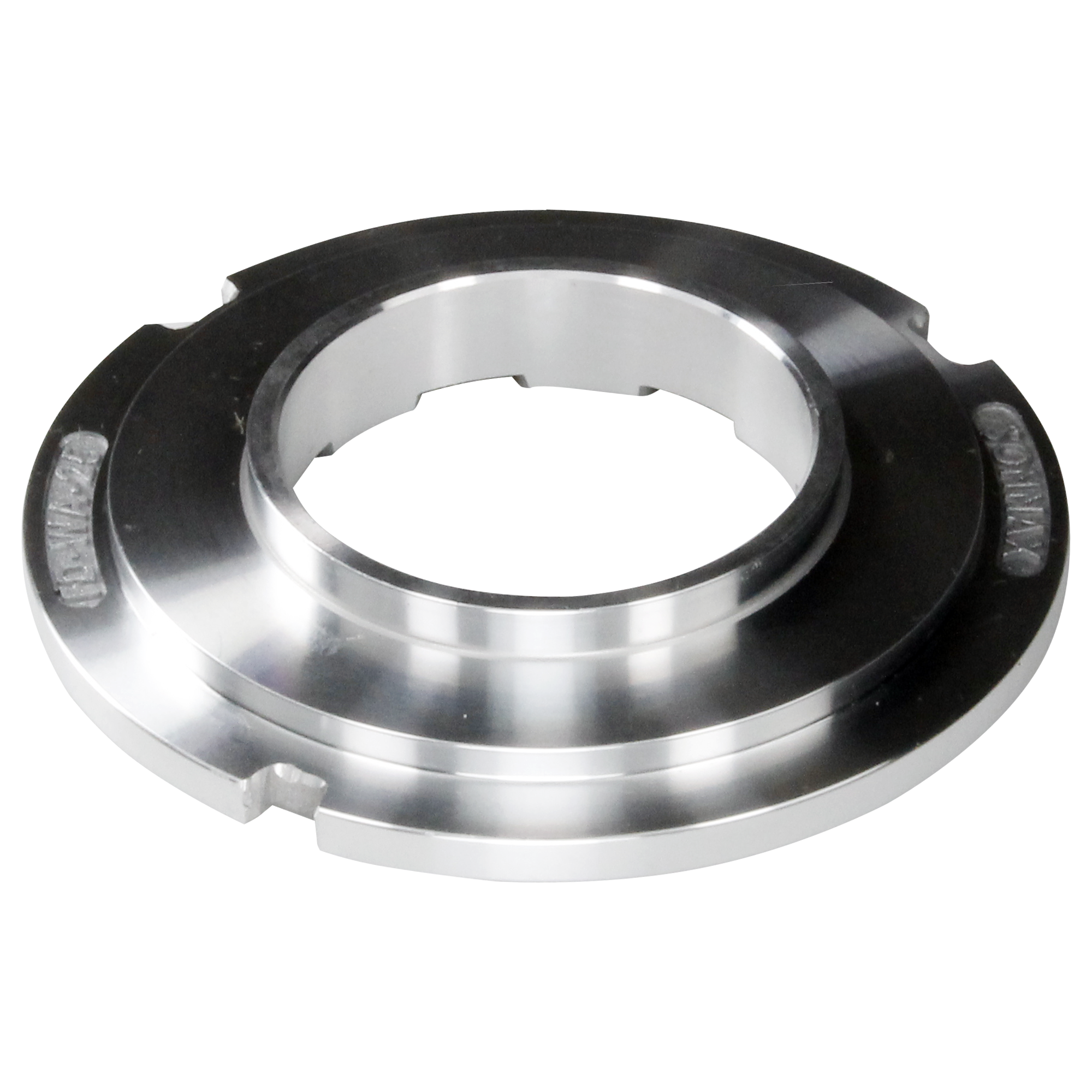

7.1 Stator Cap Use with bearing TW-2-4
  • Thickness: 0.478"
  • Material: Aluminum
  • Functional Thickness: 0.302"
  • Outside Dia: 3.356"
  • Inside Dia: 1.690"
 FW-4-37
Stator Cap FW-4-37
& Use with bearing TW-2-4
  • Thickness: 0.478"
  • Material: Aluminum
  • Functional Thickness: 0.302"
  • Outside Dia: 3.356"
  • Inside Dia: 1.690"
8 Stator Cap
  • Thickness: 0.423"
  • Material: Aluminum
  • Outside Dia: 3.34"
  • Inside Dia: 1.72"
  • 84GT-7A869-AA
 FW-4-10
Stator Cap FW-4-10
&
  • Thickness: 0.423"
  • Material: Aluminum
  • Outside Dia: 3.34"
  • Inside Dia: 1.72"
  • 84GT-7A869-AA
9 Stator NPN-2-22-9
Stator NPN-2-22-9
&
10 Cam Stator NPN-2-22-10
Cam NPN-2-22-10
Stator &
11 Accordion Spring 7 Pieces Required.
  • Width: 0.812"
  • Relaxed Length: 0.45"
  • Folds: 4
  • Relaxed Height: 0.3"
 CS-6
Accordion Spring CS-6
& 7 Pieces Required.
  • Width: 0.812"
  • Relaxed Length: 0.45"
  • Folds: 4
  • Relaxed Height: 0.3"
12 Roller 7 Pieces Required.
  • Dia: 0.312"
  • Length: 0.775"
 FR-7-3
Roller FR-7-3
& 7 Pieces Required.
  • Dia: 0.312"
  • Length: 0.775"
12 Roller stator 7 Pieces Required.
  • Dia: 0.312"
  • Length: 0.86"
 CR-7
Roller CR-7
stator & 7 Pieces Required.
  • Dia: 0.312"
  • Length: 0.86"
13 Inner Race Stator
  • Height: 0.860"
  • Internal Teeth: 30
  • Outside Dia: 2.100"
 FX-14-6
Inner Race FX-14-6
Stator &
  • Height: 0.860"
  • Internal Teeth: 30
  • Outside Dia: 2.100"
14 Snap Ring FX-20-10
Snap Ring FX-20-10
&
15 Stator Cap 97GT-7937-AA, 3L2P-7937-AA, XP56T-7937-AA
  • Thickness: 0.386"
  • Material: Phenolic
  • Outside Dia: 3.350"
  • Inside Dia: 1.700"
 FW-4-22
Stator Cap FW-4-22
& 97GT-7937-AA, 3L2P-7937-AA, XP56T-7937-AA
  • Thickness: 0.386"
  • Material: Phenolic
  • Outside Dia: 3.350"
  • Inside Dia: 1.700"
15 Stator Cap Use With TW-2-4 Bearing
  • Thickness: 0.355"
  • Material: Aluminum
  • Functional Thickness: 0.203"
  • Notch Count: 3
  • Outside Dia: 3.35"
  • Inside Dia: 1.7"
  • Used with Bearing: TW-2-4
 FW-4-24
Stator Cap FW-4-24
& Use With TW-2-4 Bearing
  • Thickness: 0.355"
  • Material: Aluminum
  • Functional Thickness: 0.203"
  • Notch Count: 3
  • Outside Dia: 3.35"
  • Inside Dia: 1.7"
  • Used with Bearing: TW-2-4

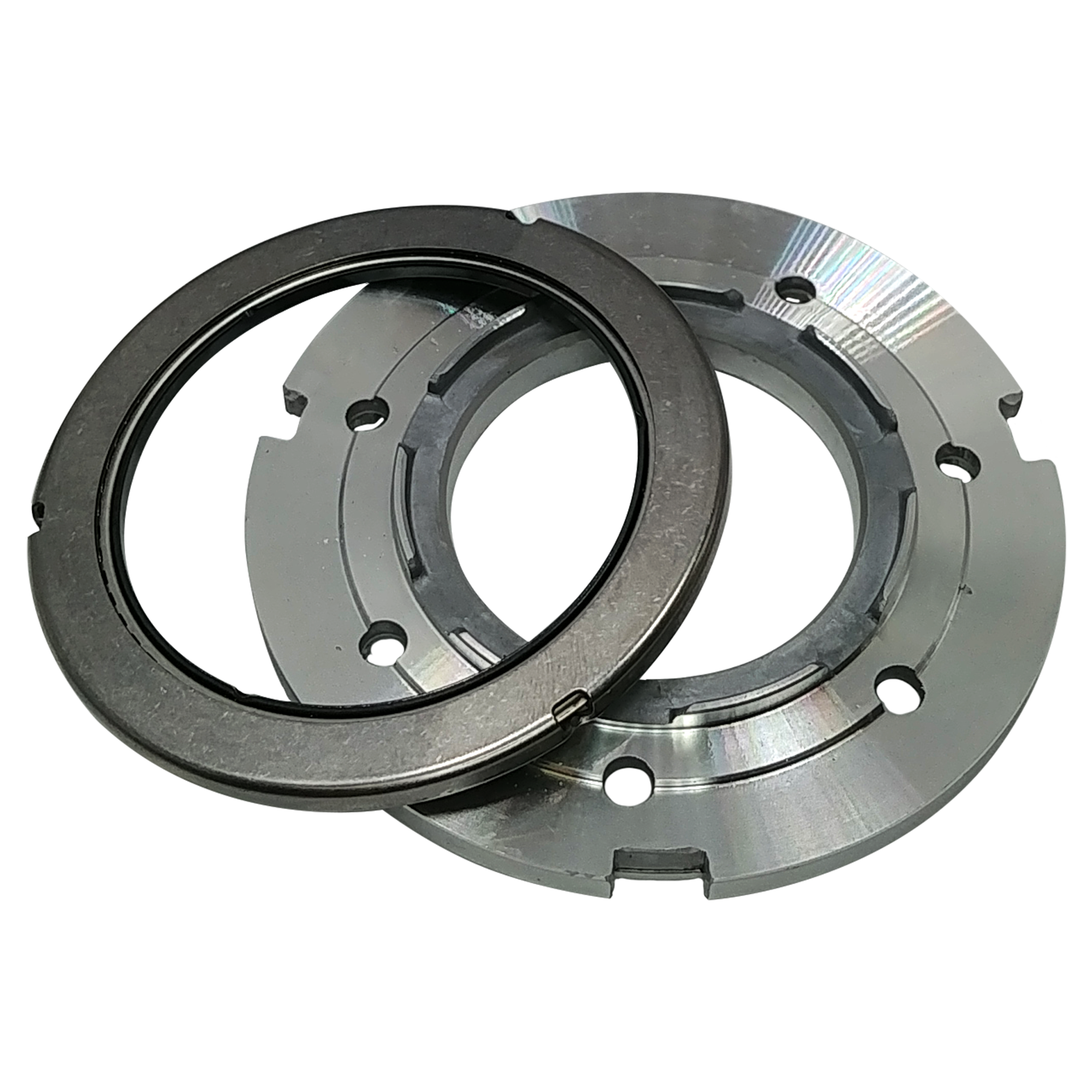

15 Bearing Adapter Kit
  • Outside Dia: 3.35"
  • Inside Dia: 1.7"
 FW-4-24K
Bearing Adapter Kit FW-4-24K
&
  • Outside Dia: 3.35"
  • Inside Dia: 1.7"
16 Turbine Hub Weld-In Design
  • Internal Teeth: none
  • External Teeth: 40
 NPN-2-22-16
Turbine Hub NPN-2-22-16
Weld-In Design &
  • Internal Teeth: none
  • External Teeth: 40
16 Turbine Hub Weld-In
  • Internal Teeth: 21
  • Outside Dia: 3.5"
 FX-13-33
Turbine Hub FX-13-33
Weld-In &
  • Internal Teeth: 21
  • Outside Dia: 3.5"

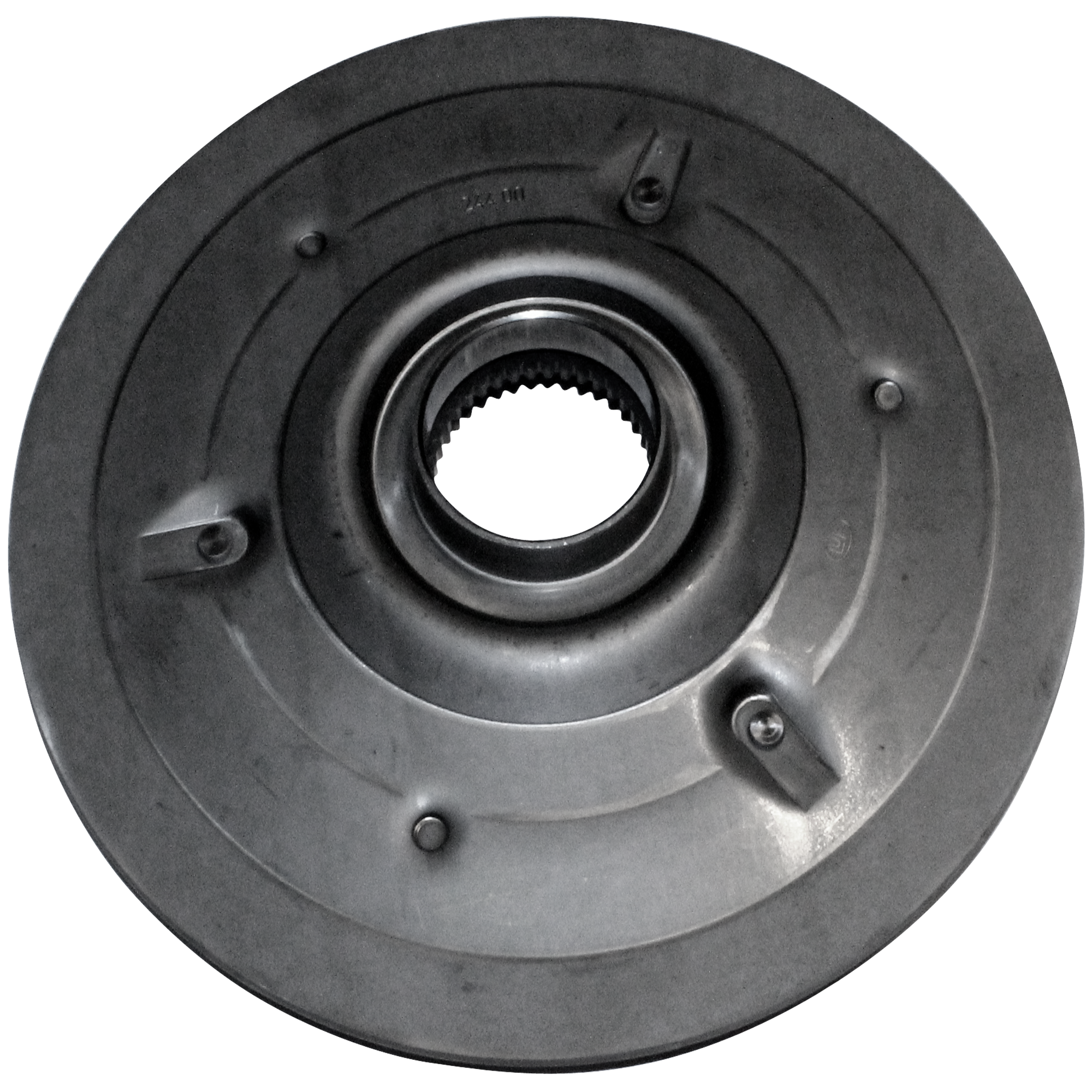

16 Turbine Hub Weld-In Use with FX-23-8N
  • Internal Teeth: 21
  • External Teeth: 40
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.5"
 FX-13-33HT
Turbine Hub FX-13-33HT
Weld-In & Use with FX-23-8N
  • Internal Teeth: 21
  • External Teeth: 40
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.5"
17 Seal Ring Scarf Cut
  • Height: 0.101"
  • Width: 0.088"
  • Material: PTFE
  • Height Metric: 2.2
  • Seal Type: Scarf Cut
  • Outside Dia: 2.050"
  • Outside Dia Metric: 52.1mm
 FO-25-1
Seal Ring FO-25-1
Scarf Cut &
  • Height: 0.101"
  • Width: 0.088"
  • Material: PTFE
  • Height Metric: 2.2
  • Seal Type: Scarf Cut
  • Outside Dia: 2.050"
  • Outside Dia Metric: 52.1mm
17 Seal Ring Scarf Cut, Oversized
  • Height: 0.098
  • Width: 0.092
  • Material: PTFE
  • Height Metric: 2.4892
  • Seal Type: Scarf Cut
  • Outside Dia: 2.049
  • Outside Dia Metric: 52.0446
 FO-25-1A
Seal Ring FO-25-1A
Scarf Cut, Oversized &
  • Height: 0.098
  • Width: 0.092
  • Material: PTFE
  • Height Metric: 2.4892
  • Seal Type: Scarf Cut
  • Outside Dia: 2.049
  • Outside Dia Metric: 52.0446
17 Seal Ring PTFE FO-25-1D
Seal Ring FO-25-1D
PTFE &
18 Turbine NPN-2-22-18
Turbine NPN-2-22-18
&
18.1 Clutch Plate Assembly Single-Plate 4.0L. Used with FX-13-33HT FX-23-8N
Clutch Plate Assembly FX-23-8N
Single-Plate & 4.0L. Used with FX-13-33HT
19 Shim
  • Thickness: 0.083"
  • Outside Dia: 2.36"
  • Inside Dia: 2.05"
 FW-9-21A
Shim FW-9-21A
&
  • Thickness: 0.083"
  • Outside Dia: 2.36"
  • Inside Dia: 2.05"
19 Shim
  • Thickness: 0.067"
  • Outside Dia: 2.36"
  • Inside Dia: 2.05"
 FW-9-21B
Shim FW-9-21B
&
  • Thickness: 0.067"
  • Outside Dia: 2.36"
  • Inside Dia: 2.05"
19 Shim
  • Thickness: 0.051"
  • Outside Dia: 2.36"
  • Inside Dia: 2.05"
 FW-9-21C
Shim FW-9-21C
&
  • Thickness: 0.051"
  • Outside Dia: 2.36"
  • Inside Dia: 2.05"
19 Shim
  • Thickness: 0.035"
  • Outside Dia: 2.36"
  • Inside Dia: 2.05"
 FW-9-21G
Shim FW-9-21G
&
  • Thickness: 0.035"
  • Outside Dia: 2.36"
  • Inside Dia: 2.05"
19 Shim
  • Thickness: 0.020"
  • Outside Dia: 2.36"
  • Inside Dia: 2.05"
 FW-9-21H
Shim FW-9-21H
&
  • Thickness: 0.020"
  • Outside Dia: 2.36"
  • Inside Dia: 2.05"
20 Ring NPN-2-22-20
Ring NPN-2-22-20
&
21 Clutch Plate Assembly 8 Double Springs
  • Internal Teeth: 21
 FX-23-4R55E
Clutch Plate Assembly FX-23-4R55E
8 Double Springs &
  • Internal Teeth: 21
21 Insert
  • Internal Teeth: 21
 FX-23-58
Insert FX-23-58
&
  • Internal Teeth: 21
22 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN. 2 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.75"
  • Inside Dia: 8.25"
 YX-23-3
Lining (Friction Ring,Wafer) YX-23-3
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN. 2 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.75"
  • Inside Dia: 8.25"
22 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN. 2 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.725"
  • Inside Dia: 8.25"
 FX-23-57
Lining (Friction Ring,Wafer) FX-23-57
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN. 2 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.725"
  • Inside Dia: 8.25"
22 Lining (Friction Ring,Wafer) 2 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.75
  • Inside Dia: 8.313
 NX-23-8
Lining (Friction Ring,Wafer) NX-23-8
& 2 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.75
  • Inside Dia: 8.313
22 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.625
  • Inside Dia: 8.375
 FX-23-63
Lining (Friction Ring,Wafer) FX-23-63
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.625
  • Inside Dia: 8.375
23 Front Cover NPN-2-22-23
Front Cover NPN-2-22-23
&
24 Stud 4 Pieces Required.
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 0.83"
  • Bolt Head Thickness: 0.21"
 FX-10-11
Stud FX-10-11
& 4 Pieces Required.
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 0.83"
  • Bolt Head Thickness: 0.21"
25 Studcap Plastic Stud Protector 4 Pieces Required.
  • Length: 0.50"
  • Color: Red
  • Inside Dia: 0.375
  • Fits 3/8" (9.5mm)
 MHC-STD
Studcap MHC-STD
Plastic Stud Protector & 4 Pieces Required.
  • Length: 0.50"
  • Color: Red
  • Inside Dia: 0.375
  • Fits 3/8" (9.5mm)
25 Studcap 4 Pieces Required.
  • Inside Dia: 0.375
 MHC-STE
Studcap MHC-STE
& 4 Pieces Required.
  • Inside Dia: 0.375
26 Nut Converter 4 Pieces Required. 26761
Nut 26761
Converter & 4 Pieces Required.
26 Nut Special Locking 4 Pieces Required.
  • Height: .34"
  • Dimensions: 3/8"-24
  • Length: 0.330"
 FX-10-7
Nut FX-10-7
Special Locking & 4 Pieces Required.
  • Height: .34"
  • Dimensions: 3/8"-24
  • Length: 0.330"
26 Nut & Studcap Kit 4 Pieces Each FX-10-7K4STD
Nut & Studcap Kit FX-10-7K4STD
4 Pieces Each &
26 Nut Hex 4 Pieces Required.
  • Dimensions: 3/8"- 24
  • Length: 0.330"
 N-63
Nut N-63
Hex & 4 Pieces Required.
  • Dimensions: 3/8"- 24
  • Length: 0.330"
