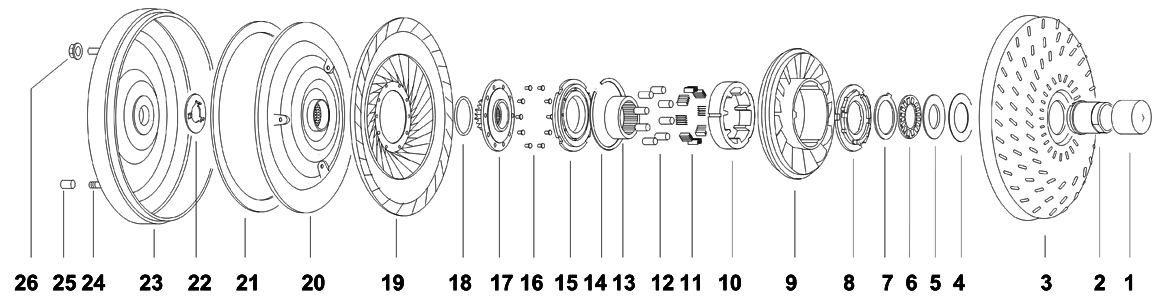

Torque Converter | Ford | A4LD, 4R55E

Ill.# Image Description Specification Part #
0 Shim
  • Thickness: 0.083"
  • Outside Dia: 2.36"
  • Inside Dia: 2.05"
 FW-9-21A
0 Shim
  • Thickness: 0.067"
  • Outside Dia: 2.36"
  • Inside Dia: 2.05"
 FW-9-21B
0 Shim
  • Thickness: 0.051"
  • Outside Dia: 2.36"
  • Inside Dia: 2.05"
 FW-9-21C
0 Rivet A4LD 10 Pieces Required.
  • Length: 0.385"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.214"
  • Rivet head dia: 0.312"
 FX-12LS
0 Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.000"
  • Inside Dia: 7.50"
 FX-23-87
0 Misc NPN-SPL
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
2 Impeller Hub FH-1-30FGHT
2 Impeller Hub
  • Pump Drive Type: Flats
 FH-1-14TGMSRC
2 Impeller Hub A4LD
  • Journal Dia: 1.610"
  • Height: 2.145"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
 FH-1-14TGMRC
2 Impeller Hub Unfinished, Heat treated
  • Journal Dia: 1.610"
  • Height: 2.170"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
 FH-1-14XHT
2 Impeller Hub Kit
  • Inside Dia: 2.950"
 FH-1-18K
2 Impeller Hub Adapts AXOD impeller to A4LD
  • Journal Dia: 1.610"
  • Installed Height: 2.205"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-27FGRC
2 Impeller Hub A4LD
  • Journal Dia: 1.610"
  • Height: 2.170"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-14TGRC
2 Impeller Hub
  • Journal Dia: 1.610"
  • Installed Height: 2.390"
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-31FGRC
2 Impeller Hub
  • Journal Dia: 1.610"
  • Installed Height: 2.177"
  • Height: 2.600"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 2.950"
  • Hardness: Rc 32-36
  • Inside Dia: 2.950"
 FH-1-18FLG
2 Impeller Hub Kit,Flange Adaptor
  • Journal Dia: 1.610"
  • Installed Height: 2.236"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • To Adapt AXOD Impellers Into A4LD
 FH-1-23K
2 Impeller Hub A4LD. Adapts AXOD impeller with A4LD
  • Journal Dia: 1.610"
  • Installed Height: 2.236"
  • Height: 2.64
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Flange Dia: 2
  • Hardness: Rc 32-36
  • To Adapt AXOD Impellers Into A4LD
 FH-1-23GRC
2 Impeller Hub
  • Journal Dia: 1.610"
  • Installed Height: 2.335"
  • Pump Drive Type: Flats
 FH-1-30FG
2 Impeller Hub A4LD
  • Journal Dia: 1.610"
  • Installed Height: 2.205"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-14FGRC
2 Impeller Hub Kit,Flange Adaptor
  • Journal Dia: 1.610"
  • Installed Height: 2.236"
  • Hub Mount: Flanged
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • To Adapt AXOD Impellers Into A4LD
 FH-1-23-60K
2 Impeller Hub Unfinished
  • Journal Dia: 1.610"
  • Installed Height: 2.390"
  • Pump Drive Type: Flats
 FH-1-31F
2 Impeller Hub A4LD
  • Journal Dia: 1.612"
  • Installed Height: 2.350"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-16FGRC
2 Impeller Hub A4LD
  • Journal Dia: 1.612"
  • Height: 2.170"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 FH-1-15TGRC
3 Impeller NPN-2-18-3
4 Shim
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
 TW-2X10
4 Shim
  • Thickness: .010"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X10)
 FW-2-010
4 Shim
  • Thickness: .020"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X)
 FW-2-020
4 Shim
  • Thickness: .030"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X30)
 FW-2-030
4 Shim
  • Thickness: .010"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
  • Minimize Race Rubbing
 TW-2-10
4 Shim
  • Thickness: .020"
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
 TW-2X
4 Shim
  • Thickness: .03"
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
 TW-2X30
4 Shim
  • Outside Dia: 2.875"
  • Inside Dia: 1.497"
 TW-2X-30
5 Bearing Race Lipped
  • Thickness: 0.04"
  • Outside Dia: 2.35"
  • Inside Dia: 1.480"
  • Inside Lip
 FW-2-3
6 Bearing
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.36
  • Inside Dia: 1.57
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2ND
6 Bearing
  • Thickness: 0.118
  • Thickness metric: 3
  • Bearing type: Exposed
  • Outside Dia: 2.362
  • Inside Dia: 1.575
  • Outside Dia Metric: 59.94
  • Inside Dia metric: 39.88
  • Race: FW-2-3, FW-2-4, FW-2-4A, JW-2-5, JW-2-5T, JW-2-5T, JW-2-5TT, JW-2-6, PW-2-3, PW-2-4, YW-2, YW-2-4, YW-2-6
 JW-2N
6_N.I. Bearing & Race Kit Heavy Duty
  • Includes FW-2-3, JW-2ND, FW-2-4
 FW-2BKHD
6_N.I. Bearing & Race Kit
  • Includes FW-2-3, JW-2N, FW-2-4
 FW-2BK
7 Bearing Race
  • Thickness: 0.04"
  • Lug Count: 1
  • Outside Dia: 2.48"
  • Inside Dia: 1.71"
 FW-2-4
7 Bearing Race
  • Thickness: 0.08"
  • Lug Count: 1
  • Outside Dia: 2.48"
  • Inside Dia: 1.71"
 FW-2-4A
8 Stator Cap
  • Thickness: 0.423"
  • Material: Aluminum
  • Outside Dia: 3.34"
  • Inside Dia: 1.72"
  • 84GT-7A869-AA
 FW-4-10
8 Stator Cap Use with bearing TW-2-4
  • Thickness: 0.478"
  • Material: Aluminum
  • Functional Thickness: 0.302"
  • Outside Dia: 3.356"
  • Inside Dia: 1.690"
 FW-4-37
9 Stator NPN-2-18-9
10 Outer Race (Cam) Stator
  • Height: 3.35"
  • Outside Dia: .88"
 FX-15-7
11 Accordion Spring 7 Pieces Required.
  • Height: 0.3"
  • Width: 0.812"
  • Folds: 4
 CS-6
12 Roller stator 7 Pieces Required.
  • Dia: 0.312"
  • Length: 0.86"
 CR-7
12 Roller 7 Pieces Required.
  • Dia: 0.312"
  • Length: 0.775"
 FR-7-3
13 Inner Race Stator
  • Height: 0.860"
  • Internal Teeth: 30
  • Outside Dia: 2.100"
 FX-14-6
14 Snap Ring FX-20-10
15 Stator Cap 97GT-7937-AA, 3L2P-7937-AA, XP56T-7937-AA
  • Thickness: 0.386"
  • Material: Phenolic
  • Outside Dia: 3.350"
  • Inside Dia: 1.700"
 FW-4-22
15 Stator Cap 84GT-7937CA
  • Material: Aluminum
  • Outside Dia: 3.34"
  • Inside Dia: 1.7"
 FW-4-11

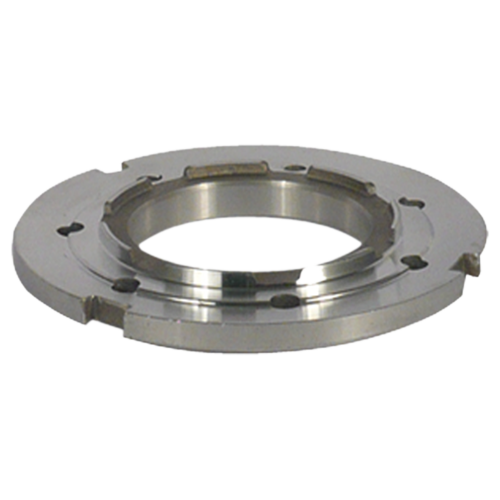

15 Stator Cap Use With 35400C Bearing
  • Thickness: 0.32"
  • Material: Aluminum
  • Outside Dia: 3.34"
  • Inside Dia: 1.74"
  • Bearing: 35400C
 FW-4-16
15 Stator Cap Used With TW-2-4 Bearing
  • Thickness: 0.355"
  • Material: Aluminum
  • Functional Thickness: 0.203"
  • Notch Count: 3
  • Outside Dia: 3.35"
  • Inside Dia: 1.7"
  • Used with Bearing: TW-2-4
 FW-4-24
15 Bearing Adapter Kit
  • Outside Dia: 3.35"
  • Inside Dia: 1.7"
 FW-4-24K
16 Rivet A4LD 10 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet head dia: 0.312"
 FX-12L
17 Turbine Hub Weld-In
  • Internal Teeth: 21
  • Outside Dia: 3.5"
 FX-13-33
17 Turbine Hub Weld-In
  • Internal Teeth: 21
  • External teeth: 40
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.5"
 FX-13-33HT
17 Turbine Hub
  • Height: 1.370"
  • Internal Teeth: 21
  • External teeth: 40
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.85"
 FX-13-13SHT
18 Seal Ring PTFE FO-25-1D
18 Seal Ring Scarf Cut
  • Height: 0.101"
  • Width: 0.088"
  • Material: PTFE
  • Height Metric: 2.2
  • Seal Type: Scarf Cut
  • Outside Dia: 2.050"
  • Outside Dia Metric: 52.1mm
 FO-25-1
18 Seal Ring Scarf Cut, Oversized
  • Height: 0.098
  • Width: 0.092
  • Material: PTFE
  • Height Metric: 2.4892
  • Seal Type: Scarf Cut
  • Outside Dia: 2.049
  • Outside Dia Metric: 52.0446
 FO-25-1A
19 Turbine
  • Outside Dia: 10-1/4"
 NPN-2-18-19
20 Clutch Plate Assembly Single-Plate 4.0L FX-23-8N
21 Floating Ring
  • Outside Dia: 10.250
  • Inside Dia: 8.125
 FX-23-3
21 Floating Ring Kevlar® FX-23-3K
21 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN. 2 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.75"
  • Inside Dia: 8.25"
 YX-23-3
21 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN. 2 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.725"
  • Inside Dia: 8.25"
 FX-23-57
21 Lining (Friction Ring,Wafer) 2 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.75
  • Inside Dia: 8.313
 NX-23-8
21 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.625
  • Inside Dia: 8.375
 FX-23-63
21 Lining (Friction Ring,Wafer) (Optional Lining O.D.)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.688"
  • Inside Dia: 8.25"
 FX-23-19
21 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10"
  • Inside Dia: 8.25"
  • (Front Cover)
 YX-23-1
22 Turbine Washer
  • Thickness: 0.062"
  • Material: Bronze
  • Lug Width: 0.170"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-12A
22 Turbine Washer AOD-E
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-12AJ
22 Turbine Washer
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-15
22 Turbine Washer
  • Thickness: 0.062"
  • Material: Bronze
  • Lug Width: .280"
  • Outside Dia: 2.360"
  • Inside Dia: 1.150"
 FW-9-15A
22 Turbine Washer
  • Thickness: 0.070"
  • Material: Bronze
  • Lug Width: 0.170"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-12B
22 Turbine Washer 3 Lugs
  • Thickness: 0.04"
  • Material: Bronze
  • Lug Width: .280
  • Outside Dia: 2.36"
  • Inside Dia: 1.15"
 FW-9-15B
22 Turbine Washer
  • Thickness: 0.080"
  • Material: Bronze
  • Lug Width: 0.170"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-12C
22 Turbine Washer AOD-E
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-12CJ
22 Kit Turbine Washer, A4LD
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-12K

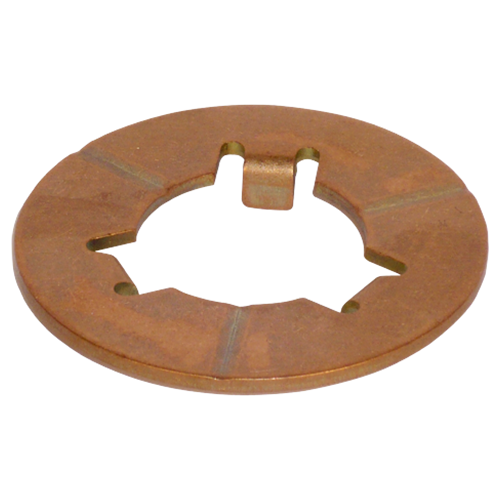

22 Turbine Washer 3 Lugs
  • Thickness: 0.081"
  • Material: Bronze
  • Lug Width: .280
  • Outside Dia: 2.36"
  • Inside Dia: 1.15"
 FW-9-15C
22 Turbine Washer
  • Thickness: 0.088"
  • Material: Bronze
  • Lug Width: 0.170"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-12D

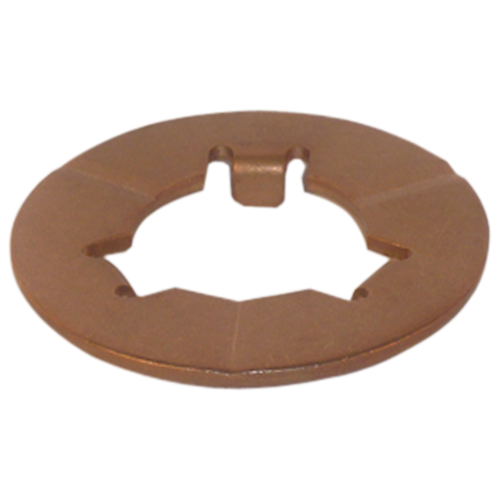

22 Turbine Washer
  • Thickness: 0.088"
  • Material: Bronze
  • Lug Count: 3
  • Lug Width: .0280"
  • Outside Dia: 2.36"
  • Inside Dia: 1.15"
 FW-9-15D

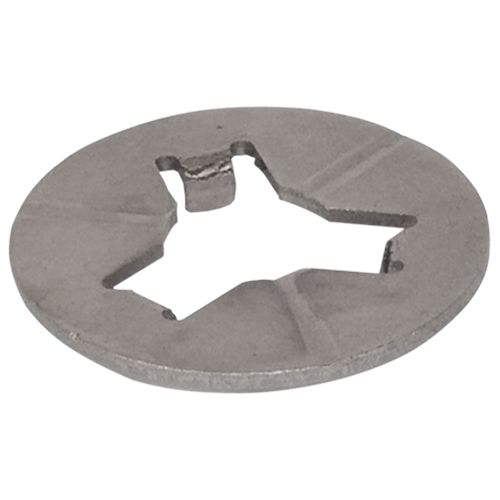

22 Turbine Washer
  • Thickness: .088"
  • Material: Bronze
  • Outside Dia: 2.36"
  • Inside Dia: 1.15"
 FW-9-16DD
22 Turbine Washer
  • Thickness: 0.098"
  • Material: Bronze
  • Lug Width: 0.170"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-12E

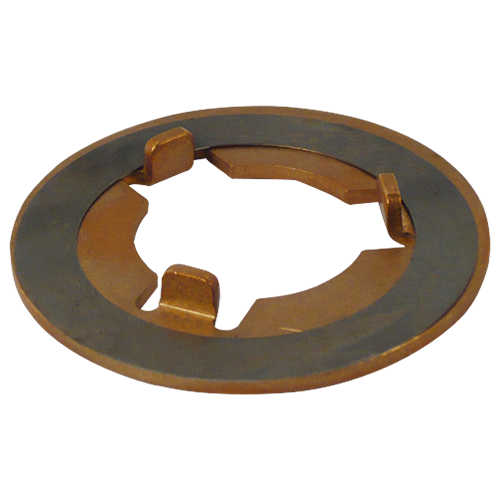

22 Turbine Washer
  • Thickness: 0.098"
  • Material: Bronze
  • Lug Count: 3
  • Lug Width: 0.280"
  • Outside Dia: 2.36"
  • Inside Dia: 1.15"
  • Includes a shim and FW-9-15D
 FW-9-15E
22 Turbine Washer
  • Thickness: 0.108"
  • Material: Bronze
  • Lug Width: 0.170"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-12F
22 Turbine Washer
  • Thickness: 0.062
  • Material: Bronze
  • Lug Width: .280"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-16A
22 Turbine Washer
  • Thickness: .070"
  • Material: Bronze
  • Lug Width: .280"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-16B
22 Turbine Washer
  • Thickness: .080"
  • Material: Bronze
  • Lug Width: .280"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-16C
22 Turbine Washer
  • Thickness: .088"
  • Material: Bronze
  • Lug Width: .280"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-16D
22 Turbine Washer
  • Thickness: .098"
  • Material: Bronze
  • Lug Width: .280"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-16E
22 Turbine Washer 3 Lugs
  • Thickness: .108"
  • Material: Bronze
  • Lug Width: .280"
  • Outside Dia: 2.36"
  • Inside Dia: 1.15"
 FW-9-15F
22 Turbine Washer Kit Cover, E4OD
  • Thickness: 0.098"
  • Outside Dia: 2.36"
  • Inside Dia: 1.15"
 FW-9-15K
22 Turbine Washer
  • Thickness: .108"
  • Material: Bronze
  • Lug Width: .280"
  • Outside Dia: 2.36"
  • Inside Dia: 0.82"
 FW-9-16F
22_N.I. Salvage Ring&Trade NPN-2-18-22_N.I.
23 Front Cover NPN-2-18-23
24 Stud 4 Pieces Required.
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 0.83"
  • Bolt Head Thickness: 0.21"
 FX-10-11
25 Studcap Plastic Stud Protector 4 Pieces Required.
  • Length: 0.50"
  • Color: Red
  • Inside Dia: 0.375
  • Fits 3/8" (9.5mm)
 MHC-STD
25 Studcap 4 Pieces Required.
  • Inside Dia: 0.375
 MHC-STE
26 Nut Converter 4 Pieces Required. 26761
26 Nut Special Locking 4 Pieces Required.
  • Height: .34"
  • Dimensions: 3/8"-24
  • Length: 0.330"
 FX-10-7
26 Nut & Studcap Kit 4 Pieces Each FX-10-7K4STD
26 Nut Hex 4 Pieces Required.
  • Dimensions: 3/8"- 24
  • Length: 0.330"
 N-63
26_N.I. Pilot
  • Dimensions: 20.9mm Dia. x 33mm Long
 FX-17-8
26_N.I. Pilot
  • Dimensions: 20.9mm Dia. x 36.8mm Long
 FX-17-8A
