Torque Converter | Ford | 6R80, 280mm (Late)

Ill.# Image Description Specification Part #
Misc NPN-SPL
Misc NPN-SPL
&
1 Hubcap Fits 1-3/4" (44.4mm). Length: 1-1/2"
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
 MHC-BU
Hubcap MHC-BU
Fits 1-3/4" (44.4mm). Length: 1-1/2" &
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
2 Impeller Hub mid 2014-Up 2014 (mid year) - Up
  • Journal Dia: 1.770"
  • Installed Height: 2.270"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Material: Hardened Steel
 FH-1-47GRC
Impeller Hub FH-1-47GRC
& mid 2014-Up 2014 (mid year) - Up
  • Journal Dia: 1.770"
  • Installed Height: 2.270"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Material: Hardened Steel
2 Impeller Hub
  • Journal Dia: 1.770"
  • Installed Height: 2.270"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
  • Material: Hardened Steel
 FH-1-48GRC
Impeller Hub FH-1-48GRC
&
  • Journal Dia: 1.770"
  • Installed Height: 2.270"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
  • Material: Hardened Steel
3 Bearing Impeller-side
  • Thickness: 0.162
  • Thickness metric: 4.11
  • Bearing type: Enclosed
  • Outside Dia: 3.67
  • Inside Dia: 2.62
  • Outside Dia Metric: 93.22
  • Inside Dia metric: 66.55
 FW-2-13

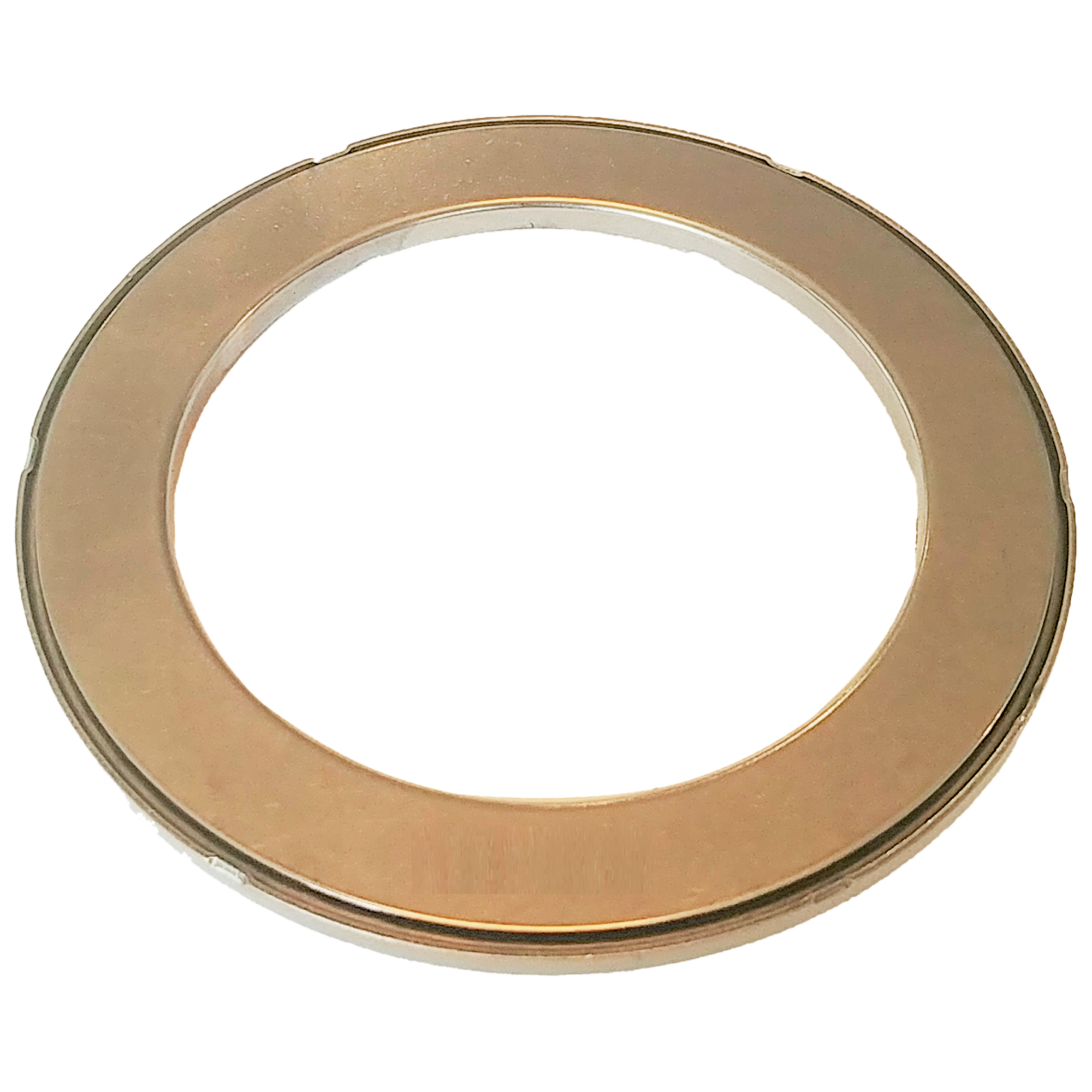

Bearing FW-2-13
& Impeller-side
  • Thickness: 0.162
  • Thickness metric: 4.11
  • Bearing type: Enclosed
  • Outside Dia: 3.67
  • Inside Dia: 2.62
  • Outside Dia Metric: 93.22
  • Inside Dia metric: 66.55
3 Bearing Fits 4-Stud & 6-Stud torque converters
  • Thickness: 0.55
  • Thickness metric: 14.0mm
  • Bearing type: Ball Bearing
  • Outside Dia: 2.44
  • Inside Dia: 1.38
  • Outside Dia Metric: 62mm
  • Inside Dia metric: 35.1mm
 FW-2-14
Bearing FW-2-14
& Fits 4-Stud & 6-Stud torque converters
  • Thickness: 0.55
  • Thickness metric: 14.0mm
  • Bearing type: Ball Bearing
  • Outside Dia: 2.44
  • Inside Dia: 1.38
  • Outside Dia Metric: 62mm
  • Inside Dia metric: 35.1mm
4 Roller
  • Dia: 0.312"
  • Length: 0.572"
  • Material: Steel
 SR-7
Roller SR-7
&
  • Dia: 0.312"
  • Length: 0.572"
  • Material: Steel
5 Bearing Turbine-side
  • Thickness: 0.150"
  • Thickness metric: 3.81
  • Bearing type: Enclosed
  • Outside Dia: 3.380"
  • Inside Dia: 2.500"
  • Outside Dia Metric: 85.85
  • Inside Dia metric: 63.5
 SW-2-11
Bearing SW-2-11
& Turbine-side
  • Thickness: 0.150"
  • Thickness metric: 3.81
  • Bearing type: Enclosed
  • Outside Dia: 3.380"
  • Inside Dia: 2.500"
  • Outside Dia Metric: 85.85
  • Inside Dia metric: 63.5
6 Seal Ring 260mm and 280mm "Late"
  • Height: 0.16
  • Width: 0.103
  • Material: PTFE
  • Height Metric: 4.064
  • Seal Type: Solid
  • Outside Dia: 3.511
  • Outside Dia Metric: 89.1794
 FO-25-22
Seal Ring FO-25-22
& 260mm and 280mm "Late"
  • Height: 0.16
  • Width: 0.103
  • Material: PTFE
  • Height Metric: 4.064
  • Seal Type: Solid
  • Outside Dia: 3.511
  • Outside Dia Metric: 89.1794
7 Metal Clad Seal
  • Housing Bore Dia: 1.181
  • Housing Bore Dia Metric: 30
  • Shaft Dia metric: 22.12
  • Shaft Dia: 0.871
  • Material: Steel Fluorocarbon
 FO-25-23
Metal Clad Seal FO-25-23
&
  • Housing Bore Dia: 1.181
  • Housing Bore Dia Metric: 30
  • Shaft Dia metric: 22.12
  • Shaft Dia: 0.871
  • Material: Steel Fluorocarbon
8 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.400"
  • Inside Dia: 9.200"
 FX-23-80
Lining (Friction Ring,Wafer) FX-23-80
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.400"
  • Inside Dia: 9.200"
9 Friction Plate Tab Style, Bent External Teeth
  • Thickness: 0.159"
  • External Teeth: 40
  • Lining Count: 1
  • Outside Dia: 11.340"
  • Inside Dia: 9.145"
  • Lining Part-ID: FX-23-880SK or FX-23-80MK
 FX-26-3

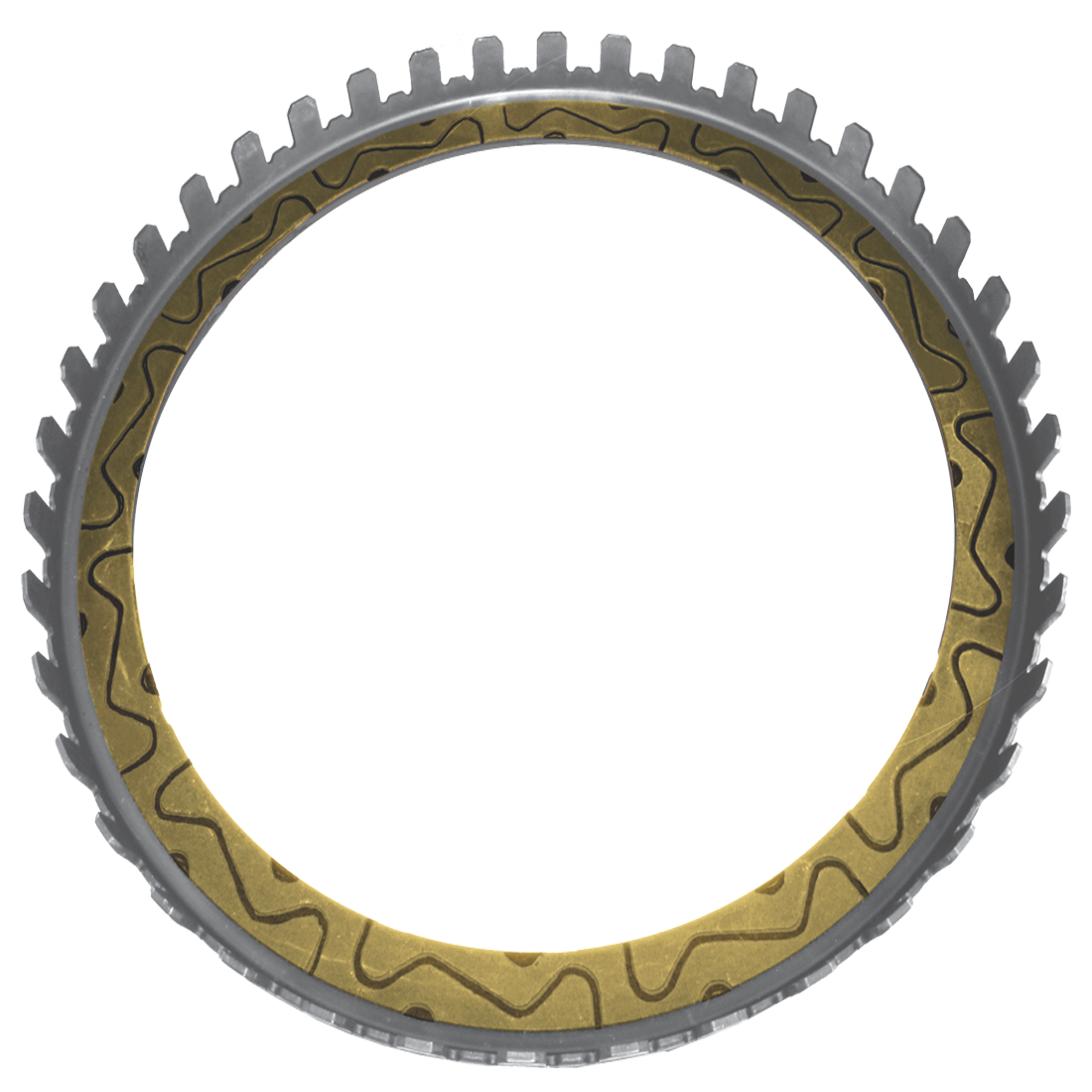

Friction Plate FX-26-3
Tab Style, Bent External Teeth &
  • Thickness: 0.159"
  • External Teeth: 40
  • Lining Count: 1
  • Outside Dia: 11.340"
  • Inside Dia: 9.145"
  • Lining Part-ID: FX-23-880SK or FX-23-80MK
10 Bearing Front cover to turbine hub
  • Thickness: 0.276
  • Thickness metric: 7.01
  • Bearing type: Ball Bearing
  • Outside Dia: 1.654
  • Inside Dia: 1.181
  • Outside Dia Metric: 42.01
  • Inside Dia metric: 30
  • Front Cover to Turbine Hub
 FW-9-29
Bearing FW-9-29
& Front cover to turbine hub
  • Thickness: 0.276
  • Thickness metric: 7.01
  • Bearing type: Ball Bearing
  • Outside Dia: 1.654
  • Inside Dia: 1.181
  • Outside Dia Metric: 42.01
  • Inside Dia metric: 30
  • Front Cover to Turbine Hub
11 Rivet 8 Pieces Required.
  • Length: 0.375"
  • Rivet solid or tubular: Solid with a notch
  • Rivet Shank Dia: 0.310"
  • Rivet Head Dia: 0.470"
  • ** Special Installation Instructions
 FX-12-8
Rivet FX-12-8
& 8 Pieces Required.
  • Length: 0.375"
  • Rivet solid or tubular: Solid with a notch
  • Rivet Shank Dia: 0.310"
  • Rivet Head Dia: 0.470"
  • ** Special Installation Instructions
12 Nut
  • Dimensions: M10 x 1mm
  • Length: 8.5mm
 FX-10-17
Nut FX-10-17
&
  • Dimensions: M10 x 1mm
  • Length: 8.5mm
