Torque Converter | Ford | 6R80, 280mm (Early)

Ill.# Image Description Specification Part #
Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.400"
  • Inside Dia: 8.250"
 FX-23-98
Lining (Friction Ring,Wafer) FX-23-98
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.400"
  • Inside Dia: 8.250"
Misc NPN-SPL
Misc NPN-SPL
&
1 Hubcap Fits 1-3/4" (44.4mm). Length: 1-1/2"
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
 MHC-BU
Hubcap MHC-BU
Fits 1-3/4" (44.4mm). Length: 1-1/2" &
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
2 Impeller Hub
  • Journal Dia: 1.770"
  • Installed Height: 2.270"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
  • Material: Hardened Steel
 FH-1-48GRC
Impeller Hub FH-1-48GRC
&
  • Journal Dia: 1.770"
  • Installed Height: 2.270"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
  • Material: Hardened Steel

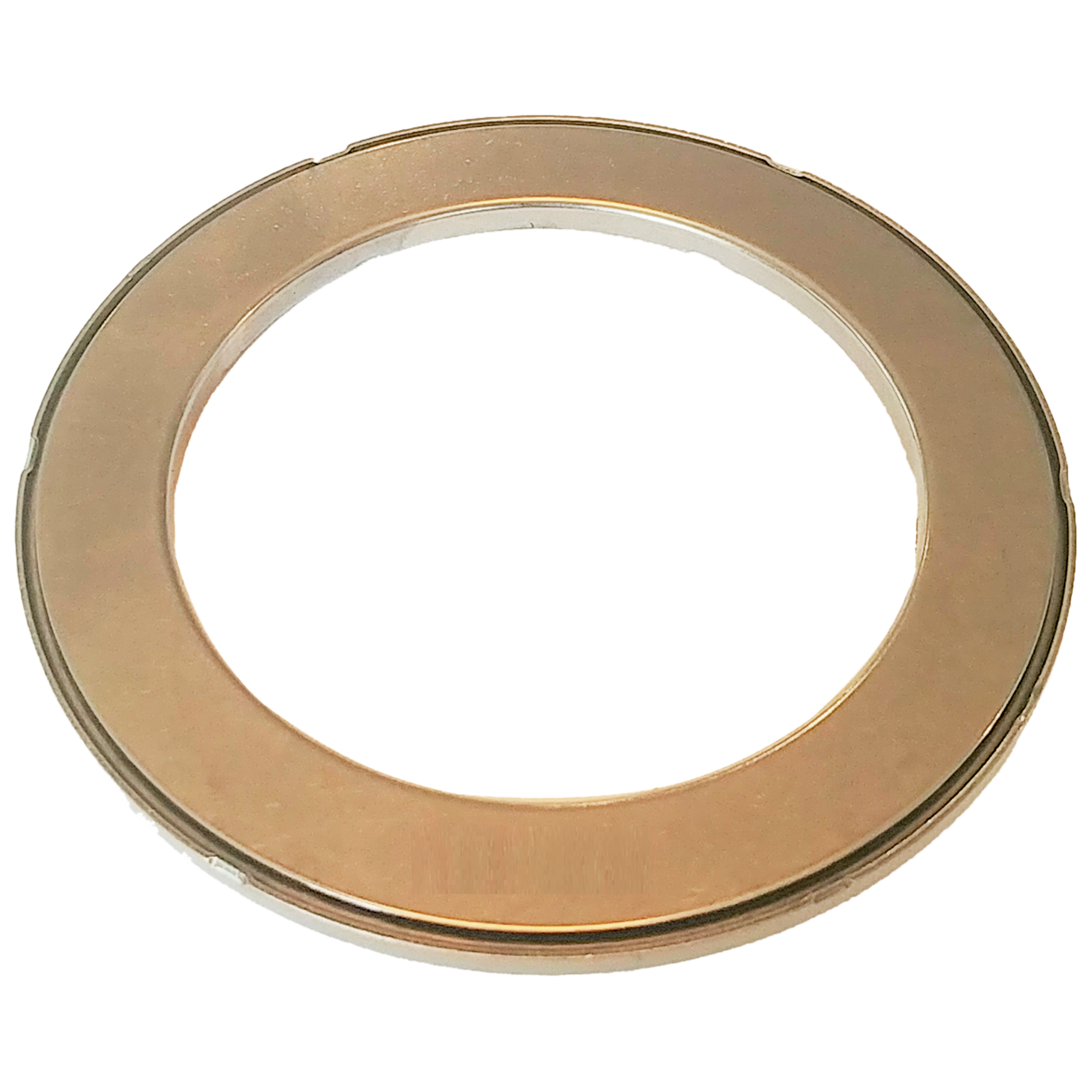

3 Bearing Impeller-side
  • Thickness: 0.162
  • Thickness metric: 4.11
  • Bearing type: Enclosed
  • Outside Dia: 3.67
  • Inside Dia: 2.62
  • Outside Dia Metric: 93.22
  • Inside Dia metric: 66.55
 FW-2-13
Bearing FW-2-13
& Impeller-side
  • Thickness: 0.162
  • Thickness metric: 4.11
  • Bearing type: Enclosed
  • Outside Dia: 3.67
  • Inside Dia: 2.62
  • Outside Dia Metric: 93.22
  • Inside Dia metric: 66.55
3 Bearing Fits 4-Stud & 6-Stud torque converters
  • Thickness: 0.55
  • Thickness metric: 14.0mm
  • Bearing type: Ball Bearing
  • Outside Dia: 2.44
  • Inside Dia: 1.38
  • Outside Dia Metric: 62mm
  • Inside Dia metric: 35.1mm
 FW-2-14
Bearing FW-2-14
& Fits 4-Stud & 6-Stud torque converters
  • Thickness: 0.55
  • Thickness metric: 14.0mm
  • Bearing type: Ball Bearing
  • Outside Dia: 2.44
  • Inside Dia: 1.38
  • Outside Dia Metric: 62mm
  • Inside Dia metric: 35.1mm
4 Roller
  • Dia: 0.312"
  • Length: 0.572"
  • Material: Steel
 SR-7
Roller SR-7
&
  • Dia: 0.312"
  • Length: 0.572"
  • Material: Steel
4.1 Stator Cap Aluminum Turbine-side
  • Height: 0.294"
  • Thickness: 0.294"
  • Material: Aluminum
  • Functional Thickness: 0.155"
  • Outside Dia: 3.963"
  • Inside Dia: 1.930"
 FW-4-39
Stator Cap FW-4-39
Aluminum & Turbine-side
  • Height: 0.294"
  • Thickness: 0.294"
  • Material: Aluminum
  • Functional Thickness: 0.155"
  • Outside Dia: 3.963"
  • Inside Dia: 1.930"
5 Bearing Turbine side
  • Thickness: 0.150"
  • Thickness metric: 3.81
  • Bearing type: Enclosed
  • Outside Dia: 3.380"
  • Inside Dia: 2.500"
  • Outside Dia Metric: 85.85
  • Inside Dia metric: 63.5
 SW-2-11
Bearing SW-2-11
& Turbine side
  • Thickness: 0.150"
  • Thickness metric: 3.81
  • Bearing type: Enclosed
  • Outside Dia: 3.380"
  • Inside Dia: 2.500"
  • Outside Dia Metric: 85.85
  • Inside Dia metric: 63.5
6 Turbine Washer
  • Thickness: 0.062"
  • Material: Fiber
  • Outside Dia: 3.210"
  • Inside Dia: 2.340"
 FW-9-28
Turbine Washer FW-9-28
&
  • Thickness: 0.062"
  • Material: Fiber
  • Outside Dia: 3.210"
  • Inside Dia: 2.340"

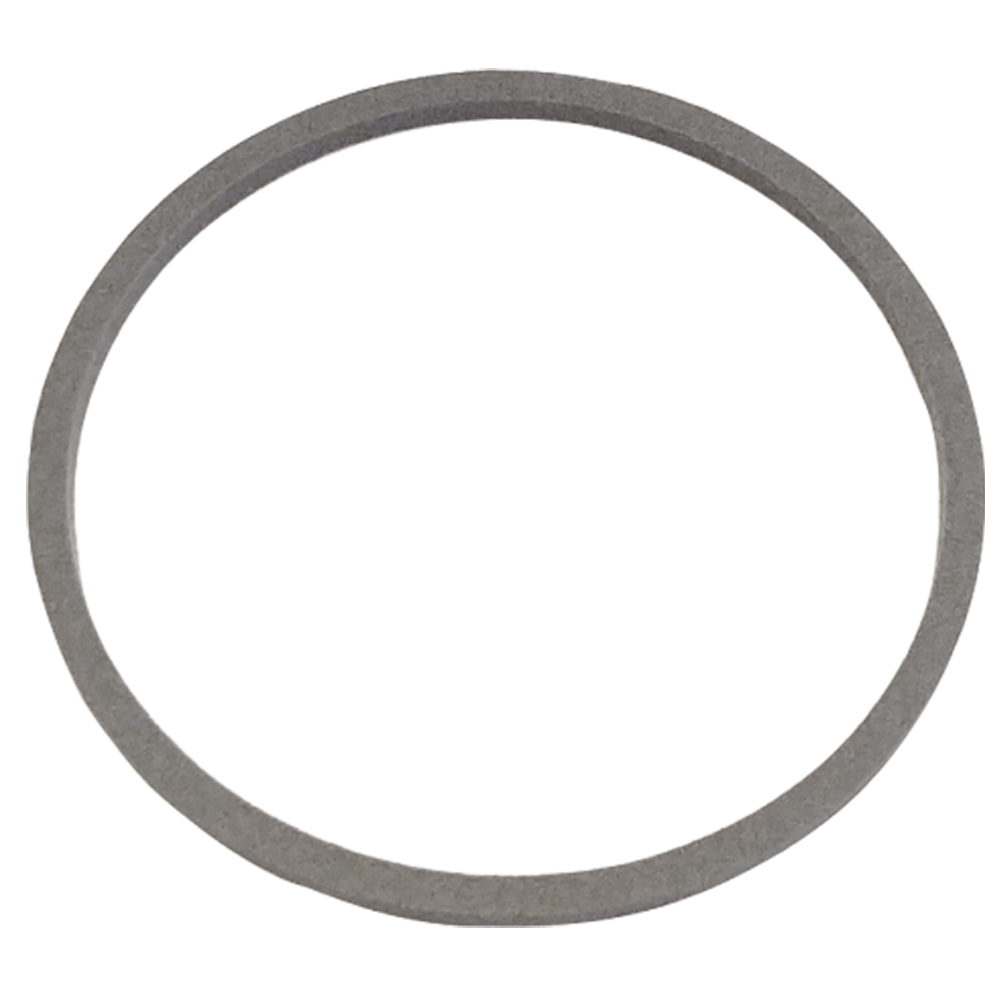

7 Seal Ring
  • Height: 0.1
  • Width: 0.09
  • Material: PTFE Solid
  • Height Metric: 2.54
  • Seal Type: Solid
  • Outside Dia: 2.356
  • Outside Dia Metric: 59.8424
 FO-25-21
Seal Ring FO-25-21
&
  • Height: 0.1
  • Width: 0.09
  • Material: PTFE Solid
  • Height Metric: 2.54
  • Seal Type: Solid
  • Outside Dia: 2.356
  • Outside Dia Metric: 59.8424
7 Metal Clad Seal
  • Housing Bore Dia: 1.181
  • Housing Bore Dia Metric: 30
  • Shaft Dia metric: 22.12
  • Shaft Dia: 0.871
  • Material: Steel Fluorocarbon
 FO-25-23
Metal Clad Seal FO-25-23
&
  • Housing Bore Dia: 1.181
  • Housing Bore Dia Metric: 30
  • Shaft Dia metric: 22.12
  • Shaft Dia: 0.871
  • Material: Steel Fluorocarbon
8 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN. 2 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.500"
  • Inside Dia: 8.250"
 FX-23-82
Lining (Friction Ring,Wafer) FX-23-82
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN. 2 Pieces Required.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.500"
  • Inside Dia: 8.250"
9 Bearing Front cover to turbine hub
  • Thickness: 0.276
  • Thickness metric: 7.01
  • Bearing type: Ball Bearing
  • Outside Dia: 1.654
  • Inside Dia: 1.181
  • Outside Dia Metric: 42.01
  • Inside Dia metric: 30
  • Front Cover to Turbine Hub
 FW-9-29
Bearing FW-9-29
& Front cover to turbine hub
  • Thickness: 0.276
  • Thickness metric: 7.01
  • Bearing type: Ball Bearing
  • Outside Dia: 1.654
  • Inside Dia: 1.181
  • Outside Dia Metric: 42.01
  • Inside Dia metric: 30
  • Front Cover to Turbine Hub
10 Nut
  • Dimensions: M10 x 1mm
  • Length: 8.5mm
 FX-10-17
Nut FX-10-17
&
  • Dimensions: M10 x 1mm
  • Length: 8.5mm
