Torque Converter | Ford | 6R60, 6R75W

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-3/4" (44.4mm)
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
 MHC-BU
1 Hubcap Fits 1-3/4" (44.4mm)
  • Length: .75"
  • Color: Gray
  • Fits 1-3/4" (44.4mm)
 MHC-P
2 Impeller Hub
  • Journal Dia: 1.770"
  • Installed Height: 2.270"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
  • Material: Hardened Steel
 FH-1-48GRC
3 Bearing 2 Pieces Required.
  • Outer Dia: 3.380"
  • Inner Dia: 2.500"
  • Thickness: 0.150"
  • Outer Dia Metric: 85.85
  • Inner Dia metric: 63.5
  • Thickness metric: 3.81
  • Bearing type: Enclosed
 SW-2-11
3.1 Stator Cap
  • Outer Dia: 3.95"
  • Inner Dia: 1.925"
  • Thickness: 0.326"
  • Material: Aluminum
 SW-4-18
4 Metal Clad Seal
  • housing bore dia: 0.945
  • housing bore dia metric: 24
  • Shaft Dia metric: 18
  • Shaft Dia: 0.709
  • Material: Fluorocarbon
 PO-25-6

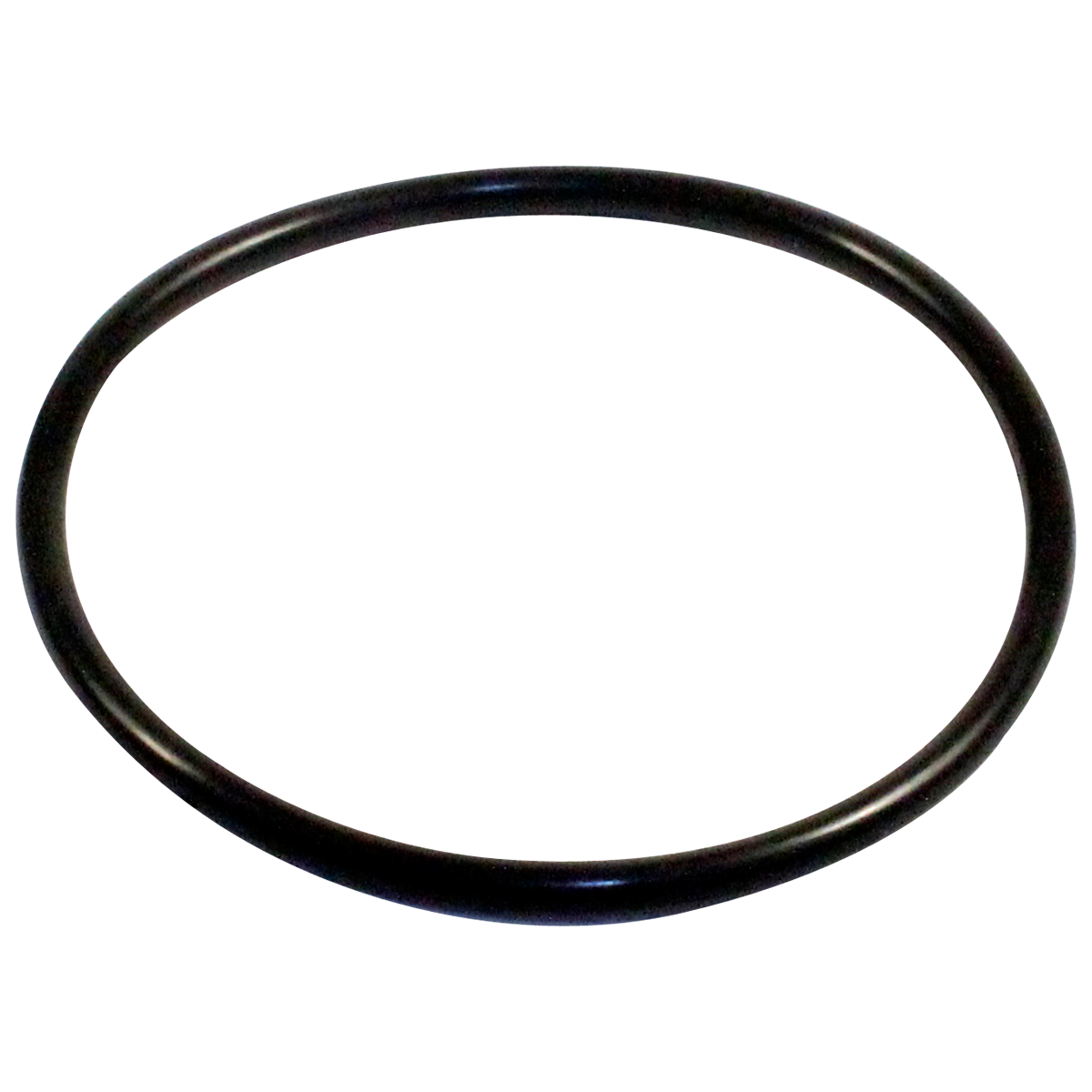

5 O-Ring
  • Inner Dia: 1.8
  • Thickness: 0.103
  • Inner Dia metric: 45.72
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
 FO-25-18
6 Piston Plate
  • Material: Steel Forging
 FX-23-79
7 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN. 3 Pieces Required.
  • Outer Dia: 8.080"
  • Inner Dia: 6.930"
  • Thickness: 0.045"
  • Material: Red
 FX-23-74

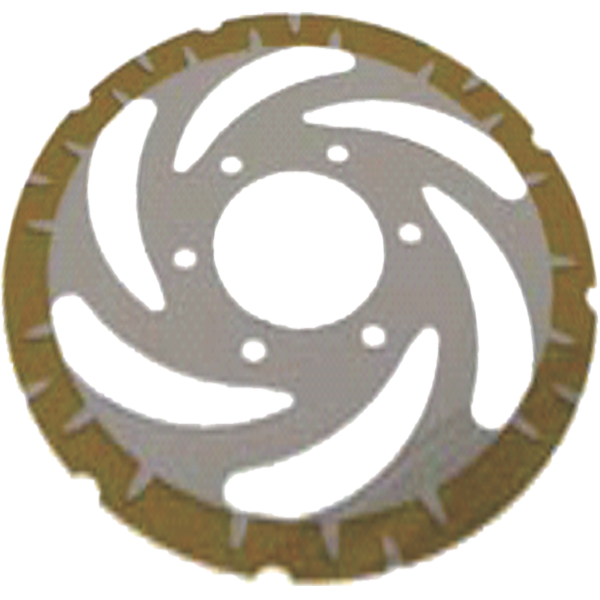

8 Friction Plate Bonded on Each Side
  • Outer Dia: 8.071"
 FX-26-1
9 Bolts & Nuts Kit High-Quality Welding Bolts 5/16"-18 Weld bolts (6) 5/16"-18 Flanged Lock Nuts (6) FX-10-21K
10 Turbine Washer
  • Outer Dia: 2.000"
  • Inner Dia: 0.740"
  • Thickness: 0.490"
  • Material: Plastic
 FW-9-27
11 Nut 4 Pieces Required.
  • Dimensions: M10 x 1mm x 8.5mm
 FX-10-17
