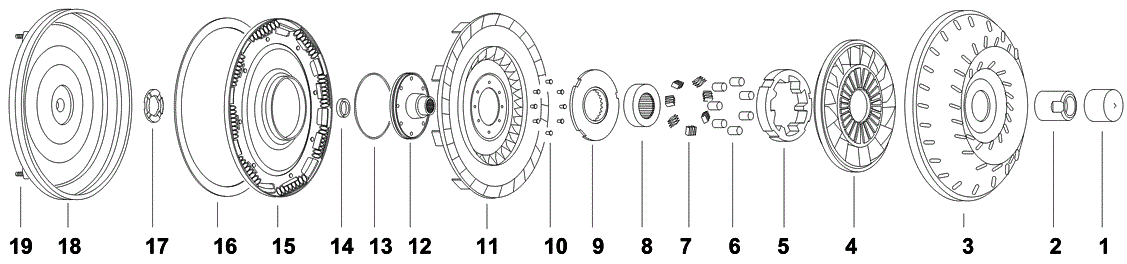

Torque Converter | Ford | 4F27E (Focus / FN)

Ill.# Image Description Specification Part #
Misc NPN-SPL
Misc NPN-SPL
&
Seal Ring
  • Height: 0.113
  • Width: 0.094
  • Material: PTFE
  • Height Metric: 2.8702
  • Seal Type: Square-Cut
  • Outside Dia: 3.499
  • Outside Dia Metric: 88.8746
 TO-25-11
Seal Ring TO-25-11
&
  • Height: 0.113
  • Width: 0.094
  • Material: PTFE
  • Height Metric: 2.8702
  • Seal Type: Square-Cut
  • Outside Dia: 3.499
  • Outside Dia Metric: 88.8746
1 Hubcap Fits 1-1/2" (38.1mm). Length: 1-1/2"
  • Color: Green
  • Fits 1-1/2" (38.1mm)
 MHC-G
Hubcap MHC-G
Fits 1-1/2" (38.1mm). Length: 1-1/2" &
  • Color: Green
  • Fits 1-1/2" (38.1mm)
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
Hubcap MHC-B
Fits 1-5/8" (41.3mm). Length: 1-3/8" &
  • Color: Black
  • Fits 1-5/8" (41.3mm)
2 Impeller Hub
  • Journal Dia: 1.573"
  • Installed Height: 1.41"
  • Height: 1.53
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.265"
 TH-1-36GRC
Impeller Hub TH-1-36GRC
&
  • Journal Dia: 1.573"
  • Installed Height: 1.41"
  • Height: 1.53
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
  • Inside Dia: 1.265"
3 Impeller NPN-2-54-3
Impeller NPN-2-54-3
&
4 Stator
  • OE # 6A89030102
 NPN-2-54-4
Stator NPN-2-54-4
&
  • OE # 6A89030102
5 Cam NPN-2-54-5
Cam NPN-2-54-5
&
6 Roller 7 Pieces Required.
  • Dia: 0.312"
  • Length: 0.572"
  • Material: Steel
 SR-7
Roller SR-7
& 7 Pieces Required.
  • Dia: 0.312"
  • Length: 0.572"
  • Material: Steel
7 Accordion Spring 7 Pieces Required.
  • Width: 0.28"
  • Relaxed Length: 0.255"
  • Folds: 3
  • Relaxed Height: 0.733"
 FS-6-11
Accordion Spring FS-6-11
& 7 Pieces Required.
  • Width: 0.28"
  • Relaxed Length: 0.255"
  • Folds: 3
  • Relaxed Height: 0.733"
7 Accordion Spring 8 Pieces Required.
  • Width: 0.73"
  • Relaxed Length: 0.42"
  • Folds: 4
  • Relaxed Height: 0.28"
 FS-6-8
Accordion Spring FS-6-8
& 8 Pieces Required.
  • Width: 0.73"
  • Relaxed Length: 0.42"
  • Folds: 4
  • Relaxed Height: 0.28"

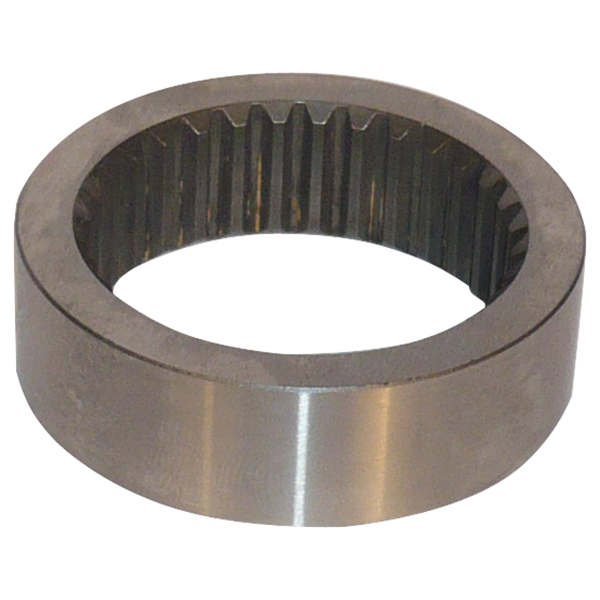

8 Inner Race Stator
  • Height: .620"
  • Length: 0.618"
  • Internal Teeth: 32
  • Outside Dia: 2.100"
 FX-14-9
Inner Race FX-14-9
Stator &
  • Height: .620"
  • Length: 0.618"
  • Internal Teeth: 32
  • Outside Dia: 2.100"
9 Stator Cap
  • Material: Phenolic
  • OE # 6A89030402
 FW-4-29
Stator Cap FW-4-29
&
  • Material: Phenolic
  • OE # 6A89030402
10 Rivet 8 Pieces Required.
  • Length: 0.285"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.224"
  • Rivet Head Dia: 0.356"
 TX-12-4
Rivet TX-12-4
& 8 Pieces Required.
  • Length: 0.285"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.224"
  • Rivet Head Dia: 0.356"
11 Turbine NPN-2-54-11
Turbine NPN-2-54-11
&
12 Turbine Hub
  • Internal Teeth: 16
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.48"
 FX-13-36HT
Turbine Hub FX-13-36HT
&
  • Internal Teeth: 16
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.48"
13 O-Ring
  • Thickness: 0.098
  • Thickness metric: 2.4892
  • Material: Fluorocarbon
  • Inside Dia: 3.24
  • Inside Dia metric: 82.296
 TO-25-14
O-Ring TO-25-14
&
  • Thickness: 0.098
  • Thickness metric: 2.4892
  • Material: Fluorocarbon
  • Inside Dia: 3.24
  • Inside Dia metric: 82.296
13.1 Seal Ring Scarf Cut
  • Height: 0.113
  • Width: 0.093"
  • Material: PTFE
  • Height Metric: 2.8702
  • Seal Type: Scarf Cut
  • Outside Dia: 3.493
  • Outside Dia Metric: 88.7222
 JO-25-20
Seal Ring JO-25-20
Scarf Cut &
  • Height: 0.113
  • Width: 0.093"
  • Material: PTFE
  • Height Metric: 2.8702
  • Seal Type: Scarf Cut
  • Outside Dia: 3.493
  • Outside Dia Metric: 88.7222
14 Metal Clad Seal
  • Housing Bore Dia: 0.906
  • Housing Bore Dia Metric: 23
  • Shaft Dia metric: 15
  • Shaft Dia: 0.59
  • Material: Fluorocarbon
 TO-25-12
Metal Clad Seal TO-25-12
&
  • Housing Bore Dia: 0.906
  • Housing Bore Dia Metric: 23
  • Shaft Dia metric: 15
  • Shaft Dia: 0.59
  • Material: Fluorocarbon
15 Lockup Clutch 8 Springs NPN-2-54-15
Lockup Clutch NPN-2-54-15
8 Springs &
16 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.36"
  • Inside Dia: 8.38"
 PX-23-11
Lining (Friction Ring,Wafer) PX-23-11
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.36"
  • Inside Dia: 8.38"
16 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.5"
  • Inside Dia: 8.5"
 NX-23-2
Lining (Friction Ring,Wafer) NX-23-2
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.5"
  • Inside Dia: 8.5"
17 Turbine Washer
  • Thickness: .24"
  • Material: Plastic
  • Outside Dia: 1.97"
  • Inside Dia: 1.35"
 TW-9-17
Turbine Washer TW-9-17
&
  • Thickness: .24"
  • Material: Plastic
  • Outside Dia: 1.97"
  • Inside Dia: 1.35"
17 Turbine Washer
  • Material: Bronze
  • Outside Dia: 1.97"
  • Inside Dia: 1.35"
 TW-9-17B
Turbine Washer TW-9-17B
&
  • Material: Bronze
  • Outside Dia: 1.97"
  • Inside Dia: 1.35"
18 Front Cover NPN-2-54-18
Front Cover NPN-2-54-18
&
19 Stud 4 Pieces Required.
  • Dimensions: M10 x 140 Long
 FX-10-20
Stud FX-10-20
& 4 Pieces Required.
  • Dimensions: M10 x 140 Long
