Torque Converter | Chrysler | TF-8 (Iron) 1956-'61, Powerflite 1953-'61, Industrial & Passenger ('52-'54) (1539589)

Ill.# Image Description Specification Part #
Metal Clad Seal Red Silicon Impeller Hub 1950 - On
  • Height: 0.437"
  • Housing Bore Dia: 2.875"
  • Shaft Dia: 2.125"
 20-116
Metal Clad Seal 20-116
Red Silicon & Impeller Hub 1950 - On
  • Height: 0.437"
  • Housing Bore Dia: 2.875"
  • Shaft Dia: 2.125"
Bushing Flanged,T.F., Iron,Antique TB-18-2
Bushing TB-18-2
Flanged,T.F., Iron,Antique &
Accordion Spring
  • Width: 0.68"
  • Relaxed Length: 0.42"
  • Folds: 4
  • Relaxed Height: 0.31"
 TS-6-1
Accordion Spring TS-6-1
&
  • Width: 0.68"
  • Relaxed Length: 0.42"
  • Folds: 4
  • Relaxed Height: 0.31"
Accordion Spring
  • Width: 0.68"
  • Relaxed Length: 0.42"
  • Folds: 4
  • Relaxed Height: 0.285"
  • Special "Low" Spring To
 TS-6-2
Accordion Spring TS-6-2
&
  • Width: 0.68"
  • Relaxed Length: 0.42"
  • Folds: 4
  • Relaxed Height: 0.285"
  • Special "Low" Spring To

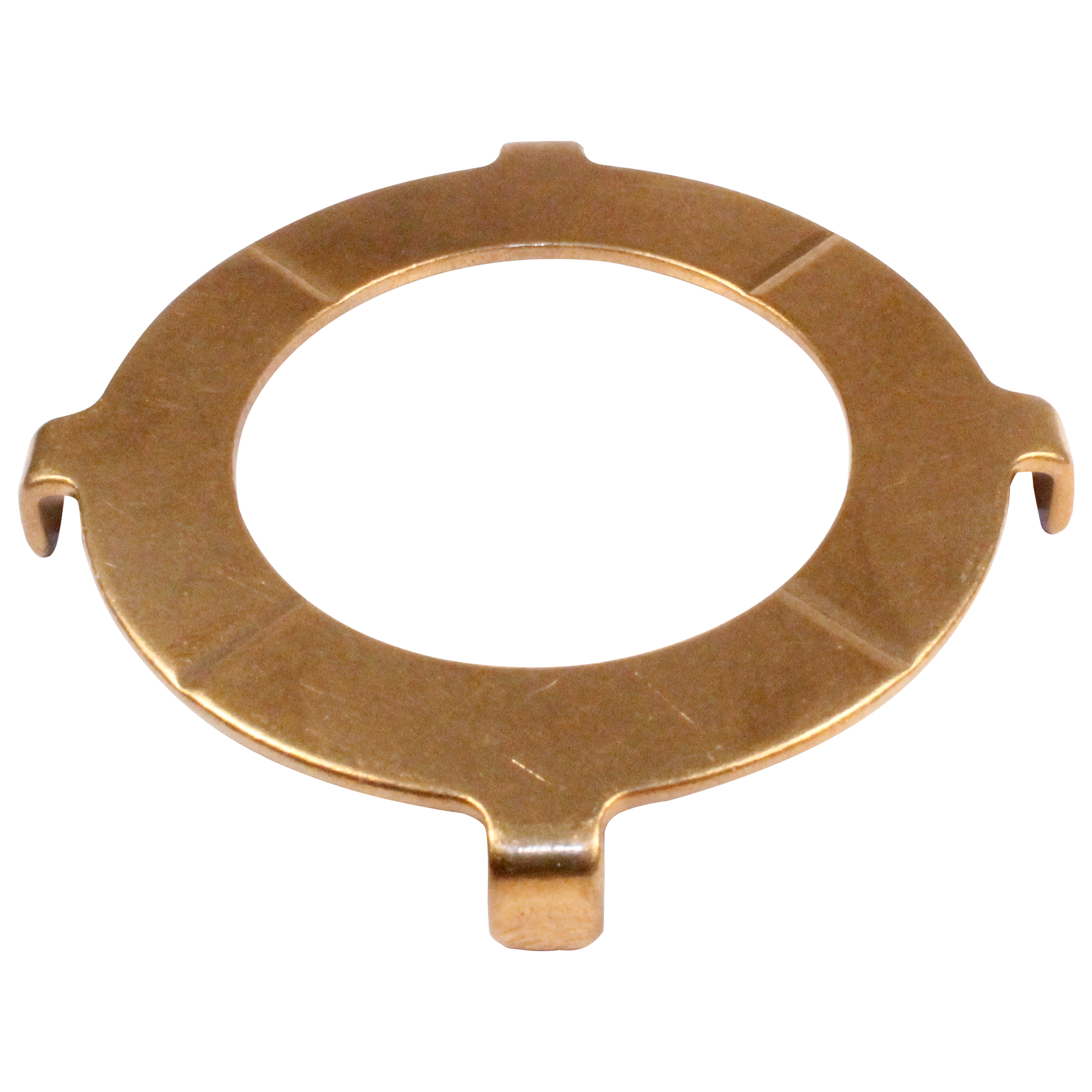

Washer 4 Lugs
  • Thickness: .06"
  • Material: Bronze
  • Lug Width: .30"
  • Outside Dia: 2.75"
  • Inside Dia: 1.81"
 TW-3-1
Washer TW-3-1
4 Lugs &
  • Thickness: .06"
  • Material: Bronze
  • Lug Width: .30"
  • Outside Dia: 2.75"
  • Inside Dia: 1.81"
Rivet 2 Pieces Required.
  • Length: 1.576"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.183"
  • Rivet Head Dia: 0.315"
 TX-12-1
Rivet TX-12-1
& 2 Pieces Required.
  • Length: 1.576"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.183"
  • Rivet Head Dia: 0.315"
9 Turbine Washer
  • Thickness: .12"
  • Material: Fiber
  • Outside Dia: 2.74"
  • Inside Dia: 1.45"
 PW-9-1
Turbine Washer PW-9-1
&
  • Thickness: .12"
  • Material: Fiber
  • Outside Dia: 2.74"
  • Inside Dia: 1.45"

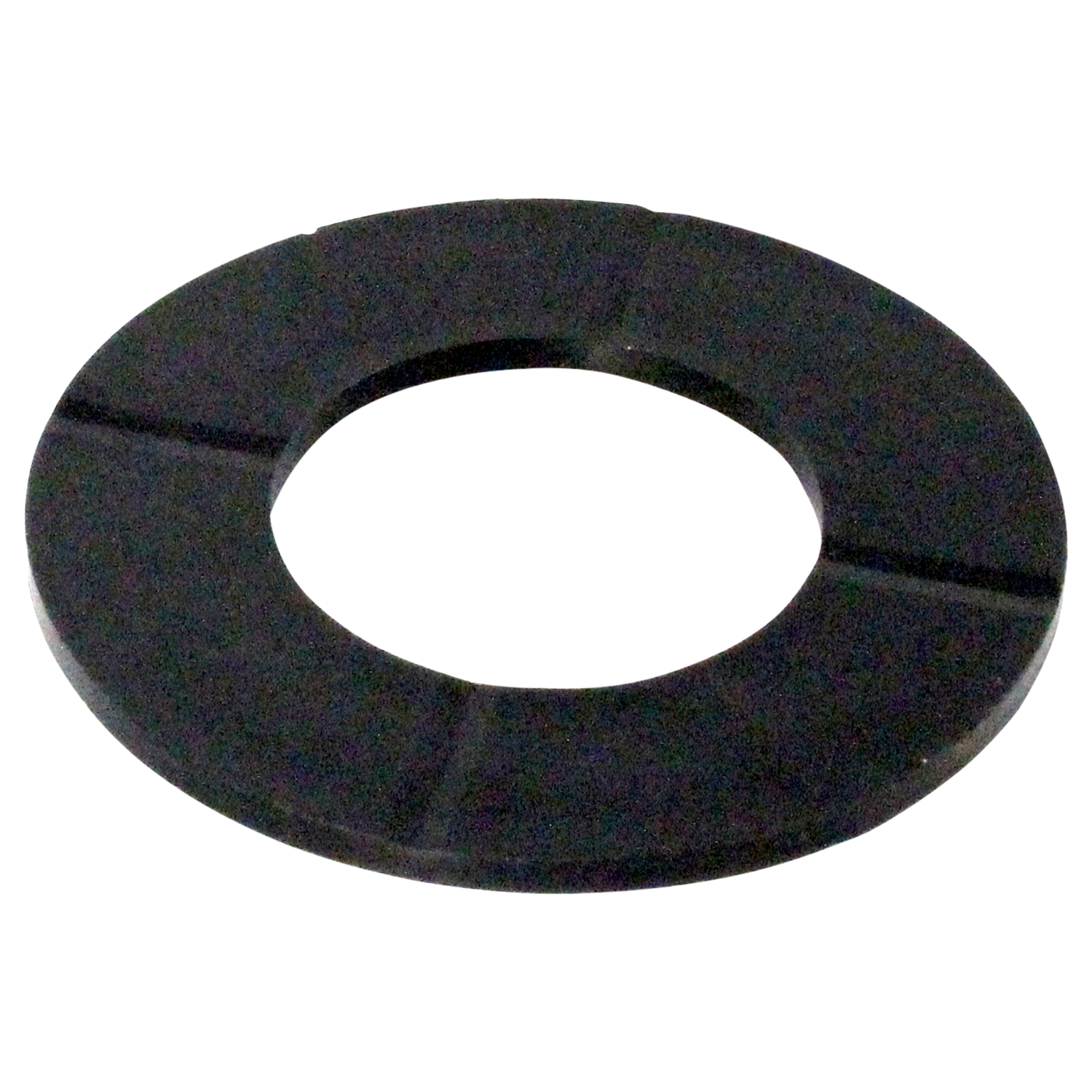

9 Turbine Washer
  • Thickness: .118"
  • Material: Plastic
  • Outside Dia: 2.750"
  • Inside Dia: 1.450"
 SW-9
Turbine Washer SW-9
&
  • Thickness: .118"
  • Material: Plastic
  • Outside Dia: 2.750"
  • Inside Dia: 1.450"
9 Turbine Washer
  • Thickness: .132"
  • Material: Plastic
  • Outside Dia: 2.750"
  • Inside Dia: 1.450"
 SW-9-1
Turbine Washer SW-9-1
&
  • Thickness: .132"
  • Material: Plastic
  • Outside Dia: 2.750"
  • Inside Dia: 1.450"
9 Turbine Washer
  • Thickness: 0.125"
  • Material: Nylon
  • Outside Dia: 2.75"
  • Inside Dia: 1.45"

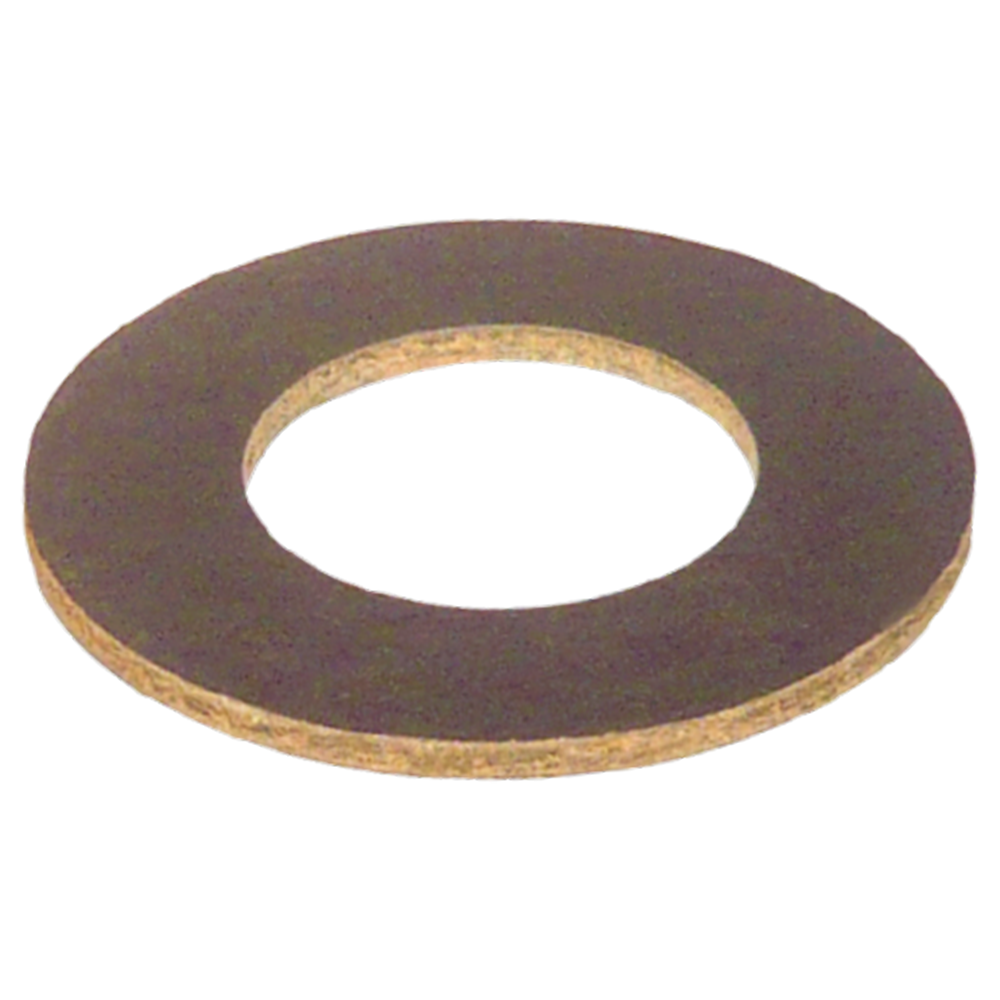

 SW-9-1F
Turbine Washer SW-9-1F
&
  • Thickness: 0.125"
  • Material: Nylon
  • Outside Dia: 2.75"
  • Inside Dia: 1.45"
9 Washer
  • Thickness: .160"
  • Outside Dia: 2.75"
  • Inside Dia: 1.45"
 SW-9-3
Washer SW-9-3
&
  • Thickness: .160"
  • Outside Dia: 2.75"
  • Inside Dia: 1.45"
9 Turbine Washer
  • Thickness: 0.160"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.45"
 SW-9-3F
Turbine Washer SW-9-3F
&
  • Thickness: 0.160"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.45"
9 Turbine Washer 0.130 (3.3) THICK
  • Thickness: 0.118"
  • Material: Fiber
  • Outside Dia: 2.750"
  • Inside Dia: 1.450"

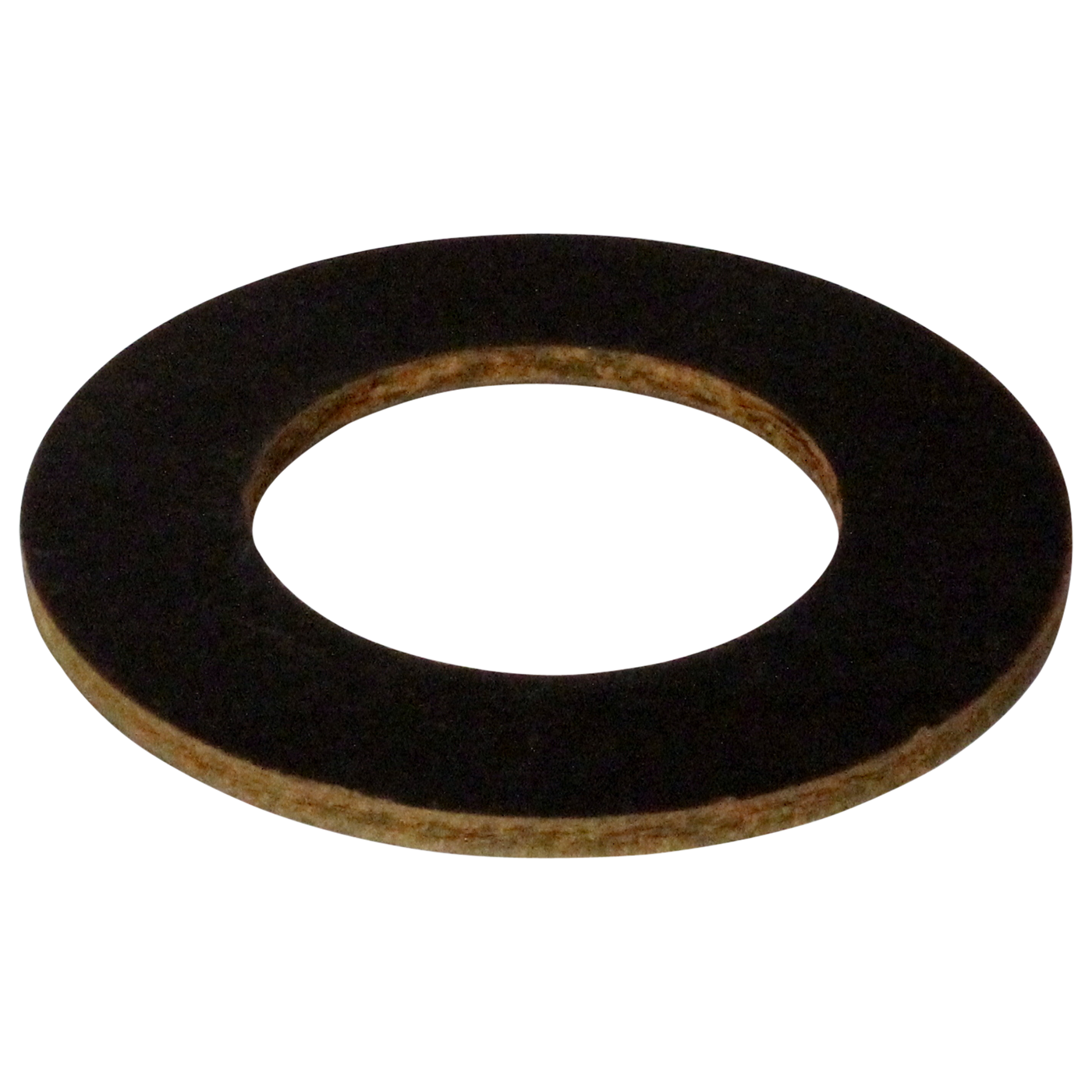

 SW-9F
Turbine Washer SW-9F
& 0.130 (3.3) THICK
  • Thickness: 0.118"
  • Material: Fiber
  • Outside Dia: 2.750"
  • Inside Dia: 1.450"

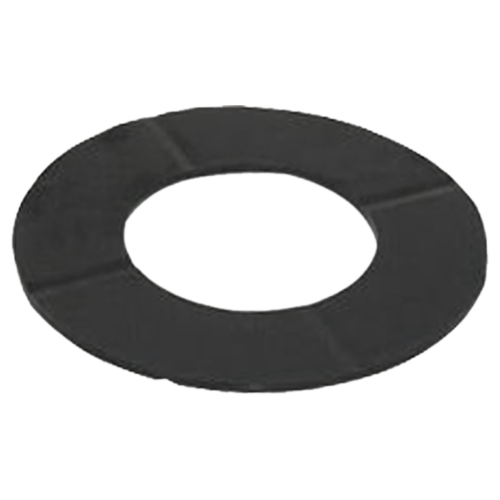

9 Turbine Washer
  • Thickness: .063"
  • Material: Plastic
  • Outside Dia: 2.750"
  • Inside Dia: 1.450"
 TW-9-5A
Turbine Washer TW-9-5A
&
  • Thickness: .063"
  • Material: Plastic
  • Outside Dia: 2.750"
  • Inside Dia: 1.450"
9 Turbine Washer
  • Thickness: .063"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.45"
 TW-9-5AF
Turbine Washer TW-9-5AF
&
  • Thickness: .063"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.45"

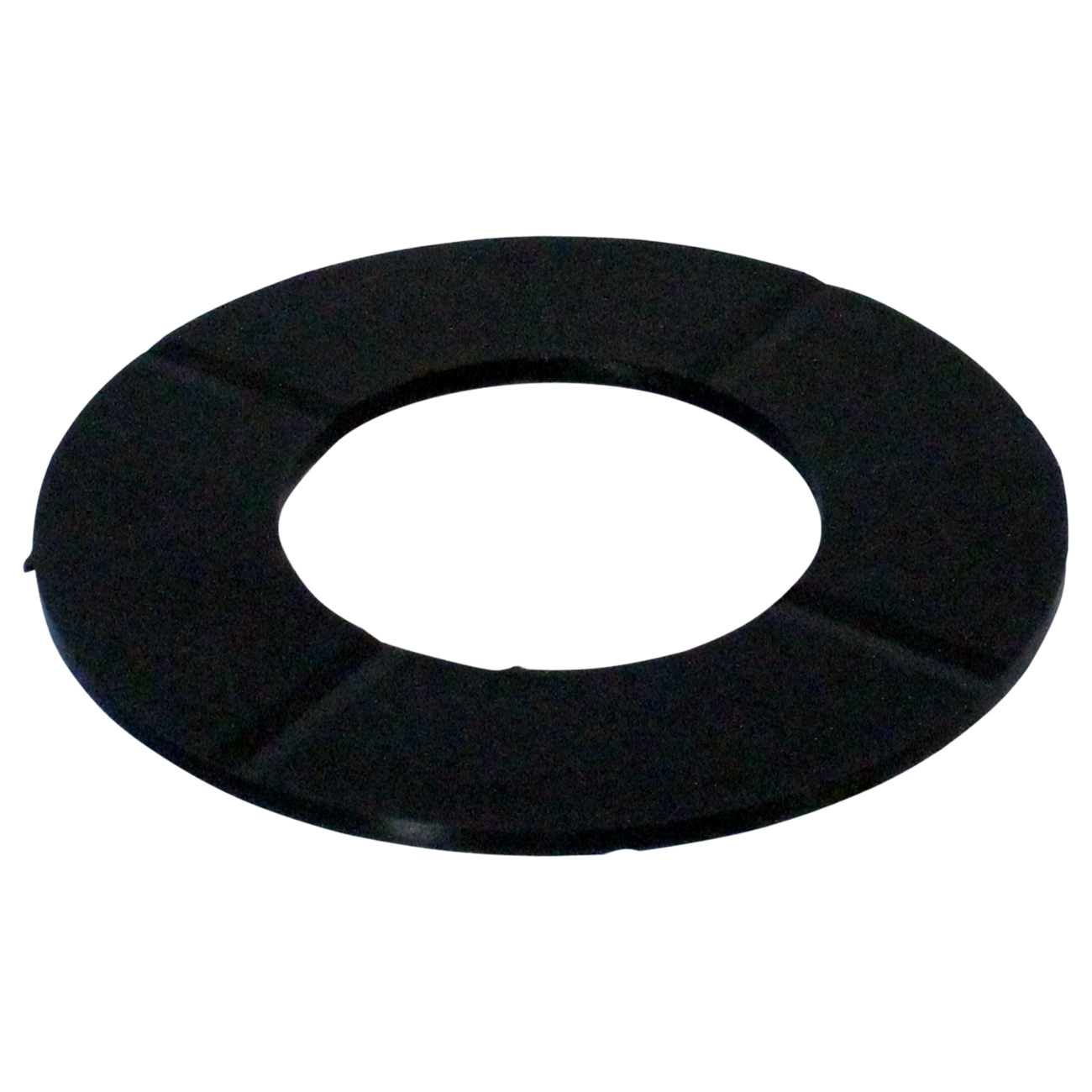

9 Turbine Washer 0.083 (2.1) THICK
  • Thickness: .083"
  • Material: Plastic
  • Outside Dia: 2.750"
  • Inside Dia: 1.450"
 TW-9-5B
Turbine Washer TW-9-5B
& 0.083 (2.1) THICK
  • Thickness: .083"
  • Material: Plastic
  • Outside Dia: 2.750"
  • Inside Dia: 1.450"
9 Turbine Washer
  • Thickness: .094"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.45"

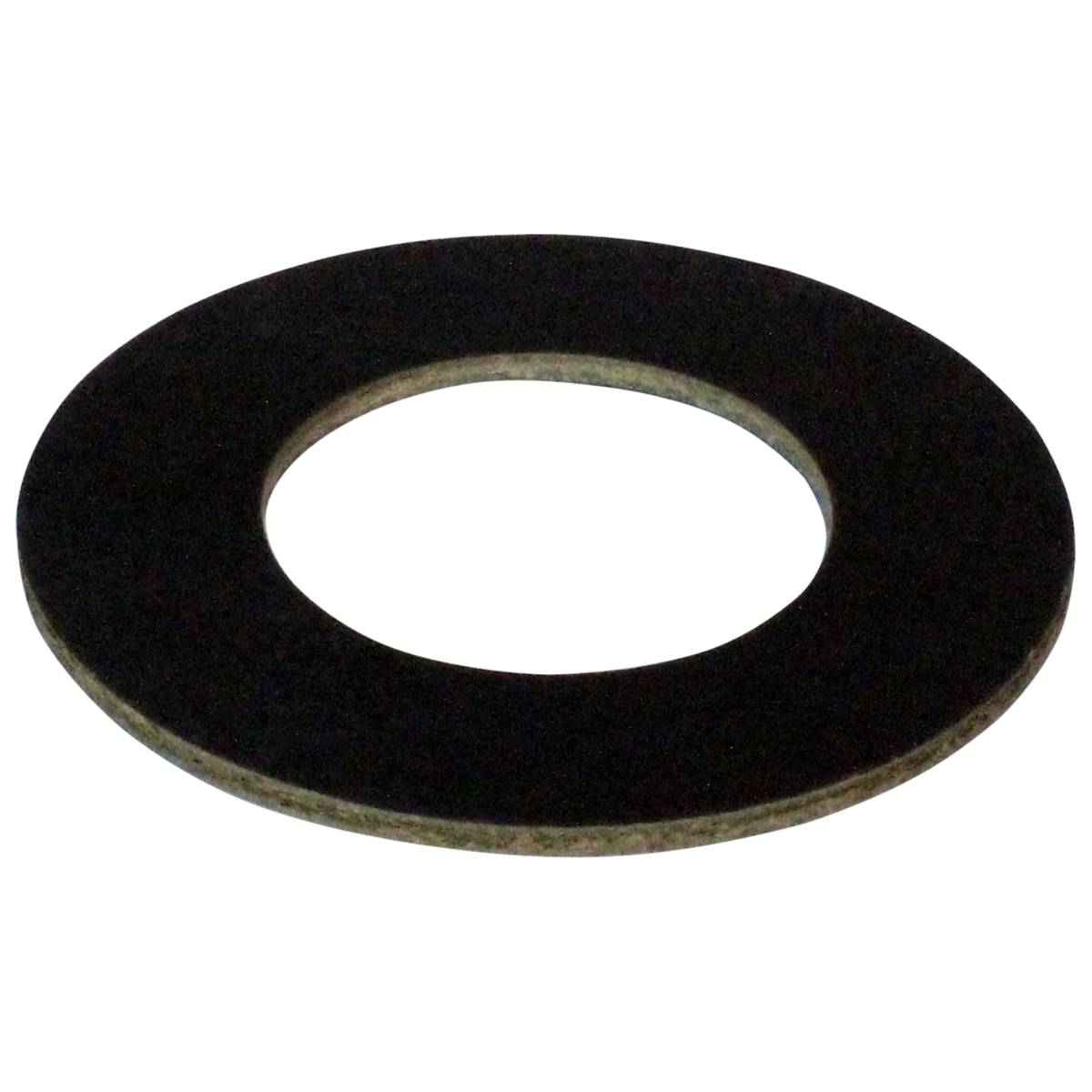

 TW-9-5BF
Turbine Washer TW-9-5BF
&
  • Thickness: .094"
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.45"
9 Turbine Washer
  • Thickness: .130"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.45"
 TW-9-5C
Turbine Washer TW-9-5C
&
  • Thickness: .130"
  • Material: Plastic
  • Outside Dia: 2.75"
  • Inside Dia: 1.45"
9 Turbine Washer
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.45"
 TW-9-5CF
Turbine Washer TW-9-5CF
&
  • Material: Fiber
  • Outside Dia: 2.75"
  • Inside Dia: 1.45"

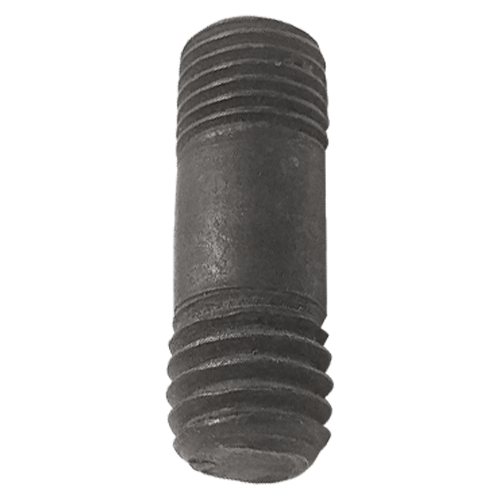

10 Stud Heat treated TX-10
Stud TX-10
Heat treated &

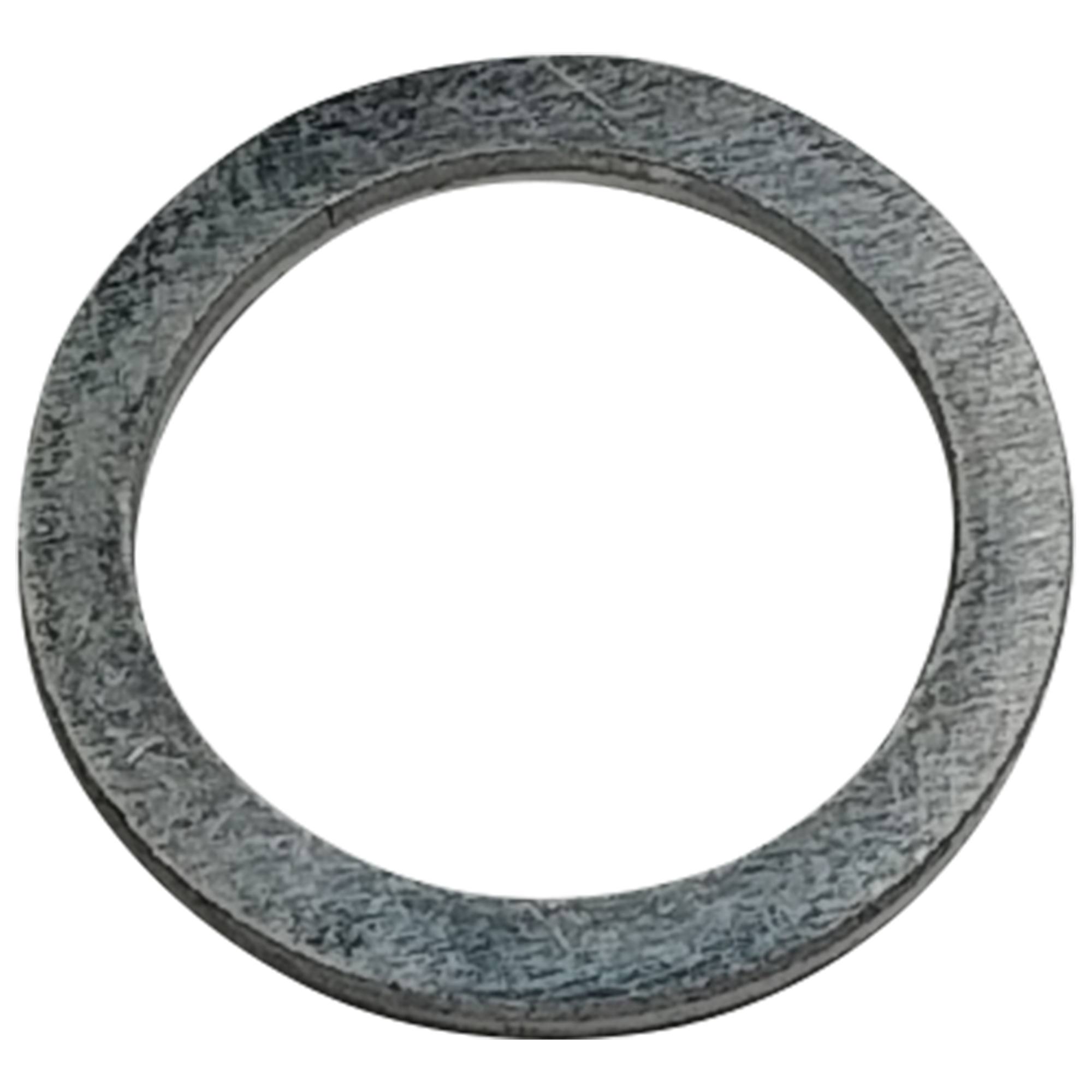

11 Washer 85012
Washer 85012
&

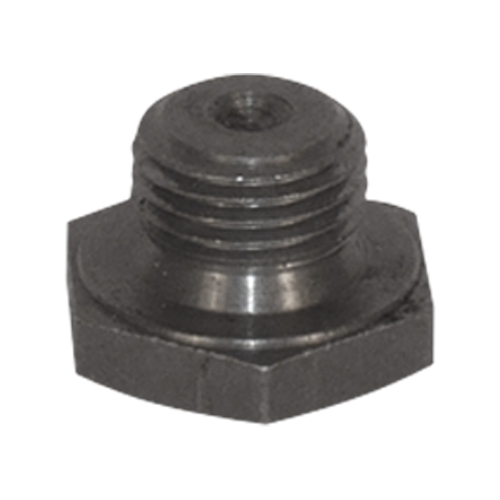

11 Drain Plug D-13
Drain Plug D-13
&
11 Drain Plug
  • Material: Steel
  • 1/8-27 NPT
 FX-11
Drain Plug FX-11
&
  • Material: Steel
  • 1/8-27 NPT
11 Drain Plug 1/8-27 NPT, PTFE, Wrap FX-11A
Drain Plug FX-11A
1/8-27 NPT, PTFE, Wrap &
11 Drain Plug
  • Allen socket drain plug for use with drilled converters.
 FX-11B
Drain Plug FX-11B
&
  • Allen socket drain plug for use with drilled converters.
12 Rivet Turbine shaft to turbine. Use 6.
  • Length: .44"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.25"
  • Rivet Head Dia: 0.5"
 TX-12L
Rivet TX-12L
Turbine shaft to turbine. Use 6. &
  • Length: .44"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.25"
  • Rivet Head Dia: 0.5"

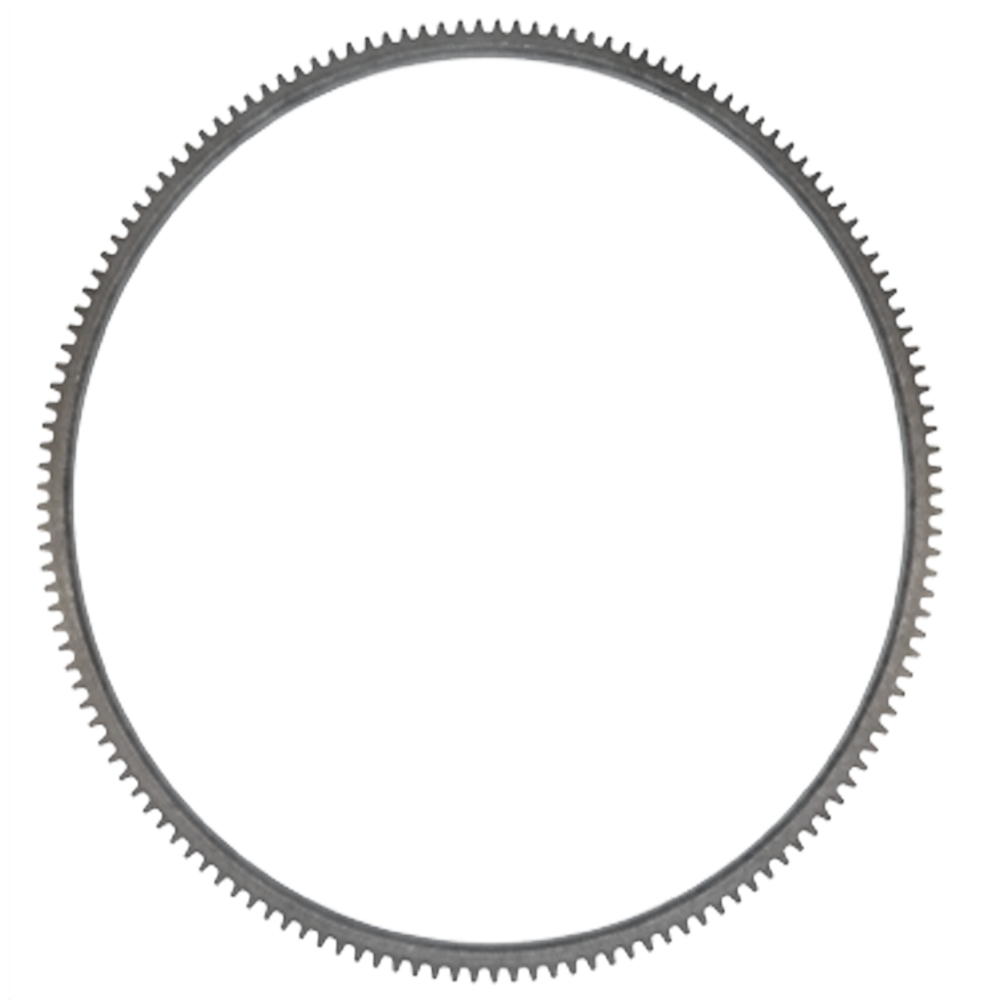

16 Ring Gear
  • External Teeth: 146
  • Outside Dia: 14.64"
  • Inside Dia: 13.56"
 RG-146
Ring Gear RG-146
&
  • External Teeth: 146
  • Outside Dia: 14.64"
  • Inside Dia: 13.56"
16 Ring Gear Converter
  • Thickness: 0.350"
  • External Teeth: 172
  • Outside Dia: 14.65"
  • Inside Dia: 13.565"
 RG-172
Ring Gear RG-172
Converter &
  • Thickness: 0.350"
  • External Teeth: 172
  • Outside Dia: 14.65"
  • Inside Dia: 13.565"
18 Bushing
  • Thickness: 0.5"
  • Housing Bore Dia: 1.569"
  • Shaft Dia: 1.445"
  • Material: Bronze
  • Outside Dia: 1.573
  • Inside Dia: 1.4520
  • Type: Precision

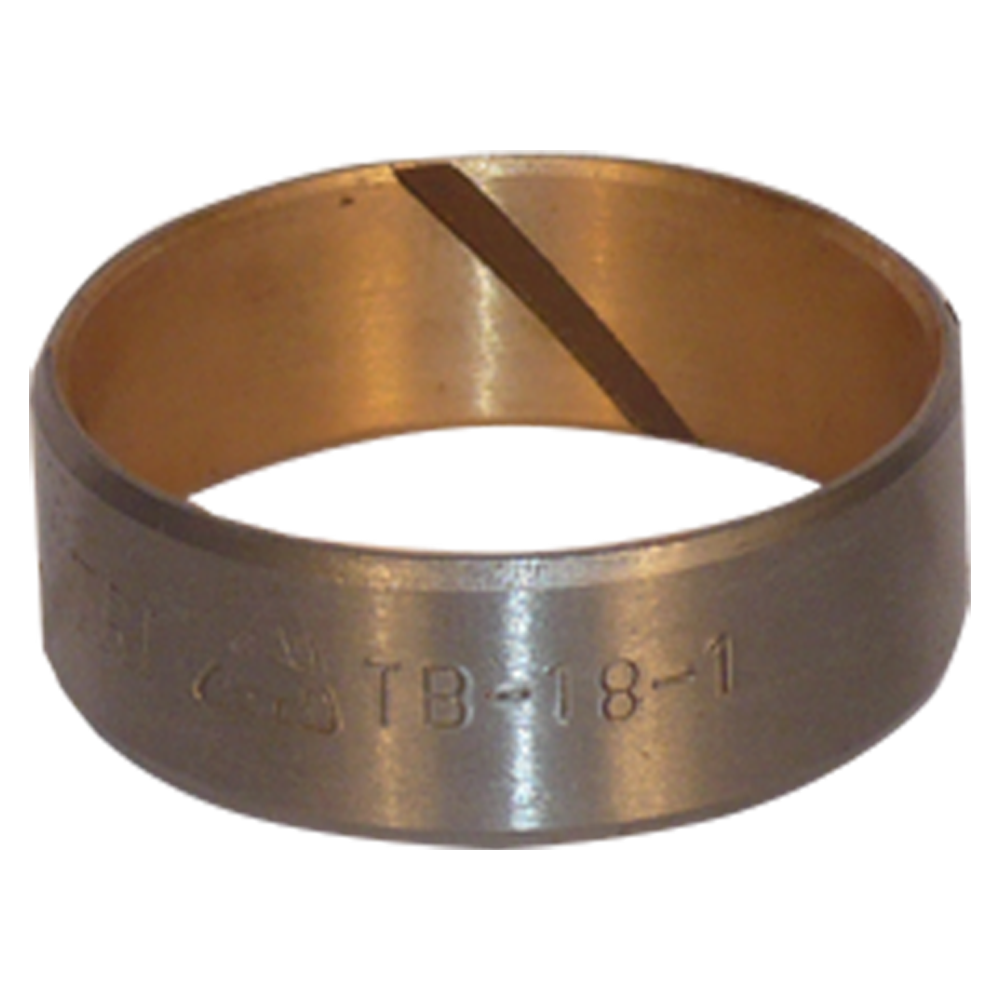

 TB-18-1
Bushing TB-18-1
&
  • Thickness: 0.5"
  • Housing Bore Dia: 1.569"
  • Shaft Dia: 1.445"
  • Material: Bronze
  • Outside Dia: 1.573
  • Inside Dia: 1.4520
  • Type: Precision
18 Bushing
  • Thickness: 0.5"
  • Housing Bore Dia: 1.607"
  • Shaft Dia: 1.4"
  • Material: Bronze
  • Type: Oversized (Unfinished)

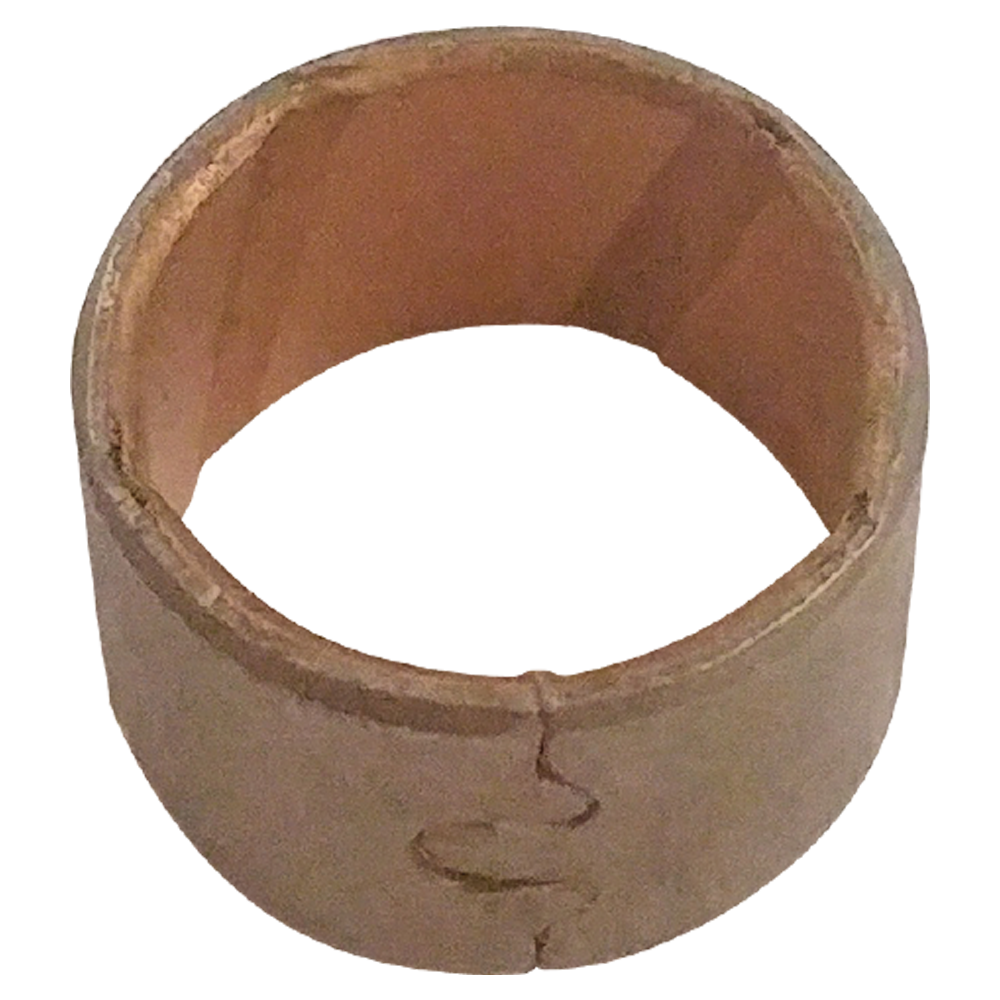

 TB-18-1A
Bushing TB-18-1A
&
  • Thickness: 0.5"
  • Housing Bore Dia: 1.607"
  • Shaft Dia: 1.4"
  • Material: Bronze
  • Type: Oversized (Unfinished)
18 Bushing
  • Thickness: 0.5
  • Housing Bore Dia: 1.610"
  • Shaft Dia: 1.405"
  • Material: Bi-metal
  • Outside Dia: 1.573
  • Inside Dia: 1.4520
  • Type: Oversized (Unfinished)
 TB-18-1P
Bushing TB-18-1P
&
  • Thickness: 0.5
  • Housing Bore Dia: 1.610"
  • Shaft Dia: 1.405"
  • Material: Bi-metal
  • Outside Dia: 1.573
  • Inside Dia: 1.4520
  • Type: Oversized (Unfinished)
18 Bushing
  • Thickness: 0.5
  • Housing Bore Dia: 1.574"
  • Shaft Dia: 1.447"
  • Type: Precision
 TB-18-1S
Bushing TB-18-1S
&
  • Thickness: 0.5
  • Housing Bore Dia: 1.574"
  • Shaft Dia: 1.447"
  • Type: Precision
18 Bushing
  • Thickness: 0.5
  • Type: Oversized (Unfinished)
 TB-18-1X
Bushing TB-18-1X
&
  • Thickness: 0.5
  • Type: Oversized (Unfinished)
18 Bushing
  • Thickness: 0.375"
  • Housing Bore Dia: 1.569"
  • Shaft Dia: 1.448"
  • Material: Bronze
  • Outside Dia: 1.573
  • Inside Dia: 1.4520
 TB-18-3
Bushing TB-18-3
&
  • Thickness: 0.375"
  • Housing Bore Dia: 1.569"
  • Shaft Dia: 1.448"
  • Material: Bronze
  • Outside Dia: 1.573
  • Inside Dia: 1.4520

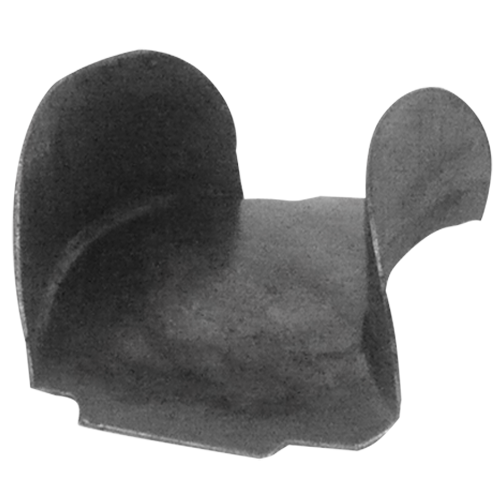

21 Cooling Fin (100 Pc Min.) TX-21-10
Cooling Fin TX-21-10
(100 Pc Min.) &
