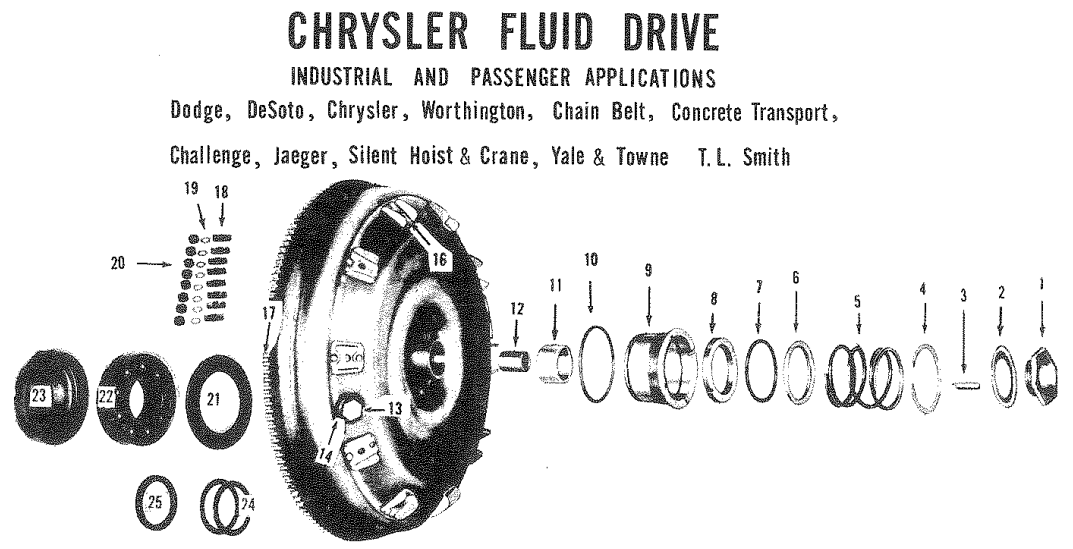

Torque Converter | Chrysler | Fluid Drive (Antique)

Ill.# Image Description Specification Part #

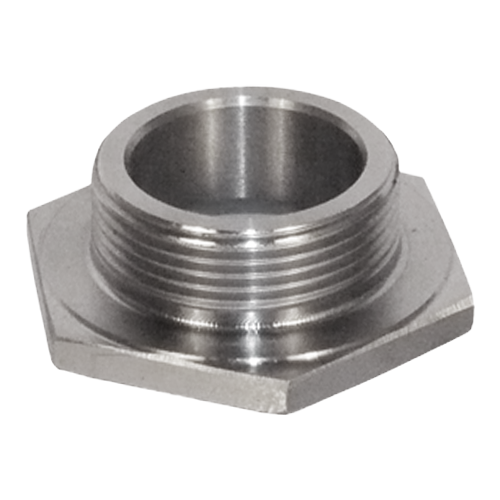

1 Nut
  • Dimensions: 3/8"-16, NC-2A
  • Length: 0.650"
 D-1
Nut D-1
&
  • Dimensions: 3/8"-16, NC-2A
  • Length: 0.650"

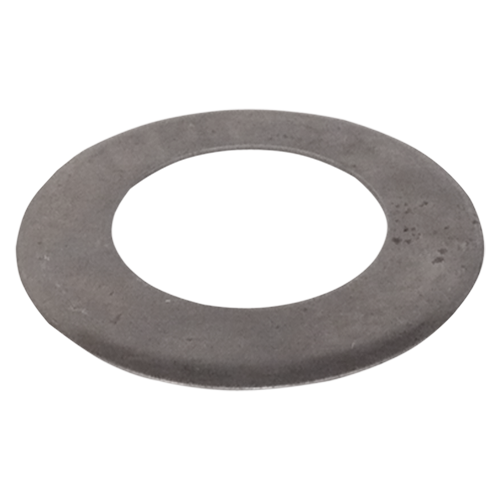

2 Lock Plate D-2
Lock Plate D-2
&

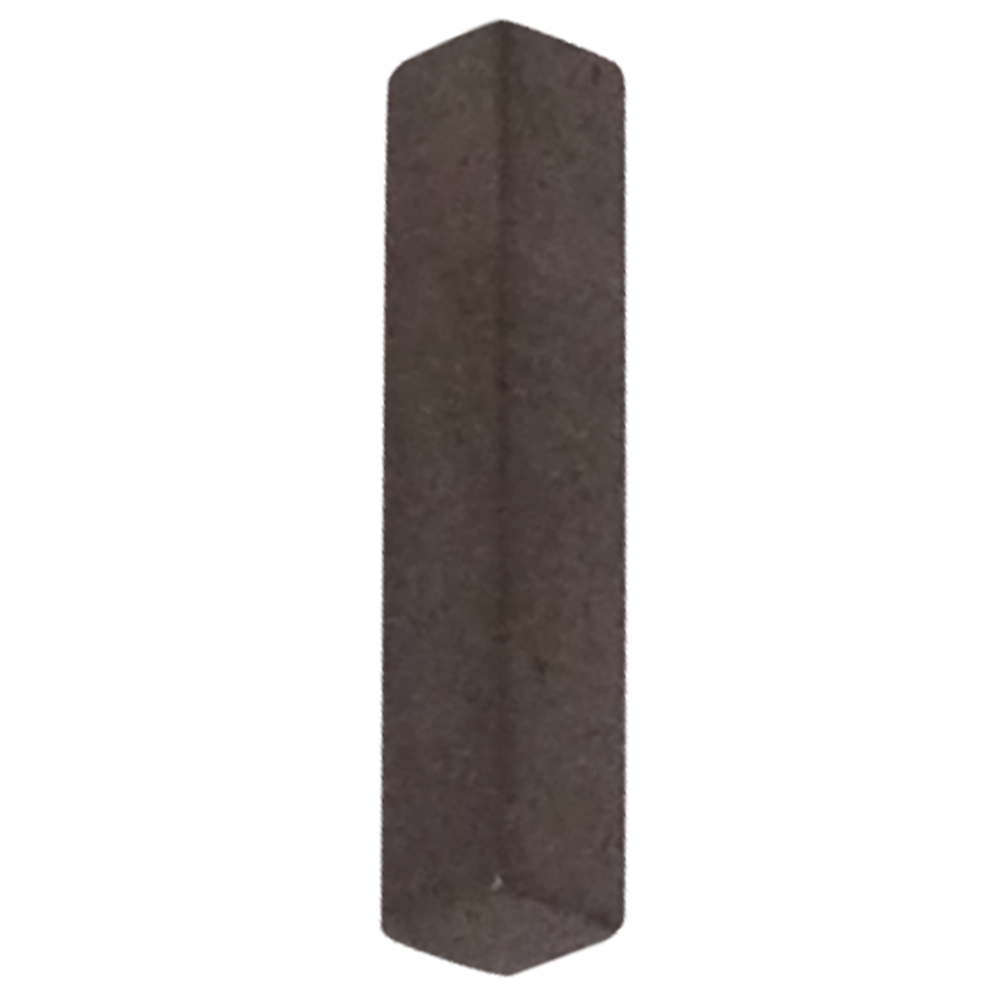

3 Key D-3
Key D-3
&

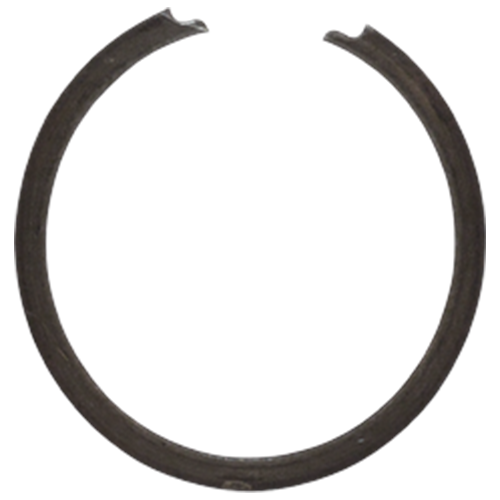

4 Snap Ring D-4
Snap Ring D-4
&

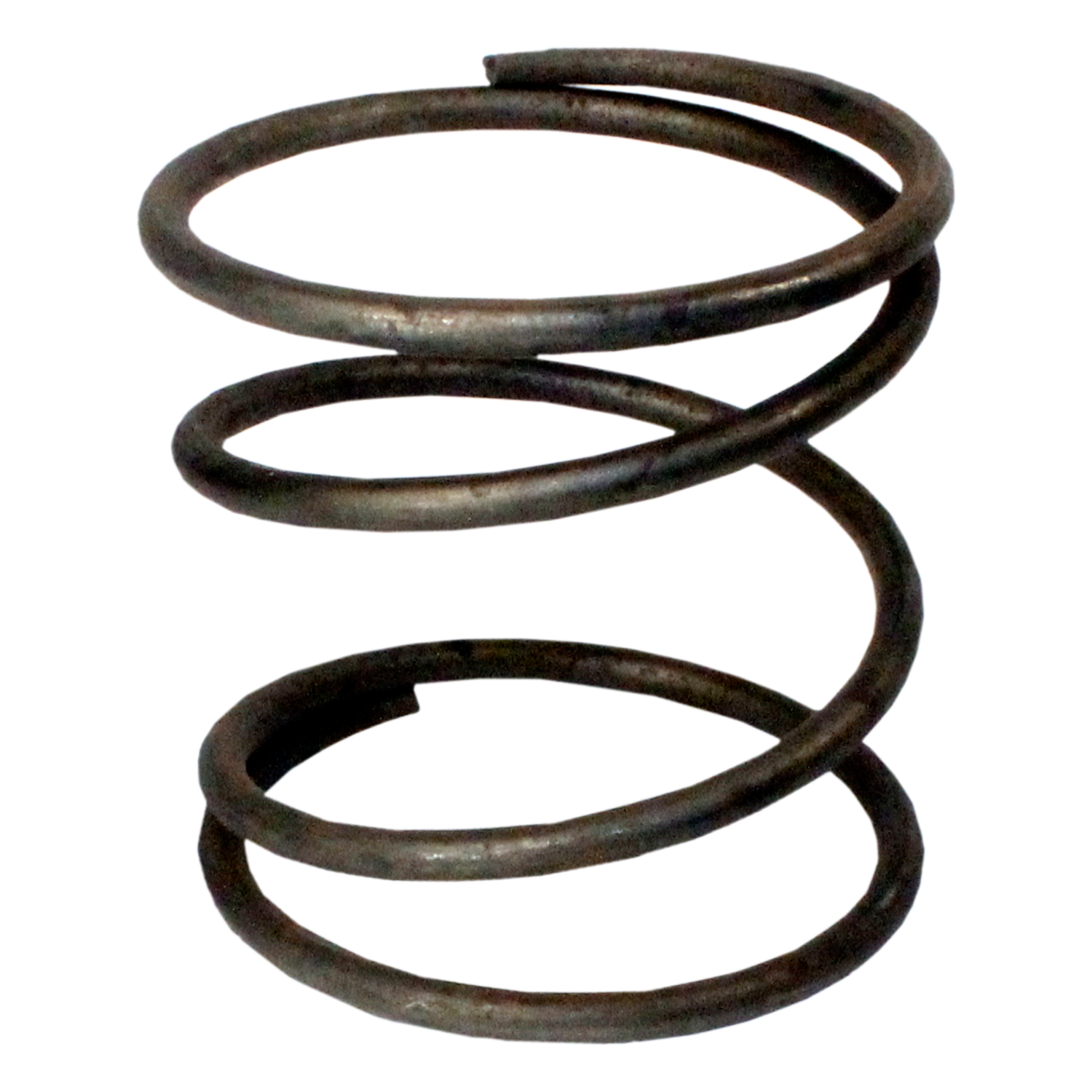

5 Spring D-5
Spring D-5
&

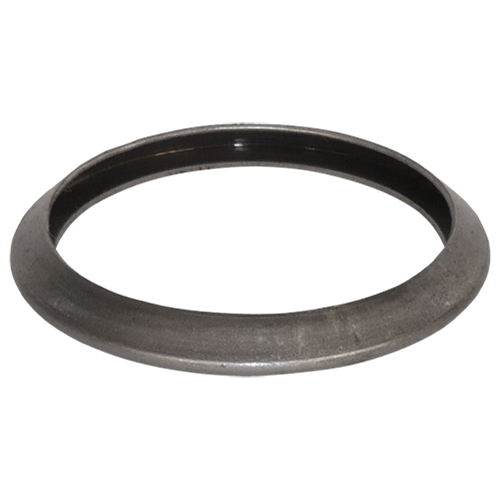

6 Retainer D-6
Retainer D-6
&

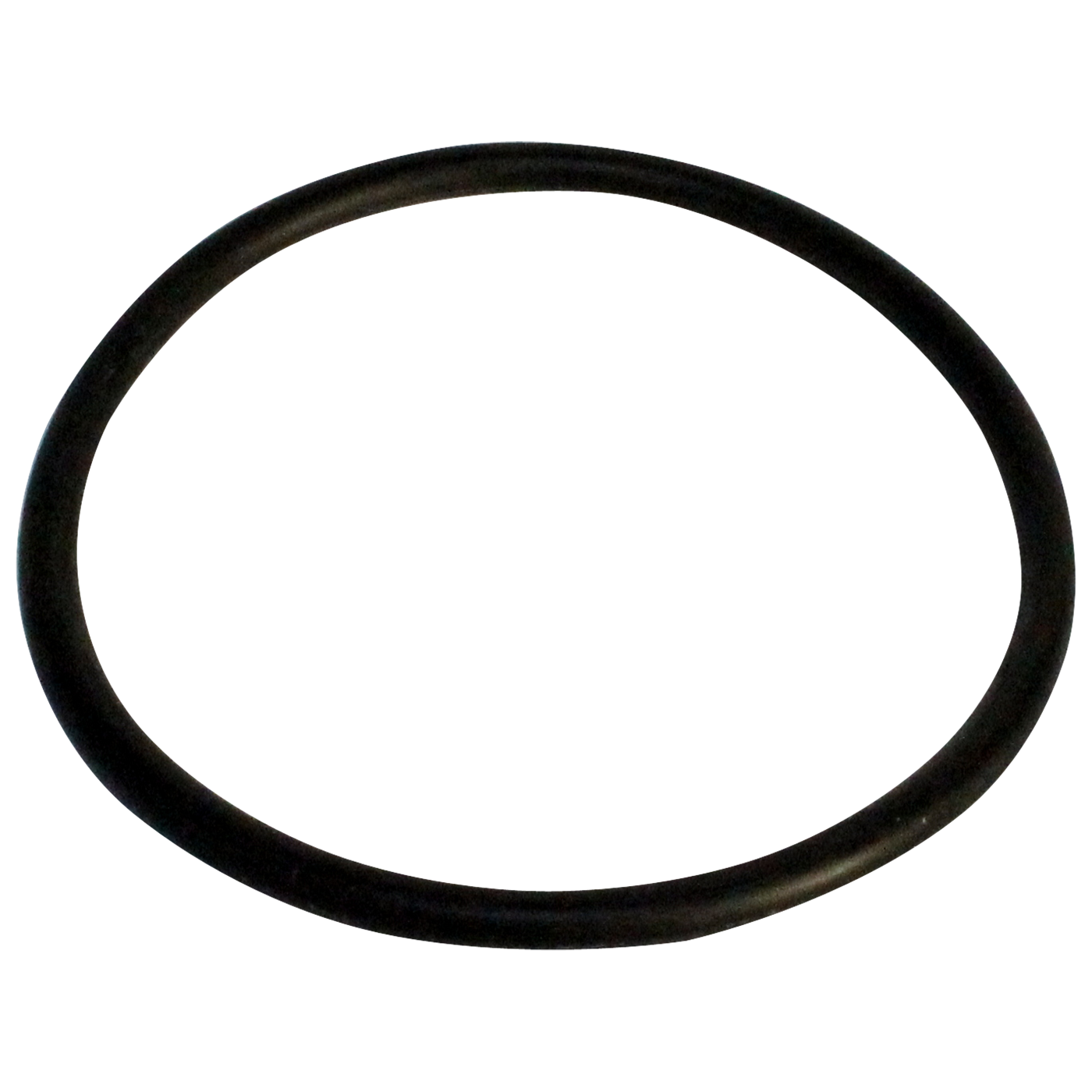

7 O-Ring Special H.D. D-7
O-Ring D-7
Special H.D. &
8 Carbon Seal 2 grooves D-8
Carbon Seal D-8
2 grooves &
8 Seal Early, No Grooves D-8A
Seal D-8A
Early, No Grooves &
8 Carbon Seal Kit D-8K
Carbon Seal Kit D-8K
&

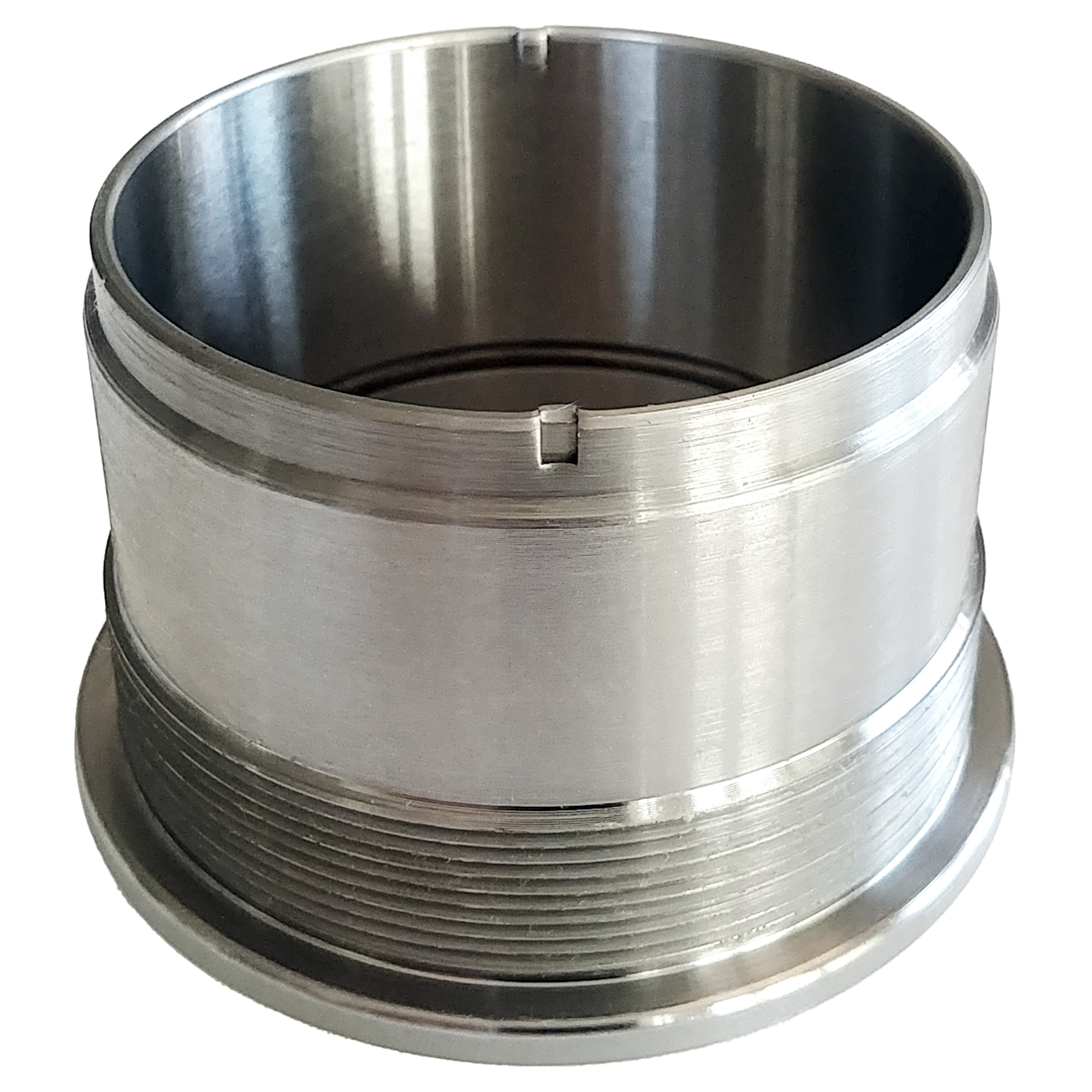

9 Housing D-9
Housing D-9
&
10 Gasket D-10
Gasket D-10
&
10.1 Shim
  • Use Under D-10 To Adjust Clearance Of D-9 Housing If Unit Has Been Opened Previously
 D-10-1
Shim D-10-1
&
  • Use Under D-10 To Adjust Clearance Of D-9 Housing If Unit Has Been Opened Previously

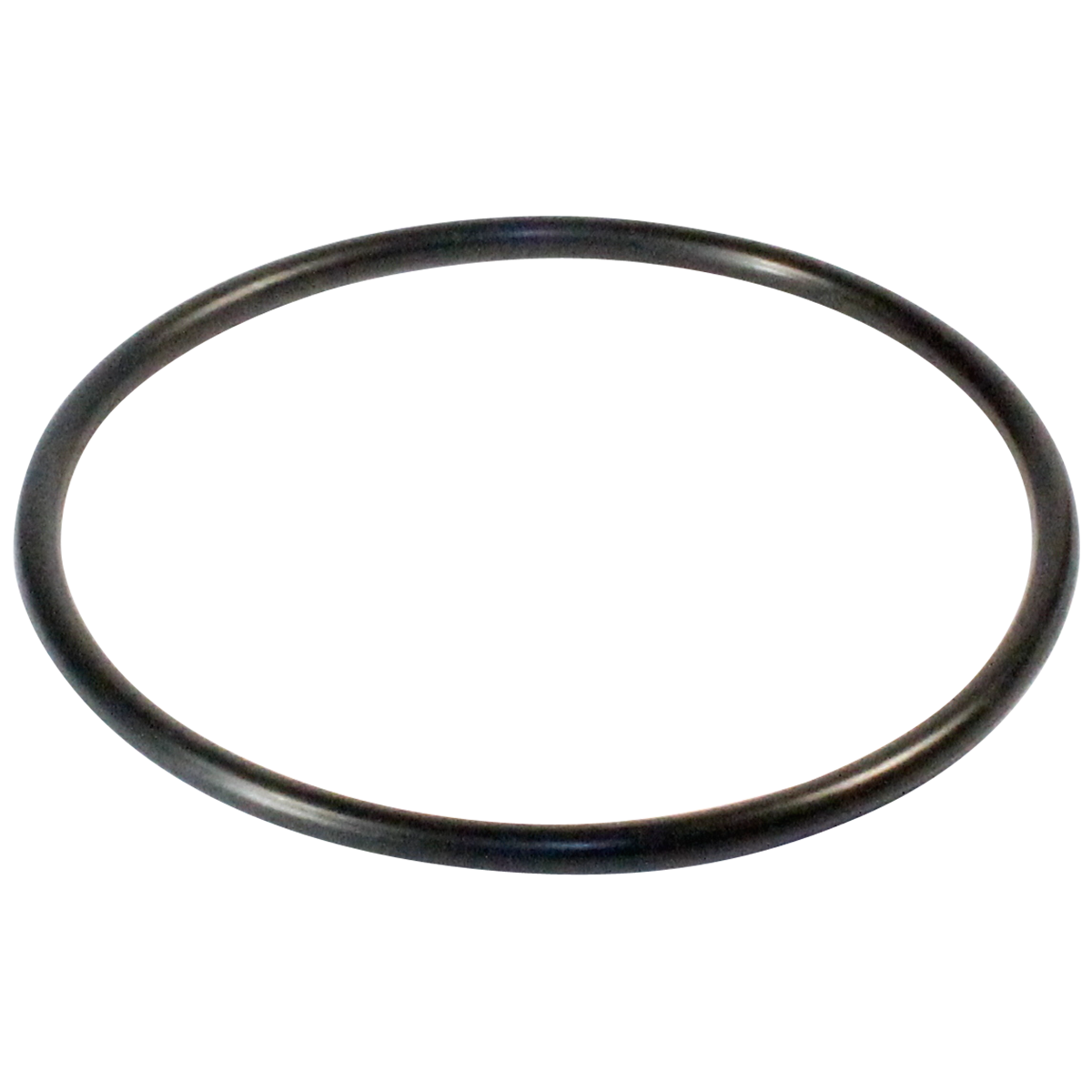

10.1 O-Ring D-10R
O-Ring D-10R
&
11 Bushing Large D-11
Bushing D-11
Large &

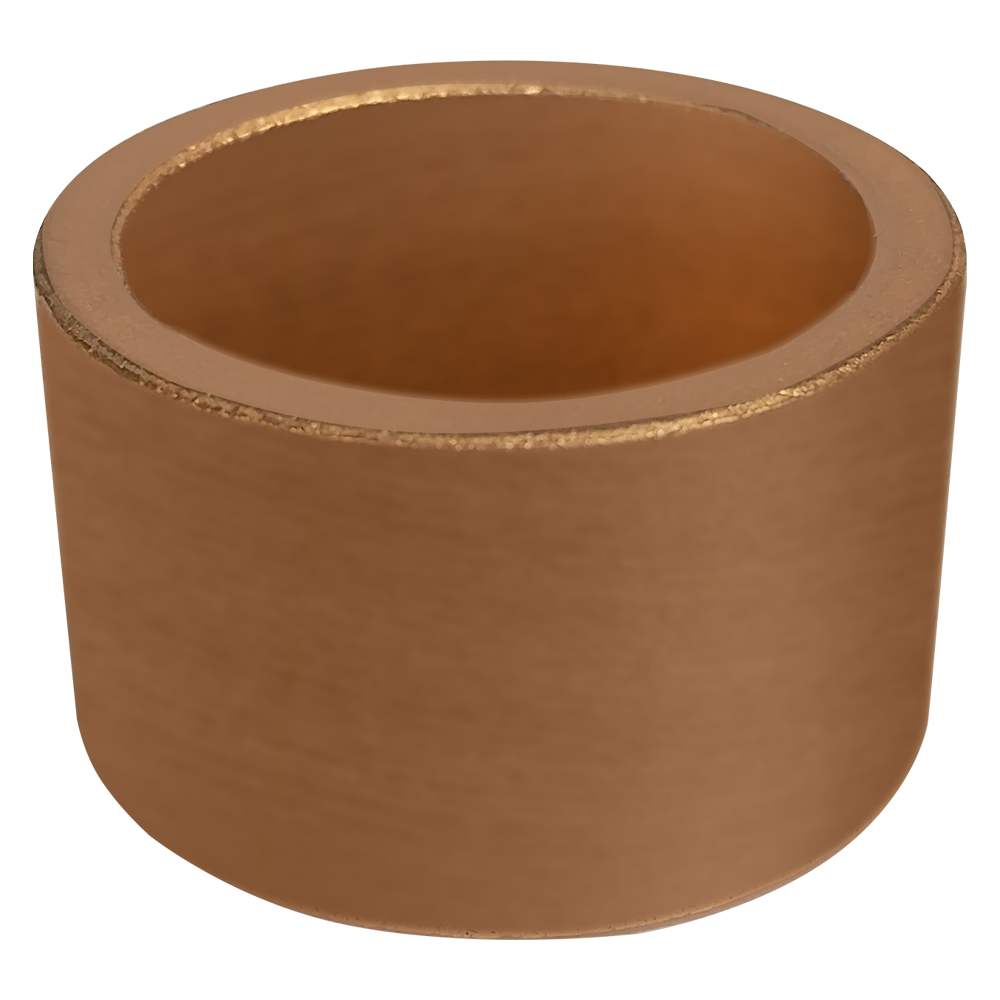

11 Bushing Large D-11B
Bushing D-11B
Large &
12 Bushing Small D-12
Bushing D-12
Small &

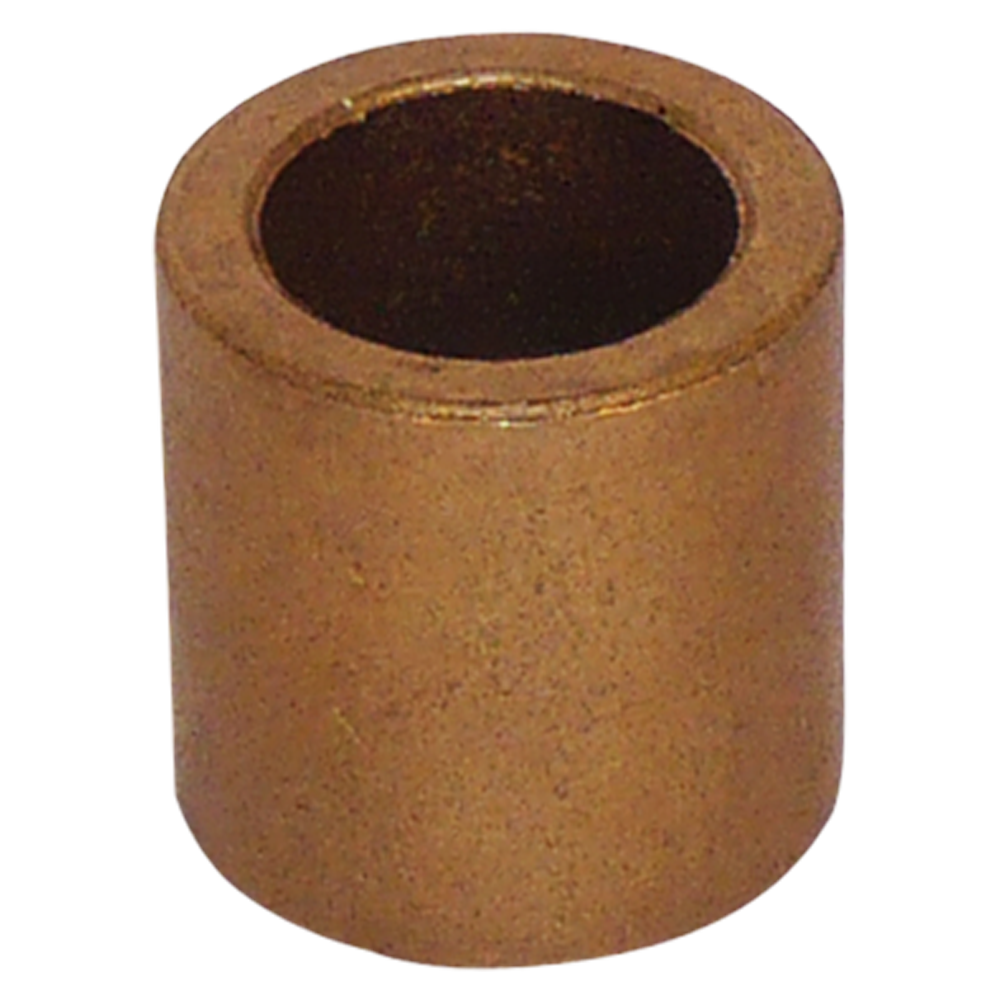

12 Bushing D-12B
Bushing D-12B
&
13 Drain Plug D-13
Drain Plug D-13
&
14.1 Washer 85012
Washer 85012
&

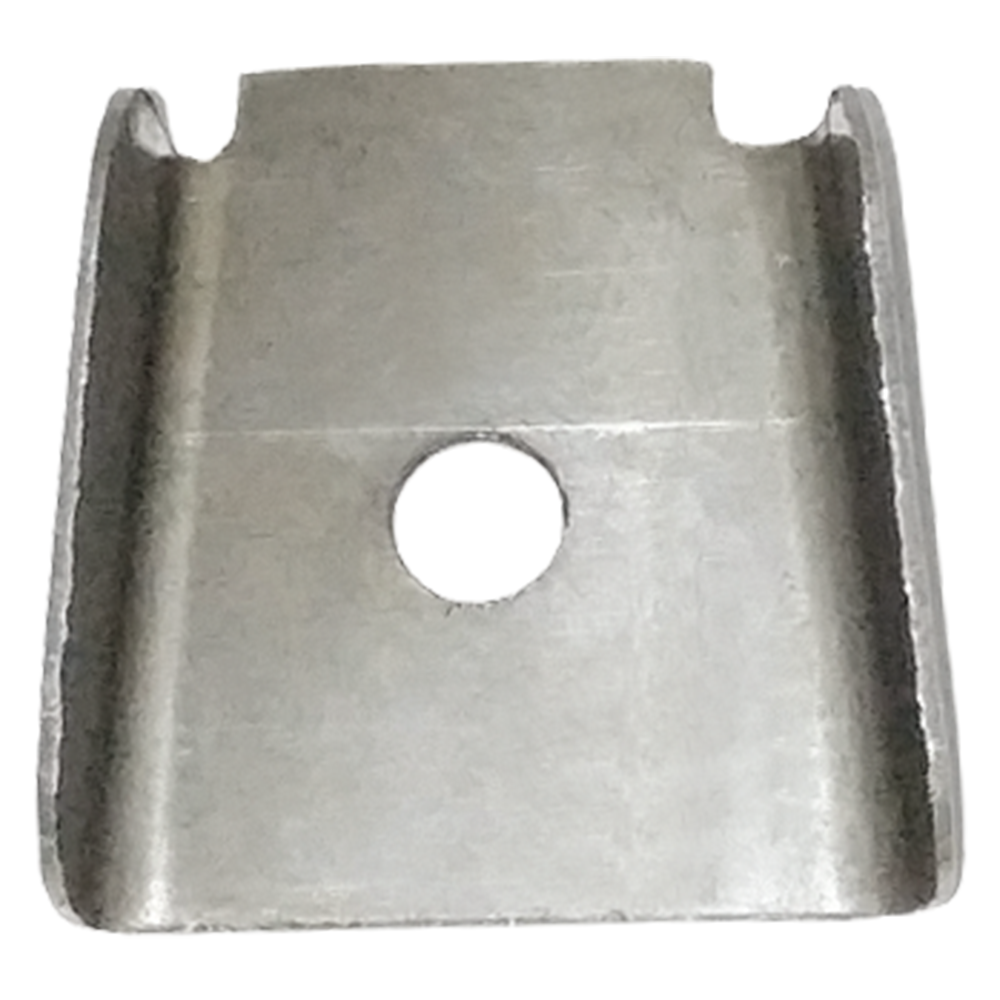

16 Fin D-16
Fin D-16
&
17 Ring Gear
  • External Teeth: 146
  • Outside Dia: 14.64"
  • Inside Dia: 13.56"
 RG-146
Ring Gear RG-146
&
  • External Teeth: 146
  • Outside Dia: 14.64"
  • Inside Dia: 13.56"
18 Stud Heat treated 8 Pieces Required. TX-10
Stud TX-10
Heat treated & 8 Pieces Required.
19 Lock Washer Star 8 Pieces Required. D-19
Lock Washer D-19
Star & 8 Pieces Required.
20 Nut Hardened 8 Pieces Required. D-20
Nut D-20
Hardened & 8 Pieces Required.
21 Washer D-21
Washer D-21
&

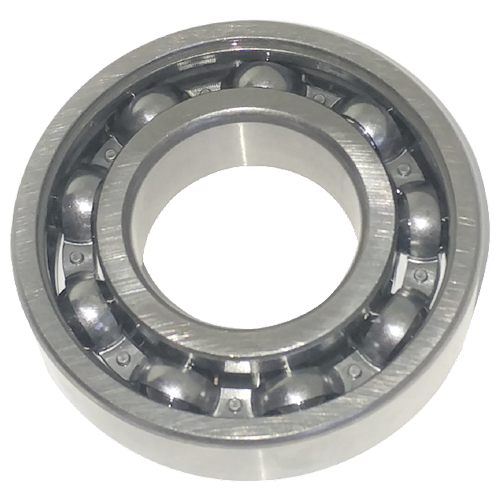

22 Bearing Made to Fluid-Drive specifications D-22A
Bearing D-22A
Made to Fluid-Drive specifications &

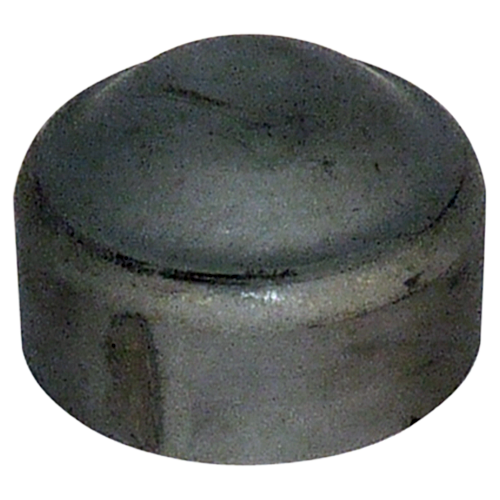

23 Cap Repair D-23
Cap D-23
Repair &
24 Shim Selective, Special
  • Thickness: 0.010"
 D-24
Shim D-24
Selective, Special &
  • Thickness: 0.010"
25 Shim .0130" Selective, Special D-25
Shim D-25
.0130" Selective, Special &
26_N.I. Plate 9", 6 Holes D-26
Plate D-26
9", 6 Holes &
26_N.I. Plate 9-1/4", 6 Holes D-26A
Plate D-26A
9-1/4", 6 Holes &
26_N.I. Plate 10", 6 Holes D-26B
Plate D-26B
10", 6 Holes &
26_N.I. Plate 11", 14 Holes, Use D-26D D-26C
Plate D-26C
11", 14 Holes, Use D-26D &

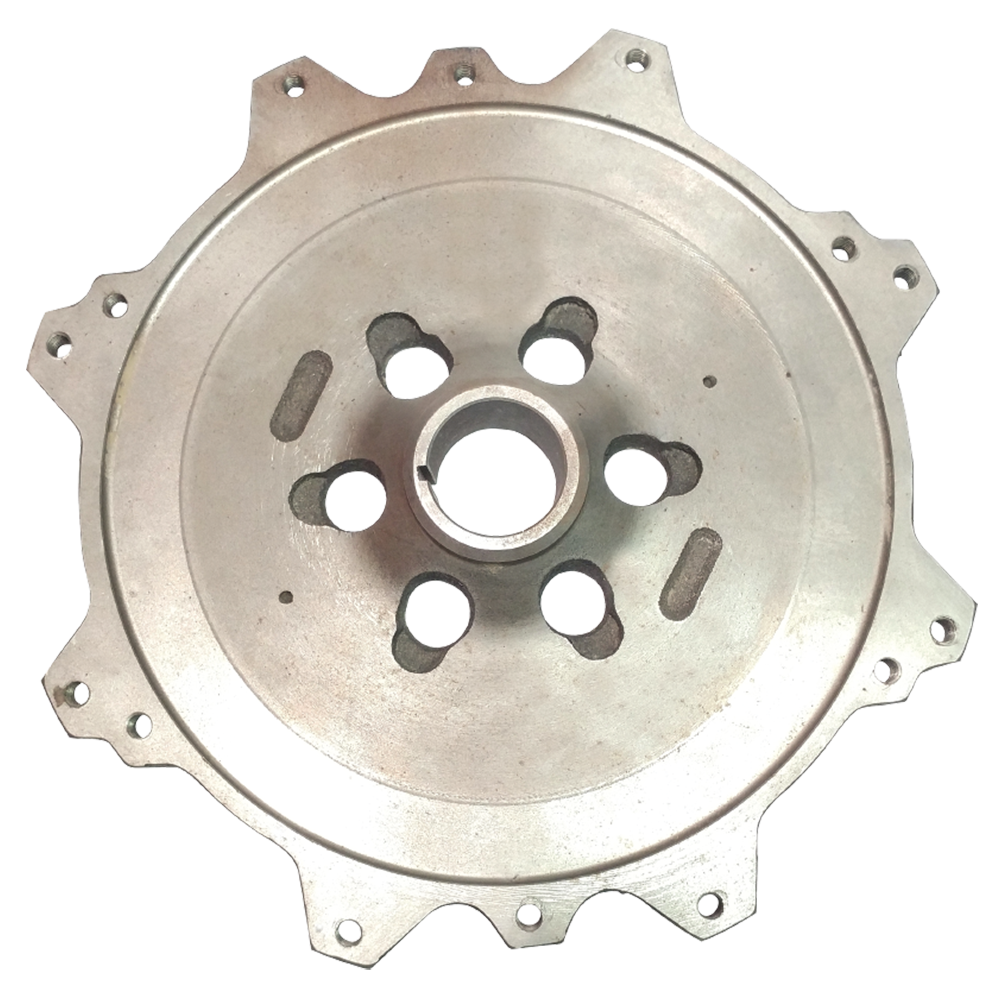

26_N.I. Plate combination, 14 holes D-26D
Plate D-26D
combination, 14 holes &

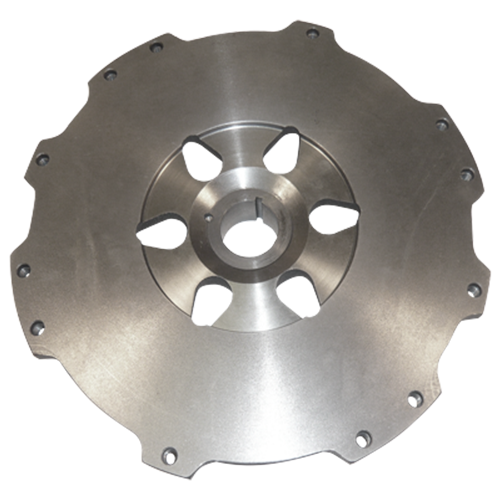

26_N.I. Plate 12 holes, (Indsutrial/Commercial use only. Not for Passenger use) D-26E
Plate D-26E
12 holes, (Indsutrial/Commercial use only. Not for Passenger use) &
27 Rivet Turbine shaft to turbine. Use 6. 6 Pieces Required.
  • Length: .44"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.25"
  • Rivet Head Dia: 0.5"
 TX-12L
Rivet TX-12L
Turbine shaft to turbine. Use 6. & 6 Pieces Required.
  • Length: .44"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.25"
  • Rivet Head Dia: 0.5"
28 Spacer Ring
  • Use between housing halves to compensate at weld area.
 D-28
Spacer Ring D-28
&
  • Use between housing halves to compensate at weld area.
29 Turbine Shaft (Bushings Not Included) D-29
Turbine Shaft D-29
(Bushings Not Included) &

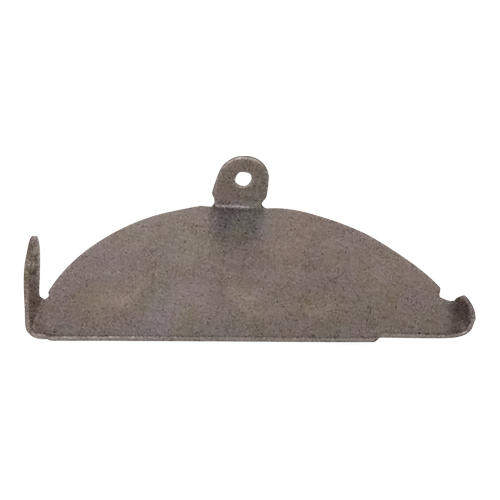

30 Impeller Vane 48 pieces required D-30
Impeller Vane D-30
48 pieces required &

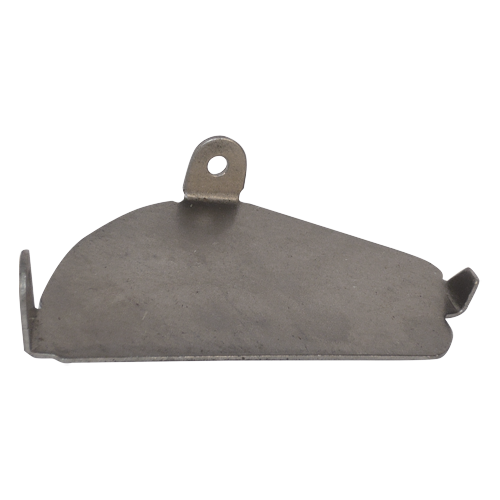

31 Turbine Vane 44 pieces required D-31
Turbine Vane D-31
44 pieces required &

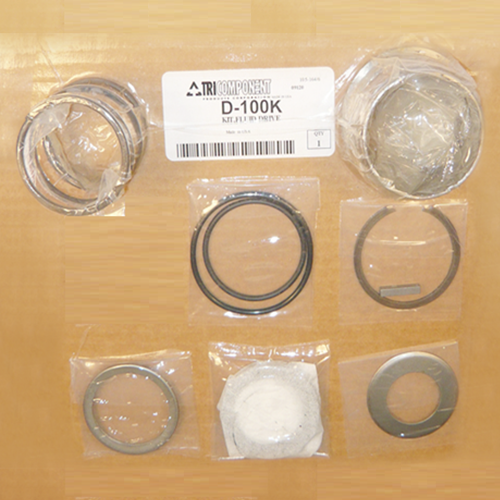

9.1 Kit Fluid Drive D-100K
Kit D-100K
Fluid Drive &
