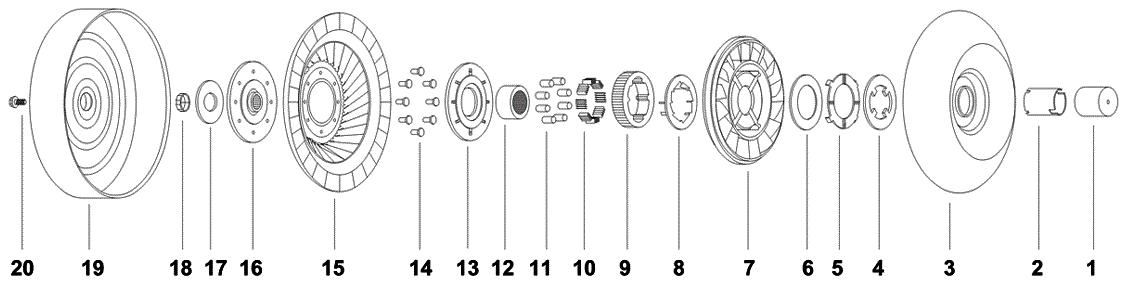

Torque Converter | Chrysler | 9-1/2" Non-Lockup, A-404, FWD

Ill.# Image Description Specification Part #
0 Bushing Precision
  • Thickness: 0.413"
  • Width: 0.36
  • Housing Bore Dia: 1.294"
  • Shaft Dia: 1.063"
  • Material: Steel - backed alloy
  • Bushing Type: Precision
 TB-18-13
1 Hubcap Fits 1-1/2" (38.1mm). Length: 1-1/2"
  • Color: Green
  • Fits 1-1/2" (38.1mm)
 MHC-G
2 Impeller Hub
  • Journal Dia: 1.498"
  • Installed Height: 1.725"
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 TH-1-16GRC
2 Impeller Hub
  • Journal Dia: 1.498"
  • Installed Height: 2.50"
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 TH-1-12AGRC

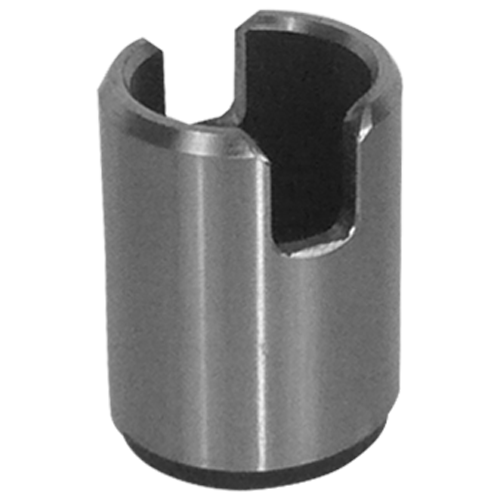

2 Impeller Hub
  • Journal Dia: 1.498"
  • Installed Height: 1.725"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
 TH-1-12G
2 Impeller Hub
  • Journal Dia: 1.498"
  • Installed Height: 1.725"
  • Pump Drive Type: Flats
 TH-1-16G
2 Impeller Hub
  • Journal Dia: 1.498"
  • Installed Height: 1.85"
  • Height: 1.942
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 TH-1-20GRC

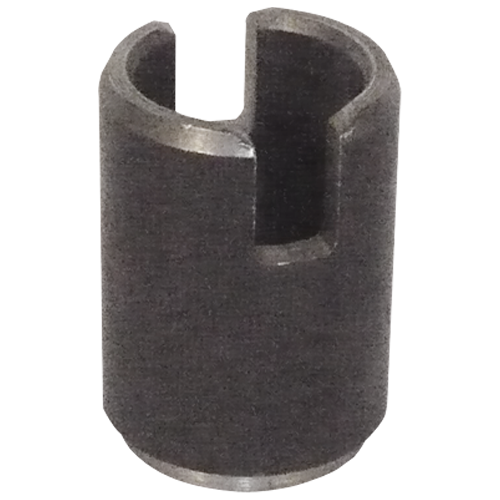

2 Impeller Hub Unfinished
  • Journal Dia: 1.498"
  • Installed Height: 1.85"
  • Pump Drive Type: Slots
 TH-1-4
2 Impeller Hub Heat Treated
  • Journal Dia: 1.498"
  • Installed Height: 1.725"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 TH-1-12GRC
2 Impeller Hub
  • Journal Dia: 1.498"
  • Installed Height: 2.28"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 TH-1-20AGRC
2 Impeller Hub Slotted
  • Journal Dia: 1.498"
  • Installed Height: 2.28"
  • Hardness: Rc 32-36
 TH-1-4AGRC

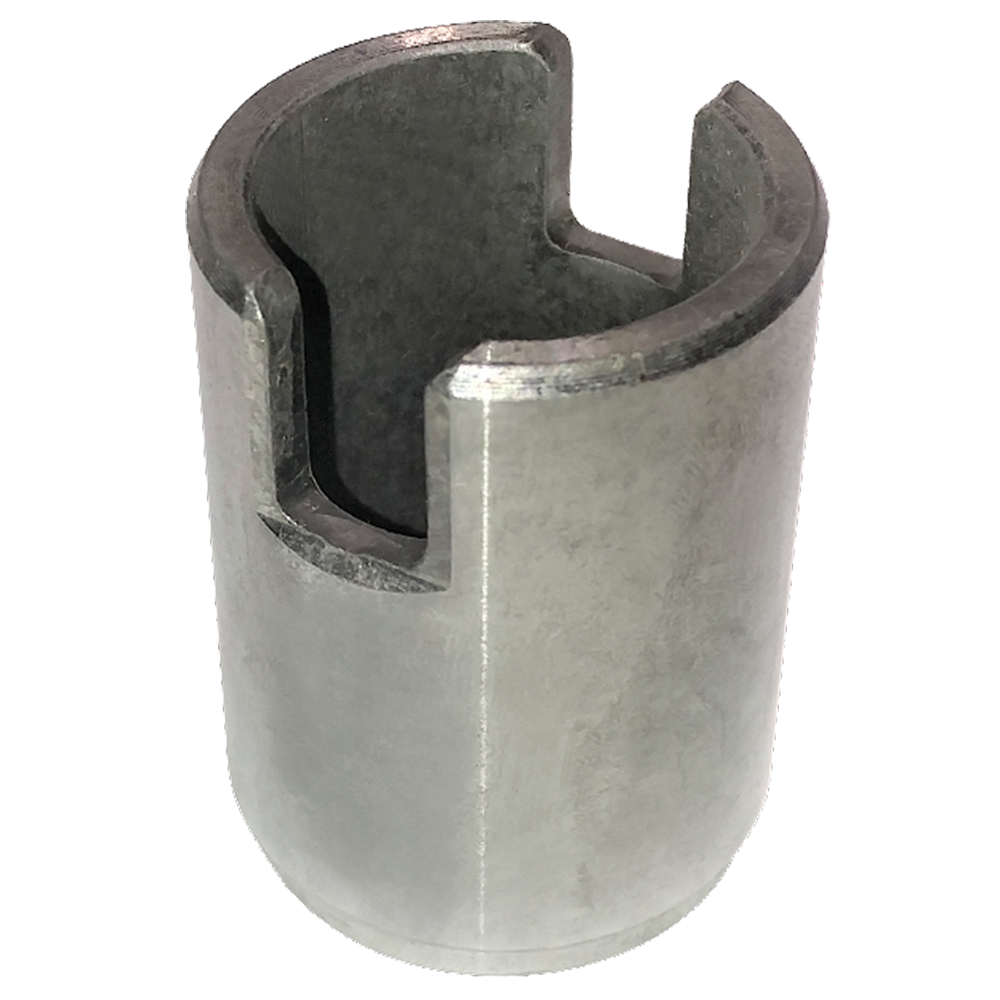

2 Impeller Hub
  • Journal Dia: 1.498"
  • Installed Height: 1.85"
  • Pump Drive Type: Slots
 TH-1-4G
2 Impeller Hub
  • Journal Dia: 1.498"
  • Installed Height: 2.28"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
 TH-1-20AG
2 Impeller Hub
  • Journal Dia: 1.498"
  • Installed Height: 2.50"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 TH-1-28AGRC

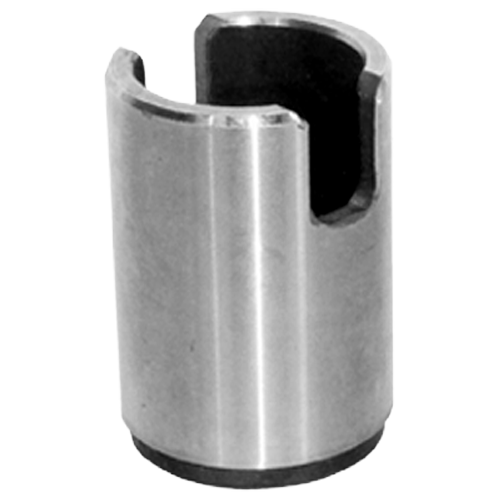

2 Impeller Hub Heat Treated, Ground
  • Journal Dia: 1.498"
  • Installed Height: 1.85"
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 TH-1-4GRC
2 Impeller Hub Unfinished
  • Journal Dia: 1.498"
  • Installed Height: 1.725"
  • Pump Drive Type: Slots
 TH-1-12
2 Impeller Hub
  • Journal Dia: 1.498"
  • Installed Height: 2.50"
  • Pump Drive Type: Slots
 TH-1-12AG
2 Impeller Hub
  • Journal Dia: 1.498"
  • Installed Height: 1.85"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
 TH-1-20G
2 Impeller Hub
  • Journal Dia: 1.498"
  • Installed Height: 2.50"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
 TH-1-28AG
3 Impeller NPN-3-2-3
4 Washer Wear-Plate
  • Thickness: 0.068"
  • Material: Steel
  • Lug Count: 4
  • Outside Dia: 2.960"
  • Inside Dia: 1.812"
 TW-2-3
5 Washer
  • Material: Bronze
  • Lug Count: 3
  • Outside Dia: 2.8"
  • Inside Dia: 1.6"
 TW-3
5 Washer
  • Thickness: .06"
  • Material: Bronze
  • Lug Count: 4
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
 TW-3-3
5 Washer
  • Material: Bronze
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
 TW-3-3AT
5 Washer
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
 TW-3-3E
6 Shim
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-10
6 Shim
  • Thickness: 0.02"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-20
6 Shim
  • Thickness: .030"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-30
6 Shim
  • Thickness: 0.05"
  • Outside Dia: 2.938"
  • Inside Dia: 1.875"
 MW-2-50
6 Shim
  • Thickness: .010"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X10)
 FW-2-010
6 Shim
  • Thickness: .020"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X)
 FW-2-020
6 Shim
  • Thickness: .030"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X30)
 FW-2-030
6 Shim
  • Thickness: .010"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
  • Minimize Race Rubbing
 TW-2-10
6 Shim
  • Thickness: .020"
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
 TW-2X
6 Shim
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
 TW-2X10
6 Shim
  • Thickness: .03"
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
 TW-2X30
6 Shim
  • Outside Dia: 2.875"
  • Inside Dia: 1.497"
 TW-2X-30
6 Shim
  • Thickness: .020"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
 TW-2-20
6 Shim
  • Thickness: .030"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
 TW-2-30
7 Stator Bare Stator Casting, Low Stall Add Suffix "A" For Stator With Cam & Retainer Assembled
  • OE# 5205904
 TX-5-8
7 Stator TX-5-8A
7 Stator Bare Stator Casting, High Stall
  • OE# 5205979
 TX-5-10
7 Stator Stator Complete With Springs, Rollers, Races And Washer TX-5-59
8 Spring Retainer Stator TX-15-6
9 Outer Race (Cam) Stator TX-15-7
10 Accordion Spring 8 Pieces Required. 1942187
10 Accordion Spring 8 Pieces Required.
  • Height: 0.28"
  • Width: 0.565"
  • Folds: 3
 FS-6-10
10 Accordion Spring 8 Pieces Required.
  • Height: .312"
  • Width: 0.6"
  • Folds: 4
 TS-6
11 Roller 8 Pieces Required.
  • Dia: 0.316"
  • Length: 0.623"
 TR-7
11 Roller 8 Pieces Required.
  • Dia: 0.316"
  • Length: 0.623"
 TR-7-2
12 Inner Race
  • Outside Dia: 1.719"
 5205905
12 Inner Race Stator
  • Height: 1.040"
  • Internal Teeth: 27
  • Outside Dia: 1.719"
 TX-14-7

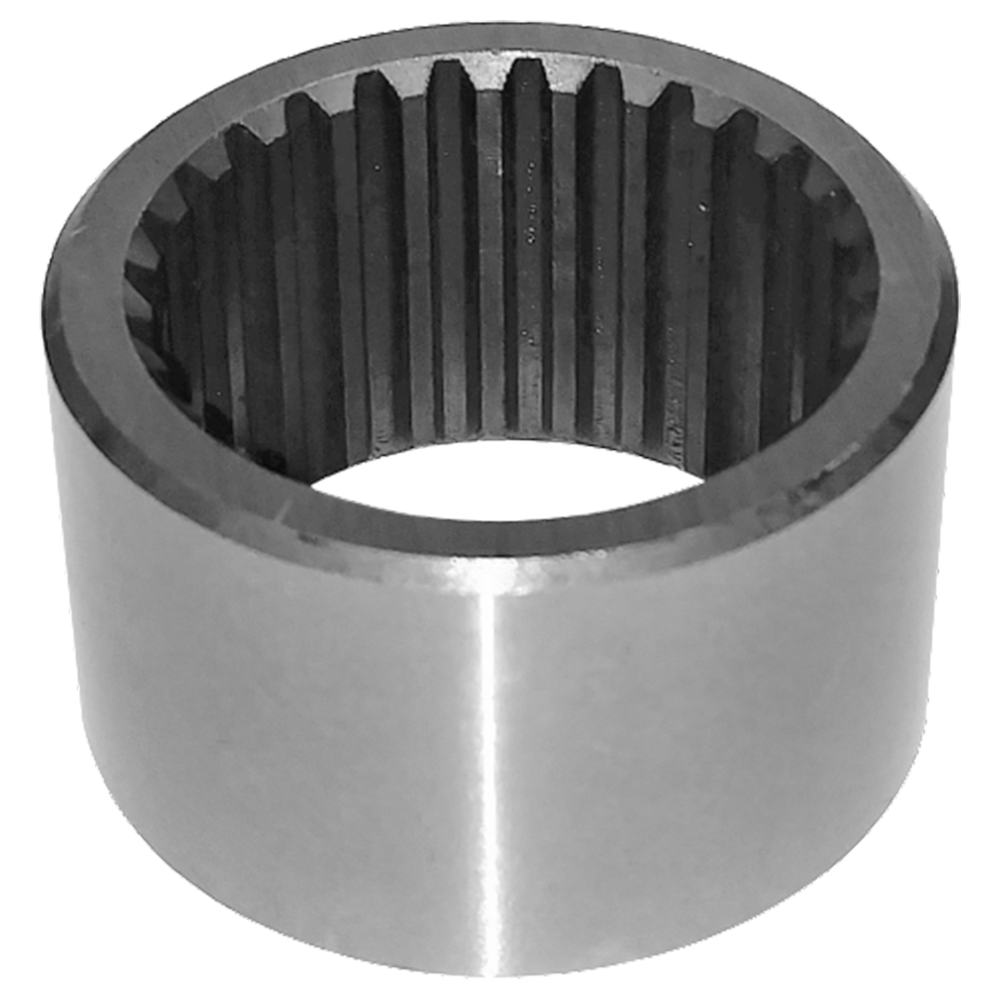

12 Inner Race Stator High Performance
  • Height: 1.040"
  • Internal Teeth: 27 (GM)
  • USE WITH TB-18-4 BUSHING AND TW-2-4 BEARING
 TX-14-11
13 Stator Cap Improved
  • Thickness: 0.32"
  • Material: Aluminum
  • Outside Dia: 3.61"
  • Inside Dia: 1.42"
 TW-4-14
13 Stator Cap Replaced With To TW-4-14 Adapts washer TW-3-7 for use in Chrysler 9-1/2" and 10" converters
  • Thickness: 0.266"
  • Material: Aluminum
  • Outside Dia: 3.61"
  • Inside Dia: 1.42"
 TW-4-4
13 Stator Cap Uses Bronze Washer TW-3-8
  • Thickness: .27"
  • Material: Aluminum
  • Outside Dia: 3.61"
  • Inside Dia: 1.42"
 TW-4-13

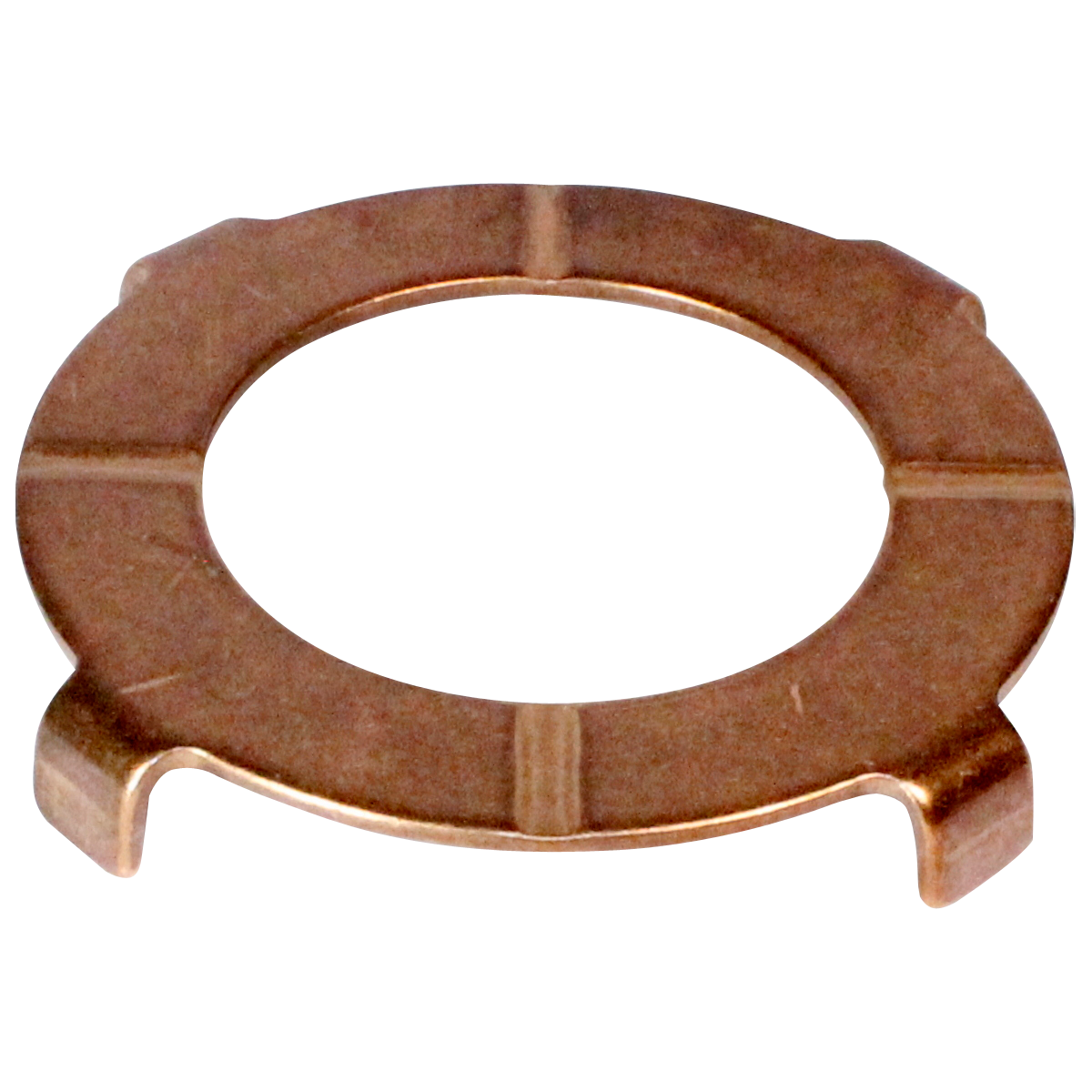

13_N.I. Washer
  • Material: Bronze
  • Tab Count: 4 Tabs, 0.312" wide
  • Outside Dia: 2.32"
  • Inside Dia: 1.44"
 TW-3-10
13_N.I. Washer Replaced By TW-3-10
  • Thickness: 0.03"
  • Material: Bronze
  • Tab Count: 4 Tabs, 0.312" wide
  • Outside Dia: 2.32"
  • Inside Dia: 1.44"
 TW-3-8
14 Rivet
  • Length: 0.394
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.233
  • Rivet head dia: 0.4"
 TX-12-3
14 Rivet Turbine shaft to turbine. Use 6. 8 Pieces Required.
  • Length: .44"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.25"
  • Rivet head dia: 0.5"
 TX-12L
14 Rivet 8 Pieces Required.
  • Length: 0.476"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.250"
  • Rivet head dia: 0.475"
  • Rivet Head: Flat
 TX-12-2
15 Turbine With Out Hub TX-8-5

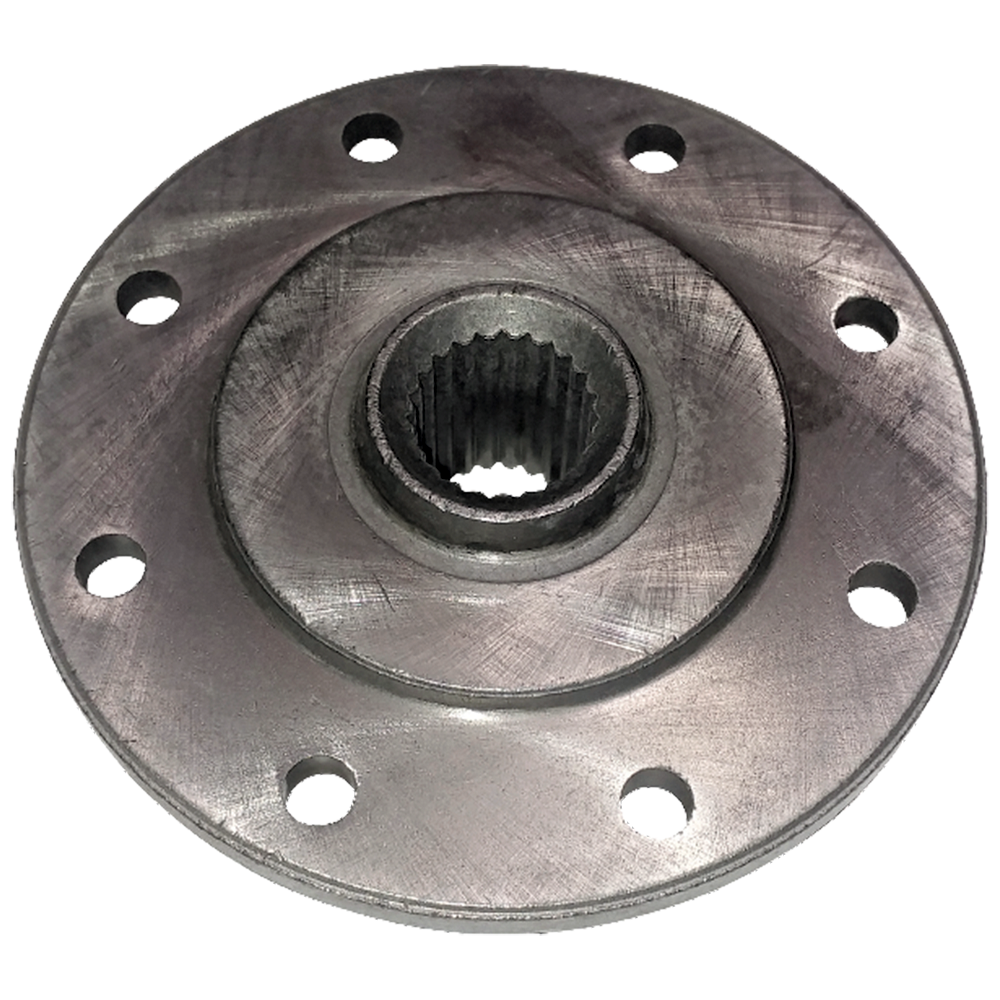

16 Turbine Hub Omni, Horizon, American Motors
  • Outside Dia: 3.96"
 TX-13-8

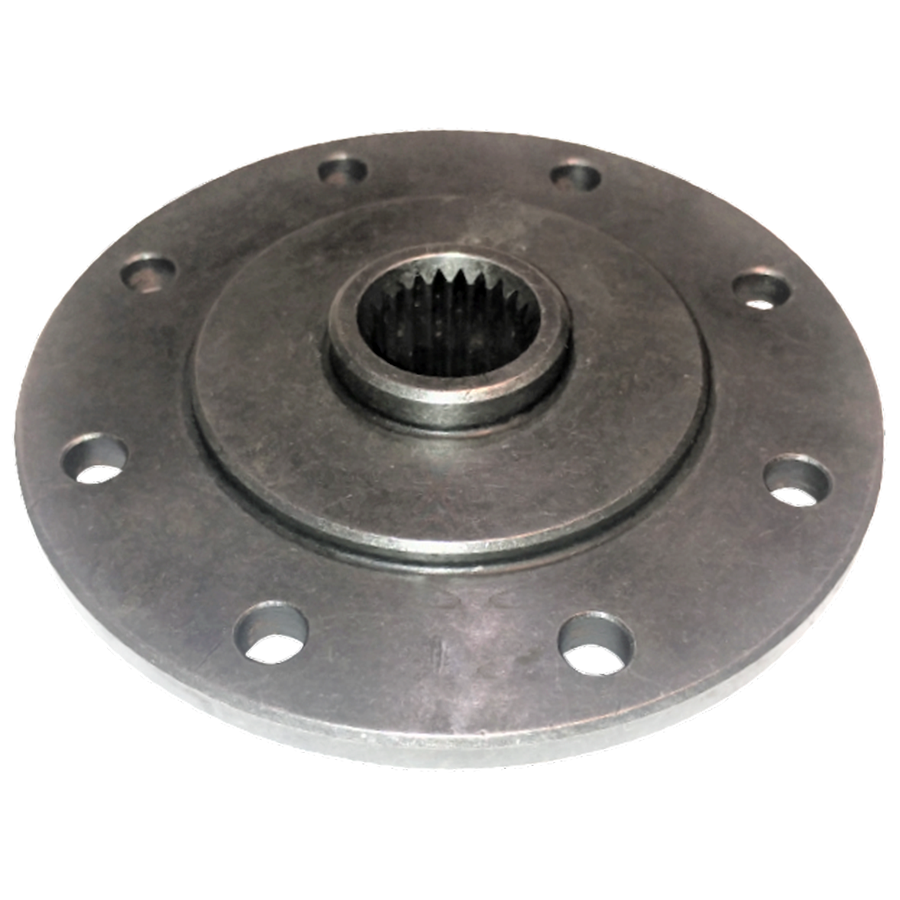

16 Turbine Hub Omni, Horizon, American Motors
  • Internal Teeth: 23
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.96"
 TX-13-8SHT

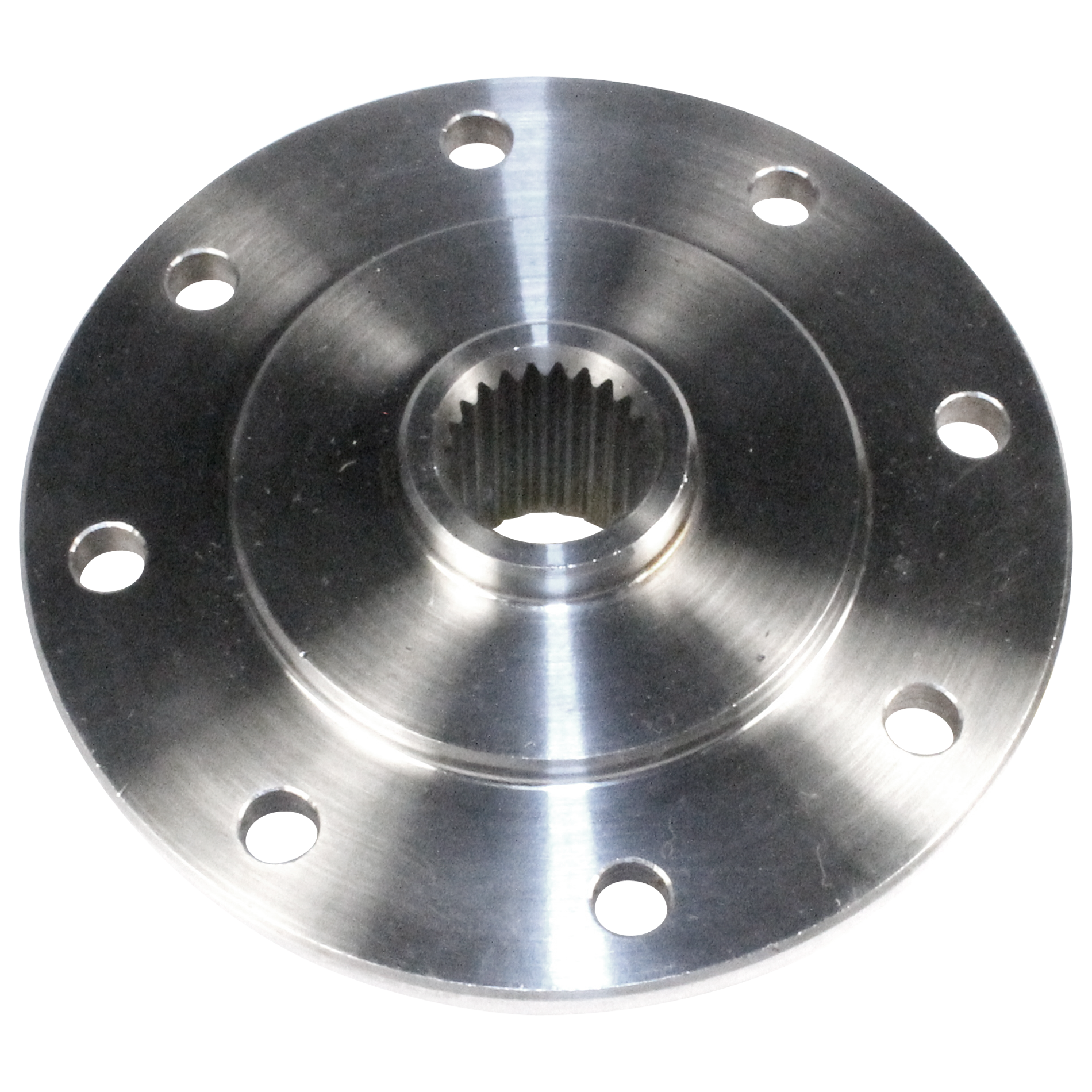

16 Turbine Hub Omni, Horizon, American Motors
  • Internal Teeth: 23
  • Outside Dia: 3.96"
 TX-13-8S

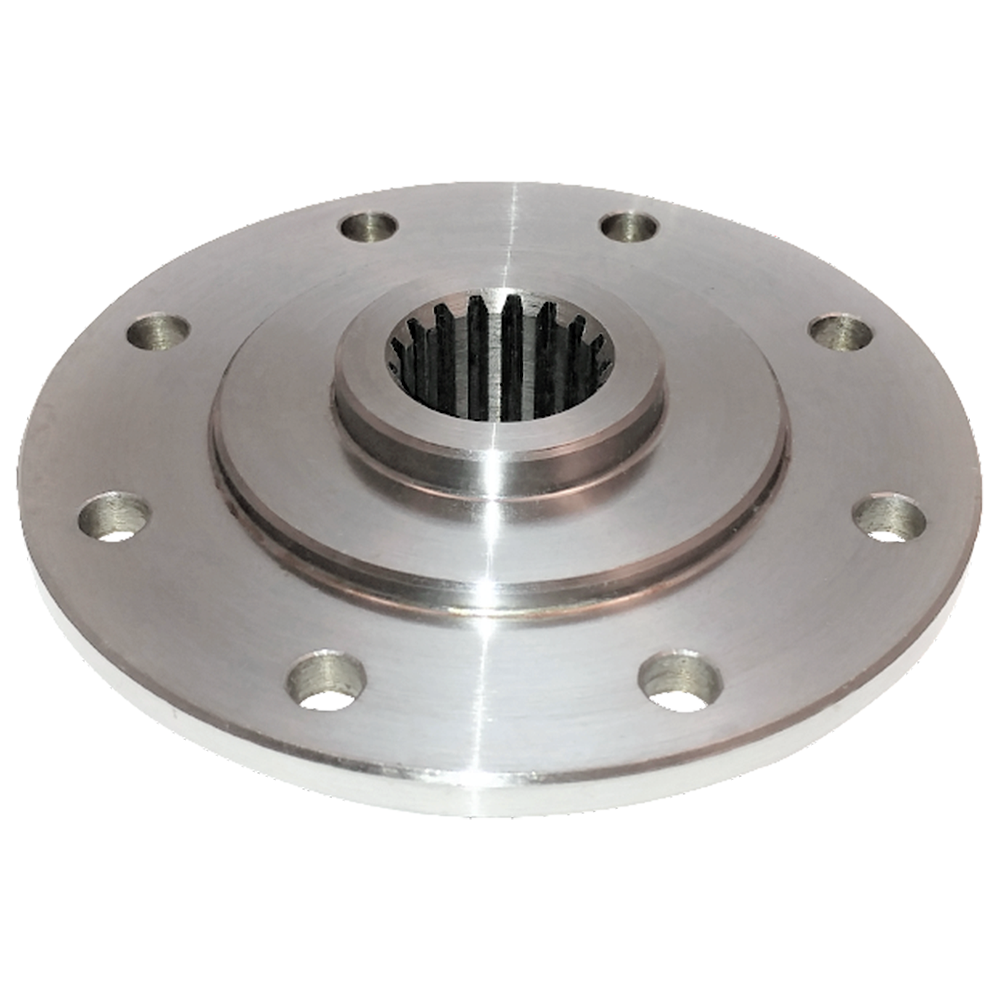

16 Turbine Hub High Performance, Powerglide*
  • Internal Teeth: 17 (GM)
  • USE WITH TB-18-4 BUSHING AND TW-2-4 BEARING
 TX-13-1017

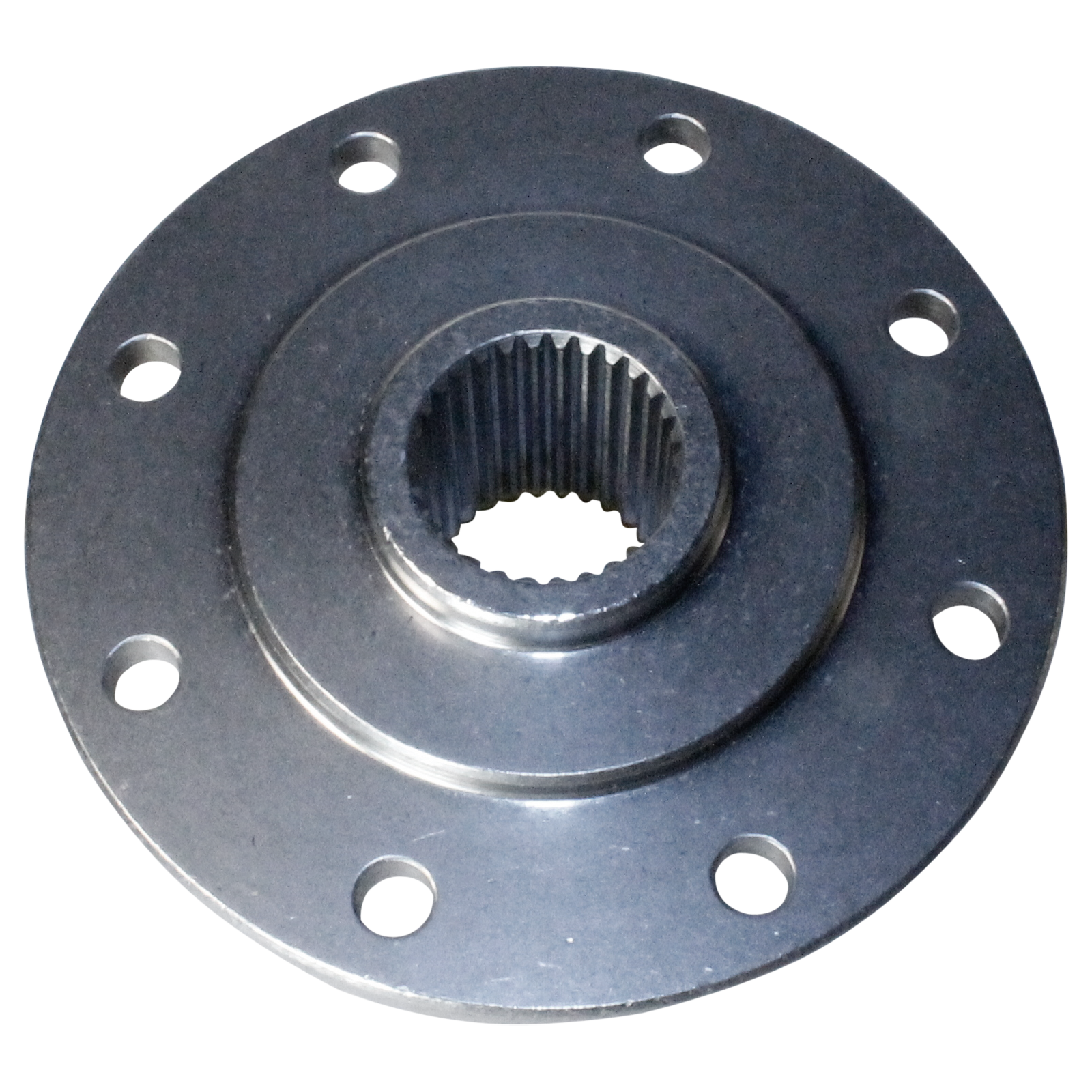

16 Turbine Hub High Performance, TH350-400*
  • Internal Teeth: 30 (GM)
  • USE WITH TB-18-4 BUSHING AND TW-2-4 BEARING
 TX-13-1030
17 Turbine Washer
  • Material: Fiber
  • Outside Dia: 2.42"
  • Inside Dia: 1.18"
  • Replaces Bronze
 CW-9-1F

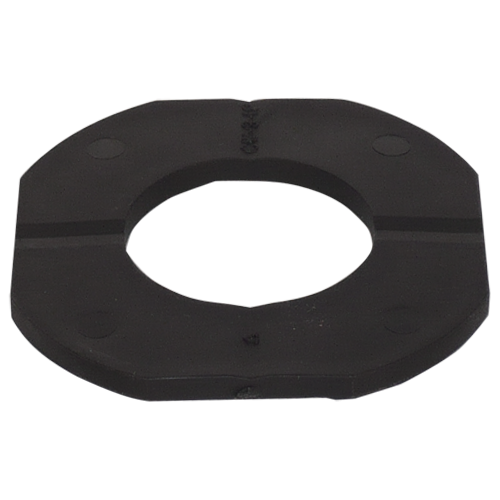

17 Turbine Washer
  • Material: Plastic
  • Outside Dia: 2.42"
  • Inside Dia: 1.18"
  • Replaces Bronze
 CW-9-1P
17 Turbine Washer
  • Thickness: .14"
  • Material: Fiber
  • Outside Dia: 2.12"
  • Inside Dia: 1.26"
 TW-9-7A
17 Turbine Washer
  • Thickness: 0.125"
  • Material: Fiber
  • Outside Dia: 2.42"
  • Inside Dia: 1.18"
 TW-9-7AF

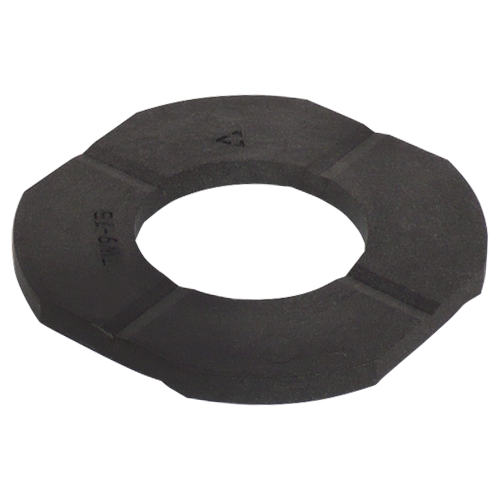

17 Turbine Washer
  • Thickness: .16"
  • Material: Plastic
  • Outside Dia: 2.12"
  • Inside Dia: 1.26"
 TW-9-7B
17 Turbine Washer
  • Thickness: 0.156"
  • Material: Fiber
  • Outside Dia: 2.42"
  • Inside Dia: 1.18"
  • Oversized
 TW-9-7BF
17 Turbine Washer
  • Thickness: .094"
  • Material: Fiber
  • Outside Dia: 2.42"
  • Inside Dia: 1.18"
 TW-9-7DF
17 Turbine Washer
  • Thickness: .07"
  • Material: Fiber
  • Outside Dia: 2.12"
  • Inside Dia: 1.26"
 TW-9-7C
17 Turbine Washer
  • Thickness: 0.062"
  • Material: Fiber
  • Outside Dia: 2.42"
  • Inside Dia: 1.18"
 TW-9-7CF
17 Turbine Washer
  • Thickness: 0.136"
  • Material: Fiber Composite
  • Outside Dia: 2.375"
  • Inside Dia: 1.070"
 TW-9-15
17 Turbine Washer
  • Thickness: 0.138"
  • Material: Bronze
  • Outside Dia: 2.360"
  • Inside Dia: 1.075"
 TW-9-15B
17 Turbine Washer
  • Thickness: 0.12"
  • Material: Plastic
  • Outside Dia: 2.36"
  • Inside Dia: 1.08"
  • OEM
 TW-9-15P
17 Turbine Washer OEM
  • Thickness: 0.136"
  • Material: Fiber Composite
  • Outside Dia: 2.36"
  • Inside Dia: 1.08"
 TW-9-15PR

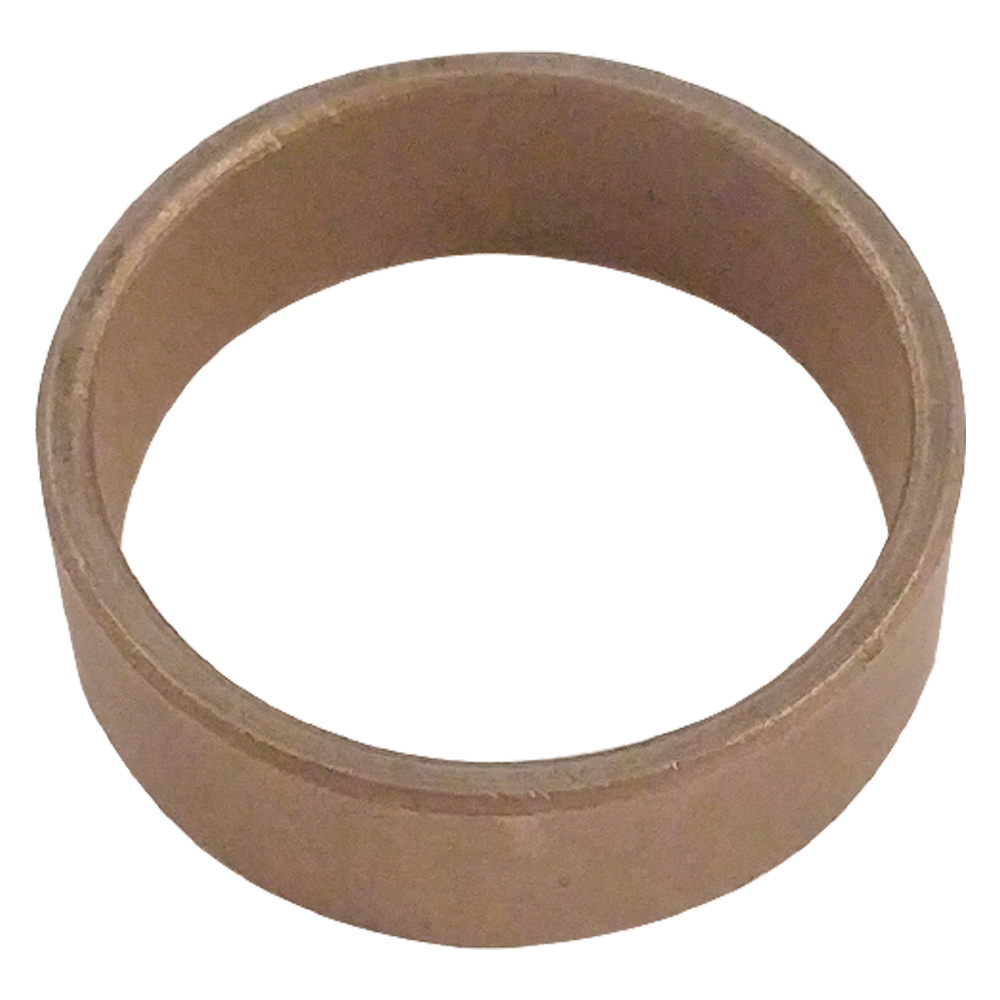

18 Bushing Cover Mitsubishi
  • Thickness: 0.466"
  • Width: 0.466
  • Housing Bore Dia: 0.743"
  • Shaft Dia: 0.63"
  • Material: Bronze
 TB-18-5
18 Bushing Cover Chrysler
  • Thickness: 0.367"
  • Width: 0.367
  • Housing Bore Dia: 1.291"
  • Shaft Dia: 1.169"
  • Material: Bronze
 TB-18-7
18 Bushing Oversized O.D. & Undersized I.D.
  • Thickness: 0.36"
  • Width: 0.36
  • Housing Bore Dia: 1.294"
  • Shaft Dia: 1.063"
  • Material: Steel- backed bronze alloy
 TB-18-14

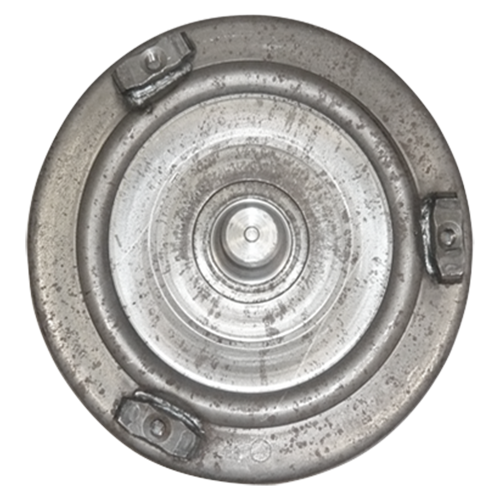

19 Front Cover Omni, Horizon, American Motors TX-22-7
20 Bolt Hex Head 4 Pieces Required.
  • Dimensions: M10 x 1.5mm
  • Length: 13mm
 B-62
20_N.I. Mounting Pad Threaded M10 × 1.5 4 Pieces Required.
  • Dimensions: Threaded M10 × 1.5
 TX-10-6
20_N.I. Salvage Ring&Trade TX-22-786
20_N.I. Salvage Ring&Trade TX-22-786NR
