Torque Converter | Chrysler | 9-1/2" Lockup, A-470, A-670, A-604, FWD

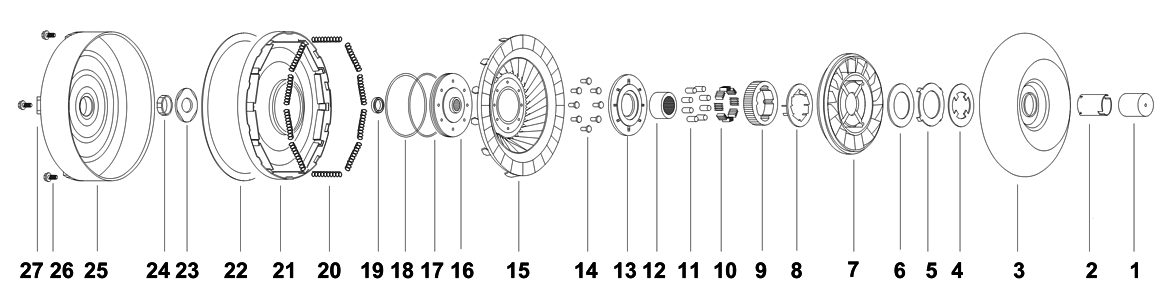

Ill.# Image Description Specification Part #
0 Misc NPN-SPL
0 Lining (Friction Ring,Wafer)
  • Outer Dia: 9.61"
  • Inner Dia: 7.99"
  • Thickness: 0.045"
  • Material: Red
 NX-23-4
0 Turbine Washer Late Type
  • Outer Dia: 2.354"
  • Inner Dia: 1.075"
  • Thickness: 0.135"
  • Material: Plastic
 TW-9-30
1 Hubcap Fits 1-1/2" (38.1mm). Length: 1-1/2"
  • Color: Green
  • Fits 1-1/2" (38.1mm)
 MHC-G

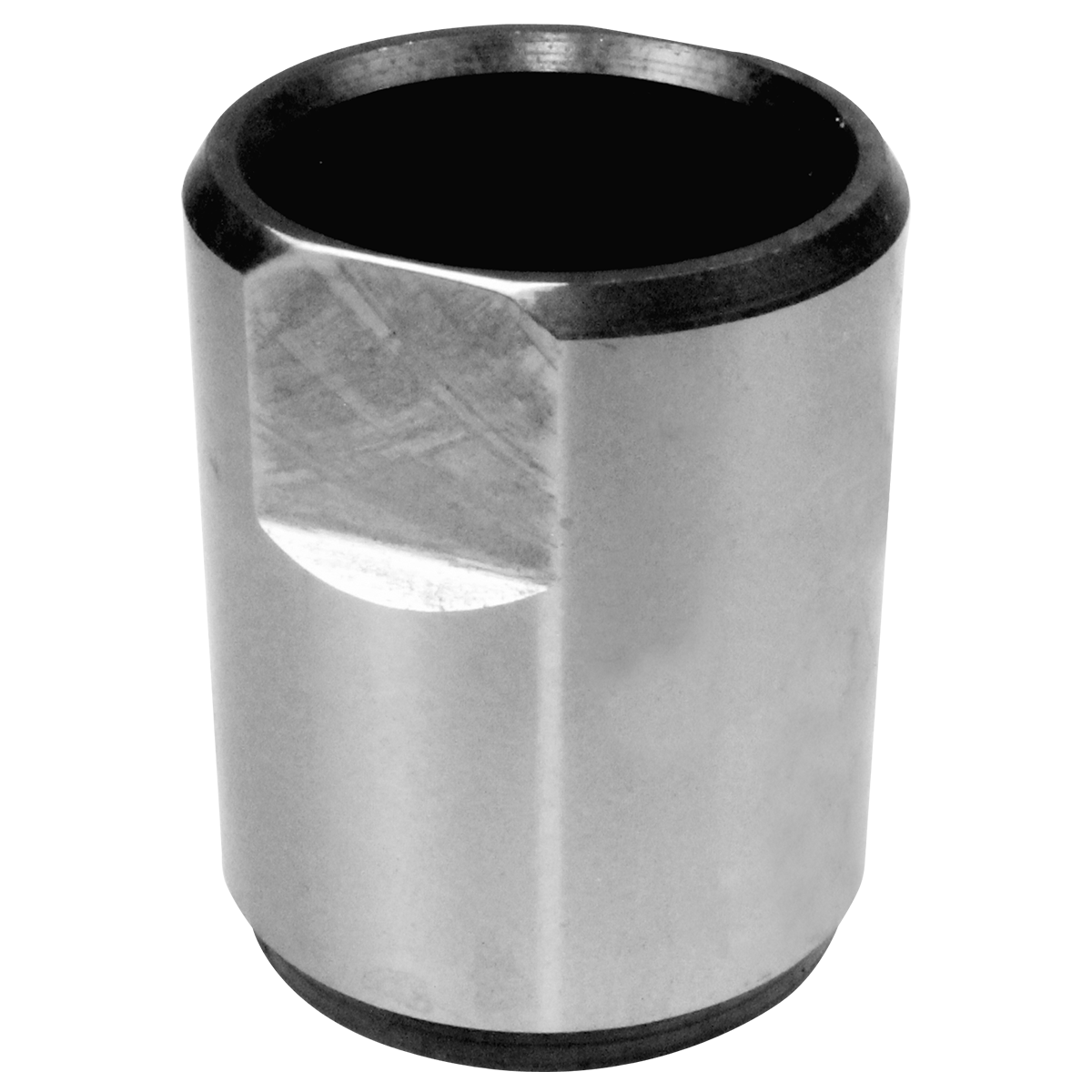

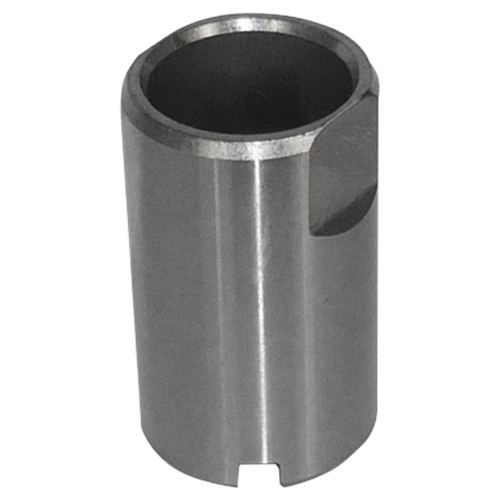

2 Impeller Hub
  • Journal Dia: 1.498"
  • Installed Height: 2.50"
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 TH-1-12AGRC
2 Impeller Hub
  • Journal Dia: 1.498"
  • Installed Height: 1.725"
  • Pump Drive Type: Flats
 TH-1-16G
2 Impeller Hub
  • Journal Dia: 1.498"
  • Installed Height: 1.725"
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 TH-1-16GRC
2 Impeller Hub
  • Journal Dia: 1.498"
  • Installed Height: 2.28"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 TH-1-20AGRC
2 Impeller Hub
  • Journal Dia: 1.498"
  • Installed Height: 1.85"
  • Height: 1.942
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 TH-1-20GRC
2 Impeller Hub
  • Journal Dia: 1.498"
  • Height: 1.980"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
 TH-1-18G
2 Impeller Hub
  • Journal Dia: 1.498"
  • Height: 1.940"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 43-45
  • Material: Chrome-Moly Steel
 TH-1-34GCM

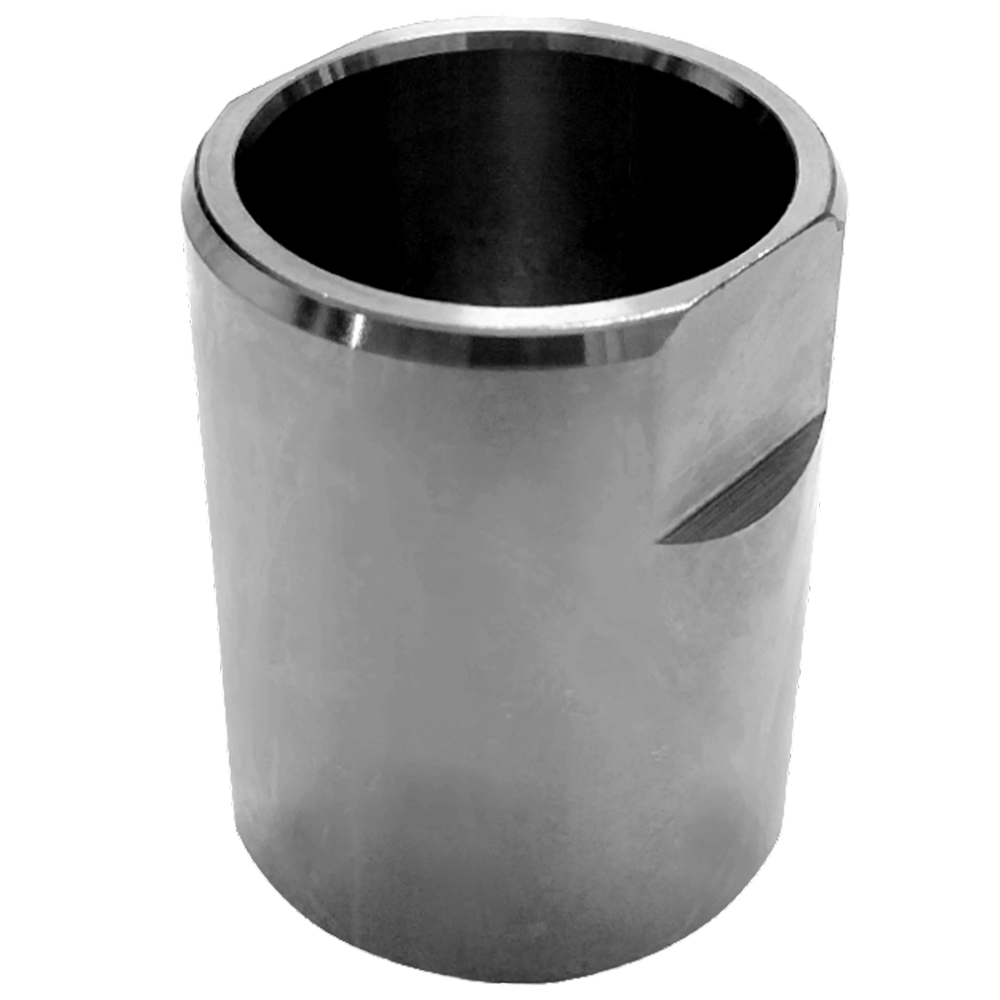

2 Impeller Hub
  • Journal Dia: 1.498"
  • Height: 1.980"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 TH-1-18GRC
2 Impeller Hub 4505541-1
2 Impeller Hub
  • Journal Dia: 1.498"
  • Height: 2.10"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 TH-1-19GRC
2 Impeller Hub 4326921-1
2 Impeller Hub
  • Journal Dia: 1.498"
  • Installed Height: 2.28"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
 TH-1-20AG
2 Impeller Hub
  • Journal Dia: 1.498"
  • Installed Height: 2.50"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 TH-1-28AGRC
2 Impeller Hub Slotted
  • Journal Dia: 1.498"
  • Installed Height: 2.28"
  • Hardness: Rc 32-36
 TH-1-4AGRC
2 Impeller Hub
  • Journal Dia: 1.498"
  • Installed Height: 2.50"
  • Pump Drive Type: Slots
 TH-1-12AG
2 Impeller Hub
  • Journal Dia: 1.498"
  • Installed Height: 1.85"
  • Hub Mount: Thru
  • Pump Drive Type: Flats

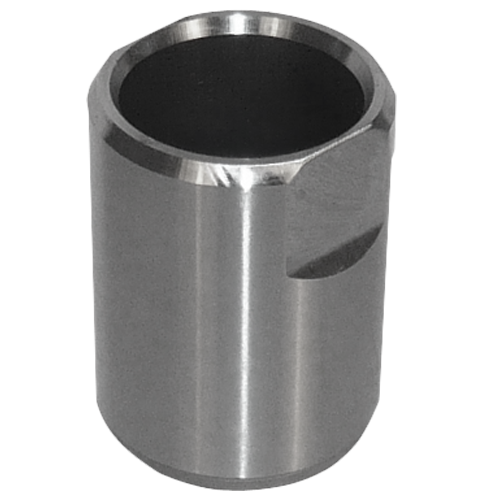

 TH-1-20G

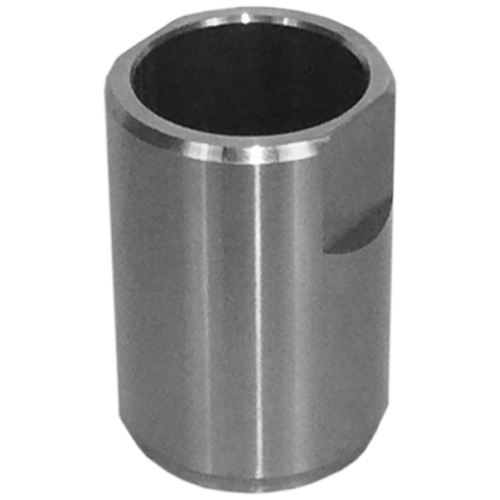

2 Impeller Hub
  • Journal Dia: 1.498"
  • Installed Height: 2.50"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
 TH-1-28AG
2 Impeller Hub
  • Journal Dia: 1.498"
  • Height: 3.33"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 43-45
  • Material: Chrome-Moly Steel
 TH-1-35GCM
3 Impeller NPN-3-4-3

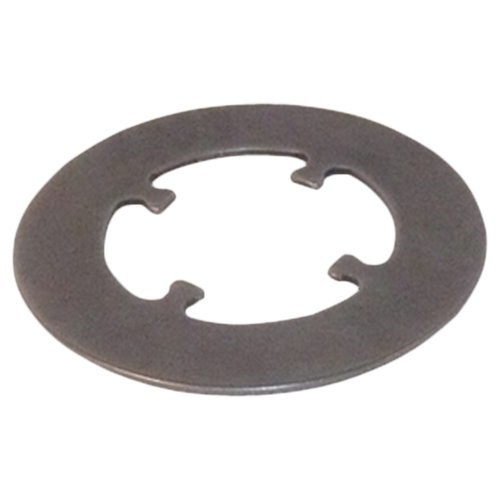

4 Washer Wear-Plate
  • Outer Dia: 2.960"
  • Inner Dia: 1.812"
  • Thickness: 0.068"
  • Material: Steel
  • 4 Lugs
 TW-2-3
5 Washer
  • Outer Dia: 2.8"
  • Inner Dia: 1.6"
  • Material: Bronze
  • 3 Lugs
 TW-3
5 Washer
  • Outer Dia: 2.94"
  • Inner Dia: 1.96"
  • Thickness: .06"
  • Material: Bronze
  • 4 Lugs
 TW-3-3
5 Washer
  • Outer Dia: 2.94"
  • Inner Dia: 1.96"
  • Material: Bronze
 TW-3-3AT
5 Washer
  • Outer Dia: 2.94"
  • Inner Dia: 1.96"
 TW-3-3E

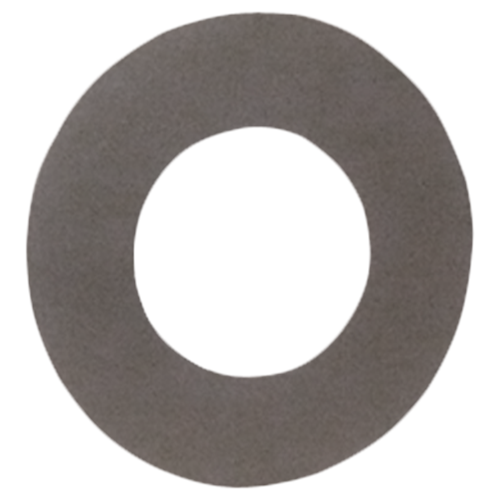

6 Shim
  • Outer Dia: 2.36"
  • Inner Dia: 1.482"
  • Thickness: .010"
  • (Replaced by TW-2X10)
 FW-2-010

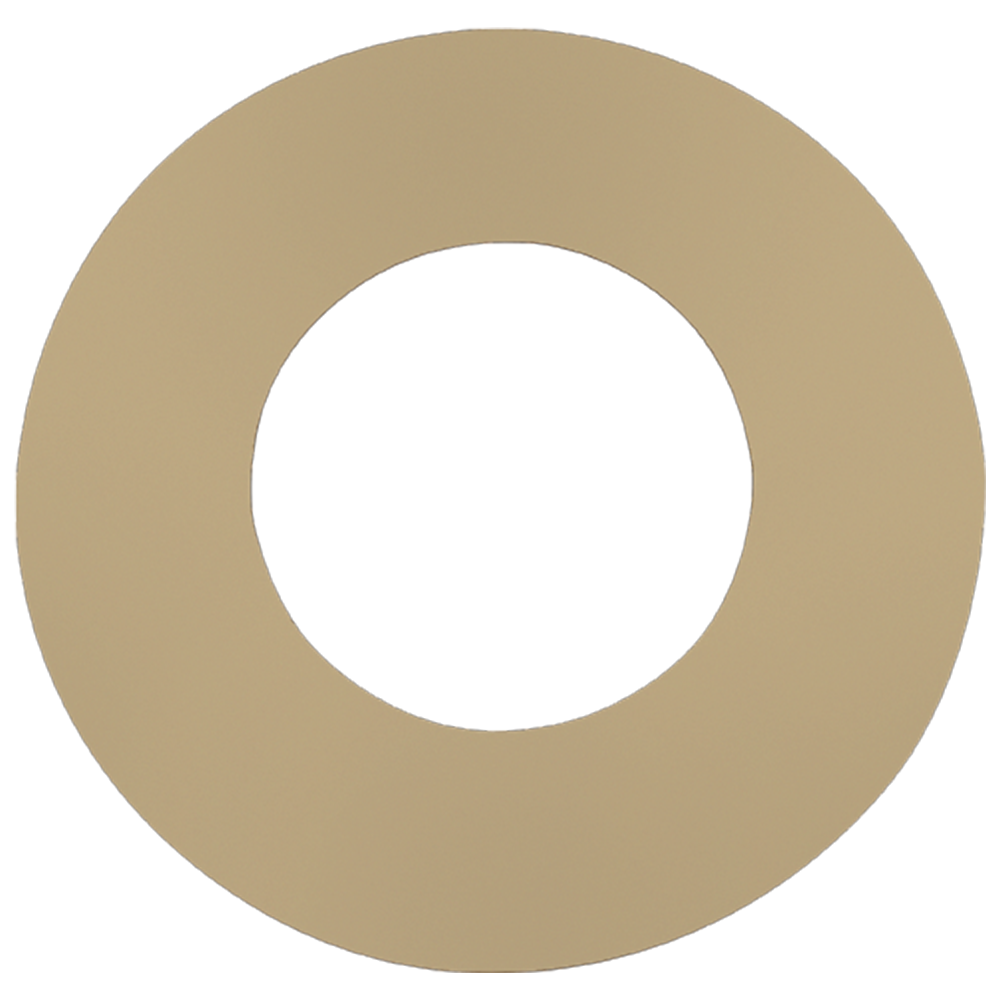

6 Shim
  • Outer Dia: 2.36"
  • Inner Dia: 1.482"
  • Thickness: .020"
  • (Replaced by TW-2X)
 FW-2-020
6 Shim
  • Outer Dia: 2.36"
  • Inner Dia: 1.482"
  • Thickness: .030"
  • (Replaced by TW-2X30)
 FW-2-030
6 Shim
  • Outer Dia: 2.943"
  • Inner Dia: 1.885"
  • Thickness: 0.010"
  • Material: Steel
 MW-2-10
6 Shim
  • Outer Dia: 2.938"
  • Inner Dia: 1.875"
  • Thickness: 0.02
 MW-2-20
6 Shim
  • Outer Dia: 2.938"
  • Inner Dia: 1.875"
  • Thickness: .030"
 MW-2-30
6 Shim
  • Outer Dia: 2.938"
  • Inner Dia: 1.875"
  • Thickness: .050
 MW-2-50
6 Shim
  • Outer Dia: 2.95"
  • Inner Dia: 2.16"
  • Thickness: .010"
  • Minimize Race Rubbing
 TW-2-10
6 Shim
  • Outer Dia: 2.875"
  • Inner Dia: 1.497"
  • Thickness: .020"
 TW-2X
6 Shim
  • Outer Dia: 2.875"
  • Inner Dia: 1.497"
  • Thickness: 0.010"
  • Material: Steel
 TW-2X10
6 Shim
  • Outer Dia: 2.875"
  • Inner Dia: 1.497"
  • Thickness: .03"
 TW-2X30

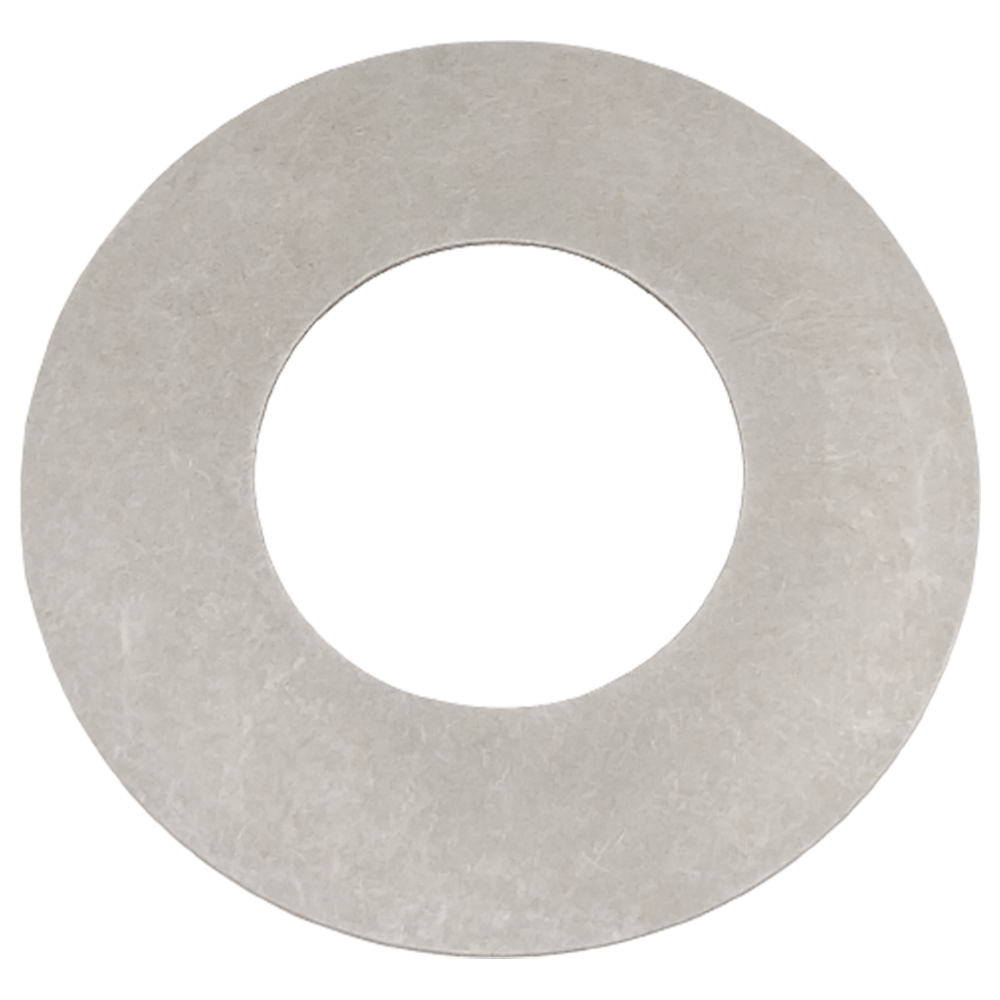

6 Shim
  • Outer Dia: 2.875"
  • Inner Dia: 1.497"
 TW-2X-30
7 Stator NPN-3-4-7

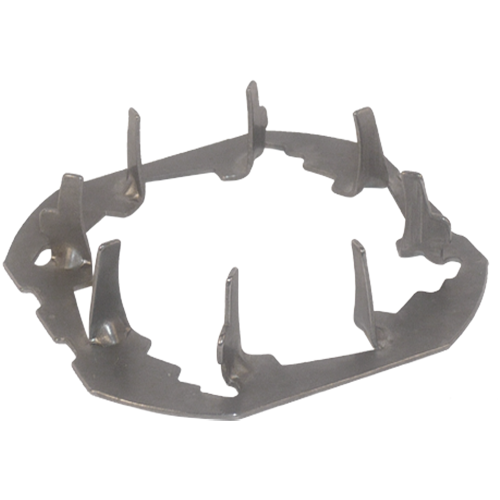

8 Spring Retainer Stator TX-15-6
9 Outer Race (Cam) Stator TX-15-7
10 Accordion Spring 8 Pieces Required. 1942187
10 Accordion Spring 8 Pieces Required.
  • Height: 0.28"
  • Width: 0.565"
  • Folds: 3
 FS-6-10
10 Accordion Spring 8 Pieces Required.
  • Height: .312"
  • Width: 0.6"
  • Folds: 4
 TS-6
11 Roller 8 Pieces Required.
  • Dia: 0.316"
  • Length: 0.623"
 TR-7
11 Roller 8 Pieces Required.
  • Dia: 0.316"
  • Length: 0.623"
 TR-7-2

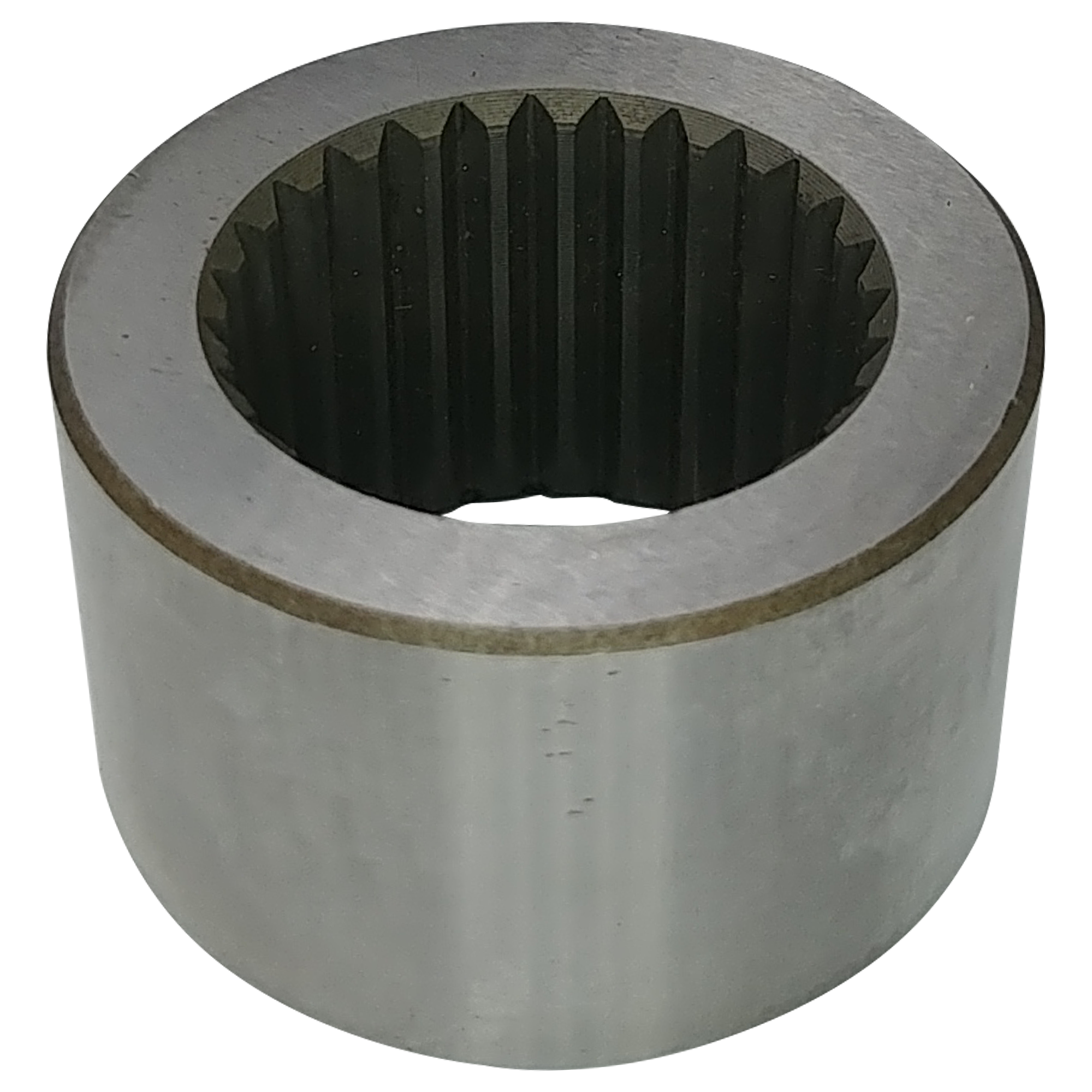

12 Inner Race
  • Outer Dia: 1.719"
 5205905

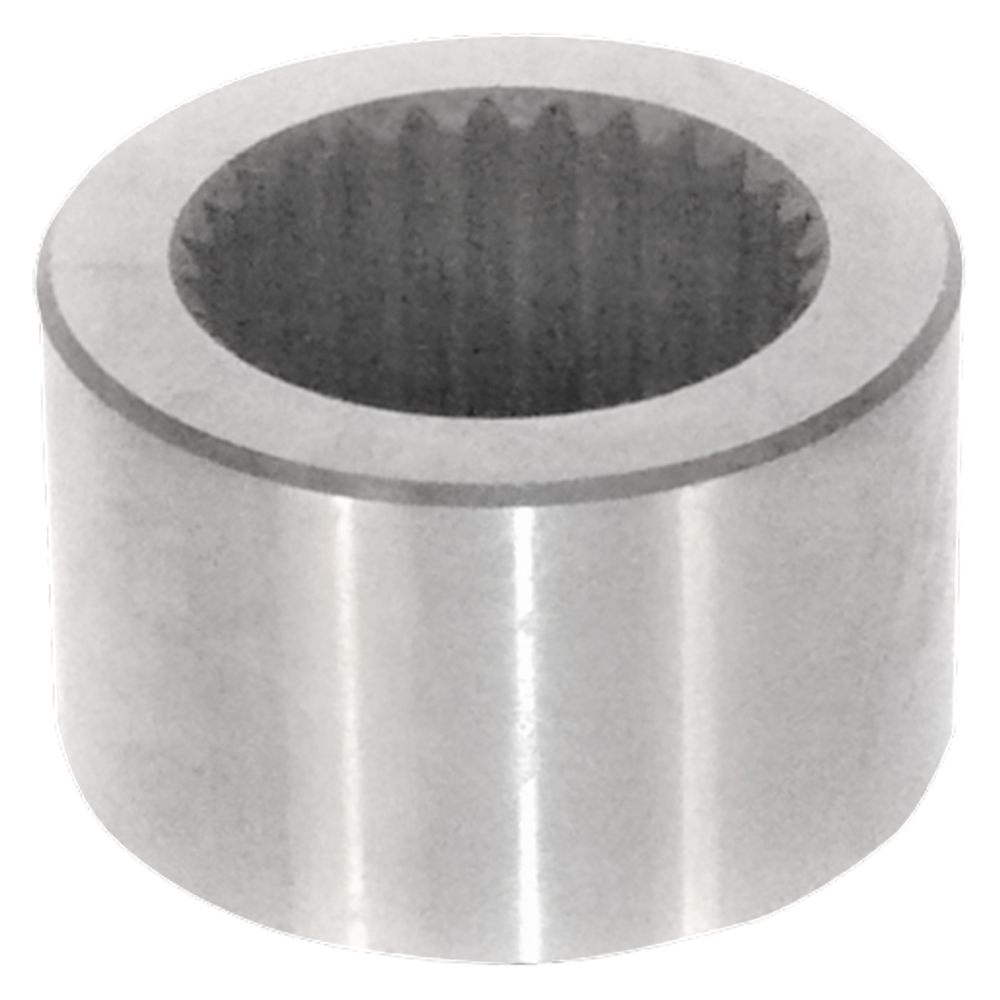

12 Inner Race Stator
  • Height: 1.040"
  • Outer Dia: 1.719"
  • Internal Teeth: 27
 TX-14-7
13 Stator Cap Replaced With To TW-4-14 Adapts bronze washer TW-3-7/A for use in Chrysler 9-1/2" and 10" converters
  • Outer Dia: 3.61"
  • Inner Dia: 1.42"
  • Thickness: 0.266"
  • Material: Aluminum
 TW-4-4

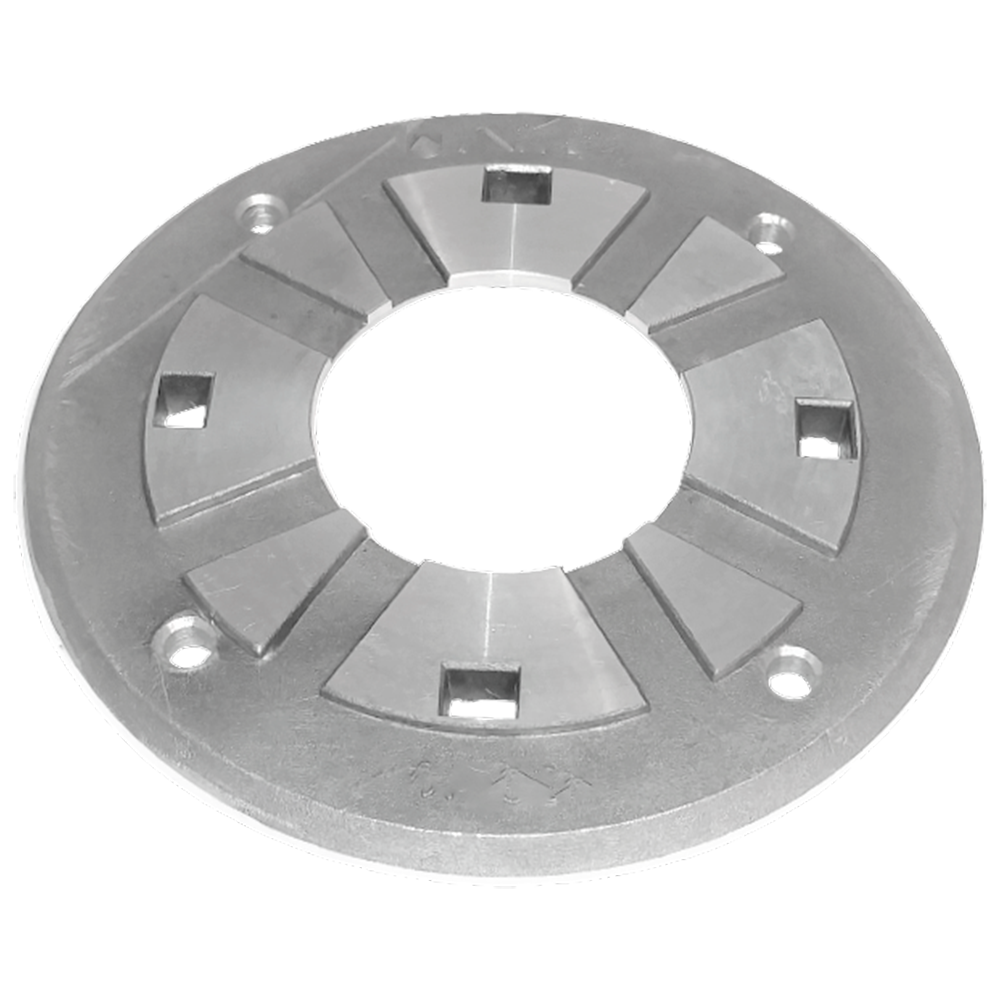

13 Stator Cap Uses Bronze Washer TW-3-8. Adapts washer TW-3-7 for Chrysler 9-1/2" and 10" converters.
  • Outer Dia: 3.61"
  • Inner Dia: 1.42"
  • Thickness: .27"
  • Material: Aluminum
 TW-4-13
13 Stator Cap Improved
  • Outer Dia: 3.61"
  • Inner Dia: 1.42"
  • Thickness: 0.32"
  • Material: Aluminum
 TW-4-14
14 Rivet Turbine shaft to turbine. Use 6. 8 Pieces Required.
  • Length: .44"
  • Rivet Shank Dia: .25"
 TX-12L
14 Rivet 8 Pieces Required.
  • Length: 0.476"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.250"
  • Rivet head dia: 0.475"
  • Rivet head Type: Flat
 TX-12-2
15 Turbine NPN-3-4-15
16 Turbine Hub
  • Internal Teeth: 22
 TX-13-13
16 Turbine Hub
  • Internal Teeth: 22
  • Hardness: Heat-Treated (hardened)
 TX-13-13HT
16 Turbine Hub
  • Outer Dia: 4.37"
  • Internal Teeth: 24
 TX-13-14

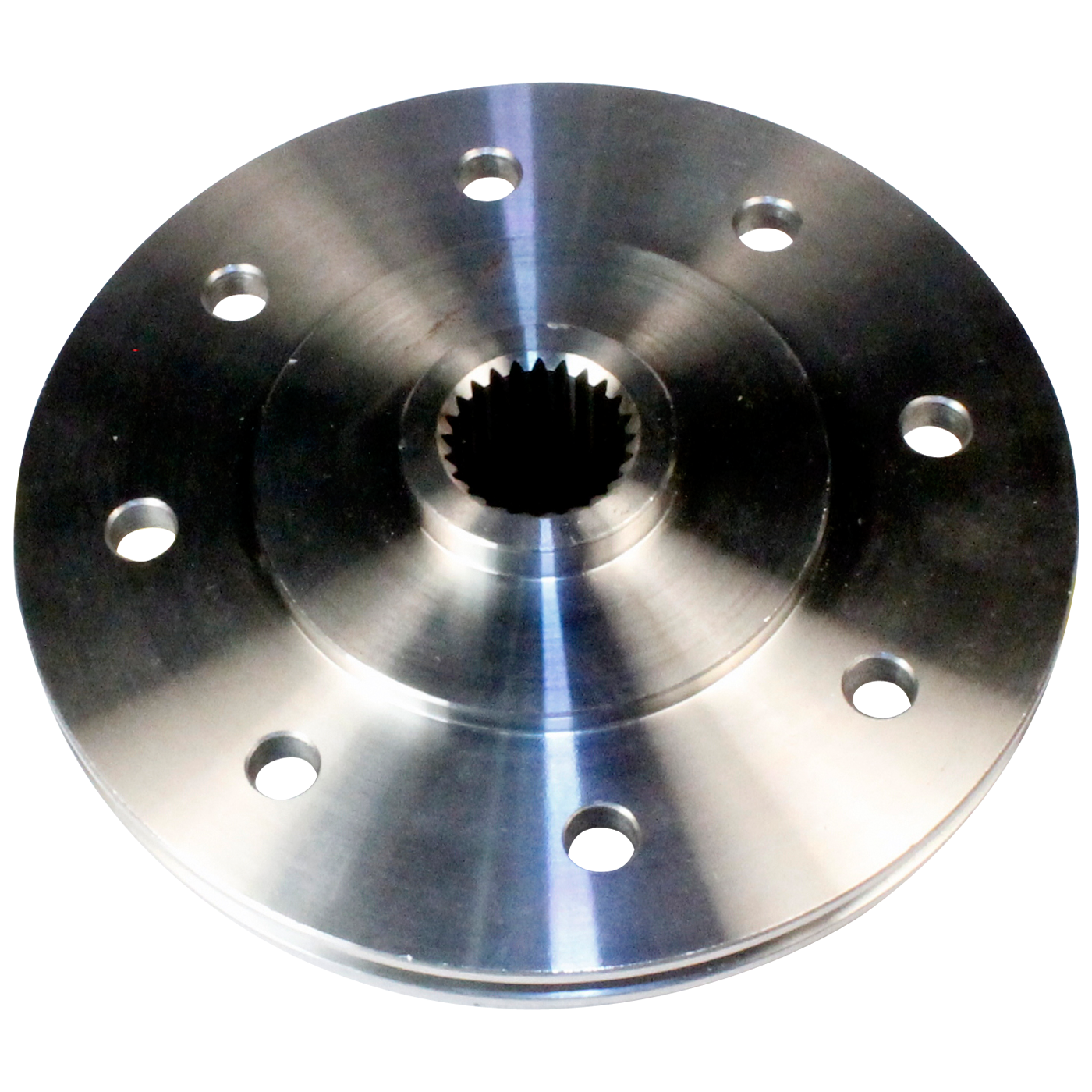

16 Turbine Hub
  • Height: 1.300"
  • Outer Dia: 4.37"
  • Internal Teeth: 24
  • Hardness: Heat-Treated (hardened)
 TX-13-14HT
17 O-Ring Hi Temperature
  • Inner Dia: 4.15
  • Thickness: 0.106"
 TO-25-6
17 O-Ring
  • Inner Dia: 4.15
  • Oversized
 TO-25-6A
17 O-Ring
  • Inner Dia: 4.15
  • Thickness: 0.122
  • Inner Dia metric: 104.394
  • Thickness metric: 3.0988
  • Material: Fluorocarbon
  • Oversized, Salvages Grooved Pistons
 TO-25-6X
17 O-Ring
  • Inner Dia: 4.15
  • Thickness: 0.106
  • Inner Dia metric: 105.41
  • Thickness metric: 2.6924
  • Material: Fluorocarbon
 TO-25-6V

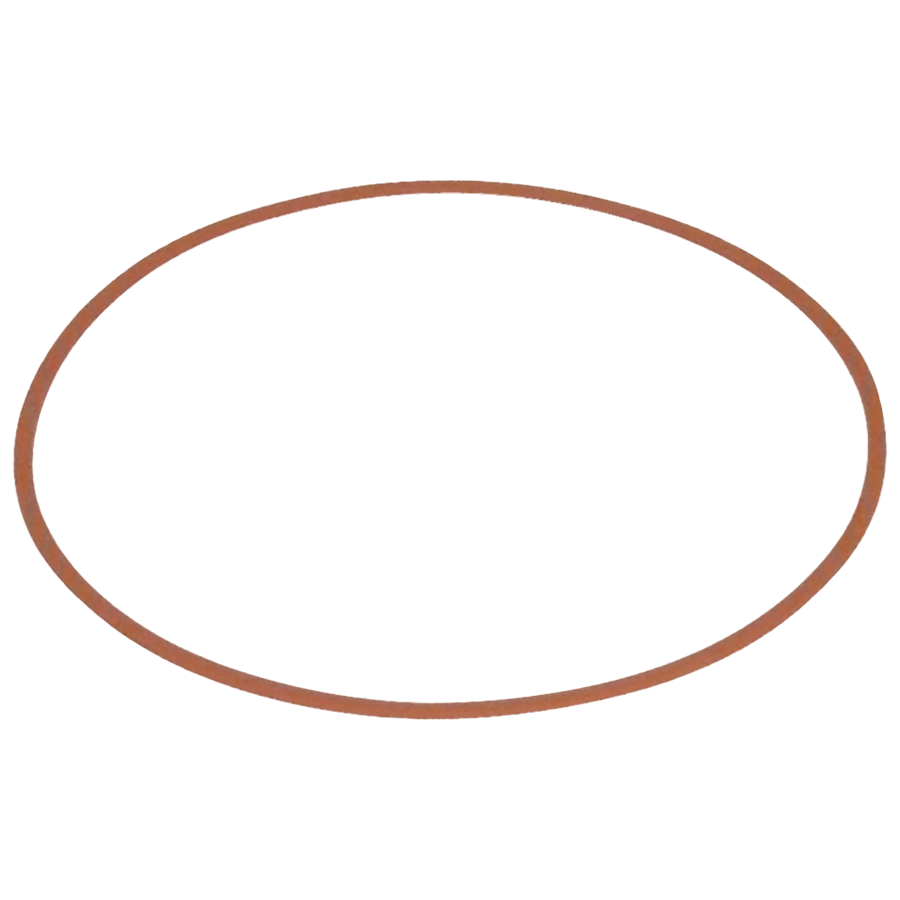

18 Seal Ring Back-Up
  • Height: 0.096
  • Outer Dia: 4.344
  • Width: 0.033"
  • Outer Dia Metric: 110.3376
  • Material: PTFE
  • Height Metric: 2.4384
 TO-25-7
19 Metal Clad Seal
  • housing bore dia: 0.776
  • housing bore dia metric: 19.8
  • Shaft Dia metric: 12.21
  • Shaft Dia: 0.501
  • Material: Fluorocarbon
 TO-25-8
20 Damper Spring 10 Pieces Required.
  • Outer Dia: 0.48
  • Length: 60.3mm Free Length
  • Outer Dia Metric: 12.2mm
  • Color: Yellow (Replaces Orange)
 TX-24-1
20 Damper Spring 10 Pieces Required.
  • Outer Dia: 0.432"
  • Length: 2.42"
 TX-24Y

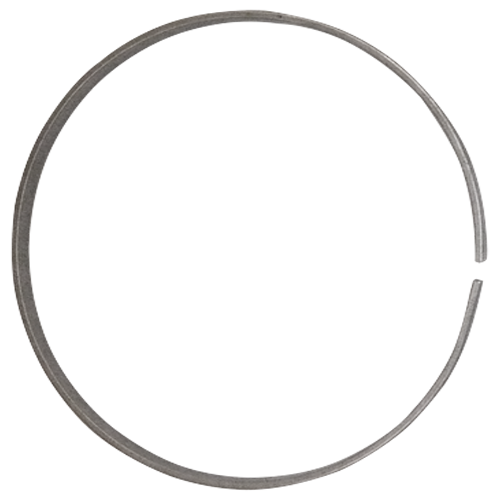

20_N.I. Salvage Ring™ To Beef Up Ballooned Pistons For 9-1/2" And 10" Units
  • Outer Dia: 7.14"
  • Thickness: 0.0125"
  • Width: 0.375"
 TX-24-559
20_N.I. Salvage Ring™
  • Outer Dia: 7.00"
  • Width: 0.250"
 TX-24-559NR
21 Lockup Clutch No Lining, Spring Type
  • Outer Dia: 9.563
 TX-24-4
21 Lockup Clutch
  • Outer Dia: 9.563
  • With Lining, Spring Type
 TX-24-5

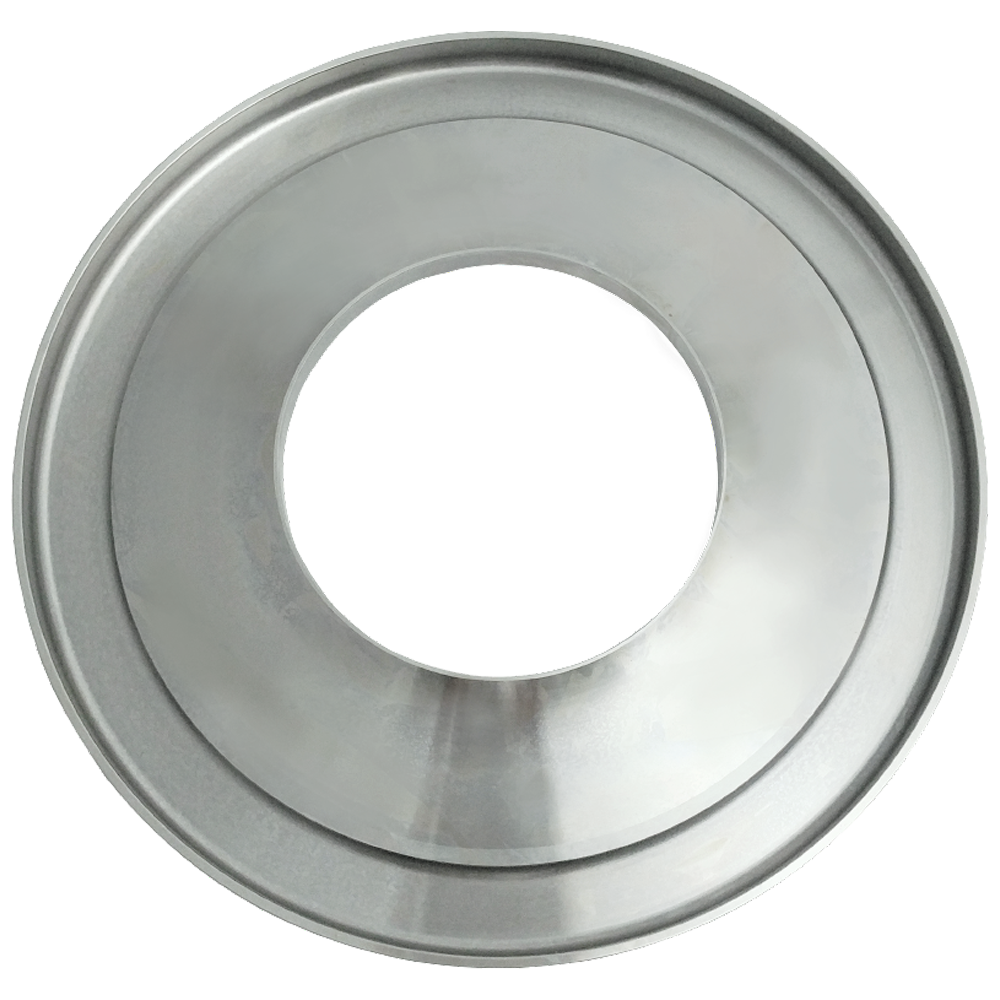

21 Clutch Plate Assembly Plate, With Outspring Retainer * Note: Spring Retainer From Old Plate Must Be Transfered To New
  • Cold Formed, OE Style
 TX-24-5N

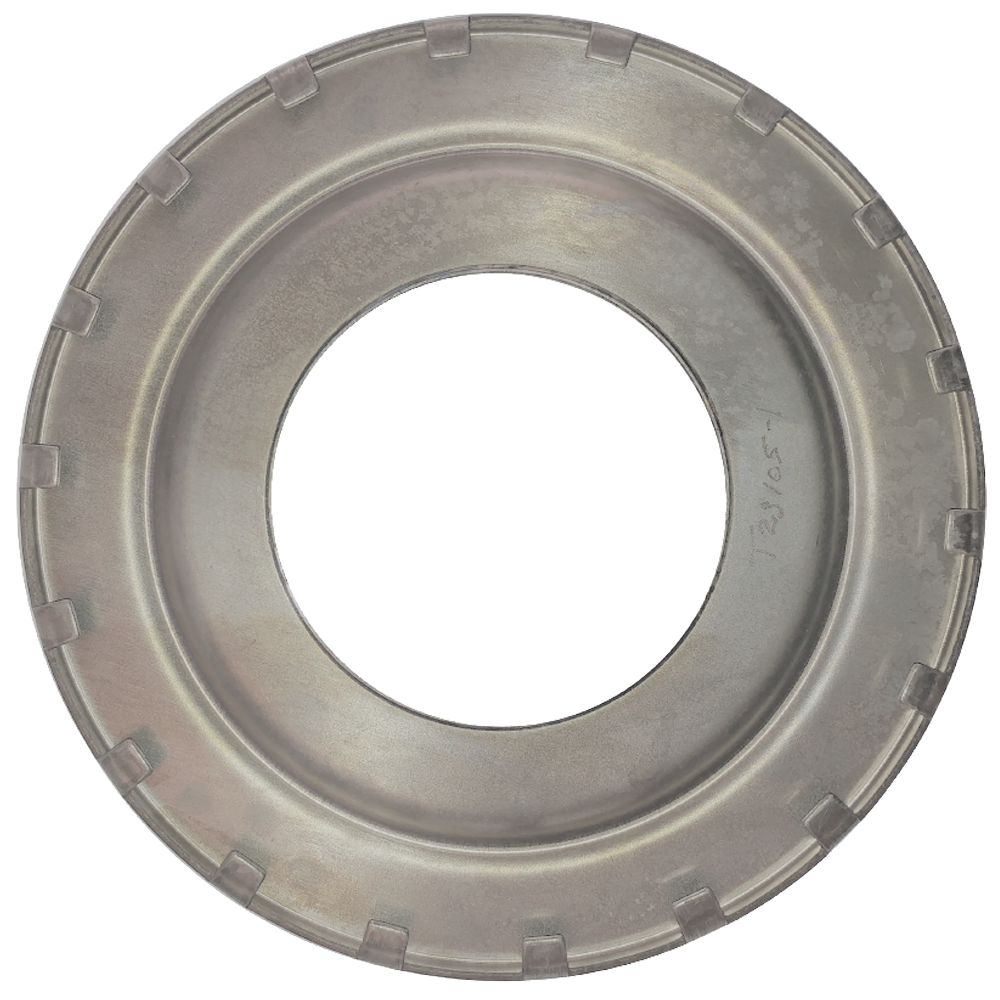

21 Lockup Clutch Plate, Without Spring Retainer, Hot Forged, Heavy Duty * Note: Spring Retainer From Old Plate Must Be Transfered To New TX-24-14
21 Clutch Plate Lockup, "Non-Spring" Type TX-24-7
22 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Outer Dia: 9.25"
  • Inner Dia: 7.875"
  • Thickness: 0.045"
  • Material: Red
 JX-23-8
22 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Outer Dia: 9.125"
  • Inner Dia: 7.625"
  • Thickness: 0.045"
  • Material: Red
 TX-23-5
22 Floating Ring
  • Outer Dia: 9.625
  • Inner Dia: 8"
  • Thickness: .070"
 JX-23-4
22 Floating Ring
  • Outer Dia: 9.625
  • Inner Dia: 8"
  • Thickness: .070"
 TX-26-9

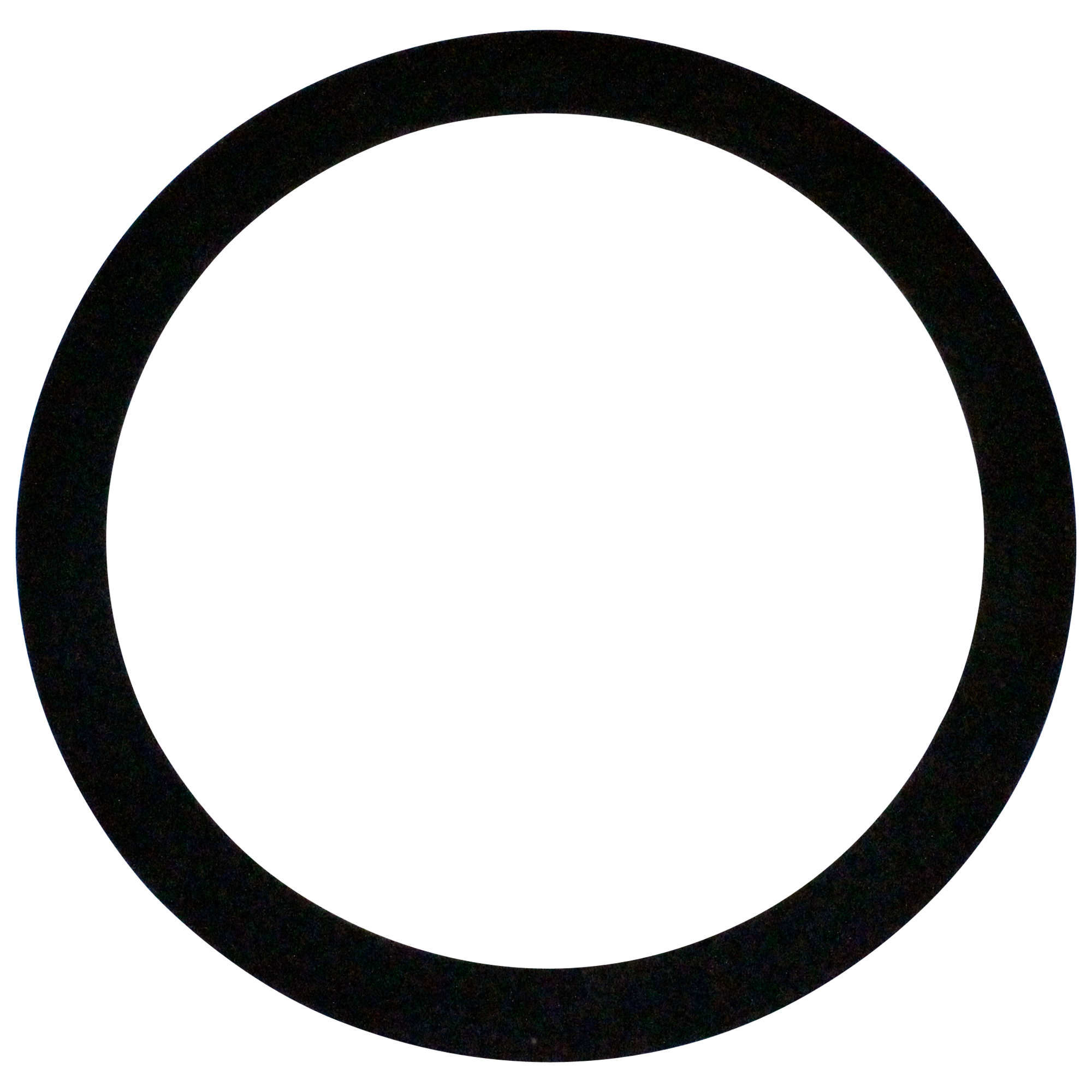

22 Floating Ring Kevlar®
  • Outer Dia: 9.625
  • Inner Dia: 8"
  • Thickness: 0.045"
 TX-26-9K
22 Floating Ring
  • Outer Dia: 9.625
  • Inner Dia: 8"
 TX-26-9R
22 Floating Ring Raybestos
  • Outer Dia: 9.625
  • Inner Dia: 8"
  • Thickness: .070"
 TX-26-9RB
22 Lining (Friction Ring,Wafer)
  • Outer Dia: 9.188
  • Inner Dia: 7.5
  • Thickness: 0.045"
  • Material: Red
 SX-23-48
22 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Outer Dia: 9.125"
  • Inner Dia: 7.75"
  • Thickness: 0.045"
  • Material: Red
 TX-23-15
22 Lining (Friction Ring,Wafer)
  • Outer Dia: 9.125
  • Inner Dia: 7.813
  • Thickness: 0.045"
  • Material: Red
 TX-23-16
22 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Outer Dia: 9.625
  • Inner Dia: 7.625
  • Thickness: 0.045"
  • Material: Red
 TX-23-18
22 Lining (Friction Ring,Wafer)
  • Outer Dia: 9.625"
  • Inner Dia: 8"
  • Thickness: 0.045"
  • Material: Red
 TX-23-9
23 Bearing Late type
  • Outer Dia: 2.362"
  • Inner Dia: 1.07"
  • Thickness: 0.138"
  • Outer Dia Metric: 60.96
  • Inner Dia metric: 27.18
  • Thickness metric: 3.4
  • Bearing type: Enclosed
  • Improved Lubrication
 TW-9-13

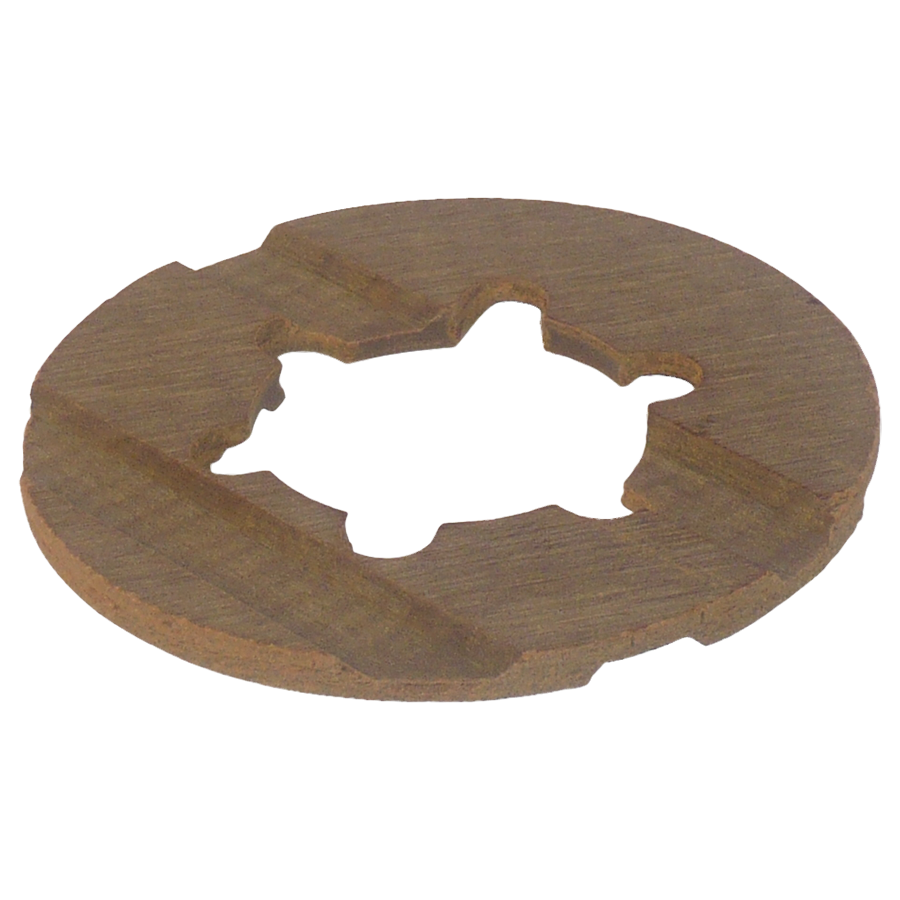

23 Turbine Washer
  • Outer Dia: 2.375"
  • Inner Dia: 1.070"
  • Thickness: 0.136"
  • Material: Fiber Composite
 TW-9-15
23 Turbine Washer
  • Outer Dia: 2.36"
  • Inner Dia: 1.08"
  • Thickness: 0.12"
  • Material: Plastic
  • OEM
 TW-9-15P
23 Turbine Washer OEM
  • Outer Dia: 2.36"
  • Inner Dia: 1.08"
  • Thickness: 0.136"
  • Material: Fiber Composite
 TW-9-15PR
23 Turbine Washer Alternate
  • Outer Dia: 2.360"
  • Inner Dia: 1.075"
  • Thickness: 0.138"
  • Material: Bronze
 TW-9-15B
24 Bushing Precision
  • Inner Dia: 1.0670
  • Width: 0.36
  • housing bore dia: 1.295
  • Shaft Dia: 1.063
  • Material: Steel - backed alloy
  • Bushing Style: Precision
 TB-18-13
24 Bushing Oversized O.D. & Undersized I.D.
  • Width: 0.36
  • housing bore dia: 1.3175
  • Shaft Dia: 1.048"
  • Material: Steel- backed bronze alloy
 TB-18-14
25 Front Cover NPN-3-4-25
26 Bolt Hex Head 4 Pieces Required.
  • Dimensions: M10 x 1.5, 13.2mm Long
 B-62
26_N.I. Salvage Ring™ Coresaver™
  • Outer Dia: 10.11"
  • Width: 0.375"
 TX-22-786

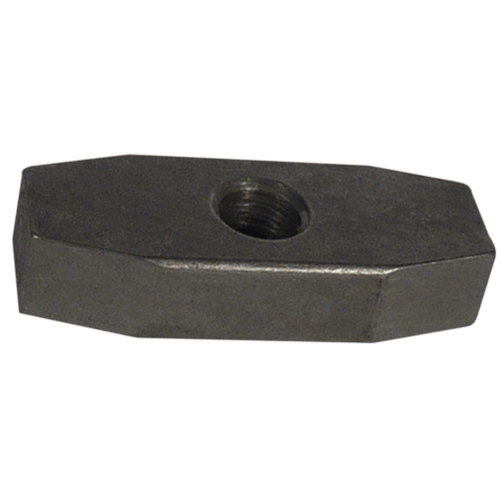

27 Mounting Pad Threaded M10 × 1.5 4 Pieces Required.
  • Dimensions: Threaded M10 × 1.5
 TX-10-6

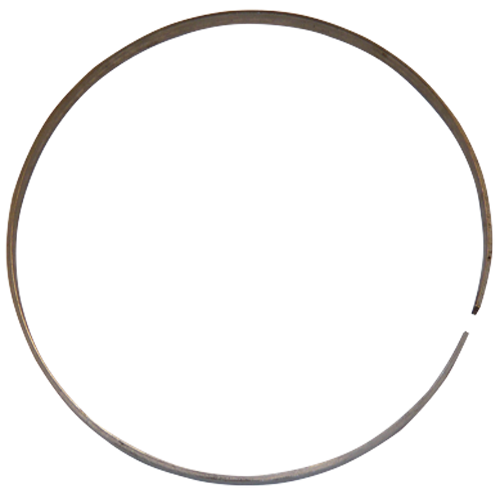

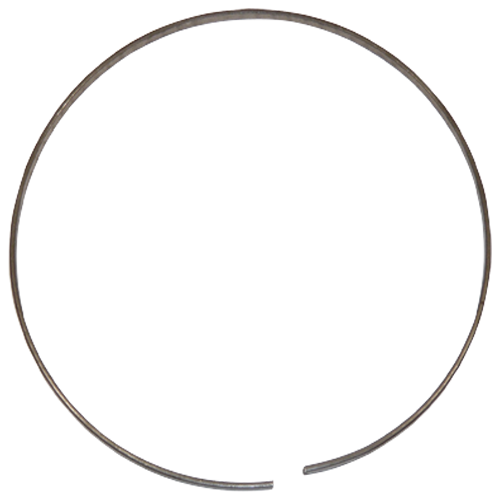

27_N.I. Salvage Ring™ Coresaver™
  • Outer Dia: 10.11"
  • Width: 0.250"
 TX-22-786NR
