Torque Converter | Chrysler | 68RFE, 6.7L Cummins Diesel

Ill.# Image Description Specification Part #
Misc NPN-SPL
Misc NPN-SPL
&
Rivet 12 Pieces Required.
  • Length: 0.380"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.238"
  • Rivet Head Dia: .380"
  • Rivet Head: Flat
 SX-12-18
Rivet SX-12-18
& 12 Pieces Required.
  • Length: 0.380"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.238"
  • Rivet Head Dia: .380"
  • Rivet Head: Flat
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1"
  • Color: Yellow
 MHC-YB
Hubcap MHC-YB
Fits 1-7/8" (47.6mm). Length: 1" &
  • Color: Yellow
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1-3/4"
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
 MHC-Y
Hubcap MHC-Y
Fits 1-7/8" (47.6mm). Length: 1-3/4" &
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
2 O-Ring
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 1.612
  • Inside Dia metric: 40.9448
 TO-25-15
O-Ring TO-25-15
&
  • Thickness: 0.103
  • Thickness metric: 2.6162
  • Material: Fluorocarbon
  • Inside Dia: 1.612
  • Inside Dia metric: 40.9448
3 Impeller Hub with Seal grooves
  • Journal Dia: 1.875"
  • Installed Height: 2.597"
  • Height: 2.78"
  • Hub Mount: Flanged
  • Pump Drive Type: 4 Flats
  • Flange Dia: 4.15"
  • Material: Chrome-Moly Steel
 TH-1-44FLG
Impeller Hub TH-1-44FLG
with Seal grooves &
  • Journal Dia: 1.875"
  • Installed Height: 2.597"
  • Height: 2.78"
  • Hub Mount: Flanged
  • Pump Drive Type: 4 Flats
  • Flange Dia: 4.15"
  • Material: Chrome-Moly Steel
4 Bearing
  • Thickness: 0.255
  • Thickness metric: 6.48
  • Bearing type: Enclosed
  • Outside Dia: 3.28
  • Inside Dia: 2.388
  • Outside Dia Metric: 83.31
  • Inside Dia metric: 60.66
 SW-2-12
Bearing SW-2-12
&
  • Thickness: 0.255
  • Thickness metric: 6.48
  • Bearing type: Enclosed
  • Outside Dia: 3.28
  • Inside Dia: 2.388
  • Outside Dia Metric: 83.31
  • Inside Dia metric: 60.66
4 Bearing Timken
  • Thickness: 0.25"
  • Bearing type: Enclosed
  • Outside Dia: 3.28"
  • Inside Dia: 2.39"
 SW-2-12T
Bearing SW-2-12T
Timken &
  • Thickness: 0.25"
  • Bearing type: Enclosed
  • Outside Dia: 3.28"
  • Inside Dia: 2.39"
5 Stator Low stall
  • Material: Aluminum
 SX-5-11
Stator SX-5-11
Low stall &
  • Material: Aluminum

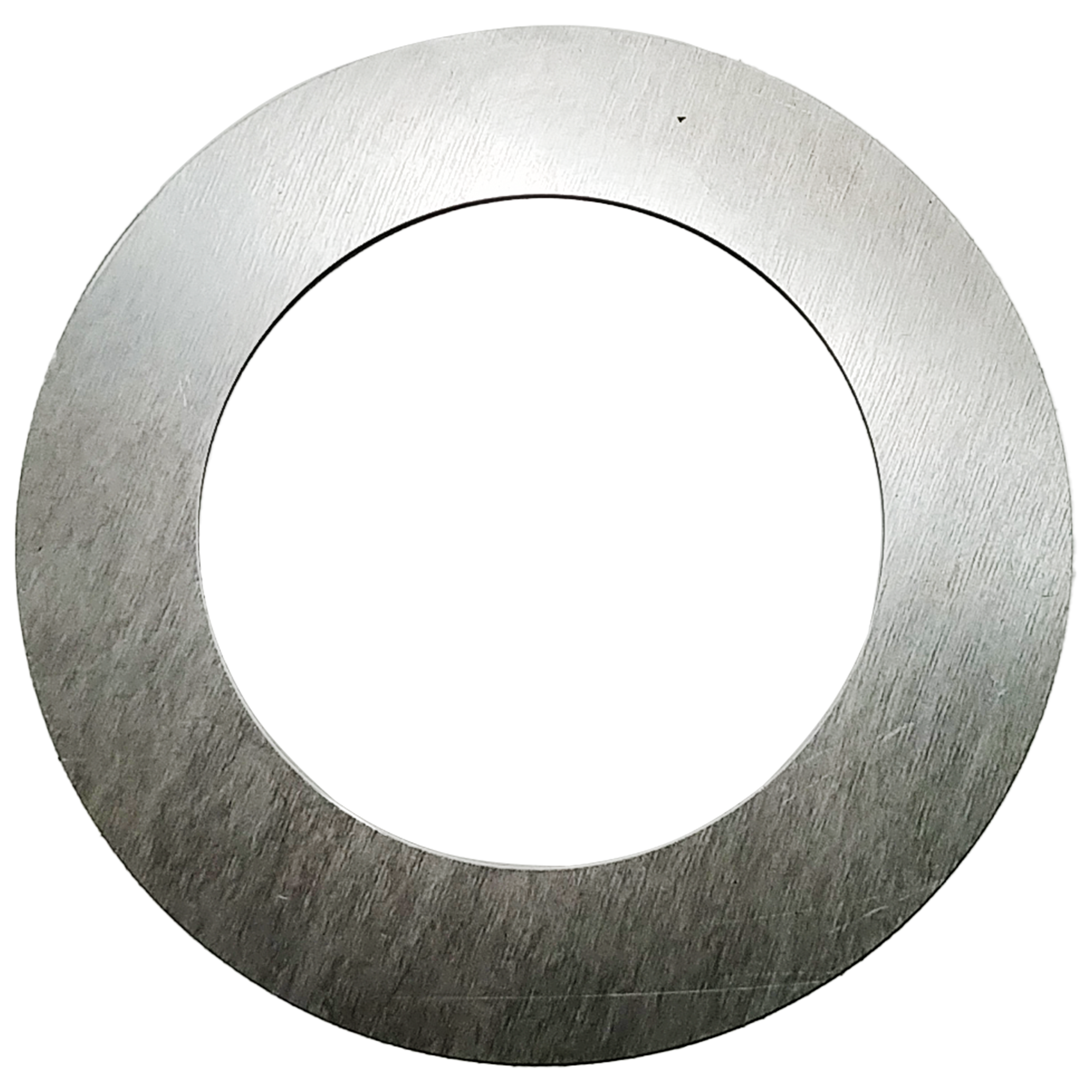

6 Shim Support
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 3.600"
  • Inside Dia: 2.350"
 SW-2-44
Shim SW-2-44
Support &
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 3.600"
  • Inside Dia: 2.350"
7 Spring Retainer Stator, HD SX-15-5
Spring Retainer SX-15-5
Stator, HD &
7 Spring Retainer Stator
  • Height: 0.530"
  • Dimensions: 3.120" x 3.120"
  • Material: Steel
  • For .575" Long Rollers
 SX-15B
Spring Retainer SX-15B
Stator &
  • Height: 0.530"
  • Dimensions: 3.120" x 3.120"
  • Material: Steel
  • For .575" Long Rollers
8 Outer Race (Cam) Stator, 10 Pocket Used with 0.58" Long Rollers.
  • Length: 0.591"
  • Outside Dia: 3.602"
 SX-15A
Outer Race (Cam) SX-15A
Stator, 10 Pocket & Used with 0.58" Long Rollers.
  • Length: 0.591"
  • Outside Dia: 3.602"

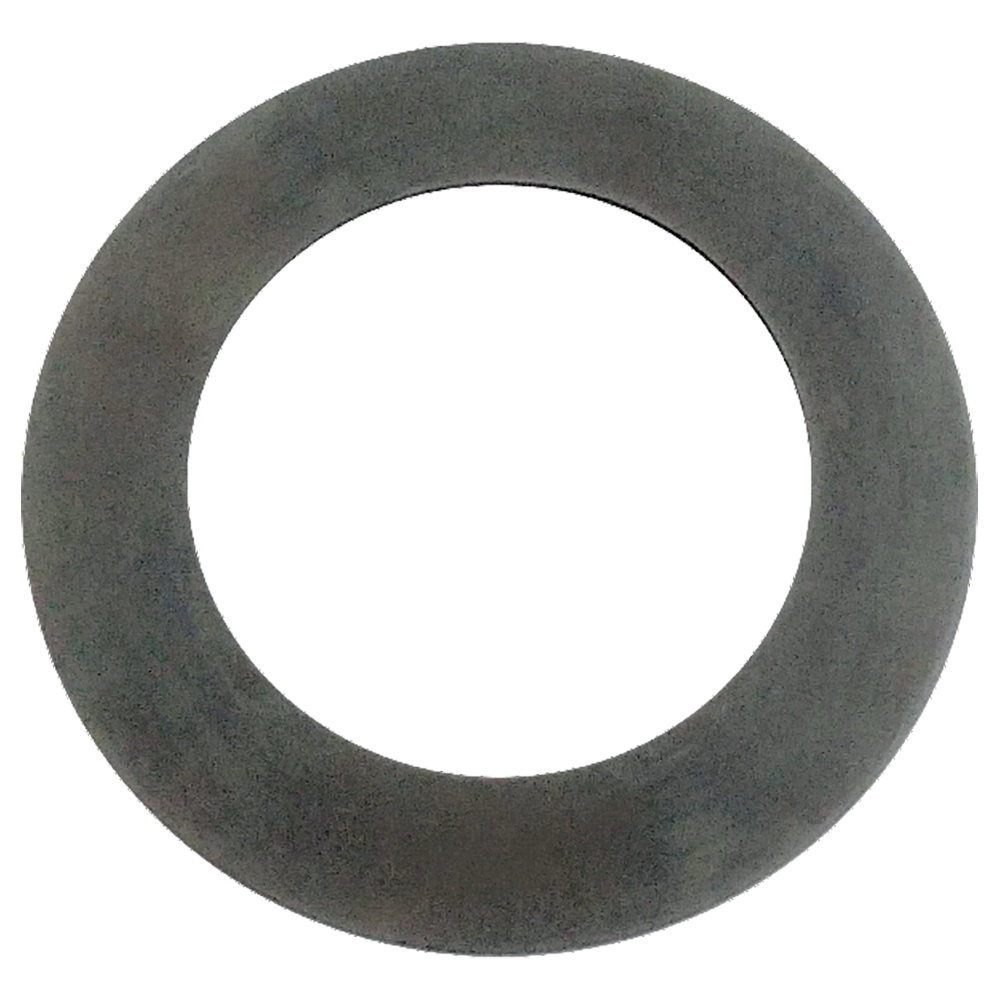

8.1 Shim Conversion Spacer converts BW 310mm LU (A618), GM 400 (3L80), AT-540 & Buick 350 to upgrade OE stator clutch assembly. Used with Outer-Race SX-15A
  • Thickness: 0.039"
  • Outside Dia: 3.600"
  • Inside Dia: 2.350"
 SW-2-45
Shim SW-2-45
Conversion Spacer & converts BW 310mm LU (A618), GM 400 (3L80), AT-540 & Buick 350 to upgrade OE stator clutch assembly. Used with Outer-Race SX-15A
  • Thickness: 0.039"
  • Outside Dia: 3.600"
  • Inside Dia: 2.350"
9 Accordion Spring 10 Pieces Required.
  • Width: 0.56"
  • Relaxed Length: 0.438"
  • Folds: 3
  • Material: Steel
  • Relaxed Height: 0.22"
 SS-6
Accordion Spring SS-6
& 10 Pieces Required.
  • Width: 0.56"
  • Relaxed Length: 0.438"
  • Folds: 3
  • Material: Steel
  • Relaxed Height: 0.22"
9 Accordion Spring 10 Pieces Required.
  • Width: 0.56"
  • Relaxed Length: 0.43"
  • Folds: 5
  • Relaxed Height: 0.24"
 SS-6-6
Accordion Spring SS-6-6
& 10 Pieces Required.
  • Width: 0.56"
  • Relaxed Length: 0.43"
  • Folds: 5
  • Relaxed Height: 0.24"
10 Roller 10 Pieces Required.
  • Dia: 0.312"
  • Length: 0.572"
  • Material: Steel
 SR-7
Roller SR-7
& 10 Pieces Required.
  • Dia: 0.312"
  • Length: 0.572"
  • Material: Steel
11 Inner Race Stator
  • Height: 1.040"
  • External Teeth: 27
  • Outside Dia: 2.156"
 SX-14
Inner Race SX-14
Stator &
  • Height: 1.040"
  • External Teeth: 27
  • Outside Dia: 2.156"
11 Inner Race Stator TX-14-3
Inner Race TX-14-3
Stator &

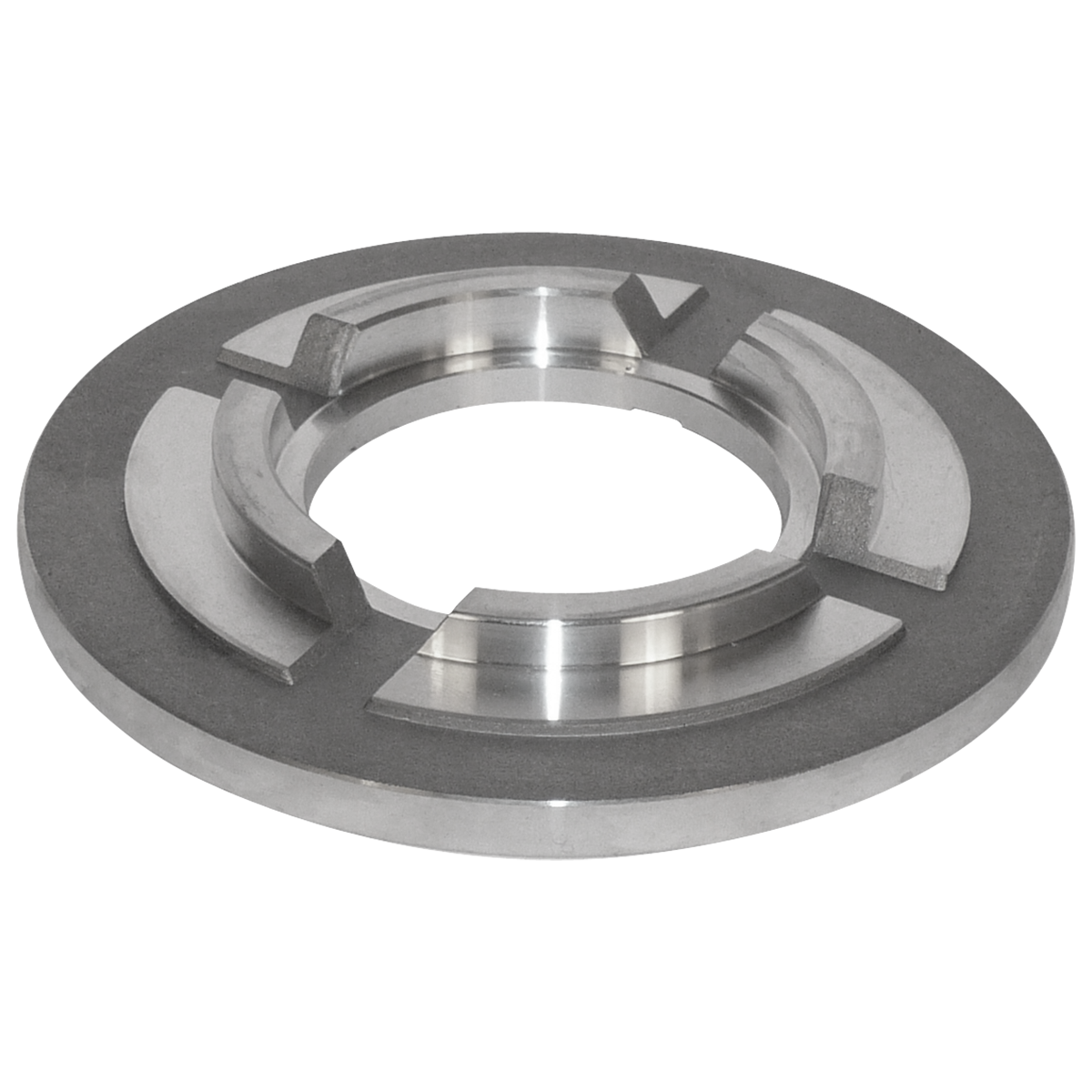

12 Stator Cap Bearing Adapter, Use With Bearing SW-2-12 Used with SW-2-12
  • Thickness: 0.470"
  • Material: Aluminum
  • Outside Dia: 3.750"
  • Inside Dia: 1.710"
 WW-4-8
Stator Cap WW-4-8
Bearing Adapter, Use With Bearing SW-2-12 & Used with SW-2-12
  • Thickness: 0.470"
  • Material: Aluminum
  • Outside Dia: 3.750"
  • Inside Dia: 1.710"
13 Stator Cap
  • Material: Phenolic
  • Outside Dia: 3.748"
  • Inside Dia: 1.870"
  • 252-10174, OE Design
 SW-4-19
Stator Cap SW-4-19
&
  • Material: Phenolic
  • Outside Dia: 3.748"
  • Inside Dia: 1.870"
  • 252-10174, OE Design
13 Stator Cap 5 Lug Design
  • Thickness: 0.490"
  • Material: Phenolic
  • Outside Dia: 3.748"
  • Inside Dia: 1.870"
  • (Alternate SW-4-19 w/o Lugs, SW-4-19B w/Lugs and TW-3-3 Bronze Washer)

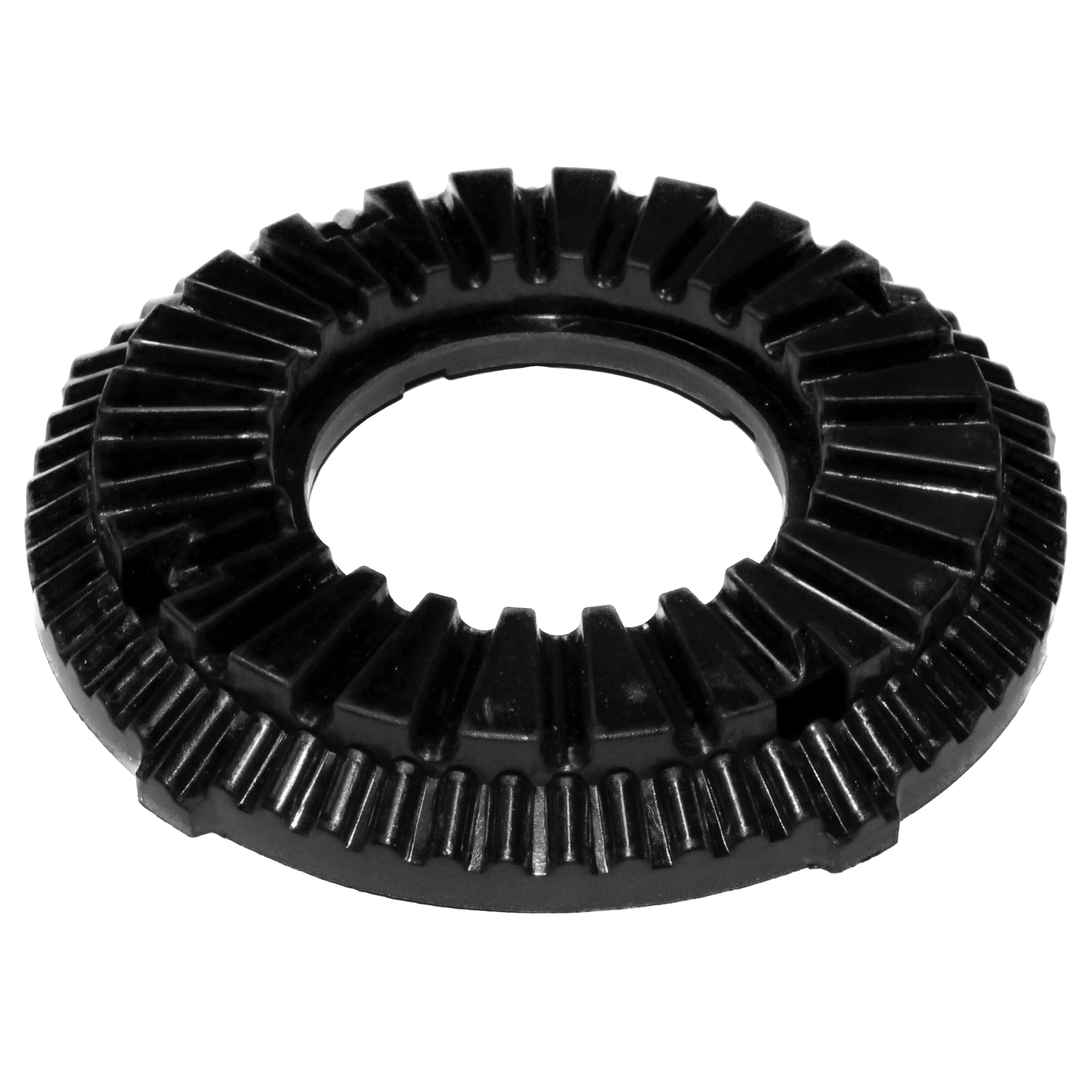

 SW-4-19A
Stator Cap SW-4-19A
5 Lug Design &
  • Thickness: 0.490"
  • Material: Phenolic
  • Outside Dia: 3.748"
  • Inside Dia: 1.870"
  • (Alternate SW-4-19 w/o Lugs, SW-4-19B w/Lugs and TW-3-3 Bronze Washer)
13 Stator Cap Use With TW-3-3 Washer
  • Material: Phenolic
  • Lug Count: 5
  • Outside Dia: 3.748"
  • Inside Dia: 1.870"
  • 252-10097
 SW-4-19B
Stator Cap SW-4-19B
& Use With TW-3-3 Washer
  • Material: Phenolic
  • Lug Count: 5
  • Outside Dia: 3.748"
  • Inside Dia: 1.870"
  • 252-10097
13.1 Washer
  • Material: Bronze
  • Lug Count: 3
  • Outside Dia: 2.8"
  • Inside Dia: 1.6"
 TW-3
Washer TW-3
&
  • Material: Bronze
  • Lug Count: 3
  • Outside Dia: 2.8"
  • Inside Dia: 1.6"
13.1 Washer
  • Thickness: .06"
  • Material: Bronze
  • Lug Count: 4
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"

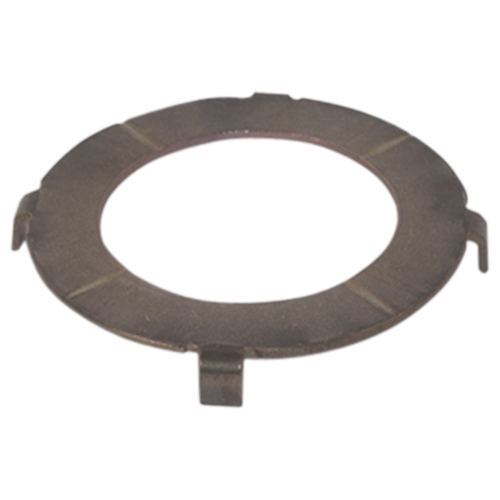

 TW-3-3
Washer TW-3-3
&
  • Thickness: .06"
  • Material: Bronze
  • Lug Count: 4
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
13.1 Washer
  • Material: Bronze
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"

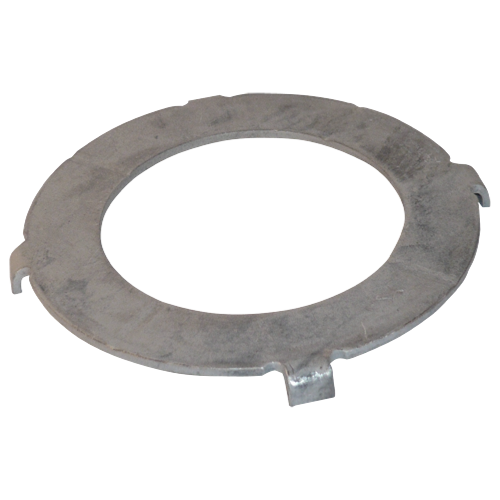

 TW-3-3AT
Washer TW-3-3AT
&
  • Material: Bronze
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
13.1 Washer
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
 TW-3-3E
Washer TW-3-3E
&
  • Outside Dia: 2.94"
  • Inside Dia: 1.96"
14 Rivet 8 Pieces Required.
  • Length: 1.050"
  • Rivet solid or tubular: Standoff
  • Rivet Shank Dia: 0.298"
  • Rivet Head Dia: 0.413"
  • Rivet Head: Standoff
 TX-12-8
Rivet TX-12-8
& 8 Pieces Required.
  • Length: 1.050"
  • Rivet solid or tubular: Standoff
  • Rivet Shank Dia: 0.298"
  • Rivet Head Dia: 0.413"
  • Rivet Head: Standoff
14 Rivet 20 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.225"
  • Rivet Head Dia: 0.344"
  • Rivet Head: Flat
 TX-12-9
Rivet TX-12-9
& 20 Pieces Required.
  • Length: 0.515"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.225"
  • Rivet Head Dia: 0.344"
  • Rivet Head: Flat
15 Turbine Hub
  • Internal Teeth: 27
  • Material: Steel
 TX-13-43HT
Turbine Hub TX-13-43HT
&
  • Internal Teeth: 27
  • Material: Steel
16 Damper Spring Inner 8 Pieces Required.
  • Length: 2.018"
  • Outside Dia: 0.556"
  • Wire Dia: 0.103"
 TX-24-12
Damper Spring TX-24-12
Inner & 8 Pieces Required.
  • Length: 2.018"
  • Outside Dia: 0.556"
  • Wire Dia: 0.103"
17 Damper Spring Outer 8 Pieces Required.
  • Length: 2.045"
  • Outside Dia: 0.886"
  • Wire Dia: 0.154"
 TX-24-13
Damper Spring TX-24-13
Outer & 8 Pieces Required.
  • Length: 2.045"
  • Outside Dia: 0.886"
  • Wire Dia: 0.154"
18 Rivet Damper 8 Pieces Required.
  • Length: 0.370"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.240"
  • Rivet Head Dia: 0.340"
  • Rivet Head: Flat
 TX-12-10
Rivet TX-12-10
Damper & 8 Pieces Required.
  • Length: 0.370"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.240"
  • Rivet Head Dia: 0.340"
  • Rivet Head: Flat
19 Bolt Hex Bolt Head. 9 Pieces Required.
  • Dimensions: M8 - 1.0mm
  • Length: 16mm
 TX-10-8
Bolt TX-10-8
Hex Bolt Head. & 9 Pieces Required.
  • Dimensions: M8 - 1.0mm
  • Length: 16mm
19 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 11.654"
  • Inside Dia: 10.157"
 TX-23-26
Lining (Friction Ring,Wafer) TX-23-26
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 11.654"
  • Inside Dia: 10.157"
19 Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 13
  • Inside Dia: 10.375
 SX-23-38
Lining (Friction Ring,Wafer) SX-23-38
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 13
  • Inside Dia: 10.375
20 Bearing Fits Front Cover Hub
  • Thickness: 0.276
  • Thickness metric: 7.01
  • Bearing type: Ball Bearing
  • Outside Dia: 2.047
  • Inside Dia: 1.575
  • Outside Dia Metric: 52
  • Inside Dia metric: 40.01
 TW-9-24
Bearing TW-9-24
& Fits Front Cover Hub
  • Thickness: 0.276
  • Thickness metric: 7.01
  • Bearing type: Ball Bearing
  • Outside Dia: 2.047
  • Inside Dia: 1.575
  • Outside Dia Metric: 52
  • Inside Dia metric: 40.01
21 Metal Clad Seal
  • Housing Bore Dia: 1.066
  • Housing Bore Dia Metric: 26.98
  • Shaft Dia metric: 19.94
  • Shaft Dia: 0.775
  • Material: Fluorocarbon
 TO-25-1
Metal Clad Seal TO-25-1
&
  • Housing Bore Dia: 1.066
  • Housing Bore Dia Metric: 26.98
  • Shaft Dia metric: 19.94
  • Shaft Dia: 0.775
  • Material: Fluorocarbon
22 O-Ring Black
  • Thickness: 0.098
  • Thickness metric: 2.4892
  • Color: Black
  • Material: Fluorocarbon
  • Inside Dia: 3.15
  • Inside Dia metric: 80.01
 TO-25-22
O-Ring TO-25-22
Black &
  • Thickness: 0.098
  • Thickness metric: 2.4892
  • Color: Black
  • Material: Fluorocarbon
  • Inside Dia: 3.15
  • Inside Dia metric: 80.01
23 Front Cover
  • Material: AISI 1026 steel
  • Machining Process: Fully Machined Forging
 TX-22-10
Front Cover TX-22-10
&
  • Material: AISI 1026 steel
  • Machining Process: Fully Machined Forging

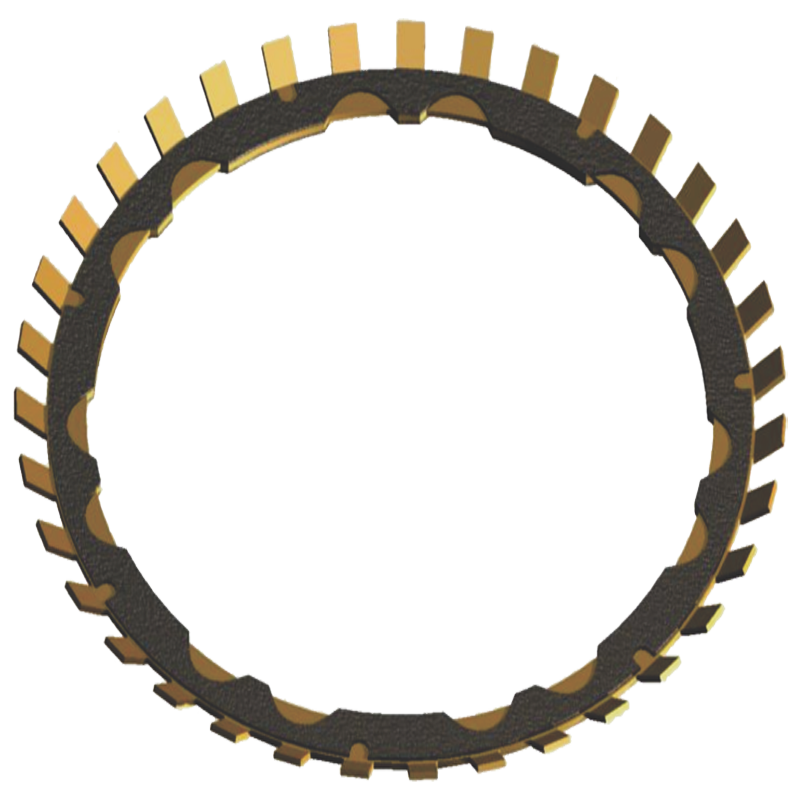

25 Friction Plate External Bent Teeth
  • Thickness: 0.169"
  • External Teeth: 35 bent teeth
  • Material: Steel core with double-sided linings
  • Lining Count: 2
  • Outside Dia: 12.598"
  • Inside Dia: 10.157"
  • Lining Part-ID: TX-23-26HC
 TX-24-11
Friction Plate TX-24-11
External Bent Teeth &
  • Thickness: 0.169"
  • External Teeth: 35 bent teeth
  • Material: Steel core with double-sided linings
  • Lining Count: 2
  • Outside Dia: 12.598"
  • Inside Dia: 10.157"
  • Lining Part-ID: TX-23-26HC
25 Friction Plate
  • Outside Dia: 12.598"
  • Inside Dia: 10.157"
 TX-24-11KV
Friction Plate TX-24-11KV
&
  • Outside Dia: 12.598"
  • Inside Dia: 10.157"
25 Friction Plate External Bent Teeth
  • Thickness: 0.158"
  • External Teeth: 35
  • Material: Steel core with double-sided linings
  • Outside Dia: 12.598"
  • Inside Dia: 10.157"
 TX-24-15
Friction Plate TX-24-15
External Bent Teeth &
  • Thickness: 0.158"
  • External Teeth: 35
  • Material: Steel core with double-sided linings
  • Outside Dia: 12.598"
  • Inside Dia: 10.157"
