Ill.# | Image | Description | Specification | Part # | |
---|---|---|---|---|---|
0 | Misc | NPN-SPL | |||
0 | Front Cover | 62TE, 10", 41TE & 42LE | TX-22-15 | ||
0 | Lining (Friction Ring,Wafer) |
|
TX-23-35 | ||
1 | Hubcap | Fits 1-1/2" (38.1mm). Length: 1-1/2" |
|
MHC-G | |
2 | Impeller Hub | Flanged |
|
TH-1-46FLG | |
3 | Bearing | OE Type, Impeller Side, 41TE |
|
TW-2-22 | |
3 | Bearing | Impeller Side, 41TE Impeller side |
|
TW-2-22B | |

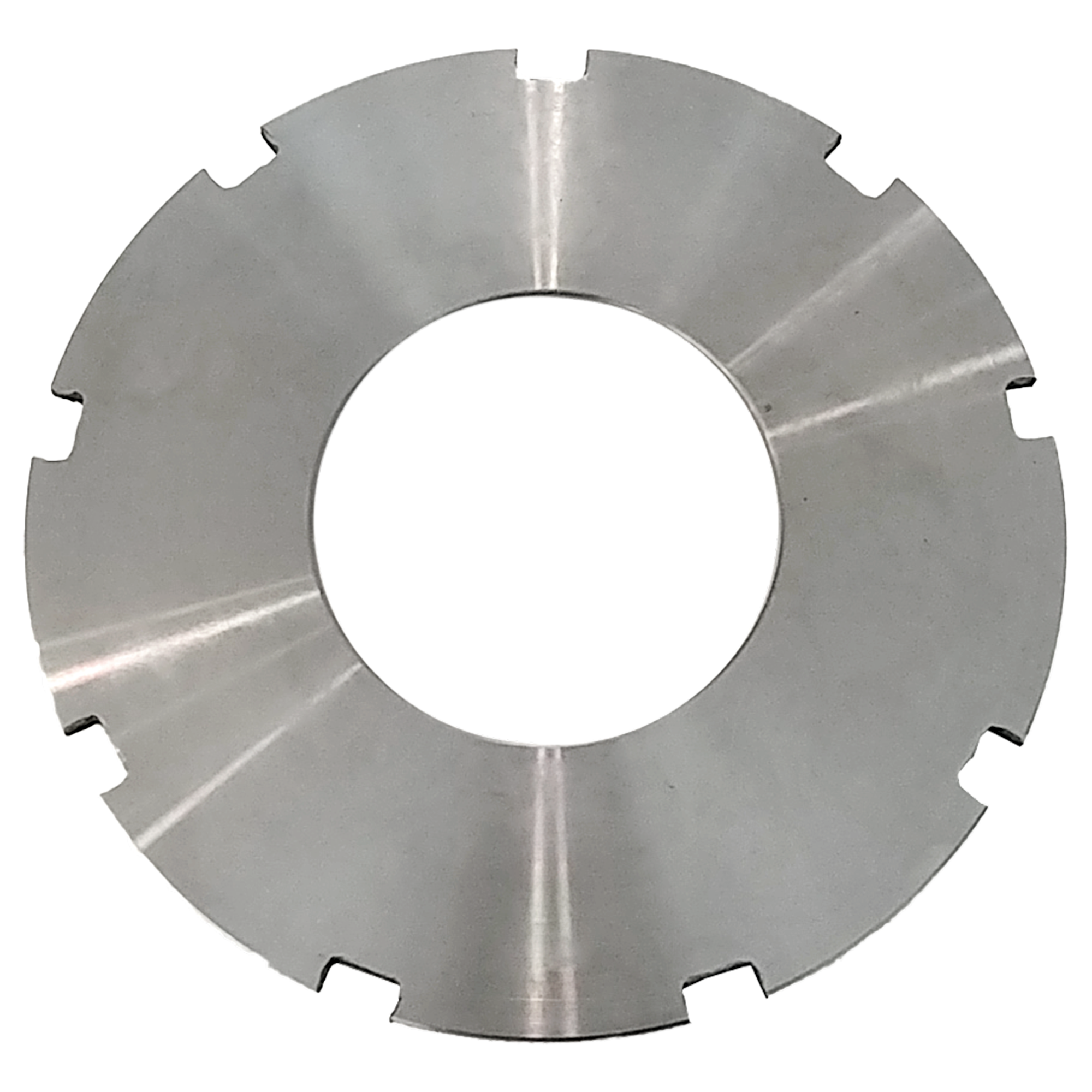

4 | Stator Cap | Outer Notch Count: 9 Impeller-side |
|
TW-4-21 | |
4 | Stator Cap | Outer Notch Count: 9 Turbine-side |
|
TW-4-20 | |

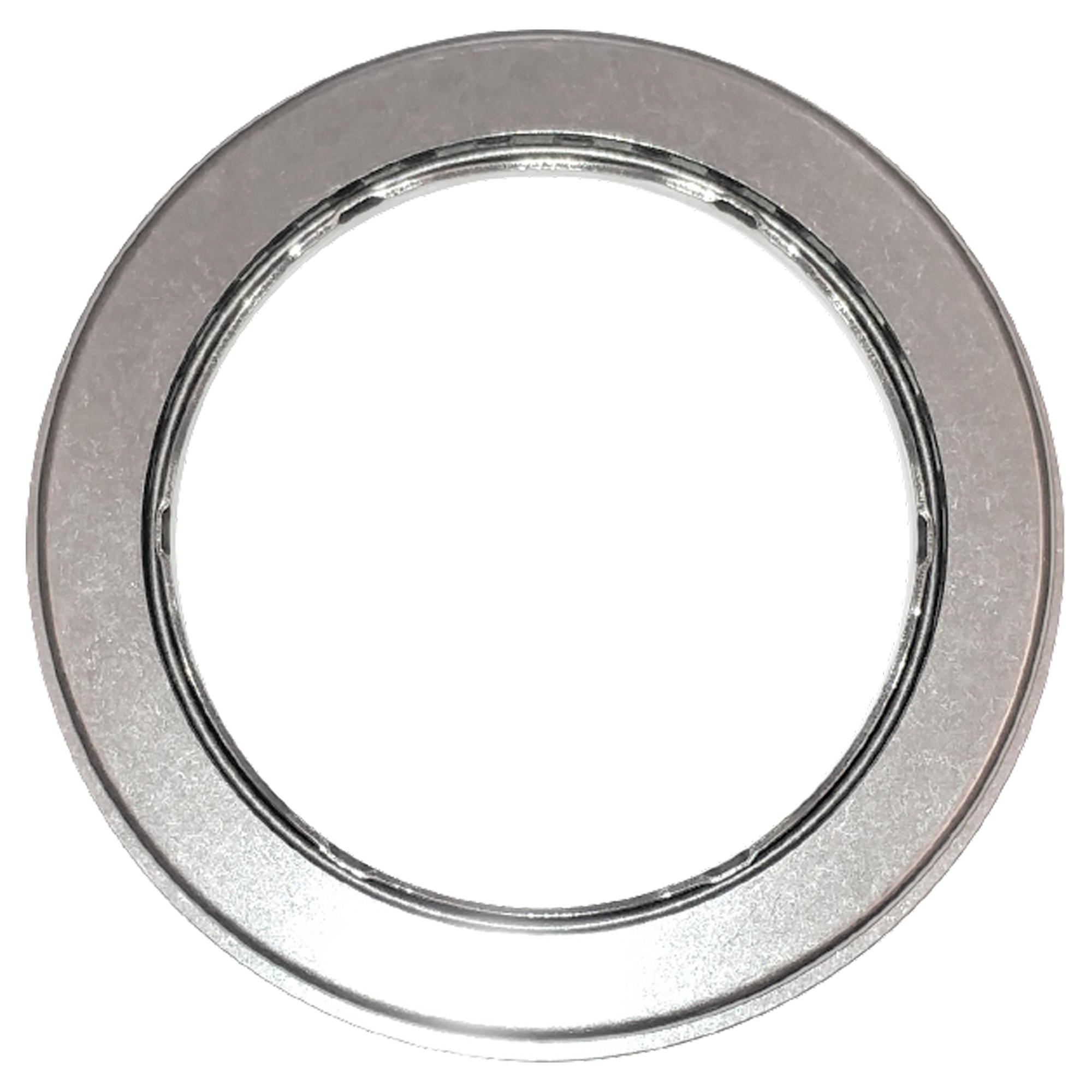

5 | Bearing | Turbine-side |
|
TW-2-18 | |
6 | Rivet | 8 Pieces Required. |
|
TX-12-2 | |

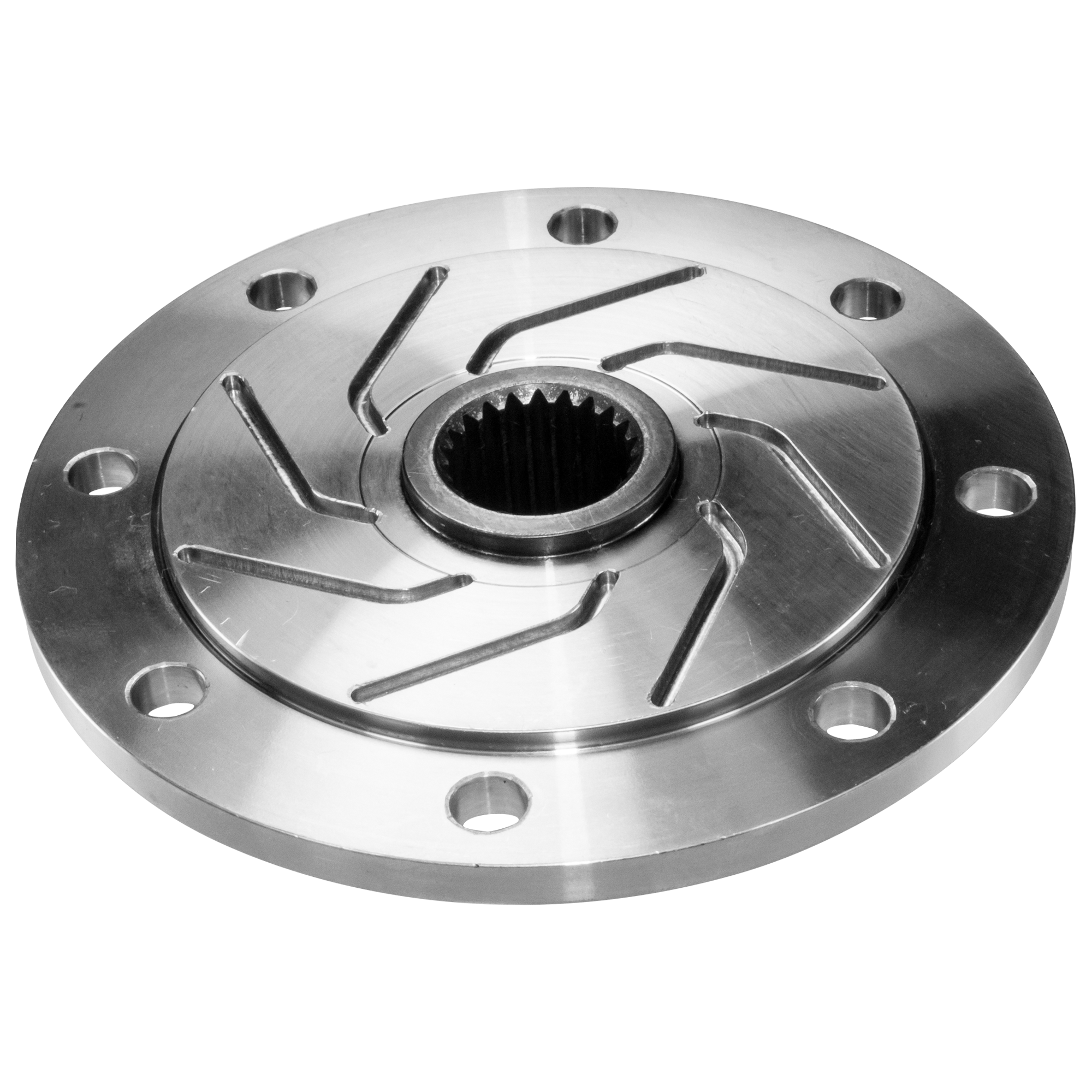

7 | Turbine Hub |
|
TX-13-42HT | ||
8 | O-Ring |
|
TO-25-19 | ||
9 | Metal Clad Seal |
|
TO-25-8 | ||
10 | Rivet | 10 Pieces Required. |
|
PX-12 | |
10 | Rivet | 10 Pieces Required. |
|
PX-12-1L | |
10 | Rivet | 10 Pieces Required. |
|
RX-12 | |
10 | Rivet | 10 Pieces Required. |
|
TX-12-7 | |
14 | Piston Plate |
|
TX-23-34 | ||
15 | Lining (Friction Ring,Wafer) | AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN. |
|
TX-23-17 | |

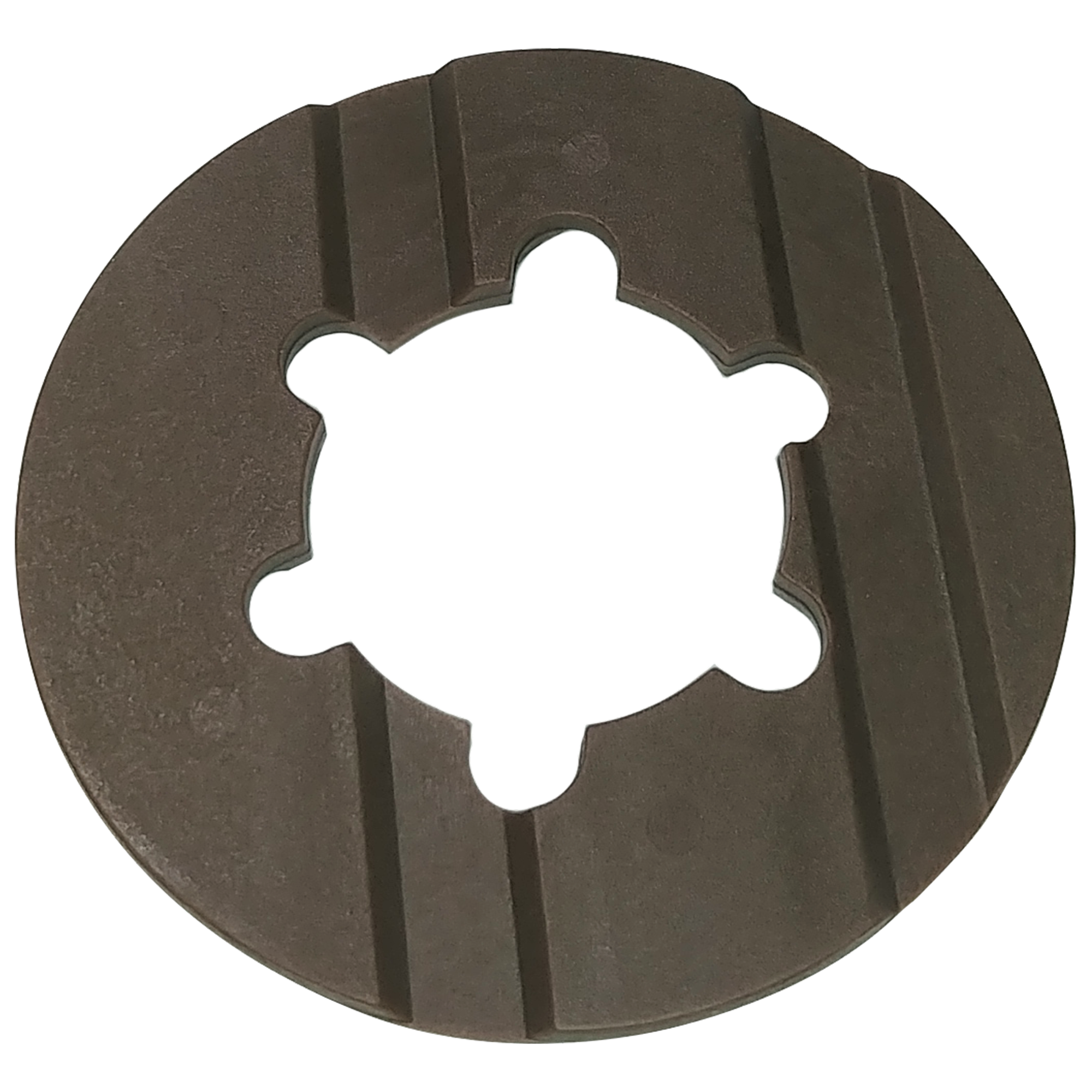

16 | Turbine Washer |
|
TW-9-15 | ||
16 | Turbine Washer |
|
TW-9-15P | ||

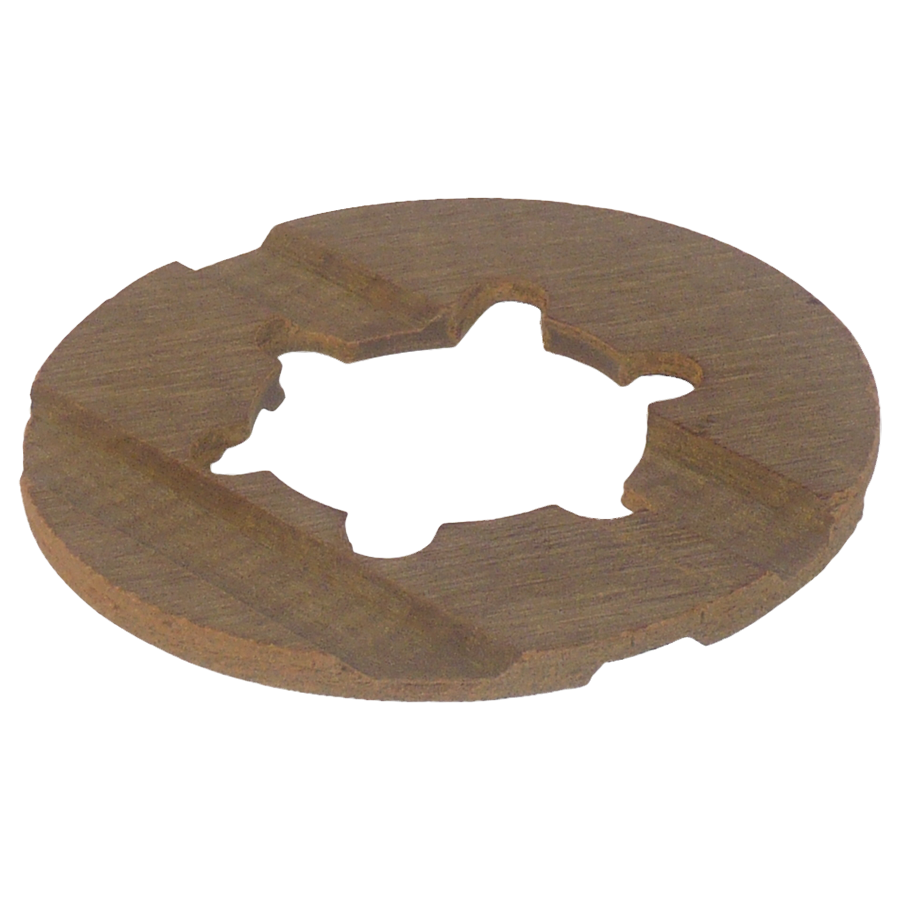

16 | Turbine Washer | OEM |
|
TW-9-15PR | |

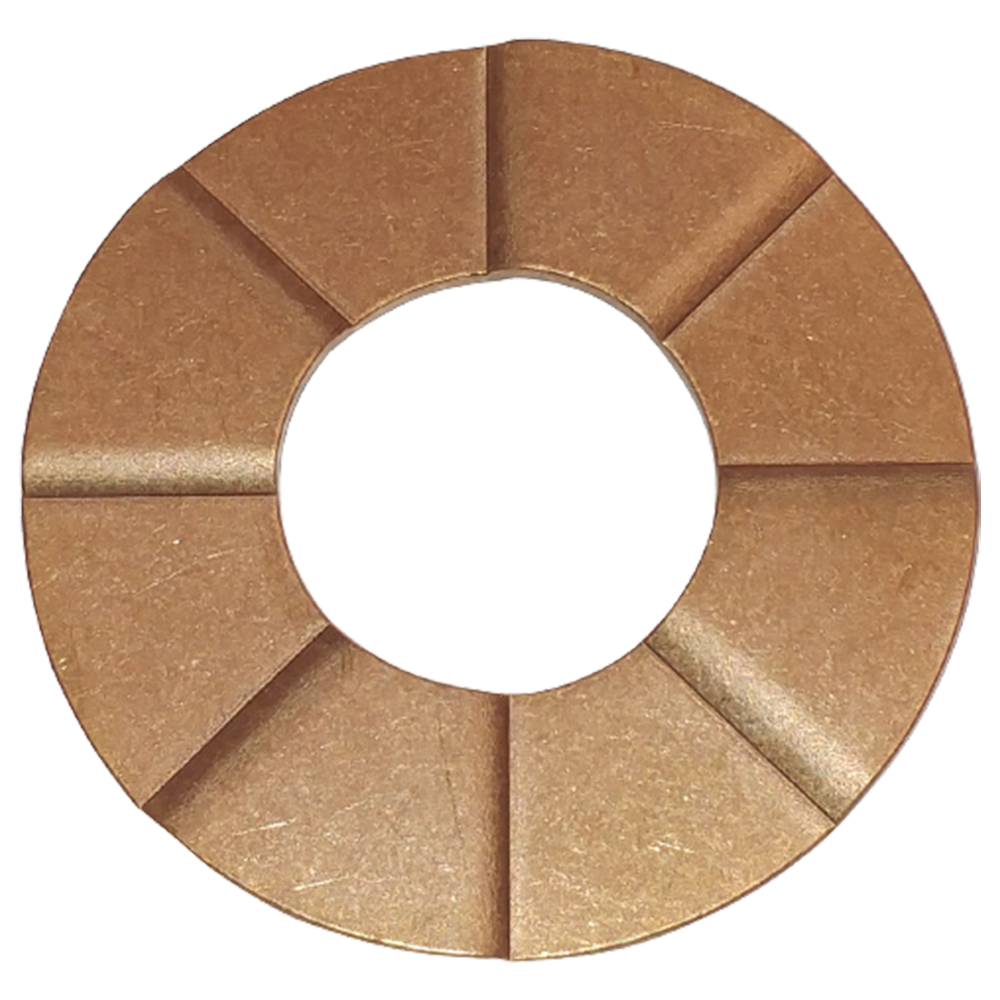

16 | Turbine Washer |
|
TW-9-15B | ||
16 | Turbine Washer | Late type |
|
TW-9-30 | |

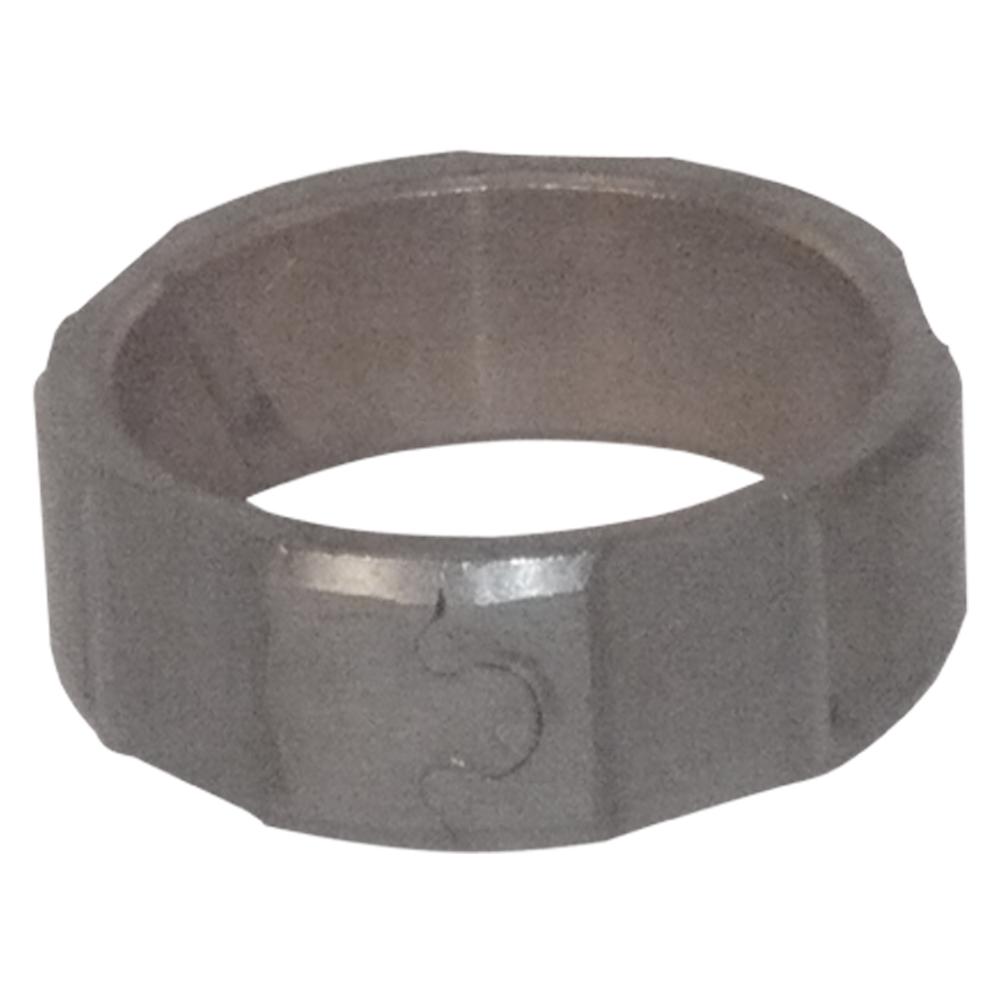

17 | Bushing | Precision |
|
TB-18-13 | |
17 | Bushing | Oversized O.D. & Undersized I.D. |
|
TB-18-14 |
