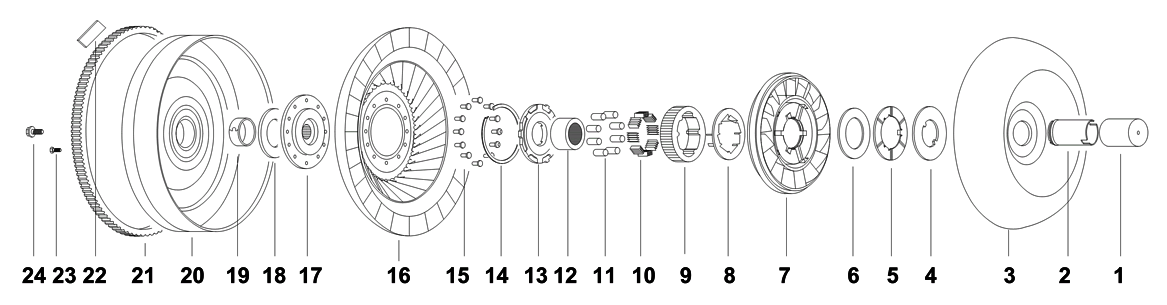

Ill.# | Image | Description | Specification | Part # | |
---|---|---|---|---|---|
1 |
![]() |
Hubcap | Fits 1-7/8" (47.6mm). Length: 1-3/4" |
|
MHC-Y |
1 |
![]() |
Hubcap | Fits 1-7/8" (47.6mm). Length: 1" |
|
MHC-YA |
1 | Hubcap | Fits 1-7/8" (47.6mm). Length: 1" |
|
MHC-YB | |
2 |
![]() |
Impeller Hub |
|
TH-1-5TG | |

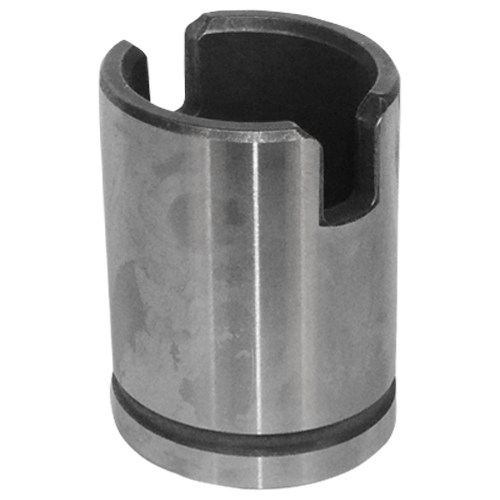

2 |
![]() |
Impeller Hub |
|
TH-1-5TGRC | |

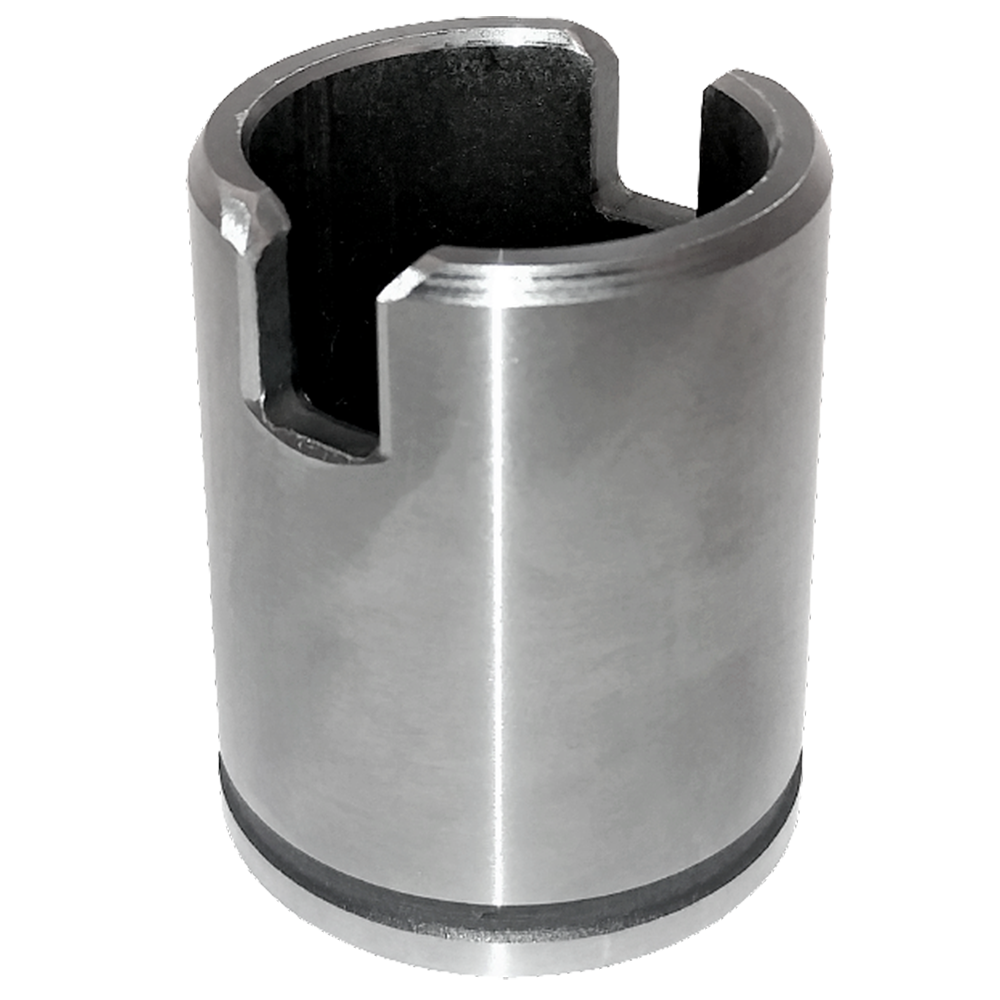

2 |
![]() |
Impeller Hub | TH-1-5TGRCJ | ||

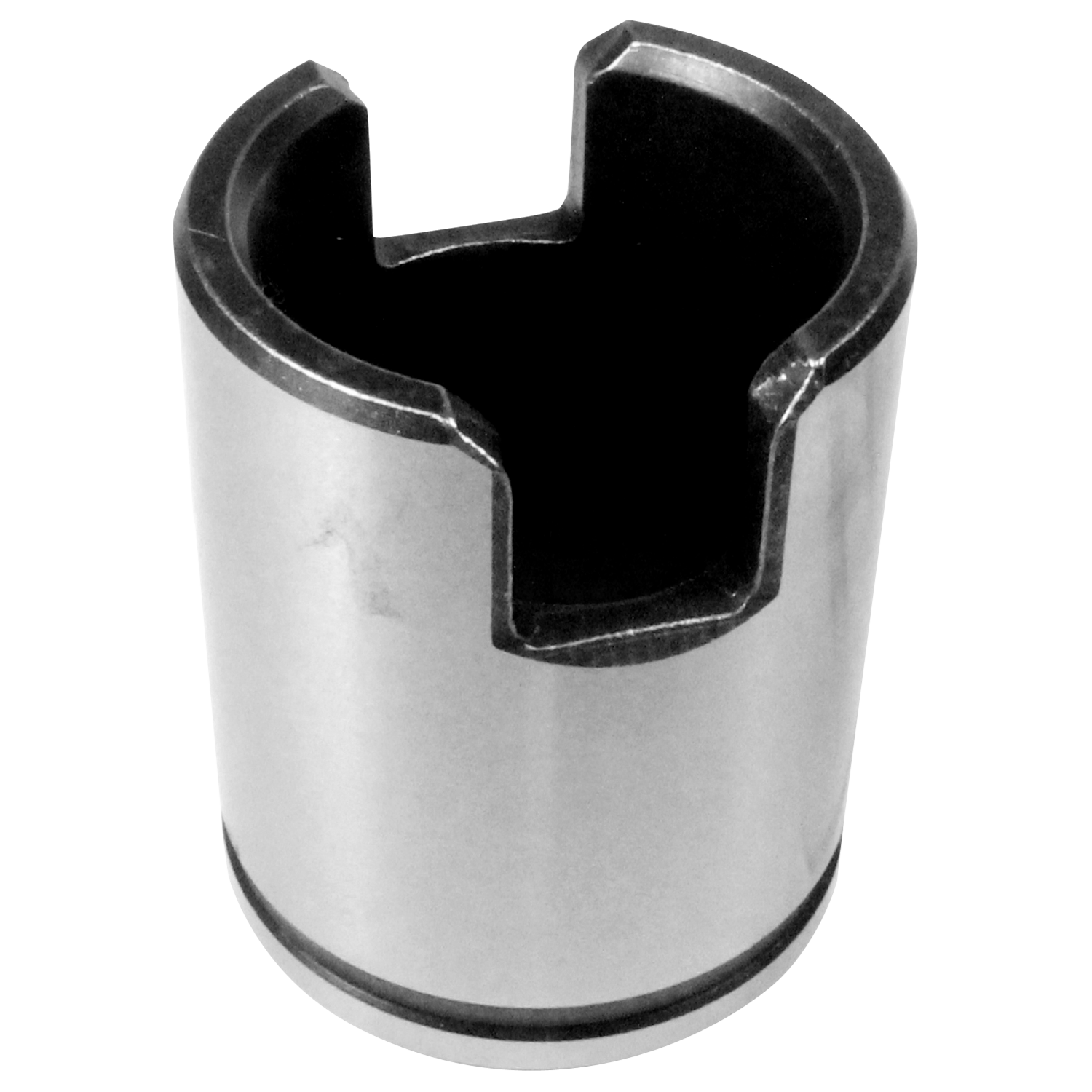

2 |
![]() |
Impeller Hub |
|
TH-1-33TGRC | |
2 | Impeller Hub | TH-1-30G | |||

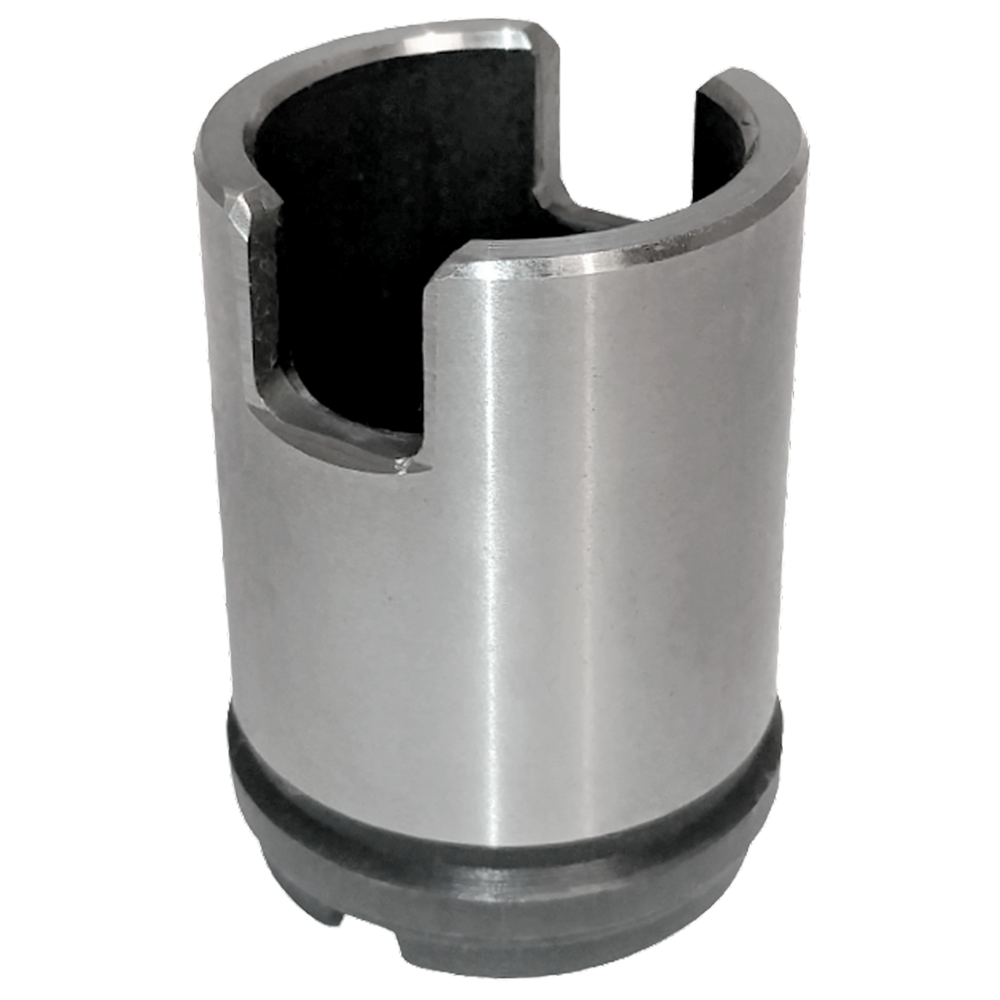

2 |
![]() |
Impeller Hub | TH-1-30GRC | ||
2 | Impeller Hub |
|
TH-1-33G | ||

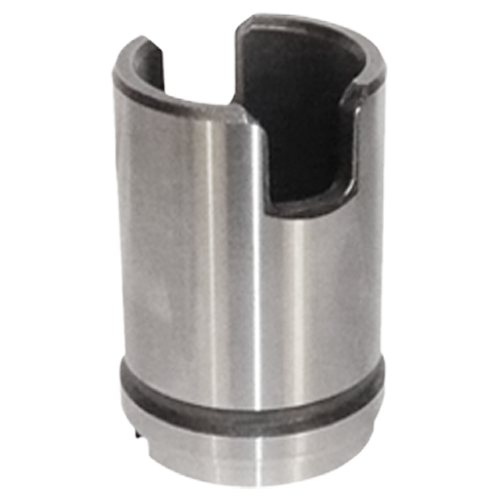

2 |
![]() |
Impeller Hub |
|
TH-1-33GRC | |
3 | Impeller | NPN-3-14-3 | |||
4 |
![]() |
Washer | Wear-Plate |
|
TW-2-2 |
4 | Washer | TW-2-2A | |||

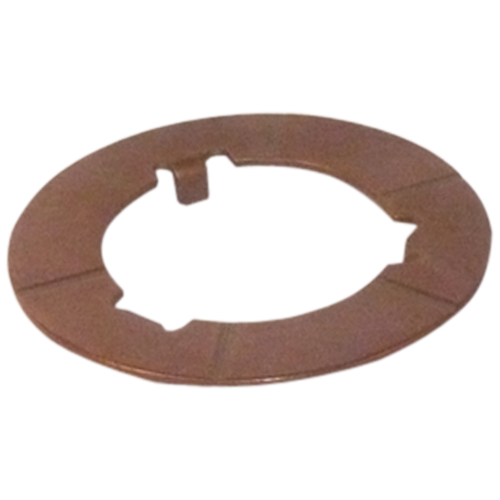

5 |
![]() |
Washer | 3 Lugs |
|
TW-3-2 |
7 | Shim |
|
FW-2-010 | ||
7 | Shim |
|
FW-2-020 | ||
7 | Shim |
|
FW-2-030 | ||
7 |
![]() |
Shim |
|
TW-2-10 | |
7 |
![]() |
Shim |
|
TW-2X | |
7 |
![]() |
Shim |
|
TW-2X10 | |
7 |
![]() |
Shim |
|
TW-2X30 | |
7 |
![]() |
Shim |
|
TW-2X-30 | |
7 |
![]() |
Shim |
|
TW-2-20 | |
7 |
![]() |
Shim |
|
TW-2-20A | |
8 |
![]() |
Shim |
|
TW-2-30 | |
8 | Spring Retainer | Stator |
|
TX-15-4 | |
8 | Spring Retainer | Stator | TX-15-1 | ||
9 | Outer Race (Cam) | Stator | TX-15-3 | ||
10 |
![]() |
Accordion Spring | 1942187 | ||
10 |
![]() |
Accordion Spring | 8 Pieces Required. |
|
TS-6 |
11 |
![]() |
Roller | 8 Pieces Required. |
|
TR-7 |
11 |
![]() |
Roller |
|
TR-7-2 | |
13 |
![]() |
Inner Race | Stator |
|
SX-14 |
13 | Inner Race | Stator | TX-14-3 | ||
13 | Washer |
|
TW-4-1 | ||
13 |
![]() |
Stator Cap |
|
TW-4-1A | |

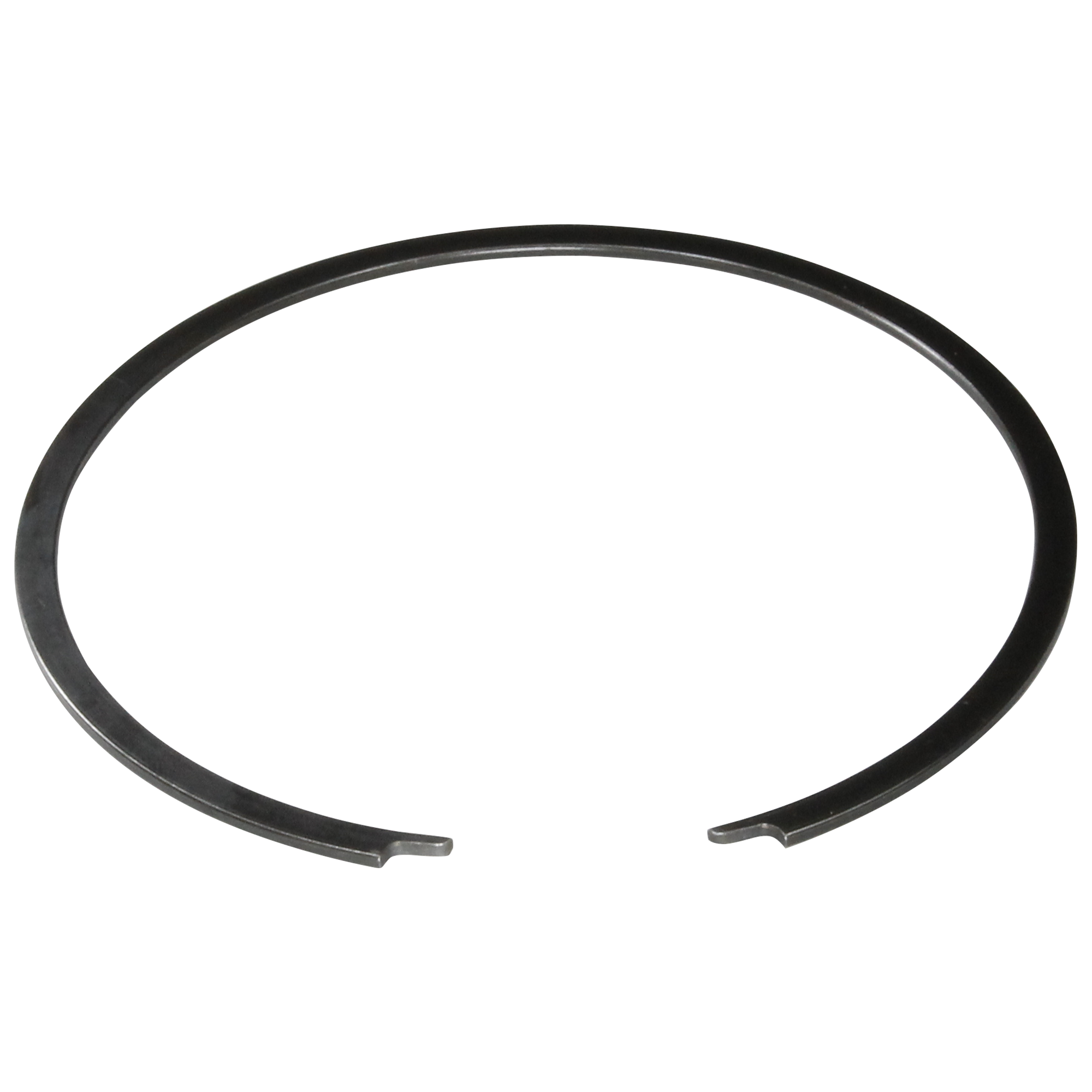

15 | Snap Ring |
|
FX-20-12 | ||
15 | Snap Ring |
|
TX-20-1 | ||
15 |
![]() |
Rivet | 12 Pieces Required. |
|
TX-12S |
15 |
![]() |
Rivet | Turbine shaft to turbine. Use 6. 12 Pieces Required. |
|
TX-12L |
16 | Turbine | NPN-3-14-16 | |||
16 | Beefplate™ | To Salvage Ripped Turbines | TX-13X | ||
17 |
![]() |
Turbine Hub |
|
TX-13-2 | |

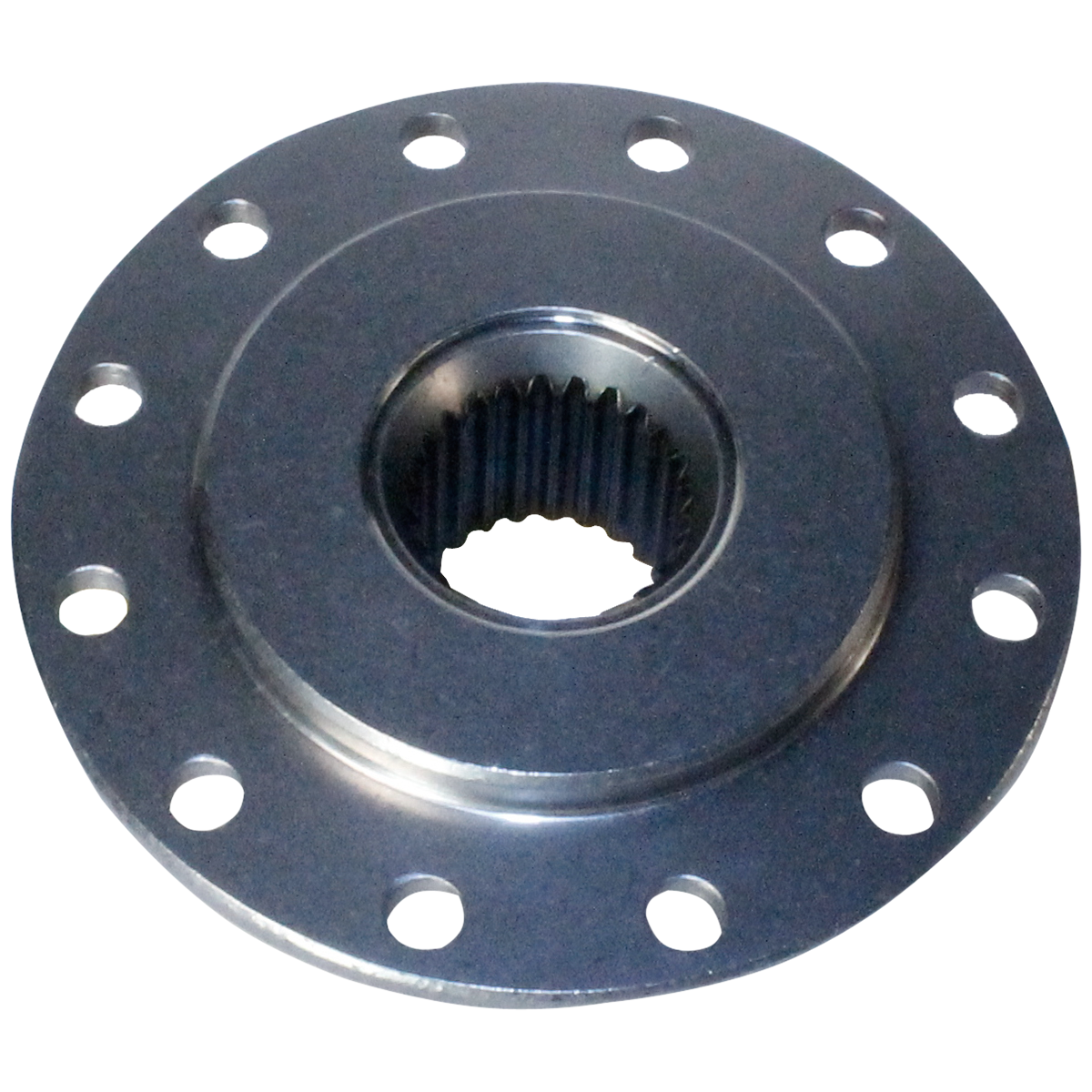

17 |
![]() |
Turbine Hub |
|
TX-13-3S | |
18 |
![]() |
Turbine Washer |
|
TW-9-12 | |
18 |
![]() |
Turbine Washer |
|
TW-9-4 | |
19 |
![]() |
Turbine Washer |
|
TW-9-5A | |
19 |
![]() |
Turbine Washer |
|
TW-9-5AF | |
19 |
![]() |
Turbine Washer |
|
TW-9-5B | |
19 |
![]() |
Turbine Washer |
|
TW-9-5BF | |
19 | Turbine Washer |
|
PW-9-1 | ||
19 |
![]() |
Turbine Washer |
|
SW-9 | |
19 | Turbine Washer |
|
SW-9-1 | ||
19 |
![]() |
Turbine Washer |
|
SW-9-1F | |
19 |
![]() |
Turbine Washer |
|
SW-9F | |
19 | Turbine Washer |
|
TW-9-5C | ||
19 |
![]() |
Turbine Washer |
|
TW-9-5CF | |
19 |
![]() |
Bushing |
|
TB-18-1 | |
19 |
![]() |
Bushing | Sintered |
|
TB-18-1P |
19 | Bushing |
|
TB-18-3 | ||
19 |
![]() |
Bushing |
|
TB-18-1A | |
19 | Bushing |
|
TB-18-1S | ||
19 | Bushing |
|
TB-18-1X | ||
20 | Front Cover | NPN-3-14-20 | |||
21 |
![]() |
Ring Gear |
|
RG-130 | |
22 |
![]() |
Balance Weight |
|
TX-22WS | |
22 |
![]() |
Balance Weight |
|
TX-22WM | |
22 |
![]() |
Balance Weight |
|
TX-22WA | |
22 |
![]() |
Balance Weight |
|
TX-22WB | |
22 |
![]() |
Balance Weight | Rectangular, 2 Piece |
|
TX-22WC |
22 |
![]() |
Balance Weight |
|
TX-22WD | |
22 |
![]() |
Balance Weight |
|
TX-22WG | |
22 |
![]() |
Balance Weight |
|
TX-22WL | |
20 | Drain Plug | 1/8-27 NPT, PTFE, Wrap | FX-11A | ||
20 |
![]() |
Drain Plug | FX-11B | ||
20 |
![]() |
Drain Plug |
|
FX-11 | |
20 |
![]() |
Drain Plug | 1/16 Npt | TX-11 | |
24 |
![]() |
Bolt | 4 Pieces Required. |
|
B-61 |
24 | Mounting Pad | Threaded 5/16-24 4 Pieces Required. | TX-10-2 | ||
24 |
![]() |
Pilot |
|
TX-23-1 |
