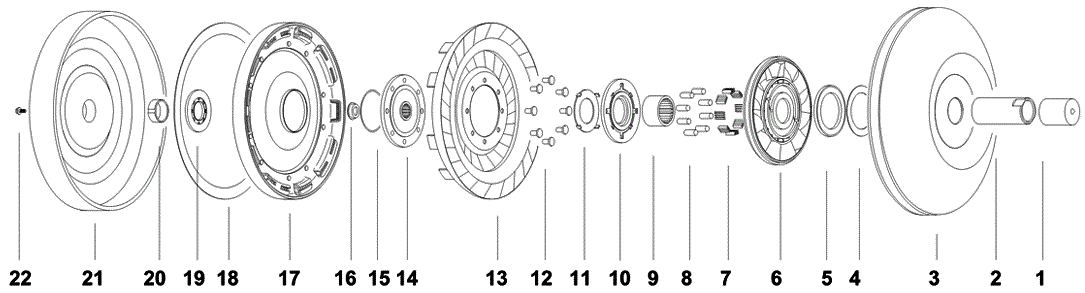

Torque Converter | Chrysler | 10" 41TE & 42LE

Ill.# Image Description Specification Part #
Misc NPN-SPL
Turbine Washer Late Type
  • Thickness: 0.135"
  • Material: Plastic
  • Outside Dia: 2.354"
  • Inside Dia: 1.075"
 TW-9-30
Front Cover 62TE, 10", 41TE & 42LE TX-22-15
Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.930"
  • Inside Dia: 8.800"
 TX-23-35
Impeller Hub
  • Journal Dia: 1.498"
  • Height: 1.980"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
 TH-1-18G
Impeller Hub
  • Journal Dia: 1.498"
  • Height: 1.980"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 TH-1-18GRC
Impeller Hub
  • Journal Dia: 1.498"
  • Height: 2.10"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 TH-1-19GRC
1 Hubcap Fits 1-1/2" (38.1mm). Length: 1-1/2"
  • Color: Green
  • Fits 1-1/2" (38.1mm)
 MHC-G
2 Impeller Hub
  • Journal Dia: 1.498"
  • Height: 3.33"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 43-45
  • Material: Chrome-Moly Steel
 TH-1-35GCM
2 Impeller Hub
  • Journal Dia: 1.498"
  • Installed Height: 1.85"
  • Height: 1.942
  • Hub Mount: Thru
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 TH-1-20GRC
2 Impeller Hub 4505541-1
2 Impeller Hub
  • Journal Dia: 1.498"
  • Height: 1.940"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 43-45
  • Material: Chrome-Moly Steel
 TH-1-34GCM
2 Impeller Hub 4326921-1
2 Impeller Hub
  • Journal Dia: 1.498"
  • Installed Height: 1.85"
  • Hub Mount: Thru
  • Pump Drive Type: Flats
 TH-1-20G
2 Impeller Hub
  • Journal Dia: 1.498"
  • Height: 3.33"
  • Hub Mount: Butt
  • Pump Drive Type: Flats
  • Hardness: Rc 32-36
 TH-1-25GRC
3 Impeller NPN-3-8-3
4 Shim
  • Thickness: .01"
  • Outside Dia: 2.87"
  • Inside Dia: 2.073"
 TW-2-210

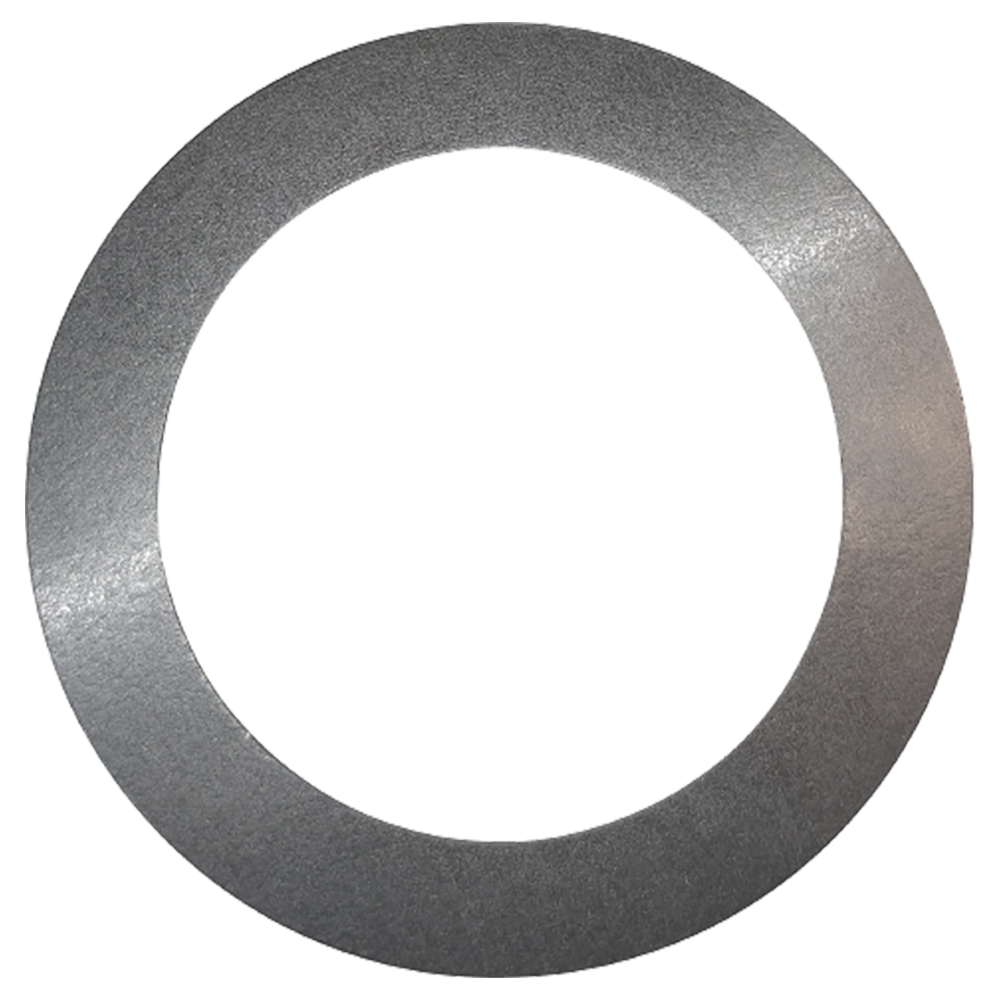

4 Shim
  • Thickness: .02"
  • Outside Dia: 2.87"
  • Inside Dia: 2.073"
 TW-2-220

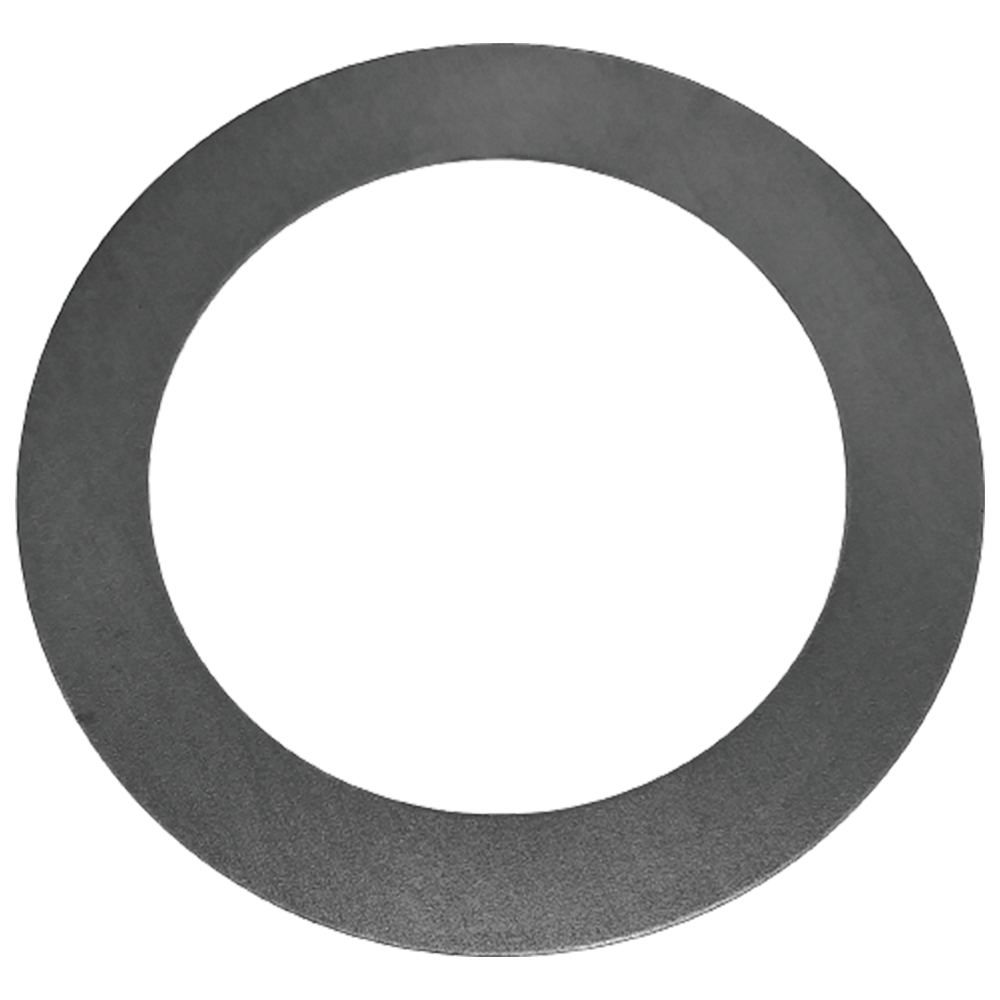

4 Shim
  • Thickness: .03"
  • Outside Dia: 2.87"
  • Inside Dia: 2.073"
 TW-2-230
5 Bearing OE Type, Impeller Side, 41TE
  • Thickness: 0.181
  • Flange Dia: 2.99"
  • Thickness metric: 4.6
  • Bearing type: Enclosed
  • Outside Dia: 2.892
  • Inside Dia: 2.086
  • Outside Dia Metric: 73.46
  • Inside Dia metric: 52.98
 TW-2-22
5 Bearing Impeller Side, 41TE
  • Thickness: 0.181"
  • Bearing type: Enclosed
  • Outside Dia: 2.99
  • Inside Dia: 2.086"
 TW-2-22B
6 Stator NPN-3-8-6
7 Accordion Spring 8 Pieces Required. 1942187
7 Accordion Spring 8 Pieces Required.
  • Width: 0.28"
  • Relaxed Length: 0.437"
  • Folds: 3
  • Relaxed Height: 0.56"
 FS-6-10
7 Accordion Spring 8 Pieces Required.
  • Width: 0.6"
  • Relaxed Length: 0.43"
  • Folds: 4
  • Relaxed Height: 0.285"
 TS-6
8 Roller 8 Pieces Required.
  • Dia: 0.316"
  • Length: 0.623"
 TR-7
8 Roller 8 Pieces Required.
  • Dia: 0.316"
  • Length: 0.623"
 TR-7-2
9 Inner Race 27 Spline NPN-3-8-9
10 Stator Cap Adapts washer TW-3-7 for Chrysler 9-1/2" and 10" converters
  • Thickness: .27"
  • Material: Aluminum
  • Outside Dia: 3.61"
  • Inside Dia: 1.42"
 TW-4-13
11 Washer Early-type. OE # XW4P-7A869-AA
  • Thickness: .060"
  • Material: Bronze
  • Tab Count: 4 Tabs, 0.188" wide
  • Outside Dia: 2.41"
  • Inside Dia: 1.44"
 TW-3-7
11 Washer
  • Thickness: .080"
  • Material: Bronze
  • Tab Count: 4 Tabs, 0.188" wide
  • Outside Dia: 2.41"
  • Inside Dia: 1.44"
 TW-3-7A
12 Rivet 8 Pieces Required.
  • Length: 0.476"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.250"
  • Rivet Head Dia: 0.475"
  • Rivet Head: Flat
 TX-12-2
13 Turbine NPN-3-8-13
14 Turbine Hub
  • Internal Teeth: 22
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 4.10"
 TX-13-41HT
15 O-Ring
  • Thickness: 0.07
  • Thickness metric: 1.778
  • Material: Fluorocarbon
  • Inside Dia: 2.239
  • Inside Dia metric: 56.8706
 TO-25-19
16 Metal Clad Seal
  • Housing Bore Dia: 0.776
  • Housing Bore Dia Metric: 19.8
  • Shaft Dia metric: 12.21
  • Shaft Dia: 0.501
  • Material: Fluorocarbon
 TO-25-8
17 Damper Assembly NPN-3-8-17
17.1 Rivet 10 Pieces Required.
  • Length: 0.370"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.168"
  • Rivet Head Dia: 0.3"
 PX-12
17.1 Rivet 10 Pieces Required.
  • Length: .35"
  • Rivet Shank Dia: .16"
 PX-12-1L
17.1 Rivet 10 Pieces Required.
  • Length: 0.36"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.16"
  • Rivet Head Dia: 0.283"
 RX-12
17.1 Rivet 10 Pieces Required.
  • Length: 0.344"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.165"
  • Rivet Head Dia: 0.325"
  • Rivet Head: Flat
 TX-12-7
18 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10"
  • Inside Dia: 8.75"
 TX-23-17
19 Bearing Late
  • Thickness: 0.134
  • Thickness metric: 3.4
  • Bearing type: Enclosed
  • Outside Dia: 2.4
  • Inside Dia: 1.07"
  • Outside Dia Metric: 60.96
  • Inside Dia metric: 27.18
  • Improved Lubrication
 TW-9-13
19 Turbine Washer
  • Thickness: 0.136"
  • Material: Fiber Composite
  • Outside Dia: 2.375"
  • Inside Dia: 1.070"
 TW-9-15
19 Turbine Washer
  • Thickness: 0.138"
  • Material: Bronze
  • Outside Dia: 2.360"
  • Inside Dia: 1.075"
 TW-9-15B
19 Turbine Washer OEM
  • Thickness: 0.136"
  • Material: Fiber Composite
  • Outside Dia: 2.36"
  • Inside Dia: 1.08"
 TW-9-15PR
19 Turbine Washer Late
  • Thickness: 0.12"
  • Material: Plastic
  • Outside Dia: 2.36"
  • Inside Dia: 1.08"
  • OEM
 TW-9-15P
19 Turbine Washer OEM type
  • Thickness: .160"
  • Material: Vulcanized Fiber.
  • Outside Dia: 2.56"
  • Inside Dia: 1.39"
  • Replaces Bearing TW-9-8
 TW-9-21
19 Turbine Washer Heavy-Duty OEM type
  • Material: Molded Polyamid
  • Outside Dia: 2.56"
  • Inside Dia: 1.39"
 TW-9-21HD
20 Bushing
  • Thickness: 0.413"
  • Housing Bore Dia: 1.294"
  • Shaft Dia: 1.063"
  • Material: Steel - backed alloy
  • Bushing Type: Precision
  • Type: Precision
 TB-18-13
20 Bushing
  • Thickness: 0.36"
  • Housing Bore Dia: 1.294"
  • Shaft Dia: 1.063"
  • Material: Steel- backed bronze alloy
  • Type: Oversized O.D. & Undersized I.D.
 TB-18-14
21 Front Cover NPN-3-8-21
22 Bolt Hex Head NPN-3-8-22
22_N.I. Salvage Ring™ Coresaver™
  • Width: 0.375"
  • Outside Dia: 10.75"
 TX-22-840
22_N.I. Salvage Ring™ Coresaver™
  • Width: 0.250"
  • Outside Dia: 10.75"
 TX-22-840NR
