Torque Converter | Borg Warner | D.G. With Direct Drive Clutch 11" (279mm Dia.)

Ill.# Image Description Specification Part #
2 Washer
  • Thickness: .05"
  • Material: Steel
  • Tang Count: 6
  • Outside Dia: 3.06"
  • Inside Dia: 1.87"
 WW-2-1
Washer WW-2-1
&
  • Thickness: .05"
  • Material: Steel
  • Tang Count: 6
  • Outside Dia: 3.06"
  • Inside Dia: 1.87"
2 Washer Wear-Plate
  • Material: Steel
 WW-2-2
Washer WW-2-2
Wear-Plate &
  • Material: Steel
4 Washer
  • Thickness: .06"
  • Material: Bronze On Steel
  • Outside Dia: 2.90"
  • Inside Dia: 1.75"
 WW-3
Washer WW-3
&
  • Thickness: .06"
  • Material: Bronze On Steel
  • Outside Dia: 2.90"
  • Inside Dia: 1.75"
4 Stator Cap
  • Thickness: 0.31"
  • Material: Aluminum
  • Functional Thickness: 0.156"
  • Outside Dia: 3.19"
  • Inside Dia: 1.94"
 WW-4
Stator Cap WW-4
&
  • Thickness: 0.31"
  • Material: Aluminum
  • Functional Thickness: 0.156"
  • Outside Dia: 3.19"
  • Inside Dia: 1.94"

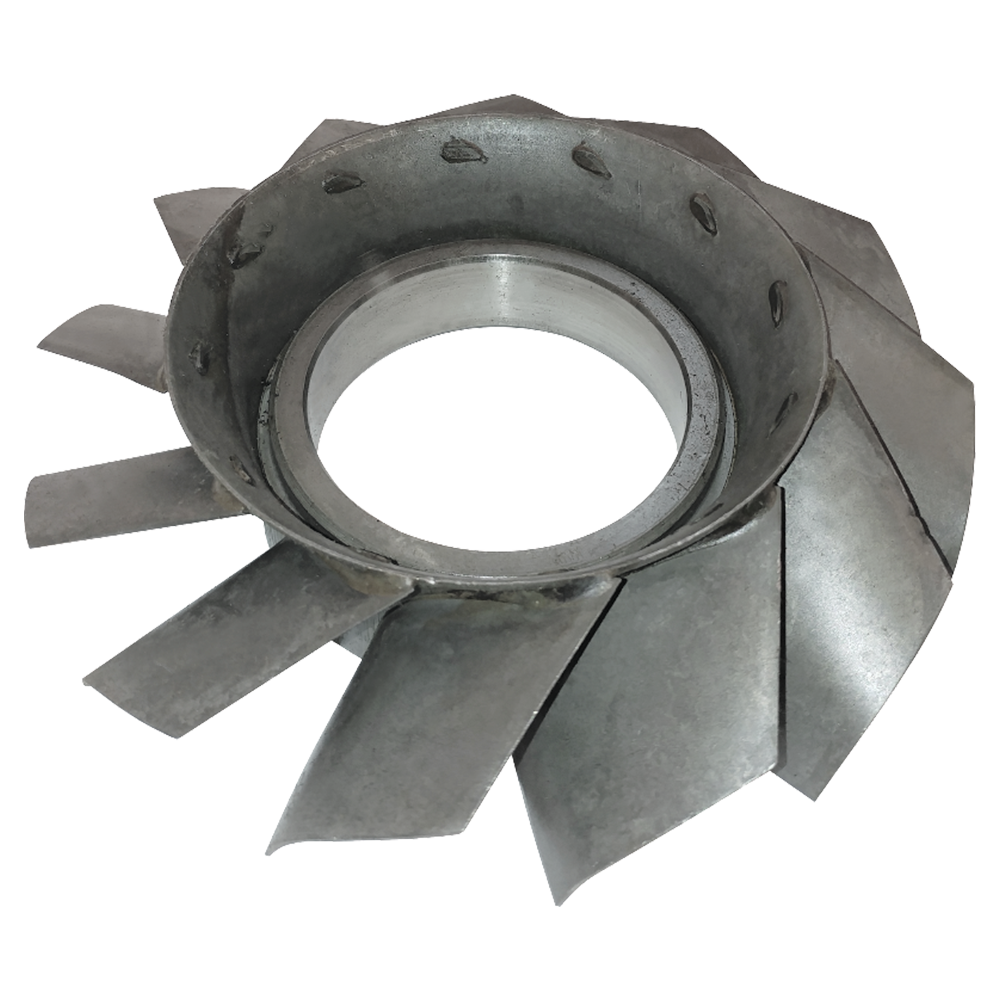

5 Stator WX-5
Stator WX-5
&
6 Sprag Narrow Type
  • Thickness: 0.500"
  • Cam Count: 24 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 1.957"
 WC-6
Sprag WC-6
Narrow Type &
  • Thickness: 0.500"
  • Cam Count: 24 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 1.957"
8 Plate Reinforcement, Beef Plate™ WX-8-1
Plate WX-8-1
Reinforcement, Beef Plate™ &
8 Vane WX-8-11
Vane WX-8-11
&
8 Vane WX-8-11E
Vane WX-8-11E
&
8 Vane Kit 31 Pcs. WX-8-11K
Vane Kit WX-8-11K
31 Pcs. &
8 Retainer Vane, Core Ring WX-8R
Retainer WX-8R
Vane, Core Ring &

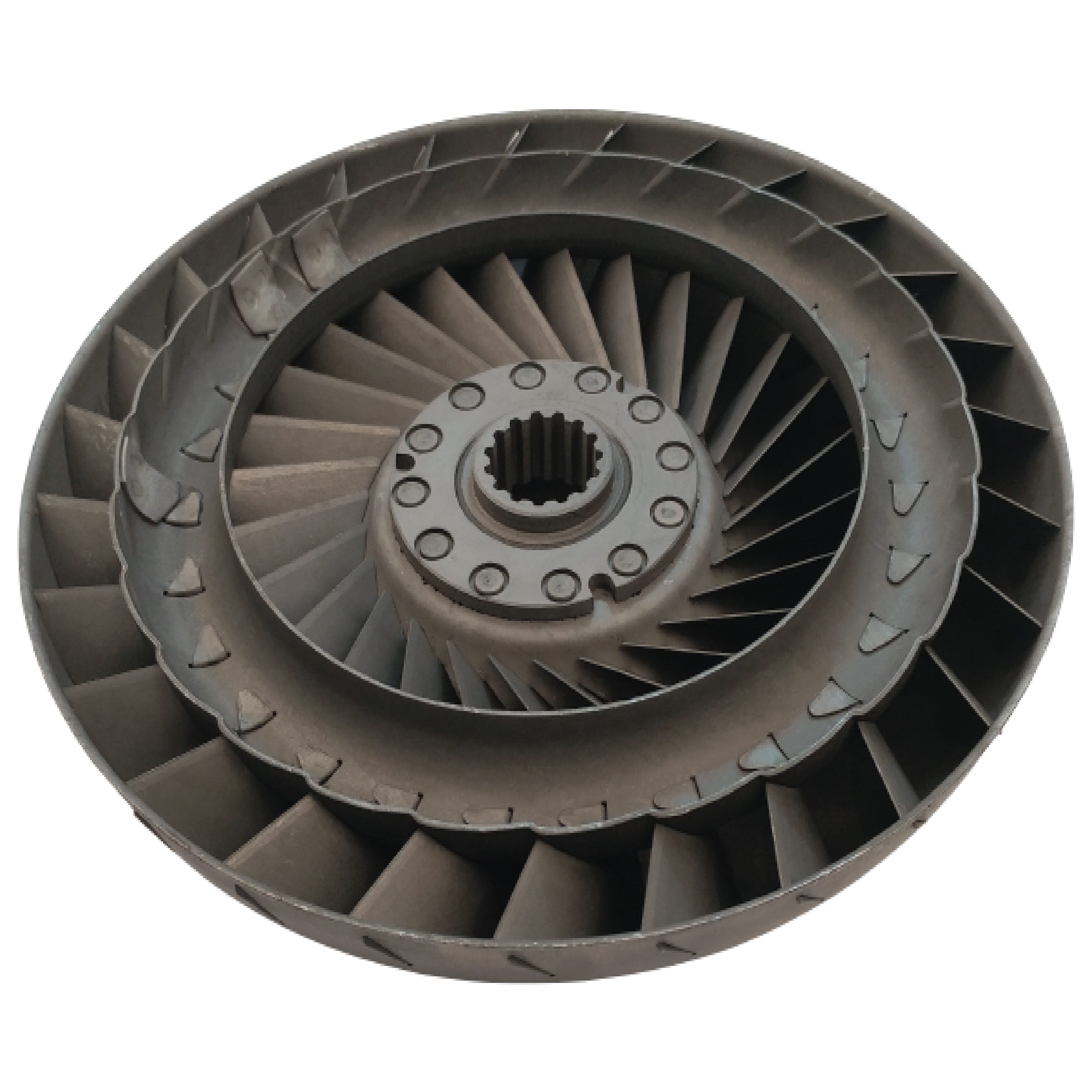

8 Turbine With WX-13-11 WX-8J
Turbine WX-8J
With WX-13-11 &
9 Turbine Washer 4 Lugs
  • Thickness: .06"
  • Material: Bronze
  • Outside Dia: 1.845"
  • Inside Dia: 1.38"
 WW-9
Turbine Washer WW-9
4 Lugs &
  • Thickness: .06"
  • Material: Bronze
  • Outside Dia: 1.845"
  • Inside Dia: 1.38"
9 Shim
  • Thickness: 0.012"
  • Outside Dia: 1.91"
  • Inside Dia: 1.45"
 WW-9-1
Shim WW-9-1
&
  • Thickness: 0.012"
  • Outside Dia: 1.91"
  • Inside Dia: 1.45"
10 Stud T-Head
  • Length: .50" under the head
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 1.06"
  • Bolt Head Thickness: 0.23"
 FX-10-14
Stud FX-10-14
T-Head &
  • Length: .50" under the head
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 1.06"
  • Bolt Head Thickness: 0.23"
10 Stud Thin Head Type
  • (Use FX-10-4)
 FX-10-2
Stud FX-10-2
Thin Head Type &
  • (Use FX-10-4)
10 Stud
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 0.83"
  • Bolt Head Thickness: 0.21"
 FX-10-3
Stud FX-10-3
&
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 0.83"
  • Bolt Head Thickness: 0.21"
10 Stud
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 0.75"
  • Bolt Head Thickness: 0.16"
 FX-10-4
Stud FX-10-4
&
  • Thread dimensions: 3/8"-24
  • Bolt head OD: 0.75"
  • Bolt Head Thickness: 0.16"
11 Drain Plug 3/8- 24 Thread EARLY
  • 3/8- 24 Thread
 WX-11
Drain Plug WX-11
3/8- 24 Thread & EARLY
  • 3/8- 24 Thread
11 Gasket For WX-11 EARLY
  • Inside Dia: 0.375"
 WX-11G
Gasket WX-11G
For WX-11 & EARLY
  • Inside Dia: 0.375"
11 Drain Plug Drain LATE WX-11J
Drain Plug WX-11J
Drain & LATE
12 Rivet
  • Length: 0.218"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 WX-12
Rivet WX-12
&
  • Length: 0.218"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
12 Rivet
  • Length: 0.31"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
 WX-12A
Rivet WX-12A
&
  • Length: 0.31"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet Head Dia: 0.312"
14 Inner Race Stator
  • Height: 0.930"
  • Internal Teeth: 19
  • Outside Dia: 2.156"
 WX-14-3
Inner Race WX-14-3
Stator &
  • Height: 0.930"
  • Internal Teeth: 19
  • Outside Dia: 2.156"
16 Ring Gear
  • External Teeth: 124
  • Outside Dia: 12.59"
  • Inside Dia: 11.29"
 RG-124
Ring Gear RG-124
&
  • External Teeth: 124
  • Outside Dia: 12.59"
  • Inside Dia: 11.29"

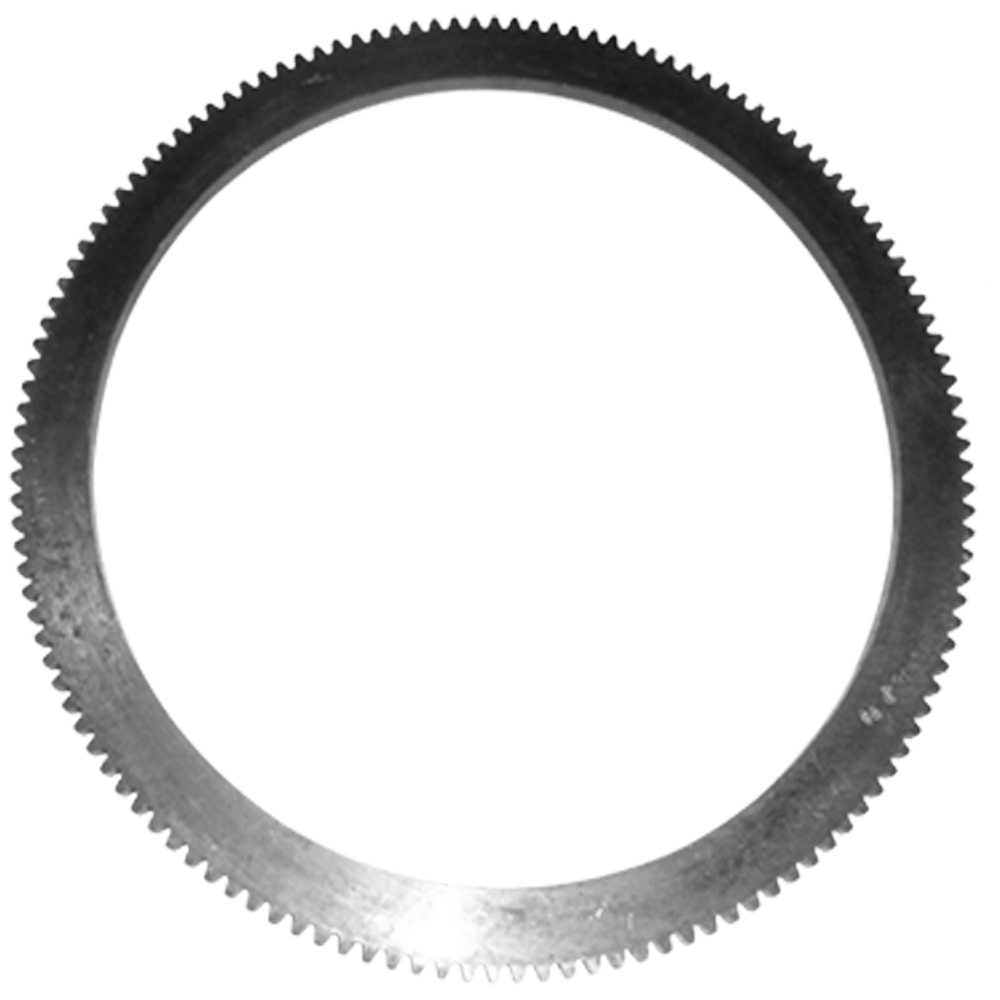

16 Ring Gear converter, Jaguar (F-10645)
  • External Teeth: 133
  • Outside Dia: 13.49"
  • Inside Dia: 11.295"
 RG-133
Ring Gear RG-133
converter, Jaguar (F-10645) &
  • External Teeth: 133
  • Outside Dia: 13.49"
  • Inside Dia: 11.295"
16 Ring Gear Converter, Studebaker, (F-153)
  • External Teeth: 162
  • Outside Dia: 13.7"
  • Inside Dia: 11.295"
 RG-162
Ring Gear RG-162
Converter, Studebaker, (F-153) &
  • External Teeth: 162
  • Outside Dia: 13.7"
  • Inside Dia: 11.295"
17 Pilot WX-17-19J
Pilot WX-17-19J
&
19 Shroud WX-19-1
Shroud WX-19-1
&
21 Vane Kit Angle "S", 31 Pcs. WX-21-11SK
Vane Kit WX-21-11SK
Angle "S", 31 Pcs. &
21 Retainer Vane, S Angle WX-21RS
Retainer WX-21RS
Vane, S Angle &
21 Plate Hub
  • Thickness: .17"
  • Outside Dia: 3.50"
  • Inside Dia: 2.30"
  • 6 Slots
 WX-21TX
Plate WX-21TX
Hub &
  • Thickness: .17"
  • Outside Dia: 3.50"
  • Inside Dia: 2.30"
  • 6 Slots
2223 Washer WX-23G
Washer WX-23G
&
23 Lip Seal Kit Torque Converter DISPLACING 3 LITERS OF LESS. USE WX-23AFMPLATE FOR CORRECTSHIFTOUALITY. WO-23-20K
Lip Seal Kit WO-23-20K
Torque Converter & DISPLACING 3 LITERS OF LESS. USE WX-23AFMPLATE FOR CORRECTSHIFTOUALITY.
23 O-Ring Small DISPLACING 3 LITERS OF LESS. USE WX-23AFMPLATE FOR CORRECTSHIFTOUALITY. WO-23-20S
O-Ring WO-23-20S
Small & DISPLACING 3 LITERS OF LESS. USE WX-23AFMPLATE FOR CORRECTSHIFTOUALITY.

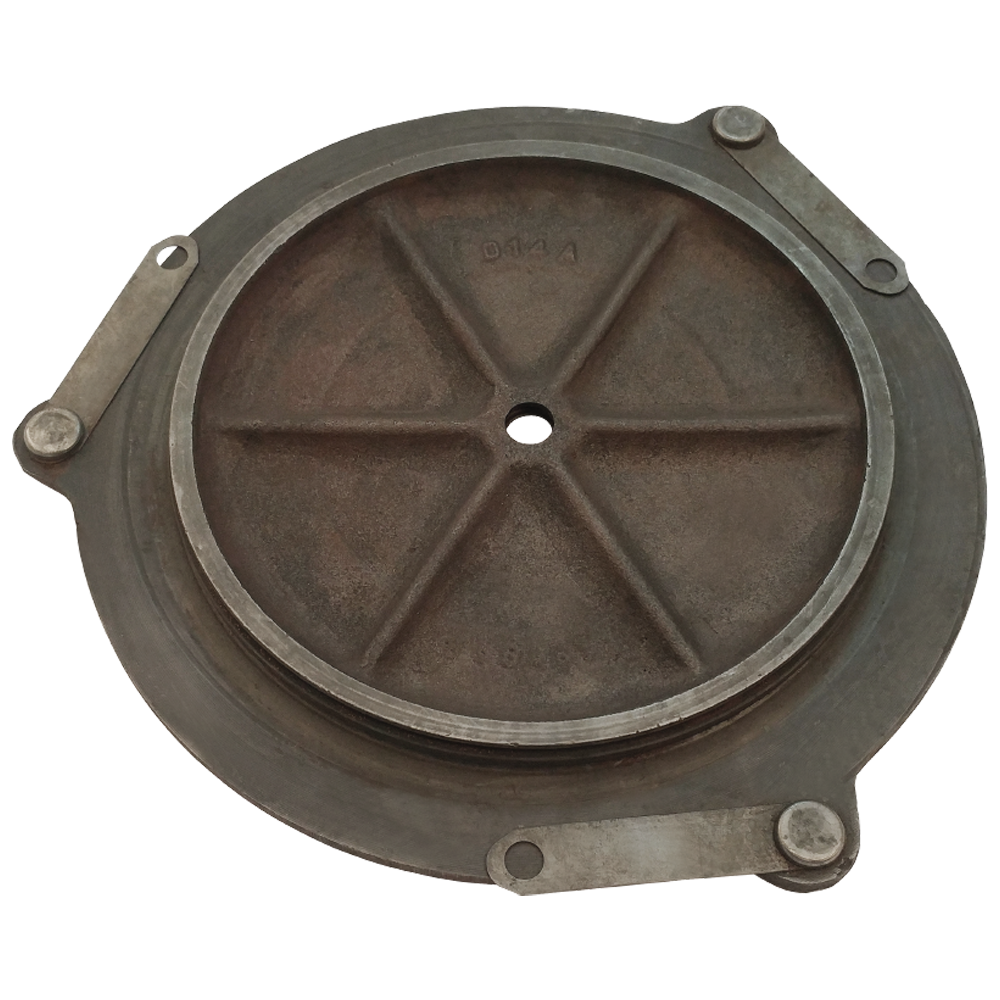

23 Clutch Plate Assembly cast iron piston for flat discs, casting# F-10769C WX-23-1D
Clutch Plate Assembly WX-23-1D
cast iron piston for flat discs, casting# F-10769C &

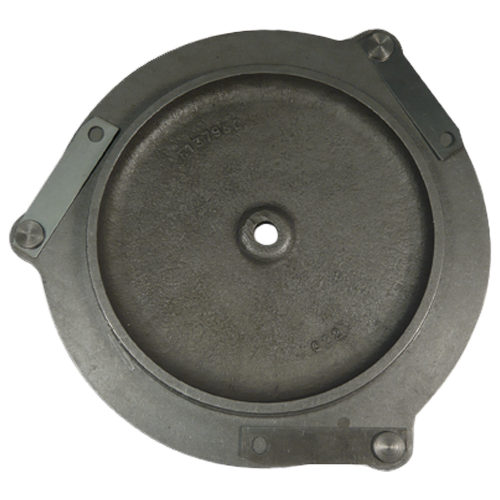

23 Clutch Plate Assembly cast iron piston for dished discs, casting# F-13795C WX-23-1F
Clutch Plate Assembly WX-23-1F
cast iron piston for dished discs, casting# F-13795C &

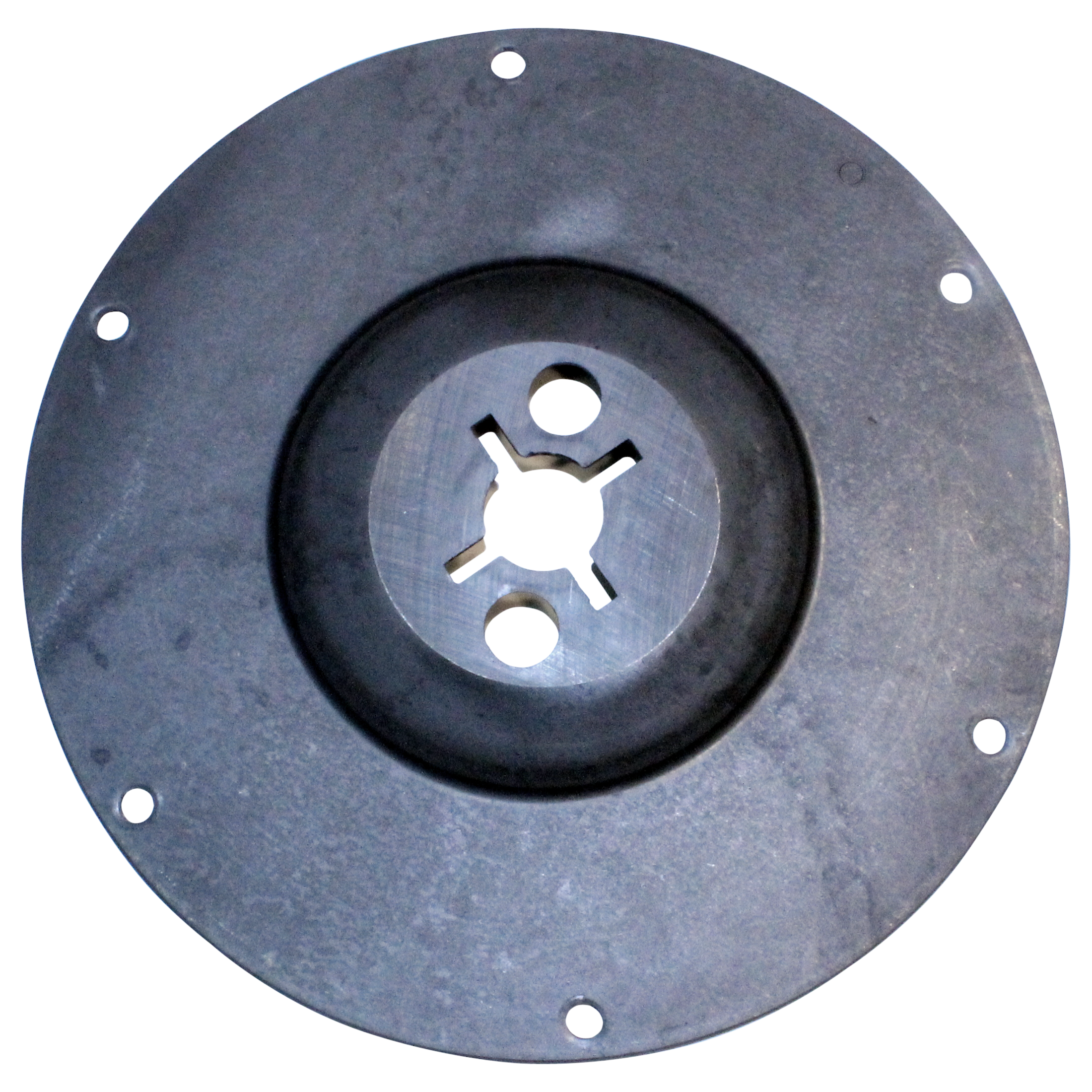

23 Pressure Plate for dished discs NOT ALREADY EOUIPPED.THIS MATCHEDSET WILL FIT ALL CONVERTERS, HOWEVER, IF USED WITH ENGINES WX-23-2D
Pressure Plate WX-23-2D
for dished discs & NOT ALREADY EOUIPPED.THIS MATCHEDSET WILL FIT ALL CONVERTERS, HOWEVER, IF USED WITH ENGINES
23 Pressure Plate for flat discs NOTE A "MATCHED" SET CONSISTS OF WX-23AF + WX-23-IF + WX-23-2F. 3 PIECES OF WX-23HX SHORT SPACERS MUST BE FITTED IF NOT ALREADY EOUIPPED. THIS MATCHED SET WILL FIT ALL CONVERTERS, HOWEVER, IF USED WITH ENGINES DISPLACING 3 LITERS OF LESS, USE WX-23A WX-23-2F
Pressure Plate WX-23-2F
for flat discs & NOTE A "MATCHED" SET CONSISTS OF WX-23AF + WX-23-IF + WX-23-2F. 3 PIECES OF WX-23HX SHORT SPACERS MUST BE FITTED IF NOT ALREADY EOUIPPED. THIS MATCHED SET WILL FIT ALL CONVERTERS, HOWEVER, IF USED WITH ENGINES DISPLACING 3 LITERS OF LESS, USE WX-23A

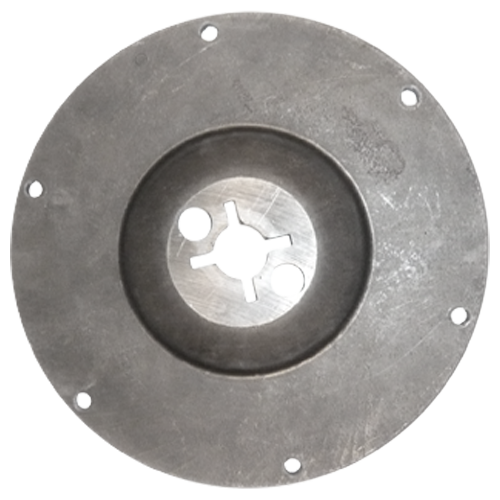

23 Pressure Plate NOTE A "MATCHED" SET CONSISTS OF WX-23AF + WX-23-IF + WX-23-2F. 3 PIECES OF WX-23HX SHORT SPACERS MUST BE FITTED IF NOT ALREADY EOUIPPED. THIS MATCHED SET WILL FIT ALL CONVERTERS, HOWEVER, IF USED WITH ENGINES DISPLACING 3 LITERS OF LESS, USE WX-23A WX-23-2FR
Pressure Plate WX-23-2FR
& NOTE A "MATCHED" SET CONSISTS OF WX-23AF + WX-23-IF + WX-23-2F. 3 PIECES OF WX-23HX SHORT SPACERS MUST BE FITTED IF NOT ALREADY EOUIPPED. THIS MATCHED SET WILL FIT ALL CONVERTERS, HOWEVER, IF USED WITH ENGINES DISPLACING 3 LITERS OF LESS, USE WX-23A

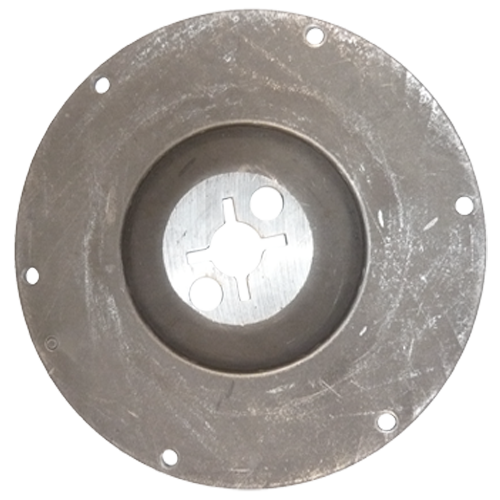

23 Pressure Plate NOTE A "MATCHED" SET CONSISTS OF WX-23AF + WX-23-IF + WX-23-2F. 3 PIECES OF WX-23HX SHORT SPACERS MUST BE FITTED IF NOT ALREADY EOUIPPED. THIS MATCHED SET WILL FIT ALL CONVERTERS, HOWEVER, IF USED WITH ENGINES DISPLACING 3 LITERS OF LESS, USE WX-23A WX-23-2FS
Pressure Plate WX-23-2FS
& NOTE A "MATCHED" SET CONSISTS OF WX-23AF + WX-23-IF + WX-23-2F. 3 PIECES OF WX-23HX SHORT SPACERS MUST BE FITTED IF NOT ALREADY EOUIPPED. THIS MATCHED SET WILL FIT ALL CONVERTERS, HOWEVER, IF USED WITH ENGINES DISPLACING 3 LITERS OF LESS, USE WX-23A
23 Plate WX-23AF
Plate WX-23AF
&
23 Bolt WX-23F
Bolt WX-23F
&
23 Spacer WX-23H
Spacer WX-23H
&
