Torque Converter | Borg Warner | BW 35 & 65, 11"

Ill.# Image Description Specification Part #
1 Misc NPN-SPL
Misc NPN-SPL
&

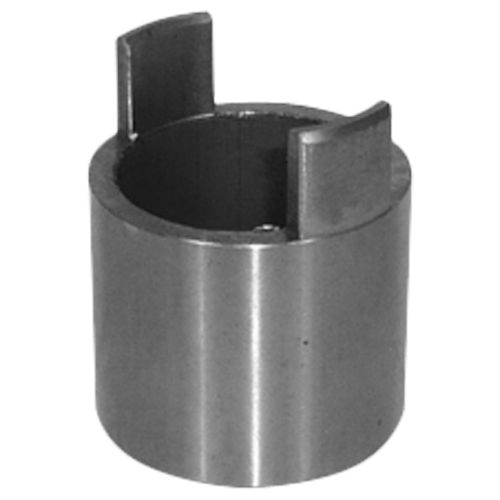

2 Impeller Hub
  • Journal Dia: 1.684"
  • Height: 2.000"
  • Hub Mount: Butt
  • Pump Drive Type: 2 Lugs (Lugs .58" Wide .56" High)
  • Hardness: Heat-Treated (hardened)
 WH-1TBGHT
Impeller Hub WH-1TBGHT
&
  • Journal Dia: 1.684"
  • Height: 2.000"
  • Hub Mount: Butt
  • Pump Drive Type: 2 Lugs (Lugs .58" Wide .56" High)
  • Hardness: Heat-Treated (hardened)
2 Impeller Hub
  • Journal Dia: 1.685"
  • Height: 2.625"
  • Hub Mount: Butt
  • Pump Drive Type: Lugs
 WH-1TG
Impeller Hub WH-1TG
&
  • Journal Dia: 1.685"
  • Height: 2.625"
  • Hub Mount: Butt
  • Pump Drive Type: Lugs
2 Impeller Hub
  • Journal Dia: 1.685"
  • Height: 2.000"
  • Hub Mount: Butt
  • Pump Drive Type: Lugs
 WH-1TBG
Impeller Hub WH-1TBG
&
  • Journal Dia: 1.685"
  • Height: 2.000"
  • Hub Mount: Butt
  • Pump Drive Type: Lugs
2 Impeller Hub Unfinished
  • Journal Dia: 1.685"
  • Height: 2.625"
  • Hub Mount: Butt
  • Pump Drive Type: Lugs
 WH-1T
Impeller Hub WH-1T
Unfinished &
  • Journal Dia: 1.685"
  • Height: 2.625"
  • Hub Mount: Butt
  • Pump Drive Type: Lugs
6 Shim
  • Thickness: .010"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X10)
 FW-2-010
Shim FW-2-010
&
  • Thickness: .010"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X10)
6 Shim
  • Thickness: .020"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X)
 FW-2-020
Shim FW-2-020
&
  • Thickness: .020"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X)
6 Shim
  • Thickness: .030"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X30)
 FW-2-030
Shim FW-2-030
&
  • Thickness: .030"
  • Outside Dia: 2.35"
  • Inside Dia: 1.482"
  • (Replaced by TW-2X30)
6 Shim Early
  • Thickness: .010"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
  • Minimize Race Rubbing
 TW-2-10
Shim TW-2-10
& Early
  • Thickness: .010"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
  • Minimize Race Rubbing
6 Shim Early Type
  • Thickness: .020"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
 TW-2-20
Shim TW-2-20
& Early Type
  • Thickness: .020"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
6 Shim Early Type
  • Thickness: .030"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
 TW-2-30
Shim TW-2-30
& Early Type
  • Thickness: .030"
  • Outside Dia: 2.95"
  • Inside Dia: 2.16"
6 Shim
  • Thickness: .020"
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
 TW-2X
Shim TW-2X
&
  • Thickness: .020"
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
6 Shim
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
 TW-2X10
Shim TW-2X10
&
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
6 Shim
  • Thickness: .03"
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
 TW-2X30
Shim TW-2X30
&
  • Thickness: .03"
  • Outside Dia: 2.875"
  • Inside Dia: 1.469"
6 Shim
  • Outside Dia: 2.875"
  • Inside Dia: 1.497"
 TW-2X-30
Shim TW-2X-30
&
  • Outside Dia: 2.875"
  • Inside Dia: 1.497"
9 Cam (Sprag Element) For FC-6-10 F-395
Cam (Sprag Element) F-395
& For FC-6-10
9 Cam (Sprag Element) For FC-6-10 F-407
Cam (Sprag Element) F-407
& For FC-6-10
9 Sprag
  • Thickness: 0.625"
  • Cam Count: 14 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Standard Duty
 FC-6
Sprag FC-6
&
  • Thickness: 0.625"
  • Cam Count: 14 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Standard Duty
9 Sprag
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam part-ID: F-407), 2 Inside Strips Replaced By part-ID FC-6-10
 FC-6-1
Sprag FC-6-1
&
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam part-ID: F-407), 2 Inside Strips Replaced By part-ID FC-6-10
9 Sprag Heavy Duty
  • Thickness: 0.625"
  • Cam Count: 24 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam part-ID: F-395, 12 Outside Clips, 3 Inside Strips
 FC-6-10
Sprag FC-6-10
Heavy Duty &
  • Thickness: 0.625"
  • Cam Count: 24 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam part-ID: F-395, 12 Outside Clips, 3 Inside Strips

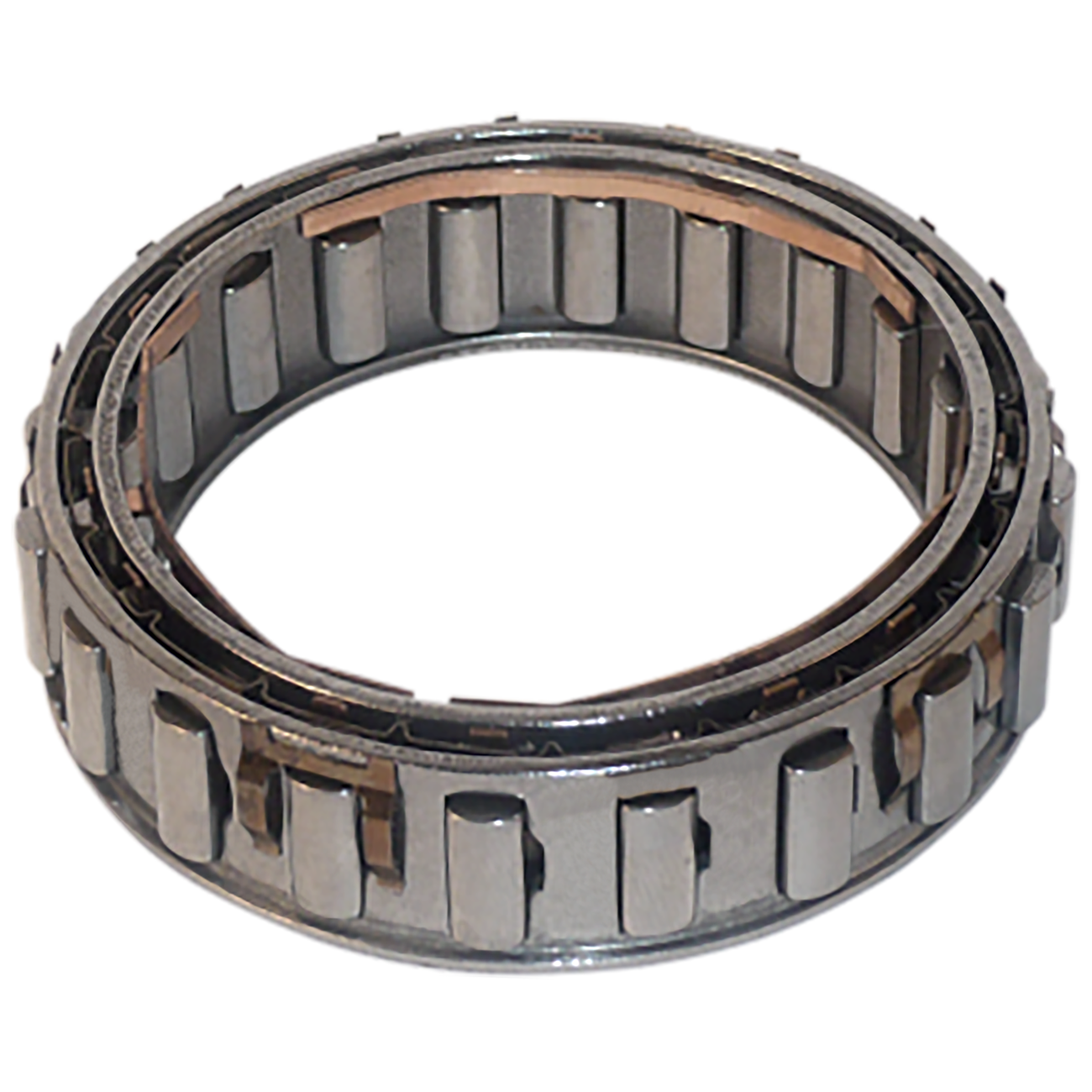

9 Sprag
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam Part ID: F-395, 5 Outside Clips, 3 Inside Strips Replaced By FC-6-10
 FC-6-3
Sprag FC-6-3
&
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam Part ID: F-395, 5 Outside Clips, 3 Inside Strips Replaced By FC-6-10
9 Sprag Heavy Duty
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam Part ID:(F-407), 10 Outside Clips, 3 Inside Strips Replaced By FC-6-10
 FC-6-4
Sprag FC-6-4
Heavy Duty &
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.812"
  • Inner Race Outside Dia: 2.156"
  • Cam Part ID:(F-407), 10 Outside Clips, 3 Inside Strips Replaced By FC-6-10
9 Sprag
  • Thickness: 0.625"
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.812
  • Inner Race Outside Dia: 2.156
  • Cam part-ID: F-407, 10 Outside Clips, 2/3 Inside Strips Replaced By part-ID FC-6-10
 FC-6-9
Sprag FC-6-9
&
  • Thickness: 0.625"
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.812
  • Inner Race Outside Dia: 2.156
  • Cam part-ID: F-407, 10 Outside Clips, 2/3 Inside Strips Replaced By part-ID FC-6-10
10 Inner Race Stator
  • Height: 1.031"
  • Internal Teeth: 38 (12 Removed)
  • Outside Dia: 2.156"
 WX-14
Inner Race WX-14
Stator &
  • Height: 1.031"
  • Internal Teeth: 38 (12 Removed)
  • Outside Dia: 2.156"
11 Washer
  • Thickness: .06"
  • Material: Bronze On Steel
  • Outside Dia: 2.90"
  • Inside Dia: 1.75"
 WW-3
Washer WW-3
&
  • Thickness: .06"
  • Material: Bronze On Steel
  • Outside Dia: 2.90"
  • Inside Dia: 1.75"
11 Stator Cap
  • Thickness: 0.31"
  • Material: Aluminum
  • Functional Thickness: 0.156"
  • Outside Dia: 3.19"
  • Inside Dia: 1.94"
 WW-4
Stator Cap WW-4
&
  • Thickness: 0.31"
  • Material: Aluminum
  • Functional Thickness: 0.156"
  • Outside Dia: 3.19"
  • Inside Dia: 1.94"
15 Turbine Washer 4 Lugs
  • Thickness: .06"
  • Material: Bronze
  • Outside Dia: 1.845"
  • Inside Dia: 1.38"
 WW-9
Turbine Washer WW-9
4 Lugs &
  • Thickness: .06"
  • Material: Bronze
  • Outside Dia: 1.845"
  • Inside Dia: 1.38"
16 Turbine Washer
  • Thickness: 0.094"
  • Material: Fiber
  • Outside Dia: 1.750"
  • Inside Dia: 0.802"
 WW-9-3BF
Turbine Washer WW-9-3BF
&
  • Thickness: 0.094"
  • Material: Fiber
  • Outside Dia: 1.750"
  • Inside Dia: 0.802"
16.1 Shim
  • Thickness: 0.012"
  • Outside Dia: 1.91"
  • Inside Dia: 1.45"
 WW-9-1
Shim WW-9-1
&
  • Thickness: 0.012"
  • Outside Dia: 1.91"
  • Inside Dia: 1.45"
17 Thrust Plate WX-22TB
Thrust Plate WX-22TB
&
