Part Search

Torque Converter | Borg Warner | BTR

Ill.# Image Description Specification Part #
0 Misc NPN-SPL
0 Impeller Hub BTR 93LE, FORD,FALCON BTR 93LE, FORD,FALCON
  • Hardness: Rc 32-36
 YH-1-55GRC

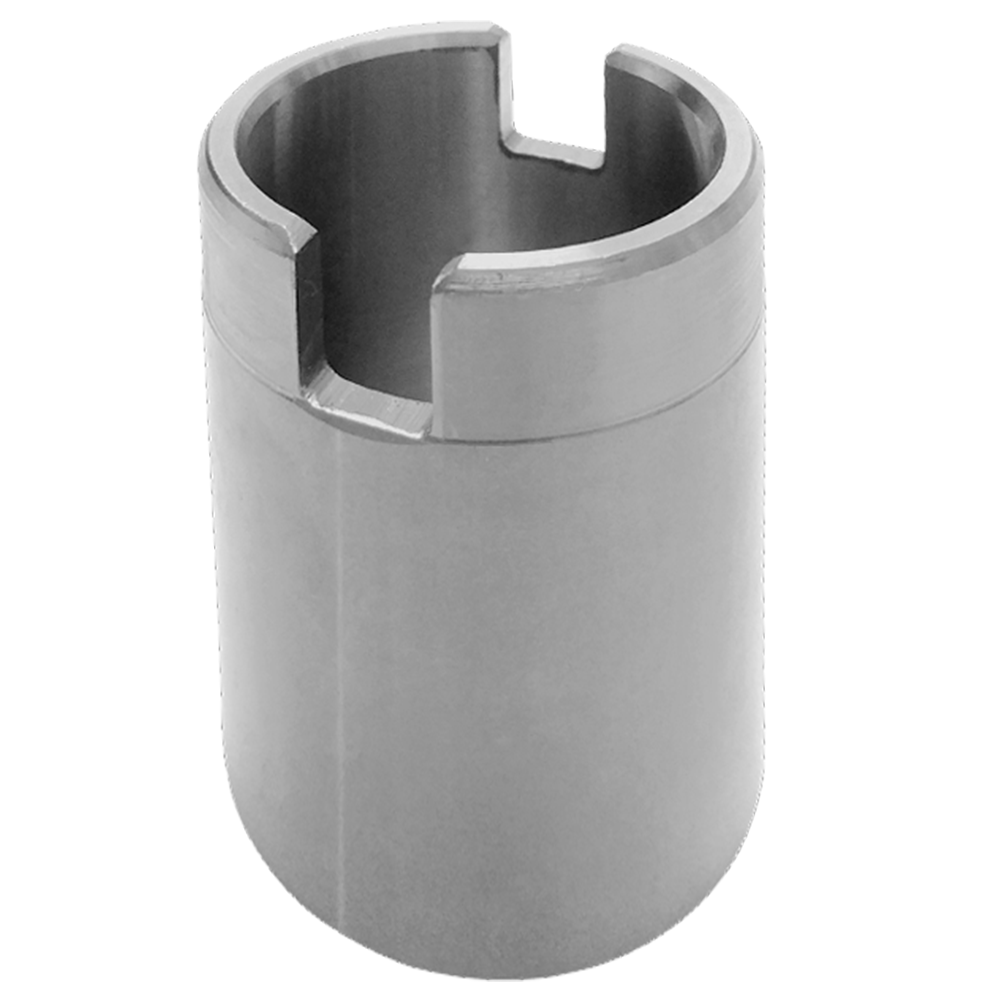

1 Impeller Hub BTR 93LE, Ford Falcon
  • Journal Dia: 1.810"
  • Installed Height: 2.280"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 WH-1-24GRC

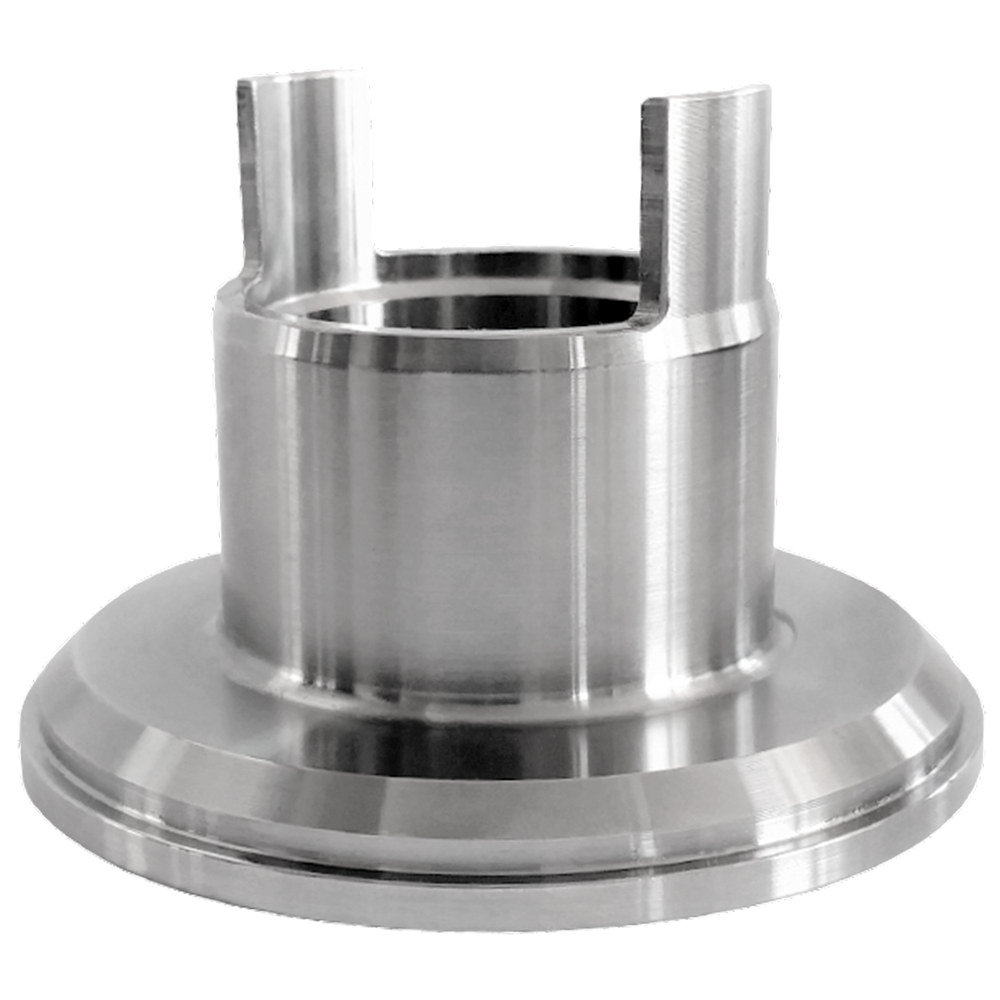

1 Impeller Hub Flanged, BTR
  • Journal Dia: 1.810"
  • Installed Height: 1.988"
  • Height: 2.130"
  • Hub Mount: Flanged
  • Pump Drive Type: 2 Lugs
  • Flange Dia: 3.150"
 WH-1-25FLG

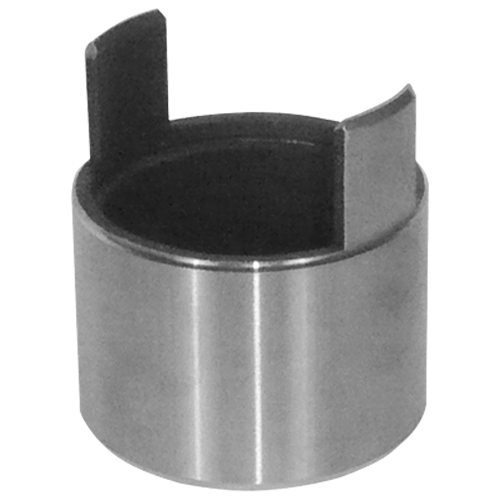

1 Impeller Hub BTR 85LB
  • Journal Dia: 1.809"
  • Height: 1.780"
  • Hub Mount: Butt
  • Pump Drive Type: 2 Lugs
 WH-1-18

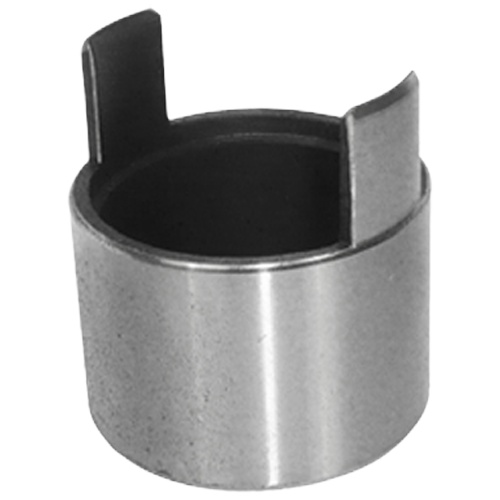

1 Impeller Hub BTR 85LB
  • Journal Dia: 1.809"
  • Height: 1.780"
  • Hub Mount: Butt
  • Pump Drive Type: 2 Lugs
  • Hardness: Rc 32-36
 WH-1-18GRC

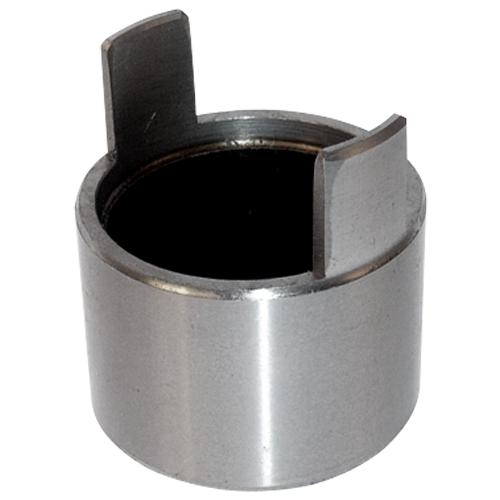

1 Impeller Hub BTR 85LB
  • Journal Dia: 1.809"
  • Height: 1.780"
  • Hub Mount: Butt
  • Pump Drive Type: 2 Lugs
 WH-1-18G

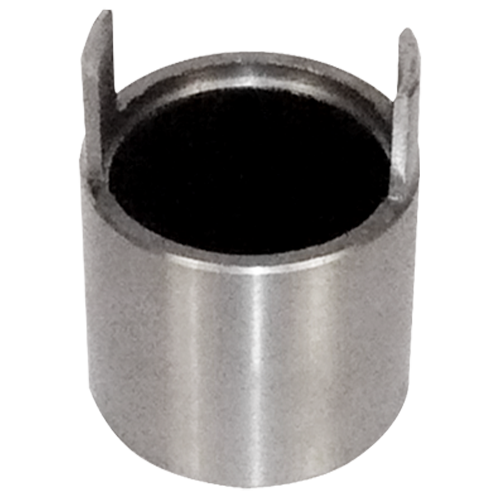

1 Impeller Hub BTR LE93
  • Journal Dia: 1.809"
  • Height: 2.065"
  • Hub Mount: Butt
  • Pump Drive Type: 2 Lugs
 WH-1-20G
1 Impeller Hub
  • Journal Dia: 1.809"
  • Height: 2.065"
  • Hub Mount: Butt
  • Pump Drive Type: 2 Lugs
  • Hardness: Rc 32-36
 WH-1-20GRC
1 Impeller Hub Flanged BTR LE85 Late Production
  • Journal Dia: 1.809"
  • Installed Height: 2.410"
  • Hub Mount: Flanged
  • Pump Drive Type: Lugs
  • Flange Dia: 3.150"
  • Hardness: Rc 32-36
 WH-1-21FLG
13 Turbine Hub Btr
  • Height: 2.050
  • Outer Dia: 3.66"
 WX-13-31
13 Turbine Hub BTR
  • Height: 2.050
  • Outer Dia: 3.66"
  • Internal Teeth: 29
  • External teeth: 30
  • Hardness: Heat-Treated (hardened)
 WX-13-31HT
23 Lining (Friction Ring,Wafer) BTR LE85
  • Outer Dia: 10.5"
  • Inner Dia: 8.625"
  • Thickness: 0.045"
  • Material: Red
 FX-23-13
