Torque Converter | Borg Warner | 9-1/2" Models 35, 45 & 55, U. K. (Also Various Industrial)

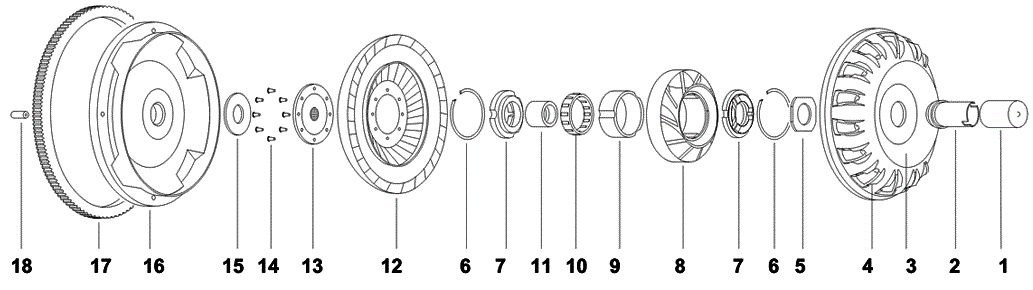

Ill.# Image Description Specification Part #
Rivet 8 Pieces Required.
  • Length: 0.385"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12LS
Rivet FX-12LS
& 8 Pieces Required.
  • Length: 0.385"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
1 Hubcap Fits 1-1/2" (38.1mm). Length: 1-1/2"
  • Color: Green
  • Fits 1-1/2" (38.1mm)
 MHC-G
Hubcap MHC-G
Fits 1-1/2" (38.1mm). Length: 1-1/2" &
  • Color: Green
  • Fits 1-1/2" (38.1mm)
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
Hubcap MHC-B
Fits 1-5/8" (41.3mm). Length: 1-3/8" &
  • Color: Black
  • Fits 1-5/8" (41.3mm)
2 Impeller Hub Unfinished
  • Installed Height: 2.188"
  • Hub Mount: Thru
  • Pump Drive Type: 2 Lugs (lugs .45" high)
 BH-1
Impeller Hub BH-1
Unfinished &
  • Installed Height: 2.188"
  • Hub Mount: Thru
  • Pump Drive Type: 2 Lugs (lugs .45" high)
2 Impeller Hub Slotted
  • Journal Dia: 1.500"
  • Installed Height: 2.055"
  • Hub Mount: Butt
  • Hardness: Rc 32-36
 BH-1-4GRC
Impeller Hub BH-1-4GRC
Slotted &
  • Journal Dia: 1.500"
  • Installed Height: 2.055"
  • Hub Mount: Butt
  • Hardness: Rc 32-36
2 Impeller Hub For Model 55
  • Journal Dia: 1.500"
  • Installed Height: 1.850"
  • Pump Drive Type: Slots

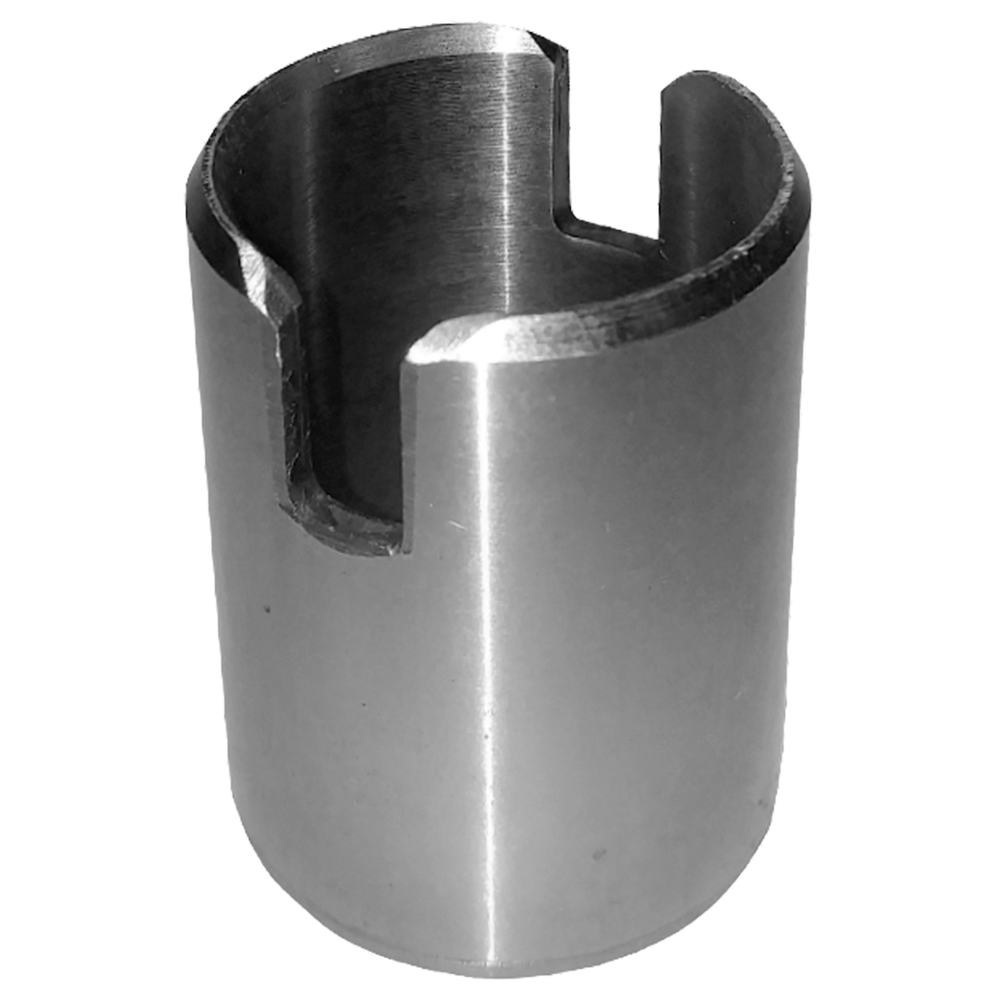

 YH-1-6G
Impeller Hub YH-1-6G
& For Model 55
  • Journal Dia: 1.500"
  • Installed Height: 1.850"
  • Pump Drive Type: Slots

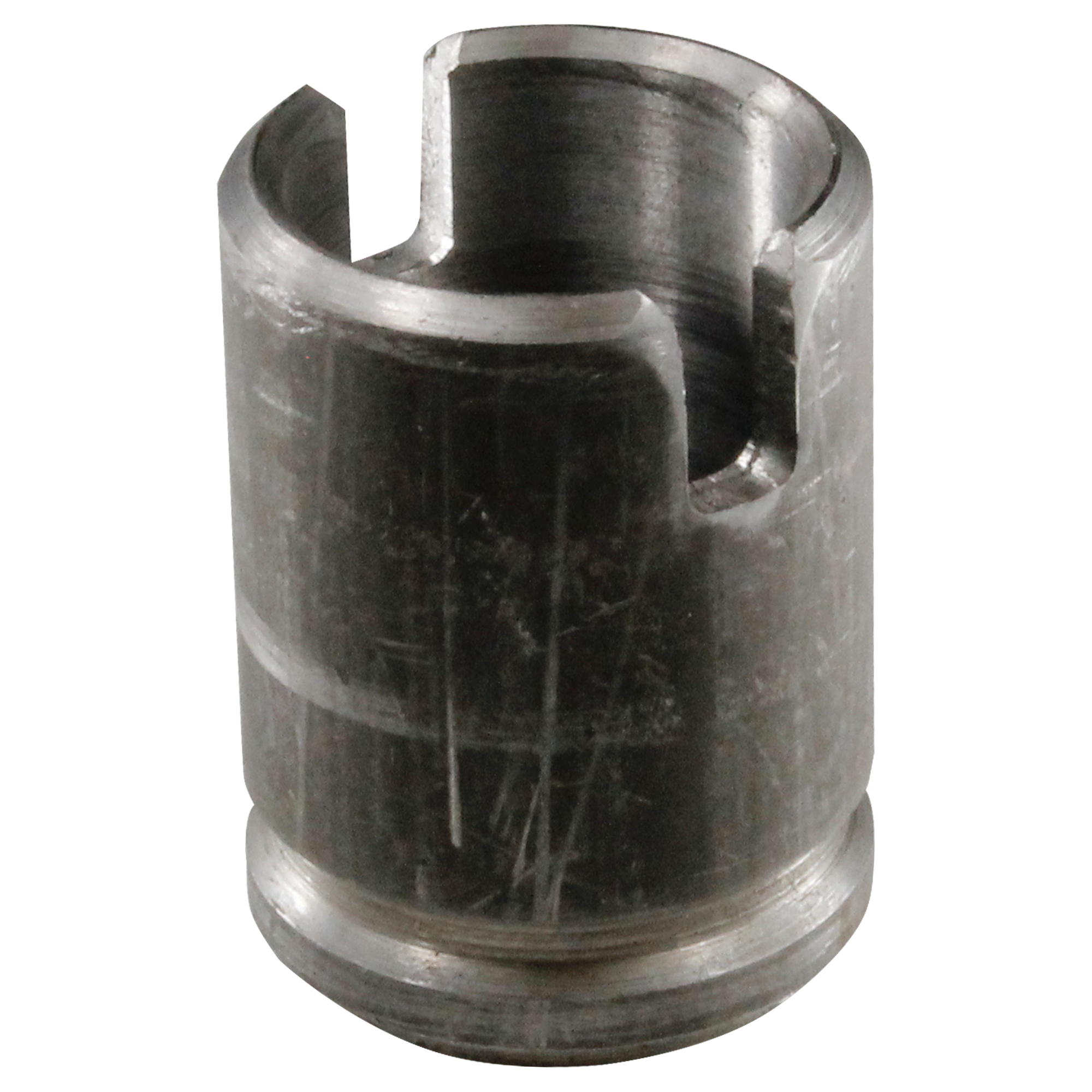

2 Impeller Hub Unfinished For Model 45
  • Pump Drive Type: Slots
 BH-1-3
Impeller Hub BH-1-3
Unfinished & For Model 45
  • Pump Drive Type: Slots
2 Impeller Hub For Model 55
  • Journal Dia: 1.500"
  • Installed Height: 1.580"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
 YH-1-5G
Impeller Hub YH-1-5G
& For Model 55
  • Journal Dia: 1.500"
  • Installed Height: 1.580"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
2 Impeller Hub For Model 55
  • Journal Dia: 1.500"
  • Installed Height: 1.580"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 YH-1-5GRC
Impeller Hub YH-1-5GRC
& For Model 55
  • Journal Dia: 1.500"
  • Installed Height: 1.580"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36

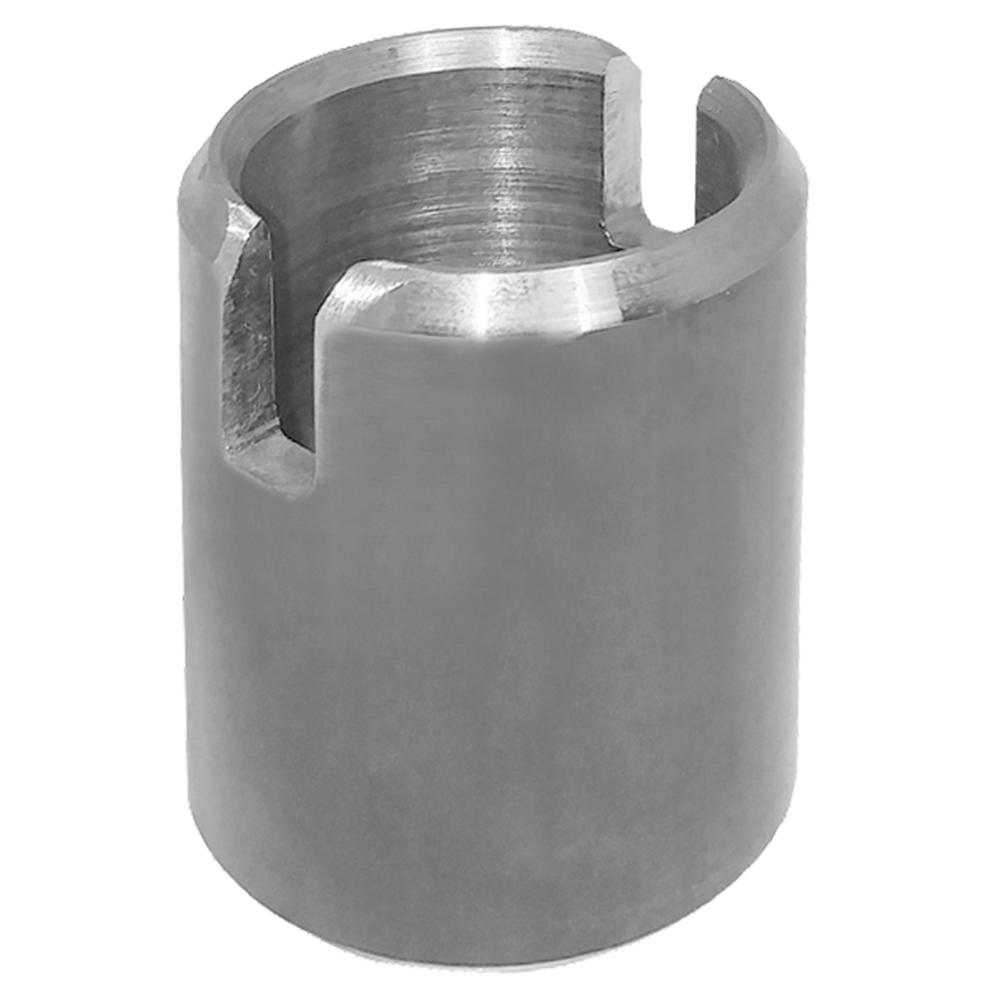

2 Impeller Hub Unfinished For Model 55
  • Journal Dia: 1.500"
  • Installed Height: 1.850"
  • Pump Drive Type: Slots
 YH-1-6
Impeller Hub YH-1-6
Unfinished & For Model 55
  • Journal Dia: 1.500"
  • Installed Height: 1.850"
  • Pump Drive Type: Slots
2 Impeller Hub For Model 55
  • Journal Dia: 1.500"
  • Installed Height: 1.850"
  • Height: 1.96
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 YH-1-6GRC
Impeller Hub YH-1-6GRC
& For Model 55
  • Journal Dia: 1.500"
  • Installed Height: 1.850"
  • Height: 1.96
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
2 Impeller Hub For Model 45
  • Journal Dia: 1.500"
  • Installed Height: 2.065"
  • Hub Mount: Thru
  • Pump Drive Type: Slots

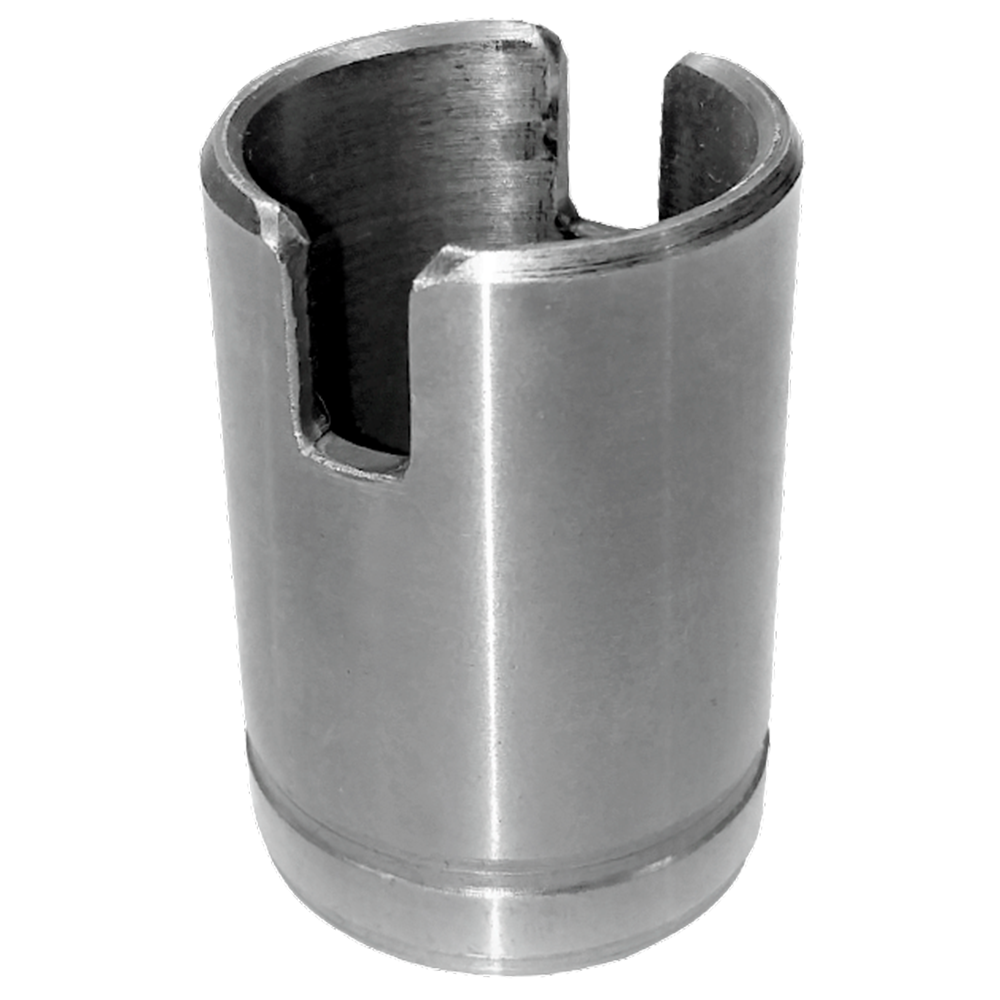

 BH-1-3G
Impeller Hub BH-1-3G
& For Model 45
  • Journal Dia: 1.500"
  • Installed Height: 2.065"
  • Hub Mount: Thru
  • Pump Drive Type: Slots
2 Impeller Hub Flanged
  • Journal Dia: 1.500"
  • Installed Height: 1.880"
  • Height: 2.06
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.250"
  • Hardness: Rc 32-36
 YH-1-55FLG
Impeller Hub YH-1-55FLG
Flanged &
  • Journal Dia: 1.500"
  • Installed Height: 1.880"
  • Height: 2.06
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.250"
  • Hardness: Rc 32-36
2 Impeller Hub For Model 55
  • Journal Dia: 1.500"
  • Installed Height: 1.770"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
 YH-1-3GRC
Impeller Hub YH-1-3GRC
& For Model 55
  • Journal Dia: 1.500"
  • Installed Height: 1.770"
  • Hub Mount: Butt
  • Pump Drive Type: Slots
  • Hardness: Rc 32-36
2 Impeller Hub For Saab
  • Journal Dia: 1.685"
  • Installed Height: 2.188"
  • Hub Mount: Thru
  • Pump Drive Type: 2 Lugs (lugs .69" high)
 BH-1-1G
Impeller Hub BH-1-1G
& For Saab
  • Journal Dia: 1.685"
  • Installed Height: 2.188"
  • Hub Mount: Thru
  • Pump Drive Type: 2 Lugs (lugs .69" high)
2 Impeller Hub
  • Journal Dia: 1.685"
  • Installed Height: 2.188"
  • Hub Mount: Thru
  • Pump Drive Type: 2 Lugs (lugs .45" high)
 BH-1G
Impeller Hub BH-1G
&
  • Journal Dia: 1.685"
  • Installed Height: 2.188"
  • Hub Mount: Thru
  • Pump Drive Type: 2 Lugs (lugs .45" high)
2 Impeller Hub Unfinished
  • Journal Dia: 1.685"
  • Installed Height: 1.592"
  • Hub Mount: Thru

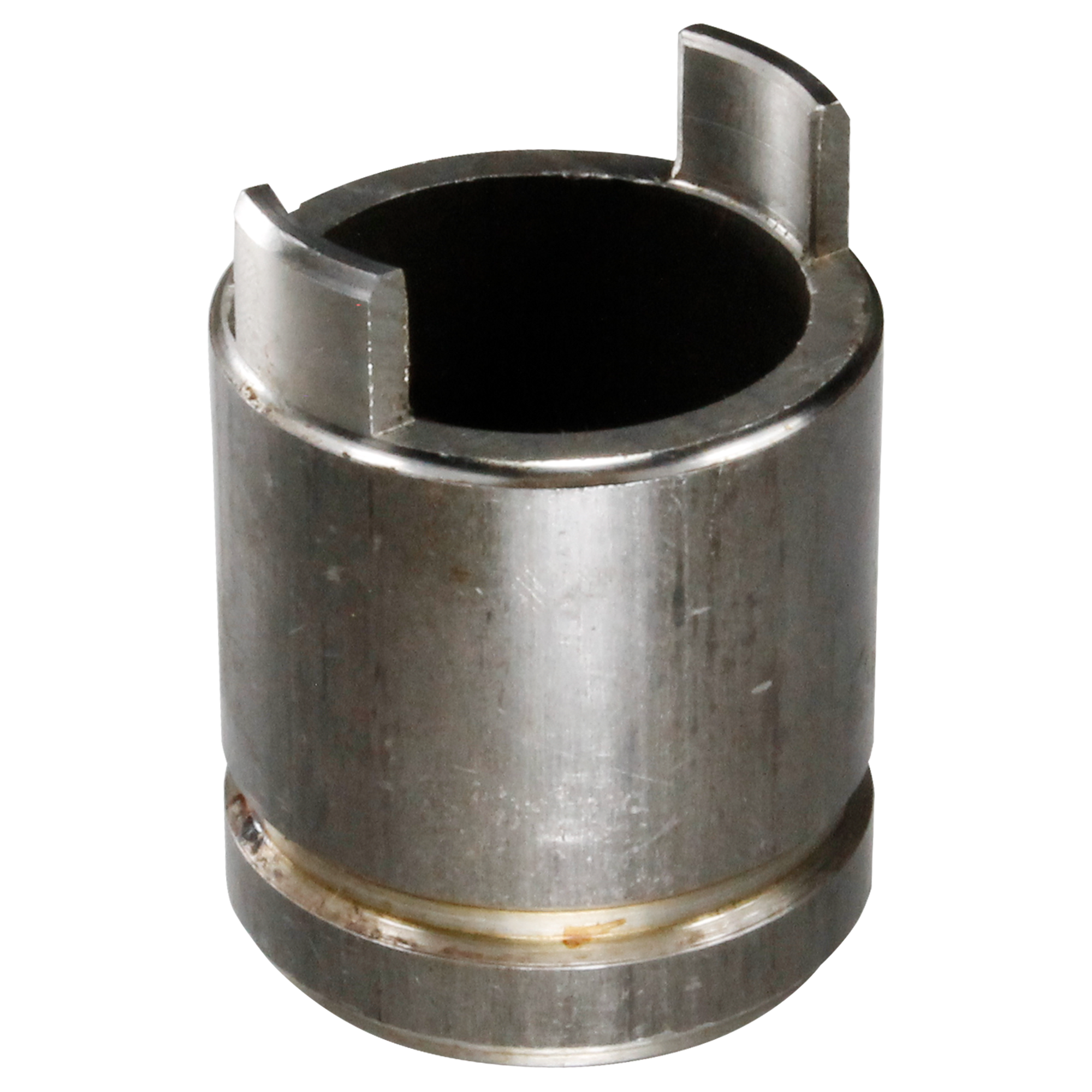

 BH-1-2
Impeller Hub BH-1-2
Unfinished &
  • Journal Dia: 1.685"
  • Installed Height: 1.592"
  • Hub Mount: Thru
2 Impeller Hub Unfinished For Saab
  • Journal Dia: 1.685"
  • Installed Height: 2.188"
  • Hub Mount: Thru
  • Pump Drive Type: 2 Lugs (lugs .69" high)
 BH-1-1
Impeller Hub BH-1-1
Unfinished & For Saab
  • Journal Dia: 1.685"
  • Installed Height: 2.188"
  • Hub Mount: Thru
  • Pump Drive Type: 2 Lugs (lugs .69" high)
2 Impeller Hub
  • Journal Dia: 1.685"
  • Installed Height: 1.592"
  • Hub Mount: Thru
  • Use Bushing BB-18, (Hub Has 4 Internal Grooves), For BLMC
 BH-1-2G
Impeller Hub BH-1-2G
&
  • Journal Dia: 1.685"
  • Installed Height: 1.592"
  • Hub Mount: Thru
  • Use Bushing BB-18, (Hub Has 4 Internal Grooves), For BLMC
3 Impeller NPN-14-16-3
Impeller NPN-14-16-3
&
3_N.I. Vane BX-21-30
Vane BX-21-30
&
3_N.I. Vane Kit Standard "Straight" Type, 30 Pcs. BX-21-30K
Vane Kit BX-21-30K
Standard "Straight" Type, 30 Pcs. &
4 Fin Cooling 8 Pieces Required. BX-21-8
Fin BX-21-8
Cooling & 8 Pieces Required.
5 Washer Squared
  • Thickness: .1.00"
  • Material: Steel
  • Outside Dia: 2.52"
  • Inside Dia: 1.39"
 BW-2
Washer BW-2
Squared &
  • Thickness: .1.00"
  • Material: Steel
  • Outside Dia: 2.52"
  • Inside Dia: 1.39"
5_N.I. Shim End-Play Adjusting, Use Under BW-2
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.5"
  • Inside Dia: 1.575"
 VW-2-10
Shim VW-2-10
& End-Play Adjusting, Use Under BW-2
  • Thickness: 0.010"
  • Material: Steel
  • Outside Dia: 2.5"
  • Inside Dia: 1.575"
5_N.I. Shim
  • Thickness: 0.020"
  • Material: Steel
  • Outside Dia: 2.500"
  • Inside Dia: 1.575"
 VW-2-20
Shim VW-2-20
&
  • Thickness: 0.020"
  • Material: Steel
  • Outside Dia: 2.500"
  • Inside Dia: 1.575"
5_N.I. Shim
  • Thickness: 0.030"
  • Material: Steel
  • Outside Dia: 2.500"
  • Inside Dia: 1.575"
 VW-2-30
Shim VW-2-30
&
  • Thickness: 0.030"
  • Material: Steel
  • Outside Dia: 2.500"
  • Inside Dia: 1.575"

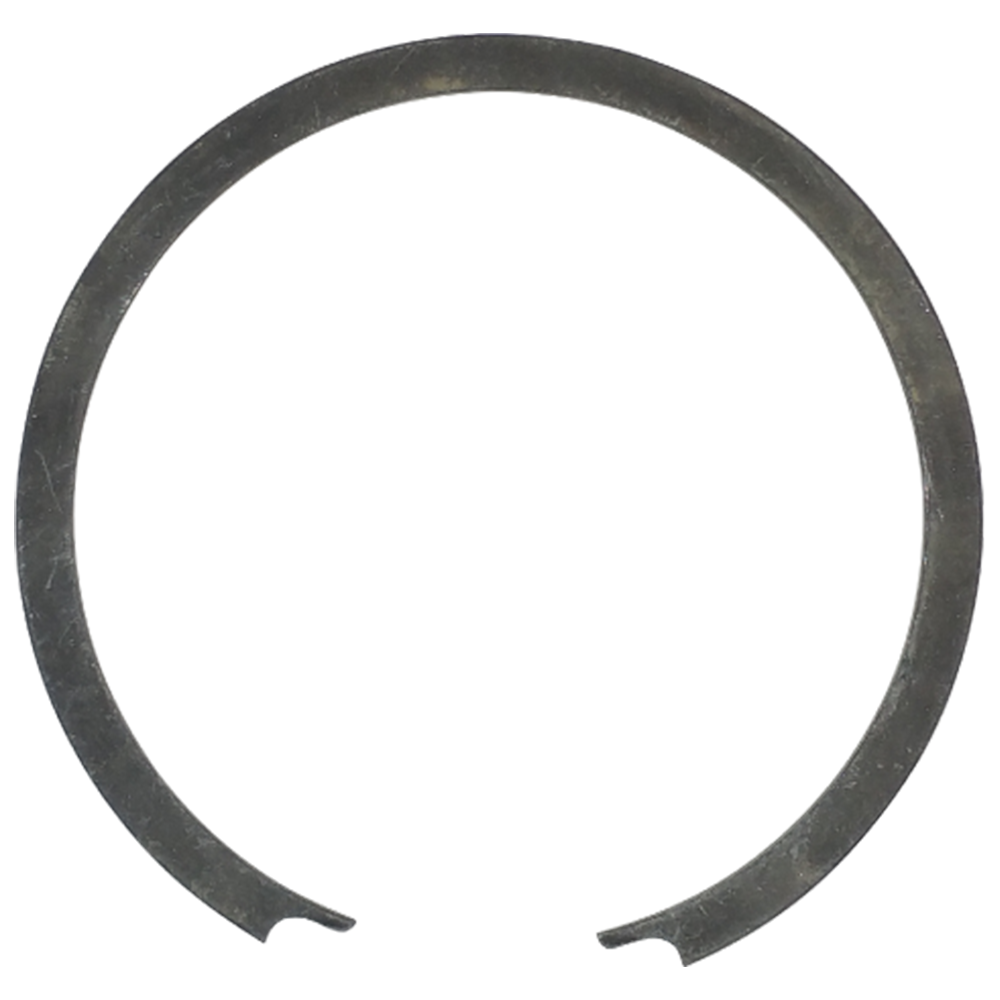

6 Snap Ring 2 Pieces Required. BX-20
Snap Ring BX-20
& 2 Pieces Required.
7 Stator Cap 2 Pieces Required.
  • Thickness: .65"
  • Material: Aluminum
  • Outside Dia: 2.63"
  • Inside Dia: 1.35"
 BW-4
Stator Cap BW-4
& 2 Pieces Required.
  • Thickness: .65"
  • Material: Aluminum
  • Outside Dia: 2.63"
  • Inside Dia: 1.35"
8 Stator BX-5
Stator BX-5
&

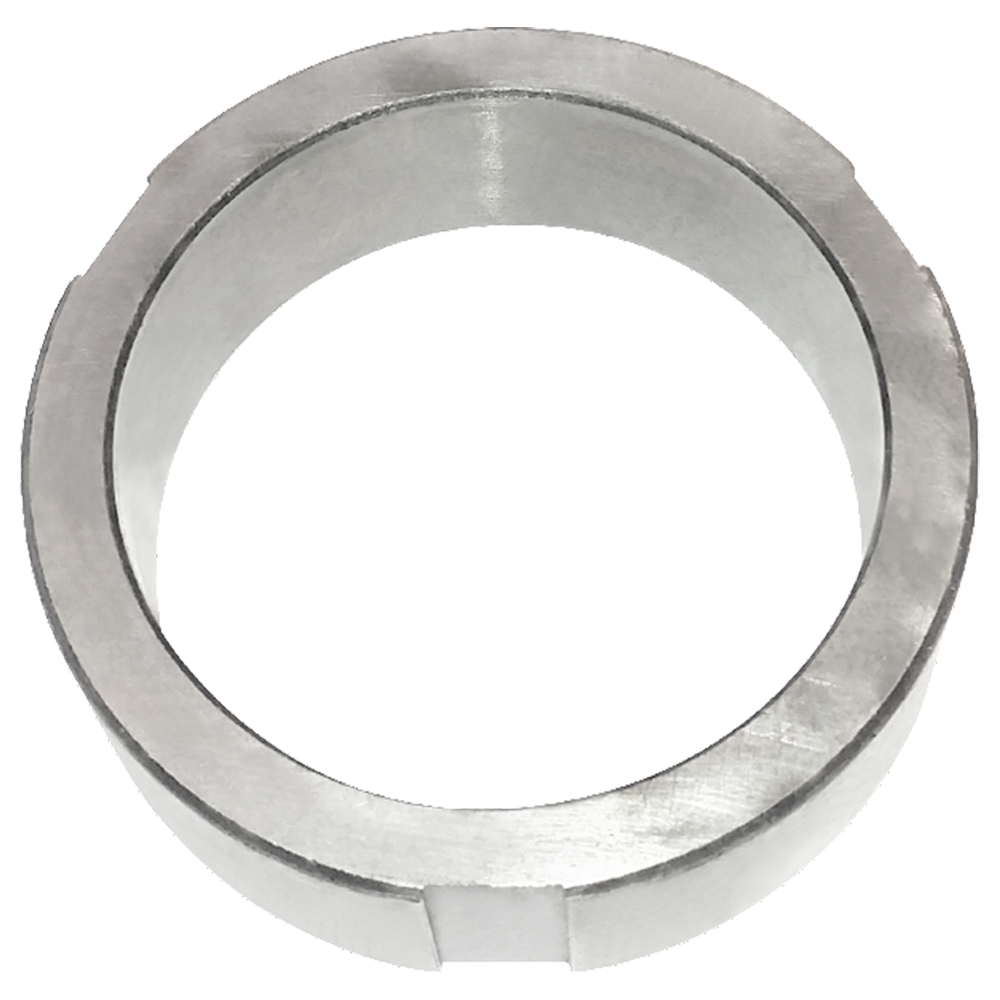

9 Outer Race (Cam) Stator BX-15
Outer Race (Cam) BX-15
Stator &
10 Sprag
  • Thickness: 0.530"
  • Cam Count: 14 elements
  • Outer Race Inside Dia: 2.281"
  • Inner Race Outside Dia: 1.625"
  • Cam part-ID: F-315, 2 Inside Strips
 BC-6
Sprag BC-6
&
  • Thickness: 0.530"
  • Cam Count: 14 elements
  • Outer Race Inside Dia: 2.281"
  • Inner Race Outside Dia: 1.625"
  • Cam part-ID: F-315, 2 Inside Strips
10 Sprag
  • Thickness: 0.875"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
  • Clip Count: 5; Drag Strip Count: 3
 BC-6HD
Sprag BC-6HD
&
  • Thickness: 0.875"
  • Cam Count: 20 elements
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
  • Clip Count: 5; Drag Strip Count: 3
10 Sprag
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
 BC-6HDA
Sprag BC-6HDA
&
  • Outer Race Inside Dia: 2.406"
  • Inner Race Outside Dia: 1.750"
11 Inner Race Stator
  • Height: 1.250"
  • Internal Teeth: 38 (12 Removed)
  • Outside Dia: 1.625"
 BX-14
Inner Race BX-14
Stator &
  • Height: 1.250"
  • Internal Teeth: 38 (12 Removed)
  • Outside Dia: 1.625"
12 Turbine NPN-14-16-12
Turbine NPN-14-16-12
&
12 Vane BX-8-31
Vane BX-8-31
&
12 Vane Kit 31 Pieces BX-8-31K
Vane Kit BX-8-31K
31 Pieces &
12_N.I. Retainer Vane, Core Ring BX-8R
Retainer BX-8R
Vane, Core Ring &
13 Turbine Hub
  • Internal Teeth: 22
  • Outside Dia: 3.66"
 BX-13
Turbine Hub BX-13
&
  • Internal Teeth: 22
  • Outside Dia: 3.66"

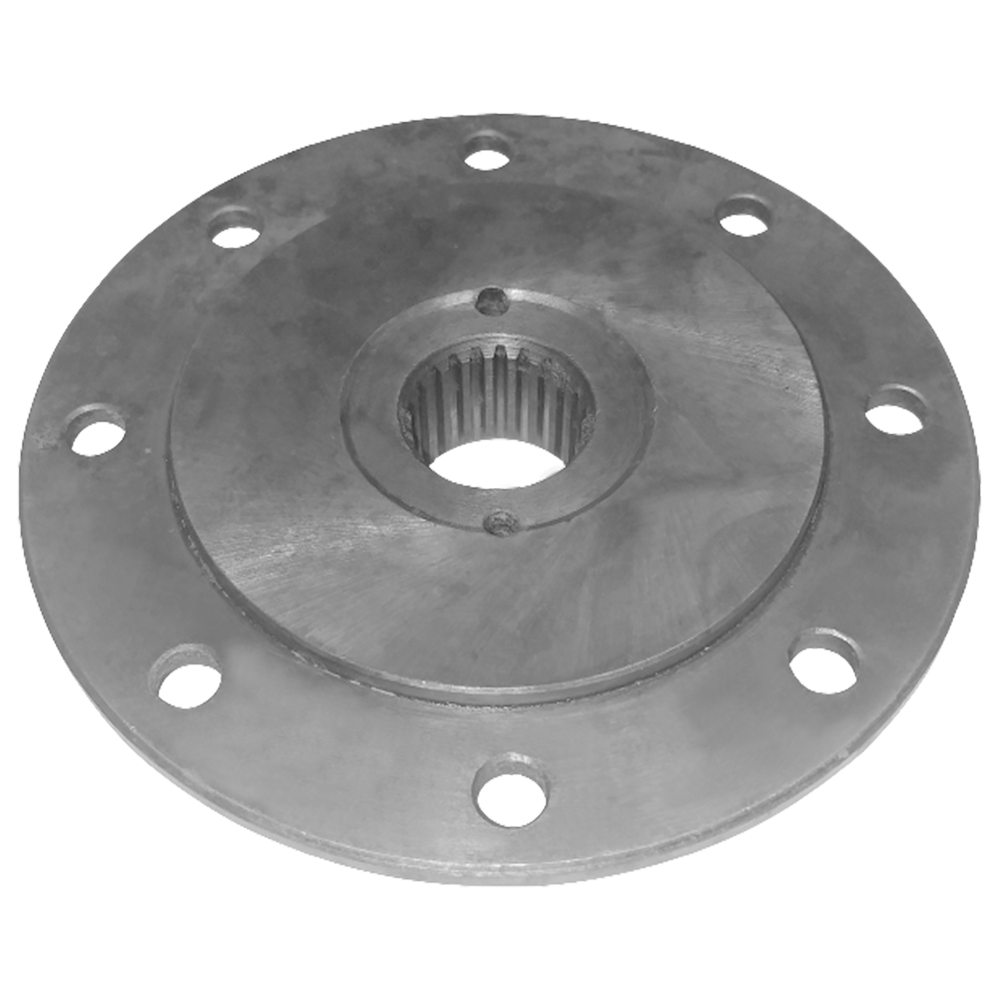

13 Turbine Hub
  • Internal Teeth: 22
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.66"
 BX-13HT
Turbine Hub BX-13HT
&
  • Internal Teeth: 22
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.66"
13 Turbine Hub For C-3 Conversion
  • Height: 0.720
  • Internal Teeth: 21
  • Outside Dia: 3.660"
 BX-13-1
Turbine Hub BX-13-1
& For C-3 Conversion
  • Height: 0.720
  • Internal Teeth: 21
  • Outside Dia: 3.660"
13 Turbine Hub
  • Internal Teeth: 23
  • Outside Dia: 3.66"
 BX-13-2
Turbine Hub BX-13-2
&
  • Internal Teeth: 23
  • Outside Dia: 3.66"
13 Turbine Hub
  • Internal Teeth: 23
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.66"

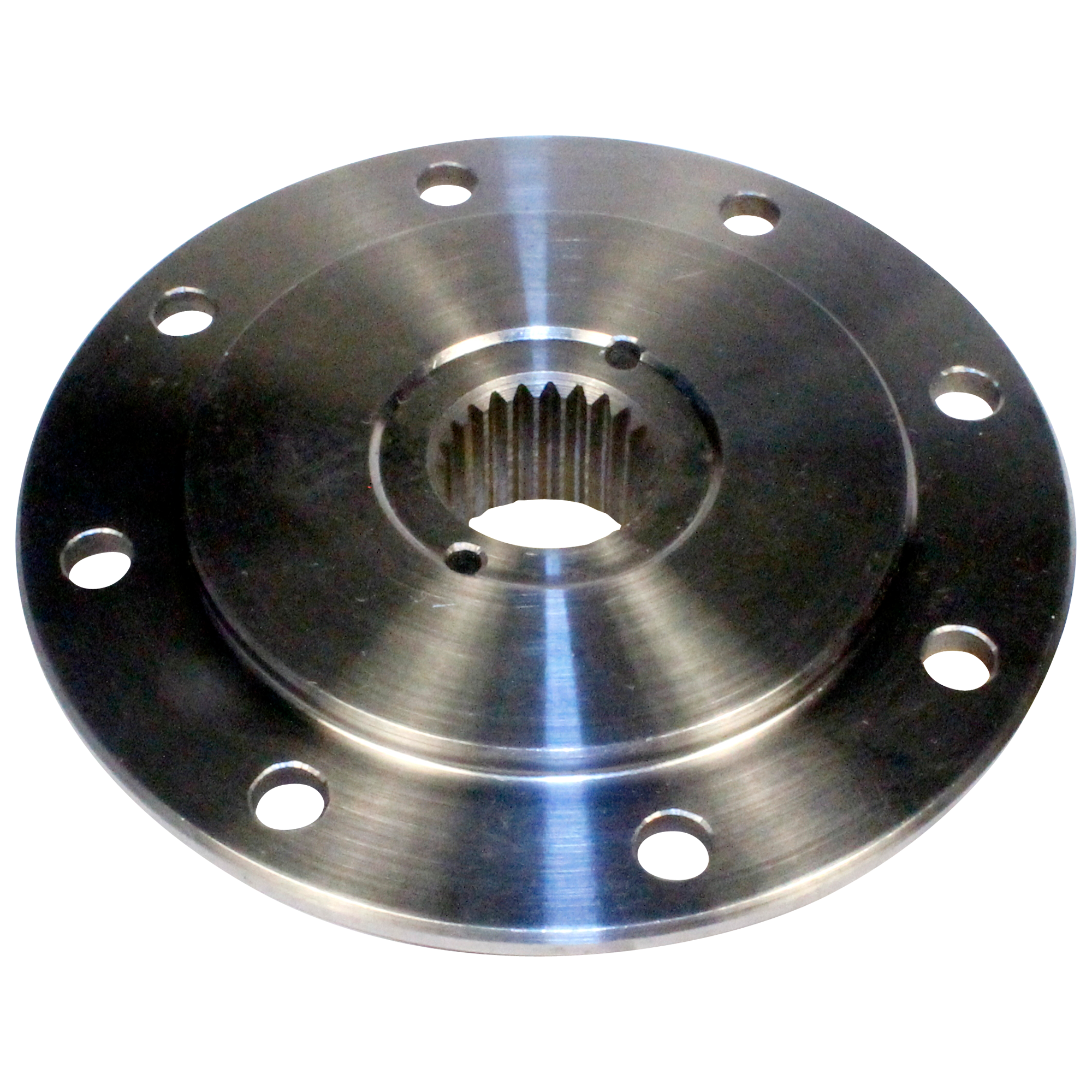

 BX-13-2HT
Turbine Hub BX-13-2HT
&
  • Internal Teeth: 23
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.66"

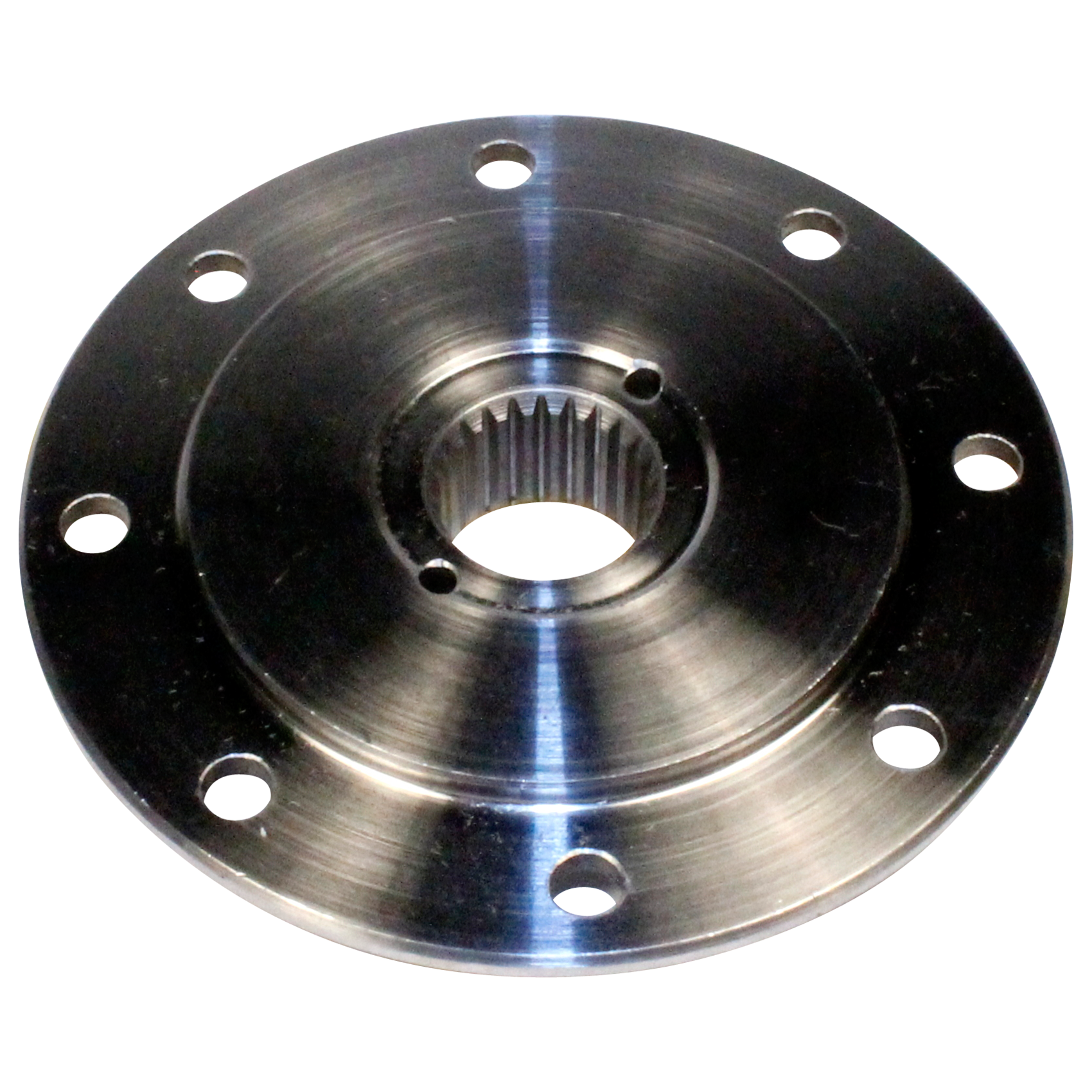

13 Turbine Hub
  • Height: 0.720
  • Internal Teeth: 24
  • Outside Dia: 3.66"

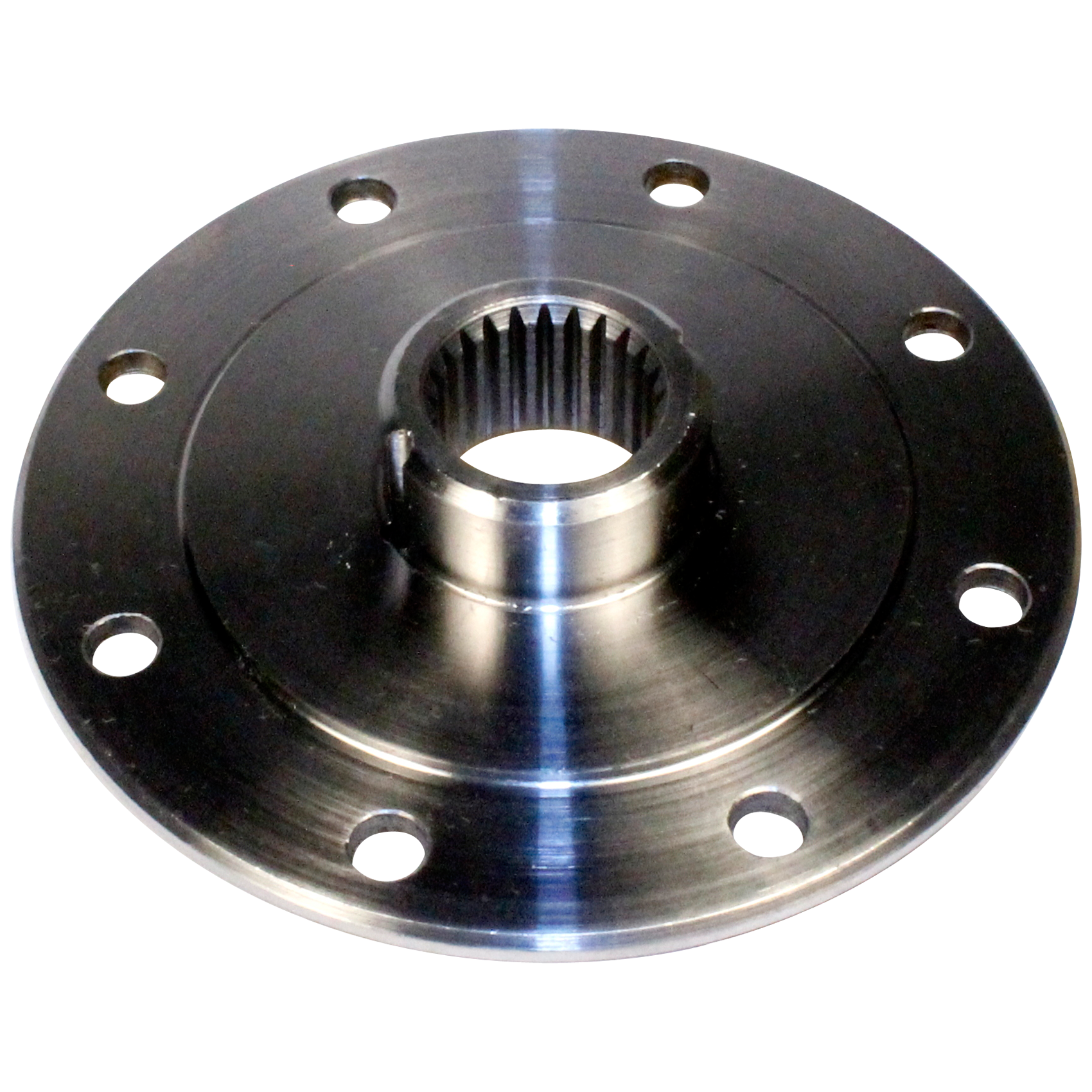

 BX-13-3
Turbine Hub BX-13-3
&
  • Height: 0.720
  • Internal Teeth: 24
  • Outside Dia: 3.66"
13 Turbine Hub
  • Height: 0.720
  • Internal Teeth: 24
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.66"
 BX-13-3HT
Turbine Hub BX-13-3HT
&
  • Height: 0.720
  • Internal Teeth: 24
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.66"
13 Turbine Hub
  • Internal Teeth: 26
  • Outside Dia: 3.66"

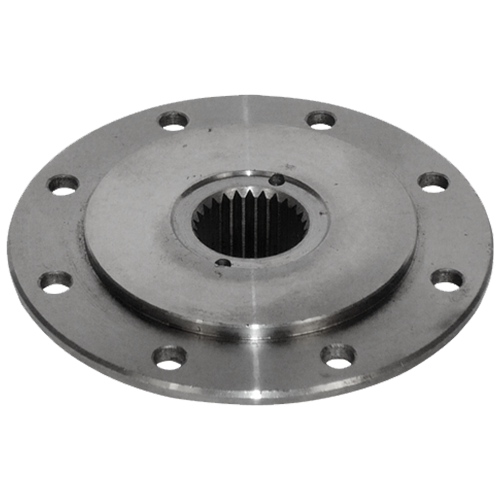

 BX-13-4
Turbine Hub BX-13-4
&
  • Internal Teeth: 26
  • Outside Dia: 3.66"
13 Insert Easy- Weld, Non-Lockup
  • Height: 0.880
  • Internal Teeth: 22
  • Outside Dia: 1"
 WX-13-22
Insert WX-13-22
Easy- Weld, Non-Lockup &
  • Height: 0.880
  • Internal Teeth: 22
  • Outside Dia: 1"
13 Insert
  • Height: 0.880
  • Internal Teeth: 23
  • Outside Dia: 1"
 WX-13-23
Insert WX-13-23
&
  • Height: 0.880
  • Internal Teeth: 23
  • Outside Dia: 1"
13 Insert Non-Lockup (Also B.W.)
  • Height: 0.880
  • Internal Teeth: 26
  • Outside Dia: 1.13"
 WX-13-26
Insert WX-13-26
Non-Lockup (Also B.W.) &
  • Height: 0.880
  • Internal Teeth: 26
  • Outside Dia: 1.13"
14 Rivet 8 Pieces Required.
  • Length: 0.312"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12
Rivet FX-12
& 8 Pieces Required.
  • Length: 0.312"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
14 Rivet 8 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"
 FX-12L
Rivet FX-12L
& 8 Pieces Required.
  • Length: .385"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.214"
  • Rivet Head Dia: 0.312"

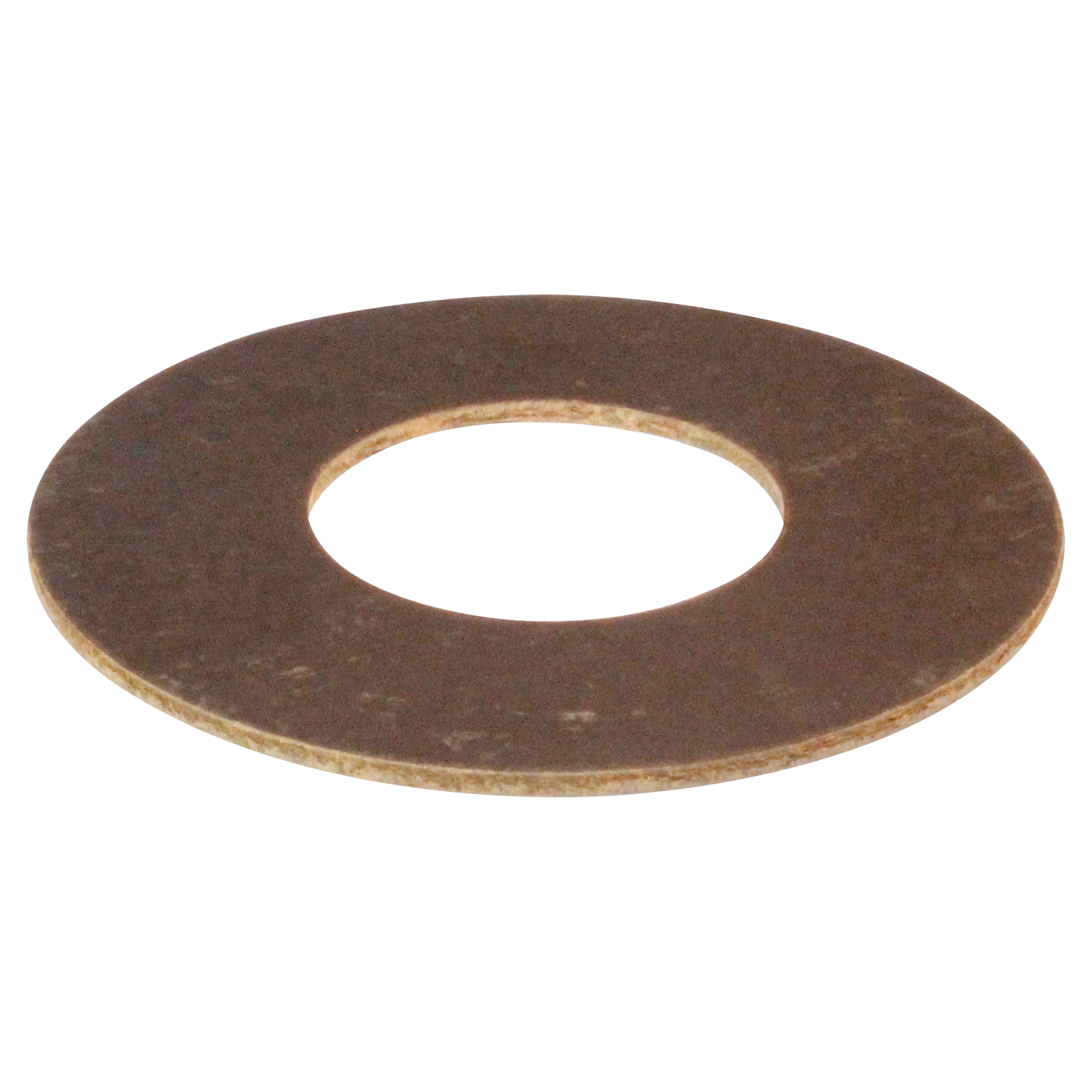

15 Turbine Washer
  • Thickness: .062"
  • Material: Fiber
  • Outside Dia: 2.48"
  • Inside Dia: 1.12"
 BW-9A
Turbine Washer BW-9A
&
  • Thickness: .062"
  • Material: Fiber
  • Outside Dia: 2.48"
  • Inside Dia: 1.12"
15 Turbine Washer
  • Thickness: .082"
  • Material: Fiber
  • Outside Dia: 2.48"
  • Inside Dia: 1.12"
  • Oversized
 BW-9B
Turbine Washer BW-9B
&
  • Thickness: .082"
  • Material: Fiber
  • Outside Dia: 2.48"
  • Inside Dia: 1.12"
  • Oversized
16 Front Cover NPN-14-16-16
Front Cover NPN-14-16-16
&
17 Ring Gear Ford
  • External Teeth: 110
  • Outside Dia: 11.12"
  • Inside Dia: 10.15"
 RG-110BA
Ring Gear RG-110BA
Ford &
  • External Teeth: 110
  • Outside Dia: 11.12"
  • Inside Dia: 10.15"
17 Ring Gear Hillman, Sunbeam
  • External Teeth: 115
  • Outside Dia: 11.65"
  • Inside Dia: 10.29"

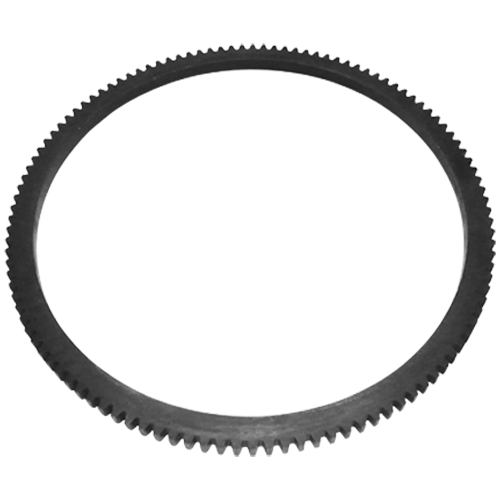

 RG-115B
Ring Gear RG-115B
& Hillman, Sunbeam
  • External Teeth: 115
  • Outside Dia: 11.65"
  • Inside Dia: 10.29"
17 Ring Gear BLMC 1800, Kimberly, Etc.
  • External Teeth: 120
  • Outside Dia: 12.02"
  • Inside Dia: 11.02"
 RG-120B
Ring Gear RG-120B
& BLMC 1800, Kimberly, Etc.
  • External Teeth: 120
  • Outside Dia: 12.02"
  • Inside Dia: 11.02"
17 Ring Gear Ford
  • External Teeth: 132
  • Outside Dia: 11.13"
  • Inside Dia: 10.022"

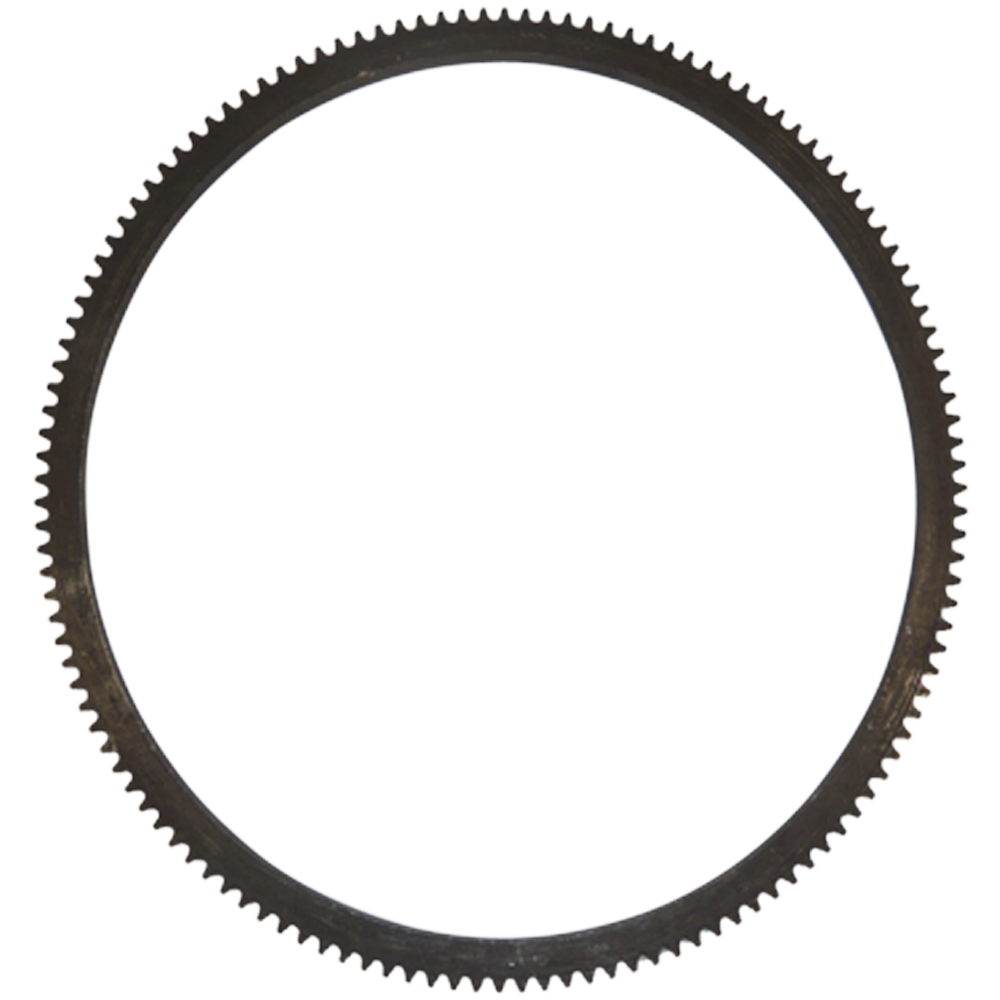

 RG-132B
Ring Gear RG-132B
& Ford
  • External Teeth: 132
  • Outside Dia: 11.13"
  • Inside Dia: 10.022"
17 Ring Gear Ford Capri, Etc.
  • External Teeth: 135
  • Outside Dia: 11.24"
  • Inside Dia: 10.14"
 RG-135B
Ring Gear RG-135B
& Ford Capri, Etc.
  • External Teeth: 135
  • Outside Dia: 11.24"
  • Inside Dia: 10.14"
18 Pilot Unfinished
  • Outside Dia: 0.750

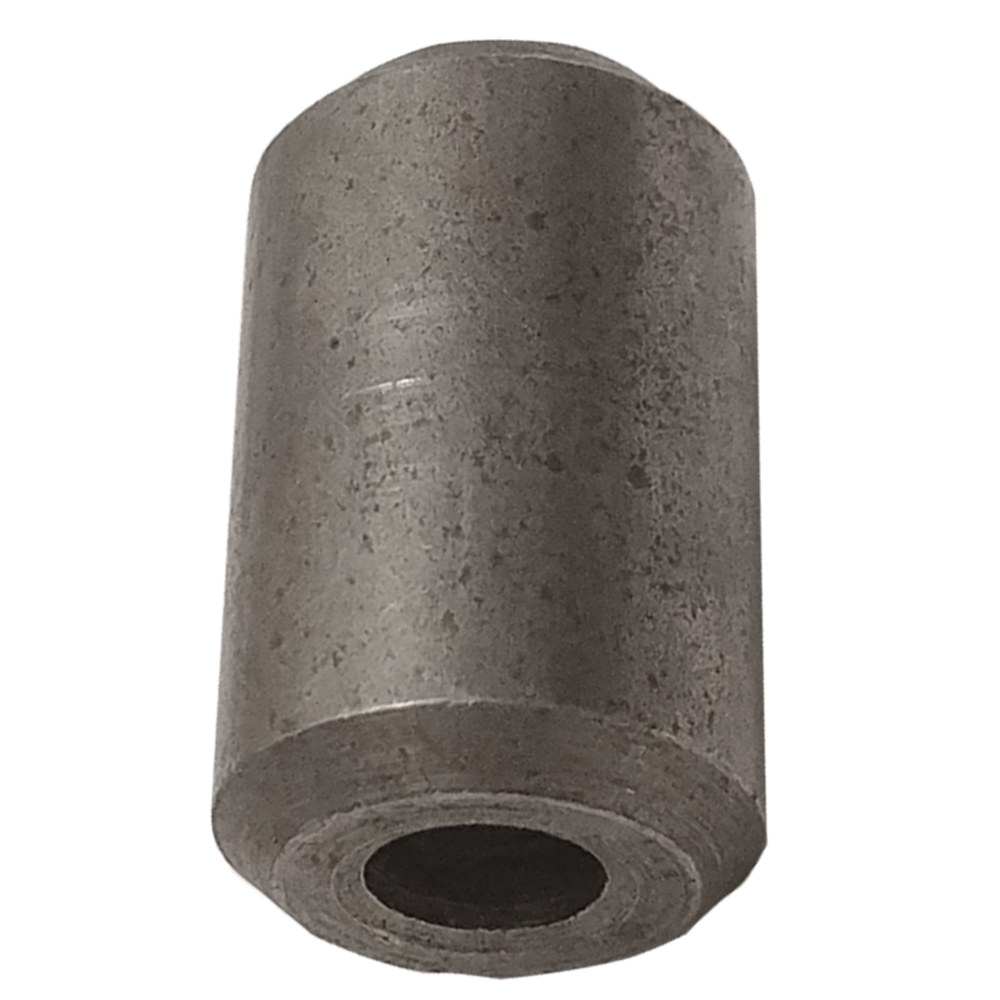

 WX-17-19X
Pilot WX-17-19X
Unfinished &
  • Outside Dia: 0.750
18 Pilot Unfinished
  • Length: .88"
  • Outside Dia: 0.875
 FX-17-30
Pilot FX-17-30
Unfinished &
  • Length: .88"
  • Outside Dia: 0.875
