1 |
|
Hubcap |
Fits 1-5/8" (41.3mm). Length: 1-3/8"
|
- Color: Black
- Fits 1-5/8" (41.3mm)
|
MHC-B
|
1 |
|
Hubcap |
Fits 1-7/8" (47.6mm). Length: 1-3/4"
|
- Color: Yellow
- Fits 1-7/8" (47.6mm)
|
MHC-Y
|
1 |
|
Hubcap |
Fits 1-7/8" (47.6mm). Length: 1"
|
|
MHC-YB
|

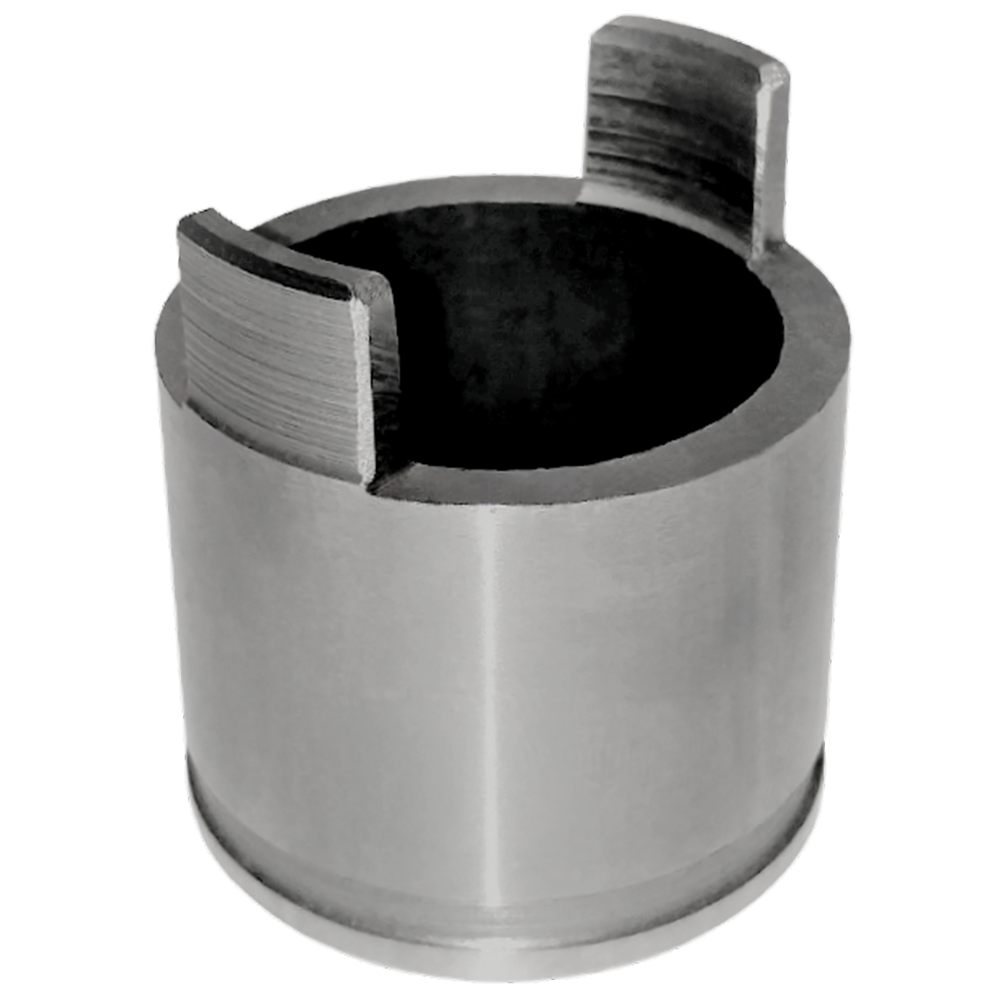

2 |
|
Impeller Hub |
11" Rambler
|
- Journal Dia: 1.684"
- Height: 1.860"
- Hub Mount: Butt
- Pump Drive Type: 2 Lugs (Lugs 0.570" Wide
0.500" High)
|
WH-1KG
|
2 |
|
Impeller Hub |
Unfinished
|
- Journal Dia: 1.685"
- Height: 2.625"
- Hub Mount: Butt
- Pump Drive Type: Lugs
|
WH-1T
|
2 |
|
Impeller Hub |
|
- Journal Dia: 1.685"
- Height: 2.000"
- Hub Mount: Butt
- Pump Drive Type: Lugs
|
WH-1TBG
|
2 |
|
Impeller Hub |
|
- Journal Dia: 1.684"
- Height: 2.000"
- Hub Mount: Butt
- Pump Drive Type: 2 Lugs (Lugs .58" Wide .56" High)
- Hardness: Heat-Treated (hardened)
|
WH-1TBGHT
|
2 |
|
Impeller Hub |
|
- Journal Dia: 1.685"
- Height: 2.625"
- Hub Mount: Butt
- Pump Drive Type: Lugs
|
WH-1TG
|
2 |
|
Impeller Hub |
|
- Journal Dia: 1.685"
- Installed Height: 2.812
- Hub Mount: Thru
|
WH-1-1G
|
2 |
|
Impeller Hub |
|
|
WH-1-1GHT
|
2 |
|
Impeller Hub |
Heat Treated,Special
|
- Journal Dia: 1.685"
- Installed Height: 2.812
- Hub Mount: Thru
- Hardness: Rc 32-36
|
WH-1-1GRC
|

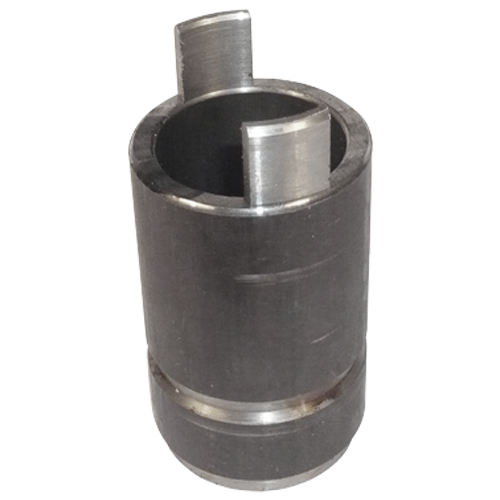

2 |
|
Impeller Hub |
Unfinished
|
- Journal Dia: 1.685"
- Installed Height: 2.91"
- Hub Mount: Thru
|
WH-1-4
|
2 |
|
Impeller Hub |
|
- Journal Dia: 1.685"
- Installed Height: 2.91"
- Hub Mount: Thru
|
WH-1-4G
|
2 |
|
Impeller Hub |
|
- Journal Dia: 1.685"
- Installed Height: 2.91"
- Hub Mount: Thru
|
WH-1-4GHT
|

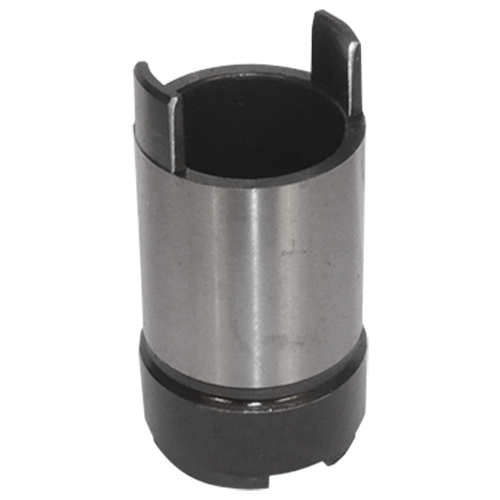

2 |
|
Impeller Hub |
|
- Journal Dia: 1.685"
- Installed Height: 2.91"
- Hub Mount: Thru
- Hardness: Rc 32-36
|
WH-1-4GRC
|
2 |
|
Impeller Hub |
Unfinished
|
- Journal Dia: 1.685"
- Installed Height: 2.675
|
WH-1A
|
2 |
|
Impeller Hub |
|
- Journal Dia: 1.685"
- Installed Height: 2.675
|
WH-1AG
|
2 |
|
Impeller Hub |
|
- Journal Dia: 1.937"
- Installed Height: 2.093"
- Hub Mount: Thru
- Pump Drive Type: Lugs
- Hardness: Rc 32-36
|
WH-1-5GRC
|
3 |
|
Ring Gear |
converter, Jaguar 133 teeth (F-10645)
|
- Outer Dia: 13.49"
- Inner Dia: 11.295"
|
RG-133
|
3 |
|
Ring Gear |
converter, Studebaker Commander
|
- Outer Dia: 13.52"
- Inner Dia: 12.096"
|
RG-133F
|
3 |
|
Shroud |
8 Cylinder
|
|
WX-19-1
|
4 |
|
Impeller |
|
|
NPN-14-12-4
|
4_N.I. |
|
Vane |
|
|
WX-21-11
|
4_N.I. |
|
Vane Kit |
Impeller, Angle " L" & "M", 31 Pcs.
|
|
WX-21-11K
|
4_N.I. |
|
Vane |
|
|
WX-21-11SSJ
|
4_N.I. |
|
Kit |
Vane
|
|
WX-21-11SSJK
|
4_N.I. |
|
Vane Kit |
Angle "S", 31 Pcs.
|
|
WX-21-11SK
|
4_N.I. |
|
Retainer |
Vane, "L" &"M" Angle
|
|
WX-21R
|
4_N.I. |
|
Retainer |
Vane, S Angle
|
|
WX-21RS
|
4_N.I. |
|
Plate |
Hub
Model 35
|
|
WX-21TA
|

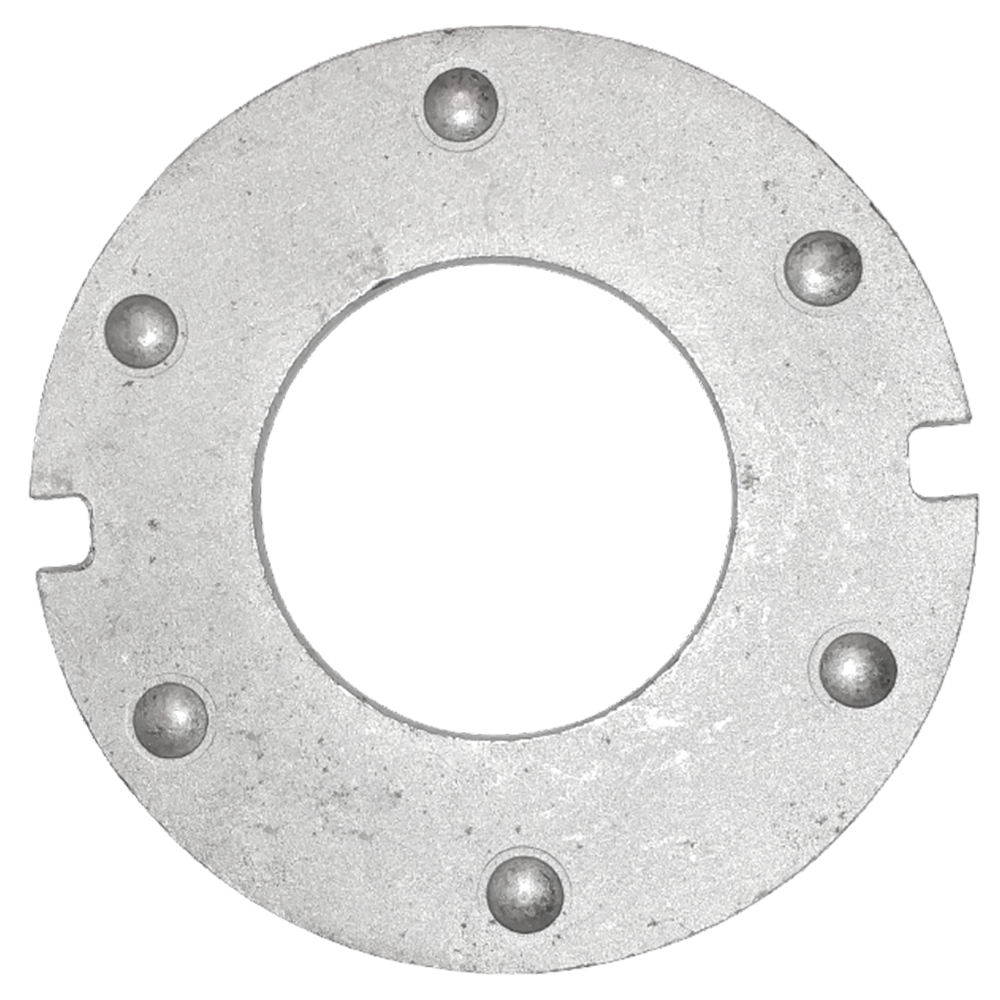

4_N.I. |
|
Plate |
Hub, Cast Iron
Model 01, 10
|
|
WX-21TB
|
5 |
|
Washer |
Models 35
|
- Outer Dia: 3.00"
- Inner Dia: 1.64"
- Thickness: .043"
- Material: Steel
- 2 Lugs
|
WW-2
|
5 |
|
Washer |
Wear-Plate
Models 01,10
|
- Outer Dia: 3.00"
- Inner Dia: 1.87"
- Thickness: .045"
- Material: Steel
- 2 Lugs, 0.481" wide
|
WW-2-3
|
6 |
|
Washer |
|
- Outer Dia: 3.06"
- Inner Dia: 1.87"
- Thickness: .05"
- Material: Steel
- 6 Tangs
|
WW-2-1
|
7 |
|
Washer |
Bronze, 2 lugs, HD
|
- Outer Dia: 2.91"
- Inner Dia: 1.8"
- Thickness: .080"
- Material: Bronze
|
FW-3
|
7 |
|
Washer |
|
- Outer Dia: 2.91"
- Inner Dia: 1.80"
- Thickness: .063"
- Material: Bronze
|
FW-3DW
|
7 |
|
Shim |
|
- Outer Dia: 2.36"
- Inner Dia: 1.482"
- Thickness: .010"
- (Replaced by TW-2X10)
|
FW-2-010
|
7 |
|
Shim |
|
- Outer Dia: 2.36"
- Inner Dia: 1.482"
- Thickness: .020"
- (Replaced by TW-2X)
|
FW-2-020
|
7 |
|
Shim |
|
- Outer Dia: 2.36"
- Inner Dia: 1.482"
- Thickness: .030"
- (Replaced by TW-2X30)
|
FW-2-030
|
7 |
|
Shim |
|
- Outer Dia: 2.95"
- Inner Dia: 2.16"
- Thickness: .010"
- Minimize Race Rubbing
|
TW-2-10
|
7 |
|
Shim |
|
- Outer Dia: 2.875"
- Inner Dia: 1.497"
- Thickness: .020"
|
TW-2X
|
7 |
|
Shim |
|
- Outer Dia: 2.875"
- Inner Dia: 1.497"
- Thickness: 0.010"
- Material: Steel
|
TW-2X10
|
7 |
|
Shim |
|
- Outer Dia: 2.875"
- Inner Dia: 1.497"
- Thickness: .03"
|
TW-2X30
|
7 |
|
Shim |
|
- Outer Dia: 2.875"
- Inner Dia: 1.497"
|
TW-2X-30
|
7 |
|
Shim |
|
- Outer Dia: 2.95"
- Inner Dia: 2.16"
- Thickness: .020"
|
TW-2-20
|
8 |
|
Washer |
2 Pieces Required.
|
- Outer Dia: 2.90"
- Inner Dia: 1.75"
- Thickness: .06"
- Material: Bronze On Steel
|
WW-3
|
8 |
|
Stator Cap |
2 Pieces Required.
|
- Outer Dia: 3.19"
- Inner Dia: 1.94"
- Thickness: .31"
- Material: Aluminum
- Functional Thickness: 0.156"
|
WW-4
|
8 |
|
Stator Cap |
|
- Outer Dia: 3.19"
- Inner Dia: 1.94"
- Thickness: .31"
- Material: Bronze
|
WW-4B
|
8 |
|
Shim |
|
- Outer Dia: 2.95"
- Inner Dia: 2.16"
- Thickness: .030"
|
TW-2-30
|
8 |
|
Stator Cap |
|
- Outer Dia: 3.19"
- Inner Dia: 1.8"
- Material: Aluminum
- Use With FW-3
|
WW-4-3
|
9 |
|
Stator |
|
|
NPN-14-12-9
|
10 |
|
Sprag |
|
- Outer Dia: 2.812"
- Inner Dia: 2.156"
- Standard Duty, 14 Cams
|
FC-6
|
10 |
|
Sprag Drag Strip |
|
|
FC-6D
|
10 |
|
Cam (Sprag Element) |
For FC-6-10
|
|
F-395
|
10 |
|
Cam (Sprag Element) |
For FC-6-10
|
|
F-407
|
10 |
|
Sprag |
20 cam
|
- Outer Dia: 2.812"
- Inner Dia: 2.156"
- Thickness: 0.625"
- 20 Cams (part-ID F-407), 2 Inside Strips Replaced By part-ID FC-6-10
|
FC-6-1
|
10 |
|
Sprag |
Heavy Duty
|
- Outer Dia: 2.812"
- Inner Dia: 2.156"
- Thickness: 0.625"
- 24 Cams (part-ID F-395), 12 Outside Clips, 3 Inside Strips
|
FC-6-10
|
10 |
|
Sprag |
|
- Outer Dia: 2.812"
- Inner Dia: 2.156"
- Thickness: 0.625"
- 20 Cams (F-395), 5 Outside Clips, 3 Inside Strips Replaced By FC-6-10
|
FC-6-3
|
10 |
|
Sprag |
Heavy Duty
|
- Outer Dia: 2.812"
- Inner Dia: 2.156"
- Thickness: 0.625"
- 20 Cams (F-407), 10 Outside Clips, 3 Inside Strips Replaced By FC-6-10
|
FC-6-4
|
10 |
|
Sprag |
|
- Outer Dia: 2.812
- Inner Dia: 2.156
- Thickness: 0.625"
- 22/24 Cams (F-407), 10 Outside Clips, 2/3 Inside Strips Replaced By part-ID FC-6-10
|
FC-6-9
|
11 |
|
Inner Race |
Stator
Model 35
|
- Height: 1.031"
- Outer Dia: 2.156"
- Internal Teeth: 38 (12 Removed)
|
WX-14
|
11 |
|
Inner Race |
Stator
Model 01, 10
|
- Height: 1.031"
- Outer Dia: 2.156"
- Internal Teeth: 29 (10 Removed)
|
WX-14-1
|

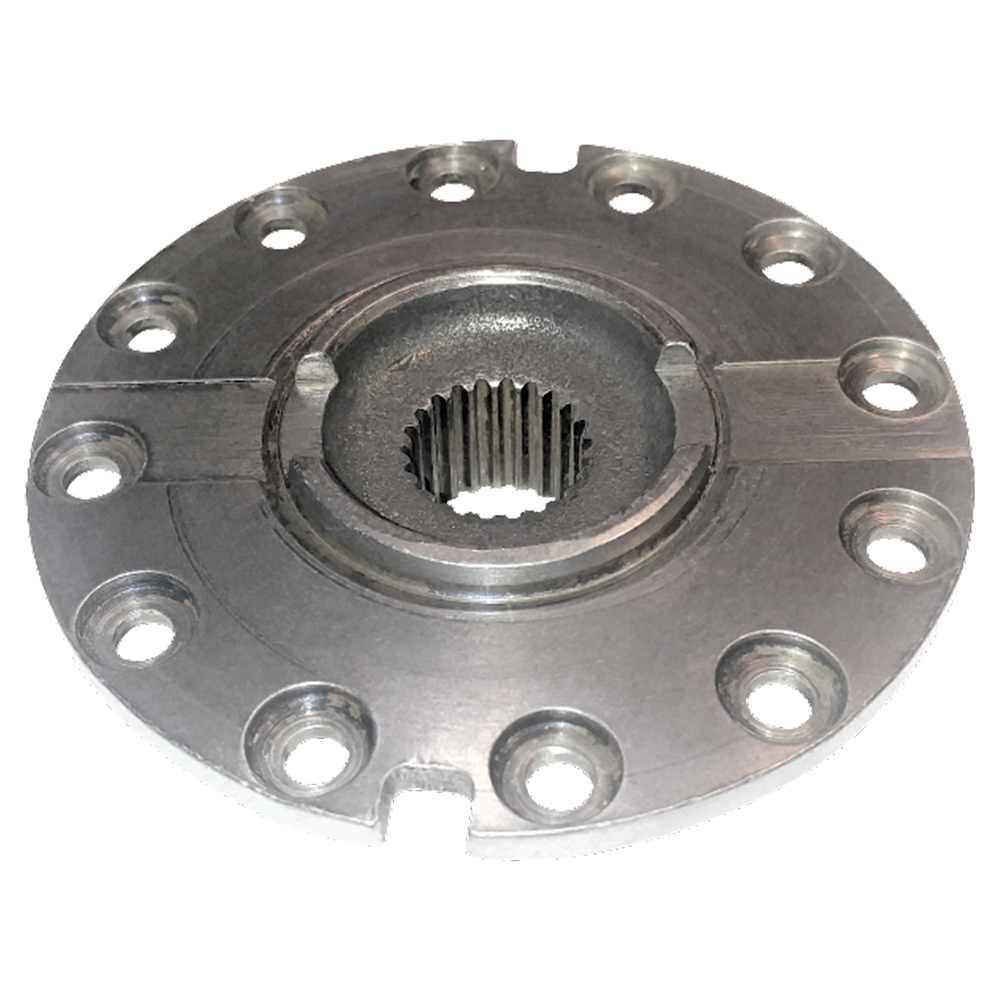

12 |
|
Turbine Hub |
Model 35
|
- Height: 1.020
- Outer Dia: 3.45"
- Internal Teeth: 22
- Use With Bronze Washer
|
WX-13-1
|
12 |
|
Turbine Hub |
|
- Internal Teeth: 23
- Use With Bronze Washer
|
WX-13-2
|
12 |
|
Turbine Hub |
|
- Height: 1.220
- Internal Teeth: 22
- Use With Fiber Washer
|
WX-13-3
|
12 |
|
Turbine Hub |
|
- Height: 1.220
- Outer Dia: 3.45"
- Internal Teeth: 22
- Hardness: Heat-Treated (hardened)
|
WX-13-3HT
|
12 |
|
Turbine Hub |
|
- Internal Teeth: 26
- Use With Fiber Washer
|
WX-13-4
|
12 |
|
Turbine Hub |
Use With Fibre Washer
|
- Height: 1.450
- Outer Dia: 3.45"
- Internal Teeth: 17
|
WX-13-7
|
12 |
|
Turbine Hub |
|
|
WX-13-7HT
|
12 |
|
Turbine Hub |
Use With Fibre Washer
|
- Height: 1.450
- Internal Teeth: 29
|
WX-13-8
|

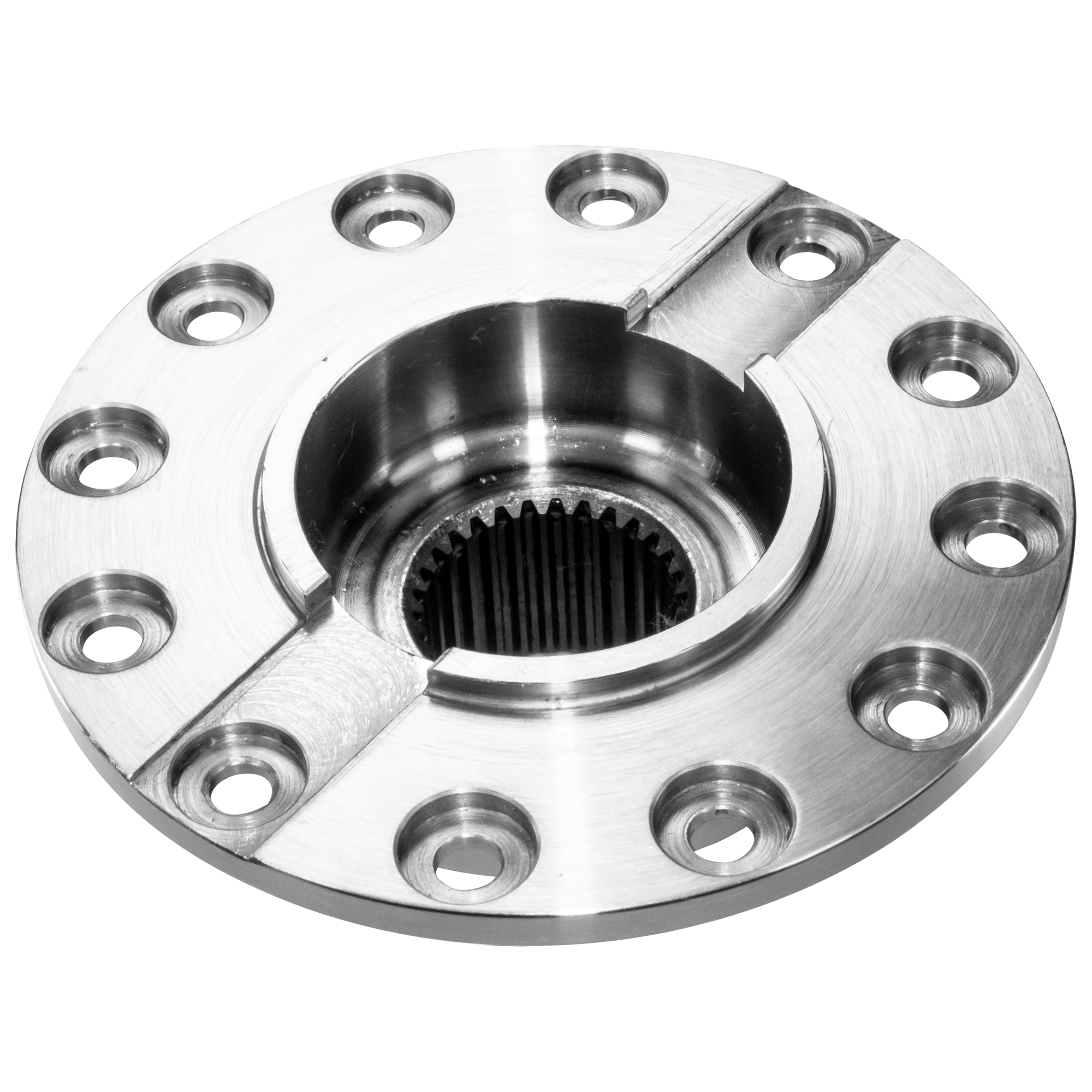

12 |
|
Turbine Hub |
Use With Fibre Washer
|
- Height: 1.450
- Internal Teeth: 29
- Hardness: Heat-Treated (hardened)
|
WX-13-8HT
|
12 |
|
Turbine Hub |
Use With Bronze Washer
|
|
WX-13-9
|
12 |
|
Turbine Hub |
|
- Height: 1.220
- Outer Dia: 3.45"
- Internal Teeth: 26
- Hardness: Heat-Treated (hardened)
|
WX-13-9HT
|
12 |
|
Turbine Hub |
|
- Height: 1.220
- Internal Teeth: 23
|
WX-13-10
|
12 |
|
Turbine Hub |
Use With Bronze Washer
|
- Height: 1.220
- Outer Dia: 3.45"
- Internal Teeth: 23
- Hardness: Heat-Treated (hardened)
|
WX-13-10HT
|
12_N.I. |
|
Insert |
|
- Height: 0.880
- Outer Dia: 1.13"
- Internal Teeth: 17
|
WX-13-17
|
12_N.I. |
|
Insert |
Easy- Weld, Non-Lockup
|
- Height: 0.880
- Outer Dia: 1"
- Internal Teeth: 22
|
WX-13-22
|
12_N.I. |
|
Insert |
|
- Height: 0.880
- Outer Dia: 1"
- Internal Teeth: 23
|
WX-13-23
|
12_N.I. |
|
Insert |
Non-Lockup (Also B.W.)
|
- Height: 0.880
- Outer Dia: 1.13"
- Internal Teeth: 26
|
WX-13-26
|
12_N.I. |
|
Insert |
|
- Height: 1.030
- Outer Dia: 1.19"
- Internal Teeth: 29
|
WX-13-29
|
13 |
|
Turbine |
|
|
WX-8
|
13_N.I. |
|
Vane |
|
|
WX-8-11
|
13_N.I. |
|
Vane |
|
|
WX-8-11E
|
13_N.I. |
|
Vane Kit |
31 Pcs.
|
|
WX-8-11K
|
13_N.I. |
|
Retainer |
Vane, Core Ring
|
|
WX-8R
|
14 |
|
Rivet |
12 Pieces Required.
|
- Length: 0.218"
- Rivet solid or tubular: Tubular
- Rivet Shank Dia: 0.193"
- Rivet head dia: 0.312"
|
WX-12
|
14 |
|
Rivet |
12 Pieces Required.
|
- Length: 0.31"
- Rivet solid or tubular: Tubular
- Rivet Shank Dia: 0.193"
- Rivet head dia: 0.312"
|
WX-12A
|
15 |
|
Turbine Washer |
4 Lugs
|
- Outer Dia: 1.845"
- Inner Dia: 1.38"
- Thickness: .06"
- Material: Bronze
|
WW-9
|
16 |
|
Shim |
|
- Outer Dia: 1.91"
- Inner Dia: 1.45"
- Thickness: .010"
|
WW-9-1
|
17 |
|
Turbine Washer |
|
- Outer Dia: 2.13"
- Inner Dia: 1.25"
- Thickness: .063"
- Material: Fiber
|
WW-9-7A
|
17 |
|
Turbine Washer |
|
- Outer Dia: 2.13"
- Inner Dia: 1.25"
- Thickness: 0.094"
- Material: Fiber
|
WW-9-7B
|
18 |
|
Thrust Plate |
No Slots For Fiber Washers
|
|
WX-22T
|
18 |
|
Thrust Pad |
|
|
WX-22B
|

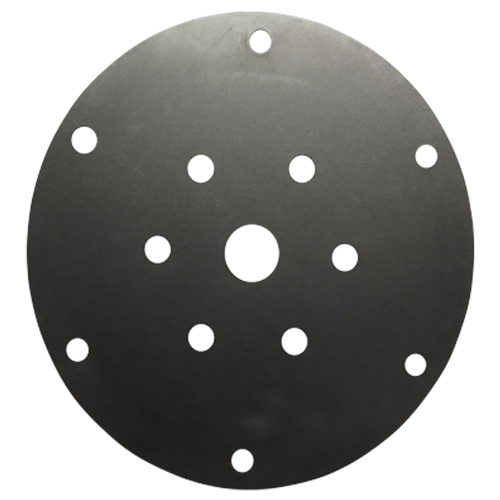

188 |
|
Flexplate |
Rambler, 1957-1971
|
|
WX-600
|
19 |
|
Drain Plug |
1/8-27 NPT, PTFE, Wrap
|
|
FX-11A
|
19 |
|
Drain Plug |
|
- Material: Steel
- 1/8-27 NPT
|
FX-11
|
19 |
|
Drain Plug |
|
- Allen socket drain plug for use with drilled converters.
|
FX-11B
|
190 |
|
Reinforcement Ring |
For WX-601
|
|
WX-601P
|
20 |
|
Front Cover |
|
|
NPN-14-12-20
|
21 |
|
Flexplate |
Studebaker
|
|
WX-601
|
21 |
|
Ring Gear |
|
- Outer Dia: 12.59"
- Inner Dia: 11.29"
- External teeth: 124
|
RG-124
|
21 |
|
Ring Gear |
|
- Outer Dia: 12.47"
- Inner Dia: 11.29"
- External teeth: 149
|
RG-149
|
21 |
|
Ring Gear |
Converter Studebaker, 151 teeth
|
- Outer Dia: 12.68"
- Inner Dia: 11.296"
- External teeth: 151
|
RG-151
|

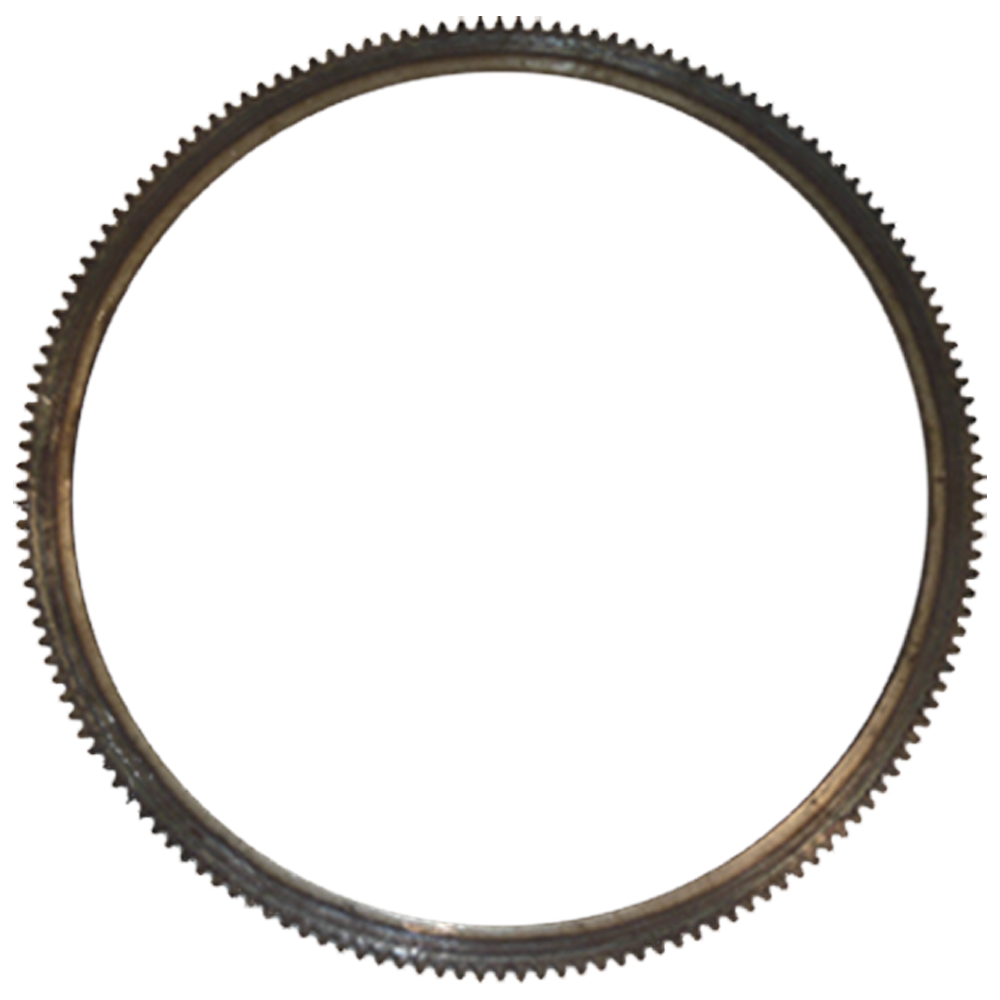

21 |
|
Ring Gear |
|
- Outer Dia: 12.75"
- Inner Dia: 11.295"
- Thickness: 0.38"
- External teeth: 153
|
RG-153
|

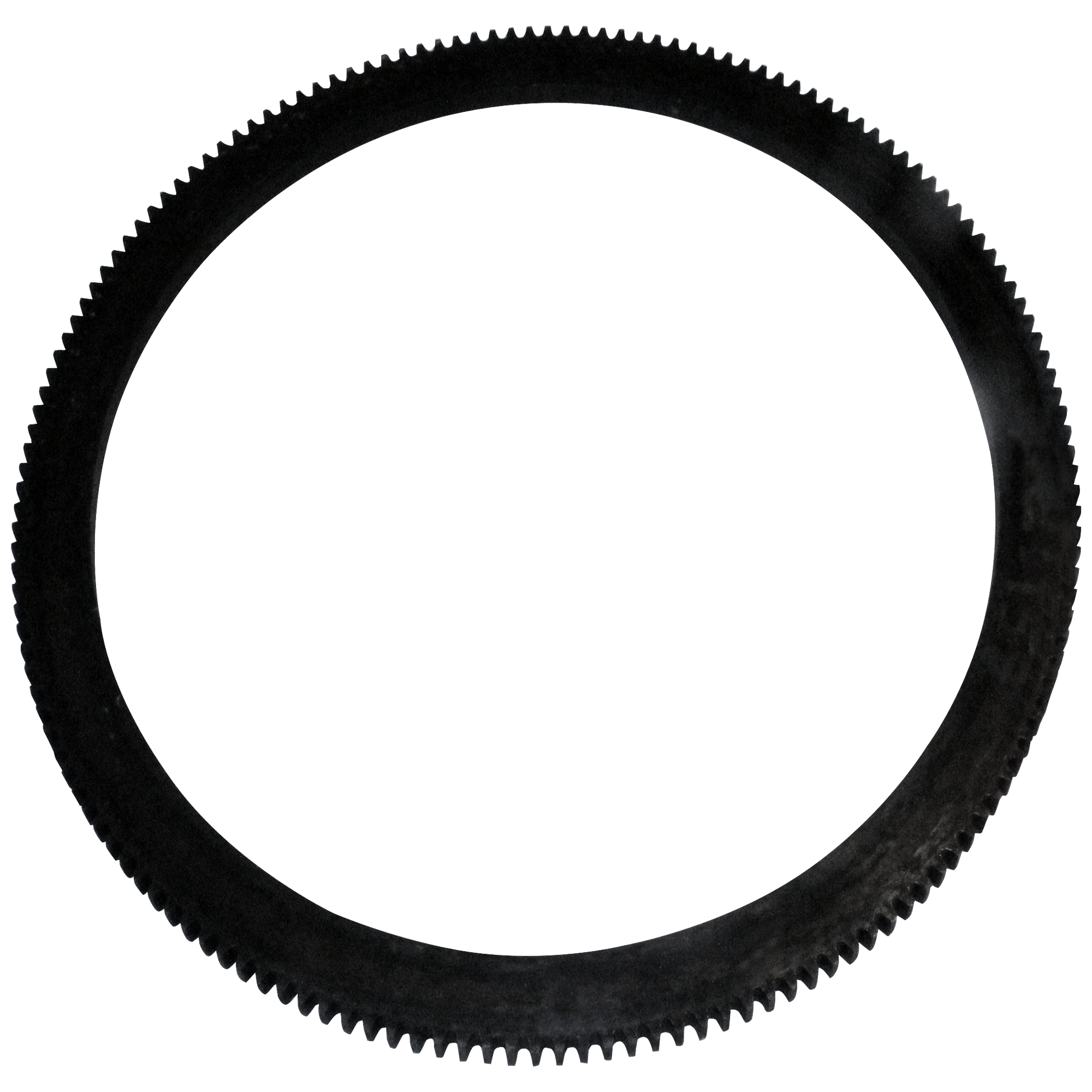

21 |
|
Ring Gear |
|
- Outer Dia: 13.29"
- Inner Dia: 11.295"
- External teeth: 158
|
RG-158
|
21 |
|
Ring Gear |
|
- Outer Dia: 13.31"
- Inner Dia: 11.295"
- External teeth: 159
|
RG-159
|
21 |
|
Ring Gear |
Converter, Studebaker, 162 teeth (F-153)
|
- Outer Dia: 13.7"
- Inner Dia: 11.295"
- External teeth: 162
|
RG-162
|
22 |
|
Nut |
Mounting
6 Pieces Required.
|
|
WX-10-2
|
22 |
|
Nut |
6 Pieces Required.
|
|
WX-10-2A
|

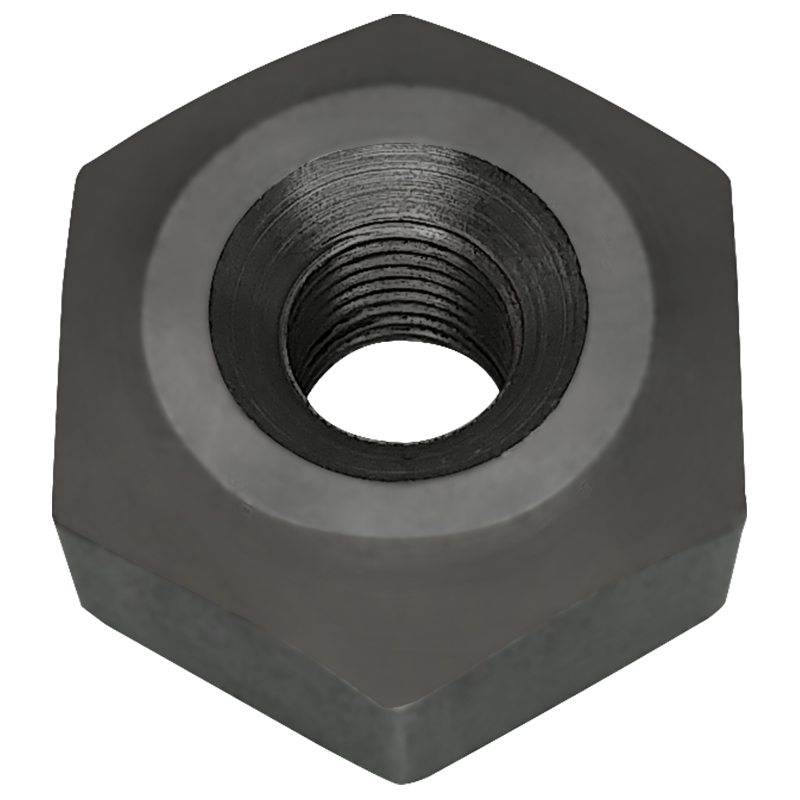

22 |
|
Nut |
6 Pieces Required.
|
- Dimensions: 1" Hex, 3/8-24 Thread, 0.50" Thick
|
WX-10-3
|
22 |
|
Nut |
6 Pieces Required.
|
|
WX-10-3A
|
22 |
|
Nut |
6 Pieces Required.
|
- Dimensions: 1" Hex, 3/8-24 Thread, 0.56" Thick
|
WX-10-8
|
23 |
|
Pilot |
Finished
|
|
WX-17-19
|
23 |
|
Pilot |
Unfinished
|
|
WX-17-19X
|
23_N.I. |
|
Pilot |
Button
(For Rambler DD & JD Converter)
|
|
WX-17-41
|
