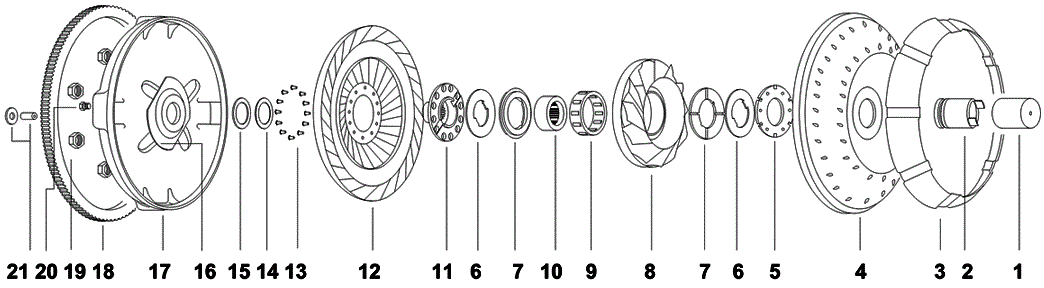

Torque Converter | Borg Warner | 11" Except U.S.A.,Type 2, Models 8, 12 & 35, 65, 66

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1"
  • Color: Yellow
 MHC-YB
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1-3/4"
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
 MHC-Y
2 Impeller Hub
  • Journal Dia: 1.685"
  • Installed Height: 2.21"
  • Hub Mount: Thru
  • Pump Drive Type: Lugs
 WH-1-12G
2 Impeller Hub
  • Journal Dia: 1.685"
  • Installed Height: 2.000"
  • Hub Mount: Thru
  • Pump Drive Type: Lugs
 WH-1-15G

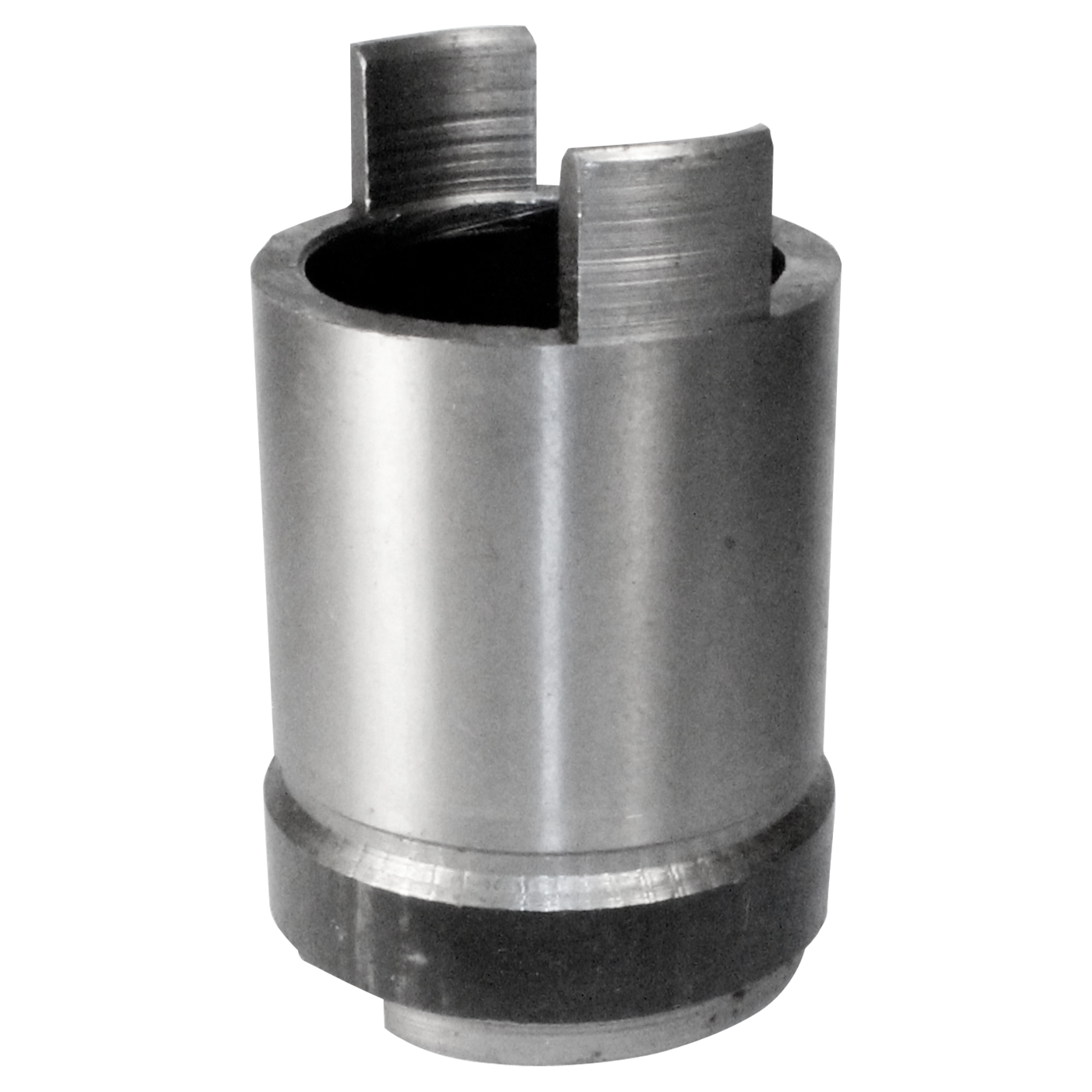

2 Impeller Hub
  • Journal Dia: 1.685"
  • Installed Height: 2.51"
 WH-1-11G

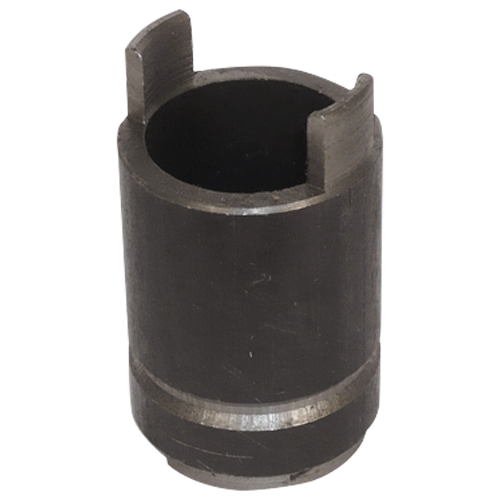

2 Impeller Hub
  • Journal Dia: 1.685"
 WH-1-11
2 Impeller Hub
  • Journal Dia: 1.685"
  • Height: 2.59"
  • Hub Mount: Butt
  • Pump Drive Type: 2 Lugs
 WH-1-6G
2 Impeller Hub
  • Journal Dia: 1.685"
  • Height: 2.59"
  • Hub Mount: Butt
  • Pump Drive Type: 2 Lugs
  • Hardness: Rc 32-36
 WH-1-6GRC
2 Impeller Hub
  • Journal Dia: 1.937"
  • Installed Height: 2.025"
  • Hub Mount: Thru
  • Pump Drive Type: Lugs
  • Hardness: Rc 32-36
 WH-1-13GRC
2 Impeller Hub
  • Journal Dia: 1.937"
  • Installed Height: 1.68"
  • Hub Mount: Thru
  • Pump Drive Type: Lugs
 WH-1-17G
2 Impeller Hub
  • Journal Dia: 1.937"
  • Installed Height: 1.68"
  • Hub Mount: Thru
  • Pump Drive Type: 2 Lugs
  • Hardness: Rc 32-36
 WH-1-17GRC
2 Impeller Hub
  • Journal Dia: 1.937"
  • Installed Height: 2.05"
  • Hardness: Rc 32-36
 FH-1MTAGRC
2 Impeller Hub
  • Journal Dia: 1.937"
  • Installed Height: 2.025"
  • Hub Mount: Thru
  • Pump Drive Type: Lugs
 WH-1-13G
2 Impeller Hub
  • Journal Dia: 1.937"
  • Installed Height: 2.05"
 FH-1MTAG
2 Impeller Hub
  • Journal Dia: 1.937"
  • Height: 2.000"
  • Hub Mount: Butt
  • Pump Drive Type: Lugs
  • Hardness: Rc 32-36
 WH-1-19GRC
2 Impeller Hub
  • Journal Dia: 1.937"
  • Installed Height: 1.939"
  • Hub Mount: Butt
  • Pump Drive Type: 2 Lugs
  • Hardness: Rc 32-36
 WH-1-23GRC
2 Impeller Hub
  • Journal Dia: 1.937"
  • Installed Height: 2.093"
  • Hub Mount: Thru
  • Pump Drive Type: Lugs
  • Hardness: Rc 32-36
 WH-1-5GRC
4 Impeller NPN-14-10-4
4 Vane WX-21-11
4 Vane Kit Impeller, Angle " L" & "M", 31 Pcs. WX-21-11K
4 Vane WX-21-11SSJ
4 Kit Vane WX-21-11SSJK
5 Plate Hub WX-21TA
6 Washer
  • Thickness: .043"
  • Material: Steel
  • Lug Count: 2
  • Outside Dia: 3.00"
  • Inside Dia: 1.64"
 WW-2
6 Washer Wear-Plate 2 Pieces Required.
  • Thickness: .045"
  • Material: Steel
  • Lug Count: 2
  • Lug Width: 0.481"
  • Outside Dia: 3.00"
  • Inside Dia: 1.87"
 WW-2-3
7 Washer 2 Pieces Required.
  • Thickness: .06"
  • Material: Bronze On Steel
  • Outside Dia: 2.90"
  • Inside Dia: 1.75"
 WW-3
7 Stator Cap 2 Pieces Required.
  • Thickness: 0.31"
  • Material: Aluminum
  • Functional Thickness: 0.156"
  • Outside Dia: 3.19"
  • Inside Dia: 1.94"
 WW-4
8 Stator NPN-14-10-8
9 Sprag
  • Thickness: 0.625"
  • Cam Count: 14 elements
  • Outside Dia: 2.812"
  • Inside Dia: 2.156"
  • Standard Duty
 FC-6
9 Sprag Drag Strip FC-6D
9 Sprag
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outside Dia: 2.812"
  • Inside Dia: 2.156"
  • Cam part-ID: F-407), 2 Inside Strips Replaced By part-ID FC-6-10
 FC-6-1
9 Sprag
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outside Dia: 2.812"
  • Inside Dia: 2.156"
  • Cam Part ID: F-395, 5 Outside Clips, 3 Inside Strips Replaced By FC-6-10
 FC-6-3
10 Inner Race Stator Model 35, 65
  • Height: 1.031"
  • Internal Teeth: 38 (12 Removed)
  • Outside Dia: 2.156"
 WX-14
10 Inner Race Stator Model 8, 12
  • Height: 1.031"
  • Internal Teeth: 29 (10 Removed)
  • Outside Dia: 2.156"
 WX-14-1
11 Turbine Hub
  • Height: 1.220
  • Internal Teeth: 22
  • Use With Fiber Washer
 WX-13-3
11 Turbine Hub
  • Height: 1.220
  • Internal Teeth: 22
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.45"
 WX-13-3HT
11 Turbine Hub
  • Internal Teeth: 26
 WX-13-9
11 Turbine Hub
  • Height: 1.220
  • Internal Teeth: 26
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.45"
 WX-13-9HT
11 Turbine Hub
  • Height: 1.220
  • Internal Teeth: 23
 WX-13-10
11 Turbine Hub
  • Height: 1.220
  • Internal Teeth: 23
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.45"
 WX-13-10HT
11 Turbine Hub
  • Height: 1.450
  • Internal Teeth: 17
  • Outside Dia: 3.45"
 WX-13-7
11 Turbine Hub
  • Outside Dia: 3.45"
 WX-13-7HT
11 Turbine Hub
  • Height: 1.450
  • Internal Teeth: 29
 WX-13-8
11 Turbine Hub
  • Height: 1.450
  • Internal Teeth: 29
  • Hardness: Heat-Treated (hardened)
 WX-13-8HT
11 Turbine Hub
  • Internal Teeth: 27
 WX-13-13
11 Turbine Hub
  • Internal Teeth: 27
  • Hardness: Heat-Treated (hardened)
 WX-13-13HT
11_N.I. Insert
  • Height: 0.880
  • Internal Teeth: 17
  • Outside Dia: 1.13"
 WX-13-17
11_N.I. Insert Easy- Weld, Non-Lockup
  • Height: 0.880
  • Internal Teeth: 22
  • Outside Dia: 1"
 WX-13-22
11_N.I. Insert
  • Height: 0.880
  • Internal Teeth: 23
  • Outside Dia: 1"
 WX-13-23
11_N.I. Insert Non-Lockup (Also B.W.)
  • Height: 0.880
  • Internal Teeth: 26
  • Outside Dia: 1.13"
 WX-13-26
11_N.I. Insert
  • Height: 1.030
  • Internal Teeth: 29
  • Outside Dia: 1.19"
 WX-13-29
12 Turbine NPN-14-10-12
12 Misc 12 Pieces Required. NPN-SPL
12_N.I. Vane WX-8-11
12_N.I. Vane WX-8-11E
12_N.I. Vane Kit 31 Pcs. WX-8-11K
12_N.I. Retainer Vane, Core Ring WX-8R
13 Rivet 12 Pieces Required.
  • Length: 0.218"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet head dia: 0.312"
 WX-12
13 Rivet Alternate. 12 Pieces Required.
  • Length: 0.31"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet head dia: 0.312"
 WX-12A
13 Cam (Sprag Element) For FC-6-10 F-395
13 Cam (Sprag Element) For FC-6-10 F-407
13 Sprag Heavy Duty
  • Thickness: 0.625"
  • Cam Count: 24 elements
  • Outside Dia: 2.812"
  • Inside Dia: 2.156"
  • Cam part-ID: F-395, 12 Outside Clips, 3 Inside Strips
 FC-6-10
13 Sprag Heavy Duty
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outside Dia: 2.812"
  • Inside Dia: 2.156"
  • Cam Part ID:(F-407), 10 Outside Clips, 3 Inside Strips Replaced By FC-6-10
 FC-6-4
13 Sprag
  • Thickness: 0.625"
  • Cam Count: 22 elements
  • Outside Dia: 2.812
  • Inside Dia: 2.156
  • Cam part-ID: F-407, 10 Outside Clips, 2/3 Inside Strips Replaced By part-ID FC-6-10
 FC-6-9
14 Turbine Washer
  • Thickness: .063"
  • Material: Fiber
  • Outside Dia: 2.13"
  • Inside Dia: 1.25"
 WW-9-7A
14 Turbine Washer
  • Thickness: 0.094"
  • Material: Fiber
  • Outside Dia: 2.13"
  • Inside Dia: 1.25"
 WW-9-7B
15 Plate Repair Thrust Plates, Requires Machining After Welding
  • Thickness: 0.094
  • Material: Steel
  • Outside Dia: 2.250
  • Inside Dia: 1.26"
 WW-9-8
16 Thrust Plate
  • Height: .450"
  • No Slots For Fiber Washers
 WX-22TA
17 Front Cover NPN-14-10-17

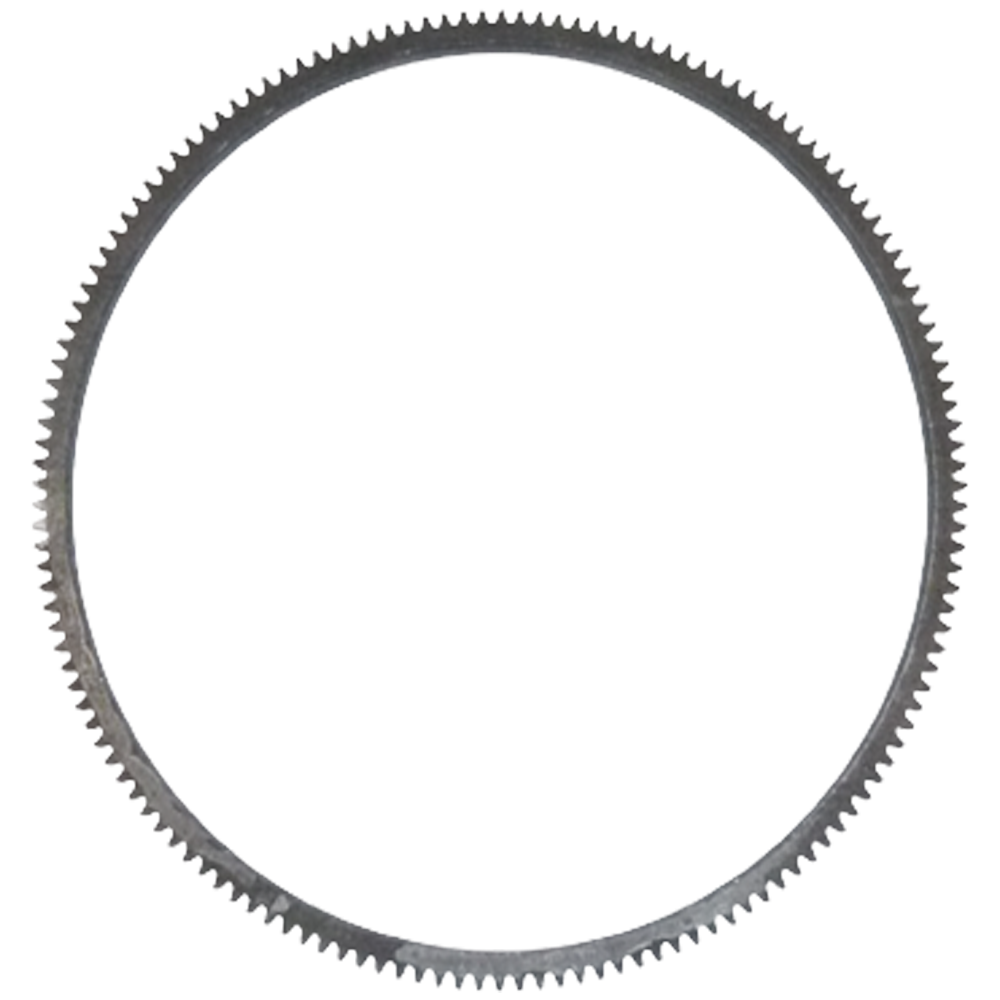

18 Ring Gear Australia, Chrysler
  • External teeth: 148
  • Outside Dia: 12.51"
  • Inside Dia: 11.5"
 RG-148A
19 Nut 6 Pieces Required.
  • Dimensions: 1" Hex, 3/8-24 Thread, NF-2
  • Length: 0.500"
 WX-10-3
19 Nut 6 Pieces Required. WX-10-3A
19 Nut 6 Pieces Required.
  • Dimensions: 1" Hex, 3/8"-24 Thread, NF-2
  • Length: 0.565"
 WX-10-8
19 Nut Mounting, Round 3/8-24 Thread 6 Pieces Required.
  • Dimensions: 3/8"-24
  • Length: 0.603"
 WX-10-7
19 Nut Mounting Round 6 Pieces Required.
  • Dimensions: 3/8"-24 , 1" Dia.
  • Length: 0.603"
 WX-10-9
20 Drain Plug
  • Material: Steel
  • 1/8-27 NPT
 FX-11
20 Drain Plug 1/8-27 NPT, PTFE, Wrap FX-11A
20 Drain Plug
  • Allen socket drain plug for use with drilled converters.
 FX-11B
21 Pilot Finished
  • Outside Dia: 0.750
 WX-17-19
21 Pilot Unfinished
  • Outside Dia: 0.750
 WX-17-19X
21 Pilot
  • Outside Dia: 1.375"
 WX-17-35
