Part Search

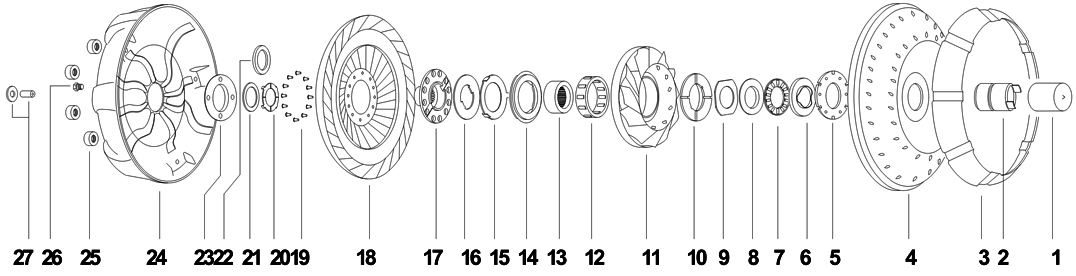

Torque Converter | Borg Warner | 11" Except U.S.A.,Type 1, Models 8, 12 & 35, 65, Early Jaguar

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1"
  • Color: Yellow
 MHC-YB
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1-3/4"
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
 MHC-Y
1 Hubcap Fits 2" (50.8mm). Length: 1-1/2"
  • Color: Red
  • Fits 2" (50.8mm)
 MHC-R
2 Impeller Hub Unfinished
  • Journal Dia: 1.685"
  • Installed Height: 1.680"
  • Hub Mount: Thru
  • Pump Drive Type: Lugs
 WH-1-14
2 Impeller Hub WH-1-1GHT
2 Impeller Hub
  • Journal Dia: 1.685"
  • Height: 2.59"
  • Hub Mount: Butt
  • Pump Drive Type: 2 Lugs
  • Hardness: Rc 32-36
 WH-1-6GRC

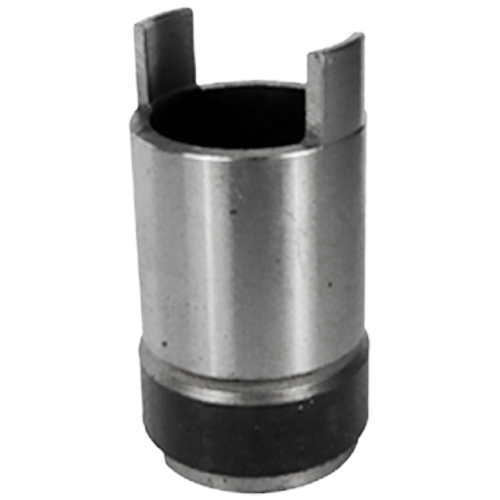

2 Impeller Hub
  • Journal Dia: 1.685"
  • Installed Height: 2.812
  • Hub Mount: Thru
 WH-1-1G

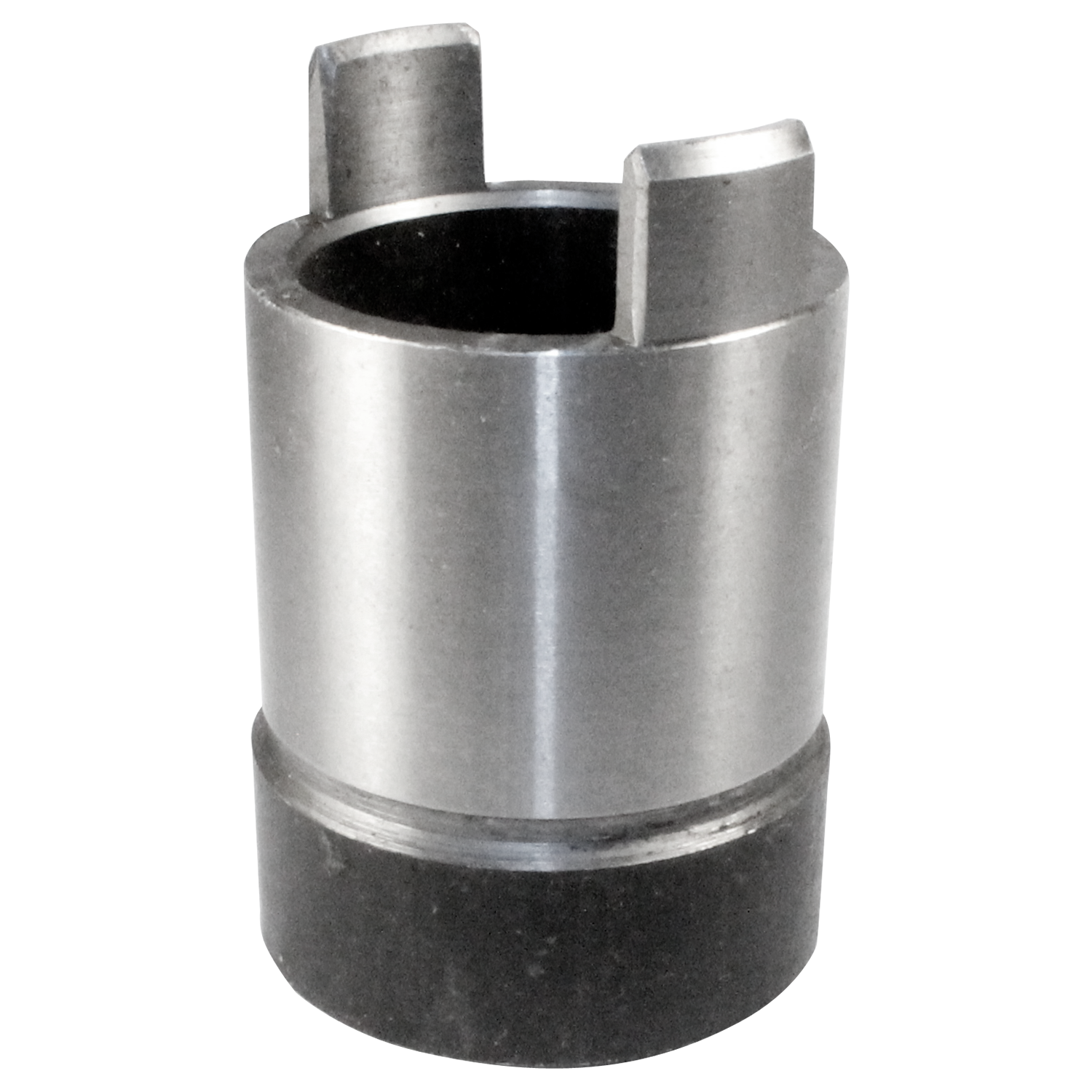

2 Impeller Hub
  • Journal Dia: 1.685"
  • Height: 2.59"
  • Hub Mount: Butt
  • Pump Drive Type: 2 Lugs
 WH-1-6G

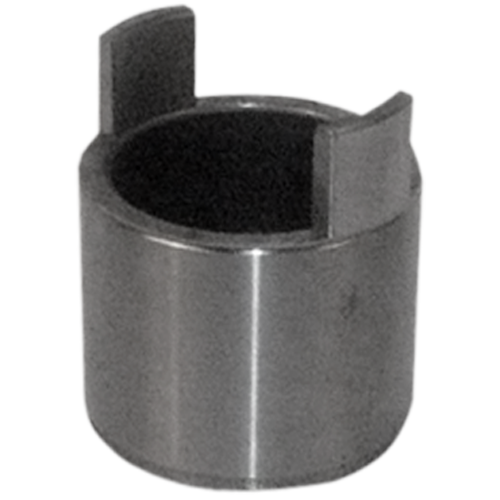

2 Impeller Hub
  • Journal Dia: 1.685"
  • Installed Height: 1.680"
  • Hub Mount: Thru
  • Pump Drive Type: Lugs
 WH-1-14G

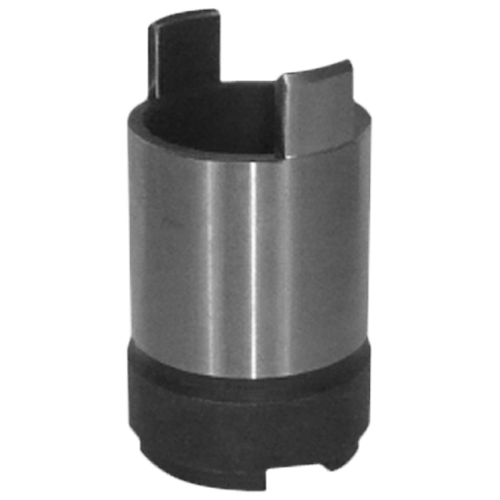

2 Impeller Hub Heat Treated,Special
  • Journal Dia: 1.685"
  • Installed Height: 2.812
  • Hub Mount: Thru
  • Hardness: Rc 32-36
 WH-1-1GRC

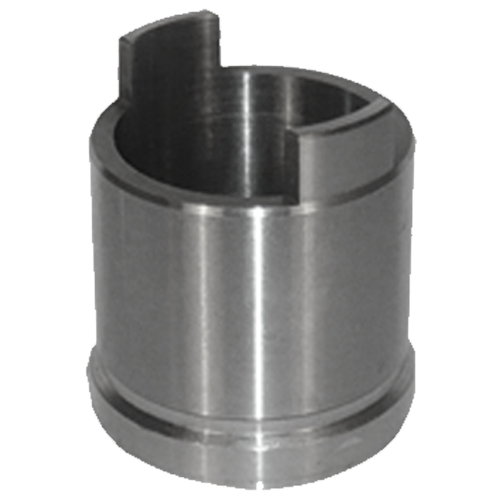

2 Impeller Hub
  • Journal Dia: 1.937"
  • Installed Height: 2.025"
  • Hub Mount: Thru
  • Pump Drive Type: Lugs
  • Hardness: Rc 32-36
 WH-1-13GRC

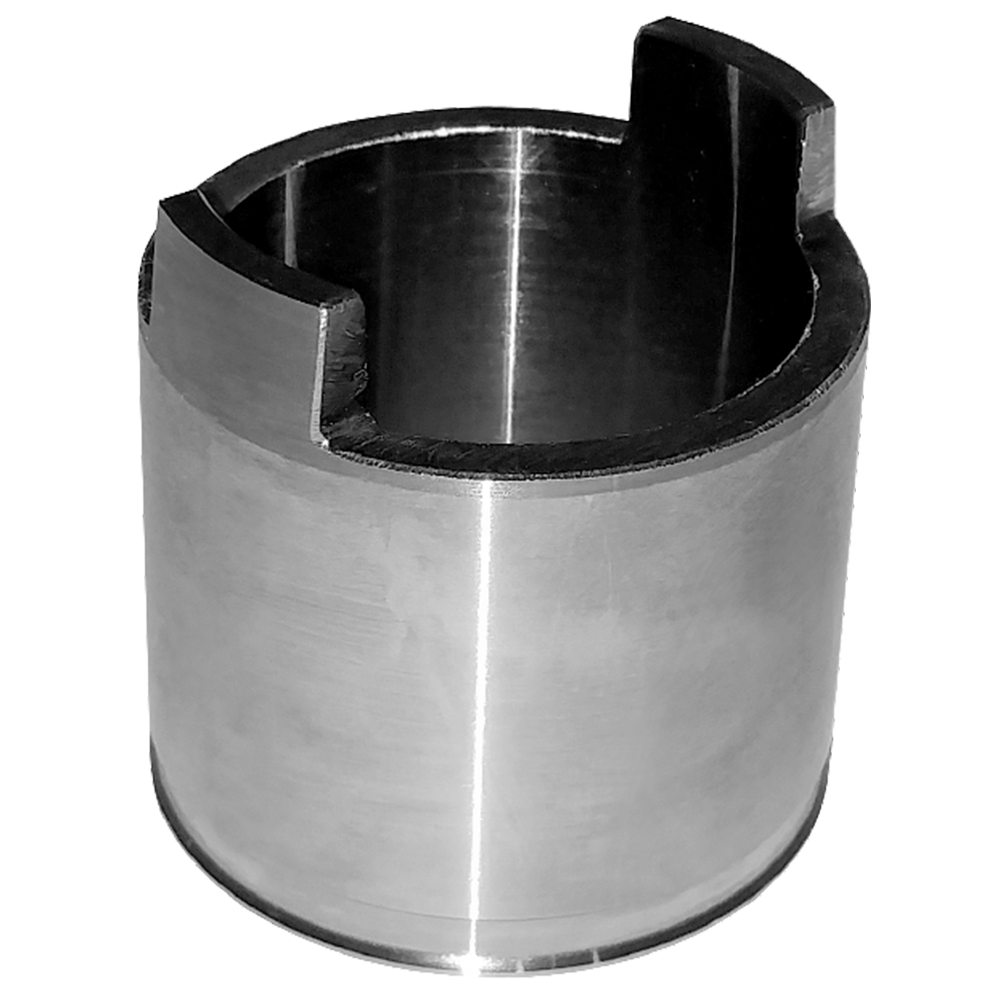

2 Impeller Hub
  • Journal Dia: 1.937"
  • Installed Height: 1.939"
  • Hub Mount: Butt
  • Pump Drive Type: 2 Lugs
  • Hardness: Rc 32-36
 WH-1-23GRC
2 Impeller Hub
  • Journal Dia: 1.937"
  • Installed Height: 2.05"
  • Hardness: Rc 32-36
 FH-1MTAGRC
2 Impeller Hub
  • Journal Dia: 1.937"
  • Installed Height: 2.025"
  • Hub Mount: Thru
  • Pump Drive Type: Lugs
 WH-1-13G
2 Impeller Hub
  • Journal Dia: 1.937"
  • Installed Height: 2.05"
 FH-1MTAG

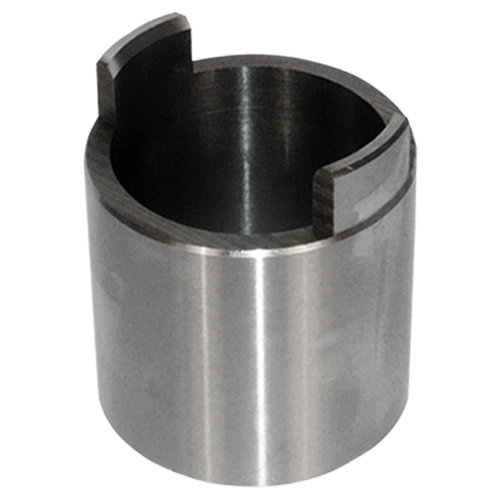

2 Impeller Hub
  • Journal Dia: 1.937"
  • Height: 2.000"
  • Hub Mount: Butt
  • Pump Drive Type: Lugs
  • Hardness: Rc 32-36
 WH-1-19GRC
4 Impeller NPN-14-6-4
4 Vane WX-21-11
4 Vane Kit Impeller, Angle " L" & "M", 31 Pcs. WX-21-11K
4 Vane WX-21-11SSJ

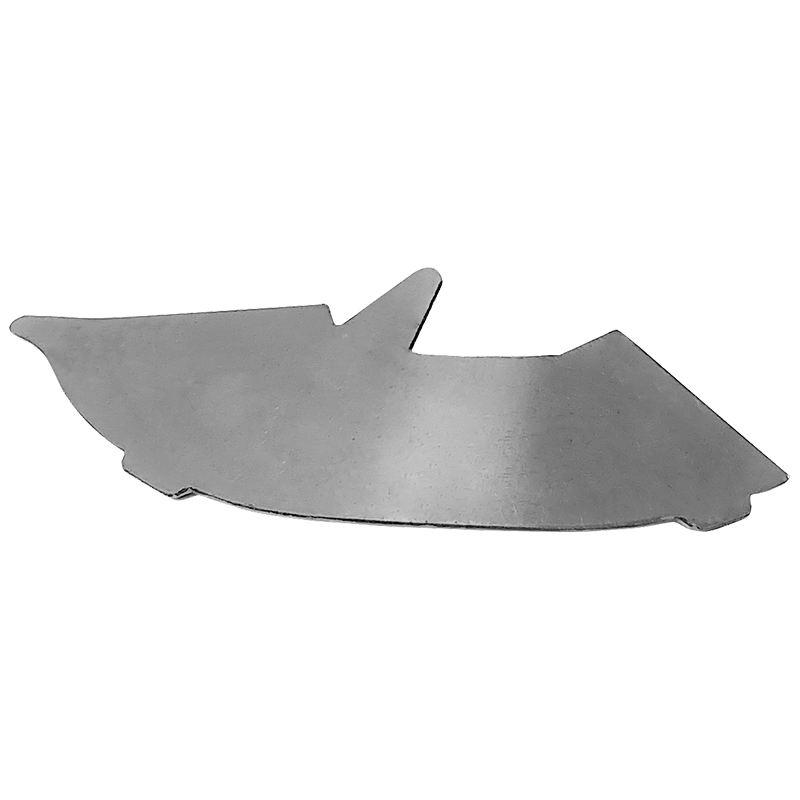

4 Kit Vane (Model 35,65 & 66) WX-21-11SSJK
4 Vane Kit Angle "L" & "M", 31 Pcs. (Model 8 & 12) WX-21-11JK
4 Vane Kit Angle "S", 31 Pcs. (High Stall) WX-21-11SK
5 Plate Hub WX-21TA
6 Bearing Race Outer
  • Height: 0.280"
  • Thickness: 0.03"
  • Outside Dia: 2.24"
  • Inside Dia: 1.44"
  • Outside & Inside Lips
 WW-2-8
7 Bearing
  • Thickness: 0.125
  • Thickness metric: 3.18
  • Bearing type: Exposed
  • Outside Dia: 2.175
  • Inside Dia: 1.506
  • Outside Dia Metric: 55.25
  • Inside Dia metric: 38.25
  • Race: SW-2-6, SW-2-4 WW-2-8
 SW-2-1
7 Bearing Heavy Duty
  • Thickness: 0.156
  • Thickness metric: 3.96
  • Bearing type: Exposed
  • Outside Dia: 2.175
  • Inside Dia: 1.506
  • Outside Dia Metric: 55.25
  • Inside Dia metric: 38.25
  • Race: SW-2-6, SW-2-4 WW-2-8
 SW-2-1HD
8 Bearing Race Inner
  • Thickness: .030"
  • Outside Dia: 2.07"
  • Inside Dia: 1.48"
  • Inside Lip
 SW-2-6
9 Washer
  • Material: Steel
  • Squared O.D.
 WW-2-4
9 Bearing & Race Kit
  • Includes: SW-2-1, WW-2-8, BW-2-1
 WW-2BK
10 Stator Cap 2 Pieces Required.
  • Thickness: .46"
  • Material: Aluminum
  • Outside Dia: 3.19"
  • Inside Dia: 1.73"
 WW-4-6
10 Stator Cap Needle Bearing Type
  • Thickness: .36"
  • Material: Aluminum
  • Outside Dia: 3.22"
  • Inside Dia: 1.55"
 WW-4-5

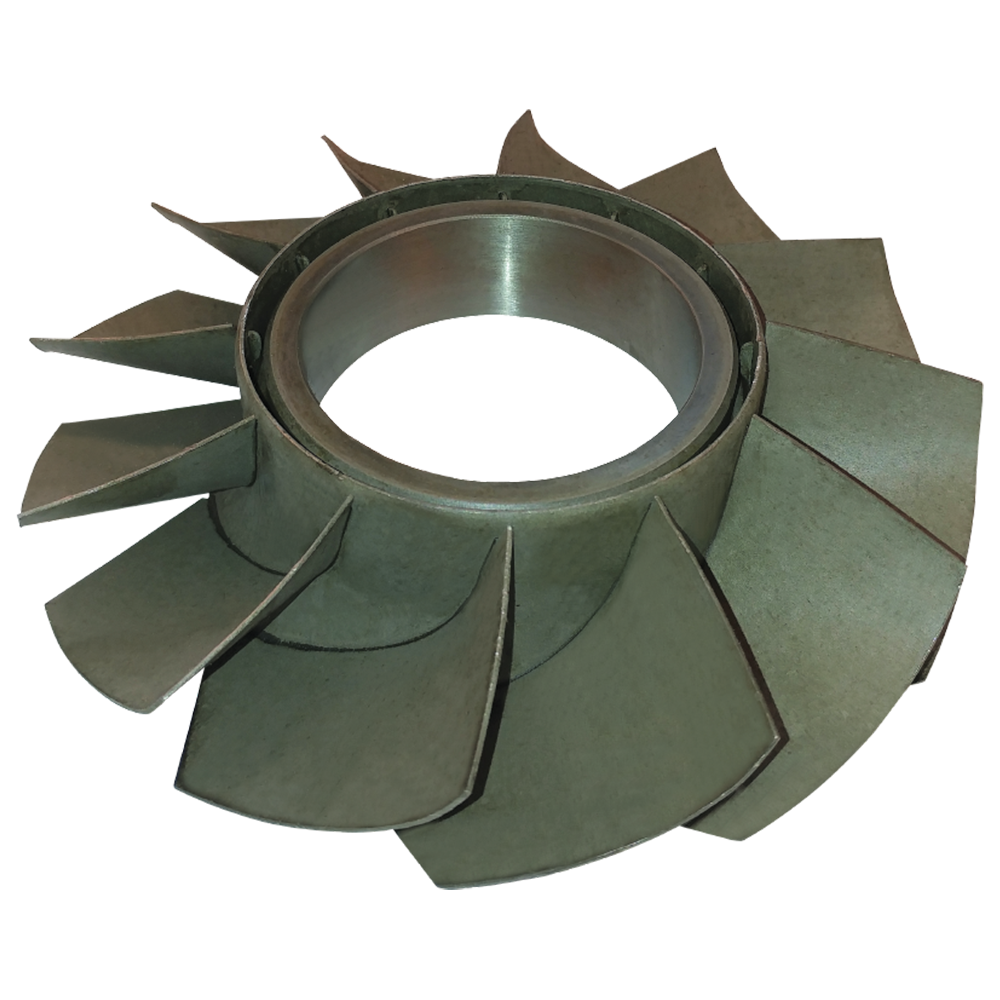

11 Stator (Model 35,65 & 66) WX-5-3S
12 Sprag
  • Thickness: 0.625"
  • Cam Count: 14 elements
  • Outside Dia: 2.812"
  • Inside Dia: 2.156"
  • Standard Duty
 FC-6

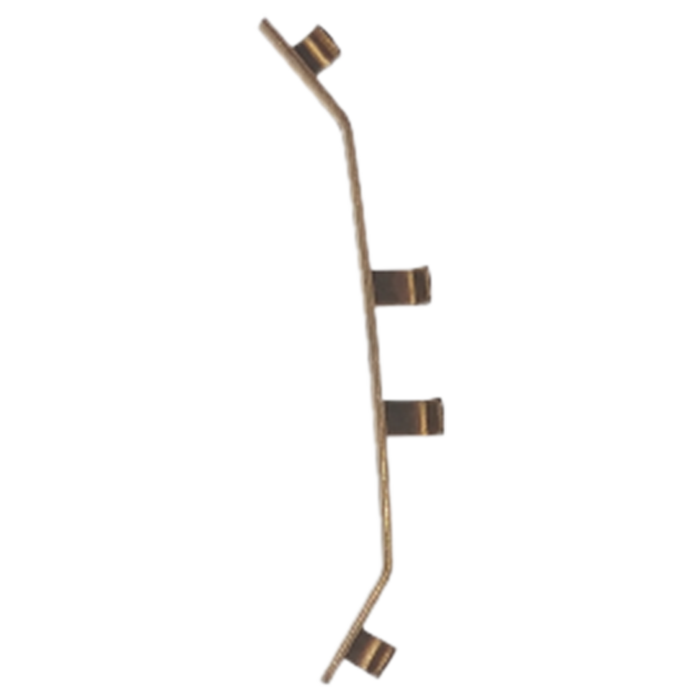

12 Sprag Drag Strip FC-6D
12 Cam (Sprag Element) For FC-6-10 F-395
12 Cam (Sprag Element) For FC-6-10 F-407
12 Sprag
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outside Dia: 2.812"
  • Inside Dia: 2.156"
  • Cam part-ID: F-407), 2 Inside Strips Replaced By part-ID FC-6-10
 FC-6-1
12 Sprag Heavy Duty
  • Thickness: 0.625"
  • Cam Count: 24 elements
  • Outside Dia: 2.812"
  • Inside Dia: 2.156"
  • Cam part-ID: F-395, 12 Outside Clips, 3 Inside Strips
 FC-6-10
12 Sprag
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outside Dia: 2.812"
  • Inside Dia: 2.156"
  • Cam Part ID: F-395, 5 Outside Clips, 3 Inside Strips Replaced By FC-6-10
 FC-6-3
12 Sprag Heavy Duty
  • Thickness: 0.625"
  • Cam Count: 20 elements
  • Outside Dia: 2.812"
  • Inside Dia: 2.156"
  • Cam Part ID:(F-407), 10 Outside Clips, 3 Inside Strips Replaced By FC-6-10
 FC-6-4
12 Sprag
  • Thickness: 0.625"
  • Cam Count: 22 elements
  • Outside Dia: 2.812
  • Inside Dia: 2.156
  • Cam part-ID: F-407, 10 Outside Clips, 2/3 Inside Strips Replaced By part-ID FC-6-10
 FC-6-9

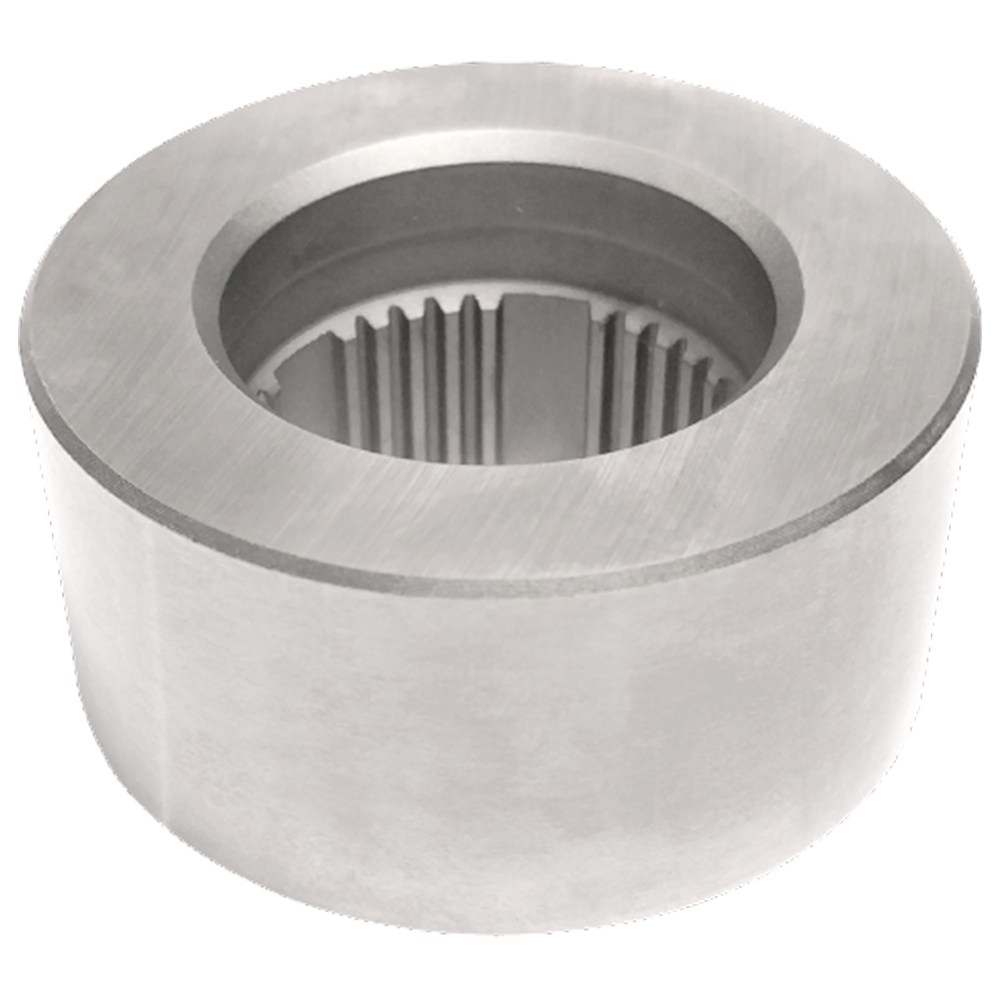

13 Inner Race Stator
  • Height: 1.031"
  • Internal Teeth: 38 (12 Removed)
  • Outside Dia: 2.156"
 WX-14

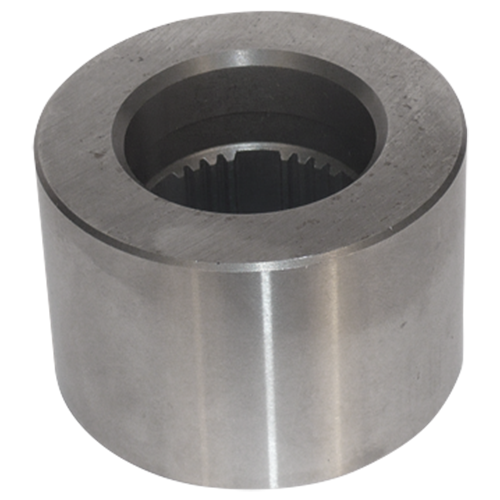

13 Inner Race Stator
  • Height: 1.310"
  • Internal Teeth: 38 (12 Removed)
  • Outside Dia: 2.156"
 WX-14-4

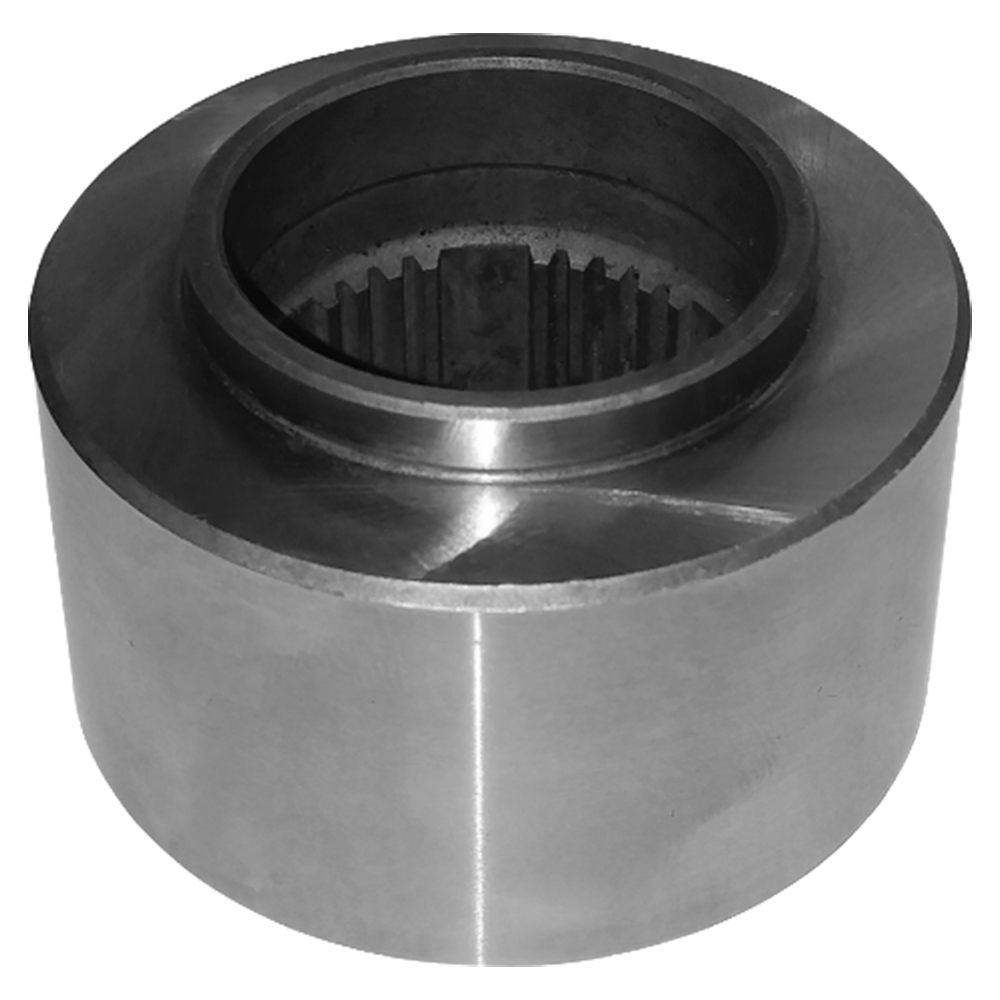

13 Inner Race Stator, With Shoulder
  • Height: 1.310"
  • Internal Teeth: 38 (12 Removed)
  • Outside Dia: 2.156"
 WX-14-6
13 Inner Race Stator
  • Height: 1.310"
  • Internal Teeth: 29 (10 Removed)
  • Outside Dia: 2.156"
 WX-14-5

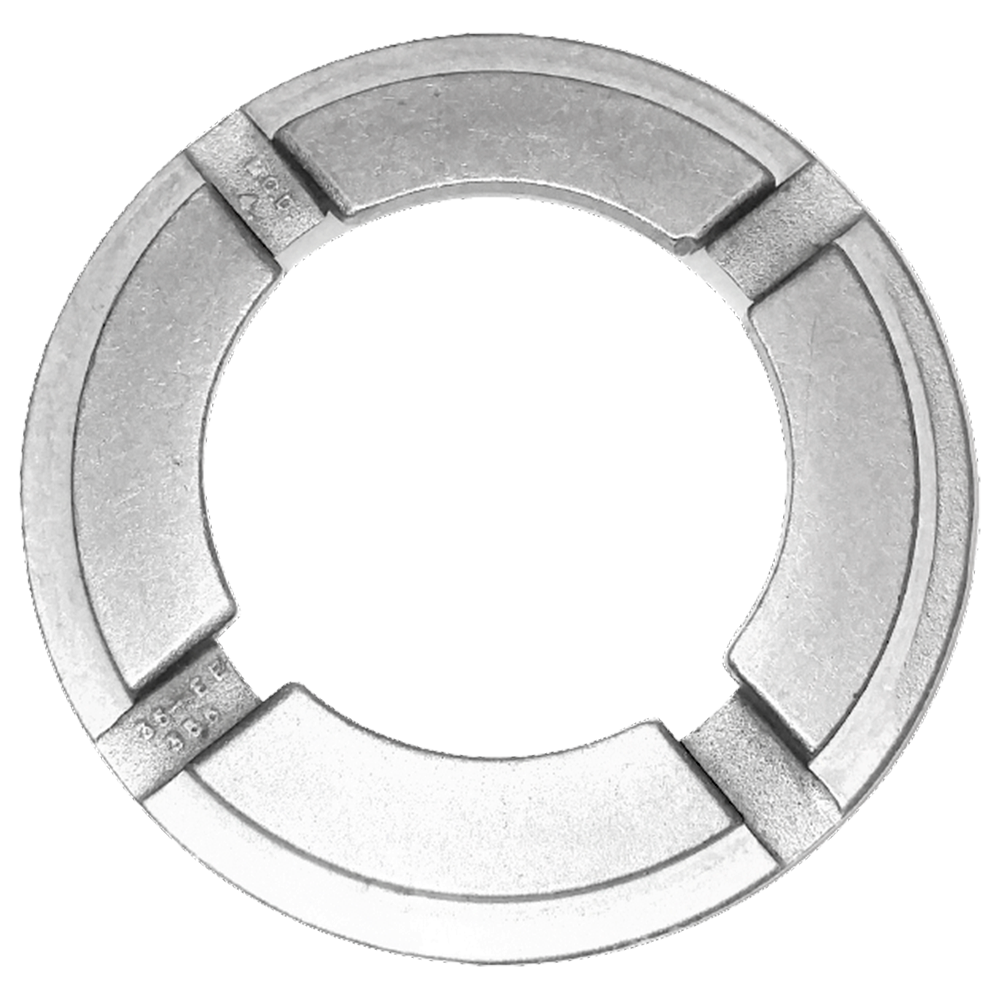

14 Washer 2 Pieces Required.
  • Outside Dia: 2.56"
  • Inside Dia: 1.8"
 WW-4-2

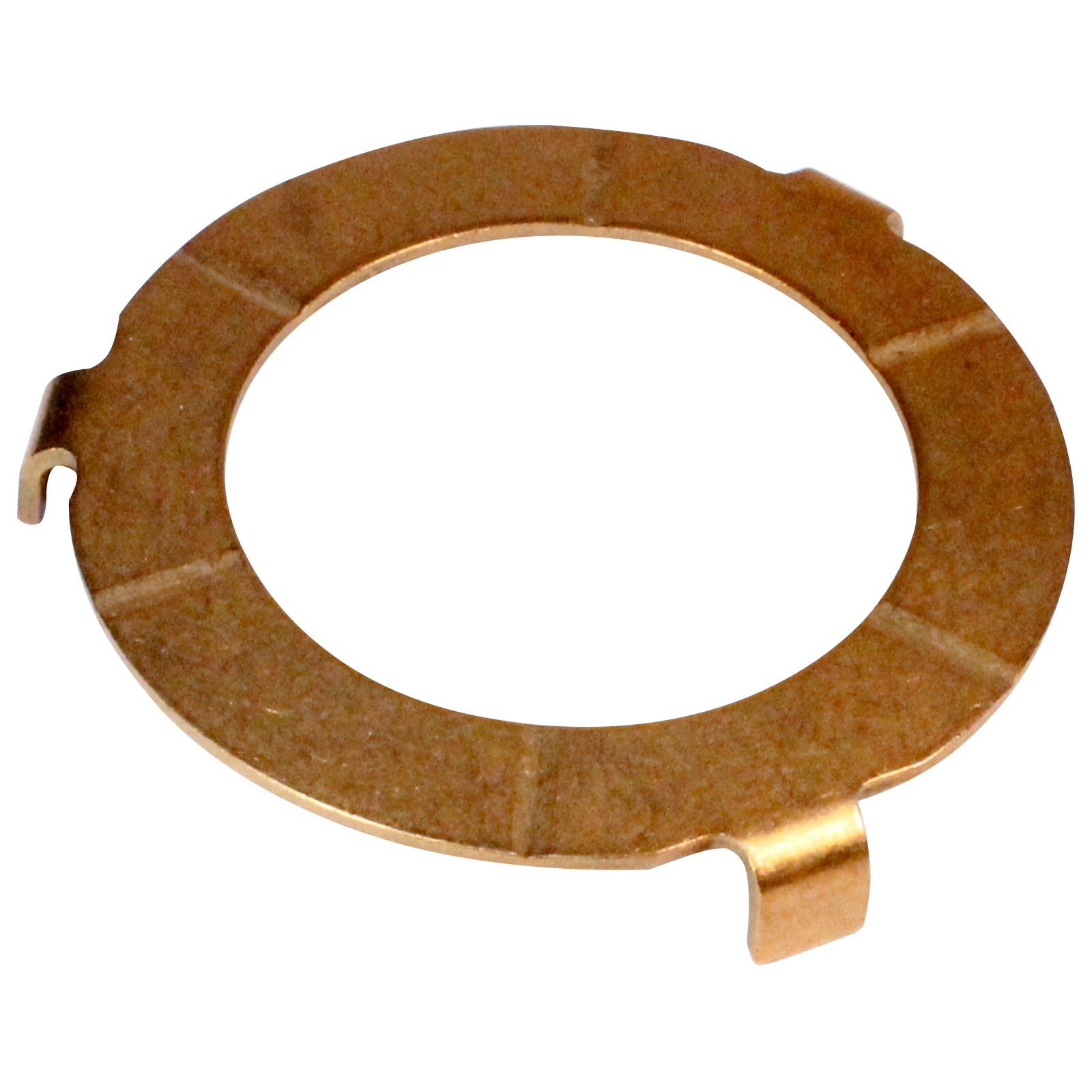

15 Washer 3 Tangs 2 Pieces Required.
  • Thickness: .08"
  • Material: Bronze
  • Outside Dia: 2.56"
  • Inside Dia: 1.8"
 CW-3
15 Washer
  • Thickness: .06"
  • Material: Bronze On Steel
  • Outside Dia: 2.90"
  • Inside Dia: 1.75"
 WW-3

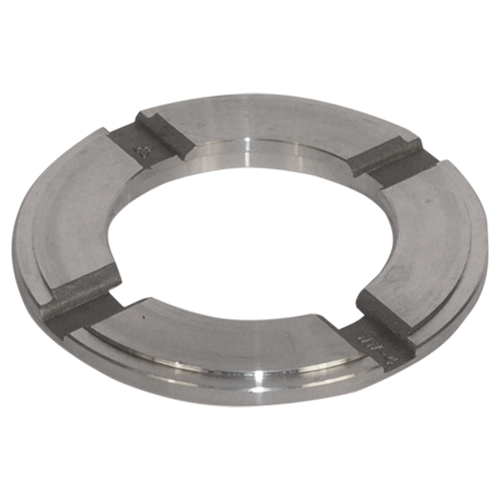

15 Stator Cap
  • Thickness: 0.31"
  • Material: Aluminum
  • Functional Thickness: 0.156"
  • Outside Dia: 3.19"
  • Inside Dia: 1.94"
 WW-4

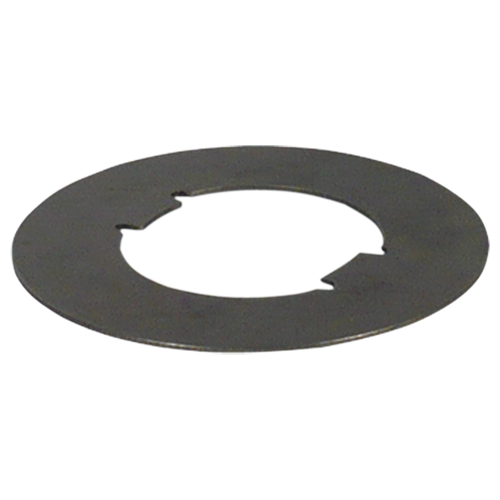

16 Washer
  • Thickness: .043"
  • Material: Steel
  • Lug Count: 2
  • Outside Dia: 3.00"
  • Inside Dia: 1.64"
 WW-2
16 Washer Wear-Plate 2 Pieces Required.
  • Thickness: .045"
  • Material: Steel
  • Lug Count: 2
  • Lug Width: 0.481"
  • Outside Dia: 3.00"
  • Inside Dia: 1.87"
 WW-2-3
17 Turbine Hub
  • Internal Teeth: 17
  • Outside Dia: 3.81"
 WX-13-7E
17 Turbine Hub
  • Internal Teeth: 22
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.81"
 WX-13-1EHT
17 Turbine Hub
  • Internal Teeth: 22
  • Outside Dia: 3.81"
 WX-13-1E
17 Turbine Hub
  • Internal Teeth: 23
  • Outside Dia: 3.81"
 WX-13-2E
17 Turbine Hub
  • Internal Teeth: 23
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.81"
 WX-13-2EHT
17 Turbine Hub
  • Internal Teeth: 26
  • Outside Dia: 2.98"
  • Inside Dia: 2.07"
 WX-13-9E
17 Turbine Hub
  • Internal Teeth: 26
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 2.98"
  • Inside Dia: 2.07"
 WX-13-9EHT
17 Turbine Hub Bronze washer type
  • Internal Teeth: 26
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 2.98"
  • Inside Dia: 2.07"
  • Bronze Washer Type
 WX-13-9EAHT
17 Insert
  • Height: 0.880
  • Internal Teeth: 17
  • Outside Dia: 1.13"
 WX-13-17
17 Insert Easy- Weld, Non-Lockup
  • Height: 0.880
  • Internal Teeth: 22
  • Outside Dia: 1"
 WX-13-22
17 Insert
  • Height: 0.880
  • Internal Teeth: 23
  • Outside Dia: 1"
 WX-13-23
17 Insert Non-Lockup (Also B.W.)
  • Height: 0.880
  • Internal Teeth: 26
  • Outside Dia: 1.13"
 WX-13-26
17 Insert
  • Height: 1.030
  • Internal Teeth: 29
  • Outside Dia: 1.19"
 WX-13-29
18 Turbine NPN-14-6-18
18 Vane WX-8-11
18 Vane WX-8-11E
18 Vane Kit 31 Pcs. WX-8-11K
19 Rivet 12 Pieces Required.
  • Length: 0.218"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet head dia: 0.312"
 WX-12
19 Rivet 12 Pieces Required.
  • Length: 0.31"
  • Rivet solid or tubular: Tubular
  • Rivet Shank Dia: 0.193"
  • Rivet head dia: 0.312"
 WX-12A
20 Turbine Washer
  • Thickness: .068"
  • Material: Plastic
  • Lug Count: 4
  • Outside Dia: 2.98"
  • Inside Dia: 2.07"
 WW-9-4

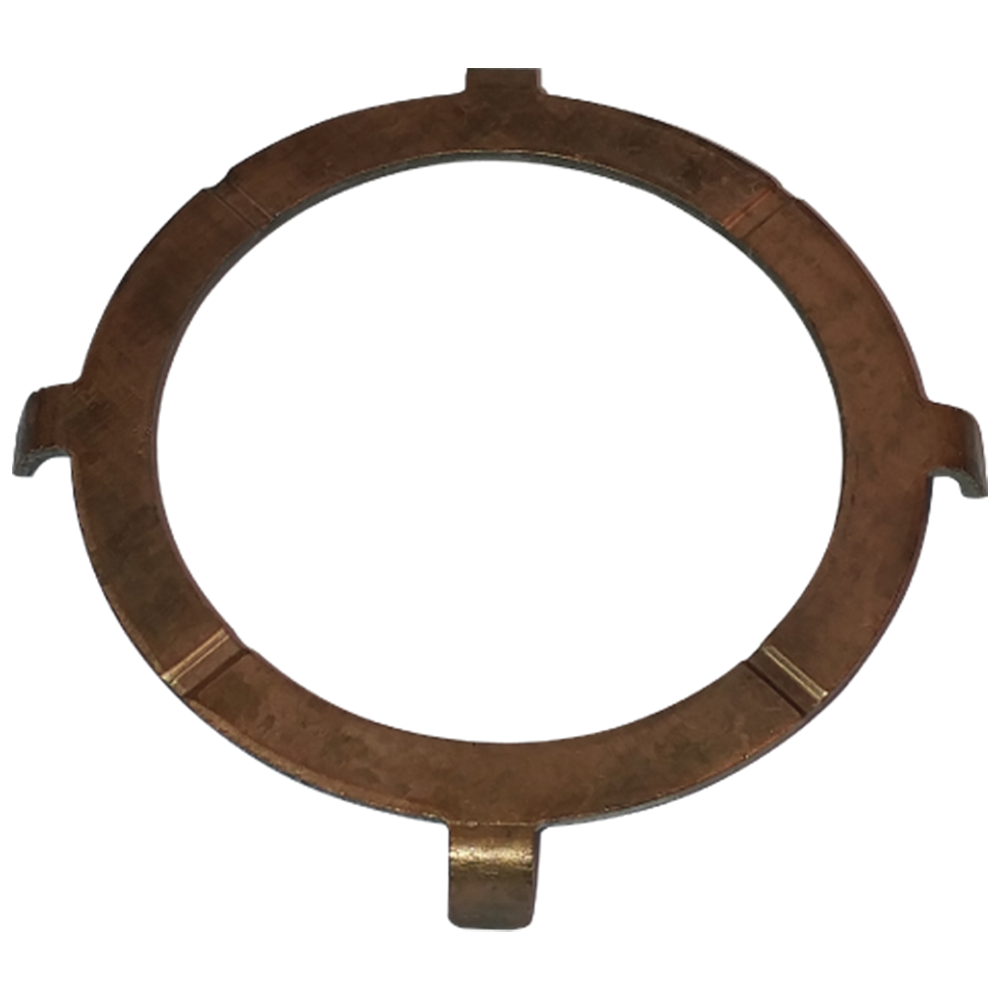

20 Turbine Washer
  • Thickness: .068".
  • Material: Steel, Bronze Plated
  • Outside Dia: 2.98"
  • Inside Dia: 2.07"
 WW-9-4B

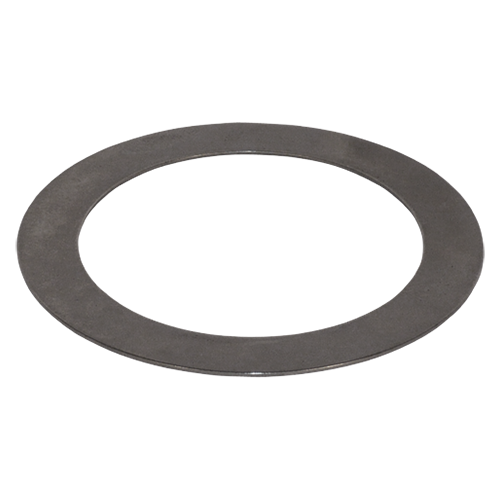

21 Shim
  • Thickness: .03"
  • Outside Dia: 2.72"
  • Inside Dia: 2"
  • For O.E. Washers
 WW-9-5
22 Washer
  • Thickness: .08"
  • Material: Bronze
  • Outside Dia: 1.74"
  • Inside Dia: 0.65"
 VW-9
22 Turbine Washer
  • Thickness: 0.062"
  • Material: Fiber
  • Outside Dia: 1.810"
  • Inside Dia: 0.875"
 WW-9-3A
22 Turbine Washer
  • Thickness: 0.082"
  • Material: Fiber
  • Outside Dia: 1.81"
  • Inside Dia: 0.875"
 WW-9-3B
23 Thrust Plate (Modified) Models 35 & 65
  • Height: .34"
  • Outside Dia: 2.15"
  • Inside Dia: 1.82"
 WX-22TE
23 Thrust Plate 4 Slots Models 8 & 12 WX-22TJ
24 Front Cover NPN-14-6-24
25 Nut Mounting, Round 3/8-24 Thread 6 Pieces Required.
  • Dimensions: 3/8"-24
  • Length: 0.603"
 WX-10-7

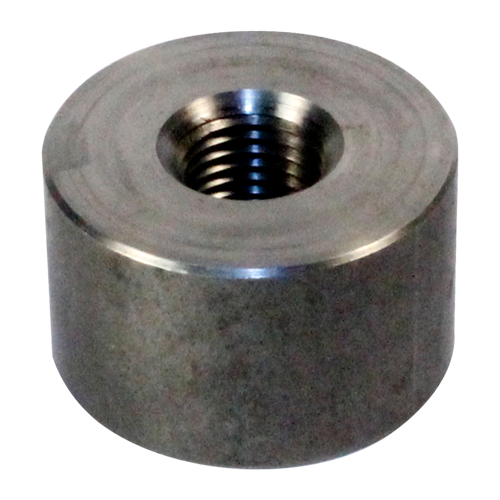

25 Nut Mounting Round 6 Pieces Required.
  • Dimensions: 3/8"-24 , 1" Dia.
  • Length: 0.603"
 WX-10-9
25 Nut Mounting, Metric 6 Pieces Required.
  • Dimensions: 3/8"-24
  • Length: 0.600"
 WX-10-10
26 Drain Plug 1/8-27 NPT, PTFE, Wrap FX-11A
26 Drain Plug
  • Material: Steel
  • 1/8-27 NPT
 FX-11
26 Drain Plug
  • Allen socket drain plug for use with drilled converters.
 FX-11B

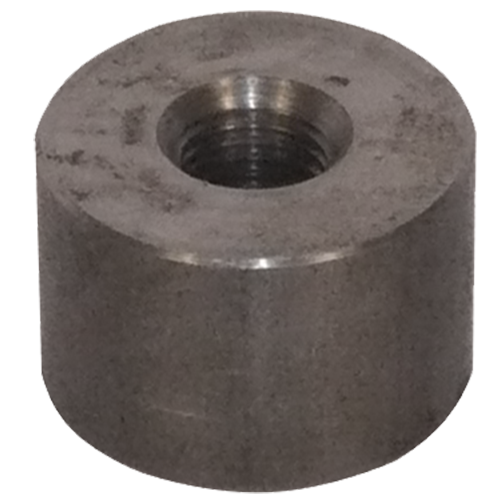

27 Pilot Finished
  • Outside Dia: 0.750
 WX-17-19
27 Pilot Unfinished
  • Outside Dia: 0.750
 WX-17-19X
