Torque Converter | Aisin-Warner | TR-60SN (VW 09D), Non-Captive Clutch

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-3/4" (44.4mm)
  • Length: 1.500"
  • Color: Blue
 MHC-BU
4 Bearing Impeller Side
  • Outer Dia: 3.488
  • Inner Dia: 2.315
  • Thickness: 0.17
  • Outer Dia Metric: 88.6
  • Inner Dia metric: 58.8
  • Thickness metric: 4.32
  • Bearing type: Semi-Enclosed
  • Race: YW-2-24
 YW-2-23
5 Bearing Race Impeller Side
  • Outer Dia: 3.341"
  • Inner Dia: 2.421"
  • Thickness: 0.138"
  • Material: Hardened Steel
  • 4 ID Tangs
 YW-2-24
10 Misc NPN-SPL
10 Misc NPN-SPL
12 Bearing Race 4 ID Tangs Turbine Side
  • Outer Dia: 2.703"
  • Inner Dia: 1.839"
  • Thickness: 0.118"
  • Material: Hardened Steel
 YW-2-25
13 Bearing Turbine Side
  • Outer Dia: 2.854
  • Inner Dia: 1.732
  • Thickness: 0.15
  • Outer Dia Metric: 72.49
  • Inner Dia metric: 43.99
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
 YW-2-22
14 Turbine Hub
  • Internal Teeth: 24
  • Material: Hardened Steel
 VX-13-5HT
18 Seal Ring Scarf Cut
  • Height: 0.106"
  • Outer Dia: 2.683"
  • Width: 0.090"
  • Outer Dia Metric: 68.2498
  • Material: PTFE
  • Height Metric: 2.8194
 YO-25-1

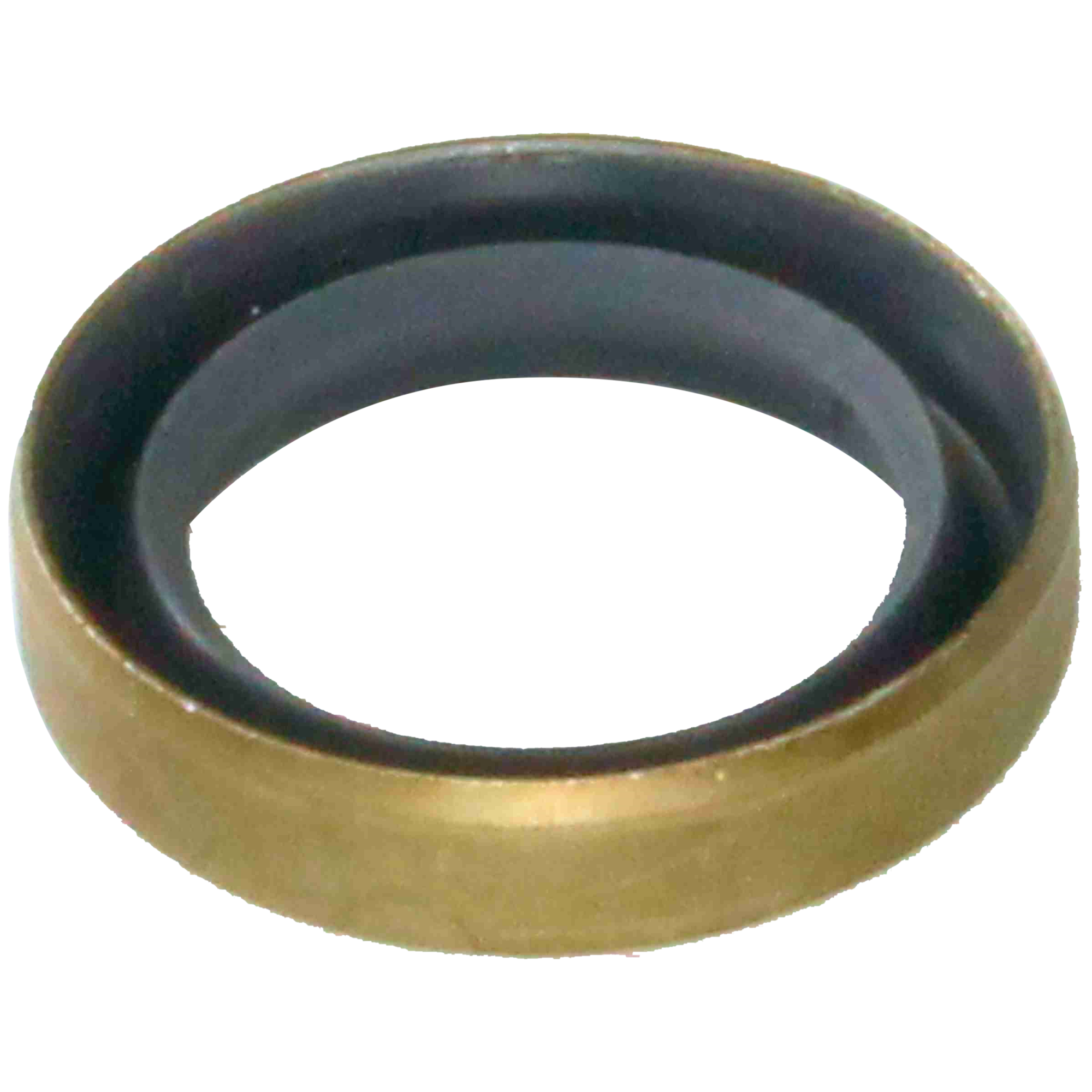

16 Metal Clad Seal
  • housing bore dia: 1.095
  • housing bore dia metric: 27.81
  • Shaft Dia metric: 19.18
  • Shaft Dia: 0.755
 YO-25-13
10 Misc NPN-SPL
10 Misc NPN-SPL
10 Misc NPN-SPL
10 Misc NPN-SPL
10 Misc NPN-SPL
10 Misc NPN-SPL
10 Misc NPN-SPL
10 Misc NPN-SPL
24 Rivet 12 Pieces Required.
  • Length: 0.380"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.238"
  • Rivet head dia: 0.430"
  • Flat Head
 VX-12-1
10 Misc NPN-SPL
25 Lining (Friction Ring,Wafer)
  • Outer Dia: 10.5
  • Inner Dia: 9
  • Thickness: 0.045"
  • Material: Red
 YX-23-21
10 Misc NPN-SPL
10 Misc NPN-SPL
10 Misc NPN-SPL
10 Misc NPN-SPL
10 Misc NPN-SPL
10 Misc NPN-SPL
10 Misc NPN-SPL
10 Misc NPN-SPL
10 Misc NPN-SPL
10 Misc NPN-SPL
