Torque Converter | Aisin-Warner | TR-60SN, (VW 09D), Captive Clutch

Ill.# Image Description Specification Part #

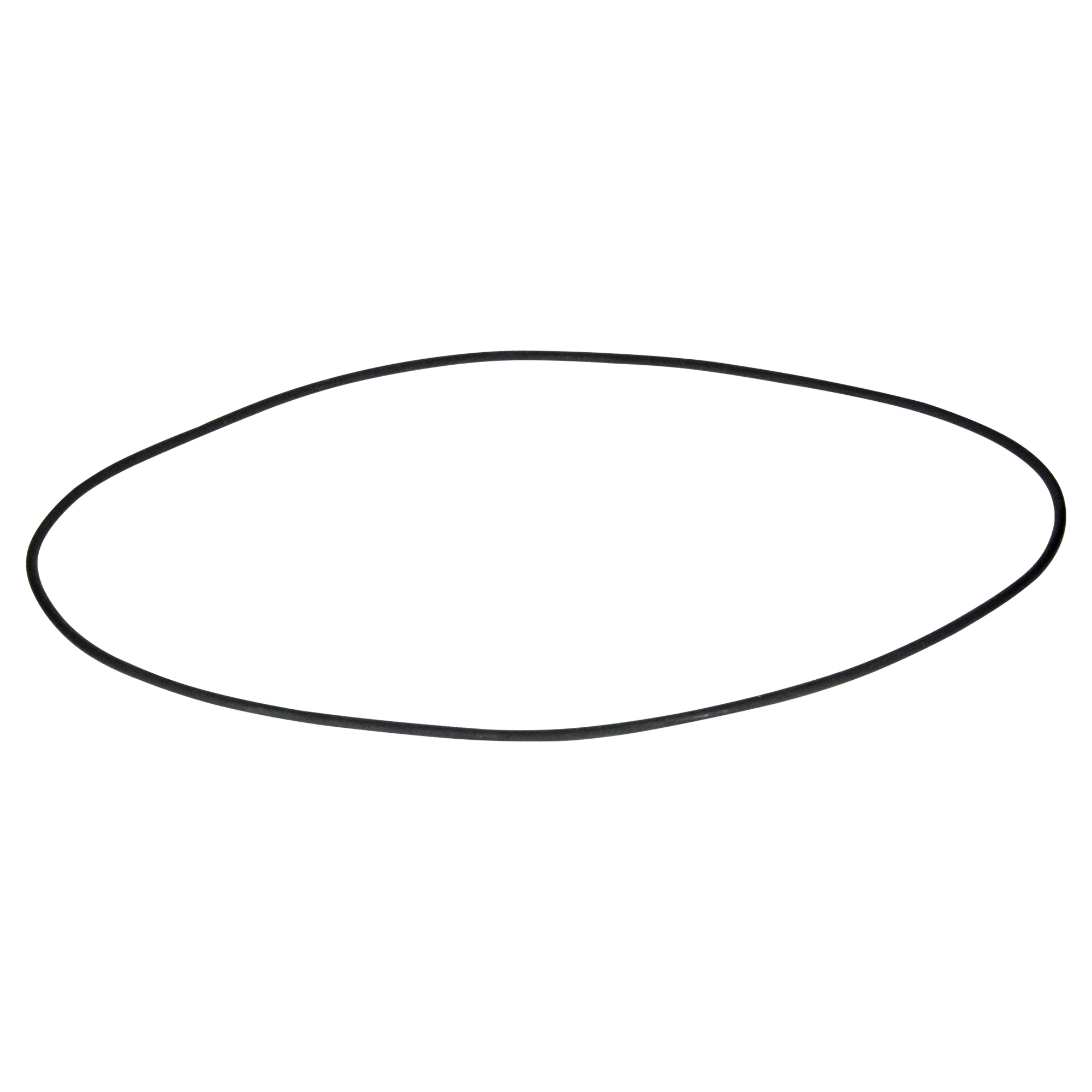

12 O-Ring Black Outer
  • Thickness: 0.123
  • Thickness metric: 3.1242
  • Color: Black
  • Material: Fluorocarbon
  • Inside Dia: 7.948
  • Inside Dia metric: 201.8792
 VO-25-5

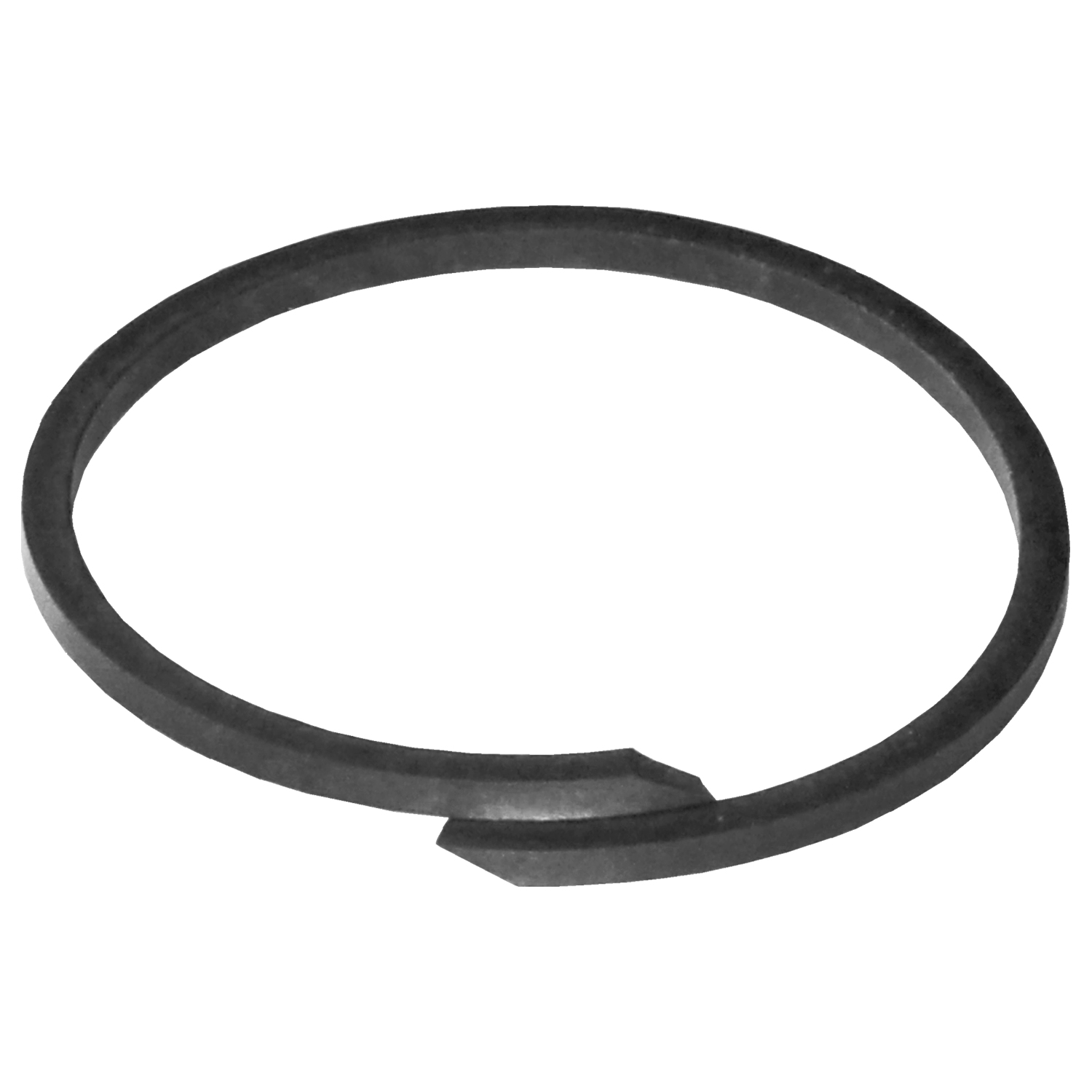

13 Seal Ring Scarf cut Inner
  • Height: 0.093
  • Width: 0.09
  • Color: Black
  • Material: PTFE
  • Height Metric: 2.3622
  • Seal Type: Scarf Cut
  • Outside Dia: 2.052
  • Outside Dia Metric: 52.1208
 VO-25-4

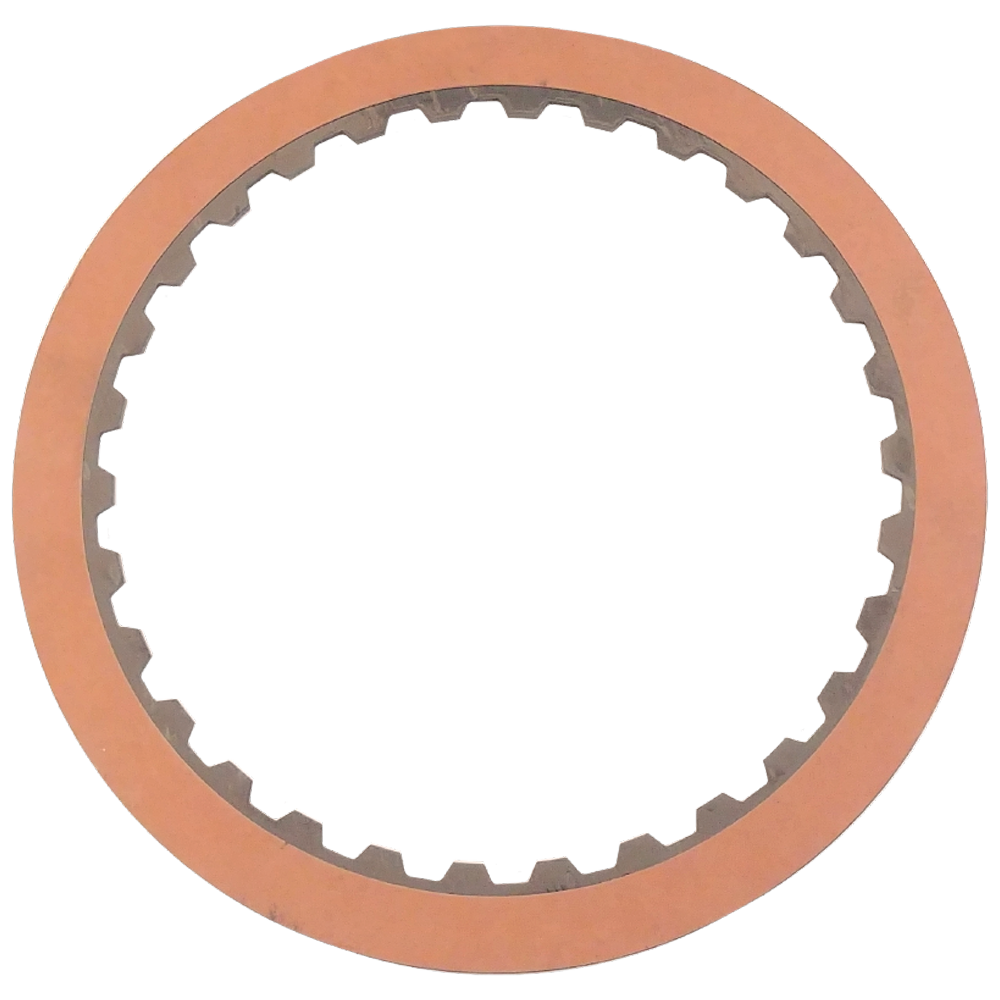

15 Friction Plate Late
  • Thickness: 0.103"
  • Internal Teeth: 30
  • Outside Dia: 7.033"
  • Inside Dia: 5.574"
 VX-23-4

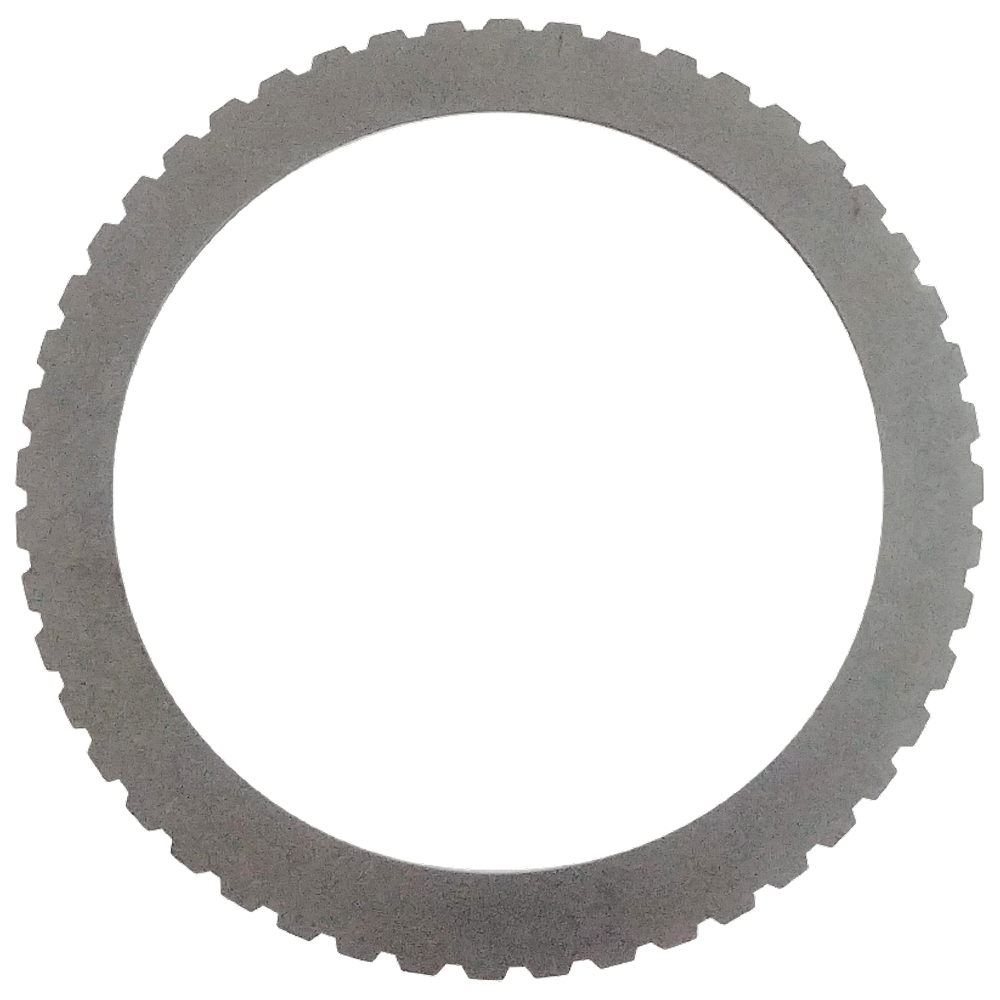

15 Steel Clutch-Plate Late
  • Thickness: 0.092"
  • External Teeth: 48
  • Material: Steel
  • Outside Dia: 7.350"
  • Inside Dia: 5.862"
 VX-23-5

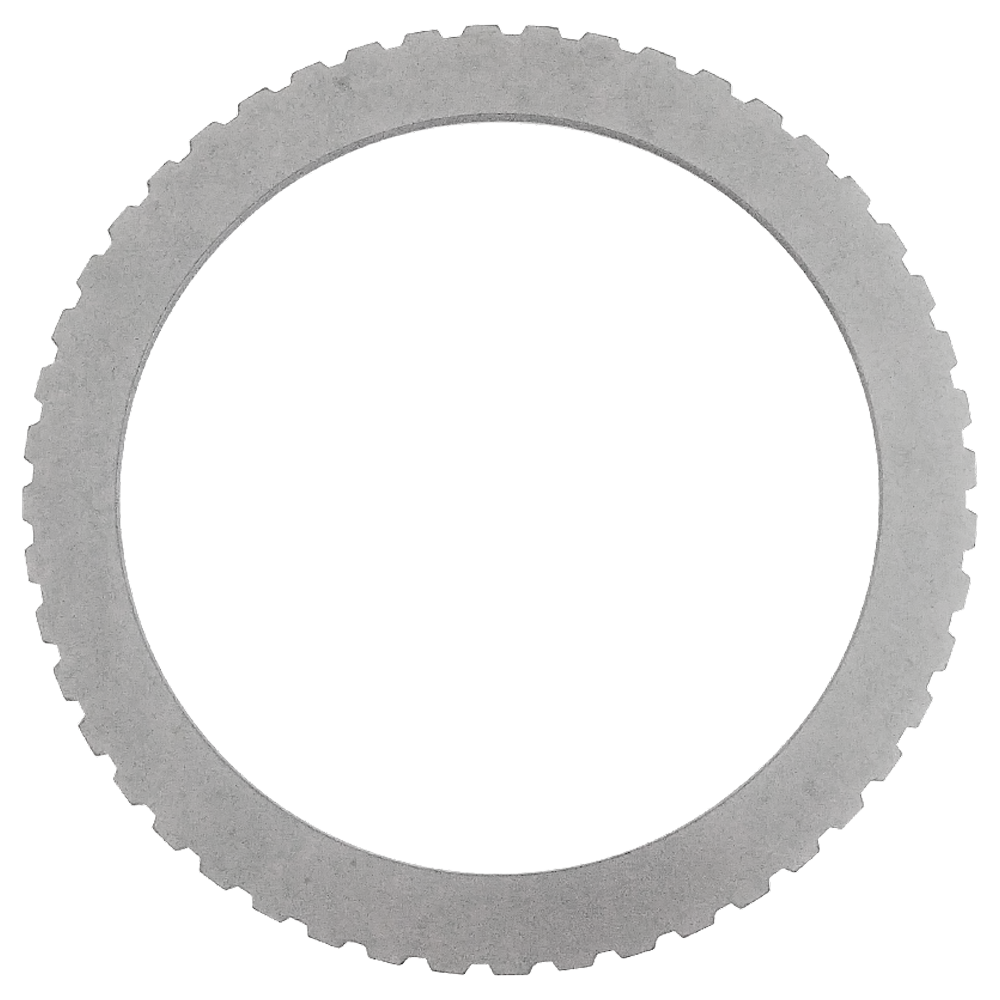

16 Pressure Plate Late
  • Thickness: 0.150"
  • External Teeth: 48
  • Material: Steel
  • Outside Dia: 7.350"
  • Inside Dia: 5.862"
 VX-23-6
17 Friction Plate Early
  • Thickness: 0.147"
  • Internal Teeth: 36
  • Outside Dia: 10.206"
  • Inside Dia: 8.441"
 YX-26-3
18 Steel Clutch-Plate Early
  • Thickness: 0.126"
  • External Teeth: 20
  • Material: Steel
  • Outside Dia: 10.542"
  • Inside Dia: 8.764"
 VX-23-2
19 Steel Clutch-Plate Early
  • Thickness: 0.197"
  • External Teeth: 20
  • Material: Steel
  • Outside Dia: 10.542"
  • Inside Dia: 8.764"
 VX-23-3
