Torque Converter | Aisin-Warner | TF-80SC

Ill.# Image Description Specification Part #
0 Lining (Friction Ring,Wafer)
  • Outer Dia: 10.354"
  • Inner Dia: 9.055"
  • Thickness: 0.045"
  • Material: Red
 AX-23-1
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1"
  • Color: Yellow
 MHC-YB
1 Hubcap Fits 1-7/8" (47.6mm). Length: 1-3/4"
  • Color: Yellow
  • Fits 1-7/8" (47.6mm)
 MHC-Y
3 Bearing Impeller Side
  • Outer Dia: 4.449
  • Inner Dia: 3.543
  • Thickness: 0.197
  • Outer Dia Metric: 113
  • Inner Dia metric: 89.99
  • Thickness metric: 5
  • Bearing type: Enclosed
  • Material: Hardened Steel
 AW-2-1

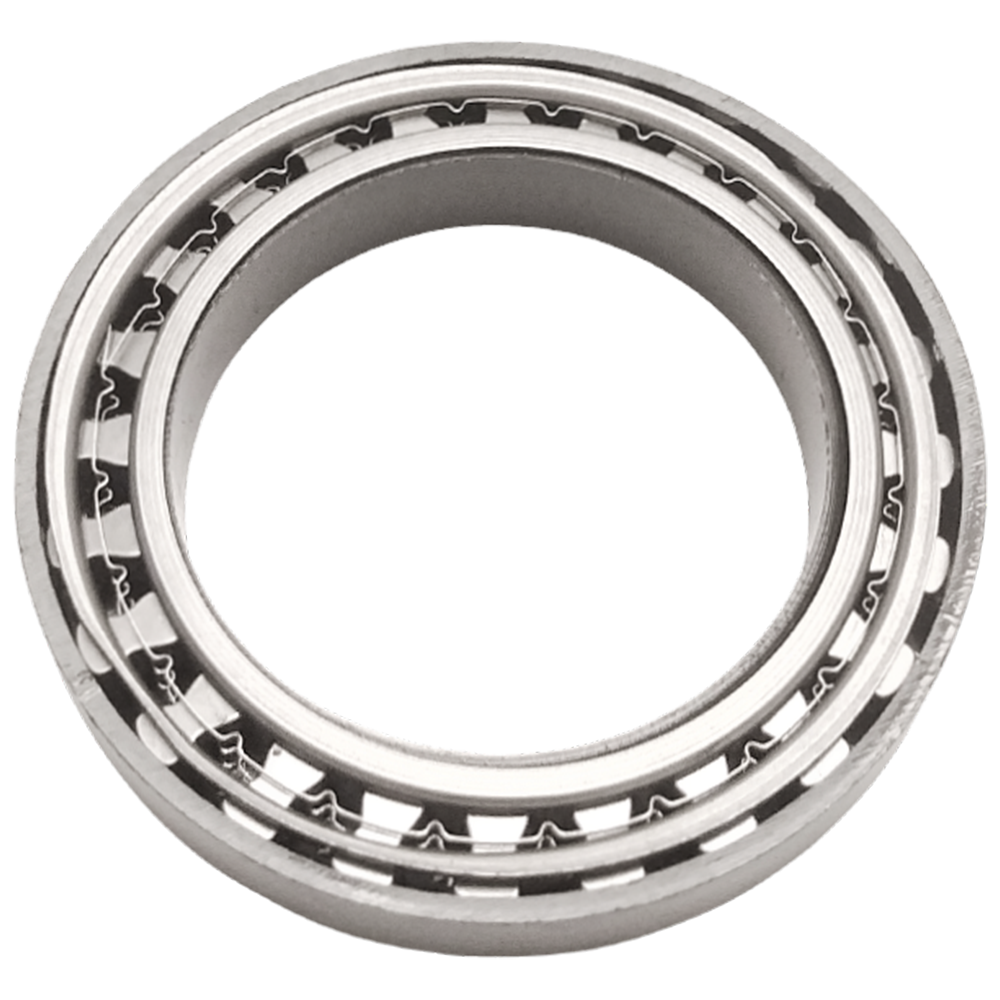

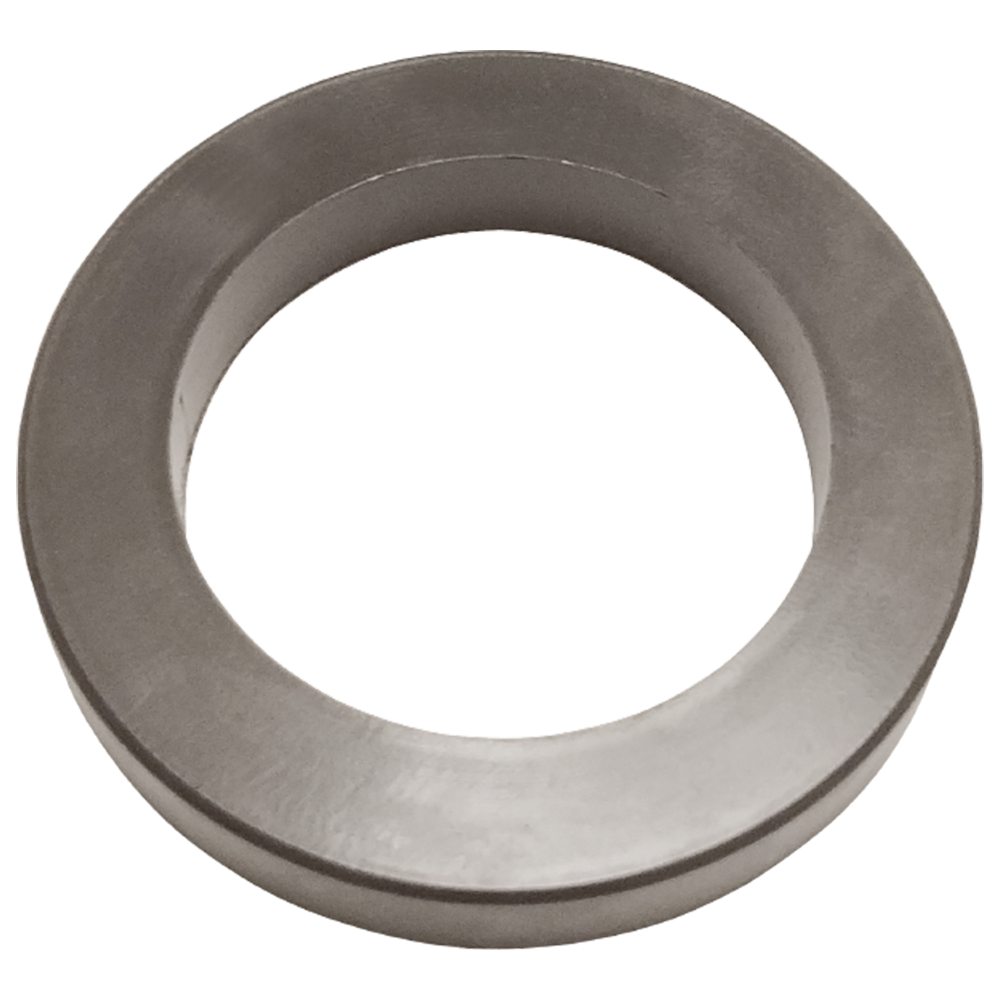

4 Sprag TF-80SC, AF40-6 Direct OE replacement
  • Outer Dia: 2.747
  • Inner Dia: 2.087
  • Thickness: 0.336"
  • Material: Steel
  • 24 Cams (elements). Inner Race O.D.: 2.087" / Outer Race I.D.: 2.747
 YC-6-3
5 Bearing Turbine Side
  • Outer Dia: 4.213
  • Inner Dia: 3.347
  • Thickness: 0.197
  • Outer Dia Metric: 107.01
  • Inner Dia metric: 85.01
  • Thickness metric: 5
  • Bearing type: Enclosed
  • Material: Hardened Steel
AW-2-2
6 Seal Ring Scarf cut
  • Height: 0.077
  • Outer Dia: 1.559
  • Width: 0.087
  • Outer Dia Metric: 39.5986
  • Material: PTFE
  • Height Metric: 1.9558
 FO-25-19
7 Turbine Washer 8 Outer Notches Units w/ Sprag, Use with SW-2-38
  • Outer Dia: 1.484"
  • Inner Dia: 1.010"
  • Thickness: 0.136"
  • Material: Plastic
 SW-9-19
8 Turbine Washer 8 Outer Notches
  • Outer Dia: 1.484"
  • Inner Dia: 1.010"
  • Thickness: 0.136"
  • Material: Vespel®
 SW-9-20
8 Turbine Washer 8 Outer Notches
  • Outer Dia: 1.484"
  • Inner Dia: 1.010"
  • Thickness: 0.154"
  • Material: Plastic
 SW-9-21
8 Turbine Washer 8 Outer Notches
  • Outer Dia: 1.484"
  • Inner Dia: 1.010"
  • Thickness: 0.154"
  • Material: Vespel®
 SW-9-22
