Torque Converter | Aisin-Warner | TF-60SN (VW 09G)

Ill.# Image Description Specification Part #
1 Hubcap Fits 1-3/4" (44.4mm). Length: 1-1/2"
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)
 MHC-BU
Hubcap MHC-BU
Fits 1-3/4" (44.4mm). Length: 1-1/2" &
  • Length: 1.500"
  • Color: Blue
  • Fits 1-3/4" (44.4mm)

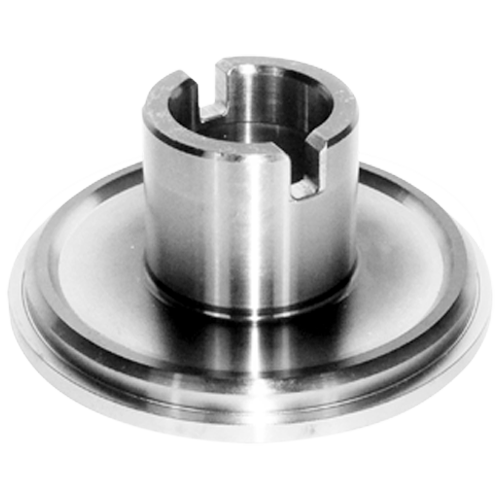

2 Impeller Hub Flanged,Aw TF-60Sn
  • Journal Dia: 1.720"
  • Installed Height: 1.484"
  • Height: 1.730"
  • Hub Mount: Flanged
  • Pump Drive Type: 2 Slots
  • Flange Dia: 3.996"
 VH-1-4FLG
Impeller Hub VH-1-4FLG
Flanged,Aw TF-60Sn &
  • Journal Dia: 1.720"
  • Installed Height: 1.484"
  • Height: 1.730"
  • Hub Mount: Flanged
  • Pump Drive Type: 2 Slots
  • Flange Dia: 3.996"
3 Misc NPN-SPL
Misc NPN-SPL
&
4 Bearing Impeller Side
  • Thickness: 0.129
  • Thickness metric: 3.28
  • Bearing type: Semi-Enclosed
  • Outside Dia: 3.44
  • Inside Dia: 2.43
  • Outside Dia Metric: 87.38
  • Inside Dia metric: 61.72
  • Race: AW-2-4
 AW-2-3
Bearing AW-2-3
& Impeller Side
  • Thickness: 0.129
  • Thickness metric: 3.28
  • Bearing type: Semi-Enclosed
  • Outside Dia: 3.44
  • Inside Dia: 2.43
  • Outside Dia Metric: 87.38
  • Inside Dia metric: 61.72
  • Race: AW-2-4

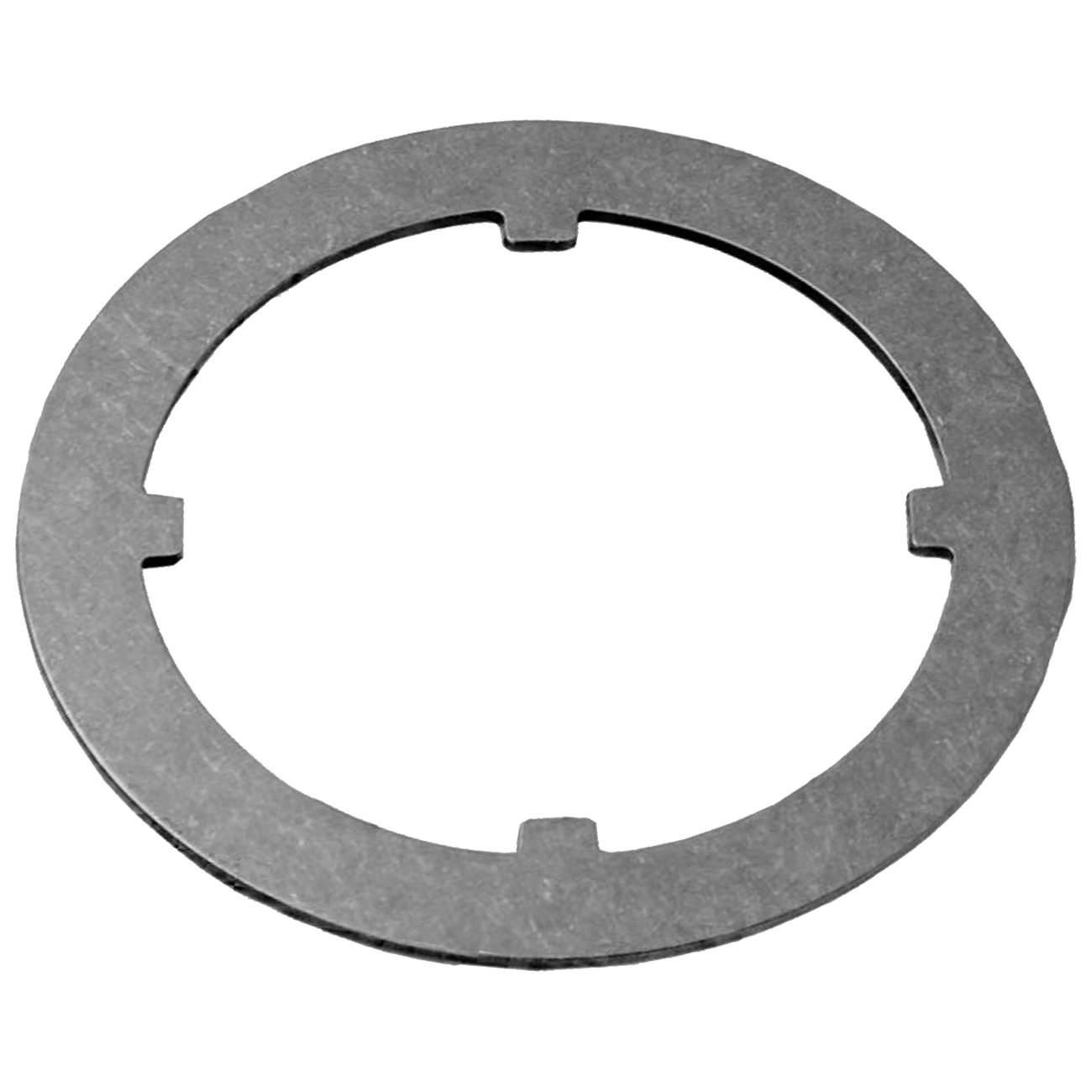

5 Bearing Race Impeller Side
  • Thickness: 0.098"
  • Lug Count: 4
  • Outside Dia: 3.310"
  • Inside Dia: 2.560"
 AW-2-4
Bearing Race AW-2-4
& Impeller Side
  • Thickness: 0.098"
  • Lug Count: 4
  • Outside Dia: 3.310"
  • Inside Dia: 2.560"
7 Sprag
  • Thickness: 0.347"
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.522"
  • Inner Race Outside Dia: 1.862"
 MC-8
Sprag MC-8
&
  • Thickness: 0.347"
  • Cam Count: 22 elements
  • Outer Race Inside Dia: 2.522"
  • Inner Race Outside Dia: 1.862"
9 Stator Cap Turbine-side
  • Thickness: 0.215"
  • Material: Aluminum
  • Functional Thickness: 0.178"
  • Lug Width: Lug O.D.: 3.120"
  • Outside Dia: 2.957"
  • Inside Dia: 1.467"
 VW-4-6
Stator Cap VW-4-6
& Turbine-side
  • Thickness: 0.215"
  • Material: Aluminum
  • Functional Thickness: 0.178"
  • Lug Width: Lug O.D.: 3.120"
  • Outside Dia: 2.957"
  • Inside Dia: 1.467"
16 Seal Ring Scarf Cut Turbine Hub
  • Height: 0.090"
  • Width: 0.093"
  • Material: PTFE
  • Height Metric: 2.3622
  • Seal Type: Scarf Cut
  • Outside Dia: 1.562"
  • Outside Dia Metric: 39.6748
 VO-25-3
Seal Ring VO-25-3
Scarf Cut & Turbine Hub
  • Height: 0.090"
  • Width: 0.093"
  • Material: PTFE
  • Height Metric: 2.3622
  • Seal Type: Scarf Cut
  • Outside Dia: 1.562"
  • Outside Dia Metric: 39.6748
18 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.25"
  • Inside Dia: 7.875"
 JX-23-8
Lining (Friction Ring,Wafer) JX-23-8
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.25"
  • Inside Dia: 7.875"
18 Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.375
  • Inside Dia: 7.875
 YX-23-12
Lining (Friction Ring,Wafer) YX-23-12
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 9.375
  • Inside Dia: 7.875
