Torque Converter | Aisin-Warner | 55-50SN / RE5F22A | TO-86

Ill.# Image Description Specification Part #
Misc NPN-SPL
Misc NPN-SPL
&
1 Hubcap Fits 1-1/2" (38.1mm). Length: 1-1/2"
  • Color: Green
  • Fits 1-1/2" (38.1mm)
 MHC-G
Hubcap MHC-G
Fits 1-1/2" (38.1mm). Length: 1-1/2" &
  • Color: Green
  • Fits 1-1/2" (38.1mm)
2 Impeller Hub
  • Journal Dia: 1.500"
  • Hub Mount: Butt
  • Pump Drive Type: 2 Slots
  • Hardness: Rc 32-36
 YH-1-15GRC
Impeller Hub YH-1-15GRC
&
  • Journal Dia: 1.500"
  • Hub Mount: Butt
  • Pump Drive Type: 2 Slots
  • Hardness: Rc 32-36

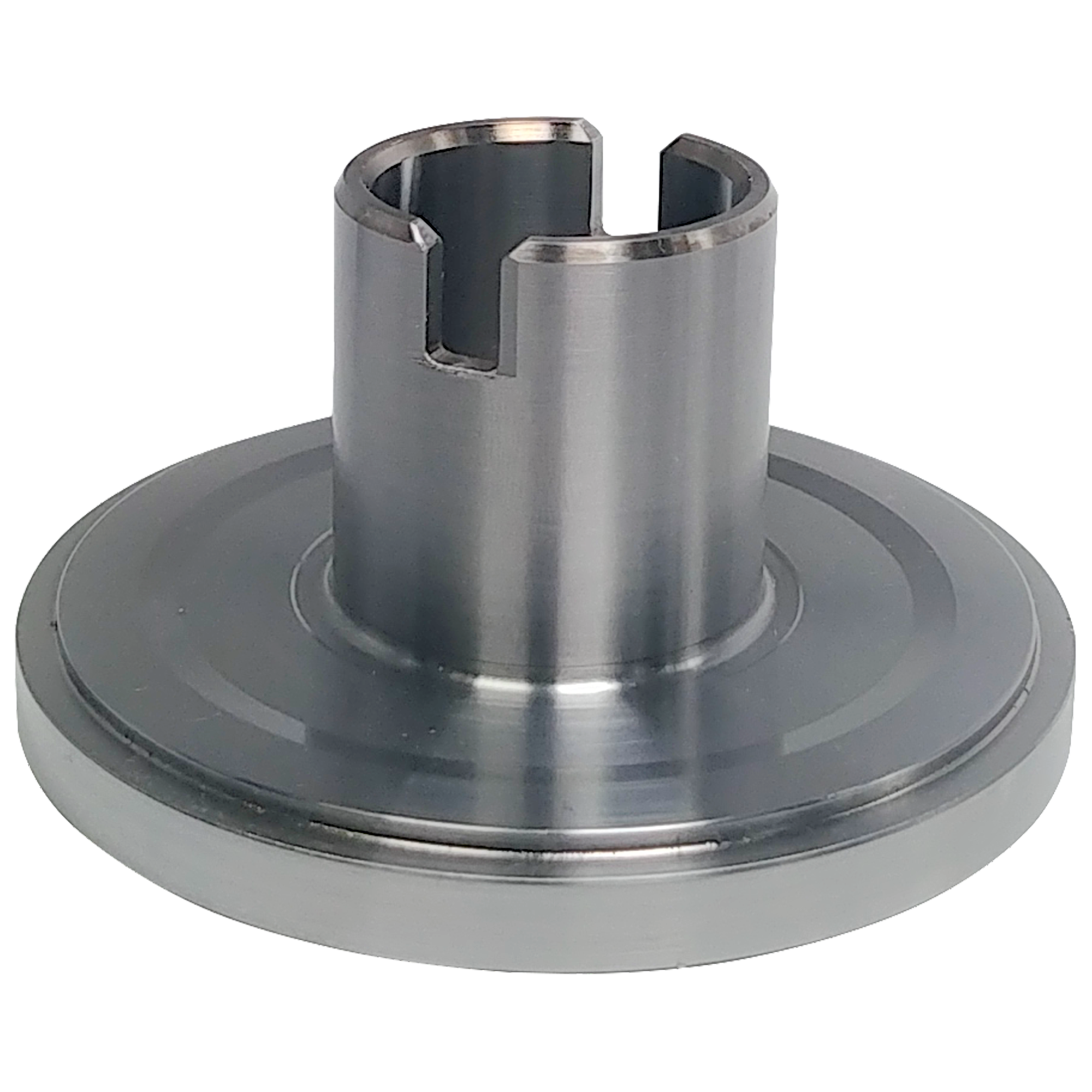

2 Impeller Hub Flanged
  • Journal Dia: 1.500"
  • Installed Height: 1.532"
  • Height: 1.830"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.640"
  • Hardness: Rc 32-36
 YH-1-16FLG
Impeller Hub YH-1-16FLG
Flanged &
  • Journal Dia: 1.500"
  • Installed Height: 1.532"
  • Height: 1.830"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.640"
  • Hardness: Rc 32-36
3 Bearing
  • Thickness: 0.13
  • Thickness metric: 3.3
  • Bearing type: Semi-Enclosed
  • Outside Dia: 3.44
  • Inside Dia: 2.43
  • Outside Dia Metric: 87.38
  • Inside Dia metric: 61.72
  • Race: YW-2-19, YW-2-17
 YW-2-18
Bearing YW-2-18
&
  • Thickness: 0.13
  • Thickness metric: 3.3
  • Bearing type: Semi-Enclosed
  • Outside Dia: 3.44
  • Inside Dia: 2.43
  • Outside Dia Metric: 87.38
  • Inside Dia metric: 61.72
  • Race: YW-2-19, YW-2-17
3 Bearing Race
  • Thickness: .098"
  • Lug Count: 4
  • Outside Dia: 3.32"
 YW-2-19
Bearing Race YW-2-19
&
  • Thickness: .098"
  • Lug Count: 4
  • Outside Dia: 3.32"

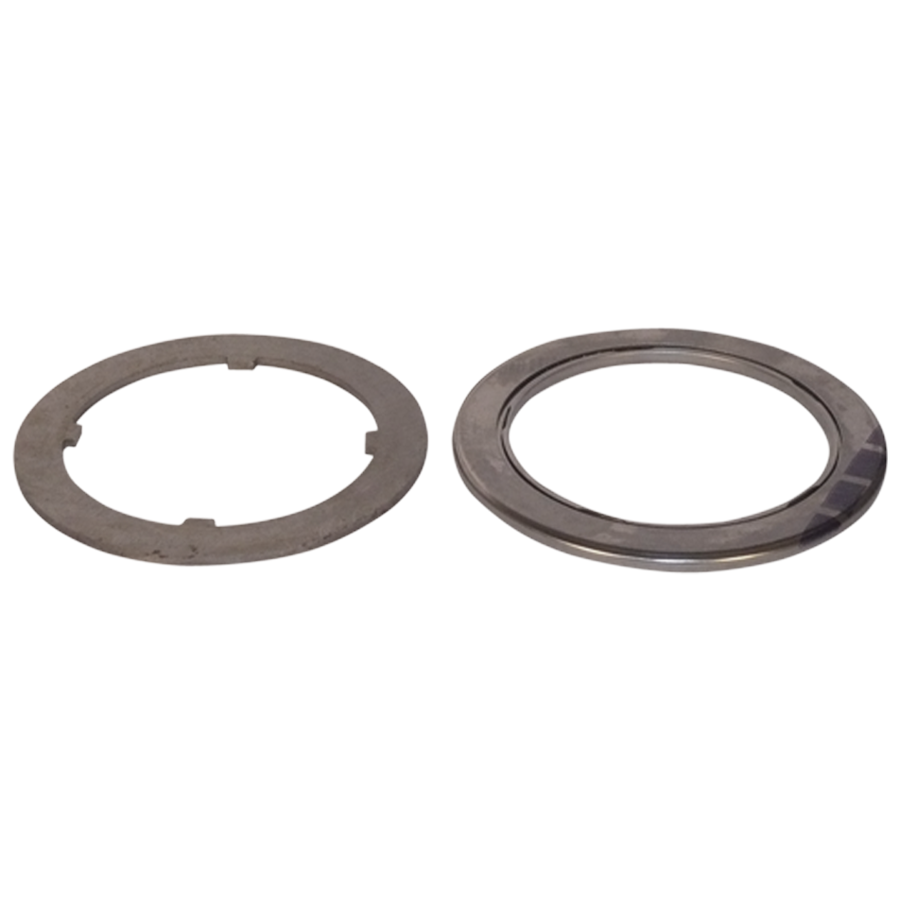

3 Bearing & Race Kit Replaces the OE bearing & 4-Lug bearing race. Stator modification is required. YW-2-20K
Bearing & Race Kit YW-2-20K
& Replaces the OE bearing & 4-Lug bearing race. Stator modification is required.
8 Sprag
  • Thickness: 0.343"
  • Cam Count: 23 elements
  • Outer Race Inside Dia: 2.622"
  • Inner Race Outside Dia: 1.966"
 YC-6-4
Sprag YC-6-4
&
  • Thickness: 0.343"
  • Cam Count: 23 elements
  • Outer Race Inside Dia: 2.622"
  • Inner Race Outside Dia: 1.966"
13 Bearing Race
  • Thickness: .098"
  • Lug Count: 4
  • Outside Dia: 2.35"
  • Inside Dia: 1.54"
 YW-2-17
Bearing Race YW-2-17
&
  • Thickness: .098"
  • Lug Count: 4
  • Outside Dia: 2.35"
  • Inside Dia: 1.54"
13 Bearing
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.43
  • Inside Dia: 1.5
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 38.1
  • Race: YW-2-17
 YW-2-21
Bearing YW-2-21
&
  • Thickness: 0.15
  • Thickness metric: 3.81
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.43
  • Inside Dia: 1.5
  • Outside Dia Metric: 61.72
  • Inside Dia metric: 38.1
  • Race: YW-2-17
13 Bearing & Race Kit
  • Outside Dia: 2.43
  • Inside Dia: 1.5
  • includes:bearing YW-2-2 race & YW-2-17
 YW-2-21K
Bearing & Race Kit YW-2-21K
&
  • Outside Dia: 2.43
  • Inside Dia: 1.5
  • includes:bearing YW-2-2 race & YW-2-17

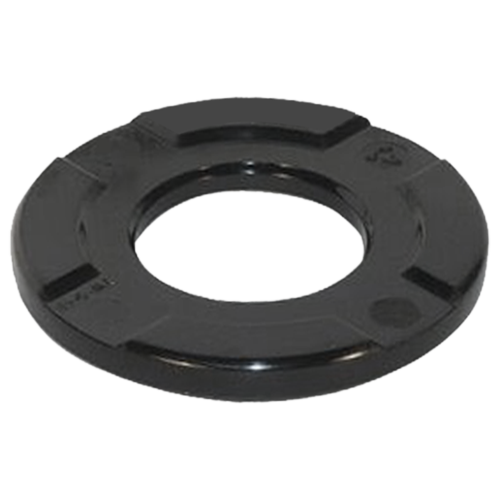

17 Turbine Washer
  • Thickness: .236"
  • Material: Plastic
  • Outside Dia: 2.291"
  • Inside Dia: 1.110"
  • Replaces Bearing
 YW-9-4B
Turbine Washer YW-9-4B
&
  • Thickness: .236"
  • Material: Plastic
  • Outside Dia: 2.291"
  • Inside Dia: 1.110"
  • Replaces Bearing
17 Bearing & Race Kit
  • Thickness: 0.16"
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.19"
  • Inside Dia: 1.18"
  • Replaced by Plastic Washer YW-9-4B
 YW-9-4K
Bearing & Race Kit YW-9-4K
&
  • Thickness: 0.16"
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.19"
  • Inside Dia: 1.18"
  • Replaced by Plastic Washer YW-9-4B
18 Seal Ring Scarf Cut
  • Height: 0.106"
  • Width: 0.090"
  • Material: PTFE
  • Height Metric: 2.8194
  • Seal Type: Scarf Cut
  • Outside Dia: 2.683"
  • Outside Dia Metric: 68.2498
 YO-25-1
Seal Ring YO-25-1
Scarf Cut &
  • Height: 0.106"
  • Width: 0.090"
  • Material: PTFE
  • Height Metric: 2.8194
  • Seal Type: Scarf Cut
  • Outside Dia: 2.683"
  • Outside Dia Metric: 68.2498
19 Metal Clad Seal
  • Housing Bore Dia: 0.929
  • Housing Bore Dia Metric: 23.6
  • Shaft Dia metric: 15
  • Shaft Dia: 0.591
  • Material: Fluorocarbon
 YO-25-12
Metal Clad Seal YO-25-12
&
  • Housing Bore Dia: 0.929
  • Housing Bore Dia Metric: 23.6
  • Shaft Dia metric: 15
  • Shaft Dia: 0.591
  • Material: Fluorocarbon
19 Metal Clad Seal Spring Loaded
  • Housing Bore Dia: 0.929
  • Housing Bore Dia Metric: 23.6
  • Shaft Dia metric: 15
  • Shaft Dia: 0.591
 YO-25-2
Metal Clad Seal YO-25-2
Spring Loaded &
  • Housing Bore Dia: 0.929
  • Housing Bore Dia Metric: 23.6
  • Shaft Dia metric: 15
  • Shaft Dia: 0.591
21 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.125"
  • Inside Dia: 8.688"
 YX-23-20
Lining (Friction Ring,Wafer) YX-23-20
& AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.125"
  • Inside Dia: 8.688"
21 Lining (Friction Ring,Wafer)
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.25
  • Inside Dia: 8.625
 YX-23-22
Lining (Friction Ring,Wafer) YX-23-22
&
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 10.25
  • Inside Dia: 8.625
22 Bearing
  • Thickness: 0.11
  • Thickness metric: 2.79
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.047
  • Inside Dia: 1.112
  • Outside Dia Metric: 52
  • Inside Dia metric: 28.24
  • Replaces Bearing & Race.
 YW-9-6
Bearing YW-9-6
&
  • Thickness: 0.11
  • Thickness metric: 2.79
  • Bearing type: Semi-Enclosed
  • Outside Dia: 2.047
  • Inside Dia: 1.112
  • Outside Dia Metric: 52
  • Inside Dia metric: 28.24
  • Replaces Bearing & Race.
23 Bearing Race
  • Thickness: 0.075"
  • Outside Dia: 2.126"
  • Inside Dia: 1.260"
 YW-9-7
Bearing Race YW-9-7
&
  • Thickness: 0.075"
  • Outside Dia: 2.126"
  • Inside Dia: 1.260"
