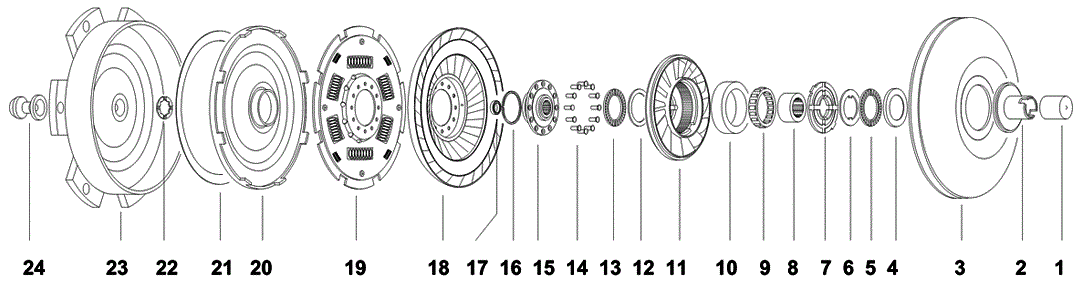

Torque Converter | Aisin-Warner | 450-43LE | TO61

Ill.# Image Description Specification Part #
Misc NPN-SPL
Turbine Spacer
  • Thickness: 0.207"
  • Material: Bronze
  • Outside Dia: 1.759"
  • Inside Dia: 1.187"
 YW-9-9

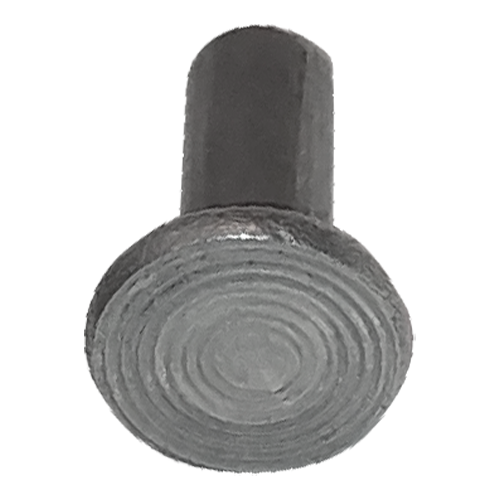

Rivet 12 Pieces Required.
  • Length: 0.620"
  • Rivet solid or tubular: Solid
  • Rivet Shank Dia: 0.249"
  • Rivet Head Dia: 0.500"
  • Rivet Head: Flat
 YX-12-1
1 Hubcap Fits 1-5/8" (41.3mm). Length: 1-3/8"
  • Color: Black
  • Fits 1-5/8" (41.3mm)
 MHC-B

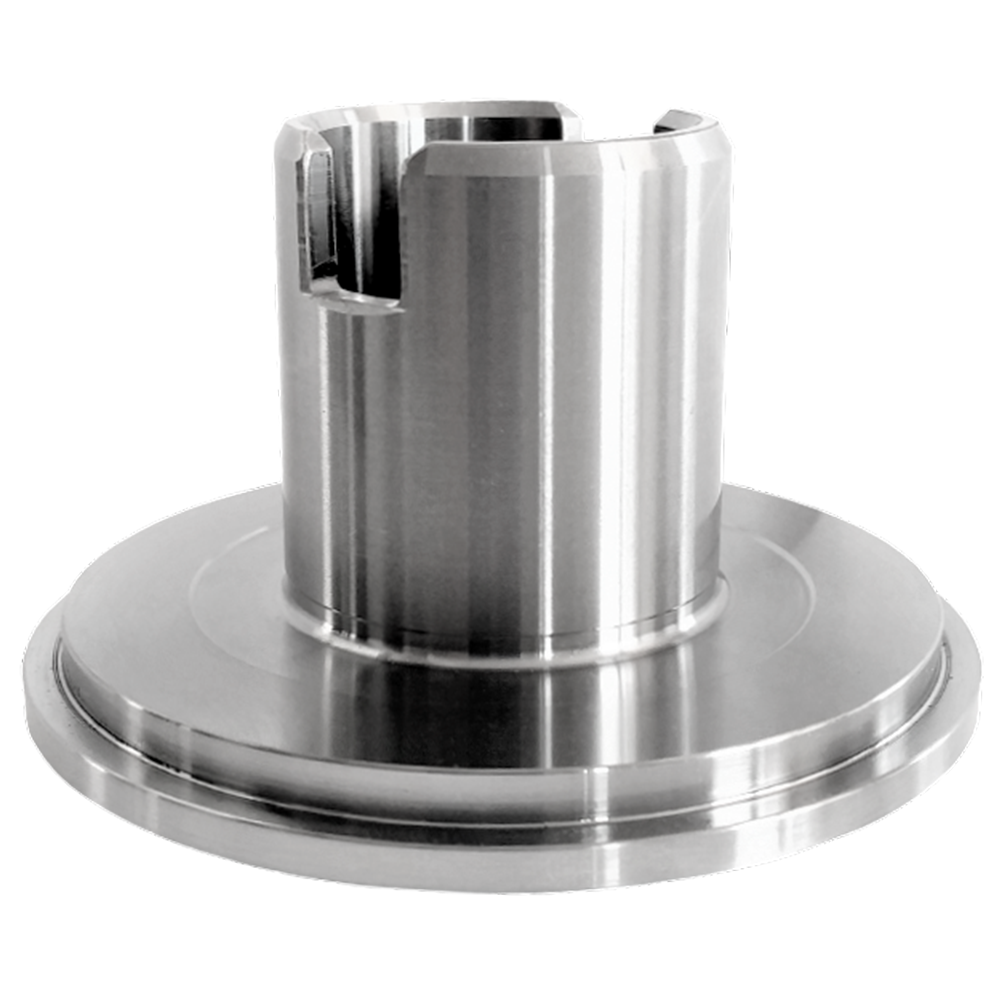

2 Impeller Hub Flanged conversion hub
  • Journal Dia: 1.654"
  • Installed Height: 1.916"
  • Height: 2.173"
  • Hub Mount: Flanged
  • Pump Drive Type: Slots
  • Flange Dia: 3.585"
  • Hardness: Rc 32-36
 YH-1-14FLG
3 Impeller NPN-12-22-3
4 Bearing Race Cupped
  • Thickness: .03"
  • Outside Dia: 2.73"
  • Inside Dia: 1.83"
 YW-2-12
5 Bearing
  • Thickness: 0.137
  • Thickness metric: 3.48
  • Bearing type: Exposed
  • Outside Dia: 2.664
  • Inside Dia: 1.833
  • Outside Dia Metric: 67.67
  • Inside Dia metric: 46.56
  • Race: YW-2-12, YW-2-13
 YW-2-11
6 Bearing Race
  • Thickness: .10"
  • Outside Dia: 2.59"
  • Inside Dia: 1.79"
 YW-2-13

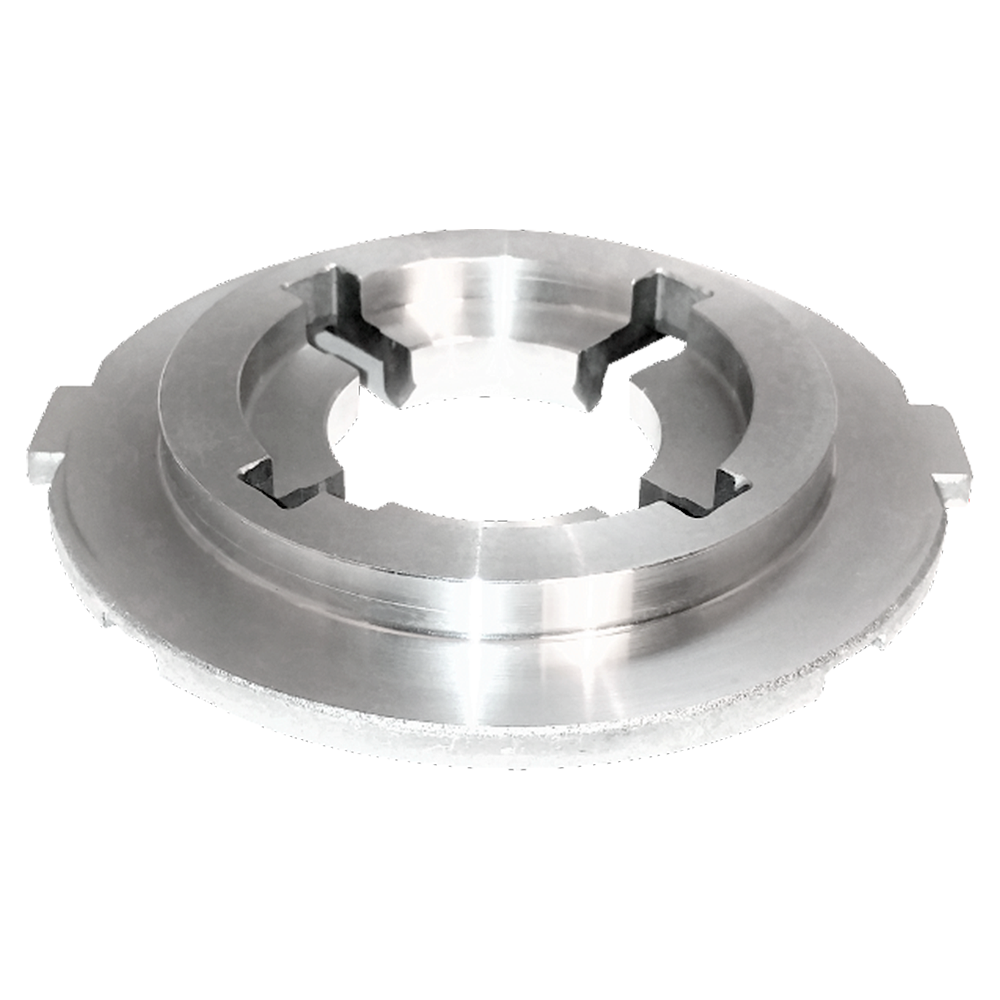

7 Stator Cap
  • Thickness: .59"
  • Material: Aluminum
  • Outside Dia: 3.65"
  • Inside Dia: 1.37"
 YW-4-12
8 Inner Race
  • Height: 1.06"
  • Internal Teeth: 41 (12 Removed)
  • Outside Dia: 2.07"
 NPN-12-22-8

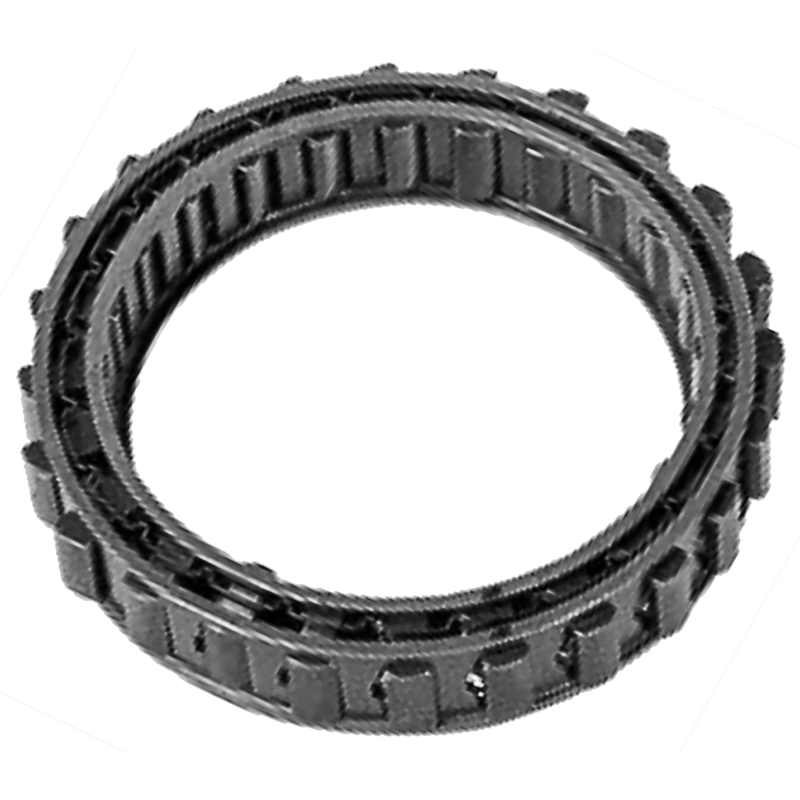

9 Sprag
  • Thickness: 0.638"
  • Cam Count: 24 elements
  • Outside Dia: 2.717"
  • Inside Dia: 2.074"
 YC-6-2
10 Cam NPN-12-22-10
11 Stator NPN-12-22-11
12 Bearing Race
  • Thickness: .10"
  • Outside Dia: 2.69"
  • Inside Dia: 2.02"
 YW-2-14
13 Bearing
  • Thickness: 0.149
  • Thickness metric: 3.78
  • Bearing type: Semi- Enclosed
  • Outside Dia: 2.609
  • Inside Dia: 1.842
  • Outside Dia Metric: 66.27
  • Inside Dia metric: 46.79
  • Race: YW-2-14
 YW-2-15
13 Bearing & Race Kit 450-43LE Requires stator & turbine-hub machining
  • Thickness: 0.215"
  • Outside Dia: 2.700"
  • Inside Dia: 1.730"
 YW-2-34K
14 Rivet
  • Length: .625"
  • Rivet Shank Dia: .250"
 NPN-12-22-14
15 Turbine Hub Used with bearing & race kit YW-2-34K
  • Internal Teeth: 20
  • Hardness: Heat-Treated (hardened)
  • Outside Dia: 3.96"
 YX-13-12HT
16 Seal Ring Straight Cut
  • Height: 0.095"
  • Width: 0.091"
  • Material: PTFE
  • Height Metric: 2.413
  • Seal Type: Straight Cut
  • Outside Dia: 2.383"
  • Outside Dia Metric: 60.5282
 YO-25-7
17 Metal Clad Seal
  • Housing Bore Dia: 0.984
  • Housing Bore Dia Metric: 25
  • Shaft Dia metric: 15.5
  • Shaft Dia: 0.61
  • Material: Fluorocarbon
 YO-25-8
18 Turbine NPN-12-22-18
19 Damper Assembly NPN-12-22-19
20 Piston NPN-12-22-20
21 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 11
  • Inside Dia: 9.563
 TX-23-10
21 Lining (Friction Ring,Wafer) AVAILABLE WITH DIFFERENT FRICTION MATERIALS, INCLUDING HIGH CARBON, KEVLAR®, CARBON AND TAN.
  • Thickness: 0.045"
  • Material: Red
  • Outside Dia: 11"
  • Inside Dia: 9.563"
 YX-23-17
23 Front Cover NPN-12-22-23
24 Pilot Front Cover NPN-12-22-24
